QAM013ActivSlate 60 Wireless Graphics Tablet

User Guide Copyright Information ©2010 Promethean Limited. All rights reserved. This guide is distributed for the ActivSlate 60. It may only be reproduced for use within the institution in which the product is used. For use outside of your institution, no part of this guide may be reproduced, transmitted, stored in a retrieval system or translated into any other language without the prior permission of Promethean Limited. Please note that the content in this guide is protected under copyright law. Although every care has been taken in the compilation of this guide, Promethean Limited accepts no responsibility for errors or omissions. 2 ActivSlate 60 User Guide ActivSlate 60 User Guide 3 English 0 عربي 0 Português do Brasil 0 Dansk 0 Nederlands 0 Español 0 Suomalainen 0 Français 0 Deutsch 0 Italiano 0 Kazakh 0 한국의 0 Norsk 0 Português Europeu 0 Русский 0 简体中文 0 Svensk 0 繁體中文 0 Türkçe 0 Việ t 0 Contents 4 ActivSlate 60 User Guide Thank you for purchasing an ActivSlate 60 from Promethean. We recommend using ActivSlate with our latest software, ActivInspire Professional Edition, which can be downloaded from www.PrometheanPlanet.com/ActivInspire Acquire thousands of great lessons, resources and teaching ideas from our free online community, Promethean Planet. While you’re there, enroll in one of our ActivLearning courses. www.PrometheanPlanet.com/ActivLearning Part of the Activclassroom ActivSlate, along with ActivInspire, was designed to be an innovative and integrated whole group learning environment which encourages active student participation in lessons. For more information on the ActivClassroom by Promethean and other products available please visit www.PrometheanWorld.com safety information The ActivSlate 60 series battery is charged by a USB A – micro USB cable supplied in the box. Alternatively, a universal input power supply unit, branded Promethean and type FW7650L/05 can be purchased separately. This is the only approved power supply unit. Do not connect any other power supply unit to the ActivSlate 60. Caution: risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions The power supply unit has been fitted with an interchangeable mains plug which is clipped into the main body. Where an interchangeable plug is not available for your country, an adapter is supplied with a suitable mains lead. The power supply unit may be supplied with more than one interchangeable plug/adapter and mains leads. This is to accommodate countries with more than one type of mains outlet socket. Only use the interchangeable plug or adapter plus mains lead which is compatible with your mains outlet socket. Do not attempt to modify the mains lead. If you are unsure of the electrical compatibility of your equipment, please contact Promethean or an authorised Promethean service agent before attempting to connect the power supply unit to the mains supply. The power supply unit does not contain any user serviceable parts and must not be opened. If you suspect that the power supply unit is faulty, you should contact an authorised Promethean service agent to obtain a replacement. Inspect the power supply unit for physical damage to the casing before use. If damage is apparent, take care to avoid contact with any potentially live parts. Disconnect the power supply unit from the mains supply at the wall socket and contact an authorised Promethean service agent for advice. The ActivSlate does not contain any user serviceable parts. You should not attempt, under any circumstances, to gain access to internal parts of the unit. If the ActivSlate is suspected to be faulty or damaged contact Promethean or an authorised Promethean service agent for advice. environmental considerations Operating Temperature Range: +2°C to +45°C Storage Temperature Range: -10°C to +60°C Humidity (non condensing) 20% to 90% The ActivSlate contains a Lithium-ion battery. Do not incinerate. Return to an authorised Promethean service agent for safe disposal. Welcome ActivSlate 60 User Guide 5 Features PIN code buttons— Click three buttons with the ActivPen to enter the code from ActivInspire. Connect ActivHub to a USB socket on your computer. Use the USB extension cable if necessary. Registration button—After starting registration from ActivInspire, click here with the ActivPen. Function indicator light flashes red when powered from the computer and flashes green when in use. Drawing area— Click and drag with the ActivPen to control your ActivBoard from anywhere in the ActivClassroom. Power button—Press, hold and release. When the ActivSlate is not in use it powers off after three minutes. Charging socket—Connect the USB cable here for around three hours to charge the battery. Using the stand will ensure a stable position for the ActivHub. Antenna should be raised and in clear view of all ActivClassroom components. LCD screen—Shows wireless signal strength, battery charge, registration. Touch-menu lets you change settings. about the activhub about the activslate 60 6 ActivSlate 60 User Guide In the ActivInspire Voting Browser, select Device Registration. In Device Registration, select ActivSlates and click Register. To register one ActivSlate, select the number 1 and click Next. step 1 step 2 step 3 ActivSlate 60 User Guide 7 Registration Click once on the Registration button on the ActivSlate and enter the PIN code from ActivInspire by clicking the PIN code buttons on the ActivSlate. In ActivInspire, click Finish. The ActivSlate LCD screen should display ‘REGISTERED’. A PIN code and instructions are displayed in the next window. step 5 step 6 step 4 PIN code buttons Registration button 8 ActivSlate 60 User Guide united states of america This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause un…

Text truncated - open the document above for the full version.

LETTER OF AGENCY 20 July 2010 RE: ActivSlate 60 FCC ID: QAM013 To Whom It May Concern, We Promethean Limited certify that we are not subject to denial of federal benefits that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002(b), to the application, is subject to denial of federal benefits, that includes FCC benefits Thank you for your attention to these matters. Yours faithfully, Bryan Lofthouse Compliance Engineer Tel: + 44 (0) 1254290818 Fax: +44(0)1254290890 PROMETHEAN LTD. PROMETHEAN HOUSE. LOWER PHILIPS ROAD. BLACKBURN. LANCASHIRE BBI 5TH UK. TEL: .44 (0) 1254298598 FAX. + 44 (0) 1254 581574 WWW.PROMET IEAII.JWORLD.COM

~ ~ PROMETHEf.'N 20 July 2010 Promethean 2.4GHz ActivClassroom products (ActivBoardlActivHu blActiVote/ActiVslatelActivExpression) Frequency Hoppin9 To whom it may concern: Each frame will transmit on a new channel, so the master device (ActivHub) hops to the new channel to send the beacon and all of the slave devices (ActivBoard, ActiVote, ActivSlate and ActivExpression) respond on the same channel. The next channel is chosen by adding 'hop width' to the value of the current channel. 'Hop width' is chosen at random from 2 to 45 on every power up of the ActivHub and the value is transmitted in each beacon, so that a slave device can keep synchronized with the master device. When the next channel to hop to is calculated the hop width must be doubled and added to the current channel number. If the next calculated channel value is greater than 94, subtract 94 from it. If the new channel is marked as bad, use 'hop width' to calculate another channel. As stated the hop width is a random value; this is generated at power up based on the background noise. At power up the transceiver monitors the RSSI value on channel 0, as this is not used in the system so is not influenced by another system. The random value of the noise is used to generate a start channel and a hop width which all slave devices will use for this session. Bryan Lofthouse Compliance Engineer Tel +44 (0) 1254 290818 Fax +44 (0) 1254290890 PROMETHEAN LTD. PROMETHEAN HOUSE. LOWER PHILIPS ROAD, BLACKBURN, LANCASHIRE BBl ~TH U I TEL: +44 (0) 1254 298 598 FAX + 44 (0) 1254 581 574 WWW.PROMETHEANWORLD COM

~ ~ PR?0ETH~~N REQUEST FOR CONFIDENTIALITY IN ACCORDANCE WITH FCC RULE 0.459 20 July 2010 RE: ActivSlate 60 Certification Application FCC ID: QAM013 To Whom It May Concern, Please be advised that the following information is to be held confidential on behalf of Promethean Limited. • Circuit Diagrams • Bill of Materials • Block Diagrams • Circuit descriptions The application contains technical information which Promethean Limited deems to be trade secrets and propriety. If made public, the information might be used to the disadvantage of the applicant in the market place. Thank you for your attention to this matter. Yours faithfully, Bryan Lofthouse Compliance Engineer Tel: + 44 (0) 1254290818 Fax: + 44 (0) 1254290890 PROMETHEAN LTD, PROMETHEAN HOUSE, LOWER PHILIPS ROAD, BLACKBURN, LANCASHIRE BBI 5TH U K TEL: +44 (0) 1254 298 598 F,A.X· + 44 (0) 1254 581 574 WWW.PROME HEANWORLD.C.OM

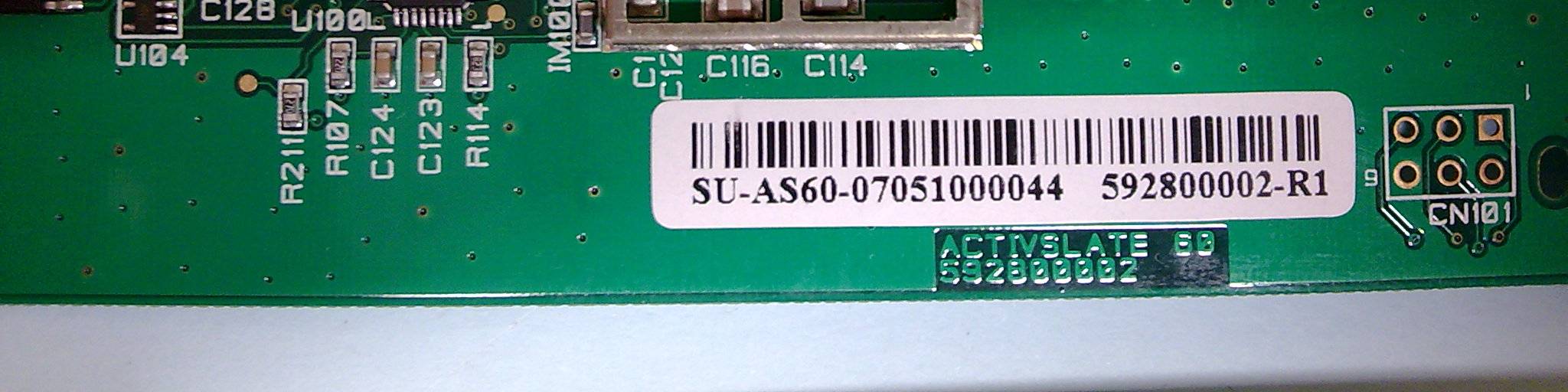

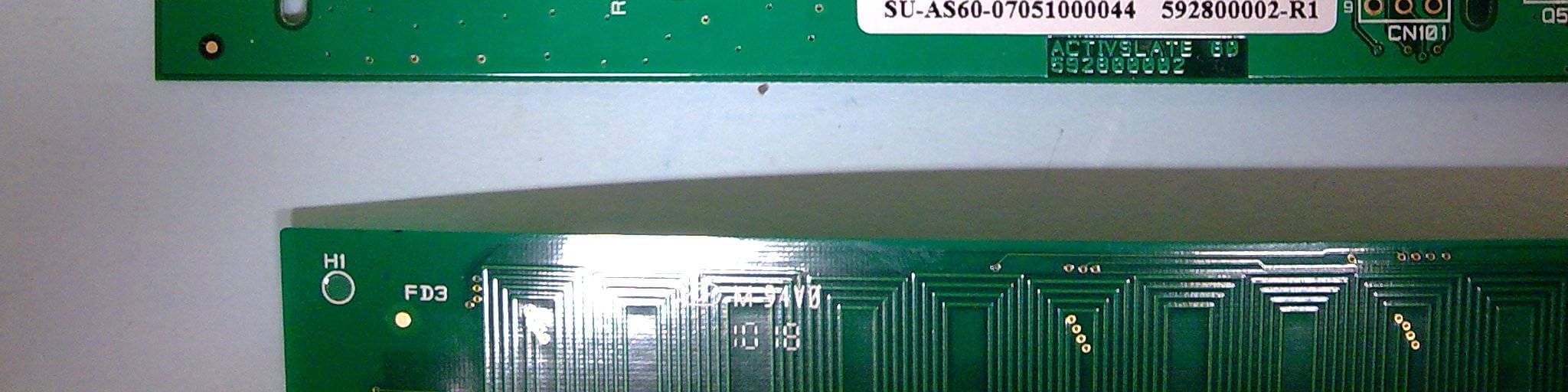

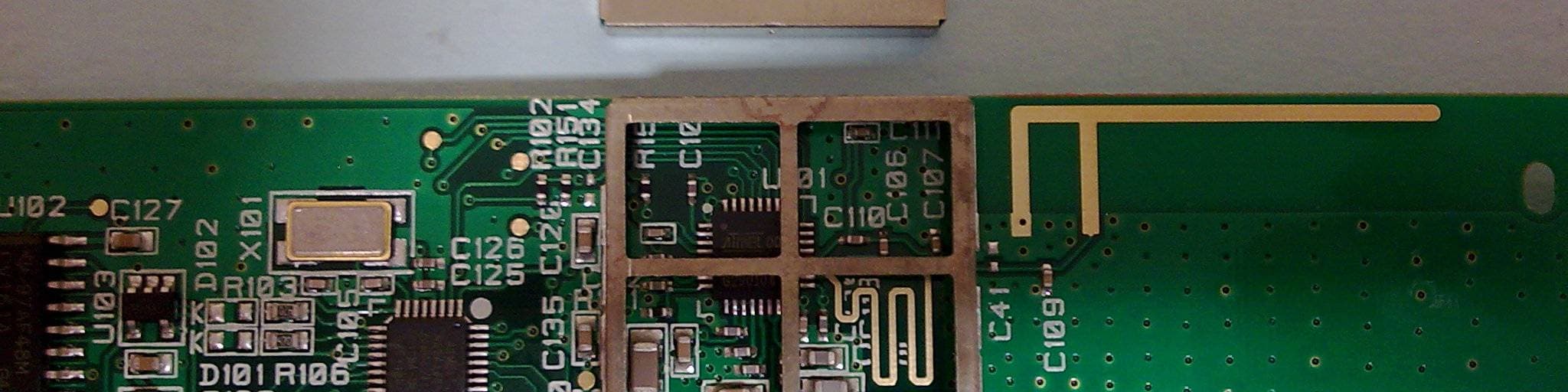

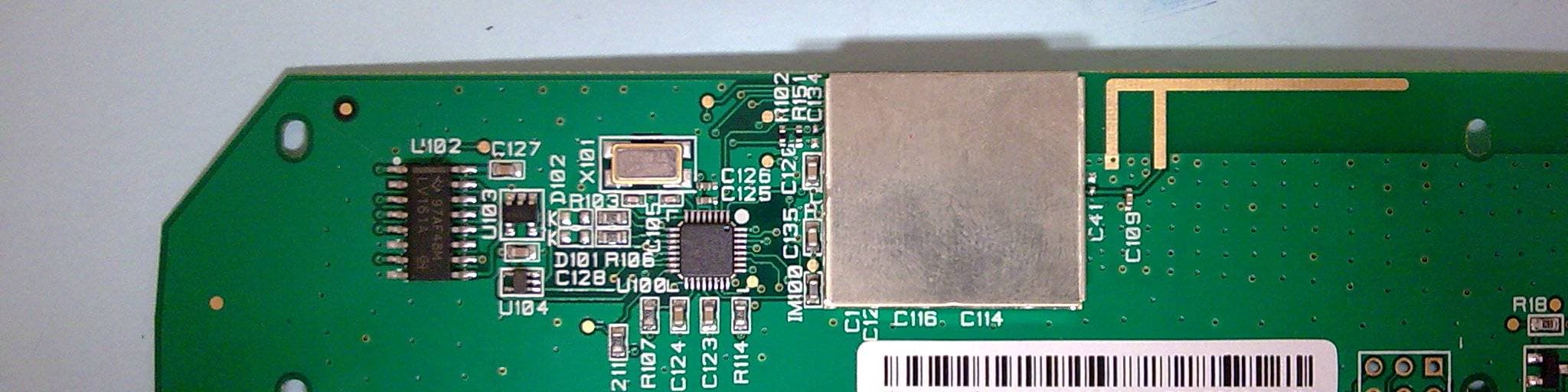

Activboard60 Overview Rear Case removed PCB’S removed from case Overview of the RF section Screening cover removed

~Jj ~ PROMET~E~~ MANUFACTURER'S LETTER 20 July 2010 RE: FCC Labelling Requirements ActivSlate 60 FCC 10: QAM013 To Whom It May Concern, Regarding ActivSlate 60 product labelling, please be advised that the manufacturer Promethean Limited will ensure that the above-referenced model will be manufactured in accordance with the FCC Rules and Regulations. On the following page is a copy of the drawing detailing the pad printing used on the ActivSlate 60. The pad printing fUlly meets the durability requirements as detailed in UL 60950-1. The serial number label is affixed to the rear of the ActivSlate 60 as per drawing 592 1001. Thank you for your attention to this matter. Yours faithfully, Bryan Lofthouse Compliance Engineer Tel: + 44 (0) 1254290818 Fax: +44 (0) 1254 290890 PROMETHEAN LTD, PROMETHEAN HOUSE. LOWER PHILIPS ROAD, BLACKBURN LANCASHIRE BB1 5TH, U.K TEL: t44 (0) 1254298598 FAX: f 44 (0) 1254 581574 WWW.PROMETHEANWORLD.COM ABCDEF Colour = PANTONE WHITE FCC ID: QAM013 IC: 5459A-013 Ext. Charger 5V _ _ _ 500mA Internal battery Li.Ion 3.7V 850 mAh Promethean Ltd (www.prometheanworld.com) Model name: ActivSlate 60 Model number: PRM-RS3-01 Made in China F2 Designed in the UK

Activboard60 Overview Rear Case removed PCB’S removed from case Overview of the RF section Screening cover removed

RADIO FREQUENCY RADIATION EXPOSURE MPE calculation: Test setup1: EUT222TRLUH281 Formula: S=EIRP/ 4π R 2 S = Power Density (mW/cm 2 ) EIRP = Radiated power (mW) R = distance for body (cm) Calculation: S=4.16mW/ 4 π 0.58mW/cm 2 S=0.984mW/cm 2 Notes: 1.The unit will be mounted at least0.58cm away from the body. 2.The carrier power EIRP 4.16mWwas theworst case peak level measured. 3.Antenna Gain of 0dBi stated by manufacturer. Limit The limit of Powerdensity for the General Population/ Uncontrolled Exposure is 1 mW/cm 2 . Result The EUT meet the 1 mW/cm 2 limit.

Total number of pages : 77 grepbl.doc Ver: g01/10 "0F3058WUS1.doc" TRaC RadioTest Report:0F3058WUS1 Applicant:Promethean Ltd Apparatus:Activslate60 PRM- RS3- 01 FCC ID: QAM013 Authorised by: :Radio Product Manager Issue Date:20 th July 2010 Authorised Copy Number: PDF Radio Test Report: 0F3058WUS1 2 Contents Section 1:Introduction3 1.1General3 1.2Tests Requested By4 1.3Manufacturer4 1.4Apparatus Assessed4 1.6Notes Relating To The Assessment6 1.7Deviations from Test Standards6 Section 2:Measurement Uncertainty7 2.1Measurement Uncertainty Values7 Section 3:Modifications9 3.1Modifications Performed During Assessment9 Appendix A:Formal Emission Test Results10 A1Conducted Fundamental Carrier Power11 A2RF Antenna Conducted Spurious Emissions12 A3Radiated Electric Field Emissions Within The Restricted Band 15.20513 A3Radiated Electric Field Emissions Within The Restricted Band 15.20516 A4Power Line Conducted Emissions22 A520 dB Bandwidth and Channel Spacing24 A6Hopping frequencies25 A7Channel Occupancy26 A8Antenna Gain27 Appendix B:Supporting Graphical Data28 Appendix C:Additional Test and Sample Details61 Appendix D:Additional Information67 Appendix E:Calculation of the duty cycle correction factor68 Appendix F:Photographs and Figures69 Radio Test Report 0F3058WUS1 3 Section 1:Introduction 1.1General This report contains an assessment of an apparatus against Electromagnetic Compatibility Standards based upon tests carried out on samples submitted to the Laboratory. Test performed by:TRaC Telecoms & Radio Moss View Nipe Lane Up Holland West Lancashire, WN8 9PY United Kingdom Telephone:+44 (0) 1695 556666 Fax:+44 (0) 1695 577077 Email:[email protected] Web site:http://www.tracglobal.com Tests performed by:S Hodgkinson, Radio Test Engineer Report author:S Hodgkinson, Radio Test Engineer This report must not be reproduced except in full without prior written permission from TRaC Telecoms & Radio. Radio Test Report 0F3058WUS1 4 1.2Tests Requested By This testing in this report was requested by : Promethean Ltd Promethean House Lower Philips Road Blackburn Lancashire BB1 5TH 1.3Manufacturer Promethean Ltd Promethean House Lower Philips Road Blackburn Lancashire BB1 5TH 1.4Apparatus Assessed The following apparatus was assessed between: 01/06/10and 09/06/10 The equipment was an Activslate60 PRM- RS3– 01 FCC ID: QAM013 Activslate60is a wireless, fully integrated, A4 sized mini-board; small enough to sit on a desk or to move around the classroom. It operates using theActivpen. This Activslate60is supplied with a USBcablewhich is used tocharge the battery of the Activslate60, when connected to a PC USB socket. The Activslate60 can also be charged via a universal voltage Power Supply Unit (PSU) branded “Promethean” type number FW7650L/05. This is the only approved type of PSU for charging the battery of this Activslate60. Radio Test Report 0F3058WUS1 5 1.5EXAMINATIONS REQUIRED Full details of test results are contained within Appendix A. The following table summarises the assessment. EQUIPMENT TEST / EXAMINATIONS REQUIRED TEST/EXAMINATIONRULE PARTDETECTORAPPLICABILITY Intentional Emission Frequency:15.247PeakYes Intentional Emission Field Strength:--No Intentional Emission Band Occupancy:15.247(a)1PeakYes Intentional Emission EIRP (mW):15.247(b)1PeakYes Spurious Emissions – Conducted:--No Spurious Emissions – Conducted:15.247PeakYes Spurious Emissions – Radiated <1000MHz:15.209 ,15.247Quasi PeakYes Spurious Emissions – Radiated >1000MHz: 15.247 15.209 Peak average Yes Transmitter Carrier Frequency Separation:15.247(a)(1)PeakYes Transmitter Maximum Peak Power Output Power:15.247(b)(1)PeakYes Transmitter Band Edge Conducted Emissions:15.247(c)PeakYes Transmitter Band Edge Radiated Emission:15.247(c)PeakYes Extrapolation Factor:15.31(f)-Yes Maximum Frequency of Search:15.33-Yes Antenna Arrangements Integral:15.203-Yes Antenna Arrangements External Connector:15.204-Yes Restricted Bands:15.205-Yes Mod: Modification CFR: Code of Federal RegulationsANSI: American National Standards Institution REFE: Radiated Electric Field EmissionsPLCE: Power Line Conducted Emissions Radio Test Report 0F3058WUS1 6 1.6Notes Relating To The Assessment With regard to this assessment, the followingpoints should be noted: The results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. The apparatus was set up and exercised usingthe configurations, modes of operation and arrangements defined in this report only. Particular operating modes, apparatus monitoring methods and performance criteria required by the standards tested to have been performed except where identified in Section 1.7 of this test report (Deviations from Test Standards). For emissions testing, throughout this test report, “Pass” indicates that the results for the sample as tested were below the specified limit (refer also to Section 2, Measurement Uncertainty). Where relevant, the apparatus was only assessed using the monitoring methods and susceptibility criteria defined in this report. All testing with the exception of testing at the Open Area Test Site was performed under the following environmental conditions: Temperature: 19to 26C Humidity : 41to 57% All dates used in this report are in the format dd/mm/yy. 1.7Deviations from Test Standards There were no deviations from the standards tested to. Radio Test Report 0F3058WUS1 7 Section 2:Measurement Uncertainty 2.1Measurement UncertaintyValues The following page contains the measurement uncertainties for measurements All statements of uncertainty are expanded standard uncertainty using a coverage factor of 1.96 to give a 95% confidence where no required test level exists. [1] Adjacent Channel Power Uncertainty in test result = 1.86dB [2] Carrier Power Uncertainty in test result (Equipment - TRLUH120) = 2.18dB Uncertainty in test result (Equipment – TRL05) = 1.08dB Uncertainty in test result …

Text truncated - open the document above for the full version.

1 Test Setup Connected to Power Supply 2 Test Setup Connected to Laptop AC Powerline setup with Laptop AC Powerline setup with Power supply
