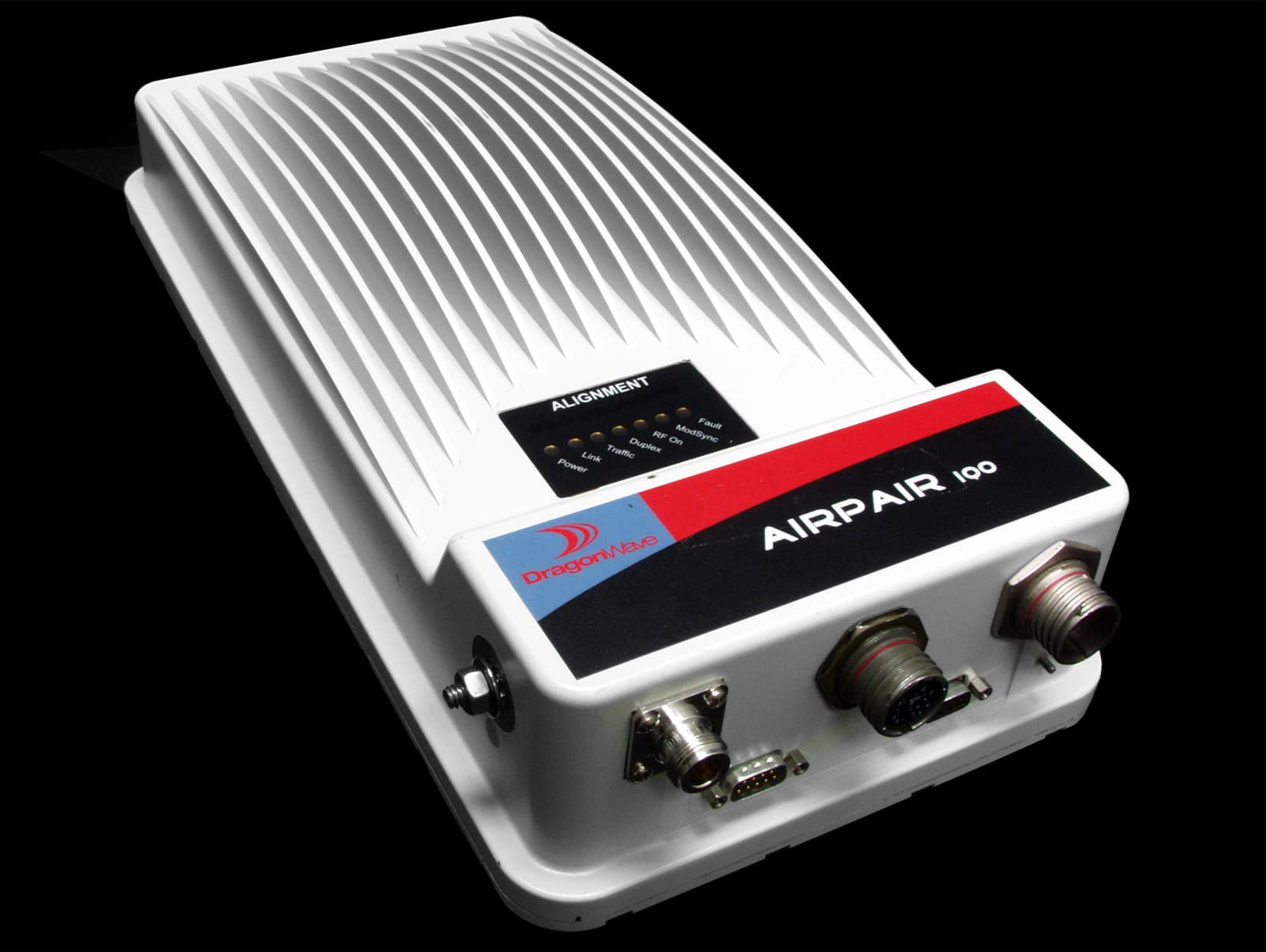

QB8-DWR24-00000124 GHz Air Pair Point-Point Radio Unit

AirPair TM 100-UL High-Capacity 24 GHz Unlicensed Band Wireless Ethernet System Product Manual Version 1.0 This page is intentionally left blank. NOTICE This document contains confidential information, which is proprietary to DragonWave. No part of its contents can be used, copied, disclosed, or conveyed to any party in any manner whatsoever without prior written permission from DragonWave Inc. Copyright © 2001-2003 DragonWave Inc. All Rights Reserved. Printed in Canada. DragonWave Inc. iv This page is intentionally left blank. Table of Contents 1. INTRODUCTION...........................................................................................................1 1.1.....REFERENCES...................................................................................................................................................2 1.2.....ICONS...............................................................................................................................................................3 2. SAFETY AND REGULATORY COMPLIANCE................................................................4 2.1.....SAFETY INFORMATION..................................................................................................................................4 2.1.1. SAFETY INFORMATION FOR DRAGONWAVE’S AIRPAIRTM...............................................................4 2.1.2. INSTALLATIONS..........................................................................................................................................4 2.1.3. LIGHTNING PROTECTION..........................................................................................................................4 2.1.4. ELECTROCUTION HAZARD.......................................................................................................................5 2.2.....REGULATORY COMPLIANCE INFORMATION..............................................................................................5 2.2.1. FEDERAL COMMUNICATION COMMISSION DECLARATION OF CONFORMITY STATEMENT.............5 2.2.2. PROFESSIONAL INSTALLATION................................................................................................................6 3. WARRANTY.................................................................................................................7 3.1.....GENERAL TERMS...........................................................................................................................................7 3.2.....HARDWARE....................................................................................................................................................7 3.3.....SOFTWARE......................................................................................................................................................8 3.4.....RETURN OF EQUIPMENT UNDER WARRANTY...........................................................................................8 3.5.....DEFAULT AND TERMINATION......................................................................................................................9 3.6.....FORCE MAJEURE..........................................................................................................................................10 3.7.....ENGINEERING AND SYSTEM DESIGN........................................................................................................10 4. DESCRIPTION............................................................................................................11 4.1.....AIRPAIR 100-UL SPECIFICATIONS............................................................................................................12 4.2.....CALCULATING THE LINK BUDGET............................................................................................................12 4.2.1. POWER OUTPUT.......................................................................................................................................13 4.3.....COMMAND LINE INTERFACE......................................................................................................................13 4.3.1. CONFIGURING THE SERIAL PORT USING THE CLI...............................................................................13 4.3.2. CREATE LOGIN ACCOUNT......................................................................................................................15 4.4.....SET AIRPAIR FREQUENCY..........................................................................................................................18 4.5.....SET AIRPAIR CUSTOM FREQUENCY SETTINGS.......................................................................................23 4.6.....SET IP ADDRESS...........................................................................................................................................29 4.7.....VLAN TAGGING..........................................................................................................................................32 5. INSTALLATION..........................................................................................................35 5.1.....BEFORE YOU BEGIN.....................................................................................................................................35 DragonWave Inc. vi 5.2.....MOUNTING SPECIFICATIONS......................................................................................................................35 6. INSTALLATION OF RADIO AND MODEM...................................................................37 6.1.....MOUNTING THE RADIO AND ANTENNA ONTO THE MOUNTING BRACKET..........................................37 6.2.....VISUALLY-ALIGNING RADIOS....................................................................................................................39 6.3.....FINE-ADJUST ALIGNMENT OF THE RADIOS................................................................................…

Text truncated - open the document above for the full version.

AirPair 24 – 50 & 100 Mbps 24GHz ISM (unlicensed) Band Top Level Functional Description Intended Function • The AirPair wireless system is a short range device (SRD) which transmits 50 or 100 Mbps (full duplex) between two fixed points. System Desciption • The system is comprised of two receiver/tr ansmitter units (AirPair radio terminals). These are located at the respective ends o f the radio link. Each AirPair radio terminal is equipped with a fixed, high gain, directional antenna which is 30 cm, 60 cm, 90 cm or 120 cm in diameter. The smallest of these antenna s (30 cm dia) provides > 33 dBi of boresite antenna gain. Block Diagram Description – AirPair radio terminal • Data transmit path o Signals from the Fast Ethernet network interface are pro cessed by the network interface block which creates a digital transmit signal flow. This is forwarded to the modem bl ock which adds encryption (op tionally) and error correction and creates a 4, 16, 32 or 64 QAM representation of the data signal and its associ ated overhead information. o The modem drives the modulated signals in I/Q form into the first conversion stage. This stage uses a 400 MHz to 700 MHz tunable LO to up-convert the signa l to within a 400 to 700 MHz IF. The tunable LO is programmed to set the correct transmitted output frequency within the 24.050 - 24.250 GHz band. The IF (400 to 700 MHz range) is then block converted by a fixed sub-harmonic LO at 12375 MHz) o The RF transmit signal is then amplified and filtered a nd passed through an Ortho-Mode Transducer (OMT). The OMT feeds the transmit signal into the antenna where it is transmitted through the highly directional antenna. This transmission is contained w ithin the 24.050 – 24.250 GHz range. • Data receive path o RF receive signals are passed from the highly directional antenna to the OMT. The OMT outputs the RF receive signal which is then amplified and filtered o This RF signal is block down-convert ed through a sub-harmonic mixing stag e using a fixed LO at 12950 MHz. The first IF is in the range 1600 to 1900 MHz. o The first IF is down-converted using a tunable LO wh ich is programmed (between 1460 to 1760 [or 1350 to 1650] MHz) to select the desired signal frequency. The output of this mixing is the second IF at 140 (or 250) MHz. This is then mixed with a fixed LO at 140 MH z (or 250 MHz). The output base-band I/ Q signal is then passed to the modem block. o The modem block accepts the 4, 16 32 or 64 QAM modulated si gnal and demodulates the data stream. It then applies appropriate error correction (a nd optional decryption) and passes the resul ting data stream to the network interface where the data is framed and transmitted thr ough the Fast Ethernet 100BaseT network interface. • Power & Grounding o The system employs an external, remote power module (indoor mounted) which provides -48VDC to the outdoor- mounted AirPair radio terminal. This power is fed to the to the AirPair radio term inal on its own cable or alternately on unused wires within the Fast Et hernet network interface cable. o The system is grounded and bonded such that the outdoor-mounted chassis of the AirPair radio terminal is at the earth ground potential of the mounting stru cture (i.e. a radio relay towe r or roof-top lightning ground).

Master: PT15-SubC-15249 Date: October 17, 2001 Test Report: 3W06768 Issue II Applicant: DragonWave Inc. Equipment Under Test: 24GHz AirPair, P-P Radio Unit (EUT) FCC ID: QB8-DWR24-000001 In Accordance With: FCC Part 15, Subpart C, 15.249 Tested By: Nemko Canada Inc. 303 River Road, R.R. 5 Ottawa, Ontario K1V 1H2 Authorized By: Russell Grant, Senior Approvals Eng. Date: 11 April 2003 Total Number of Pages: 21 Nemko Canada Inc. FCC PART 15, SUBPART C, 15.249 PROJECT NO.:3W06768 EQUIPMENT: 24GHz AirPair Page 2 of 21 Table Of Contents Section 1. Summary Of Test Results ...................................................................................3 Section 2. General Equipment Specification ......................................................................5 Section 3. Powerline Conducted Emissions ........................................................................7 Section 4. Radiated Emissions ...........................................................................................11 Section 5. Frequency Stability ...........................................................................................19 Section 6. Block Diagrams..................................................................................................20 Section 7. Test Equipment List ..........................................................................................21 Nemko Canada Inc. FCC PART 15, SUBPART C, 15.249 PROJECT NO.:3W06768 EQUIPMENT: 24GHz AirPair Page 3 of 21 Section 1. Summary Of Test Results General All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 15.249. All tests were conducted using measurement procedure ANSI C63.4-2000. Radiated Emissions were made on an open area test site. A description of the test facility is on file with the FCC. THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. TESTED BY: ______________________________ DATE: 11 April 2003 Glen Westwell, Wireless Technologist Nemko Canada Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Nemko Canada Inc. FCC PART 15, SUBPART C, 15.249 PROJECT NO.:3W06768 EQUIPMENT: 24GHz AirPair Page 4 of 21 Summary Of Test Data Name Of Test Para. No. Result Conducted Emissions 15.207 Complies Radiated Emissions 15.249 Complies Frequency Tolerance 15.249(b)(3) Complies Test Conditions: Indoor Temperature: 22°C Humidity: 50% Outdoor Temperature: 0°C Humidity: 53% Nemko Canada Inc. FCC PART 15, SUBPART C, 15.249 PROJECT NO.:3W06768 EQUIPMENT: 24GHz AirPair Page 5 of 21 Section 2. General Equipment Specification Manufacturer: DragonWave Inc. Model No.: 24GHz AirPair Serial No.: AP100 Modem #1033 AP CP Radio - None Date Received In Laboratory: 11 March 2003 Nemko Identification No.: Transmit Frequency: Antenna Gain: Modulation: Emission Designator: Maximum Data Rate: #4 & #6 24.05-24.25GHz 36dBi, 41.5dBi & 44.5dBi 16 QAM @ 100Mb/s QPSK @ 50Mb/s 38M2G1D 100Mb/S Nemko Canada Inc. FCC PART 15, SUBPART C, 15.249 PROJECT NO.:3W06768 EQUIPMENT: 24GHz AirPair Page 6 of 21 Nemko Canada Inc. FCC PART 15, SUBPART C, 15.249 PROJECT NO.:3W06768 EQUIPMENT: 24GHz AirPair Page 7 of 21 Section 3. Powerline Conducted Emissions Para. No.: 15.207 Test Performed By: Glen Westwell Date of Test: 10 Mar 2003 Minimum Standard: Frequency Maximum Powerline Conducted RF Voltage (MHz) (μV) (dBμV) 0.45 - 30.0 250 48 Note: The LISN used was a 50ohm/50uH LISN Test Results: Complies Measurement Data: See attached graphs. Nemko Canada Inc. FCC PART 15, SUBPART C, 15.249 PROJECT NO.:3W06768 EQUIPMENT: 24GHz AirPair Page 8 of 21 Nemko Canada Inc. FCC PART 15, SUBPART C, 15.249 PROJECT NO.:3W06768 EQUIPMENT: 24GHz AirPair Page 9 of 21 Nemko Canada Inc. FCC PART 15, SUBPART C, 15.249 PROJECT NO.:3W06768 EQUIPMENT: 24GHz AirPair Page 10 of 21 Set Up Photo Nemko Canada Inc. FCC PART 15, SUBPART C, 15.249 PROJECT NO.:3W06768 EQUIPMENT: 24GHz AirPair Page 11 of 21 Section 4. Radiated Emissions Para. No.: 15.249 Test Performed By: Glen Westwell Date of Test: 11 April 2003 Minimum Standard: Fundamental (GHz) Field Strength (mV/m) Field Strength (dBμV) Harmonic (mV/m) Harmonic (dBμV) 24.05-24.25 2500 128 0.5 54 Test Results: Complies. Measurement Data: See attached tabulated data. •All spurious and harmonic emissions were searched from 30MHz to 100GHz. •All emissions were searched on the horizontal and verticle axis. Worst case emissions have been presented. •Fundimental emissions were measured at 10m and extrapolated to 3m due to the focus of the high gain antenna. •Spurious and harmonic emissions were searched at 3m, 1m and 0.5 m. None were detected within 20dB of the limits. •Maximized emissions were verified with the input power varied at +/-15%. • Where available, the emissions have been searched on 3 orthogonal axis. Nemko Canada Inc. FCC PART 15, SUBPART C, 15.249 PROJECT NO.:3W06768 EQUIPMENT: 24GHz AirPair Page 12 of 21 Test Data - Radiated Emissions Test Distance (meters) : 10 Range: C Receiver: HP 8565E RBW(kHz): 1000 Detector: Ave/Peak. Freq. (MHz) Ant. * Pol. (V/H) RCVD Signal (dBμV/m) Ant. Factor (dB)** Amp. Gain (dB)*** Dist. Corr. (dB) Field Strength (dBμV/m) Limit (dBμV/m) Margin (dB) Small Antenna – 36dBi, Peak Field Strength 24080.00 Horn H 70.7 45.7 10.5 126.9 128.0 1.1 24150.00 Horn H 70.0 45.7 10.5 126.2 128.0 1.8 24220.00 Horn H 71.0 45.7 10.5 127.2 128.0 0.8 La…

Text truncated - open the document above for the full version.

No. Frequency of Emission (MHz) Detector Emission Level (dBuV) LISN Loss (dB) Cable Loss (dB) Result (dBuV) Limit (dBuV) Margin (dB) Quasi-Peak 54.4 0.1 0 54.5 66.0 11.5 Average 35.6 0.1 0 35.7 56.0 20.3 Quasi-Peak 48.3 0.1 0 48.4 63.7 15.3 Average 19.3 0.1 0 19.4 53.7 34.3 Quasi-Peak 41 0 0.2 41.2 60.9 19.7 Average 0.3 0 0.2 0.5 50.9 50.4 Quasi-Peak 38.9 0 0.2 39.1 60.0 20.9 Average 35.5 0 0.2 35.7 50.0 14.3 Quasi-Peak 34.7 0 0.2 34.9 58.1 23.2 Average 31.3 0 0.2 31.5 48.1 16.6 Quasi-Peak 29.6 0 0.2 29.8 56.5 26.7 Average 26.8 0 0.2 27 46.5 19.5 Quasi-Peak Average Quasi-Peak Average Quasi-Peak Average Quasi-Peak Average Quasi-Peak Average Quasi-Peak Average LISN: EMCO FA001545 Project Number: 3w06768 Class B Mains limits (Phase) 12349 101112 5678 Comments: QB8-DWR24-000001 0.15040.19760.27880.31030.38910.4696 Date: May 9, 2003 Quasi-Peak Average Quasi-Peak Average Quasi-Peak Average Quasi-Peak Average Quasi-Peak Average Quasi-Peak Average Quasi-Peak Average Quasi-Peak Average Quasi-Peak Average Quasi-Peak Average Quasi-Peak Average Quasi-Peak Average Quasi-Peak Average Quasi-Peak Average Quasi-Peak Average Quasi-Peak Average 13141718151619202122232425262728 Quasi-Peak Average Quasi-Peak Average Quasi-Peak Average Quasi-Peak Average Quasi-Peak Average Quasi-Peak Average Quasi-Peak Average Quasi-Peak Average 2930313233343536 No. Frequency of Emission (MHz) Detector Emission Level (dBuV) LISN Loss (dB) Cable Loss (dB) Result (dBuV) Limit (dBuV) Margin (dB) Quasi-Peak 54.5 0.1 0 54.6 65.7 11.1 Average 45.1 0.1 0 45.2 55.7 10.5 Quasi-Peak 39.1 0.1 0.2 39.4 60.4 21.0 Average 9.1 0.1 0.2 9.4 50.4 41.0 Quasi-Peak 47.9 0.1 0.2 48.2 63.5 15.3 Average 20 0.1 0.2 20.3 53.5 33.2 Quasi-Peak 50.1 0.1 0.2 50.4 64.5 14.1 Average 1.7 0.1 0.2 2 54.5 52.5 Quasi-Peak 34.6 0.1 0.2 34.9 58.1 23.2 Average 32.5 0.1 0.2 32.8 48.1 15.3 Quasi-Peak 29.3 0.1 0.2 29.6 56.6 27.0 Average 11.9 0.1 0.2 12.2 46.6 34.4 Quasi-Peak Average Quasi-Peak Average Quasi-Peak Average Quasi-Peak Average Quasi-Peak Average Quasi-Peak Average Class B Mains limits (Neutral) Comments: LISN: EMCO FA001545 1256 1112 789 10 34 0.15530.29390.20320.17980.38800.4678 Quasi-Peak Average Quasi-Peak Average Quasi-Peak Average Quasi-Peak Average Quasi-Peak Average Quasi-Peak Average Quasi-Peak Average Quasi-Peak Average Quasi-Peak Average Quasi-Peak Average Quasi-Peak Average Quasi-Peak Average Quasi-Peak Average Quasi-Peak Average Quasi-Peak Average Quasi-Peak Average 16171813141519202122232425262728 Quasi-Peak Average Quasi-Peak Average Quasi-Peak Average Quasi-Peak Average Quasi-Peak Average Quasi-Peak Average Quasi-Peak Average Quasi-Peak Average 2930353631323334

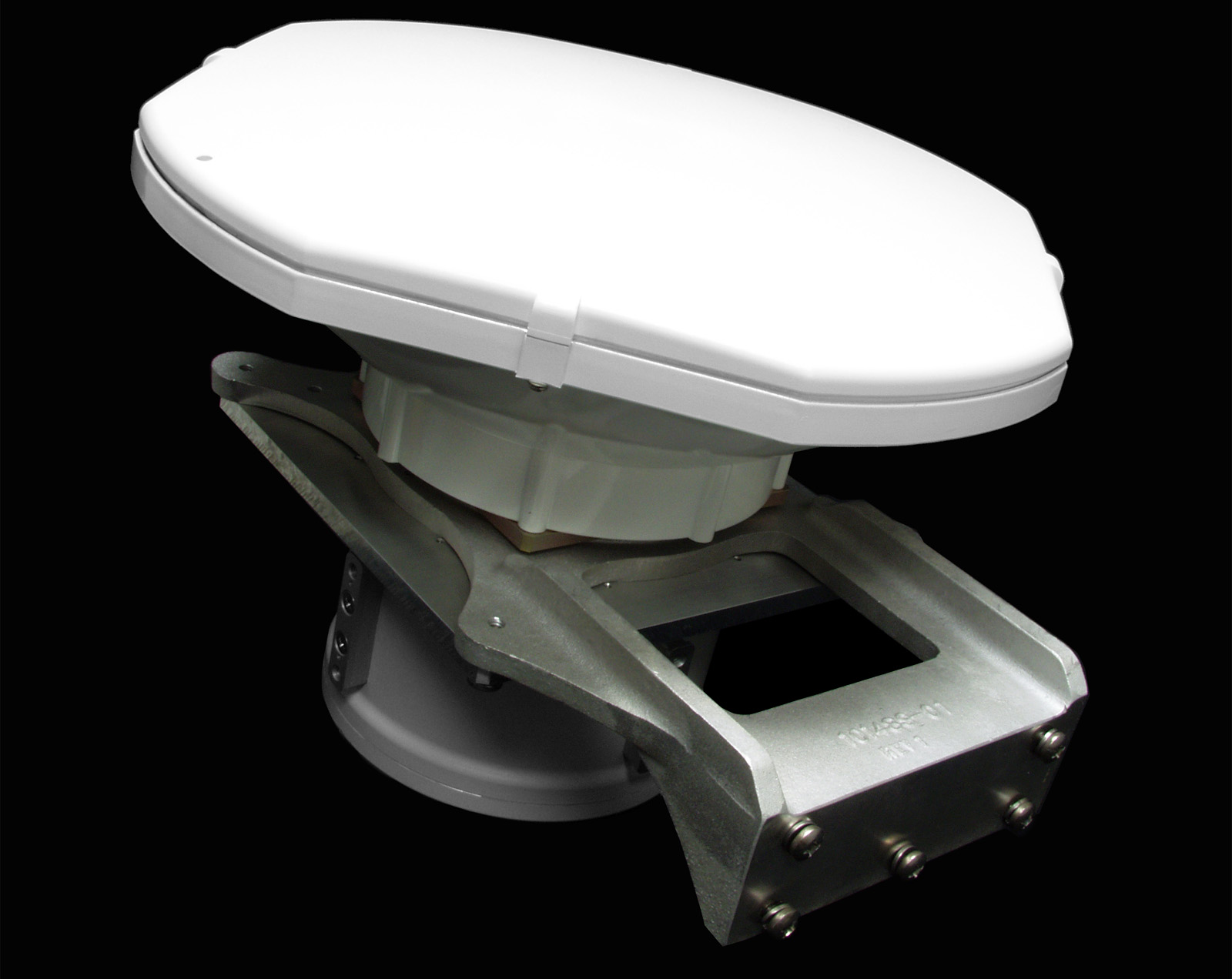

Radiated Photo’s Small Antenna, 36dBi Large Antenna, 41.5dBi Large Antenna, 44.5dBi
