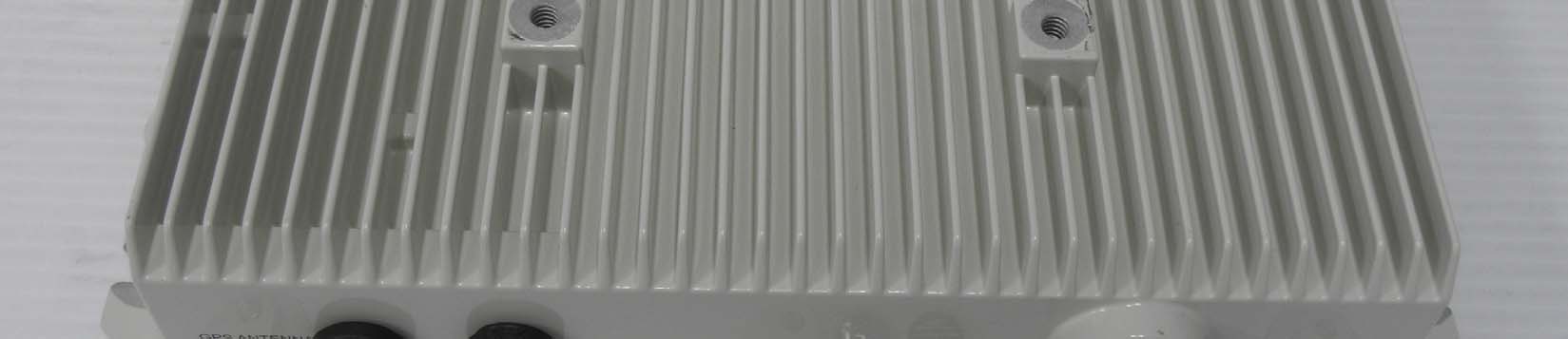

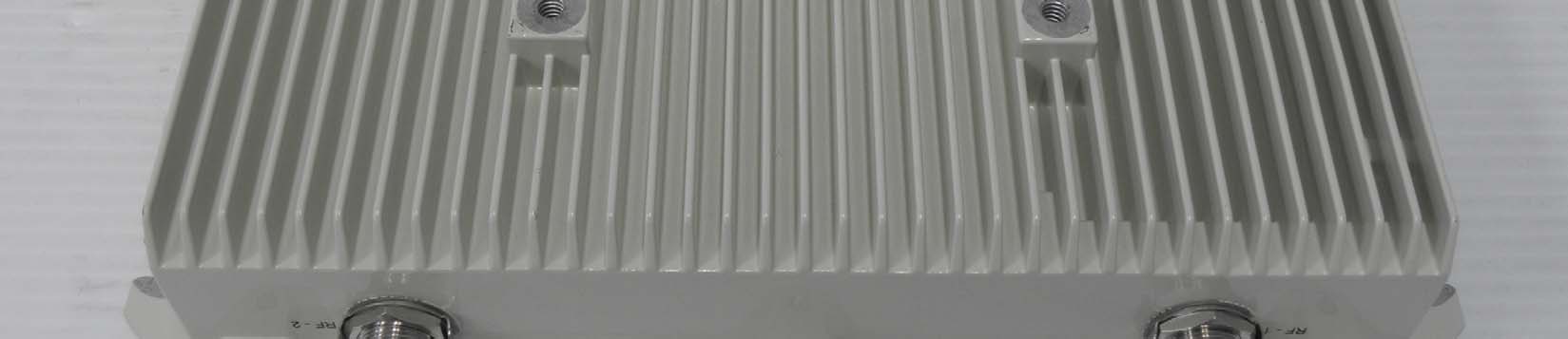

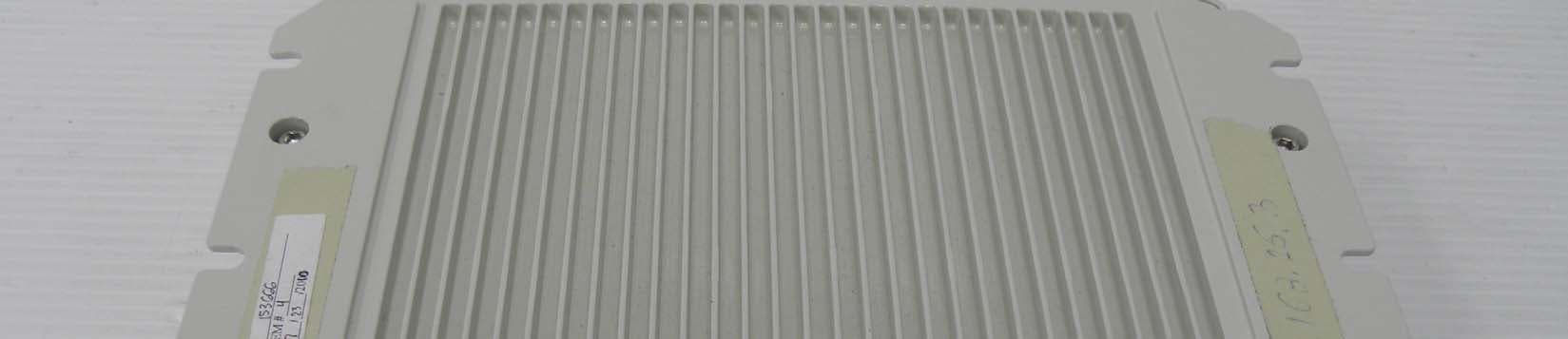

70-00158-01-DRAFT Proprietary Redline Communications © 2010 Page 1 of 142 November 25, 2010 RDL-3000 Advanced Broadband Wireless Infrastructure Solutions User Manual RDL-3000 User Manual 70-00158-01-DRAFT Proprietary Redline Communications © 2010 Page 2 of 142 November 25, 2010 Copyright Information All rights reserved November 25, 2010. The information in this document is proprietary to Redline Communications Inc. This document may not in whole or in part be copied, reproduced, or reduced to any medium without prior consent, in writing, from Redline Communications Incorporated. Contact Information: Redline Communications Inc. 302 Town Centre Blvd. Suite 100 Markham, ON Canada L3R 0E8 Web site: http://www.redlinecommunications.com Email: Inquiries: [email protected] Partnerships: [email protected] Media: [email protected] Support: [email protected] Training: [email protected] Careers: [email protected] Document Control: 70-00158-01-00-RDL-3000_User_Manual-20101125a.doc Disclaimer The statements, configurations, technical data, and recommendations in this document are believed to be accurate and reliable, but are presented without express or implied warranty. Additionally, Redline makes no representations or warranties, either expressed or implied, regarding the contents of this product. Redline Communications shall not be liable for any misuse regarding this product. The information in this document is subject to change without notice. No part of this document shall be deemed to be part of any warranty or contract unless specifically referenced to be part of such warranty or contract within this document. RDL-3000 User Manual 70-00158-01-DRAFT Proprietary Redline Communications © 2010 Page 3 of 142 November 25, 2010 CONTENTS SUMMARY 1 Important Notices ................................................................. 13 1.1 Service & Safety ............................................................................................... 13 1.2 Regulatory Notices .......................................................................................... 15 2 System Features ................................................................... 17 2.1 General Description ......................................................................................... 17 2.2 Ethernet Port .................................................................................................... 18 2.3 Synchronization I/O Port (PPS) ....................................................................... 18 2.4 GPS Antenna Port (GPS ANTENNA) ............................................................... 18 2.5 RF Ports ............................................................................................................ 18 2.6 Ground Lug ...................................................................................................... 19 2.7 Audible Alignment ........................................................................................... 19 2.8 Management Interfaces ................................................................................... 20 2.9 PoE Power Adapter .......................................................................................... 21 3 Functional Overview ............................................................. 22 3.1 Overview ........................................................................................................... 22 3.2 PMP Mode ......................................................................................................... 23 3.3 PTP Mode ......................................................................................................... 38 4 Web Interface ........................................................................ 39 4.1 Connecting With a Web Browser .................................................................... 39 4.2 System Menu .................................................................................................... 41 4.3 Dashboard Display .......................................................................................... 44 4.4 Status Screens ................................................................................................. 46 4.5 Configuration Screens ..................................................................................... 57 4.6 Provisioning Screens ...................................................................................... 74 4.7 Utilities Screens ............................................................................................... 86 5 CLI Interface .......................................................................... 95 5.1 Telnet Access ................................................................................................... 95 5.2 Command Summary ........................................................................................ 95 5.3 Command Set ................................................................................................... 97 6 Diagnostics & Troubleshooting ......................................... 118 6.1 Interface Connection Issues ......................................................................... 118 RDL-3000 User Manual 70-00158-01-DRAFT Proprietary Redline Communications © 2010 Page 4 of 142 November 25, 2010 6.2 Status Codes .................................................................................................. 119 6.3 Working with System Parameters................................................................. 120 6.4 Factory Default Settings ................................................................................ 121 6.5 Long Reset (Recover from Lost Password or IP) ........................................ 123 7 Security ............................................................................... 126 7.1 Overview .............................…

Text truncated - open the document above for the full version.

November 4, 2010 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: QC8-RDL3000 Product Name: RDL-3000 Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions’ rules, we hereby request that the following documents be held confidential: Block diagrams Schematic diagrams Parts List System overview These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. If you have any queries, please do not hesitate to contact us by our TOLL FREE numbers: OUR TELEPHONE NO.: 1-866-OFDMNOW Sincerely, Dated this 4 Day of November 2010 By: Rod Cronin Signature Printed Title: Director, Product Management Telephone: 905-479-8344x2377 Applicant: Redline Communications Inc




  !"# $%%&'()'  )%$**& )*"$ ++++&,-. & '  #(/  ')'')

Prediction of MPE limit at a given distance M W-CBDA-SMR-10W80-PS8, Uplink Outdoor Donar Antenna Equation from page 18 of OET Bulletin 65, Edition 97-01where: S = power density P = power input to the antennaG = power gain of the antenna in the direction of interest relative to an isotropic radiatorR = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 51.93 (dBm) Maximum peak output power at antenna input terminal: 155955.2503 (mW) Antenna gain(typical): 0 (dBi) Maximum antenna gain: 1 (numeric) Prediction distance: 270 (cm) Prediction frequency: 5847.5 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 1 (mW/cm^2) Power density at prediction frequency: 0.170240 (mW/cm^2) Maximum allowable antenna gain: 7.689373923 (dBi) Margin of Compliance: 7.689373923 2 4 R PG S π =

Prediction of MPE limit at a given distance M W-CBDA-SMR-10W80-PS8, Uplink Outdoor Donar Antenna Equation from page 18 of OET Bulletin 65, Edition 97-01where: S = power density P = power input to the antennaG = power gain of the antenna in the direction of interest relative to an isotropic radiatorR = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 57.55 (dBm) Maximum peak output power at antenna input terminal: 568852.9308 (mW) Antenna gain(typical): 0 (dBi) Maximum antenna gain: 1 (numeric) Prediction distance: 270 (cm) Prediction frequency: 4965 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 1 (mW/cm^2) Power density at prediction frequency: 0.620959 (mW/cm^2) Maximum allowable antenna gain: 2.069373923 (dBi) Margin of Compliance: 2.069373923 2 4 R PG S π =

Nemko Canada Inc. 303 River Road, Ottawa, Ontario K1V 1H2 T 1 613 737 9680 F 1 613 737 9691TF 1 800 563 6336 Email [email protected] Web www.nemko.com Nemko Test Report: 153666-3TRFWL Applicant: Redline Communications 302 Town Center Blvd. Markham, Ontario, Canada, L3R 0E8 Apparatus: RDL-3000 FCC ID: QC8-RDL3000 In Accordance With: FCC Part 15 Subpart C, 15.247 FHSS System and Digitally Modulated Radiators 902–928 MHz, 2400–2483.5 MHz, 5725–5850 MHz Authorized By: Laboratory Manager Date: November 4, 2010 Total Number of Pages: 40 Nemko Canada Inc. Report Number: 153666-3TRFWL Specification: FCC Part 15 Subpart C, 15.247 Page 2 of 40 TABLE OF CONTENTS Section 1 : Report Summary ...................................................................................................................... 3 Section 2 : Equipment Under Test............................................................................................................. 4 2.1 Identification of Equipment Under Test (EUT)..........................................................................................4 2.2 Accessories .................................................................................................................................................4 2.3 EUT Description.........................................................................................................................................4 2.4 Technical Specifications of the EUT ..........................................................................................................5 2.5 EUT Setup diagram ....................................................................................................................................6 2.6 Operation of the EUT during testing ..........................................................................................................6 2.7 Modifications incorporated in the EUT ......................................................................................................6 Section 3 : Test Conditions......................................................................................................................... 7 3.1 Specifications .............................................................................................................................................7 3.2 Deviations From Laboratory Test Procedures ............................................................................................7 3.3 Test Environment .......................................................................................................................................7 3.4 Measurement Uncertainty...........................................................................................................................7 3.5 Test Equipment...........................................................................................................................................8 Section 4 : Results Summary ..................................................................................................................... 9 4.1 FCC Part 15 Subpart C : Test Results ........................................................................................................9 Appendix A : Test Results ........................................................................................................................ 10 Clause 15.207(a) Powerline Conducted Emissions .............................................................................................10 Clause 15.209(a) Radiated Emissions within Restricted Bands ..........................................................................12 20 MHz Channel..................................................................................................................................................14 Clause 15.247(a)(2) 6 dB bandwidth for systems using digital modulation techniques ......................................15 Clause 15.247(b)(3) Maximum peak output power of systems using digital modulation in the 902–928 MHz, 2400–2483.5 MHz and 5725–5850 MHz bands............................................................................................17 Clause 15.247(b)(4) Maximum peak output power .............................................................................................17 Clause 15.247(c)(1) Fixed point-to-point Operation with directional antenna gains greater than 6 dBi .............17 Clause 15.247(d) Conducted Spurious Emissions ...............................................................................................27 Clause 15.247(e) Power Spectral Density for Digitally Modulated Devices.......................................................35 Appendix B : Setup Photographs ............................................................................................................ 39 Appendix C : Block Diagram of Test Setups .......................................................................................... 40 SECTION 1 : REPORT SUMMARY Nemko Canada Inc. Report Number: 153666-3TRFWL Specification: FCC Part 15 Subpart C, 15.247 Page 3 of 40 Section 1 : Report Summary These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 15, Subpart C. Radiated tests were conducted in accordance with ANSI C63.4-2003. The assessment summary is as follows: Apparatus Assessed: RDL-3000 Specification: FCC Part 15 Subpart C, 15.247 Compliance Status: Complies Exclusions: None Non-compliances: None Report Release History: Original Release Test Location: Nemko Canada Inc. 303 River Road Ottawa, Ontario K1V 1H2 Registration Number: 176392 (3 m Semi-Anechoic Chamber) Tests Performed By: Kevin Ma, Technical Assessor Test Dates: October 2010 Note that the results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. This test report has been completed in ac…
