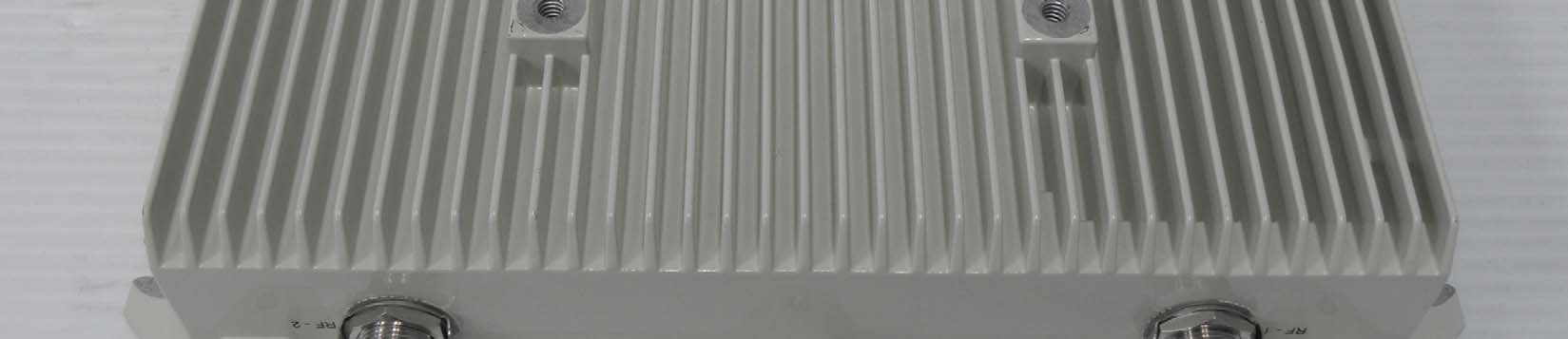

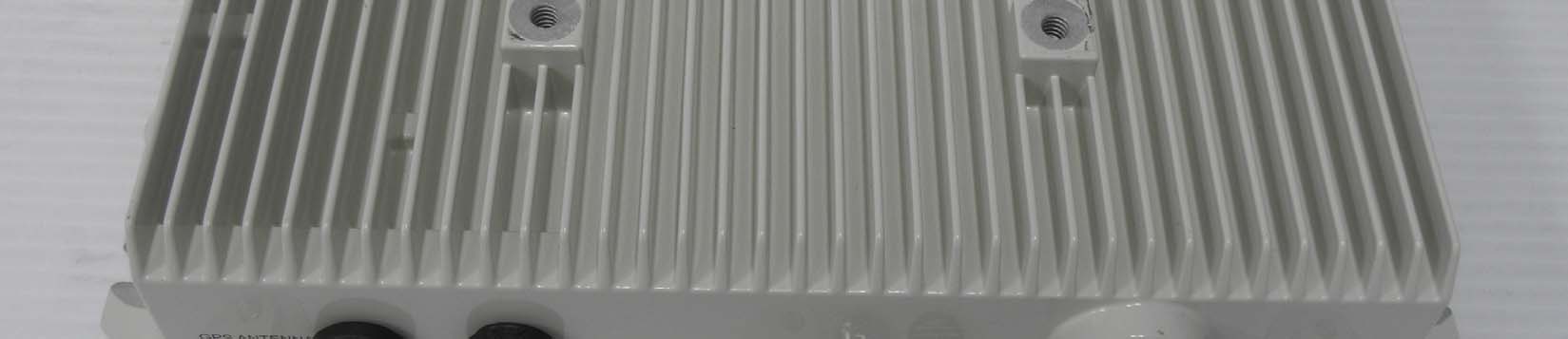

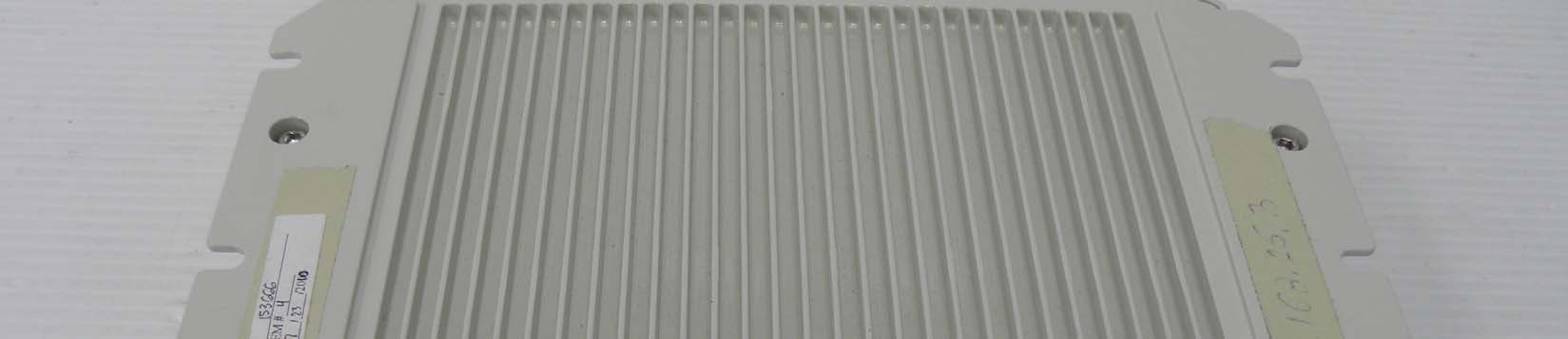

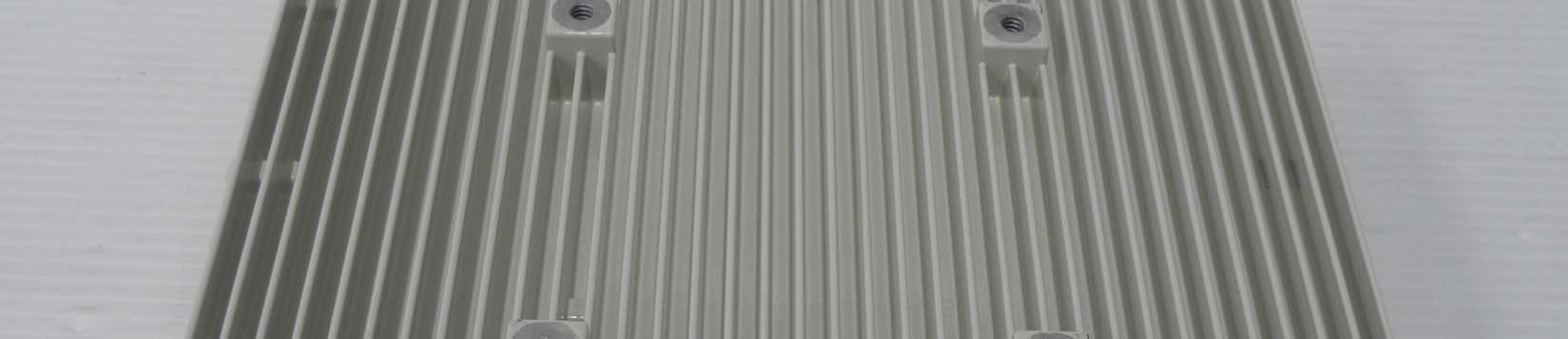

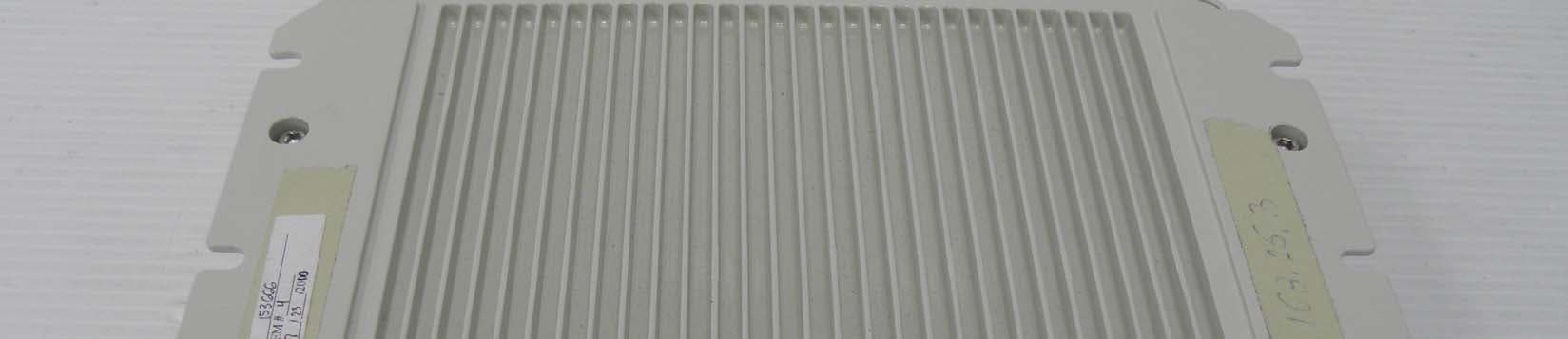

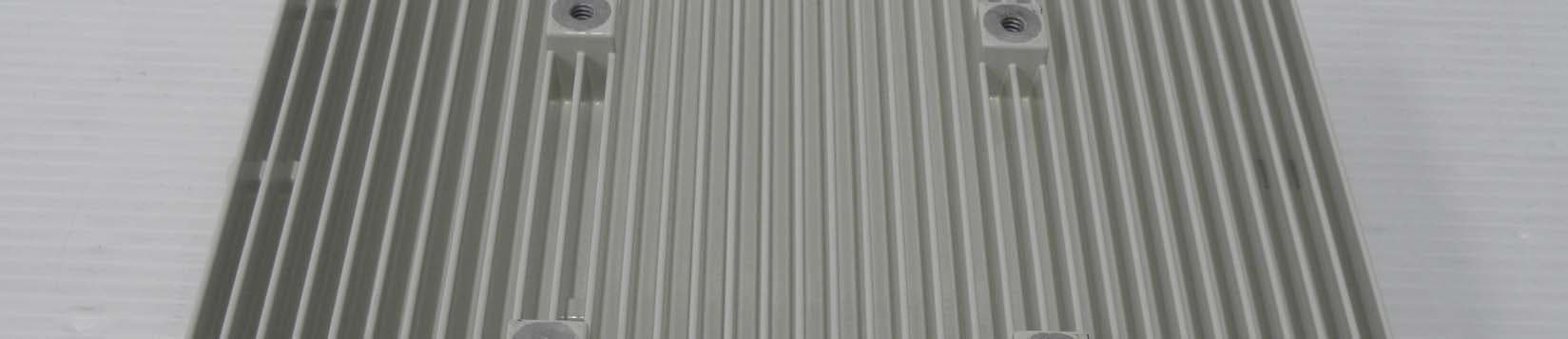

QC8-RDL3000AAdvanced Broadband Wireless Infrastructure Solution

70-00158-01-DRAFT Proprietary Redline Communications © 2011 Page 1 of 150 November 25, 2010 RDL-3000 Advanced Broadband Wireless Infrastructure Solutions User Manual RDL-3000 User Manual 70-00158-01-DRAFT Proprietary Redline Communications © 2011 Page 2 of 150 November 25, 2010 Copyright Information All rights reserved November 25, 2010. The information in this document is proprietary to Redline Communications Inc. This document may not in whole or in part be copied, reproduced, or reduced to any medium without prior consent, in writing, from Redline Communications Incorporated. Contact Information: Redline Communications Inc. 302 Town Centre Blvd. Suite 100 Markham, ON Canada L3R 0E8 Web site: http://www.redlinecommunications.com Email: Inquiries: [email protected] Partnerships: [email protected] Media: [email protected] Support: [email protected] Training: [email protected] Careers: [email protected] Document Control: 70-00158-01-00-RDL-3000_User_Manual-20101125dk.doc Disclaimer The statements, configurations, technical data, and recommendations in this document are believed to be accurate and reliable, but are presented without express or implied warranty. Additionally, Redline makes no representations or warranties, either expressed or implied, regarding the contents of this product. Redline Communications shall not be liable for any misuse regarding this product. The information in this document is subject to change without notice. No part of this document shall be deemed to be part of any warranty or contract unless specifically referenced to be part of such warranty or contract within this document. RDL-3000 User Manual 70-00158-01-DRAFT Proprietary Redline Communications © 2011 Page 3 of 150 November 25, 2010 CONTENTS SUMMARY 1 Important Notices ................................................................. 13 1.1 Service & Safety ............................................................................................... 13 1.2 Regulatory Notices .......................................................................................... 15 2 System Features ................................................................... 20 2.1 General Description ......................................................................................... 20 2.2 Ethernet Port .................................................................................................... 21 2.3 Synchronization I/O Port (PPS) ....................................................................... 21 2.4 GPS Antenna Port (GPS ANTENNA) ............................................................... 21 2.5 RF Ports ............................................................................................................ 21 2.6 Ground Lug ...................................................................................................... 22 2.7 Audible Alignment ........................................................................................... 22 2.8 Management Interfaces ................................................................................... 23 2.9 PoE Power Adapter .......................................................................................... 24 3 Functional Overview ............................................................. 25 3.1 Overview ........................................................................................................... 25 3.2 PMP Mode ......................................................................................................... 26 3.3 PTP Mode ......................................................................................................... 41 4 Web Interface ........................................................................ 42 4.1 Connecting With a Web Browser .................................................................... 42 4.2 System Menu .................................................................................................... 44 4.3 Dashboard Display .......................................................................................... 47 4.4 Status Screens ................................................................................................. 49 4.5 Configuration Screens ..................................................................................... 61 4.6 Provisioning Screens ...................................................................................... 78 4.7 Utilities Screens ............................................................................................... 90 5 CLI Interface .......................................................................... 99 5.1 Telnet Access ................................................................................................... 99 5.2 Command Summary ........................................................................................ 99 5.3 Command Set ................................................................................................. 101 6 Diagnostics & Troubleshooting ......................................... 122 6.1 Interface Connection Issues ......................................................................... 122 RDL-3000 User Manual 70-00158-01-DRAFT Proprietary Redline Communications © 2011 Page 4 of 150 November 25, 2010 6.2 Status Codes .................................................................................................. 123 6.3 Working with System Parameters................................................................. 124 6.4 Factory Default Settings ................................................................................ 125 6.5 Long Reset (Recover from Lost Password or IP) ........................................ 127 7 Security ............................................................................... 130 7.1 Overview .............................…

Text truncated - open the document above for the full version.

Re: FCC ID: QC8-RDL3000A Applicant: Redline Communications Inc. Correspondence Reference Number: 41457 Form 731 Confirmation Number: EA777916 Date of Original E-mail: 03/26/2012 To Whom It May Concern The following is Redline’s response to the question received March 26, 2012. FCC Questions: 1) What was the Talk/Listen ratio used for testing. How is this controlled? Is there a maximum allowable ratio? Can the user change these settings? Response: The Talk/Listen ratio used for testing was up to 50% Talk time. As the transmit time approaches 50%, the DFS events detection software automatically adds a listening period over riding the traffic scheduler. This is automatically controlled through the software between the DFS detection algorithms and the scheduler algorithms based on traffic demand in both downlink and uplink. The maximum allowable ratio is 50%. As the Talk time approaches 50%, the DFS events detection software automatically adds a listening period. No, the user cannot change these settings. Best regards, Rodney Cronin Director, Product Management

October 26, 2011 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: QC8-RDL3000A Product Name: RDL-3000 Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions’ rules, we hereby request that the following documents be held confidential: Block diagrams Schematic diagrams Parts List System overview These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. If you have any queries, please do not hesitate to contact us by our TOLL FREE numbers: OUR TELEPHONE NO.: 1-866-OFDMNOW Sincerely, Dated this 26 Day of October 2011 By: Rod Cronin Signature Printed Title: Director, Product Management Telephone: 905-479-8344x2377 Applicant: Redline Communications Inc

Page 1 of 1 October 26, 2011 Applicant: Redline Communications Inc. FCC ID: QC8-RDL3000A Product Name: RDL-3000 MIMO Mode Declaration We, Redline Communications Inc, declare that RDL-3000 Advanced Broadband Wireless Infrastructure Solutions, FCC ID: QC8-RDL3000A, when operates in MIMO A (STBC/STC) mode or MIMO B (spatial multiplexing) modes, the only modes in which it transmits from both antennas, the transmitter output signals are completely uncorrelated. Sincerely, Rod Cronin Director, Product Line Management Ph: 905.479.8344 x2377 [email protected]




  !"# $%%&'()'  )%$**& )*"$ ++++&,-. & '  #(/  ')'')






Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to isotropic R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal:27.61(dBm EIRP) Maximum peak output power at antenna input terminal:576.8(mW) Antenna gain(typical):0(dBi) Maximum antenna gain:1.000(numeric) Prediction distance:20(cm) Sourse Based Time Average Duty Cycle:100(%) Prediction frequency:5590(MHz) MPE limit for uncontrolled exposure at prediction frequency:1(mW/cm^2) Power density at prediction frequency:0.11474(mW/cm^2) Power density at prediction frequency:1.1474(W/m^2) Margin of Compliance:9.4(dB) 2 4R PG S p =

Nemko Canada Inc. 303 River Road, Ottawa, Ontario K1V 1H2 T 1 613 737 9680 F 1 613 737 9691TF 1 800 563 6336 Nemko Test Report: 153666-7TRFWL Applicant: Redline Communications 302 Town Center Blvd. Markham, Ontario, Canada, L3R 0E8 Apparatus: RDL-3000 FCC ID: QC8-RDL3000A In Accordance With: FCC Part 15 Subpart E, 15.407 Unlicensed National Information Infrastructure Devices Authorized By: Sim Jagpal, General Manager Date: February 23, 2011 Total Number of Pages: 46 Email [email protected] Web www.nemko.com Nemko Canada Inc. Report Number: 153666-7TRFWL Specification: FCC Part 15 Subpart E TABLE OF CONTENTS Section 1 : Report Summary......................................................................................................................3 Section 2 : Equipment Under Test.............................................................................................................4 2.1 Identification of Equipment Under Test (EUT)..........................................................................................4 2.2 Accessories.................................................................................................................................................4 2.3 EUT Description.........................................................................................................................................4 2.4 Technical Specifications of the EUT..........................................................................................................5 2.5 EUT Setup diagram....................................................................................................................................6 2.6 Operation of the EUT during testing..........................................................................................................6 2.7 Modifications incorporated in the EUT ......................................................................................................6 Section 3 : Test Conditions.........................................................................................................................7 3.1 Specifications.............................................................................................................................................7 3.2 Deviations From Laboratory Test Procedures ............................................................................................7 3.3 Test Environment.......................................................................................................................................7 3.4 Measurement Uncertainty...........................................................................................................................7 3.5 Test Equipment...........................................................................................................................................8 Section 4 : Results Summary.....................................................................................................................9 4.1 FCC Part 15 Subpart E : Test Results.........................................................................................................9 Appendix A : Test Results........................................................................................................................10 Clause 15.207(a) Powerline Conducted Emissions.............................................................................................10 Clause 15.209(a) Radiated Emissions within Restricted Bands..........................................................................12 Clause 15.403(i) Emission Bandwidth ................................................................................................................15 Clause 15.407(a)(2) Maximum conducted output power and PPSD limits.........................................................17 Clause 15.407(a)(6) The Ratio of Peak Excursion..............................................................................................34 Clause 15.407(b)(2) Undesirable emission limits for transmitters in the 5.25–5.35 GHz band..........................38 Clause 15.407(b)(6) Unwanted emissions below 1 GHz .....................................................................................40 Clause 15.407(g) Frequency stability..................................................................................................................42 Appendix B : Setup Photographs............................................................................................................45 Appendix C : Block Diagram of Test Setups..........................................................................................46 Page 2 of 46 SECTION 1 : REPORT SUMMARY Nemko Canada Inc. Report Number: 153666-7TRFWL Specification: FCC Part 15 Subpart E Section 1 : Report Summary These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 15, Subpart E. Radiated tests were conducted in accordance with ANSI C63.4-2003. The assessment summary is as follows: Apparatus Assessed: RDL-3000 Specification: FCC Part 15 Subpart E, 15.407 Compliance Status: Complies Exclusions: None Non-compliances: None Report Release History: Original Release Test Location: Nemko Canada Inc. 303 River Road Ottawa, Ontario K1V 1H2 Registration Number: 176392 (3 m Semi-Anechoic Chamber) Tests Performed By: Kevin Ma, Technical Assessor Test Dates: February 2011 Note that the results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. This test report has been completed in accordance with the requirements of ISO/IEC 17025. All results contain in this report are within Nemko Canada’s ISO/IEC 17025 accreditation. Nemko Canada Inc. authorizes the applicant to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. A…

Text truncated - open the document above for the full version.

APPENDIX A : TEST RESULTS Nemko Canada Inc. Report Number: 153666-7TRFWL Specification: FCC Part 15 Subpart E Clause 15.407(a)(6) The Ratio of Peak Excursion The ratio of the peak excursion of the modulation envelope (measured using a peak hold function) to the maximum conducted output power (measured as specified above) shall not exceed 13 dB across any 1 MHz bandwidth or the emission bandwidth whichever is less. Test Results: Pass Additional Observations: The peak excursion was measured on the antenna ports by means of a spectrum analyzer and following the procedure from the FCC Public Notice Ref: DA: 02- 2138, Measurement Procedure for Peak Transmit Power in UNII Band. Two antenna ports and all modulations were investigated, only the worst case data is presented. Channel Bandwidth (MHz) Channel Setting Peak Excursion (dB) Limit (dB) Margin (dB) Low 10.80 13.00 2.20 Mid 10.83 13.00 2.17 5 High 11.10 13.00 1.90 Low 10.09 13.00 2.91 Mid 10.16 13.00 2.84 10 High 9.75 13.00 3.25 Low 9.61 13.00 3.39 Mid 9.50 13.00 3.50 20 High 9.48 13.00 3.52 Page 34 of 46 APPENDIX A : TEST RESULTS Nemko Canada Inc. Report Number: 153666-7TRFWL Specification: FCC Part 15 Subpart E Peak excursion sample plot: 5 MHz Channel Low Channel Mid Channel * Offset 21 dB 2 PK MAXH A LVL Att 10 dBRef 21 dBm Center 5.2525 GHzSpan10 MHz1 MHz/ * RBW 1 MHz VBW 3 MHz SWT 20 ms 3DB 1 SA VIEW -70 -60 -50 -40 -30 -20 -10 0 10 20 SWP 100 of 100 1 Marker 1 [T2 ] 9.21 dBm 5.251522436 GHz 2 Delta 2 [T1 ] -10.80 dB 1.185897436 MHz Date: 9.FEB.2011 18:54:30 * Offset 21 dB 2 PK MAXH A LVL Att 10 dB * RBW 1 MHz VBW 3 MHz SWT 20 ms 3DB Ref 21 dBm Center 5.3 GHzSpan10 MHz1 MHz/ 1 SA VIEW -70 -60 -50 -40 -30 -20 -10 0 10 20 SWP 100 of 100 1 Marker 1 [T2 ] 10.30 dBm 5.298926282 GHz 2 Delta 2 [T1 ] -10.83 dB 592.948717949 kHz Date: 9.FEB.2011 18:51:28 High Channel Ref 10 dBm * * Offset 21 dB 2 PK MAXH A LVL Att 10 dB RBW 1 MHz VBW 3 MHz SWT 20 ms Center 5.345 GHzSpan10 MHz1 MHz/ 3DB 1 SA VIEW -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 SWP 100 of 100 1 Marker 1 [T2 ] -1.86 dBm 5.343942308 GHz 2 Delta 2 [T1 ] -11.10 dB 208.333333334 kHz Date: 9.FEB.2011 17:59:30 Page 35 of 46 APPENDIX A : TEST RESULTS Nemko Canada Inc. Report Number: 153666-7TRFWL Specification: FCC Part 15 Subpart E 10 MHz Channel Low Channel Mid Channel * Offset 21 dB 2 PK MAXH A LVL Att 10 dBRef 21 dBm Center 5.255 GHzSpan20 MHz2 MHz/ * RBW 1 MHz VBW 3 MHz SWT 20 ms 3DB 1 SA VIEW -70 -60 -50 -40 -30 -20 -10 0 10 20 SWP 100 of 100 1 Marker 1 [T2 ] 6.45 dBm 5.256025641 GHz 2 Delta 2 [T1 ] -10.09 dB 128.205128204 kHz Date: 9.FEB.2011 18:56:37 * Offset 21 dB 2 PK MAXH A LVL Att 10 dBRef 21 dBm Center 5.3 GHzSpan20 MHz2 MHz/ * RBW 1 MHz VBW 3 MHz SWT 20 ms 3DB 1 SA VIEW -70 -60 -50 -40 -30 -20 -10 0 10 20 SWP 100 of 100 1 Marker 1 [T2 ] 7.37 dBm 5.301025641 GHz 2 Delta 2 [T1 ] -10.16 dB -2.371794872 MHz Date: 9.FEB.2011 18:59:16 High Channel * Offset 21 dB 2 PK MAXH A LVL Att 10 dB * RBW 1 MHz VBW 3 MHz SWT 20 ms 3DB Ref 10 dBm Center 5.3425 GHzSpan20 MHz2 MHz/ 1 SA VIEW -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 SWP 100 of 100 1 Marker 1 [T2 ] -1.96 dBm 5.343557692 GHz 2 Delta 2 [T1 ] -9.75 dB -1.826923077 MHz Date: 9.FEB.2011 19:03:22 Page 36 of 46 APPENDIX A : TEST RESULTS Nemko Canada Inc. Report Number: 153666-7TRFWL Specification: FCC Part 15 Subpart E 20 MHz Channel Low Channel Mid Channel * Offset 21 dB 2 PK MAXH A LVL Att 10 dBRef 10 dBm Center 5.26 GHzSpan40 MHz4 MHz/ * RBW 1 MHz VBW 3 MHz SWT 20 ms 3DB 1 SA VIEW -90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 SWP 100 of 100 1 Marker 1 [T2 ] 4.06 dBm 5.265705128 GHz 2 Delta 2 [T1 ] -9.61 dB -769.230769231 kHz Date: 9.FEB.2011 19:06:07 * Offset 21 dB 2 PK MAXH A LVL Att 10 dB * RBW 1 MHz VBW 3 MHz SWT 20 msRef 15 dBm Center 5.3 GHzSpan40 MHz4 MHz/ 3DB 1 SA VIEW -80 -70 -60 -50 -40 -30 -20 -10 0 10 SWP 100 of 100 1 Marker 1 [T2 ] 6.51 dBm 5.305641026 GHz 2 Delta 2 [T1 ] -9.50 dB -7.051282051 MHz Date: 9.FEB.2011 19:08:01 High Channel * Offset 21 dB 2 PK MAXH A LVL Att 10 dB * RBW 1 MHz VBW 3 MHz SWT 20 msRef 8 dBm Center 5.3375 GHzSpan40 MHz4 MHz/ 3DB 1 SA VIEW -90 -80 -70 -60 -50 -40 -30 -20 -10 0 SWP 100 of 100 1 Marker 1 [T2 ] -3.69 dBm 5.343205128 GHz 2 Delta 2 [T1 ] -9.48 dB 641.025641026 kHz Date: 9.FEB.2011 19:11:30 Page 37 of 46 APPENDIX A : TEST RESULTS Nemko Canada Inc. Report Number: 153666-7TRFWL Specification: FCC Part 15 Subpart E Clause 15.407(b)(2) Undesirable emission limits for transmitters in the 5.25–5.35 GHz band For transmitters operating in the 5.25–5.35 GHz band: all emissions outside of the 5.15–5.35 GHz band shall not exceed an EIRP of –27 dBm/MHz. Devices operating in the 5.25–5.35 GHz band that generate emissions in the 5.15–5.25 GHz band must meet all applicable technical requirements for operation in the 5.15–5.25 GHz band (including indoor use) or alternatively meet an out-of-band emission EIRP limit of –27 dBm/MHz in the 5.15–5.25 GHz band. Test Results: Pass Additional Observations: The spectrum was searched from 30 MHz to the 40 GHz for low mid and high channels. Radiated emissions measurements were performed by using RBW/VBW of 1 MHz/3 MHz detector at the distance of 3 m. Radiated spurious emissions were measured by using substitution method. For type of sector flat panel antenna, the highest gain (15.5 dBi) antenna was chosen for the test. All modulations were investigated, only worst-case emissions reported. Page 38 of 46 APPENDIX A : TEST RESULTS Nemko Canada Inc. Report Number: 153666-7TRFWL Specification: FCC Part 15 Subpart E Band Edge Check: 5 MHz Channel Antenna Channel MHz Frequency, MHz FS Level, dBμV/m SG Output Level dBm Antenna Gain dBi EIRP, dBm/MHz EIRP Limit, dBm/MHz Margin, dB 5252.5 5250.0 26.62 -38.61 10.40 -28.21 -27.00 1.21 Sector flat panel 15.5 dBi 5345.0 5350.0 26.23 -38.95 10.31 -28.64 -27.00 1.64 5252.5 5250.0 24.97 -39.75 10.40 -29.35 -27.00 2.35 Flat panel 23 dBi 5345.0 5350.0 25.91 -38.97 10.31 -28.66 -27.00 1.66 5252.5 5250.0 24.08 -40.65 10.40 -30.25 -27.00 3.25 Pa…

Text truncated - open the document above for the full version.

Nemko Canada Inc. 303 River Road, Ottawa, Ontario K1V 1H2 T 1 613 737 9680 F 1 613 737 9691TF 1 800 563 6336 Nemko Test Report: 153666-5TRFWL Applicant: Redline Communications 302 Town Center Blvd. Markham, Ontario, Canada, L3R 0E8 Apparatus: RDL-3000 FCC ID: QC8-RDL3000A In Accordance With: FCC Part 15 Subpart E, 15.407 Unlicensed National Information Infrastructure Devices Authorized By: Laboratory Manager Date: November 25, 2010 Total Number of Pages: 47 Email [email protected] Web www.nemko.com Nemko Canada Inc. Report Numb Specification: FCC Part 15 Subpart E er: 153666-5TRFWL Page 2 of 47 TABLE OF CONTENTS Section 1 : Report Summary ...................................................................................................................... 3 Section 2 : Equipment Under Test............................................................................................................. 4 2.1 Identification of Equipment Under Test (EUT)..........................................................................................4 2.2 Accessories .................................................................................................................................................4 2.3 EUT Description.........................................................................................................................................4 2.4 Technical Specifications of the EUT ..........................................................................................................5 2.5 EUT Setup diagram ....................................................................................................................................6 2.6 Operation of the EUT during testing ..........................................................................................................6 2.7 Modifications incorporated in the EUT ......................................................................................................6 Section 3 : Test Conditions......................................................................................................................... 7 3.1 Specifications .............................................................................................................................................7 3.2 Deviations From Laboratory Test Procedures ............................................................................................7 3.3 Test Environment .......................................................................................................................................7 3.4 Measurement Uncertainty...........................................................................................................................7 3.5 Test Equipment...........................................................................................................................................8 Section 4 : Results Summary ..................................................................................................................... 9 4.1 FCC Part 15 Subpart E : Test Results.........................................................................................................9 Appendix A : Test Results ........................................................................................................................ 10 Clause 15.207(a) Powerline Conducted Emissions .............................................................................................10 Clause 15.209(a) Radiated Emissions within Restricted Bands ..........................................................................12 Clause 15.403(i) Emission Bandwidth ................................................................................................................15 Clause 15.407(a)(2) Maximum conducted output power and PPSD limits .........................................................17 Clause 15.407(a)(6) The Ratio of Peak Excursion ..............................................................................................34 Clause 15.407(b)(3) Undesirable emission limits for transmitters in the 5.47–5.725 GHz band ........................38 Clause 15.407(b)(6) Unwanted emissions below 1 GHz .....................................................................................41 Clause 15.407(g) Frequency stability ..................................................................................................................43 Appendix B : Setup Photographs ............................................................................................................ 46 Appendix C : Block Diagram of Test Setups .......................................................................................... 47 SECTION 1 : REPORT SUMMARY Nemko Canada Inc. Report Numb Specification: FCC Part 15 Subpart E er: 153666-5TRFWL Page 3 of 47 Section 1 : Report Summary These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 15, Subpart E. Radiated tests were conducted in accordance with ANSI C63.4-2003. The assessment summary is as follows: Apparatus Assessed: RDL-3000 Specification: FCC Part 15 Subpart E, 15.407 Compliance Status: Complies Exclusions: None Non-compliances: None Report Release History: Original Release Test Location: Nemko Canada Inc. 303 River Road Ottawa, Ontario K1V 1H2 Registration Number: 176392 (3 m Semi-Anechoic Chamber) Tests Performed By: Kevin Ma, Technical Assessor Test Dates: November 2010 Note that the results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. This test report has been completed in accordance with the requirements of ISO/IEC 17025. All results contain in this report are within Nemko Canada’s ISO/IEC 17025 accreditation. Nemko Canada Inc. authorizes the applicant to reproduce this report provided it is reproduced in its entirety and for use by th…

Text truncated - open the document above for the full version.

File: R84027 Rev. 1 Page 1 of 149 TEST REPORT Covering the DYNAMIC FREQUENCY SELECTION (DFS) REQUIREMENTS OF FCC Part 15 Subpart E (UNII) RSS-210, Issue 8, Annex 9 Redline Communications Model(s): RDL-3000 COMPANY: Redline Communications 302 Town Centre Blvd. Suite 100 Markham, Ontario, L3R 0E8 TEST SITE: Elliott Laboratories 41039 Boyce Road Fremont, CA 94538 REPORT DATE: August 11, 2011 FINAL TEST DATE: July 18, 19, 20, 21, 2011 TEST ENGINEER: Wayne Fisher and Mehran Birgani PROGRAM MGR / QUALITY ASSURANCE DELEGATE / TECHNICAL REVIEWER: FINAL REPORT PREPARER: ______________________________ ______________________________ Mark Hill David Guidotti Staff Engineer Senior Technical Writer This report and the information contained herein represent the results of testing test articles identified and selected by the client performed to specifications and/or procedures selected by the client. National Technical Systems (NTS) makes no representations, expressed or implied, that such testing is adequate (or inadequate) to demonstrate efficiency, performance, reliability, or any other characteristic of the articles being tested, or similar products. This report should not be relied upon as an endorsement or certification by NTS of the equipment tested, nor does it represent any statement whatsoever as to its merchantability or fitness of the test article, or similar products, for a particular purpose. This report shall not be reproduced except in full. Elliott Laboratories -- EMC Department Test Report Report Date: August 11, 2011 File: R84027 Rev. 1 Page 2 of 149 REVISION HISTORY Rev # Date Comments Modified By 1.0 08-11-2011 First Release - Elliott Laboratories -- EMC Department Test Report Report Date: August 11, 2011 File: R84027 Rev. 1 Page 3 of 149 TABLE OF CONTENTS REVISION HISTORY ................................................................................................................................................2 TABLE OF CONTENTS ............................................................................................................................................3 LIST OF TABLES.............................................................................................................…

Text truncated - open the document above for the full version.
