QD8CASTON3Crane Scale

ATTACHMENT F. - USER’S MANUAL ---------------------- 2 CASTON  ---------------------- CRANE SCALE O O W W N N E E R R ' ' S S M M A A N N U U A A L L 3 Federal Communications Commission Requirements Warning : Changes or modifications not expressly approved by the party responsible for compliance with the FCC ’ S rules could void the user's authority to operate the equipment. THIS DEVICE COMPLIES WITH PARTS 15 OF FCC RULES OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS (1)THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. 4 CONTENTS 1. INTRODUCTION ......................................................................5 2. PRECAUTION ...........................................................................5 3. OVERALL VIEW.......................................................................6 4. SPECIFICATIONS.....................................................................6 5. DISPLY & KEY FUNCTIONS...................................................7 6. FUNCTION OF REMOTE CONTROL.....................................8 7. BATTERY USAGE.....................................................................9 8. USE OF BATTERY CHARGER ..............................................10 9. FUNCTIONS & DESCRIPTIONS ...........................................11 10. SET MODE .............................................................................12 11. TEST MODE ..........................................................................13 12. OPTIONS................................................................................14 13. PRODUCT SIZE.....................................................................15 14. ERROR MESSAGE................................................................16 5 We greatly appreciate your purchase of the CASTON-β. These goods perform excellently and exhibit splendid properties through strike tests. The CASTON-β is delicately designed to coincide with the special requirements of several industrial fields and includes many functions and various external interfaces. Also, it is programmed for the user's convenience and contains display functions that are easily accessible. Before using T he CAS TON-β, it is recommended that you read this manual carefully so you may use this device to its full potential. When the CASTON-β is installed, safety pin in hook should be fixed to prevent dropping out from lift eye bolt. Check the scale's stability. Do not press the keys with excessive force, the keys are to be pressed with a soft touch. Do not use ignitable material for cleaning. Keep the CASTON-β away from the rain. Avoid sudden temperature change. The operating temperature range is 10 to 40 . Do not install CASTON-β in a place with high voltage and excessive electrical noises. Keep it in dry place. Do not use under direct rays or in a dusty place. Do not use in an area with excessive electrical noises and vibration. Do not stand under the scale while weighing the load, and you should be careful to provide against a safety accident. If yo u do n't use the scale for a long ti me, yo u s ho uld turn o ff PO WE R S/W o n the rare panel. The load which hang on the hook should be a vertical load. (Refer to the next features.) 1. INTRODUCTION 2. PRECAUTION LO AD LO AD 6 3. OVERALL VIEW MAX. TARE WEIGHT FULL TARE DISPLAY L.E.D.(1.5 inch) TEMPERATURE RANGE 10 < 40 POWER SOURCE 6V POWER CONSUMPTION 1.2W DISPLAY LAMP ZERO, TARE, HOLD, LOW BATTERY LAMP 4. SPECIFICATIONS 7 € DISPLAY - WEIGHT DISPLAY : Displays weight or messages. - ZERO LAMP : Indicates that scale is stable and at zero. - TARE LAMP : Indicates that scale is currently using a tare. - HOLD LAMP : Indicates that the HOLD feature has been activated. - LOW BATTERY LAMP : Indicates that battery is low and must be changed soon. € KEY FUNCTIONS 5. DISPLAY & KEY FUNCTIONS key Function ON Used to turn ON. OFF Used to turn OFF. ZE RO Used to set the zero point to 0 . TARE Used to enter tare weight and to clear tare entries. HOLD Used to weigh unstable things. (Liquids, Livestock, etc.) 6. FUNCTION OF REMOTE CONTROL 8 (1) Remote Control Operation € RED LAMP : Blinks when keys are pressed. € ON/OFF KEY: Sa me as ON/OFF key of Scale. € ZERO KEY : Sa me as ZERO key of Scale. € TARE KEY : Sa me as TARE key o f Scale. € HOLD KEY : Sa me as HOLD ke y o f Scale. € SET(Clear) KEY : Used to clear previously added weights. € SUM KEY : Used to add weights. If yo u press SUM key, it will be showed the accumulated value, and then it will moved to WEIGHING MODE a few seconds later. (2) Remote Control Specification Available Distance 6 m < 10 m Available Angle 60 ° Power 3V (1.5V AMM ⋅ 2) 9 € Open the battery lid located in back of the scale and turn main power switch off. € Separate the battery connector and take out the discharged battery. € Put a charged battery in rear and connect the battery connector. Turn main power switch on and cover the battery lid. € Check the voltage of battery charger before use. (It is fixed to 220V before shipping) € Insert charger A.C cord into the power source and connect the discharged battery to the connector. € Turn ON the switch on the battery charger, charging will start. € You can check charging condition with red L.E.D in charger. € Estimated time for charging is 8 hours. (Charging time can be varying according to the battery condition.) 7. BATTERY USAGE 8. USE OF BATTERY CHARGER 10 Turn the power switch before using the scale. Power switch is located on the rear panel. (1) ON/OFF KEY € Press the ON/OFF key then The scale will perform self-test on Weight Display and will be ready to weigh when ZERO lamp turns on. (2) ZERO FUNCTION € Used to remove small variations in the scale's zero. (You can adjust the zero up to 2% or 10% of the maximum capacity) € If the weight is not zero though there is nothing on the hook, you can press ZERO key to go to zero state. (3) TARE FUNCTION…

Text truncated - open the document above for the full version.

REPORT NO : HCT-F02-0507 FCC ID : QD8CASTON3 DATE : MAY 23, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr ATTACHMENT C. - BLOCK DIAGRAM REPORT NO : HCT-F02-0507 FCC ID : QD8CASTON3 DATE : MAY 23, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr CASTON-III Block Diagram Load Cell A/D EEPROM WATCH DOGDISPALY 7-Segment 5Digit DC5V POWER MAIN MPU RF MPU 3.3V POWER RF ONE-CHIP PLL FILTER Antenna Matching Antenna Matching POWER A/D PART RF PART RF MODULE KEY, LAMP KEY PART IC4(AD7714)IC5(24C164)IC5(606015) U1,3(74HC573), IC1(97C58) IC1(89C2051) RFB IC2(78R33) IC1(2940),IC2(LM330 Channel JP1

Attachment I To whom it may concern June 21, 2002 Equipment Authorization Branch Authorization and Evaluation Division Federal Communications Commission 7345 Oakland Mills Road Columbia, MD 21046 USA Reference No. IC-020621002 Number of pages. 1 RE : Declaration Letter Dear Sir, We, CAS Corporation, will have antenna permanently attach to its antenna connector by molding method in the process of manufacturing after your approval regarding the following devices. It will prevent customer from detaching the antenna easily. 1. CASTON-III 2. CFF 3. HFS-RF 4. TW-200 5. RW-10PRF 6. RW-2601PRF Sincerely yours, Seung-hwan Hwang Seung-hwan Hwang Manager CAS Corporation. #19 Ganap-Ri Gwangjuk-Myoun Yangju-Gun Gyeonggi-Do, Korea +82-31-820-1372, (Fax)+82-31-840-6489, E-mail : [email protected] Fax Message

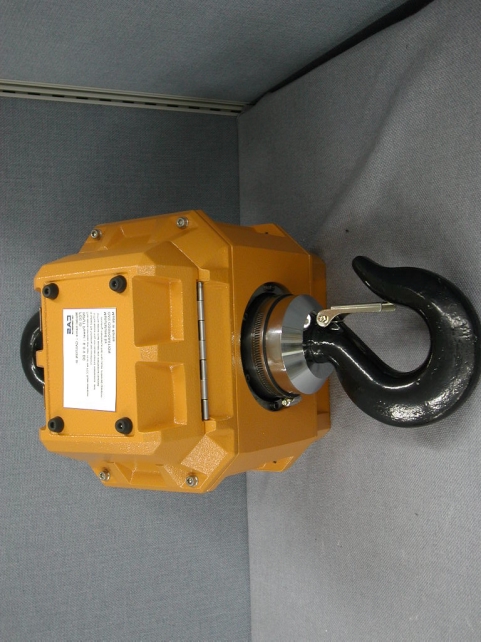

REPORT NO : HCT-F02-0507 FCC ID : QD8CASTON3 DATE : MAY 23, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 ATTACHMENT B. - EXTERNAL PHOTOS REPORT NO : HCT-F02-0507 FCC ID : QD8CASTON3 DATE : MAY 23, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 REPORT NO : HCT-F02-0507 FCC ID : QD8CASTON3 DATE : MAY 23, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 REPORT NO : HCT-F02-0507 FCC ID : QD8CASTON3 DATE : MAY 23, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 REPORT NO : HCT-F02-0507 FCC ID : QD8CASTON3 DATE : MAY 23, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 REPORT NO : HCT-F02-0507 FCC ID : QD8CASTON3 DATE : MAY 23, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 REPORT NO : HCT-F02-0507 FCC ID : QD8CASTON3 DATE : MAY 23, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525

REPORT NO : HCT-F02-0507 FCC ID : QD8CASTON3 DATE : MAY 23, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr ATTACHMENT A. - ID LABEL INFORMATION AND LOCATION PHOTOS REPORT NO : HCT-F02-0507 FCC ID : QD8CASTON3 DATE : MAY 23, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr 1.1 Label Location Photos The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) (SEE NEXT PAGE) REPORT NO : HCT-F02-0507 FCC ID : QD8CASTON3 DATE : MAY 23, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr CAS Model NO : CASTON-III POWER : DC 3V FCC ID : QD8CASTON3 Serial No : This device complies with part 15 of the FCC Rules Operation is subject the following two conditions : (1) This device may not cause harmful interference , and (2) This device must accept any interference received, Including interference that may cause undesired operation. MANUFACTURED BY CAS Corporation MADE IN KOREA

REPORT NO : HCT-F02-0507 FCC ID : QD8CASTON3 DATE : MAY 23, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 ATTACHMENT G. - INTERNAL PHOTOS REPORT NO : HCT-F02-0507 FCC ID : QD8CASTON3 DATE : MAY 23, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 REPORT NO : HCT-F02-0507 FCC ID : QD8CASTON3 DATE : MAY 23, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 REPORT NO : HCT-F02-0507 FCC ID : QD8CASTON3 DATE : MAY 23, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 REPORT NO : HCT-F02-0507 FCC ID : QD8CASTON3 DATE : MAY 23, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 REPORT NO : HCT-F02-0507 FCC ID : QD8CASTON3 DATE : MAY 23, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 REPORT NO : HCT-F02-0507 FCC ID : QD8CASTON3 DATE : MAY 23, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 REPORT NO : HCT-F02-0507 FCC ID : QD8CASTON3 DATE : MAY 23, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 REPORT NO : HCT-F02-0507 FCC ID : QD8CASTON3 DATE : MAY 23, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 REPORT NO : HCT-F02-0507 FCC ID : QD8CASTON3 DATE : MAY 23, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 REPORT NO : HCT-F02-0507 FCC ID : QD8CASTON3 DATE : MAY 23, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 REPORT NO : HCT-F02-0507 FCC ID : QD8CASTON3 DATE : MAY 23, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 REPORT NO : HCT-F02-0507 FCC ID : QD8CASTON3 DATE : MAY 23, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525

ΡΕΠΟΡΤ ΝΟ : ΗΧΤ−Φ02−0507 ΦΧΧ Ι∆ : Θ∆8ΧΑΣΤΟΝ3 ∆ΑΤΕ : ΜΑΨ 23, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. ΣΑΝ 136−1, ΑΜΙ−ΡΙ , ΒΥΒΑΛ−ΕΥΠ, ΙΧΗΕΟΝ−ΣΙ,ΚΨΟΥΝΚΙ−∆Ο, 467−701,ΚΟΡΕΑ ΤΕΛ : +82 31 639 8518 ΦΑΞ : +82 31 639 8525 ωωω.ηχτεχ.χο.κρ ATTACHMENT J OPERATIONAL DESCRIPTION OF CASTON-III TRANSCEIVER CASTON-III is an equipment with the communication function of FSK(Frequency Shift Keying) in order to display the data that is transformed from the weighing value of the object. CASTON-III consists of A/D and RF part. A/D part consists of WATCH DOG(IC6) which produces the reset signal of MPU(IC1), EEPROM(IC5) which saves the weight data, A/D Converter(IC4) which converts analog signal from the Load Cell output into digital signal and MPU(IC1) which converts the digital signal produced by A/D Converter into weighing value and displays it through the Display Driver and functions a key operation from the received key data. RF Part consists of the function that set the frequency by Channel SET(JP1) and MPU(IC1) that transmits the weighing data from the A/D Part into RFB by using the method of FSK(Frequency Shift Keying) and vice versa. The following is the simple description of operation for this device. When the power is on by POWER ON SWITCH, then MPU(IC1) of A/D Part reads the weighing data value from the EEPROM(IC5), then this value which is output value produced by A/D Converter(IC4) that converts analog signal of Load Cell into the digital is displayed on the indicator. And then this data is transmitted to RF Part through the RS232 signal. And when the power is on, RF Part calculates the frequency channel value by JP1 and this calculated frequency is set through PLL of RFB. Then device is set to stand-by condition by converting into the receiving mode. When the weighing data of RS232 from A/D Part is forwarded, it is converted into transmitting mode then again it is converted into receiving mode after sending the weighing data. In this receiving mode, key data that are transmitted from the outside display is transmitted into A/D Part through RS232.

ATTACHMENT D. FCC ID : QD8CASTON3 CASTON-III CIRCUIT

HYUNDAI CALIBRATION & CERTIFICATION TECH. CO., LTD. PRODUCT COMPLIANCE TEAM SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNKI-DO, 467-701, KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr CERTIFICATION FCC Rule Part(s): FCC Part 15.249 Subpart C Equipment Class:Low Power Transceiver, RX Verified (DXT) Frequency Range(TX): 32 ch, 903.000Mhz  918.500Mhz Frequency Range(RX): 32 ch, 903.000Mhz  918.500Mhz Standard(s):FCC Class B: 2001 Equipment(EUT) Type:CRANE SCALE Model(s): CASTON-III The device bearing the trade name and model specified above, has been shown to comply with the applicable technical standards as indicated in the measure ment report and was tested in accordance with the measurement procedures specified in ANSI C63.4-1992.(See Test Report if any modifications were made for compliance) I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measure ments and vouch for the qualifications of all persons taking them. HYUNDAI C-Tech. certifies that no party to application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse of 1988,21 U.S.C.853(a). Report prepared by : Ki-Soo Kim Manager of EMC Tech. Part  HYUNDAI CALIBRATION & CERTIFICATION TECH. CO., LTD. EMC LAB.  QD8CASTON3 CAS Corporation Manufacture; CAS Corporation #19 Ganap-ri Gwangjuk-Myoun Yangju-gun Gyeonggi-do, 482-840 Korea CAS FRN : 0007-1276-16 Date of Issue: MAY 23, 2002 Test Report No.: HCT-F02-0507 Test Site: HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. HCT FRN : 0005-8664-21 FCC ID : APPLICANT : REPORT NO : HCT-F02-0507 FCC ID : QD8CASTON3 DATE : MAY 23, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr TABLE OF CONTENTS PAGE 1. GENERAL INFORMATION........................................................................................ 1.1 Product Description........................................................................................... 1.2 Related submittal(s)/Grant(s).......................................................................... . 1.3 Tested System Details........................................................................................ 1.4 Test Methodology.............................................................................................. 1.5 Test Facility..................................................................................................... 2. SYSTEM TEST CONFIGURATION............................................................................. 2.1 Justification...................................................................................................... 2.2 EUT Exercise Software..................................................................................... 2.3 Cable Description............................................................................................. 2.4 Noise Suppression Parts on Cable..................................................................... 2.5 Equipment Modifications................................................................................. 2.6 Configuration of Tested System......................................................................... 3. FINAL CONDUCTED AND RADIATED EMISSION TESTS SUMMARY(R/TX MODE).......... 3.1 Antenna power conduction limits for receivers (RX MODE)............................... 3.2 Radiated Emissions-(RX MODE)................................................................ 3.3 Radiated Power Output -(TX MODE)......................................................... 3.4 Radiated Emissions-(TX MODE)-SPURIOUS (1)........................................... 3.5 Radiated Emissions-(TX MODE)-SPURIOUS (2)........................................... 3.6 Radiated Emissions-(TX MODE)-SPURIOUS (3).......................................... 3.7 Radiated Emissions-(TX MODE)-HARMONICS(1)....................................... 3.8 Radiated Emissions-(TX MODE)-HARMONICS(2)....................................... 3.9 Radiated Emissions-(TX MODE)-HARMONICS(3)....................................... 4.0 Antenna Requirement........................................................................... 4. FIELD STRENGTH CALCULATION........................................................................... 5. LIST OF TEST EQUIPMENT ..................................................................................... ATTACHMENT A ......................................................ID Label / Location Info. ATTACHMENT B ...................................................... External Photos. ATTACHMENT C ...................................................... Block ATTACHMENT D ...................................................... Circuit Diagram. ATTACHMENT E ......................................................Test Setup Photos. ATTACHMENT F ......................................................User’s Manual. ATTACHMENT G ......................................................Internal Photos. ATTACHMENT H......................................................Part List. ATTACHMENT I........................................................CAS’s letter for Antenna 2 3 3 3 4 4 4 5 5 5 6 6 7 8 9 9 10 11 12 13 14 15 16 17 18 19 20 REPORT NO : HCT-F02-0507 FCC ID : QD8CASTON3 DATE : MAY 23, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr 1. GENERAL INFORMATION 1.1 Product Description These goods perform excellently and exhibit splendid properties through strike tests. The CASTON- is delicately designed to coincide with the special requirements of several industrial fields and includes …

Text truncated - open the document above for the full version.

REPORT NO : HCT-F02-0507 FCC ID : QD8CASTON3 DATE : MAY 23, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr ATTACHMENT E. - TEST SETUP PHOTOS REPORT NO : HCT-F02-0507 FCC ID : QD8CASTON3 DATE : MAY 23, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr CONDUCTED AND RADIATED MEASUREMENT PHOTOS [ANTENNA CONDUCTED POWER MEASUREMENT PHOTO] REPORT NO : HCT-F02-0507 FCC ID : QD8CASTON3 DATE : MAY 23, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr [RADIATED MEASUREMENT PHOTO] – 30MHz-300MHz REPORT NO : HCT-F02-0507 FCC ID : QD8CASTON3 DATE : MAY 23, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr [RADIATED MEASUREMENT PHOTO] – 300MHz-1000MHz REPORT NO : HCT-F02-0507 FCC ID : QD8CASTON3 DATE : MAY 23, 2002 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hctec.co.kr RADIATED MEASUREMENT PHOTO] – 1GHz-10GHz
