QDE-GRID-3X3-PSWireless Bridge

Airaya - 1 - Airaya Proven, Fast and Affordable Outdoor Wireless Bridges Product Manual And Installation Guide WirelessGRID-300 MIMO Outdoor Wireless Bridges Revision 2.02 11/29/2010 10:00 PM WirelessGRID-300 High Capacity Outdoor Backhaul Radios For Point-to-point Links - 2 - Airaya WirelessGRID-300 Backhaul AIRAYA is a trademark of AIRAYA Corp. Other trademarks or brand names mentioned herein are trademarks or registered trademarks of their respective companies. International Headquarters 18434 Technology Drive Morgan Hill, CA 95037 Tel: 866-224-7292 Tel: 408-776-2846 International Fax 408-776-3339 E-mail: [email protected] Skype: airaya_support Web site: www.airaya.com Copyright © 2009 by AIRAYA Corp. All rights reserved. No part of this document may be copied or reproduced in any form or by any means without the prior written consent of AIRAYA Corp. AIRAYA makes no warranties with respect to this documentation and disclaims any implied warranties of merchantability, quality, or fitness for any particular purpose. The information in this document is subject to change without notice. AIRAYA reserves the right to make revisions to this publication without obligation to notify any person or entity of any such changes. Airaya - 3 - Airaya Proven, Fast and Affordable Outdoor Wireless Bridges Limited Warranty AIRAYA Corp. Limited Warranty: AIRAYA warrants all of its products to be free of manufacturing defects in workmanship and materials, under normal use and service, for the applicable warranty term. All AIRAYA products carry a standard 90-day limited warranty from the date of purchase from AIRAYA or its Authorized Reseller. AIRAYA may, at its own discretion, repair or replace any product not operating as warranted with a similar or functionally equivalent product during the applicable warranty term. The standard limited warranty can be upgraded to a one-year warranty by registering new products within 30 days of purchase from AIRAYA or its Authorized Reseller. Registration can be accomplished online via the AIRAYA web site. Failure to register will not affect the standard limited warranty. The one-year warranty covers a product during the Life of that Product, which is defined as the period of time during which the product is an ‘Active’ AIRAYA product. A product is considered to be ‘Active’ while it is listed on the current AIRAYA price list. As new technologies emerge, older technologies become obsolete and AIRAYA will, at its discretion, replace an older product in its product line with one that incorporates these newer technologies. At that point, the obsolete product is discontinued and is no longer an ‘Active’ AIRAYA product. All products that are replaced become the property of AIRAYA. Replacement products may be either new or reconditioned. Any replaced or repaired product carries either a 30-day limited warranty or the remainder of the initial warranty, whichever is longer. AIRAYA is not responsible for any custom software or firmware, configuration information, or memory data of Customer contained in, stored on, or integrated with any products returned to AIRAYA pursuant to any warranty. Products returned to AIRAYA should have any customer- installed accessory or add-on components removed prior to returning the product for replacement. AIRAYA is not responsible for these items if they are returned with the product. Customers must contact AIRAYA for a Return Material Authorization (RMA) number prior to returning any product to AIRAYA. Proof of purchase may be required. Any product returned to AIRAYA without a valid RMA number clearly marked on the outside of the package will be returned to customer at customer’s expense. Customers are responsible for all shipping charges from their facility to AIRAYA. AIRAYA is responsible for return shipping charges from AIRAYA to the customer. - 4 - Airaya WirelessGRID-300 Backhaul Limited Warranty WARRANTIES EXCLUSIVE: IF AN AIRAYA PRODUCT DOES NOT OPERATE AS WARRANTED ABOVE, CUSTOMER’S SOLE REMEDY SHALL BE REPAIR OR REPLACEMENT OF THE PRODUCT IN QUESTION, AT AIRAYA’S OPTION. THE FOREGOING WARRANTIES AND REMEDIES ARE EXCLUSIVE AND ARE IN LIEU OF ALL OTHER WARRANTIES OR CONDITIONS, EXPRESS OR IMPLIED, EITHER IN FACT OR BY OPERATION OF LAW, STATUTORY OR OTHERWISE, INCLUDING WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. AIRAYA NEITHER ASSUMES NOR AUTHORIZES ANY OTHER PERSON TO ASSUME FOR IT ANY OTHER LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE OR USE OF ITS PRODUCTS. AIRAYA SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND EXAMINATION DISCLOSE THE ALLEGED DEFECT IN THE PRODUCT DOES NOT EXIST OR WAS CAUSED BY CUSTOMER’S OR ANY THIRD PERSON’S MISUSE, NEGLECT, IMPROPER INSTALLATION OR TESTING, UNAUTHORIZED ATTEMPTS TO REPAIR, OR ANY OTHER CAUSE BEYOND THE RANGE OF THE INTENDED USE, OR BY ACCIDENT, FIRE, LIGHTNING, OR OTHER HAZARD. LIMITATION OF LIABILITY: IN NO EVENT, (INCLUDING NEGLIGENCE), SHALL AIRAYA BE LIABLE FOR INCIDENTAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY KIND, OR FOR LOSS OF REVENUE, LOSS OF BUSINESS, OR OTHER FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE, USE, PERFORMANCE, FAILURE, OR INTERRUPTION OF ITS PRODUCTS, EVEN IF AIRAYA OR ITS AUTHORIZED RESELLER HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. SOME COUNTRIES DO NOT ALLOW THE EXCLUSION OF IMPLIED WARRANTIES OR THE LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR CONSUMER PRODUCTS, SO THE ABOVE LIMITATIONS AND EXCLUSIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, WHICH MAY VARY FROM STATE TO STATE. NOTHING IN THIS WARRANTY SHALL BE TAKEN TO AFFECT YOUR STATUTORY RIGHTS. Note: AIRAYA will provide fee-based service for up to three years following discontinuance of any product from the active AIRAYA price list. Under the one-year warranty, internal and external power supplies, and fans are covered by a standard one-year warranty f…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 October 31, 2010 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, _______AIRAYA, Corp._________hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product Description: Wireless Bridge Model Name: WirelessGRID , FCC ID : QDE-GRID-3X3-PS We affirm that between SIEMIC and __AIRAYA, Corp.___, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, William G. Pabst Vice President, Engineering 18434 Technology Drive Morgan Hill, CA. 95037

SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 AIRAYA Corp. Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (current) 1.0 1.0 Jan-21-2009 SCS-F19: Confidentiality Request Letter Rev 1.0 N ov 14, 2006 October 31, 2010 To: Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID:QDE-GRID- 3X3-PS We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematic - Operational Description - BOM Th e above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, William G. Pabst Vice President, Engineering 18434 Technology Drive Morgan Hill, CA. 94087

SCS-F26 Modular Approval Letter Page 2 of 3 Rev 3.0 October 31, 2010 (Product name) FCC ID : QDE-GRID-3X3-PS , is seeking FCC Authorization as a Modular transmitter / Limited Modular Approval (Please check one). The EUT meets the requirements for Modular approval / Limited Modular Approval (please check one) as detailed in FCC public Notice DA00-1407. Compliance to each of the requirements is described below: Questions are: 1. “The modular transmitter must have its own RF shielding.” YES 2. “The modular transmitter must have buffered modulation/data inputs.” YES 3. “The modular transmitter must have its own power supply regulation.” YES 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(c).” YES 5. “The modular transmitter must be tested in a stand-alone configuration.” YES 6. “The modular transmitter must be labeled with its own FCC ID number.” YES 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacture must provide adequate instruction along with the module to explain any such requirements.” YES 8. “The modular transmitter must comply with any applicable RF exposure requirements.” YES William G. Pabst / Vice President Engineering 18434 Technology Drive Morgan Hill, CA. 95037

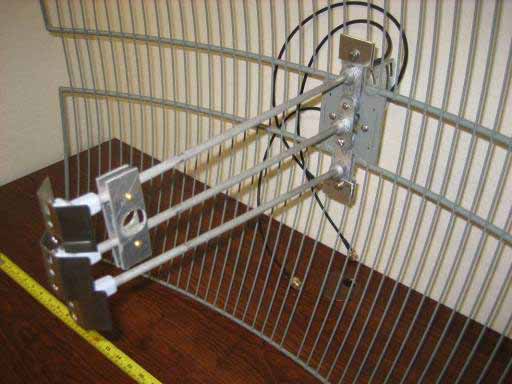

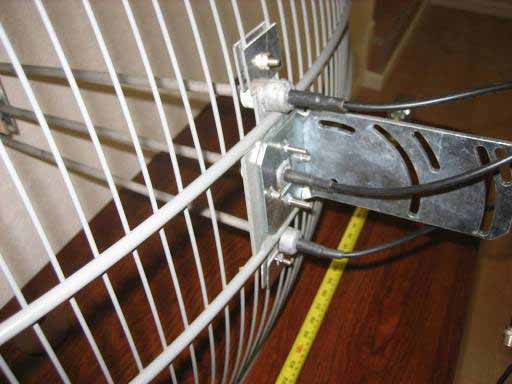

EUT Photo Component View with RF shield Component View without RF shield Solder View AC/DC Power supply –View 1 AC/DC Power supply –View 2 SA06L48-V POE Power Supply-View 1 SA06L48-V POE Power Supply-View 2 SA06L48-V POE Power Supply-View 3 SA06L48-V POE Power Supply-View 4 Sector Antenna-View 1 Sector Antenna-View 2 Grid Antenna-View 1 Grid Antenna-View 2 Grid Antenna-View 3 Grid Antenna-View 4 Omni Directional Antenna-View 1 Omni Directional Antenna -View 2 Dual Polarity Antenna -View 1 Dual Polarity Antenna -View 2 23 dBi , 5GHz Broadband Antenna-View 1 23 dBi, 5GHz Broadband Antenna-View 2

LABEL LOCATION LABEL CONTENTS FCC ID: QDE-GRID-3X3-PS IC: 4433A-GRID3X3PS Serial No: 06387 MAC Addr: 00:11:F8:04:A5:33 Model: WirelessGRID-300 Made in USA

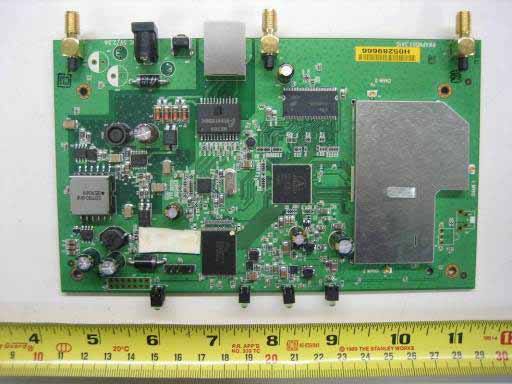

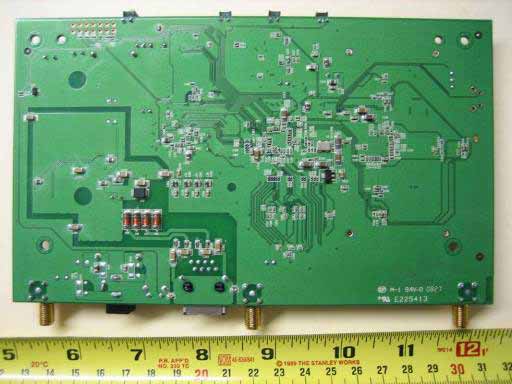

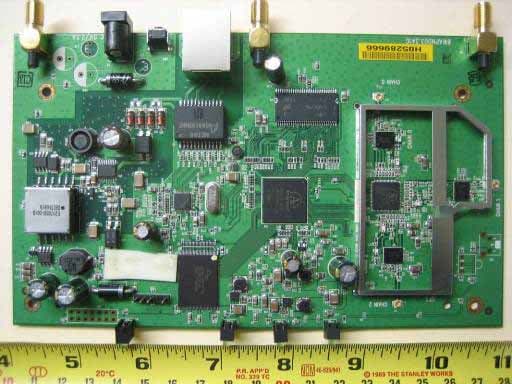

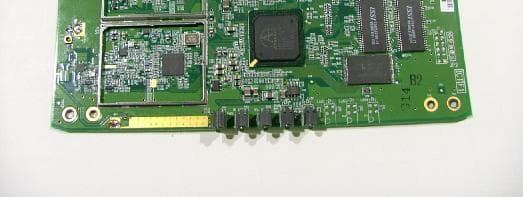

EUT Photo Component View with RF shield Component View without RF shield Solder View

MPE CALCULATION For AIRAYA CORP – Wireless Bridge; Model: WirelessGRID FCC ID: QDE-GRID-3X3-PS RF Exposure Requirements: 47 CFR §1.1307(b) RF Radiation Exposure Limits: 47 CFR §1.1310 RF Radiation Exposure Guidelines: FCC OST/OET Bulletin Number 65 EUT Frequency Band: 5745 – 5825 MHz Limits for General Population/Uncontrolled Exposure in the band of: 1.5 – 100 GHz Power Density Limit: 1 mW/ cm 2 ; Equation: S = PG / 4πR 2 or R = √PG / 4πS Where, S = Power Density P = Power Input to Antenna G = Antenna Gain R = distance to the center of radiated antenna ______________________________________________________________________________________________________________________ Point to point Link 5.8 GHz, Power = 24.96 dBm, Antenna Gain = 28 dBi, Power density limit = 1 mW/ cm2; R= 29.81026 Result The Above Result had shown that Device complied with 1mW/cm 2 Power density requirement for distance with minimum distance 29.81026 cm. Point to multiple point Link 5.8 GHz, Power = 24.96 dBm, Antenna Gain = 10 dBi, Power density limit = 1 mW/ cm2; Result The Above Result had shown that Device complied with 1mW/cm 2 Power density requirement for distance with minimum distance 3.752899 cm. Completed By : Choon Sian Ooi Date : January 29, 2009

AIRAYA, CORP Wireless Bridge Model: WirelessGRID-300 08 November 2010 Report No.: SL10062401-AIR-003A (This report supersedes NONE) Modifications made to the product : None This Test Report is Issued Under the Authority of: Choon Sian Ooi Test Engineer Leslie Bai Engineering Reviewer This test report may be reproduced in full only. Test result presented in this test report is applicable to the representative sample only. Title: RF Test Report AIRAYA, CORP , model : WirelessGRID-300 To FCC 15.247 2010, RSS 210 Issue 7: 2007 Serial# SL10062401-AIR-003A Issue Date 08 November 2010 Page 2 of 131 www.siemic.com This page has been left blank intentionally. Title: RF Test Report AIRAYA, CORP , model : WirelessGRID-300 To FCC 15.247 2010, RSS 210 Issue 7: 2007 Serial# SL10062401-AIR-003A Issue Date 08 November 2010 Page 3 of 131 www.siemic.com CONTENTS 1 EXECUTIVE SUMMARY & EUT INFORMATION...............................................................................................................5 2 TECHNICAL DETAILS.....................................................................................................................................................6 3 MODIFICATION...............................................................................................................................................................7 4 TEST SUMMARY.............................................................................................................................................................8 5 MEASUREMENTS, EXAMINATION AND DERIVED RESULTS.........................................................................................9 ANNEX A. TEST INSTRUMENT & METHOD.........................................................................................................................106 ANNEX B EUT AND TEST SETUP PHOTOGRAPHS............................................................................................................110 ANNEX C. TEST SETUP AND SUPPORTING EQUIPMENT....................................................................................................110 ANNEX D USER MANUAL, BLOCK & CIRCUIT DIAGRAM...................................................................................................114 Title: RF Test Report AIRAYA, CORP , model : WirelessGRID-300 To FCC 15.247 2010, RSS 210 Issue 7: 2007 Serial# SL10062401-AIR-003A Issue Date 08 November 2010 Page 4 of 131 www.siemic.com This page has been left blank intentionally. Title: RF Test Report AIRAYA, CORP , model : WirelessGRID-300 To FCC 15.247 2010, RSS 210 Issue 7: 2007 Serial# SL10062401-AIR-003A Issue Date 08 November 2010 Page 5 of 131 www.siemic.com 1 Executive Summary & EUT information The purpose of this test programme was to demonstrate compliance of the AIRAYA, CORP , Wireless Bridge, and Model: WirelessGRID-300 against the current Stipulated Standards. The Wireless Bridge have demonstrated compliance with the FCC 15.247 2010. EUT Information EUT Description : The WirelessGRID is a point-to-point and point-to-multipoint radio device. TheWirelessGRID transfers all Ethernet packets received by the bridge to any other bridge that’s been successfully associated with the sending bridge. These packets can include T1, voice, video, and data. When a bridge receives the RF packet, it translates the packet back into an Ethernet packet frame and sends it out over the physical Ethernet connection. The Ethernet packets can be sent in any of 3 different data rates, depending on the device at the other end of Ethernet cable. These data rates include 10, 100, or 1000 mbps. The device is operating as a MAC layer bridge. The WirelessGRID uses an OFDM radio section with a digital interface. The system receives Ethernet packets over the PCI bus and sends packets out over the radio interface via the PCI bus. Data being sent out over the radio interface comes in from the Ethernet interface or is sourced from inside the bridge via the user management functions. A Link requires at least two of an Indoor Unit (IU) or Outdoor Unit (OU) used to establish communications between locations. The IU consists of a radio, antenna cable, antenna, enclosure, AC power supply or DC power source. The IU uses a long antenna cable between the antenna and the radio. The OU consists of a radio, antenna cable, antenna, Power Over Ethernet, enclosure, and AC power supply. The Power Over Ethernet includes an injector, which is located near the AC power source and a splitter mounted inside the outdoor enclosure. The short antenna cable is connected between the radio board and the integrated antenna. A version of the Outdoor Unit allows the user to connect a non-integrated antenna via an N-connector. The IU is installed inside the OU enclosures. The communications between the units is for outdoor use only. Versions of the product that include an external connector will require professional installation. Versions of the product that are provided with the attached antenna to the enclosure using Torx head screws, will not require professional installation. If the following table, the GI defines the Guard Interval between symbols. This helps the receiver overcome the effects of any multipath delays. The MCS Index value represents the Modulation and Coding Scheme that determines the number of spatial streams, the modulation, the coding rate and data rate. Model No : WirelessGRID-300 Serial No : 601461-00T Input Power : 5VDC Classification Per Stipulated Test Standard : Spread Spectrum System / Device Title: RF Test Report AIRAYA, CORP , model : WirelessGRID-300 To FCC 15.247 2010, RSS 210 Issue 7: 2007 Serial# SL10062401-AIR-003A Issue Date 08 November 2010 Page 6 of 131 www.siemic.com 2 TECHNICAL DETAILS Purpose Compliance testing of MIMO RADIO Module with stipulated standard Applicant / Client AIRAYA, CORP Manufacturer AIRAYA, CORP 637 Adair Court Morgan Hill, CA 95037 Laboratory performing the tests SIEMIC Laboratories Test report reference …

Text truncated - open the document above for the full version.

Radiated Emission 30MHz to 1GHz with AF1805-A AC/DC Power supply Front View Rear View Radiated Emission 30MHz to 1GHz with SA06L48-V POE Power Supply Front View Rear View 1GHz-18GHz With big antenna Front View Rear View 18GHz-40GHz With big antenna Front View Rear View 1GHz-18GHz With Sector Antenna Front View Rear View 18GHz-40GHz With Sector Antenna Front View Rear View 1GHz-18GHz With Dual Polarity Antenna Front View Rear View 18GHz-40GHz With Sector Antenna Front View Rear View 1GHz-18GHz With Omni Directional Antenna Front View Rear View 18GHz-40GHz With Omni Directional Antenna Front View Rear View 1GHz-18GHz 23dBi MARS 5GHz Broadband Antenna Front View Rear View 18GHz-40GHz 23dBi MARS 5GHz Broadband Antenna Front View Rear View Conducted Emission With AF1805-A AC/DC Power supply With SA06L48-V POE Power Supply With AT-6101G AC/DC Power supply With POE30U-560(G) POE Power Supply
