QDE-GRID-C3WIRELESS BRIDGE MODULE

Airaya – Fast and affordable outdoor wireless bridges Base Station AI108-4958-BSU Repeater / Base Station AI108-4958-ON2 Outdoor Subscriber Unit AI108-4958-OSU Outdoor Point-to-point Link AI108-4958-O-xxx Product Manual And Installation Guide WirelessGRID Outdoor Wireless Bridges Revision 1.01 03/07/2006 10:17 AM - 1 - Airaya – Fast and affordable outdoor wireless bridges AIRAYA is a trademark of AIRAYA Corp. Other trademarks or brand names mentioned herein are trademarks or registered trademarks of their respective companies. International Headquarters 637 Adair Court Morgan Hill, CA 95037 Tel: 866-224-7292 Tel: 408-776-9583 International Fax 408-776-9583 E-mail: [email protected] Skype: airaya_support Web site: www.airaya.com Copyright © 2004 by AIRAYA Corp. All rights reserved. No part of this document may be copied or reproduced in any form or by any means without the prior written consent of AIRAYA Corp. AIRAYA makes no warranties with respect to this documentation and disclaims any implied warranties of merchantability, quality, or fitness for any particular purpose. The information in this document is subject to change without notice. AIRAYA reserves the right to make revisions to this publication without obligation to notify any person or entity of any such changes. - 2 - Airaya – Fast and affordable outdoor wireless bridges Limited Warranty AIRAYA Corp. Limited Warranty: AIRAYA warrants all of its products to be free of manufacturing defects in workmanship and materials, under normal use and service, for the applicable warranty term. All AIRAYA products carry a standard 90-day limited warranty from the date of purchase from AIRAYA or its Authorized Reseller. AIRAYA may, at its own discretion, repair or replace any product not operating as warranted with a similar or functionally equivalent product during the applicable warranty term. The standard limited warranty can be upgraded to a one-year warranty by registering new products within 30 days of purchase from AIRAYA or its Authorized Reseller. Registration can be accomplished online via the AIRAYA web site. Failure to register will not affect the standard limited warranty. The one-year warranty covers a product during the Life of that Product, which is defined as the period of time during which the product is an ‘Active’ AIRAYA product. A product is considered to be ‘Active’ while it is listed on the current AIRAYA price list. As new technologies emerge, older technologies become obsolete and AIRAYA will, at its discretion, replace an older product in its product line with one that incorporates these newer technologies. At that point, the obsolete product is discontinued and is no longer an ‘Active’ AIRAYA product. All products that are replaced become the property of AIRAYA. Replacement products may be either new or reconditioned. Any replaced or repaired product carries either a 30-day limited warranty or the remainder of the initial warranty, whichever is longer. AIRAYA is not responsible for any custom software or firmware, configuration information, or memory data of Customer contained in, stored on, or integrated with any products returned to AIRAYA pursuant to any warranty. Products returned to AIRAYA should have any customer-installed accessory or add-on components removed prior to returning the product for replacement. AIRAYA is not responsible for these items if they are returned with the product. Customers must contact AIRAYA for a Return Material Authorization (RMA) number prior to returning any product to AIRAYA. Proof of purchase may be required. Any product returned to AIRAYA without a valid RMA number clearly marked on the outside of the package will be returned to customer at customer’s expense. Customers are responsible for all shipping charges from their facility to AIRAYA. AIRAYA is responsible for return shipping charges from AIRAYA to the customer. - 3 - Airaya – Fast and affordable outdoor wireless bridges Limited Warranty WARRANTIES EXCLUSIVE: IF AN AIRAYA PRODUCT DOES NOT OPERATE AS WARRANTED ABOVE, CUSTOMER'S SOLE REMEDY SHALL BE REPAIR OR REPLACEMENT OF THE PRODUCT IN QUESTION, AT AIRAYA’S OPTION. THE FOREGOING WARRANTIES AND REMEDIES ARE EXCLUSIVE AND ARE IN LIEU OF ALL OTHER WARRANTIES OR CONDITIONS, EXPRESS OR IMPLIED, EITHER IN FACT OR BY OPERATION OF LAW, STATUTORY OR OTHERWISE, INCLUDING WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. AIRAYA NEITHER ASSUMES NOR AUTHORIZES ANY OTHER PERSON TO ASSUME FOR IT ANY OTHER LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE OR USE OF ITS PRODUCTS. AIRAYA SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND EXAMINATION DISCLOSE THE ALLEGED DEFECT IN THE PRODUCT DOES NOT EXIST OR WAS CAUSED BY CUSTOMER'S OR ANY THIRD PERSON'S MISUSE, NEGLECT, IMPROPER INSTALLATION OR TESTING, UNAUTHORIZED ATTEMPTS TO REPAIR, OR ANY OTHER CAUSE BEYOND THE RANGE OF THE INTENDED USE, OR BY ACCIDENT, FIRE, LIGHTNING, OR OTHER HAZARD. LIMITATION OF LIABILITY: IN NO EVENT, (INCLUDING NEGLIGENCE), SHALL AIRAYA BE LIABLE FOR INCIDENTAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY KIND, OR FOR LOSS OF REVENUE, LOSS OF BUSINESS, OR OTHER FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE, USE, PERFORMANCE, FAILURE, OR INTERRUPTION OF ITS PRODUCTS, EVEN IF AIRAYA OR ITS AUTHORIZED RESELLER HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. SOME COUNTRIES DO NOT ALLOW THE EXCLUSION OF IMPLIED WARRANTIES OR THE LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR CONSUMER PRODUCTS, SO THE ABOVE LIMITATIONS AND EXCLUSIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, WHICH MAY VARY FROM STATE TO STATE. NOTHING IN THIS WARRANTY SHALL BE TAKEN TO AFFECT YOUR STATUTORY RIGHTS. Note: AIRAYA will provide fee-based service for up to three years following discontinuance of any product from the active AIRAYA price list. Under the one-year warranty, internal and external power …

Text truncated - open the document above for the full version.

Airaya – Fast and affordable outdoor wireless bridges For Professional Installers Product Manual And Installation Guide WirelessGRID Indoor Wireless Bridge (For use with outdoor antennas and RF cables) Indoor Bridge with N-type Connector AI108-4958-N Indoor Bridge w/RF Cable and Outdoor Antenna AI108-4958-1/AI108-4958-SU Indoor Bridge Kit w/RF Cables & Outdoor Antennas AI108-4958-Kit Revision 1.01 03/07/2006 3:48 AM - 1 - Airaya – Fast and affordable outdoor wireless bridges AIRAYA is a trademark of AIRAYA Corp. Other trademarks or brand names mentioned herein are trademarks or registered trademarks of their respective companies. International Headquarters 637 Adair Court Morgan Hill, CA 95037 Tel: 866-224-7292 Tel: 408-776-9583 International Fax 408-776-9583 E-mail: [email protected] Skype: airaya_support Web site: www.airaya.com Copyright © 2004 by AIRAYA Corp. All rights reserved. No part of this document may be copied or reproduced in any form or by any means without the prior written consent of AIRAYA Corp. AIRAYA makes no warranties with respect to this documentation and disclaims any implied warranties of merchantability, quality, or fitness for any particular purpose. The information in this document is subject to change without notice. AIRAYA reserves the right to make revisions to this publication without obligation to notify any person or entity of any such changes. - 2 - Airaya – Fast and affordable outdoor wireless bridges Limited Warranty AIRAYA Corp. Limited Warranty: AIRAYA warrants all of its products to be free of manufacturing defects in workmanship and materials, under normal use and service, for the applicable warranty term. All AIRAYA products carry a standard 90-day limited warranty from the date of purchase from AIRAYA or its Authorized Reseller. AIRAYA may, at its own discretion, repair or replace any product not operating as warranted with a similar or functionally equivalent product during the applicable warranty term. The standard limited warranty can be upgraded to a one-year warranty by registering new products within 30 days of purchase from AIRAYA or its Authorized Reseller. Registration can be accomplished online via the AIRAYA web site. Failure to register will not affect the standard limited warranty. The one-year warranty covers a product during the Life of that Product, which is defined as the period of time during which the product is an ‘Active’ AIRAYA product. A product is considered to be ‘Active’ while it is listed on the current AIRAYA price list. As new technologies emerge, older technologies become obsolete and AIRAYA will, at its discretion, replace an older product in its product line with one that incorporates these newer technologies. At that point, the obsolete product is discontinued and is no longer an ‘Active’ AIRAYA product. All products that are replaced become the property of AIRAYA. Replacement products may be either new or reconditioned. Any replaced or repaired product carries either a 30-day limited warranty or the remainder of the initial warranty, whichever is longer. AIRAYA is not responsible for any custom software or firmware, configuration information, or memory data of Customer contained in, stored on, or integrated with any products returned to AIRAYA pursuant to any warranty. Products returned to AIRAYA should have any customer-installed accessory or add-on components removed prior to returning the product for replacement. AIRAYA is not responsible for these items if they are returned with the product. Customers must contact AIRAYA for a Return Material Authorization (RMA) number prior to returning any product to AIRAYA. Proof of purchase may be required. Any product returned to AIRAYA without a valid RMA number clearly marked on the outside of the package will be returned to customer at customer’s expense. Customers are responsible for all shipping charges from their facility to AIRAYA. AIRAYA is responsible for return shipping charges from AIRAYA to the customer. - 3 - Airaya – Fast and affordable outdoor wireless bridges Limited Warranty WARRANTIES EXCLUSIVE: IF AN AIRAYA PRODUCT DOES NOT OPERATE AS WARRANTED ABOVE, CUSTOMER'S SOLE REMEDY SHALL BE REPAIR OR REPLACEMENT OF THE PRODUCT IN QUESTION, AT AIRAYA’S OPTION. THE FOREGOING WARRANTIES AND REMEDIES ARE EXCLUSIVE AND ARE IN LIEU OF ALL OTHER WARRANTIES OR CONDITIONS, EXPRESS OR IMPLIED, EITHER IN FACT OR BY OPERATION OF LAW, STATUTORY OR OTHERWISE, INCLUDING WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. AIRAYA NEITHER ASSUMES NOR AUTHORIZES ANY OTHER PERSON TO ASSUME FOR IT ANY OTHER LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE OR USE OF ITS PRODUCTS. AIRAYA SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND EXAMINATION DISCLOSE THE ALLEGED DEFECT IN THE PRODUCT DOES NOT EXIST OR WAS CAUSED BY CUSTOMER'S OR ANY THIRD PERSON'S MISUSE, NEGLECT, IMPROPER INSTALLATION OR TESTING, UNAUTHORIZED ATTEMPTS TO REPAIR, OR ANY OTHER CAUSE BEYOND THE RANGE OF THE INTENDED USE, OR BY ACCIDENT, FIRE, LIGHTNING, OR OTHER HAZARD. LIMITATION OF LIABILITY: IN NO EVENT, (INCLUDING NEGLIGENCE), SHALL AIRAYA BE LIABLE FOR INCIDENTAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY KIND, OR FOR LOSS OF REVENUE, LOSS OF BUSINESS, OR OTHER FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE, USE, PERFORMANCE, FAILURE, OR INTERRUPTION OF ITS PRODUCTS, EVEN IF AIRAYA OR ITS AUTHORIZED RESELLER HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. SOME COUNTRIES DO NOT ALLOW THE EXCLUSION OF IMPLIED WARRANTIES OR THE LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR CONSUMER PRODUCTS, SO THE ABOVE LIMITATIONS AND EXCLUSIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, WHICH MAY VARY FROM STATE TO STATE. NOTHING IN THIS WARRANTY SHALL BE TAKEN TO AFFECT YOUR STATUTORY RIGHTS. Note: AIRAYA will provide fee-based service for up to three years following discontinuance of…

Text truncated - open the document above for the full version.

TIMCO Engineering, Inc. 849 N.W. State Road 45 P.O. Box 370 Newberry, FL 32669 March 17, 2006 Dear Examiner: I am writing to avoid the possibility of an inadvertent disclosure of proprietary information. The accompanying Form 731 is being filed with the commission on our behalf by Siemic, Inc., a consulting and testing laboratory. Included as exhibits with the enclosed application, schematics, Airaya Operation, Block Diagram, Limited Modular Transmitter Approval Qualifications and user manual of the device from Atheros and Airaya, and the test report SL 05020801T-ARY-003B. It is our intention to provide the commission with a full disclosure of our product so that its merits can be evaluated. Indeed, we are pleased to provide any further information that the commission might wish to see. It is not our intention, however, to make our proprietary process a matter of public record. In view of the fact that the schematics, Block Diagram, and associated Airaya Operations disclose the mechanism of our process, we ask that these portions (block diagrams, schematics, and Airaya Operations) of our application be withheld from public inspection as provided under FCC section 0.459. These documents contain details of the proprietary operation of product. These details are not readily discernible - even to technically sophisticated individuals - from our hardware and constitute trade secrets. We request therefore that these documents and this letter be segregated from the body of our evaluation report and withheld from public inspection. Thank you for your attention. Please let the undersigned know if the Commission disagrees with our position or requires further justification. Sincerely, William G. Pabst Vice President, Engineering AIRAYA Inc.

Siemic Laboratories Accessing Global Markets 2206 Ringwood Avenue, San Jose, CA 95131, USA, +1(408)526 1188, +1(408)526 1088, [email protected] Timco Engineering, Inc. 849 N.W. State Road 45 P.O. Box 370 Newberry, Florida 32669 USA 01 May 2006 Dear Reviewer: This letter is to request of removing the 5 MHz channel bandwidth (23 dBi) from the existing certification for FCC ID: QDE-GRIDC3. Airaya Corporation had decided not to use the 5 MHz channel bandwidth. Please contact us if further explanation is necessary. Sincerely, Kerwinn Corpuz SIEMIC Laboratories

Limited Modular Transmitter Approval Qualification FCC Test Report FCC ID: QDE-GRID-C3 1. The board has its own shielding covering the RF circuits as shown in the test report photographs. 2. The modular transmitter works with its own data buffering and modulation circuits. No external source controls the modulation, RF or data processing as implemented on the board. 3. The modular transmitter has its own power supply regulation by VR1, VR2, VR3 or VR4. (Please refer to schematics.) 4. Each of the following antenna’s were used with the applying module shall be approved with the module. Mars Antenna’s and RF Systems MA-WA580-1x Patch (23 dBi) Stella Doradus 58-SD24 Dish (28 dBi) 5. The modular transmitter was tested in a stand-alone configuration with each identified antenna. 6. The modular transmitter is labeled with its own FCC ID number. 7. The modular transmitter complies with the applied specific rules and operating requirements applicable to the transmitter. Adequate instructions are provided with the users manual. 8. The modular transmitter complies with the applicable RF exposure requirements.

April 21, 2006 Attn: Reviewing Engineer RE: Limited Modular Approval To Whom it May Concern: Airaya Corp. complies with multiple of the items listed in Section 7.1.1, Modular Construction, of the “General Requirements and Information for the Certification of Radio communications Equipment”. Airaya retains control over the end user, in all bands of its products, by preventing the end user from increasing the output power of the selected band to higher than that defined by the test reports defining the radio operation. The product has an encrypted challenge/response access method that prevents the end user from access to the manufacturers configuration routines. The routines are the only method for increasing the output power of the product past the local regulatory requirements. During the manufacturing process, all units being shipped to Canada are configured for the Canadian band requirements. These settings cannot be changed by the software interface provided to the end user. If any additional information is required, please contact me directly. Sincerely, William G. Pabst CTO, VP of Engineering, AIRAYA Corp. 18449 Technology Drive Morgan Hill, CA 95037 [email protected] 408-718-8009

May 3, 2006 Timco Engineering, Inc. 849 NW State Road 45 P.O. Box 370 Newberry, Florida 32669 Re: Product Modification in Manufacturing Dear Examiner: During the manufacturing process, Airaya will attach two pieces of high-loss, flexible, carbon-impregnated urethane foam sheets on the EUT to allow the hardware to comply with the test report. The material is ECCOSORB LS-26 Broadband Cavity Resonance Absorber. The placement of these sheets will be above the shields on the top of the EUT and below the shielded components on the bottom of the EUT. The sheets come with an attached adhesive to keep the material attached to the EUT. If I may be of any assistance to the Bureau, please contact me. Sincerely, William G. Pabst CTO, VP of Engineering, AIRAYA Corp. 18449 Technology Drive Morgan Hill, CA 95037 [email protected] 408-718-8009

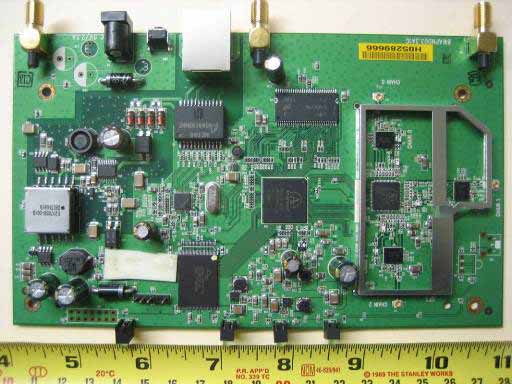

External Photos Top with absorber Top without absorber Top without shield Bottom with absorber Bottom without absorber

ID LABEL – LOCATION

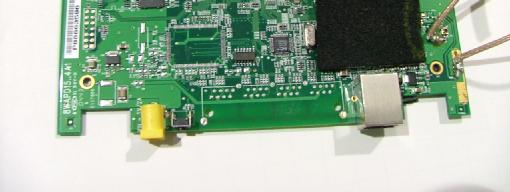

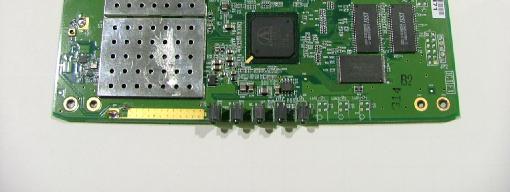

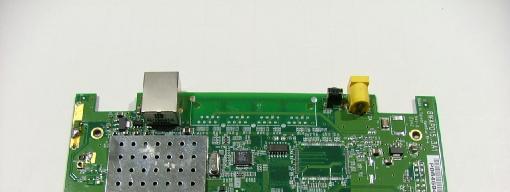

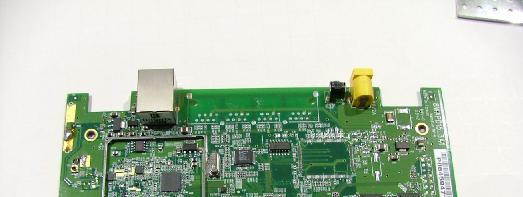

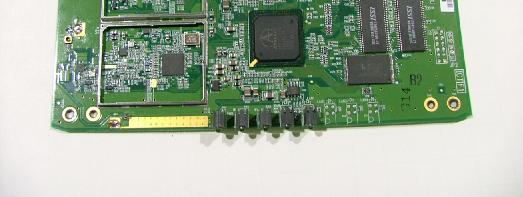

Internal Photos Top with absorber Top without absorber Top without shield Bottom with absorber Bottom without absorber

MPE CALCULATION For Airaya – Wireless GRID RF Exposure Requirements: 47 CFR §1.1307(b) RF Radiation Exposure Limits: 47 CFR §1.1310 RF Radiation Exposure Guidelines: FCC OST/OET Bulletin Number 65 EUT Frequency Band: 5250 – 5350 MHz EUT Maximum Measured Conducted Power: 6.8 dBm (0.0048 watt) EUT Antenna Gain: 28 dBi ( 630.957 numeric) Limits for General Population/Uncontrolled Exposure: 1500 – 100,000 MHz Power Density Limit: 1.0 mW/cm 2 or 10.0 W/m 2 Equation: S = PG / 4πR 2 Where, S = Power Density P = Power Input to Antenna G = Antenna Gain R = distance to the center of radiated antenna S = 0.0048W*630.957 / 4*3.14*(0.2m) 2 = 3.029W / 0.503m 2 = 6.025 W/m 2 (0.6025 mW/cm 2 ) EUT comply with 20cm distance exposure.

Frequency Stability Calculation Company: Airaya and Atheros Operating frequency: 5255 MHz – 5325 MHz Manufacturer (Atheros) claims maximum frequency tolerance: ±18ppm Atheros frequency stability calculation based on 99% BW, not 26 dBc. Calculation below is the worse case among all channel bandwidths (10MHz, 20MHz, 40MHz and 50MHz). 10 MHz BW: measured 8.55 MHz (99% BW). Center frequency of the Channel: 5255 MHz Lower Edge of Authorized Band: 5250 MHz Calculated frequency between the channel edge (5255 MHz) and lower edge of the authorized band (5250 MHz): 725 kHz. Where, ((8.55MHz / 2) – 5255 MHz) – 5250 MHz = 725 kHz Calculated maximum frequency tolerance of 18ppm: 94.59 kHz Where, 5255 MHz * 18ppm = 94.59 kHz Therefore, the frequency stability complies.
