QDE-GRID-CWireless Bridge Module

Airaya – Fast and affordable outdoor wireless bridges Base Station AI108-4958-BSU Repeater / Base Station AI108-4958-ON2 Outdoor Subscriber Unit AI108-4958-OSU Outdoor Point-to-point Link AI108-4958-O-xxx Product Manual And Installation Guide WirelessGRID Outdoor Wireless Bridges Revision 1.02 10/17/2005 - 1 - Airaya – Fast and affordable outdoor wireless bridges AIRAYA is a trademark of AIRAYA Corp. Other trademarks or brand names mentioned herein are trademarks or registered trademarks of their respective companies. International Headquarters 637 Adair Court Morgan Hill, CA 95037 Tel: 866-224-7292 Tel: 408-776-9583 International Fax 408-776-9583 E-mail: [email protected] Skype: airaya_support Web site: www.airaya.com Copyright © 2004 by AIRAYA Corp. All rights reserved. No part of this document may be copied or reproduced in any form or by any means without the prior written consent of AIRAYA Corp. AIRAYA makes no warranties with respect to this documentation and disclaims any implied warranties of merchantability, quality, or fitness for any particular purpose. The information in this document is subject to change without notice. AIRAYA reserves the right to make revisions to this publication without obligation to notify any person or entity of any such changes. - 2 - Airaya – Fast and affordable outdoor wireless bridges Limited Warranty AIRAYA Corp. Limited Warranty: AIRAYA warrants all of its products to be free of manufacturing defects in workmanship and materials, under normal use and service, for the applicable warranty term. All AIRAYA products carry a standard 90-day limited warranty from the date of purchase from AIRAYA or its Authorized Reseller. AIRAYA may, at its own discretion, repair or replace any product not operating as warranted with a similar or functionally equivalent product during the applicable warranty term. The standard limited warranty can be upgraded to a one-year warranty by registering new products within 30 days of purchase from AIRAYA or its Authorized Reseller. Registration can be accomplished online via the AIRAYA web site. Failure to register will not affect the standard limited warranty. The one-year warranty covers a product during the Life of that Product, which is defined as the period of time during which the product is an ‘Active’ AIRAYA product. A product is considered to be ‘Active’ while it is listed on the current AIRAYA price list. As new technologies emerge, older technologies become obsolete and AIRAYA will, at its discretion, replace an older product in its product line with one that incorporates these newer technologies. At that point, the obsolete product is discontinued and is no longer an ‘Active’ AIRAYA product. All products that are replaced become the property of AIRAYA. Replacement products may be either new or reconditioned. Any replaced or repaired product carries either a 30-day limited warranty or the remainder of the initial warranty, whichever is longer. AIRAYA is not responsible for any custom software or firmware, configuration information, or memory data of Customer contained in, stored on, or integrated with any products returned to AIRAYA pursuant to any warranty. Products returned to AIRAYA should have any customer-installed accessory or add-on components removed prior to returning the product for replacement. AIRAYA is not responsible for these items if they are returned with the product. Customers must contact AIRAYA for a Return Material Authorization (RMA) number prior to returning any product to AIRAYA. Proof of purchase may be required. Any product returned to AIRAYA without a valid RMA number clearly marked on the outside of the package will be returned to customer at customer’s expense. Customers are responsible for all shipping charges from their facility to AIRAYA. AIRAYA is responsible for return shipping charges from AIRAYA to the customer. - 3 - Airaya – Fast and affordable outdoor wireless bridges Limited Warranty WARRANTIES EXCLUSIVE: IF AN AIRAYA PRODUCT DOES NOT OPERATE AS WARRANTED ABOVE, CUSTOMER'S SOLE REMEDY SHALL BE REPAIR OR REPLACEMENT OF THE PRODUCT IN QUESTION, AT AIRAYA’S OPTION. THE FOREGOING WARRANTIES AND REMEDIES ARE EXCLUSIVE AND ARE IN LIEU OF ALL OTHER WARRANTIES OR CONDITIONS, EXPRESS OR IMPLIED, EITHER IN FACT OR BY OPERATION OF LAW, STATUTORY OR OTHERWISE, INCLUDING WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. AIRAYA NEITHER ASSUMES NOR AUTHORIZES ANY OTHER PERSON TO ASSUME FOR IT ANY OTHER LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE OR USE OF ITS PRODUCTS. AIRAYA SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND EXAMINATION DISCLOSE THE ALLEGED DEFECT IN THE PRODUCT DOES NOT EXIST OR WAS CAUSED BY CUSTOMER'S OR ANY THIRD PERSON'S MISUSE, NEGLECT, IMPROPER INSTALLATION OR TESTING, UNAUTHORIZED ATTEMPTS TO REPAIR, OR ANY OTHER CAUSE BEYOND THE RANGE OF THE INTENDED USE, OR BY ACCIDENT, FIRE, LIGHTNING, OR OTHER HAZARD. LIMITATION OF LIABILITY: IN NO EVENT, (INCLUDING NEGLIGENCE), SHALL AIRAYA BE LIABLE FOR INCIDENTAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY KIND, OR FOR LOSS OF REVENUE, LOSS OF BUSINESS, OR OTHER FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE, USE, PERFORMANCE, FAILURE, OR INTERRUPTION OF ITS PRODUCTS, EVEN IF AIRAYA OR ITS AUTHORIZED RESELLER HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. SOME COUNTRIES DO NOT ALLOW THE EXCLUSION OF IMPLIED WARRANTIES OR THE LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR CONSUMER PRODUCTS, SO THE ABOVE LIMITATIONS AND EXCLUSIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, WHICH MAY VARY FROM STATE TO STATE. NOTHING IN THIS WARRANTY SHALL BE TAKEN TO AFFECT YOUR STATUTORY RIGHTS. Note: AIRAYA will provide fee-based service for up to three years following discontinuance of any product from the active AIRAYA price list. Under the one-year warranty, internal and external power supplies,…

Text truncated - open the document above for the full version.

Correspondence Summary Q & A October 28, 2005 SUBJECT: AIRAYA CORP. - FCC ID: QDE-GRID-C 1. BLOCK DIAGRAM: Please submit a Block Diagram per the FCC Requirements in Part 2.1033(b)(5). The diagram shows two radios. Please explain. The module as designed has provision for a 2.4GHz radio to be installed. For this particular product that radio is not enabled by the manufacturer and cannot be enabled in the field or by an OEM integrator. 2. BLOCK DIAGRAM: It shows two antennas for one of the radio. Please explain the purpose of ant 1 and ant 2 (diversity?). The hardware functionality of the two antennas is for diversity. 3. USER MANUAL: Page 49 shows operation in the 4.990-4.995 GHz and 5.25- 5.35 GHz Bands. Please explain how this EUT will comply with the 15.247 5.725-5.850 GHz frequency limits. This hardware is capable of supporting the listed frequency bands. For the sake of this filing, only the 5.725-5.850 is enabled. This selection can only be done by the manufacturer and cannot be changed by the end user , the OEM integrator, or installer. 4. USER MANUAL - Part 15.247(b)(4) and (c)(1)(iii): Please explain compliance with the de facto EIRP limit of +36dBm and Operator/installer’s instructions for exclusive use as point-to-point operation. Please see revised user manual page 46. In order to maintain compliance with the de facto EIRP limit of +36dBm for non-point-to-point applications the max conducted output power is listed under the “multipoint” column. 5. REPEATER OPERATION: There is no reference in the Test Report that this EUT was tested for Repeater Operation. Please, explain. The “Repeater Operation” functions as a retransmission of logical data received from either antenna then transmitted again through either antenna or the Ethernet. This activity repeats the data rather than the received signal in a routing type of function. 6. Photos: Please explain the purpose of the “absorber” shown on the internal photos. The absorber was required in order for the equipment to pass radiated spurious emissions. TIMCO ENGINEERING INC. 849 NW State Road 45 Newberry, Florida 32669 http://www.timcoengr.com 888.472.2424 F 352.472.2030 [email protected]

Limited Modular Transmitter Approval Qualification FCC Test Report FCC ID: QDE-GRID-C 1. The board has its own shielding covering the RF circuits as shown in the test report photographs. 2. The modular transmitter works with its own data buffering and modulation circuits. No external source controls the modulation, RF or data processing as implemented on the board. 3. The modular transmitter has its own power supply regulation by VR1, VR2, VR3 or VR4. (Please refer to schematics.) 4. Each of the following antenna’s were used with the applying module shall be approved with the module. Mars Antenna’s and RF Systems MA-WA580-1x Patch MA-WO-58-9x Omni MA-WC50-5x 60 degree Sector Stella Doradus 58-SD24 Dish 5. The modular transmitter was tested in a stand-alone configuration with each identified antenna. 6. The modular transmitter is labeled with its own FCC ID number. 7. The modular transmitter complies with the applied specific rules and operating requirements applicable to the transmitter. Adequate instructions are provided with the users manual. 8. The modular transmitter complies with the applicable RF exposure requirements.

TIMCO Engineering, Inc. 849 N.W. State Road 45 P.O. Box 370 Newberry, FL 32669 October 17, 2005 Dear Examiner: I am writing to avoid the possibility of an inadvertent disclosure of proprietary information. The accompanying Form 731 is being filed with the commission on our behalf by Siemic, Inc., a consulting and testing laboratory. Included as exhibits with the enclosed application, schematics, Airaya Operation, Block Diagram, Limited Modular Transmitter Approval Qualifications and user manual of the device from Atheros and Airaya, and the test report SL 05020801T-ARY-003A. It is our intention to provide the commission with a full disclosure of our product so that its merits can be evaluated. Indeed, we are pleased to provide any further information that the commission might wish to see. It is not our intention, however, to make our proprietary process a matter of public record. In view of the fact that the schematics, Block Diagram, and associated Airaya Operations disclose the mechanism of our process, we ask that these portions (block diagrams, schematics, and Airaya Operations) of our application be withheld from public inspection as provided under FCC section 0.459. These documents contain details of the proprietary operation of product. These details are not readily discernible - even to technically sophisticated individuals - from our hardware and constitute trade secrets. We request therefore that these documents and this letter be segregated from the body of our evaluation report and withheld from public inspection. Thank you for your attention. Please let the undersigned know if the Commission disagrees with our position or requires further justification. Sincerely, William G. Pabst Vice President, Engineering AIRAYA Inc.

External Photos Top with absorber Top without absorber Top without shield Bottom with absorber Bottom without absorber

ID Label/Location Info Label Location Label Sample

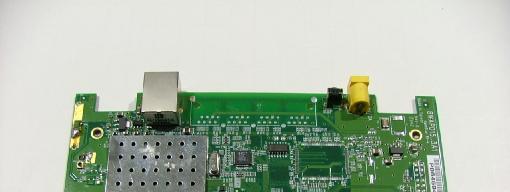

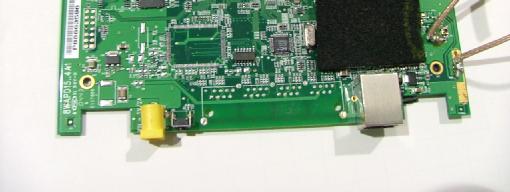

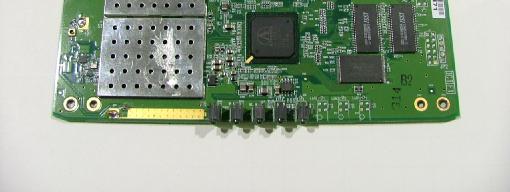

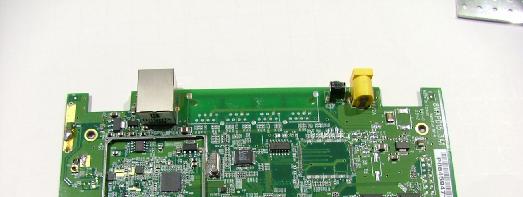

Internal Photos Top with absorber Top without absorber Top without shield Bottom with absorber Bottom without absorber

RF Exposure Requirements Requirements: §15.247(b)(5), §1.1307(b)(1), and §1.1307(b)(2): Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s Guidelines. Limits: §1.1310: As specified in this section, the Maximum Permissible Exposure (MPE) Limit shall be used to evaluate the environmental impact to human exposure to radiofrequency (RF) radiation as specified in Sec 1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of Sec. 2.1093 of this Chapter. Limit for Uncontrolled exposure: 1 mW/cm 2 or 10 W/m 2 Highest Measured Output Power: 26.7 dBm (0.467 Watts) Highest Antenna Gain to be used: 28 dBi (630.95 numeric) Minimum Separation Distance Calculation: Equation from page 18 of OET 65, Edition 97-01 S = PG / 4πR 2 or R = √(PG/(4πS)) where, S = Power Density (10 W/m 2 ) P = Power Input to antenna (0.467 Watts) G = Antenna Gain, in numeric ( 630.95 numeric) R = distance to the center of radiation of the antenna R = √(0.467 * 630.95 / (4 * 3.14 * 10)) = 1.5 meters The minimum separation distance should not be less than 1.5 meters.

TEST REPORT FROM d For WirelessGRID To FCC Part 15.247 Test Report Serial No.: SL05033101T-ARY-003AR1 This report supersedes SL05033101T-ARY-003A Remarks: Equipment complied with the specification [X ] Equipment did not comply with the specification [ ] This Test Report is Issued Under the Authority of: .......................................................................................................... Tested by: Alvin Ilarina, Test Enginner .......................................................................................................... Reviewed by: Leslie Bai, Lab Manager Issue date: 26 October 2005 Equipment Details: Manufacturer: Airaya This test report may be reproduced in full only. Registration No. 783147 Registration No. 2195 Registration No. 4842 Title: Airaya WirelessGRID To: FCC Part 15.247 Serial# SL05033101T-ARY-003AR1 Issue Date 26 October 2005 Page 2 of 48 www.siemic.com This page has been left blank intentionally. Title: Airaya WirelessGRID To: FCC Part 15.247 Serial# SL05033101T-ARY-003AR1 Issue Date 26 October 2005 Page 3 of 48 www.siemic.com CONTENTS EXECUTIVE SUMMARY..............................................................................................................................................5 1 TECHNICAL DETAILS..........................................................................................................................................6 2 TESTS REQUIRED..................................................................................................................................................7 3 MEASUREMENTS, EXAMINATIONS AND DERIVED RESULTS.................................................................8 4 TEST INSTRUMENTATION................................................................................................................................40 APPENDIX A: EUT TEST CONDITIONS.................................................................................................................41 APPENDIX B: EXTERNAL PHOTOS........................................................................................................................42 APPENDIX C: CIRCUIT/BLOCK DIAGRAMS.......................................................................................................43 APPENDIX D: INTERNAL PHOTOS.........................................................................................................................44 APPENDIX F: PRODUCT DESCRIPTION...............................................................................................................45 APPENDIX H: FCC LABEL LOCATION..................................................................................................................46 APPENDIX I: USER MANUAL...................................................................................................................................47 APPENDIX J: PLOTS..................................................................................................................................................48 Title: Airaya WirelessGRID To: FCC Part 15.247 Serial# SL05033101T-ARY-003AR1 Issue Date 26 October 2005 Page 4 of 48 www.siemic.com This page has been left blank intentionally. Title: Airaya WirelessGRID To: FCC Part 15.247 Serial# SL05033101T-ARY-003AR1 Issue Date 26 October 2005 Page 5 of 48 www.siemic.com Executive Summary The purpose of this test programme was to demonstrate compliance of the Airaya, WirelessGRID against the current FCC Part 15.247. The WirelessGRID demonstrated compliance with the FCC Part 15.247. Airaya is the applicant and claimed manufacturer of this tested product. For the detailed description of this product, please refer to the WirelessGRID User Manual. The equipment was tested with the following antennas: 23dB Patch Mars Antenna's and RF Systems Model # MA-WA58-1x 28dB Grid Stella Doradus Model # 58-SD24 28dB Grid Pacific Wireless Model # GD57-28 Omni Mars Antenna's and RF Systems Model # MA-WO-58-9x Sectors Mars Antenna's and RF Systems 60 degree - MA-WC50-5x The following modification was made to the equipment in order to make it comply with radiated emissions limits: ECCOSORB® LS-26 Broadband Cavity Resonance Absorber material was added to the bottom of the PCB, inside the RF shield, and above the RF shield. The test has demonstrated that this unit complies with stipulated standards. Title: Airaya WirelessGRID To: FCC Part 15.247 Serial# SL05033101T-ARY-003AR1 Issue Date 26 October 2005 Page 6 of 48 www.siemic.com 1 Technical Details Purpose Compliance testing of WirelessGRID with FCC Part 15.247 Applicant / Client Airaya 637 Adair Court Morgan Hill, CA 95037 Manufacturer Airaya Laboratory performing the tests SIEMIC Labs 2206 Ringwood Avenue San Jose, CA 95131 Test location(s) SIEMIC Labs 2206 Ringwood Avenue San Jose, CA 95131 Test report reference number SL05033101T-ARY-003AR1 Date EUT received DateRCV Standard applied FCC Part 15.247 No of Units: 1 Equipment Category: Equipment Category Trade/Product Name: WirelessGRID Type/Model Name/No: WirelessGRID Technical Variants: none FCC ID No. QDE-GRID-C Title: Airaya WirelessGRID To: FCC Part 15.247 Serial# SL05033101T-ARY-003AR1 Issue Date 26 October 2005 Page 7 of 48 www.siemic.com 2 Tests Required The product was tested in accordance with the following specifications. The test results recorded in this Test Report are exclusively referred to the tested sample(s). Test Standard Description Pass / Fail 47 CFR 15.247 15.207 Power Line Conducted Emissions 15.247(a) 6dB Bandwdith 15.247(b) Power Output (conducted) 15.247(c) Spurious Emissions (conducted) 15.209/15.247(c) Spurious Emissions Radiated 15.247(d) Power Spectral Density ANSI C63.4: 2003 Notes: Deviations to above standards are outlined in specific test sections if applicable. Cable loss and external attenuation are compensated for in the measurement system when applicable. Title: Airaya WirelessGRID To: FCC Part 15.247 Serial# SL05033101T-ARY-003AR1 Iss…

Text truncated - open the document above for the full version.

Title: Airaya WirelessGRID To: FCC Part 15.247 Serial# SL05033101T-ARY-003A Issue Date issue date Page 1 of 54 www.siemic.com APPENDIX J: Plots Title: Airaya WirelessGRID To: FCC Part 15.247 Serial# SL05033101T-ARY-003A Issue Date issue date Page 2 of 54 www.siemic.com Plot 1: 6db Bandwidth – 5MHz Hi Plot 2: 6db Bandwidth – 5MHz Mid Title: Airaya WirelessGRID To: FCC Part 15.247 Serial# SL05033101T-ARY-003A Issue Date issue date Page 3 of 54 www.siemic.com Plot 3: 6db Bandwidth – 5MHz Low Plot 4: 6db Bandwidth – 10MHz Hi Title: Airaya WirelessGRID To: FCC Part 15.247 Serial# SL05033101T-ARY-003A Issue Date issue date Page 4 of 54 www.siemic.com Plot 5: 6db Bandwidth – 10MHz Mid Plot 6: 6db Bandwidth – 10MHz Low Title: Airaya WirelessGRID To: FCC Part 15.247 Serial# SL05033101T-ARY-003A Issue Date issue date Page 5 of 54 www.siemic.com Plot 7: 6db Bandwidth – 20MHz Hi Plot 8: 6db Bandwidth – 20MHz Mid Title: Airaya WirelessGRID To: FCC Part 15.247 Serial# SL05033101T-ARY-003A Issue Date issue date Page 6 of 54 www.siemic.com Plot 9: 6db Bandwidth – 20MHz Low Plot 10: 6db Bandwidth – 40MHz Hi Title: Airaya WirelessGRID To: FCC Part 15.247 Serial# SL05033101T-ARY-003A Issue Date issue date Page 7 of 54 www.siemic.com Plot 11: 6db Bandwidth – 40MHz Mid Plot 12: 6db Bandwidth – 40MHz Low Title: Airaya WirelessGRID To: FCC Part 15.247 Serial# SL05033101T-ARY-003A Issue Date issue date Page 8 of 54 www.siemic.com Plot 13: 6db Bandwidth – 50MHz Hi Plot 14: 6db Bandwidth – 50MHz Mid Title: Airaya WirelessGRID To: FCC Part 15.247 Serial# SL05033101T-ARY-003A Issue Date issue date Page 9 of 54 www.siemic.com Plot 15: 6db Bandwidth – 50MHz Low Plot 16: Peak Power – 5MHz Hi Title: Airaya WirelessGRID To: FCC Part 15.247 Serial# SL05033101T-ARY-003A Issue Date issue date Page 10 of 54 www.siemic.com Plot 17: Peak Power – 5MHz Mid Plot 18: Peak Power – 5MHz Low Title: Airaya WirelessGRID To: FCC Part 15.247 Serial# SL05033101T-ARY-003A Issue Date issue date Page 11 of 54 www.siemic.com Plot 19: Peak Power – 10MHz Hi Plot 20: Peak Power – 10MHz Mid Title: Airaya WirelessGRID To: FCC Part 15.247 Serial# SL05033101T-ARY-003A Issue Date issue date Page 12 of 54 www.siemic.com Plot 21: Peak Power – 10MHz Low Plot 22: Peak Power – 20MHz Hi Title: Airaya WirelessGRID To: FCC Part 15.247 Serial# SL05033101T-ARY-003A Issue Date issue date Page 13 of 54 www.siemic.com Plot 23: Peak Power – 20MHz Mid Plot 24: Peak Power – 20MHz Low Title: Airaya WirelessGRID To: FCC Part 15.247 Serial# SL05033101T-ARY-003A Issue Date issue date Page 14 of 54 www.siemic.com Plot 25: Peak Power – 40MHz Hi Plot 26: Peak Power – 40MHz Mid Title: Airaya WirelessGRID To: FCC Part 15.247 Serial# SL05033101T-ARY-003A Issue Date issue date Page 15 of 54 www.siemic.com Plot 27: Peak Power – 40MHz Low Plot 28: Peak Power – 50MHz Hi Title: Airaya WirelessGRID To: FCC Part 15.247 Serial# SL05033101T-ARY-003A Issue Date issue date Page 16 of 54 www.siemic.com Plot 29: Peak Power – 50MHz Mid Plot 30: Peak Power – 50MHz Low Title: Airaya WirelessGRID To: FCC Part 15.247 Serial# SL05033101T-ARY-003A Issue Date issue date Page 17 of 54 www.siemic.com Plot 31: Conducted spurious – 5MHz Hi 1/5 Plot 32: Conducted spurious – 5MHz Hi 2/5 Title: Airaya WirelessGRID To: FCC Part 15.247 Serial# SL05033101T-ARY-003A Issue Date issue date Page 18 of 54 www.siemic.com Plot 33: Conducted spurious – 5MHz Hi 3/5 Plot 34: Conducted spurious – 5MHz Hi 4/5 Title: Airaya WirelessGRID To: FCC Part 15.247 Serial# SL05033101T-ARY-003A Issue Date issue date Page 19 of 54 www.siemic.com Plot 35: Conducted spurious – 5MHz Hi 5/5 Plot 36: Conducted spurious – 5MHz Low 1/5 Title: Airaya WirelessGRID To: FCC Part 15.247 Serial# SL05033101T-ARY-003A Issue Date issue date Page 20 of 54 www.siemic.com Plot 37: Conducted spurious – 5MHz Low 2/5 Plot 38: Conducted spurious – 5MHz Low 3/5 Title: Airaya WirelessGRID To: FCC Part 15.247 Serial# SL05033101T-ARY-003A Issue Date issue date Page 21 of 54 www.siemic.com Plot 39: Conducted spurious – 5MHz Low 4/5 Plot 40: Conducted spurious – 5MHz Low 5/5 Title: Airaya WirelessGRID To: FCC Part 15.247 Serial# SL05033101T-ARY-003A Issue Date issue date Page 22 of 54 www.siemic.com Plot 41: Conducted spurious – 10MHz Hi 1/5 Plot 42: Conducted spurious – 10MHz Hi 2/5 Title: Airaya WirelessGRID To: FCC Part 15.247 Serial# SL05033101T-ARY-003A Issue Date issue date Page 23 of 54 www.siemic.com Plot 43: Conducted spurious – 10MHz Hi 3/5 Plot 44: Conducted spurious – 10MHz Hi 4/5 Title: Airaya WirelessGRID To: FCC Part 15.247 Serial# SL05033101T-ARY-003A Issue Date issue date Page 24 of 54 www.siemic.com Plot 45: Conducted spurious – 10MHz Hi 5/5 Plot 46: Conducted spurious – 10MHz Low 1/5 Title: Airaya WirelessGRID To: FCC Part 15.247 Serial# SL05033101T-ARY-003A Issue Date issue date Page 25 of 54 www.siemic.com Plot 47: Conducted spurious – 10MHz Low 2/5 Plot 48: Conducted spurious – 10MHz Low 3/5 Title: Airaya WirelessGRID To: FCC Part 15.247 Serial# SL05033101T-ARY-003A Issue Date issue date Page 26 of 54 www.siemic.com Plot 49: Conducted spurious – 10MHz Low 4/5 Plot 50: Conducted spurious – 10MHz Low 5/5 Title: Airaya WirelessGRID To: FCC Part 15.247 Serial# SL05033101T-ARY-003A Issue Date issue date Page 27 of 54 www.siemic.com Plot 51: Conducted spurious – 20MHz Hi 1/5 Plot 52: Conducted spurious – 20MHz Hi 2/5 Title: Airaya WirelessGRID To: FCC Part 15.247 Serial# SL05033101T-ARY-003A Issue Date issue date Page 28 of 54 www.siemic.com Plot 53: Conducted spurious – 20MHz Hi 3/5 Plot 54: Conducted spurious – 20MHz Hi 4/5 Title: Airaya WirelessGRID To: FCC Part 15.247 Serial# SL05033101T-ARY-003A Issue Date issue date Page 29 of 54 www.siemic.com Plot 55: Conducted spurious – 20MHz Hi 5/5 Plot 56: Conducted spurious – 20MHz Low 1/5 Title: Airaya WirelessGRID To: FCC Part 15.247 Serial# SL05033101T-ARY-003A Issue Date issue date Page 30 of 54 www.siemic.com Plot 57: Conducted spurious – 20MHz Low 2/5 Plot 58: Conducted spurious – 20MHz Lo…

Text truncated - open the document above for the full version.

Test Setup Photos Conducted Tests Radiated Emissions Conducted Emissions Voltage Radiated Emissions Patch Antenna Radiated Emissions Sector Antenna Radiated Emissions Omni Antenna Radiated Emissions Grid Antenna Radiated Emissions Grid Antenna
