QDWAB008WN100802.11b Wireless LAN PCMCIA Card

Wireless LAN PCMCIA Card User’s Manual Version 1.0 1 Copyright © 2002 by Airvast. All rights reserved. No part of this documentation may be reproduced in any form or by any means or used to make any derivative work (such as translation, transformation, or adaptation) without written permission from the copyright owner. All the other trademarks and registered trademarks are the property of their respective owners. Statement of Conditions We may make improvements or changes in the product described in this documentation at any time. The information regarding to the product in this manual are subject to change without notice. We assumes no responsibility for errors contained herein or for direct, indirect, special, incidental or consequential damages with the furnishing, performance, or use of this manual or equipment supplied with it, even if the suppliers have been advised of the possibility of such damages. Electronic Emission Notices This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. FCC INFORMATION The Federal Communication Commission Radio Frequency Interference Statement includes the following paragraph: The equipment has been tested and found to comply with the limits for a Class B Digital Device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communication. However, there is no grantee that interference will not occur in a particular installation. If this equipment dose cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on , the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. The user should not modify or change this equipment without written approval form Airvast. Modification could void authority to use this equipment. Notice The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 2 1. INTRODUCTION This document describes how to install the WN-100, Wireless LAN PCMCIA Card. Wireless LAN is local area networking without wires, which uses radio frequencies to transmit and receive data between PC’s or other network devices. Wireless LAN is able to configure independent networks and infrastructure networks. The former is suitable for small or temporary peer-to-peer configurations, and the later is offering fully distributed data connectivity via micro cells and roaming. 2. INSTALLATION 2.1 Check the Product Package Before starting installation, please make sure the package you purchased includes the following two items: 1) Wireless LAN PCMCIA Card. 2) CD-ROM (containing Driver/Utility, and User’s Manual). Please contact your vendor if anything is missing or damaged. 2.2 Meet the Minimum Requirements To install the Card successfully, your computer should meet the following minimum requirements: 1) A PCMCIA slot complying with Release 2.1 of the PCMCIA specification. 2) Windows 95, 98, Me, NT, 2000, or XP operating system. 3) Minimum 5 Mbytes free disk space for installing the driver and the utility program. 2.3 Install the Driver and Utility Prior to the installation, you have to make sure the Card is not inserted to the PCMCIA slot. Please place the supplied CD-ROM to the CD-ROM drive, running AirvastWireless_V1.1.2.exe. Then, the InstallShield will guide you to install appropriate driver and utility. 2.4 Insert the Card Insert the Wireless LAN PCMCIA Card into PC’s PCMCIA slot in the right direction, pushing it gently into position. The Card is designed for plug-and-play, which allows you to insert it to a PC no matter it is powered ON or OFF. 2.5 Operation and Configuration As soon as you insert the Card, it can operate with the factory default settings. However, you may configure the desired settings by clicking the icon of PRISM Wireless Settings at the task bar. CAUTION: To comply with the FCC RF exposure compliance requirements, a separation distance of at least 2.5cm must be maintained between the antenna of this device and all persons. No change to the antenna or the device is permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure requirements and void user’s authority to operate this device.

From: willyauo [[email protected]] Sent: Thursday, May 30, 2002 6:53 PM To: Mike Kuo Subject: Re: AirVast Technology Inc., FCC ID:QDWAB008WN100, AN02T2048 Hi Mike: Thank you for reviewing our application project. Q5 Reply: We asked the applicant to modify the statement according your suggested wordings. . Please refer to the update manula.(see the attached manual pdf file) Thank you very much. Best regards, Will Yauo / ETC ----- Original Message ----- From: Mike Kuo <[email protected]> To: 'willyauo' <[email protected]>; Will Yauo (E-mail) <[email protected]> Sent: Thursday, May 30, 2002 11:58 PM Subject: RE: AirVast Technology Inc., FCC ID:QDWAB008WN100, AN02T2048 > Question #5: The RF exposure warning statement does not include the > separation distance requirement. Please take a look the suggested wordings > in Question #1 and modify the statement accordingly. > > Best Regards > > Mike Kuo > > -----Original Message----- > From: willyauo [mailto:[email protected]] > Sent: Thursday, May 30, 2002 5:38 AM > To: Mike Kuo > Subject: Re: AirVast Technology Inc., FCC ID:QDWAB008WN100, AN02T2048 > > > > Hi Mike: > > Thank you for reviewing our application. Regarding your question , the below > is our reply. Please check. > > Q1 > Reply: In our submitted user manual has this statement, but no "CAUTION" > title. > We ask the applicant to modify the statement including "CAUTION" warning > words. > Please refer to the page2 bottom of the manual.(see the attached manual pdf > file) > > Q2 > Reply: Please refer to the attached DSS DESCRIPTION explanation(see the > attached DSS DESCRIPTION pdf file) > > Q3 > Reply: the RF conducted spurious emission plots from 30MHz to 10th harmonic > for low , middle and high channels are showed in the spurious emission > file(see the attached spurious emission pdf file) > > Q4 > Reply: The peak field strength level is 45.5 dBuV/m at 2.48404 GHz > frequency. > > If you need any supporting document, please advise us. > We will appreciate for your assistance. > Thank you very much. > > Will Yauo / ETC > > > ----- Original Message ----- > From: Mike Kuo <[email protected]> > To: Will Yauo (E-mail) <[email protected]>; Will Yauo-Personal (E-mail) > <[email protected]>; K. C. (E-mail) <[email protected]> > Sent: Thursday, May 30, 2002 11:11 AM > Subject: FW: AirVast Technology Inc., FCC ID:QDWAB008WN100, AN02T2048 > > > > > > > > -----Original Message----- > > From: CERTADM > > Sent: Wednesday, May 29, 2002 8:08 PM > > To: '[email protected]' > > Subject: AirVast Technology Inc., FCC ID:QDWAB008WN100, AN02T2048 > > > > > > Notice_content > > ------------- > > Question #1: The RF exposure statement in the user manual does not include > > the separation distance. Please modify the RF exposure warning statement > > with the following text : " CAUTION: To comply with the FCC RF exposure > > compliance requirements, a separation distance of at least 2.5cm must be > > maintained between the antenna of this device and all persons. No change > to > > the antenna or the device is permitted. Any change to the antenna or the > > device could result in the device exceeding the RF exposure requirements > and > > void user's authority to operate this device." > > > > Question #2: Please provide a detail operational description with enough > > information to state that this device meet the definition of direct > sequence > > spread spectrum device. > > > > Question #3: Please provide RF conducted spurious emission plots from > 30MHz > > up to 10th harmonic for low, middle and high channels. In the test > report, > > only RF conducted band edge plots were provided. > > > > Question #4: Please provide Radiated emission data by turning the device > at > > high channel and measure the peak field strength in 2483.5-2500MHz. > > > > Best Regards > > > > Mike Kuo / TCB Certifier > > The items indicated above must be submitted before processing can continue > > on the above referenced application. Failure to provide the requested > > information within 60 days of the original e-mail date may result in > > application dismissal and forfeiture of the filing fee. Also, please note > > that partial responses increase processing time and should not be > submitted. > > Any questions about the content of this correspondence should be directed > to > > the e-mail address listed below the name of the sender. > > > >

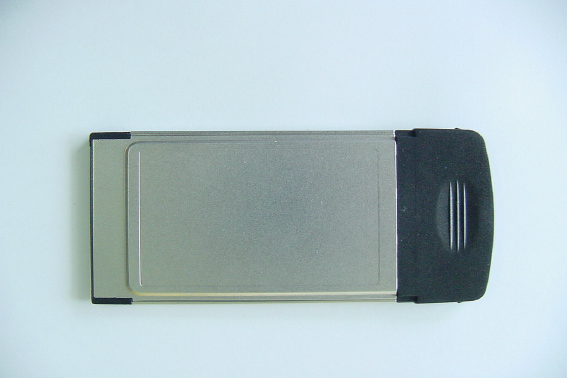

ETC Report No. : ET91R-05-038-01 FCC ID.: QDWAB008WN100 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Front View of EUT Rear View of EUT

REAR VIEW OF EUT 48mm 42mm Model: WN-100 FCC ID.: QDWAB008WN100 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED PERATION. Made in Taiwan

ETC Report No. : ET91R-05-038-01 FCC ID.: QDWAB008WN100 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Internal View of EUT Internal View of EUT ETC Report No. : ET91R-05-038-01 FCC ID.: QDWAB008WN100 Rev. No 1.0 CONSTRUCTED PHOTOS of EUT Component View of Main PCB Solder View of Main PCB

Transmitter Description The ISL3873B transmitter is designed as a Direct Sequence Spread Spectrum Phase Shift Keying (DSSS PSK) modulator which is capable of handling data rates of up to 11Mbps (refer to AC and DC specifications). The various modes of the modulator are Differential Binary Phase Shift Keying (DBPSK) for 1Mbps, Differential Quaternary Phase Shift Keying (DQPSK) for 2Mbps, and Complementary Code Keying (CCK) for 5.5Mbps and 11Mbps. CCK is essentially a quadra-phase form of M-ARY Keying. A description of that modulation can be found in Chapter 5 of: “Telecommunications System Engineering”, by Lindsey and Simon, Prentiss Hall publishing. The formula for CCK can be found later in this datasheet. The implemented data rates using a clock rate of 44MHz are shown in Table 6 and the modulation schemes are indicated in Figure 13. The major functional blocks of the transmitter include a Processor Interface, Modulator, Data Scrambler, Preamble/Header Generator, TX Filter, AGC Control, and ADC and DAC circuits. The preamble is always transmitted as the DBPSK waveform while the header can be configured to be either DBPSK, or DQPSK,and data packetscan be configured forDBPSK, DQPSK, or CCK. The preamble is used by the receiver to achieve initial Pseudo Noise (PN) synchronization while the header includes the necessary data fields of the communications protocol to establish the physical layer link. The transmitter generates the synchronization preamble and header and knows when to make the DBPSK to DQPSK or CCK switchover, as required. For the 1 and 2Mbps modes, the transmitter accepts data from the external source, scrambles it, differentially encodes it as either DBPSK or DQPSK, and spreads it with the BPSK PN sequence. The baseband digital signals are then output to the external IF modulator. For the CCK modes, the transmitter inputs the data and partitions it into nibbles (4 bits) or bytes (8 bits). At 5.5Mbps, it uses four of those bits to select one of 16 complex spread sequences from a table of CCK sequences. Thus, there are 16 possible spread sequences to send, but only one is sent. This sequence is then modulated on the I and Q outputs. The initial phase reference for the data portion of the packet is the phase of the last bit of the header. At 11Mbps, one byte is used as above where 8 bits are used to select one of 256 spread sequences for a symbol. Bit rates for the ISL3873B are defined in Table 6. This table provides information on bit rates, data rates and symbol rates for an MCLK of 44MHz clock. Figure 13 shows the modulation schemes for the different bits rates. The modulator is completely independent from the demodulator, allowing the PRISM baseband processor to be used in full duplex operation. Header/Packet Description The ISL3873B is designed to handle packetized Direct Sequence Spread Spectrum (DSSS) data transmissions. The ISL3873B generates its own preamble and header information. It uses two packet preamble and header configurations. The first is backwards compatible with the existing IEEE 802.11-1997 1 and 2Mbps modes and the second is the optional shortened mode which maximizes throughput at the expense of compatibility with legacy equipment. In the long preamble mode, the device uses a synchronization preamble of 128 symbols along with a header that includes four fields. The preamble is all 1’s (before entering the scrambler) plus a Start Frame Delimiter (SFD). The actual transmitted pattern of the preamble is randomized by the scrambler. The preamble is always transmitted as a DBPSK waveform (1Mbps). The duration of the long preamble and header is 192s. In the short preamble mode, the modem uses a synchronization field of 56 zero symbols along with an SFD transmitted at 1Mbps. The short header is transmitted at the 2Mbps rate. The synchronization preamble is all 0’s to distinguish it from the long header mode and the short preamble SFD is the time reverse of the long preamble SFD. The duration of the short preamble and header is 96s. Start Frame Delimiter (SFD) Field (16 Bits) This field is used to establish the link frame timing. The ISL3873B will not declare a valid data packet, even if it PN acquires, unless it detects the SFD. The ISL3873B receiver auto-detects if the packet is long or short preamble and sets SFD time-out. The timer starts counting after initialization of the de-scrambler is complete. Header Field The header field is defined by four fields which are shown in Figure 14. These fields are Signal Field, Service Field, Length Field and CITT-CRC16 Field. They are further defined by the following: Signal Field (8 Bits) - This field indicates what data rate the data packet that follows the header will be. The ISL3873B receiver looks at the signal field to determine whether it needs to switch from DBPSK demodulation into DQPSK, or CCK demodulation at the end of the preamble and header fields. Service Field (8 Bits) - The MSBofthisfield is used to indicate the correct length when the length field value is ambiguous at 11Mbps. See IEEE STD 802.11 for definition of the other bits. Bit 2 is used by the ISL3873B to indicate that the carrier reference and the bit timing references are derived from the same oscillator (locked oscillators). Length Field (16 Bits) - This field indicates the number of microseconds it will take to transmit the payload data (PSDU). The external controller (MAC) will check the length field in determining when it needs to de-assert RX_PE. CCITT - CRC 16 Field (16 Bits) - This field includes the 16-bit CCITT - CRC 16 calculation of the three header fields. This value is compared with the CCITT - CRC 16 code calculated at the receiver. The ISL3873B receiver will indicate a CCITT - CRC 16 error via CR24 bit 2 and will lower MD_RDY and reset the receiver to the acquisition mode if there is an error. The CRC or cyclic Redundancy Check is a CCITT CRC-16 FCS (Frame Check Sequence). It is the ones complement of the remainder generated by t…

Text truncated - open the document above for the full version.

Rev. No 2.0 RF Maximum Permissible Exposure Measurement Report of E.U.T. : Wireless LAN PCMCIA Card FCC ID. : QDWAB008WN100 MODEL : WN-100 for APPLICANT : AirVast Technology Inc. ADDRESS : 4F-1, NO. 1, LN. 21, HSIN HUA RD., KUEISHAN INDUSTRIAL PARTK, TOYUAN 330, TAIWAN, R.O.C. Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 34, LIN 5, DING FU TSUN, LINKOU HSIANG, TAIPEI HSIE, TAIWAN, R.O.C. Tel:(02)26023052, 26023054 Fax:(02)26010910 Report Number : ET91R-05-038-01 ETC Report No. : ET91R-05-038-01 FCC ID.: QDWAB008WN100 Rev. No 2.0 TEST REPORT CERTIFICATION Applicant : AirVast Technology Inc. 4F-1, NO. 1, LN. 21, HSIN HUA RD., KUEISHAN INDUSTRIAL PARK, TAOYUAN 330, TAIWAN, R.O.C. Manufacturer : AirVast Technology Inc. 4F-1, NO. 1, LN. 21, HSIN HUA RD., KUEISHAN INDUSTRIAL PARK, TAOYUAN 330, TAIWAN, R.O.C. Description of EUT : a) Type of EUT : Wireless LAN PCMCIA Card b) Trade Name : AirVast c) Model No. : WN-100 d) Power Supply : From Notebook PC Regulation Applied : IEEE C95.1-1991, FCC 47 CFR Part 1 and Part 2 I HEREBY CERTIFY THAT: The data shown in this report were made in accordance with the procedures given in IEEE C95.1, and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note: 1. The result of the testing report relates only to the item tested. 2. The testing report shall not be reproduced expect in full, without the written approval of ETC. Issued Date : May 23, 2002 Test Engineer : ( Jeff Chuang ) Approve & Authorized Signer : Will Yauo, Manager EMC Detp. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No. : ET91R-05-038-01 FCC ID.: QDWAB008WN100 Rev. No 2.0 Table of Contents Page 1 GENERAL INFORMATION 1 1.1 Product Description...................................................................................................................... 1 1.2 Characteristics of Device ............................................................................................................. 1 1.3 Test Methodology ........................................................................................................................ 1 1.4 Test Facility.................................................................................................................................. 1 2 PROVISIONS APPLICABLE 2 2.1 Definition ..................................................................................................................................... 2 2.2 Relative Requirement for Compliance......................................................................................... 2 3. SYSTEM TEST CONFIGURATION 3 3.1 Justification .................................................................................................................................. 3 3.2 Devices for Tested System........................................................................................................... 3 4 M AXIMUM P ERMISSIBLE E XPOSURE M EASUREMENT 4 4.1 Applicable Standard ..................................................................................................................... 4 4.2 Measurement Procedure............................................................................................................... 4 4.3 Measurement Instrument.............................................................................................................. 5 4.4 Power Desity Data........................................................................................................................ 5 ETC Report No. : ET91R-05-038-01 Page 1 of 5 Pages FCC ID.: QDWAB008WN100 Rev. No 2.0 1 GENERAL INFORMATION 1.1 Product Description a) Type of EUT : Wireless LAN PCMCIA Card b) Trade Name : AirVast c) Model No. : WN-100 d) Power Supply : From Notebook PC 1.2 Characteristics of Device The Wireless LAN PCMCIA Card designed with a transmitting method of direct sequence spread spectrum is for local area network operation, which operates at 2.4 GHz ISM band and data rate up to 11 Mbps. 1.3 Test Methodology The Maximum Permissible Exposure (MPE) was performed according to the procedures illustrated in IEEE C95.1-1991. 1.4 Test Facility The open area test site and conducted measurement facility used to collect the radiated data is located on the roof top of Building at No.34, Lin 5, Ding Fu Tsun, Linkou Hsiang, Taipei Hsien, Taiwan, R.O.C. This site has been fully described in a report submitted to the FCC, and accepted in a letter dated Feb. 10, 2000. ETC Report No. : ET91R-05-038-01 Page 2 of 5 Pages FCC ID.: QDWAB008WN100 Rev. No 2.0 2 PROVISIONS APPLICABLE 2.1 Definition MPE in Occupational / Controlled Environments: Persons are exposed as a consequence of their employment provided those persons are fully aware of the potential for exposure and can exercise control over their exposure. Also apply to a individual is transient through a location where occupational / controlled limits apply provided he or she is made aware of the potatial for exposure. MPE in General Population / Uncontrolled Environments: General population / Uncontrilled exposure apply in situation in which the general public may be exposed, or in which persons that are exposed as a consequence of their employment nay not be fully aware of the potatial for exposure or cannot execise control over their exposure. 2.2 Relative Requirement for Compliance (1) MPE for Controlled Enviroments According to section 1.1310 of FCC 47 CFR Part 1, MPE Limits for controlled enviroment are as following: Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) 0.3-3.0 614 1.63 *100 6 3-30 1842/f 4.89/f *900/f 2 6 30-300 61.4 0.163 1.0 6 300-1500 ----- ----- f/300 6 1500-100,000 ----- ----- 5.0 6 (2) MPE for Uncontrolled Enviroments According to section 1.1310 of FCC 47 CFR Part 1, MPE Limits for uncontrolled enviroment are as following: Frequency Range…

Text truncated - open the document above for the full version.

Rev. No 2.0 FCC Part 15 EMI TEST REPORT of E.U.T. : Wireless LAN PCMCIA Card FCC ID. : QDWAB008WN100 MODEL : WN-100 for APPLICANT : AirVast Technology Inc. ADDRESS : 4F-1, NO. 1, LN. 21, HSIN HUA RD., KUEISHAN INDUSTRIAL PARK, TAOYUAN 330, TAIWAN, R.O.C. Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 34, LIN 5, DING FU TSUN, LINKOU HSIANG TAIPEI HSIEN, TAIAWN, R.O.C. Tel:(02)26023052, 26023054 Fax:(02)26010910 Report Number : ET91R-05-038-01 ETC Report No. : ET91R-05-038-01 FCC ID.: QDWAB008WN100 Rev. No 1.0 TEST REPORT CERTIFICATION Applicant : AirVast Technology Inc. 4F-1, NO. 1, LN. 21, HSIN HUA RD., KUEISHAN INDUSTRIAL PARK, TAOYUAN 330, TAIWAN, R.O.C. Manufacturer : AirVast Technology Inc. 4F-1, NO. 1, LN. 21, HSIN HUA RD., KUEISHAN INDUSTRIAL PARK, TAOYUAN 330, TAIWAN, R.O.C. Description of EUT : a) Type of EUT : Wireless LAN PCMCIA Card b) Trade Name : AirVast c) Model No. : WN-100 d) Power Supply : From Notebook PC Regulation Applied : FCC Rules and Regulations Part 15 Subpart B & C (2001) I HEREBY CERTIFY THAT: The data shown in this report were made in accordance with the procedures given in ANSI C63.4, and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note: 1. The result of the testing report relate only to the item tested. 2. The testing report shall not be reproduced expect in full, without the written approval of ETC. Issued Date : May 23, 2002 Test Engineer : ( Jeff Chuang ) Approve & Authorized Signer : Will Yauo, Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No. : ET91R-05-038-01 FCC ID.: QDWAB008WN100 Rev. No 1.0 Table of Contents Page 1 GENERAL INFORMATION....................................................................................................... 1 1.1 Product Description...................................................................................................................... 1 1.2 Characteristics of Device ............................................................................................................. 1 1.3 Test Methodology......................................................................................................................... 1 1.4 Test Facility.................................................................................................................................. 1 2 PROVISIONS APPLICABLE...................................................................................................... 2 2.1 Definition...................................................................................................................................... 2 2.2 Requirement for Compliance ....................................................................................................... 3 2.3 Restricted Bands of Operation ..................................................................................................... 5 2.4 Labeling Requirement .................................................................................................................. 5 2.5 User Information........................................................................................................................... 6 3. SYSTEM TEST CONFIGURATION........................................................................................... 7 3.1 Justification................................................................................................................................... 7 3.2 Devices for Tested System ........................................................................................................... 7 4 RADIATED EMISSION MEASUREMENT............................................................................... 8 4.1 Applicable Standard ..................................................................................................................... 8 4.2 Measurement Procedure............................................................................................................... 8 4.3 Measuring Instrument................................................................................................................. 10 4.4 Radiated Emission Data ............................................................................................................. 11 4.4.1 RF Portion...............................................................................................................................11 4.4.2 Other Emission........................................................................................................................14 4.5 Field Strength Calculation .......................................................................................................... 14 4.6 Photos of Radiation Measuring Setup ........................................................................................ 15 5 CONDUCTED EMISSION MEASUREMENT........................................................................ 16 5.1 Standard Applicable ................................................................................................................... 16 5.2 Measurement Procedure............................................................................................................. 16 5.3 Conducted Emission Data .......................................................................................................... 17 5.4 Result Data Calculation.............................................................................................................. 18 5.5 Conducted Measurement Equipment ......................................................................................... 19 5.6 Photos of Conduction Measuring Setup ..................................................................................... 20 6 ANTENNA REQUIREMENT.................................................................................................... 21 6.1 Standard Applicable …

Text truncated - open the document above for the full version.

Spurious emission The low channel The middle channel The high channel

ETC Report No. : ET91R-05-038-01 FCC ID.: QDWAB008WN100 Rev. No 1.0 Photos of Radiation Measuring Setup ETC Report No. : ET91R-05-038-01 FCC ID.: QDWAB008WN100 Rev. No 1.0 Photos of Conduction Measuring Setup
