QDWWM168B802.11b WLAN USB Module

802.11b Wireless LAN USB Module User Manual Version 1.0 M033103V10 1 No part of this documentation may be reproduced in any form or by any means or used to make any derivative work (such as translation, transformation, or adaptation) without written permission from the copyright owner. All the other trademarks and registered trademarks are the property of their respective owners. Statement of Conditions We may make improvements or changes in the product described in this documentation at any time. The information regarding to the product in this manual are subject to change without notice. We assumes no responsibility for errors contained herein or for direct, indirect, special, incidental, or consequential damages with the furnishing, performance, or use of this manual or equipment supplied with it, even if the suppliers have been advised of the possibility of such damages. Electronic Emission Notices This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference. (2)This device must accept any interference received, including interference that may cause undesired operation. FCC INFORMATION The Federal Communication Commission Radio Frequency Interference Statement includes the following paragraph: The equipment has been tested and found to comply with the limits for a Class B Digital Device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communication. However, there is no grantee that interference will not occur in a particular installation. If this equipment dose cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. The equipment is for home or office use. R&TTE Compliance Statement This equipment complies with all the requirements of the Directive 1999/5/EC of the European parliament and the council of 9 March 1999 on radio equipment and telecommunication terminal Equipment and the mutual recognition of their conformity(R&TTE). The R&TTE Directive repeals and replaces in the directive 98/13/EEC. As of April 8, 2000. IMPORTANT NOTE FCC RF Radiation Exposure Statement: This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the antenna and your body and must not be co-located or operating in conjunction with any other antenna or transmitter. Caution: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. M033103V10 2 STATEMENT FOR MODUAL APPROVAL This product is sold to OEM integrators only. The manual for the OEM integrators must include some instructions that must be followed by the end users in the user manual. For example: - The OEM integrators must be instructed to ensure that the end user has no manual instructions to remove or install the device. - The OEM integrators must be instructed about the end product labeling ("Contains TX FCC ID: QDWWM168B") etc. Please add the following statements to the manuals for the OEM integrators: This device is intended only for OEM integrators under the following conditions: 1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and 2) The transmitter module may not be co-located with any other transmitter or antenna. As long as 2 conditions above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end product for any additional compliance requirements required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.). IMPORTANT NOTE: In the event that these conditions cannot be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID cannot be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. End Product Labeling This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be maintained between the antenna and users (for example, access points, routers, wireless ADSL modems, and similar equipment). The final end product must be labeled in a visible area with the following: "Contains TX FCC ID: QDWWM168B". Manual Information for End Users The end user must not have manual instructions to remove or install the device. The user manual for end users must include the following information in a prominent location. “IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile Configurations. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Table of Contents 1. INTRODUCTION .............................................................................................................................................2 1.1 F EATURES ................…

Text truncated - open the document above for the full version.

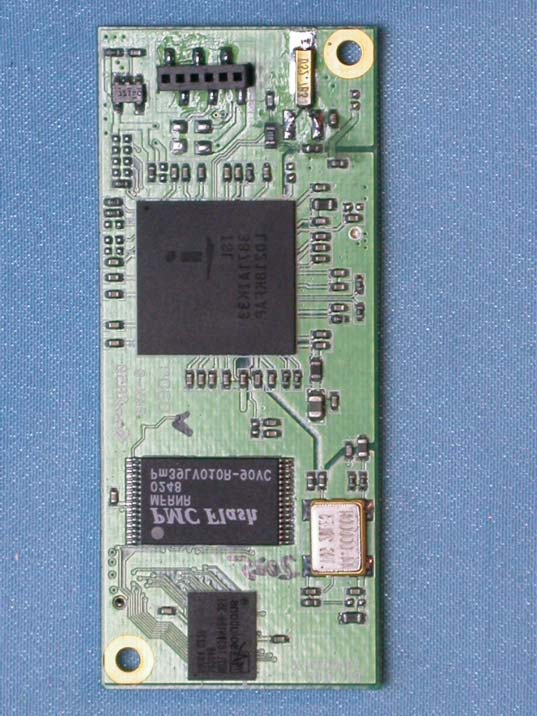

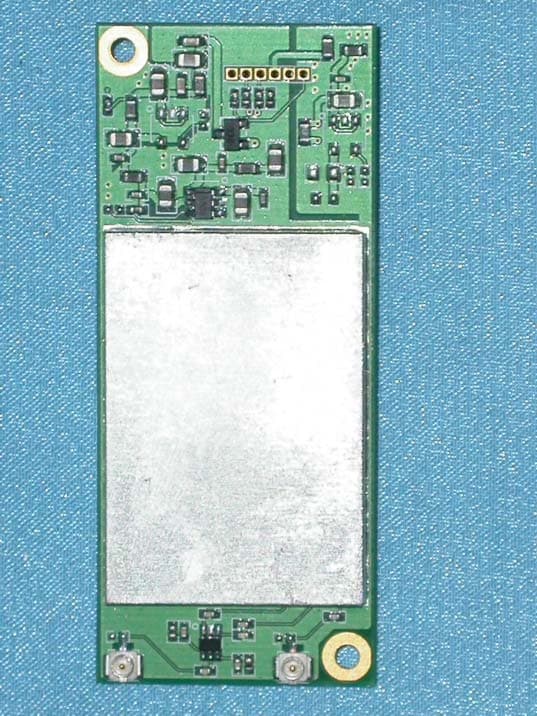

Company: AirVast Technology Inc.Page : 1 of 4 Product : 802.11b WLAN USB ModuleModel : WM168B Company: AirVast Technology Inc.Page : 2 of 4 Product : 802.11b WLAN USB ModuleModel : WM168B Company: AirVast Technology Inc.Page : 3 of 4 Product : 802.11b WLAN USB ModuleModel : WM168B Company: AirVast Technology Inc.Page : 4 of 4 Product : 802.11b WLAN USB ModuleModel : WM168B

Company : AirVast Technology Inc.Model : WM168B Product : 802.11b WLAN USB Module 802.11b WLAN USB Module Model No: WM168B This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: [1] this device may not cause harmful interference and [2] this device must accept any interference received, including interference that may cause undesired operation.

Company: AirVast Technology Inc.Page : 1 of 4 Product : 802.11b WLAN USB ModuleModel : WM168B Company: AirVast Technology Inc.Page : 2 of 4 Product : 802.11b WLAN USB ModuleModel : WM168B Company: AirVast Technology Inc.Page : 3 of 4 Product : 802.11b WLAN USB ModuleModel : WM168B Company: AirVast Technology Inc.Page : 4 of 4 Product : 802.11b WLAN USB ModuleModel : WM168B

Ecom Sertech Corp. Rm. 258, Bldg. 17, 195 Sec. 4 Chung Hsing Rd., Chu -Tung Chen, Taiwan 310, R.O.C TEL:886 - 3 - 5918012 FAX : 886 - 3 - 5825720 FCC IDQDWWM168b Report No. ER03-04-030 Page 1 of 3 9. RF EXPOSURE EVALUATION According to FCC 1.1310 : The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (A) Limits for Occupational / Control Exposures 300-1,500----F/3006 1,500-100,000----56 (B) Limits for General Population / Uncontrol Exposures 300-1,500----F/15006 1,500-100,000----130 9.1 FRIIS FORMULA Friis transmission formula : Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm2. If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 9.2 EUT OPERATING CONDITION A software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. Ecom Sertech Corp. Rm. 258, Bldg. 17, 195 Sec. 4 Chung Hsing Rd., Chu -Tung Chen, Taiwan 310, R.O.C TEL:886 - 3 - 5918012 FAX : 886 - 3 - 5825720 FCC IDQDWWM168b Report No. ER03-04-030 Page 2 of 3 9.3 TEST RESULT OF RF EXPOSURE EVALUATION Test ItemRF Exposure Evaluation Data Test ModeNormal Operation 9.3.1 ANTENNA GAIN Antenna GainThe maximum Gain measured in fully anechoic chamber is 2dBi linear scale. 9.3.2 OUTPUT POWER INTO ANTENNA & RF EXPOSURE EVALUATION DISTANCE Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Power density in mW/cm2 at Friis formula when r=20cm(mW/cm2) LIMITS CH12412.0018.18 0.0061351 CH62437.0018.02 0.0059131 CH112462.0018.33 0.0063511 NOTE:FOR A982 Antenna , Antenna Gain is -3.289 dBi Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Power density in mW/cm2 at Friis formula when r=20cm(mW/cm2) LIMITS CH12412.0018.18 0.0104051 CH62437.0018.02 0.0100281 CH112462.0018.33 0.0107701 NOTE:FOR G530 Antenna , Antenna Gain is -0.995 dBi Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Power density in mW/cm2 at Friis formula when r=20cm(mW/cm2) LIMITS CH12412.0018.18 0.0239511 CH62437.0018.02 0.0230851 CH112462.0018.33 0.0229471 NOTE:FOR G736 Antenna , Antenna Gain is 2.626 dBi Ecom Sertech Corp. Rm. 258, Bldg. 17, 195 Sec. 4 Chung Hsing Rd., Chu -Tung Chen, Taiwan 310, R.O.C TEL:886 - 3 - 5918012 FAX : 886 - 3 - 5825720 FCC IDQDWWM168b Report No. ER03-04-030 Page 3 of 3 Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Power density in mW/cm2 at Friis formula when r=20cm(mW/cm2) LIMITS CH12412.0018.18 0.0230001 CH62437.0018.02 0.0221681 CH112462.0018.33 0.0238081 NOTE:FOR G530 Antenna , Antenna Gain is 2.45 dBi The power density Pd (4 th column) at a distance of 20cm calculated from the Friis transmission formula is far belowthe limit of 1 mW/cm 2 . So, RF exposure limit warning or SAR test are not required.

Ecom Sertech Corp. Rm. 258, Bldg. 17, 195 Sec. 4 Chung Hsing Rd., Chu -Tung Chen, Taiwan 310, R.O.C TEL:886 - 3 - 5918012 FAX : 886 - 3 - 5825720 FCC ID：QDWWM168B Report No.： ER03-04-030 Page 1 of 68 ELECTROMAGNETIC COMPATIBILITY TEST REPORT Company ： AirVast Technology Inc. Address ： 4F, No.1, Lu.21, HSIN Hua Rd, Kueishan Industria Park, Taoyuan 330, Taiwan, R.O.C. Product name ： 802.11b WLAN USB Module Model name ： WM168b Date Received ： MAR. 20, 2003 Date Tested ： MAR. 20~APR. 7,2003 MEASUREMENT REQUIREMENT USED ： 47 CFR Part 15, Subpart B and Subpart C (Section 15.247), ANSI C63.4-2001 WE HEREBY CERTIFY THAT: The measurements shown in the attachment were made in accordance with the procedures indicated, and the energy emitted by the equipment was found to be within the limits applicable. We assume full responsibility for the accuracy and completeness of these measurements and vouch for the qualifications of all persons taking them. Notes ： 1. This report will be invalid if duplicated or photocopied in part. 2. This report refers only to the specimen(s) submitted to test, and is invalid as seperately used. 3. This report is invalid without examination stamp and signature of this institute. 4. The tested specimen(s) will be preserved for thirty days from the data issued. 5. The report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. Ecom Sertech Corp. Rm. 258, Bldg. 17, 195 Sec. 4 Chung Hsing Rd., Chu -Tung Chen, Taiwan 310, R.O.C TEL:886 - 3 - 5918012 FAX : 886 - 3 - 5825720 FCC ID：QDWWM168B Report No.： ER03-04-030 Page 2 of 68 TABLE OF CONTENTS TITLE PAGE NO. 1. GENERAL INFORMATION .................................................................................................................... 4 1.1 GENERAL STATEMENT ................................................................................................................... 4 1.2 GENERAL DESCRIPTION OF EUT & POWER .............................................................................. 4 1.3 DESCRIPTION OF PERIPHERALS ..................................................................................................5 1.4 EUT & PERIPHERALS SETUP DIAGRAM ..................................................................................... 6 1.5 EUT OPERATING CONDITION ....................................................................................................... 6 1.6 DESCRIPTION OF TEST SITE.......................................................................................................... 7 1.7 SUMMARY OF TEST RESULTS ...................................................................................................... 7 2. CONDUCTED POWERLINE TEST ........................................................................................................ 8 2.1 TEST EQUIPMENTS .......................................................................................................................... 8 2.2 TEST SETUP ....................................................................................................................................... 8 2.3 CONDUCTED POWER LINE EMISSION LIMIT ............................................................................ 9 2.4 TEST PROCEDURE............................................................................................................................ 9 2.5 UNCERTAINTY OF CONDUCTED EMISSION .............................................................................. 9 2.6 CONDUCTED RF VOLTAGE MEASUREMENT ............................................................................ 10 2.7 PHOTOS OF CONDUCTION TEST ..................................................................................................11 3. RADIATED EMISSION TEST................................................................................................................. 12 3.1 TEST EQUIPMENTS .......................................................................................................................... 12 3.2 TEST SETUP ....................................................................................................................................... 12 3.3 RADIATION LIMIT............................................................................................................................ 13 3.4 TEST PROCEDURES ......................................................................................................................... 14 3.5 UNCERTAINTY OF RADIATED EMISSION .................................................................................. 14 3.6 RADIATED RF NOISE MEASUREMENT ....................................................................................... 15-50 3.7 PHOTOS OF OPEN SITE ................................................................................................................... 51-53 4. 6dB BANDWIDTH MEASUREMENT .................................................................................................... 54 4.1 TEST EQUIPMENTS .......................................................................................................................... 54 4.2 TEST SETUP ....................................................................................................................................... 54 4.3 LIMITS OF 6dB BANDWIDTH MEASUREMENT .......................................................................... 54 4.4 TEST PROCEDURE............................................................................................................................ 54 4.5 UNCERTAINTY OF CONDUCTED EMISSION .............................................................................. 55 4.6 TEST RESULTS .................................................................................................................................. 55 4.7 PHOTO OF 6DB BANDWIDTH MEASURERMENT ................................................................…
