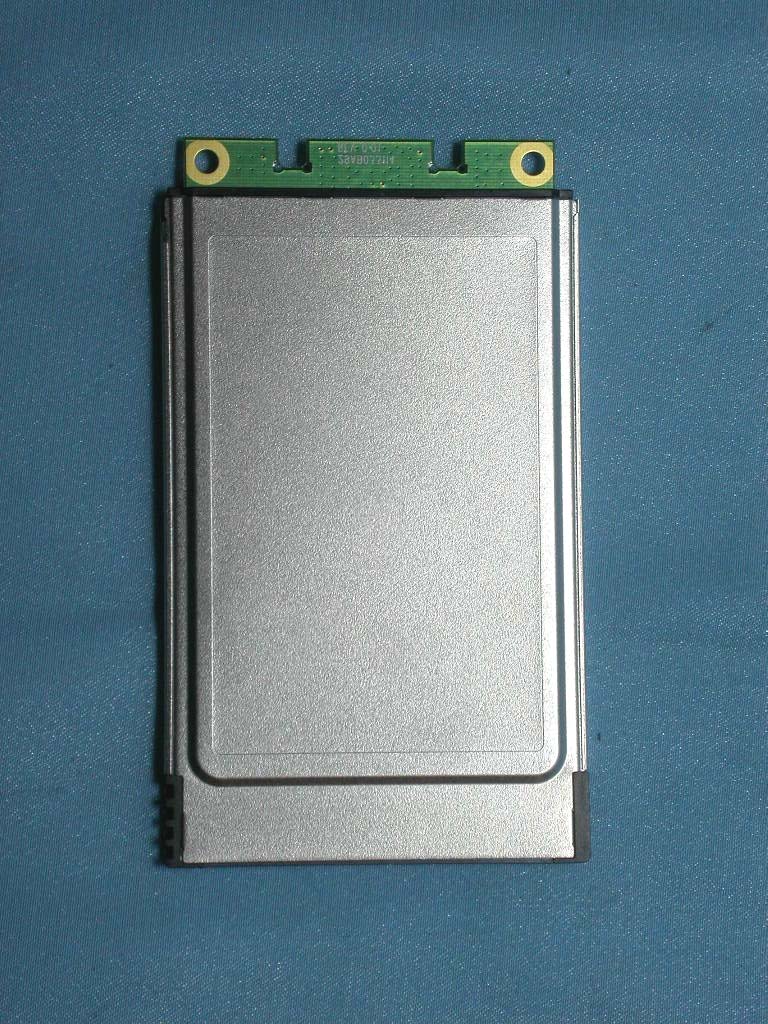

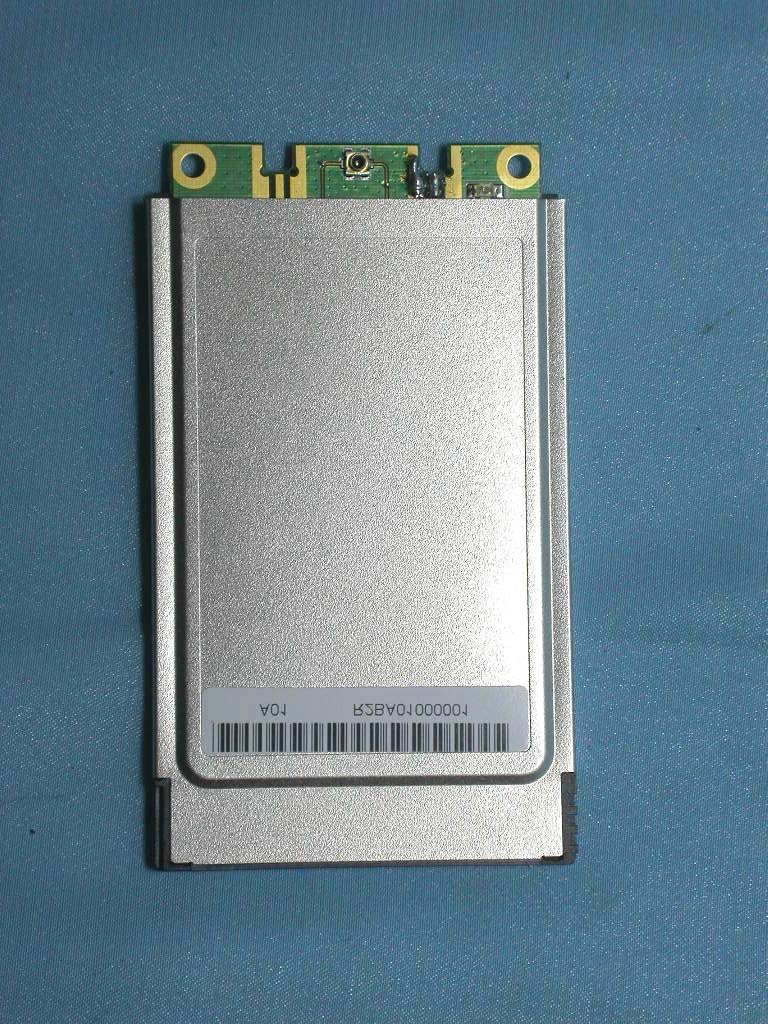

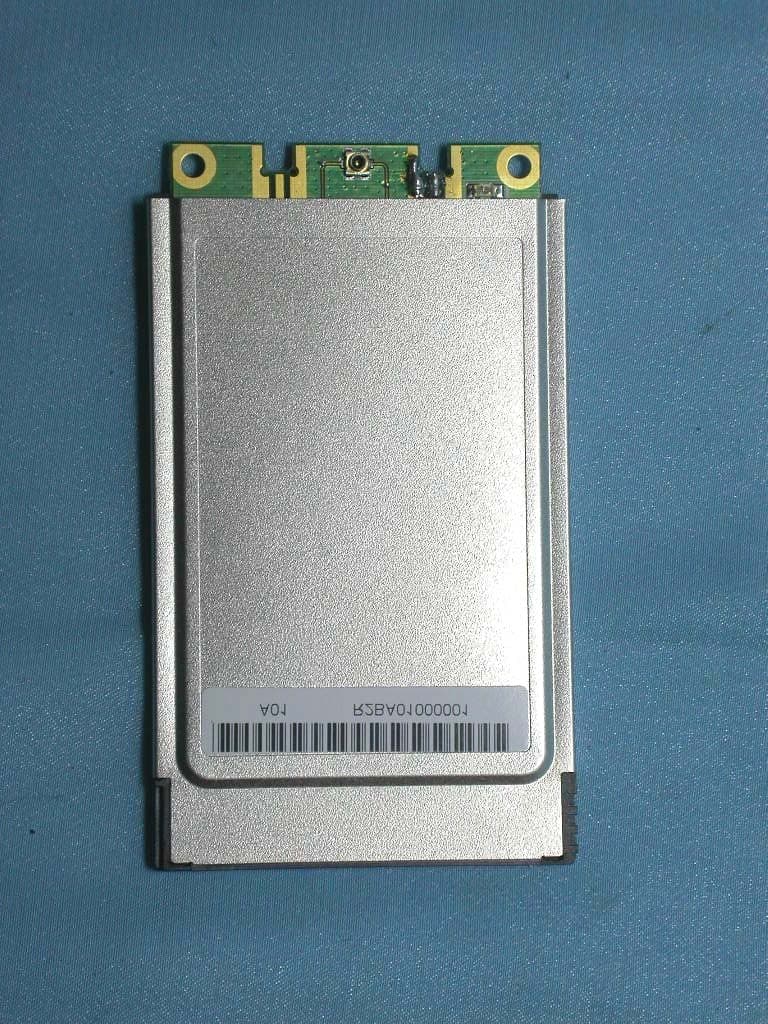

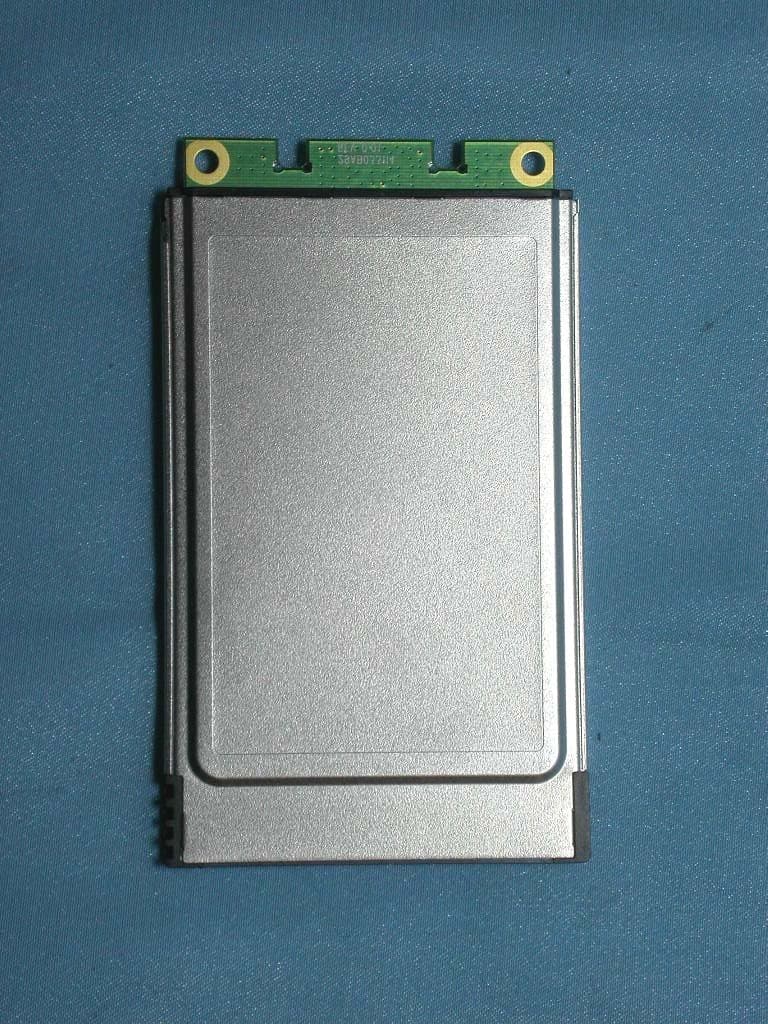

QDWWN112SH802.11b P3WLAN S-Card

- 1 - 802.11b P3 WLAN PCMCIA S-Card WN112SH Quick Start Guide - 2 - STATEMENT FOR MODUAL APPROVAL This product is sold to OEM integrators, only. The manual for the OEM integrators must include some instructions to be followed by the end users in the user manual. For example: - The OEM integrators must be instructed to ensure that the end user has no manual instructions to remove or install the device. - The OEM integrators must be instructed about the end product labeling ("Contains TX FCC ID: QDWWN112SH") etc. Please add the following statements to the manuals for the OEM integrators: This device is intended only for OEM integrators under the following conditions: 1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and 2) The transmitter module may not be co-located with any other transmitter or antenna. As long as the 2 conditions above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end product for any additional compliance requirements required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.). IMPORTANT NOTE: In the event that these conditions cannot be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID cannot be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. End Product Labeling This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be maintained between the antenna and users (for example, access points, routers, wireless ADSL modems, and similar equipment). The final end product must be labeled in a visible area with the following: "Contains TX FCC ID: QDWWN112SH". Manual Information for End Users The end user must not have manual instructions to remove or install the device. The user manual for end users must include the following information in a prominent location. “IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements, the antenna used for this transmitter must be installed to provide a separation - 3 - distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter." - 4 - No part of this documentation may be reproduced in any form or by any means or used to make any derivative work (such as translation, transformation, or adaptation) without written permission from the copyright owner. All the other trademarks and registered trademarks are the property of their respective owners. Statement of Conditions We may make improvements or changes in the product described in this documentation at any time. The information regarding to the product in this manual are subject to change without notice. We assumes no responsibility for errors contained herein or for direct, indirect, special, incidental, or consequential damages with the furnishing, performance, or use of this manual or equipment supplied with it, even if the suppliers have been advised of the possibility of such damages. Electronic Emission Notices This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference. (2)This device must accept any interference received, including interference that may cause undesired operation. FCC INFORMATION The Federal Communication Commission Radio Frequency Interference Statement includes the following paragraph: The equipment has been tested and found to comply with the limits for a Class B Digital Device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communication. However, there is no grantee that interference will not occur in a particular installation. If this equipment dose cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - 5 - --Consult the dealer or an experienced radio/TV technician for help. The equipment is for home or office use. R&TTE Compliance Statement This equipment complies with all the requirements of the Directive 1999/5/EC of the European parliament and the council of 9 March 1999 on radio equipment and telecommunication terminal Equipment and the mutual recognition of their conformity(R&TTE). The R&TTE Directive repeals and replaces in the directive 98/13/EEC. As of April 8, 2000. IMPORTANT NOTE FCC RF Radiation Exposure Statement: This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the antenna and your body and must not be co-located or operating in conjunction with any other antenna or transmitter. Caution: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. - 6 - The 802.11b P3 WLAN PCMCIA S-Card aims to let your computer quickly and seamlessly communicate with 802.11b (at up to 11 Mbps) networks. Wireless LAN is local area networking without wires, which uses radio frequencies to transmit and receive data betwe…

Text truncated - open the document above for the full version.

Company: AirVast Technology Inc.Page : 1 of 4 Product : 802.11b P3 WLAN S-CardModel : WN112SH Company: AirVast Technology Inc.Page : 2 of 4 Product : 802.11b P3 WLAN S-CardModel : WN112SH Company: AirVast Technology Inc.Page : 3 of 4 Product : 802.11b P3 WLAN S-CardModel : WN112SH Company: AirVast Technology Inc.Page : 4 of 4 Product : 802.11b P3 WLAN S-CardModel : WN112SH

802.11b WLAN PCMCIA S-Card FCC ID: QDW WN112SH Model : WN112SH Made in Taiwan

Company : AirVast Technology Inc.Model : WN112SH Product : 802.11b P3 WLAN S-Card 802.11b P3 WLAN S-Card Model No: WN112SH FCC ID QDWWN112SH This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: [1] this device may not cause harmful interference and [2] this device must accept any interference received, including interference that may cause undesired operation. S/N Made in Taiwan

Company: AirVast Technology Inc.Page : 1 of 3 Product : 802.11b P3 WLAN S-CardModel : WN112SH Company: AirVast Technology Inc.Page : 2 of 3 Product : 802.11b P3 WLAN S-CardModel : WN112SH Company: AirVast Technology Inc.Page : 3 of 3 Product : 802.11b P3 WLAN S-CardModel : WN112SH

Ecom Sertech Corp. Rm. 258, Bldg. 17, NO.195, Sec. 4 Chung Hsing Rd.,Chu -Tung Chen, Hsinchu, Taiwan 310, R.O.C TEL:886 - 3 - 5918012 FAX : 886 - 3 - 5825720 FCC ID QDWWN112SH Report No.ER03-05-003 Page 1 of 2 RF EXPOSURE EVALUATION According to FCC 1.1310 : The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (A) Limits for Occupational / Control Exposures 300-1,500----F/3006 1,500-100,000----56 (B) Limits for General Population / Uncontrol Exposures 300-1,500----F/15006 1,500-100,000----130 FRIIS FORMULA Friis transmission formula : Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm2. If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. EUT OPERATING CONDITION A software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. TEST RESULT OF RF EXPOSURE EVALUATION Test ItemRF Exposure Evaluation Data Test ModeNormal Operation Ecom Sertech Corp. Rm. 258, Bldg. 17, NO.195, Sec. 4 Chung Hsing Rd.,Chu -Tung Chen, Hsinchu, Taiwan 310, R.O.C TEL:886 - 3 - 5918012 FAX : 886 - 3 - 5825720 FCC ID QDWWN112SH Report No.ER03-05-003 Page 2 of 2 ANTENNA GAIN Antenna GainThe maximum Gain measured in fully anechoic chamber is 2dBi linear scale. OUTPUT POWER INTO ANTENNA & RF EXPOSURE EVALUATION DISTANCE Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Power density in mW/cm2 at Friis formula when r=20cm(mW/cm2) LIMITS CH12412.0019.02 0.02641 CH62437.0018.82 0.02521 CH112462.0018.98 0.02621 NOTE:FOR SA1 Antenna , Antenna Gain is 2.219 dBi Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Power density in mW/cm2 at Friis formula when r=20cm(mW/cm2) LIMITS CH12412.0019.02 0.02641 CH62437.0018.82 0.02521 CH112462.0018.98 0.02621 NOTE:FOR SA2 Antenna , Antenna Gain is 2.219 dBi Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Power density in mW/cm2 at Friis formula when r=20cm(mW/cm2) LIMITS CH12412.0019.02 0.01781 CH62437.0018.82 0.01701 CH112462.0018.98 0.01771 NOTE:FOR SA3 Antenna , Antenna Gain is 0.5132 dBi The power density Pd (4 th column) at a distance of 20cm calculated from the Friis transmission formula is far belowthe limit of 1 mW/cm 2 . So, RF exposure limit warning or SAR test are not required.

Ecom Sertech Corp. Rm. 258, Bldg. 17, NO.195, Sec. 4 Chung Hsing Rd.,Chu -Tung Chen, Hsinchu, Taiwan 310, R.O.C TEL:886 - 3 - 5918012 FAX : 886 - 3 - 5825720 FCC ID ：QDWWN112SH Report No.：ER03-05-003 Page 1 of 61 TEST REPORT Product Name ： 802.11b P3 WLAN S-Card Model Number ： WN112SH Applicant ： AirVast Technology Inc. Address ： 4F, No.1, Lu.21, HSIN Hua Rd, Kueishan Industria Park, Taoyuan 330, Taiwan, R.O.C. Date Received ： APR. 22,2003 Date Tested ： APR. 22~MAY.13, 2003 Notes ： 1. This report will be invalid if duplicated or photocopied in part. 2. This report refers only to the specimen(s) submitted to testing, and be invalid as seperately used. 3. This report is invalid without examination stamp and signature of this institute. 4. The tested specimen(s) will be preserved for thirty days from the data issued. 5. The report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. Ecom Sertech Corp. Rm. 258, Bldg. 17, NO.195, Sec. 4 Chung Hsing Rd.,Chu -Tung Chen, Hsinchu, Taiwan 310, R.O.C TEL:886 - 3 - 5918012 FAX : 886 - 3 - 5825720 FCC ID ：QDWWN112SH Report No.：ER03-05-003 Page 2 of 61 Test Report Certification Product Name : 802.11b P3 WLAN S-Card Model Number : WN112SH Applicant : AirVast Technology Inc. Measurement Standard : z 47 CFR Part 15, Subpart B and Subpart C (Section 15.247) ANSI C63.4-2001 WE HEREBY CERTIFY THAT: The measurements shown in the attachment were made in accordance with the procedures indicated, and the energy emitted by the equipment was found to be within the limits applicable. We assume full responsibility for the accuracy and completeness of these measurements and vouch for the qualifications of all persons taking them. Ecom Sertech Corp. Rm. 258, Bldg. 17, NO.195, Sec. 4 Chung Hsing Rd.,Chu -Tung Chen, Hsinchu, Taiwan 310, R.O.C TEL:886 - 3 - 5918012 FAX : 886 - 3 - 5825720 FCC ID ：QDWWN112SH Report No.：ER03-05-003 Page 3 of 61 TABLE OF CONTENTS TITLE PAGE NO. 1. GENERAL INFORMATION .................................................................................................................... 5 1.1 GENERAL STATEMENT .................................................................................................................. 5 1.2 GENERAL DESCRIPTION OF EUT & POWER .............................................................................. 5 1.3 DESCRIPTION OF PERIPHERALS ..................................................................................................6 1.4 EUT & PERIPHERALS SETUP DIAGRAM ..................................................................................... 7 1.5 EUT OPERATING CONDITION ....................................................................................................... 7 1.6 DESCRIPTION OF TEST SITE.......................................................................................................... 8 1.7 SUMMARY OF TEST RESULTS ...................................................................................................... 8 2. CONDUCTED POWERLINE TEST ........................................................................................................ 9 2.1 TEST EQUIPMENTS .......................................................................................................................... 9 2.2 TEST SETUP ....................................................................................................................................... 9 2.3 CONDUCTED POWER LINE EMISSION LIMIT ............................................................................ 10 2.4 TEST PROCEDURE............................................................................................................................ 10 2.5 UNCERTAINTY OF CONDUCTED EMISSION .............................................................................. 10 2.6 CONDUCTED RF VOLTAGE MEASUREMENT ............................................................................ 11 2.7 PHOTOS OF CONDUCTION TEST ..................................................................................................12 3. RADIATED EMISSION TEST................................................................................................................. 13 3.1 TEST EQUIPMENTS .......................................................................................................................... 13 3.2 TEST SETUP ....................................................................................................................................... 13 3.3 RADIATION LIMIT............................................................................................................................ 14 3.4 TEST PROCEDURES ......................................................................................................................... 15 3.5 UNCERTAINTY OF RADIATED EMISSION .................................................................................. 15 3.6 RADIATED RF NOISE MEASUREMENT ....................................................................................... 16-45 3.7 PHOTOS OF OPEN SITE ................................................................................................................... 46-47 4. 6dB BANDWIDTH MEASUREMENT .................................................................................................... 48 4.1 TEST EQUIPMENTS .......................................................................................................................... 48 4.2 TEST SETUP ....................................................................................................................................... 48 4.3 LIMITS OF 6dB BANDWIDTH MEASUREMENT .......................................................................... 48 4.4 TEST PROCEDURE............................................................................................................................ 48 4.5 UNCERTAINTY OF CONDUCTED EMISSION ...…

Text truncated - open the document above for the full version.

0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -30-20-100 dB Roll-Cut of SA2 Dipole Antenna, V-Pol 2.40GHz2.45GHz2.50GHz 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -30-20-100 dB Pitch-Cut of SA2 Dipole Antenna, H-Pol 2.40GHz2.45GHz2.50GHz Peak Gain = 2.219 dBi SA2 Dipole Antenna H_Plane SA2 Dipole Antenna E_Plane

0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -30-20-100 dB Horizontal Cut of SA3 Dipole Antenna Test, V-Pol 2.4GHz2.45GHz2.5GHz 0 345 330 315 300 285 270 255 240 225 210 195 180 165 150 135 120 105 90 75 60 45 30 15 -30-20-100 dB Vertical Cut of SA3 Dipole Antenna Test, V-Pol 2.4GHz2.45GHz2.5GHz Peak Gain =0.5132 dBi SA3 Dipole Antenna H_Plane SA3 Dipole Antenna E_Plane

Ecom Sertech Corp. Rm. 258, Bldg. 17, NO.195, Sec. 4 Chung Hsing Rd.,Chu -Tung Chen, Hsinchu, Taiwan 310, R.O.C TEL:886 - 3 - 5918012 FAX : 886 - 3 - 5825720 FCC ID QDWWN112SH Report No.ER03-05-003 Page 1 of 3 2.7 PHOTOS OF CONDUCTION TEST Ecom Sertech Corp. Rm. 258, Bldg. 17, NO.195, Sec. 4 Chung Hsing Rd.,Chu -Tung Chen, Hsinchu, Taiwan 310, R.O.C TEL:886 - 3 - 5918012 FAX : 886 - 3 - 5825720 FCC ID QDWWN112SH Report No.ER03-05-003 Page 2 of 3 3.7 PHOTOS OF OPEN SITE Ecom Sertech Corp. Rm. 258, Bldg. 17, NO.195, Sec. 4 Chung Hsing Rd.,Chu -Tung Chen, Hsinchu, Taiwan 310, R.O.C TEL:886 - 3 - 5918012 FAX : 886 - 3 - 5825720 FCC ID QDWWN112SH Report No.ER03-05-003 Page 3 of 3
