QDWWN220802.11b WLAN USB Stick

8 8 0 0 2 2 . . 1 1 1 1 b b W W L L A A N N U U S S B B S S t t i i c c k k User Manual Version 1.0 M061703V10 1 No part of this documentation may be reproduced in any form or by any means or used to make any derivative work (such as translation, transformation, or adaptation) without written permission from the copyright owner. All the other trademarks and registered trademarks are the property of their respective owners. Statement of Conditions We may make improvements or changes in the product described in this documentation at any time. The information regarding to the product in this manual are subject to change without notice. We assume no responsibility for errors contained herein or for direct, indirect, special, incidental, or consequential damages with the furnishing, performance, or use of this manual or equipment supplied with it, even if the suppliers have been advised of the possibility of such damages. Electronic Emission Notices This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference. (2)This device must accept any interference received, including interference that may cause undesired operation. FCC INFORMATION The Federal Communication Commission Radio Frequency Interference Statement includes the following paragraph: The equipment has been tested and found to comply with the limits for a Class B Digital Device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to overcome the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. The equipment is for home or office use. R&TTE Compliance Statement This equipment complies with all the requirements of the Directive 1999/5/EC of the European parliament and the council of 9 March 1999 on radio equipment and telecommunication terminal Equipment and the mutual recognition of their conformity(R&TTE). The R&TTE Directive repeals and replaces in the directive 98/13/EEC. As of April 8, 2000. IMPORTANT NOTE FC C RF Radiation Exposure Statement : This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. M061703V10 2 Caution: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. T T a a b b l l e e o o f f C C o o n n t t e e n n t t s s 1. INTRODUCTION..................................................................................................................................1 1.1 Features...........................................................................................................................................1 1.2 Package Contents...........................................................................................................................1 1.3 System Requirements.....................................................................................................................2 1.4 The 802.11b Wireless LAN USB Stick............................................................................................2 2. INSTALLATION OF THE 802.11b WIRELESS LAN USB STICK.......................................................3 2.1 Installing the WLAN Driver..............................................................................................................3 2.2 Installation Notes - Windows XP.....................................................................................................5 2.3 Verifying a Successful Installation...................................................................................................7 3. CONFIGURATION FOR WINDOWS XP.............................................................................................9 To Connect an Available Network via Wireless Zero Configuration.....................................................9 To Configure the Wireless Networks Properties.................................................................................10 To Access to Certain Wireless Network Type.....................................................................................12 4. WLAN PRISM3 IEEE802.11b BASICS................................................................................................14 4.1 Tray Icon........................................................................................................................................14 4.2 Right-Click Menu of the Tray Icon.................................................................................................14 Wireless Radio On.............................................................................................................................15 Wireless Radio Off.............................................................................................................................15 Remove Status Icon............................................................................................................................15 Wireless Network Status.............................…

Text truncated - open the document above for the full version.

From: CCSEMC - Eric [[email protected]] Sent: Monday, July 14, 2003 1:48 AM To: Mike Kuo Subject: Re: Airvast Technology Inc., FCC ID: QDWWN220, Assessment NO.: AN03T3019 Dear Mike, 1. What's the threshold you're talking about?? 60/freq. for portable device and 120/freq. for the mobile?? 2. Please find the attached materials is modified upon your comment. Thank you!! Best regards, Eric Wong Compliance Certification Services Inc. (Formerly C&C Laboratory Co., Ltd.) Tel.: 3-3240332 Ext.49 Add.: No.81-1, Lane 210, Ba-de 2nd Rd., Luchu Hsiang, Taoyuan Hsien 338, Taiwan, R.O.C. Email: [email protected] URL: http://www.cclab.com.tw -------------------------------------------------------------------------------- ----- Original Message ----- From: Mike Kuo To: 'CCSEMC - Eric' Sent: Monday, July 14, 2003 2:37 PM Subject: RE: Airvast Technology Inc., FCC ID: QDWWN220, Assessment NO.: AN03T3019 Hi Eric : 1. Since the output power is below the low threshold, no separation distance is required to be mentioned in the user manual. 2. Remove MPE calculation from the test report. MPE calculation can not be used to address portable RF exposure requirement. Best Regards Mike Kuo -----Original Message----- From: CCSEMC - Eric [mailto:[email protected]] Sent: Sunday, July 13, 2003 10:16 PM To: Mike Kuo Subject: Re: Airvast Technology Inc., FCC ID: QDWWN220, Assessment NO.: AN03T3019 Dear Mike, 1. In case if the device can be used as MOBILE or PORTABLE, what's the requirement in the regulatory statment?? Change all the 20cm to 2.5cm?? or simply remove the 20cm and leave no comment on this?? 2. Should we modified the MPE evaluation from 20cm to 2.5cm?? Please comment and thanks very much.. Best regards, Eric Wong Compliance Certification Services Inc. (Formerly C&C Laboratory Co., Ltd.) Tel.: 3-3240332 Ext.49 Add.: No.81-1, Lane 210, Ba-de 2nd Rd., Luchu Hsiang, Taoyuan Hsien 338, Taiwan, R.O.C. Email: [email protected] URL: http://www.cclab.com.tw ---------------------------------------------------------------------------- ----- Original Message ----- From: "Mike Kuo" <[email protected]> To: "Eric (E-mail)" <[email protected]>; "Eva Kao (E-mail)" <[email protected]>; "Lucy (E-mail)" <[email protected]>; "Ting (E- mail)" <[email protected]>; "Jonson Lee (E-mail)" <[email protected]>; "Vincent (E-mail)" <[email protected]> Cc: "Shirley Kang" <[email protected]> Sent: Monday, July 14, 2003 1:28 PM Subject: FW: Airvast Technology Inc., FCC ID: QDWWN220, Assessment NO.: AN03T3019 > > > -----Original Message----- > From: Compliance Certification Services [mailto:[email protected]] > Sent: Sunday, July 13, 2003 9:18 PM > Subject: Airvast Technology Inc., FCC ID: QDWWN220, Assessment NO.: > AN03T3019 > > > Question #1: This device is an 802.11b WLAN USB with integral antenna. Per > the test setup photos, this device can be used with Notebook computer. Even > thought the user manual mentiioned that this device shall be used with > Desktop Computer, but this device can be used with Notebook computer. Based > upon the design of the device, this device can be used as portable device ( > with notebook and separation distance is less than 2.5cm ) and /or Mobile > device ( when use with desktop computer). Based upon 2.1091 and 2.1093 of > FCC rules, when the device by design can be used as mobile and portable > device, the RF exposure compliance shall be assessed as portable device. > > Based upon above assessment, please revise the RF exposure statement in the > user manual, please remove the 20cm separation distance requirement. > > Question #2: please remove MPE estimate in the 15.247 test report. > > Best Regards > > Mike Kuo > > The items indicated above must be submitted before processing can continue > on the above referenced application. Failure to provide the requested > information within 60 days of the original e-mail date may result in > application dismissal and forfeiture of the filing fee. Also, please note > that partial responses increase processing time and should not be submitted. > Any questions about the content of this correspondence should be directed to > the e-mail address listed below the name of the sender. >

WN220 Chip Antenna pattern AB035_1E2400 Peak:0.469 Avg:-4.354 AB035_1E2450 Peak:-0.421 Avg:-4.587 WN220 Chip Antenna pattern AB035_1E2500 Peak:0.152 Avg:-4.489 AB035_1H2400 Peak:0.847 Avg:-3684. WN220 Chip Antenna pattern AB035_1H2450 Peak:0.359 Avg:-4.058 AB035_1H2500 Peak:1.196 Avg:-3.704

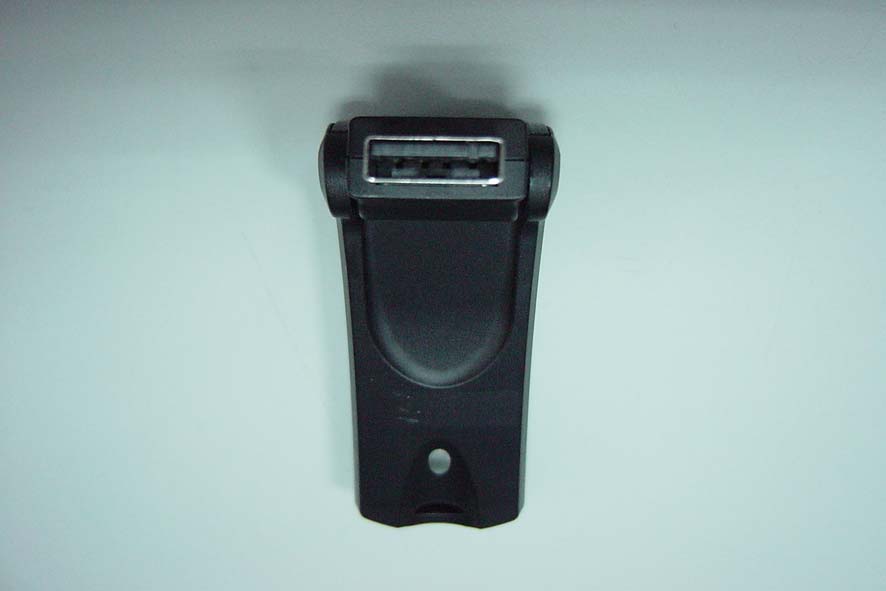

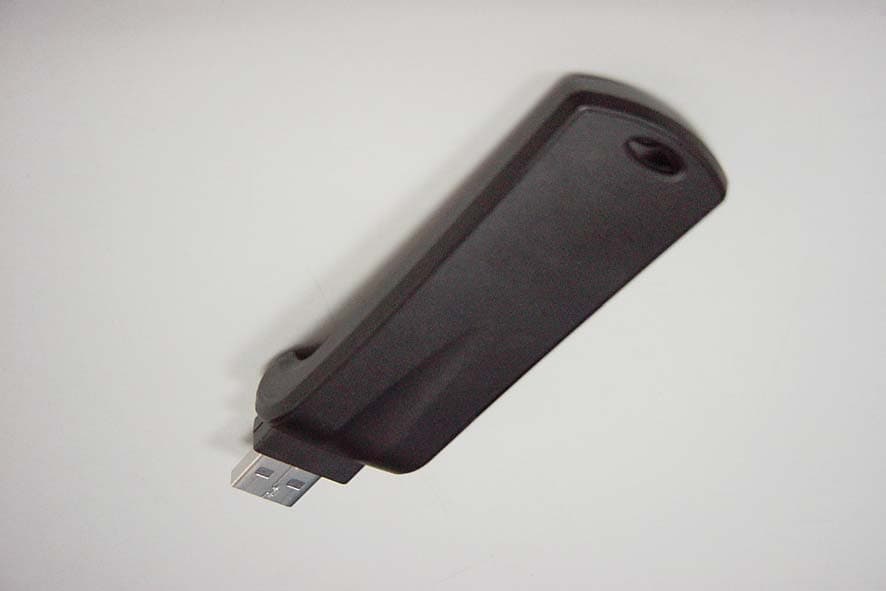

C&C Laboratory Co. Ltd. REPORT NO: B30625214-RP ID: QDWWN220 DATE: July 1, 2003 Page 46 Rev. 00 APPENDIX 2 EXTERNAL PHOTOGRPHS OF EUT C&C Laboratory Co. Ltd. REPORT NO: B30625214-RP ID: QDWWN220 DATE: July 1, 2003 Page 47 Rev. 00 EUT --- 1 EUT --- 2 C&C Laboratory Co. Ltd. REPORT NO: B30625214-RP ID: QDWWN220 DATE: July 1, 2003 Page 48 Rev. 00 EUT --- 3

Model:WN220 FCCID:QDWWN220 802.11bWLAN USB Stick

Label Location

C&C Laboratory Co. Ltd. REPORT NO: B30625214-RP ID: QDWWN220 DATE: July 1, 2003 Page 49 Rev. 00 APPENDIX 3 INTERNAL PHOTOGRPHS OF EUT C&C Laboratory Co. Ltd. REPORT NO: B30625214-RP ID: QDWWN220 DATE: July 1, 2003 Page 50 Rev. 00 Internal of EUT-1 Internal of EUT-2 C&C Laboratory Co. Ltd. REPORT NO: B30625214-RP ID: QDWWN220 DATE: July 1, 2003 Page 51 Rev. 00 Internal of EUT-3

C&C Laboratory Co. Ltd. REPORT NO: B30625214-RP ID: QDWWN220 DATE: July 1, 2003 Page 1 of 50 Rev. 01 ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C (DTS) REQUIREMENT OF 802.11b WLAN USB Stick Model Name: WN220 / PN15 / CT-110 / WU022 Trade Name: AirVast Technology Inc. / Shuttle Inc. / Comtrend Corporation / PILOTECH SYSTEMS CO., LTD. FCC ID: QDWWN220 REPORT NO: B30625214-RP Prepared for AirVast Technology Inc. 4F-1, No. 1, Ln. 21, Hsin Hua Rd., Kueishan Industrial Park, Taoyuan 330, Taiwan, R.O.C. Prepared by C&C LABORATORY, CO., LTD. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, Taiwan. TEL: 886-3-3240332 FAX: 886-3-3245235 This report shall not be reproduced, except in full, without the written approval of C&C Laboratory, Co., Ltd. C&C Laboratory Co. Ltd. REPORT NO: B30625214-RP ID: QDWWN220 DATE: July 1, 2003 Page 2 Rev. 01 VERIFICATION OF COMPLIANCE Applicant: AirVast Technology Inc. 4F-1, No. 1, Ln. 21, Hsin Hua Rd., Kueishan Industrial Park, Taoyuan 330, Taiwan, R.O.C. Product Description: 802.11b WLAN USB Stick Trade Name: AirVast Technology Inc. / Shuttle Inc. / Comtrend Corporation / PILOTECH SYSTEMS CO., LTD. Model No.: WN220 / PN15 / CT-110 / WU022 Model Difference: All the above models are identical except the model designation Serial Number: N/A File Number: B30625214-RP Date of test: June 27, 2003 We hereby certify that: The above equipment was tested by C&C Laboratory Co., Ltd. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (1992) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.247. The test results of this report relate only to the tested sample identified in this report. Approved By Reviewed By Jonson Lee / Director Susan Su / Section Manager C&C Laboratory Co., Ltd. C&C Laboratory Co., Ltd. C&C Laboratory Co. Ltd. REPORT NO: B30625214-RP ID: QDWWN220 DATE: July 1, 2003 Page 3 Rev. 01 Table of Contents 1. GENERAL INFORMATION ........................................................................................... 5 1.1 P RODUCT D ESCRIPTION ................................................................................................................... 5 1.2 R ELATED S UBMITTAL ( S ) / G RANT ( S ).............................................................................................. 5 1.3 T EST M ETHODOLOGY ....................................................................................................................... 5 1.4 T EST F ACILITY ................................................................................................................................. 5 1.5 S PECIAL A CCESSORIES ..................................................................................................................... 5 1.6 E QUIPMENT M ODIFICATIONS ........................................................................................................... 5 2. SYSTEM TEST CONFIGURATION .............................................................................. 6 2.1 EUT C ONFIGURATION ...................................................................................................................... 6 2.2 EUT E XERCISE ................................................................................................................................. 6 2.3 T EST P ROCEDURE ............................................................................................................................. 6 2.4 C ONFIGURATION OF T ESTED S YSTEM .............................................................................................. 7 3. SUMMARY OF TEST RESULTS ................................................................................... 8 4. DESCRIPTION OF TEST MODES ................................................................................ 8 5. SPURIOUS EMISSION TEST ......................................................................................... 9 5.1 S TANDARD A PPLICABLE .................................................................................................................. 9 5.2 EUT S ETUP ...................................................................................................................................... 9 5.3 M EASUREMENT P ROCEDURE ............................................................................................................ 9 5.4 T EST SET-UP (B LOCK D IAGRAM OF C ONFIGURATION ) ................................................................ 10 5.5 M EASUREMENT E QUIPMENT U SED : ............................................................................................... 11 5.6 M EASUREMENT R ESULT ................................................................................................................ 11 6. AC POWER LINE CONDUCTED EMISSION TEST ................................................ 24 6.1. S TANDARD A PPLICABLE ................................................................................................................ 24 6.2. EUT S ETUP .................................................................................................................................... 24 6.3. M EASUREMENT P ROCEDURE .......................................................................................................... 24 6.4. M EASUREMENT E QUIPMENT U SED : ............................................................................................... 25 6.5. M EASUREMENT R ESULT ................................................................................................................ 25 7. 6 DB BANDWIDTH MEASUREMENT........................................................................ 28 7.1 S TANDARD A PPLICABLE ..................................................................…

Text truncated - open the document above for the full version.

C&C Laboratory Co. Ltd. REPORT NO: B30625214-RP ID: QDWWN220 DATE: July 1, 2003 Page 43 Rev. 00 APPENDIX 1 PHOTOGRPHS OF SET UP C&C Laboratory Co. Ltd. REPORT NO: B30625214-RP ID: QDWWN220 DATE: July 1, 2003 Page 44 Rev. 00 PHOTOGRPHS OF SET UP Radiated Emission Set up Photos C&C Laboratory Co. Ltd. REPORT NO: B30625214-RP ID: QDWWN220 DATE: July 1, 2003 Page 45 Rev. 00 Conducted Emission Set Up Photos
