QDYIC-100MSecurity Camera

User’s Manual Menix Co., Ltd. 1 Information to the user This equipment has been tested and found to comply with the limits for aClass B digital device pursuant to part 15 of the FCC Rules. These limits aredesigned to provide reasonable protection against harmful interference in aresidential installation. This equipment generates, uses and can radiate radiofrequency energy and, if not installed and used in accordance with theinstructions, may cause harmful interference to radio communications.However, there is no guarantee that interference will not occur in a particularinstallation. If this equipment does cause harmful interference to radio ortelevision reception, with can be determined by turning the equipment offand on, the user is encouraged to try to correct the interference by one moreof the following measures:- Reorient or relocate the receiving antenna.- Increase the separation between the equipment and receiver.- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -. Consult the dealer or an experienced radio/TV technician for help. Warn i n g Changes or modifications not expressly approved by Menix Co., Ltd.for compliance could void the user's authority to operate the equipment. 2 Thank you for purchasing our CyberEye-Cam. For the best results,please review this manual first. These operating instructions should beretained for future reference.CONTENTSFEATURESCOMPONENTSNAME OF PARTSCAMERA RANGE AND ANGLEHOW TO USE REMOTE CONTROLLERSETUP MODE - MODE TO DELETE/KEEP THE SAVED IMAGES - MODE TO CHANGE DATES AND TIME - MODE TO SETUP RECORDING INTERVAL - MODE TO SETUP NUMBERS OF TAKING PICTURES HOW TO OPERATEHOW TO CHECK THE SAVED IMAGESSPECIFICATIONSWARRANTY 3 FEATUREIt will takes the images of criminals and saves them in Built-inMemory, and these images with time-stamp can be used to verify thecriminals and used as an evidence to the court of law. (1) Auto-detecting feature in case of break-in to the car (2) Emergency Image Capture ( In case of Taxi Robbery) (3) Images will be saved in Built-in Memory (Max. 42 images) (4) Time Stamp in the image (year/month/date/hour/min) (5) Can takes pictures in the night (Using IR LED) (6) Can adjust the Time interval between pictures (1~8 Seconds) (7) Foot Switch is provided (Emergency Use) 4 COMPONENTS(1) Remote Control (2) Main Body(3) Camera (4) Power Adaptor (12V)(5) Video Connection cordNAME OF PARTS(1) Camera (2) Camera Jack(+)(3) Camera Jack (- ) (4) Video Connector 5 (5) Switch (6) Power Jack(7) Remote controlCAMERA RANGE AND ANGLEHorizontal Range : 51 º Vertical Range : 41º 6 HOW TO USE REMOTE CONTROLLERThis device controls the Main body with radio-wave. When you press any button on the remote controller, the Red lamp will blink once and it willsend 311.06Mhz AM radio wave and it will operate the main body.(1) “ARMED” - Use to Arm(Activate) the main body. Increase the time, number (2) “OFF” - Use to Off(Deactivate) the main body. Decrease the time, number  (3) “EMERGENCY” - Takes the image in urgent situation Move to next step when adjusting time, number How to replace the Battery (Alkaline A23) SETUP MODE 2000. 7. 7. 14: 03 7 1. Connec t Power Adaptor to the Power Outlet (DC 12 V). 2. Connect to Power connecting jack by the side of main unit, please make sure to setswitch to “ON”. (See the diagram) 3. Withi n 5 seconds a fter setti ng switch to “ON”, press the “ARMED” b utto n o n theremote control. As you hear beeping sounds, this means that the code willauto matically be tra nsferred into the s yste m. 4. By pressing the “OFF” button, it makes a “beep” sound to confirm unit is off. 8 MODE TO DELETE/KEEP THE SAVED IMAGESThis mode is for deleting or keeping all saved images.(The cursor of initial screen is placed under the punctuation of “Exit”.)“Armed” button (DEL) : Delete all the Images.(All Saved images will be deleted and SETUP MODE changes to normal mode –You will see blue or black screen.)“OFF” button(Exit) : Go back to the normal mode(The saved images will be still kept, then SETUP MODE changes to normal mode –You will see blue or black screen)“Emergency” button : Move forward to next mode(Still keeping the saved images, it transfers to the Mode for Changing Date andTi me.) ! Cautions : Beware you will erase all images by pressing the “ARMED” button.Erased images cannot be recovered and they will be totally deleted from the system. 9 MODE TO CHANGING DATE AND TIME When this product is delivered to retail store, it is set for GMT plus 8 hours. Pleaseadjust the time accordingly by using remote control. To do this, follow theseinstructions.“ARMED” b utto n ( ! ) : To increase the Number “OFF” button ( " ): To decrease the Number “EMERGENCY” b utto n ( # ) : To move Cursor * How to change date and time (Example) 2001/01/31/12:00 to 2002/02/30/10:01 Caution : The date and time may appear as 2000/01/01/12:00 in case of long time 1/31/12:00 To change “Minute”, press “ARMED” buttonone time.,And then press “EMERGENCY” button forMode To C hange “hour” 2001/01/31/12:01 To change “Hour”, press “OFF” button2 times.And then press “EMERGENCY” button forMode to change “date”.. 2001/01/31/10:01 To change “Date”, press “OFF” buttonOne time.And then press “EMERGENCY” button for Modeto change “Month”. 2001/01/30/10:01 To change “Month”, press “ARMED” button onetime.And then press “EMERGENCY” button forMode to change “Year”. To change “Year”, press “ARMED” button onetime. 2001/02/30/10:012002/02/30/10:01 A ll set up do ne 10 power failure. Then please reset the date and time as per instructions above.When the time setup is done, please press “EMERGENCY” button to go to Mode toset up for Recording Interval. 11 MODE TO SET UP FOR RECORDING INTERVALThis mode is to set up for the recording intervals when an intruder is sensed oremer genc y sw itc h is pressed. (For exa mple, If yo u se t the recording interval for “4”seconds, it will record a picture every 4 seconds when something is sensed. Thesyst…

Text truncated - open the document above for the full version.

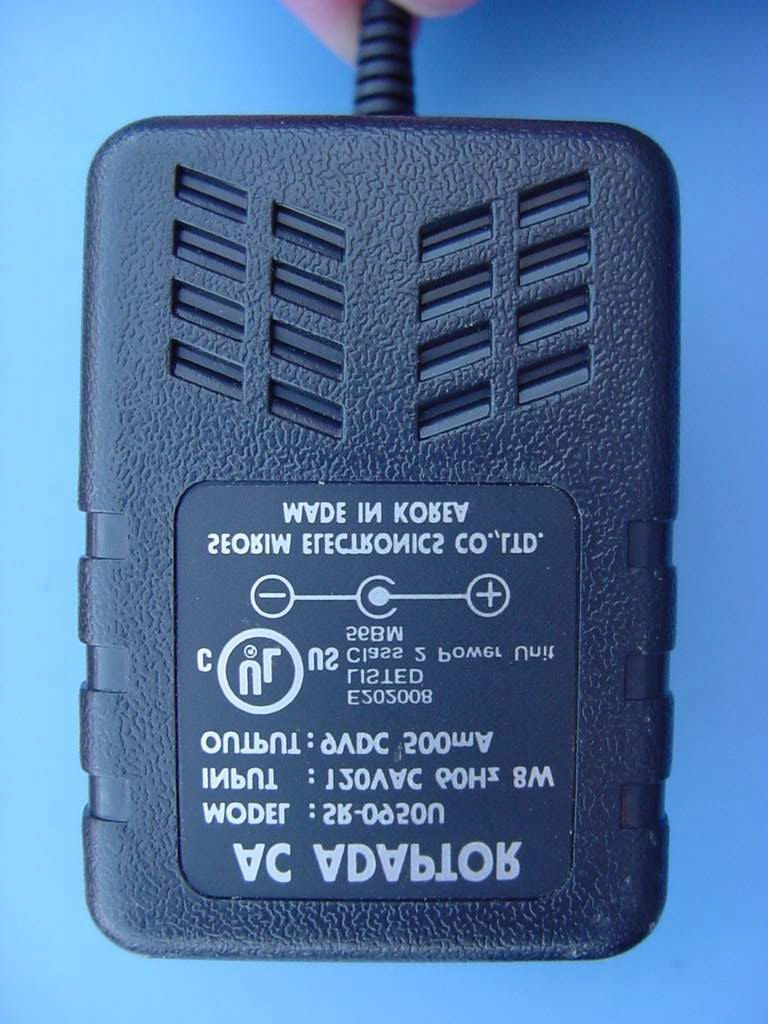

IC-100M POWER CONTROL (IN: DC 12V/OUT: DC 5V) IMAGE SENSOR (U2 OV5116) BUZZER MAIN CONTROL (CPU) XTAL : 12.288MHz D/A CONVERTER (U12 HI 1171) A/D CONVERTER (U11 HI1175) FLASH MEMORY (IMAGE) RECEIVER (311.06MHZ) XTAL : 4.8358MHz VIDEO OUT

FCC ID. : QDYIC-100M File No. : E025R-039 ONETECH Testing & Evaluation Lab. FCC ID. : QDYIC-100M File No. : E025R-039 ONETECH Testing & Evaluation Lab. FCC ID. : QDYIC-100M File No. : E025R-039 ONETECH Testing & Evaluation Lab. FCC ID. : QDYIC-100M File No. : E025R-039 ONETECH Testing & Evaluation Lab. FCC ID. : QDYIC-100M File No. : E025R-039 ONETECH Testing & Evaluation Lab. FCC ID. : QDYIC-100M File No. : E025R-039 ONETECH Testing & Evaluation Lab. FCC ID. : QDYIC-100M File No. : E025R-039 ONETECH Testing & Evaluation Lab. FCC ID. : QDYIC-100M File No. : E025R-039 ONETECH Testing & Evaluation Lab. FCC ID. : QDYIC-100M File No. : E025R-039 ONETECH Testing & Evaluation Lab.

FCC ID. : QDYIC-100M ONETECH Testing & Evaluation Lab. IDENTIFICATION LABEL: PROPOSED FCC ID LABEL Due to the product size, only the FCC ID shall be permanently affixed to the rear side of the equipment and other information shall be placed in the instruction manual. FCC ID : OSLOKA-510T FCC ID : QDYIC-100M MENIX CO., LTD. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operations. Made in Korea FCC ID AREA

FCC ID. : QDYIC-100M File No. : E025R-039 ONETECH Testing & Evaluation Lab. FCC ID. : QDYIC-100M File No. : E025R-039 ONETECH Testing & Evaluation Lab. FCC ID. : QDYIC-100M File No. : E025R-039 ONETECH Testing & Evaluation Lab. FCC ID. : QDYIC-100M File No. : E025R-039 ONETECH Testing & Evaluation Lab. FCC ID. : QDYIC-100M File No. : E025R-039 ONETECH Testing & Evaluation Lab. FCC ID. : QDYIC-100M File No. : E025R-039 ONETECH Testing & Evaluation Lab.

This device is a Security System. You can confirm the Video signal from US(OV5116) by monitor, and you ca n store the 32 fra me s of still image s in Flash Me mo ry( K9 F4008WOA) after converting from Analogue signal to Digital signal U11(HI1175) when needed. When the images are stored, Date & Time stamp will be also showed in top-right corner. The stored images can be viewed through monitor after converting Digital signal to Analogue signal U12(HI1171)
