QE6IH-MAGIC02AADigital Camera

Sprint PCS ® The clear alternative to cellular. SM www.sprintpcs.com Table of Contents 1. Getting to Know Your PCS Vision Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 Features of Your PCS Vision Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 Cleaning the Lens and Viewfinder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 Using the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 Camera Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 Getting Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 2. Using Your PCS Vision Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 Front and Back View of Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10 Turning Your Camera ON and OFF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11 Viewing the Status LCD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11 Taking Pictures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12 Connecting the Camera to a PCS Phone [need to verify] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13Registering for PictureShare [need info] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 Transferring Pictures Directly From Your Camera to a Personal Computer [verify] . . . . .14 3. The PCS PictureShare WAP Site . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 Managing Pictures With Your PCS Phone [need to verify] . . . . . . . . . . . . . . . . . . . . . . . . . . . .16Managing Pictures With the PCS PictureShare WAP Site [need to verify] . . . . . . . . . . . . . . .17 4. The PCS PictureShare Web Site . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21 Accessing the PCS PictureShare Web Site . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Picture Inbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22 Albums . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26 Guest Books . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28 Account Info . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29 5. Terms and Conditions & Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . .31 Terms and Conditions of Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32 Manufacturer’s Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33 Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35 Copyright © 2002 Sprint Spectrum L.P. All rights reserved. No reproduction in whole or in part without priorwritten approval. Sprint, Sprint PCS and the diamond logo are trademarks of Sprint CommunicationsCompany L.P. All other trademarks are property of their respective owners. 1 Your PCS Vision CameraWelcome – you’ve made the right choiceS print built the largest all-digital, all-PCS nationwide network from theground up, reaching more than 230 million people. We built our network to give you what we believe you really want from a wireless phone: clearsound, private conversations and innovative products. Your PCS Vision Camera allows you to take VGA-quality digital pictures andsend them to your friends and family – wherever and whenever you want.This well-designed camera is easy-to-use and attaches to Samsung N400 andSamsung A500 phones.When your camera is connected to a phone, you can upload and sharepictures instantly via email with the PCS PictureShare service . The PCS PictureShare service is also available through the Web on a personalcomputer for picture enhancement and advanced management features.Since you’re probably eager to begin using the camera, we encourage you toflip to Section One – Getting Started With Your PCS Vision Camera. Thissection provides basic phone information and lets you know how to contactSprint should you have any questions.Thank you for choosing Sprint and enjoy your new camera. 1Getting to Know YourPCS Vision CameraIn This Section
Features of Your PCS Vision Camera
Cleaning the Lens and Viewfinder
Using the Battery
Camera Precautions
Troubleshooting
Getting Help T his section walks you through the basic information and features of yourPCS Vision Camera. Once you have completed this section, you’re ready to explore the advanced features of your new camera and PCS PictureShare service. Section 1 Getting to Know Your PCS Vision Camera 3 1 Getting to Know Your Camera Using the Battery Installing the BatteryTo insert a battery into the camera:1. Open the connector cover. 2. Remove the connector. 3. Slide open the battery cover (refer to the figure). 4. Insert the batte…

Text truncated - open the document above for the full version.

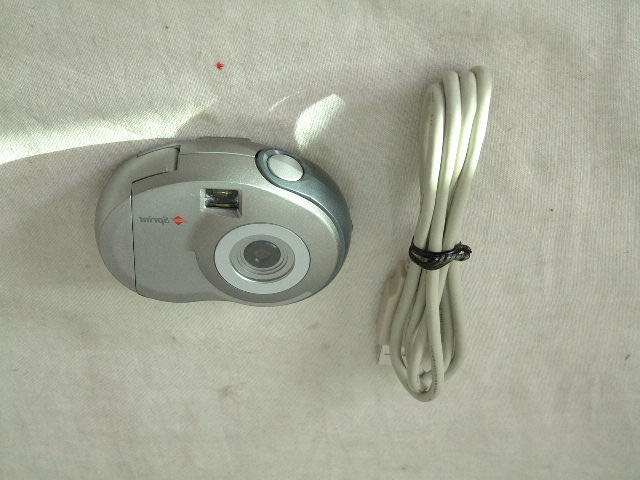

Test report Our reference : KEL02-F05086 Page : B1 of Appendix Issued date : 2002-06-05 Appendix-B : External Photographs of E.U.T <FRONT VIEW OF EUT> <REAR VIEW OF EUT>

Test report Our reference : KEL02-F05086 Page : D1 of Appendix Issued date : 2002-06-05 Appendix-D : FCC ID label location information and Sample - FCC ID label location information The label included following statement will be attached on the bottom side of product. - FCC ID label sample

Test report Our reference : KEL02-F05086 Page : C1 of Appendix Issued date : 2002-06-05 Appendix-C : Internal Photographs of E.U.T <INTERNAL VIEW OF E.U.T> Test report Our reference : KEL02-F05086 Page : C2 of Appendix Issued date : 2002-06-05 <FRONT VIEW OF MAIN-UP BOARD> Test report Our reference : KEL02-F05086 Page : C3 of Appendix Issued date : 2002-06-05 <REAR VIEW OF MAIN-UP BOARD> Test report Our reference : KEL02-F05086 Page : C4 of Appendix Issued date : 2002-06-05 <FRONT VIEW OF MAIN-DOWN BOARD> Test report Our reference : KEL02-F05086 Page : C5 of Appendix Issued date : 2002-06-05 <REAR VIEW OF MAIN-DOWN BOARD>

CERTIFICATE OF COMPLIANCE 352 Youngduk-Ri, Kihung-Eup, Yongin-City, Kyunggi-Do, Korea 449-908 TEL : (82)31-206-4693 FAX : (82)31-206-3051 http://www.kesilab.com [email protected] http://www.koreaemc.co.kr [email protected] (CLASS B) CERTIFICATION OF COMPLIANCE is hereby issued to the named Applicant and is VALID ONLY for the equipment identified below: Date of Tested : June. 24. 2002 Applicant’s Name : Infohand Co., Ltd. Applicant’s Address : 307, Halla Classic, 824-11, Yeoksam-Dong, Gangnam-gu, Seoul, Korea Manufacturer’s Name : Infohand Co., Ltd. Manufacturer’s Address : 307, Halla Classic, 824-11, Yeoksam-Dong, Gangnam-gu, Seoul, Korea Declares that the product Product Description : Digital Camera Brand Name : Infohand Model Number : PCS Vision Camera FCC ID : QE6IH-MAGIC02AA Conforms to FCC Rules and Regulations Part 15 Subpart B requirements. This product herewith complies with the requirements of the FCC Rules and Regulations as listed below: Part 15.107: Conducted Emissions. Part 15.109: Radiated Spurious Emissions. TESTED and CERTIFIED by: KOREA EMC LABORATORY 352 Youngduk-Ri, Kihung-Eup, Yongin-Si, Kyunggi-Do, 449-908, KOREA Date : June. 25. 2002 Report No : KEL02-F05086 Authorized Signature : M. S. CHO / President Test report Our reference : KEL02-F05086 Page : 2 of 13 Issued date : 2002-06-25 Korea EMC Laboratory TABLE OF CONTENTS DESCRIPTION Page 0. VERIFICATION OF COMPLIANCE 3 1. GENERAL INFORMATION 1.1 Product Description 4 1.2 Related Submittal(s)/Grant(s) 4 1.3 Tested System Details 4 1.4 System Configuration 4 1.5 General Setup of the test Shield room 5 1.6 Test Facility 5 2. Measurement Procedure 2.1 System test configuration 6 2.1.1 Video mode Justification 6 2.1.2 EUT Exercise S/W 6 2.2 Special Accessories 6 2.3 Equipment Modification 6 2.4 System Configuration Diagram 6 2.5 Preliminary testing 7 2.6 Shielded Enclosure 7 2.7 Data Reporting Format 7 2.8 Operating Condition 7 2.9 Conditioning of the EUT 7 2.10 Power Line Conducted Emissions 8 2.11 Open field Radiated Emissions Tests 8 3. Measurement Data 3.1 Conducted Emission Data 9 3.2 Conducted Emission Graph 10 3.3 Radiated Emission Data 11 3.4 Summary 12 4. Labeling Requirement 13 Appendix - A : Test set-up Photographs (Conducted and Radiated) - B : External Photographs of E.U.T - C : Internal Photographs of E.U.T - D : FCC ID label location information and sample - E : Block Diagram - F : User’s Manual Test report Our reference : KEL02-F05086 Page : 3 of 13 Issued date : 2002-06-25 Korea EMC Laboratory 0 . VERIFICATION OF COMPLIANCE Equipment Under Test : Digital Camera Model Number : PCS Vision Camera Serial Number : Prototype Manufacturer : Infohand Co., Ltd. 307, Halla Classic, 824-11, Yeoksam-Dong, Gangnam-gu, Seoul, Korea Suwon-City, Kyunggi-Do, Korea. Type of Test : FCC CLASS B Report Number : KEL02-F05086 Date Tested : June. 24. 2002 Tested By : H. S. CHOI The results show that the sample equipment tested as described in this reports is in compliance with the CLASS B conducted and radiated emission limits of FCC Rules Part 15, Subpart B. Test report Our reference : KEL02-F05086 Page : 4 of 13 Issued date : 2002-06-25 Korea EMC Laboratory 1. GENERAL INFORMATION 1.1 PRODUCT DESCRIPTION The PCS Vision Camera is a Digital Camera made by Infohand Co., Ltd. in Korea. Refer to the user's manual for more information. ITEM SPECIFICATION Memory 8 MB SDRAM Sensor VGA CMOS 10 Bit Photo Memory Maximum 36 photos Image Processing Auto White Balance, Auto Exposure Battery Single, user-replaceable, 3V Lithium battery Dimension 7.5 x 5.3 X 2.0 cm 1.2 Related Submittal(s)/Grant(s) N/A 1.3 Tested System Details Type Model Name FCC ID Serial NO Manufacturer Digital Camera PCS Vision Camera QE6IH-MAGIC02AA Prototype Infohand Co., Ltd. PC VECTRA VL420/1500MT DoC SG14800601 HP LCD MONITOR EN-7500 P83-17A NONE Newcommworld Co., Ltd. Adapter DTA-SXGA03 DoC NONE Display Technology Co.,Ltd. Printer 2225C DSI6XU2225 NONE HP Adapter 0912-TY DoC NONE HANSUNG MIC RM-1000 NONE HANIL Speaker 188825-301 NONE COMPAQ Keyboard 7800 DoC KIA114785 BTC Mouse UM520 ITEUECUM550P P9J17346 HYUNJU Serial Mouse M-CE15-9F DZLMCE15 LT292R00285 LOGITECH 1.4 System Configuration Type Model Name Serial NO Manufacturer Remark MAIN-UP B/D MAIN-DOWN B/D MAGIC-Project MAGIC-Project NONE NONE Infohand Co., Ltd. Infohand Co., Ltd. Korea Korea Test report Our reference : KEL02-F05086 Page : 5 of 13 Issued date : 2002-06-25 Korea EMC Laboratory 1.5 General Set-up of the Test Shielded Room The EUT was set up in accordance with the suggested configuration given in FCC measurement Procedure ANSI C63.4, 1992. The measurement are performed in the shielded room which dimension is 3.0*7.0*2.5(m). The EUT was placed on a non conductive table which is 1.0*1.5(m), 80cm above an earthed ground plane and is kept at least 1m from any other earthed ground plane except the rear of table top being removed 40cm from a vertical conducting plane. Power to the EUT was provided through the LISN(3725/2,EMCO) which has the Impedance vs Frequency Characteristic in accordance with the Fig.1 Impedance Characteristic of LISN. Peripheral equipment required to provide a functional system(support equipment) for EUT testing was powered through another LISN(NSLK8128,Schwarzbeck). Power to the LISN was filtered to eliminate ambient signal interference. A coaxial type connector which provides a 50 Ohm terminating impedance was provided for the test instrument. The excess length of the power cord was wrapped in the two non metallic pegs attached to the top of the LISN. The two pegs are 9cm high, approximately 2.0cm in diameter and that are spaced 6cm on the center apart. 1.6 Test Facility Location: Korea EMC Laboratory 352 Yungduck-Ri Kihung-Eup,Yongin-City Kyungki-Do,Korea Site : - 3/10m Open Fielded Radiated - Indoor Line Conducted Room(Shielded) The Open Field Radiated and Indoor Line Conducted sites are constructed and calibrated to meet the FCC requirements in documents ANSI C63.4 199…

Text truncated - open the document above for the full version.

Test report Our reference : KEL02-F05086 Page : A1 of Appendix Issued date : 2002-06-25 Appendix-A : Test Setup Photographs - Conducted Setup Photographs LINE CONDUCTED SETUP PHOTOGRAPH - FRONT VIEW LINE CONDUCTED SETUP PHOTOGRAPH - REAR VIEW Test report Our reference : KEL02-F05086 Page : A2 of Appendix Issued date : 2002-06-25 - Radiated Setup Photograph RADIATED EMISSION SETUP PHOTOGRAPH - FRONT VIEW ( 30 - 300 MHz ) RADIATED EMISSION SETUP PHOTOGRAPH - REAR VIEW ( 30 - 300 MHz ) Test report Our reference : KEL02-F05086 Page : A3 of Appendix Issued date : 2002-06-25 RADIATED EMISSION SETUP PHOTOGRAPH - FRONT VIEW ( 300- 1000 MHz ) RADIATED EMISSION SETUP PHOTOGRAPH - REAR VIEW ( 300 - 1000 MHz )
