QF5MS-019RFWireless Mouse

Caution: Any changes or modifications not expressly approved by the party responsible for compliance will void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help.

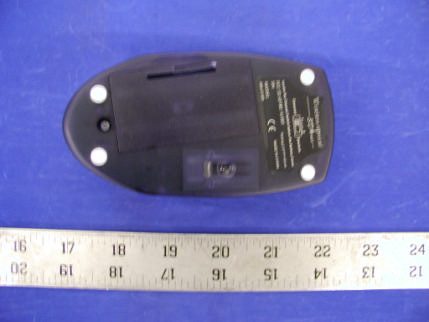

APPENDIX C - EUT EXTERNAL PHOTOGRAPHS Transmitter Chassis - Top View Transmitter Chassis - Bottom View

APPENDIX A - FCC PRODUCT LABELING AND WARNING STATEMENT FCC ID Label Specifications: Text is black in color and is left justified. Labels are printed in indelible ink on permanent adhesive backing and shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT Bottom Side of EUT/FCC ID Label Proposed Location FCC Warning Statement If the EUT is too small, the FCC statement could be presented in the user manual. Generally, appendix B contains one copy of user manual. The following is one sample of the FCC Statement: “ This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.” FCC ID: QF5MS-019RF This device complies with Part15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference. and (2) this device must accept any interference received, including interference that may cause undesired operation.

APPENDIX C - EUT INTERNAL PHOTOGRAPHS Transmitter Main Board - Component View 1 Transmitter Main Board - Solder View 1 Transmitter Main Board – Component View 2 Transmitter Main Board – Solder View 2 Loop Antenna View

MS-019RF: Product Description Purpose: MS-019RF is a wireless optical mouse, identical to current mice, adds the convenience of being free of cable. The system uses the 27 MHz ISM band. The transmitter realize a low power mode for batteries saving. System : this wireless optical mouse (MS-019RF) works with the MS-019RX or all compatible receiver. Microprocessor : EM78P257M Radio transmission: no directional, from mouse to computer only. Number of channels: 2 channel select method : slide switch. Carrier frequencies: 27.045MHz / 27.145MHz. Modulation: FSK Antenna : inductive loop antenna, integrated on printed circuit board. Battery : alkaline , 2 x AA power shut off voltage: 2..04v + 5%. Data rate: 5800 bit/s. Operating voltage: 2.1~3.3 Vdc. Current consumption (operation): 28mA.(This is the average on the white paper test) (stand-by): 18mA. (sleep1): 1mA. (sleep2): 150uA resolution : 800 DPI . micro switch: chock-per : 1,000,000 cycles. number of button/wheel : 3 button , 1 wheel. running life: 3 years operation force in any direction : Max: 100gf. Monday, January 13, 2003

Note: This test report is specially limited to the above client company and the product model only. It may not be duplicated without prior written consent of Bay Area Compliance Laboratory Corporation. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. FCC ID PER PART 15.227 EMI MEASUREMENT AND TEST REPORT For Newmen Technology Corp., Ltd. Building A Baolong Industry Zone, No 491 Dalang South Road, Longhua Guangdong, China FCC ID: QF5MS-019RF January 20, 2003 This Report Concerns: Original Report Equipment Type: Cordless Mouse, ITE Test Engineer: Benjamin Jin Report No.: R0301082 Test Date: January 13, 2003 Reviewed By: Hans Mellberg Prepared By: Bay Area Compliance Laboratory Corporation (BACL) 230 Commercial Street Sunnyvale, CA 94085 Tel: (408) 732-9162 Fax: (408) 732-9164 Newmen Technology Corp., Ltd. FCC ID: QF5MS-019RF Report # R031082Rpt.doc Page 2 of 9 FCC ID Per 15.227 Report TABLE OF CONTENTS 1 - GENERAL INFORMATION..................................................................................................................................3 1.1 P RODUCT D ESCRIPTION FOR E QUIPMENT U NDER T EST (EUT) ..............................................................................3 1.2 O BJECTIVE .............................................................................................................................................................3 1.3 R ELATED S UBMITTAL ( S )/G RANT ( S ).......................................................................................................................3 1.4 T EST M ETHODOLOGY ............................................................................................................................................3 1.5 T EST F ACILITY .......................................................................................................................................................3 1.6 T EST E QUIPMENT L IST ...........................................................................................................................................4 2 - SYSTEM TEST CONFIGURATION.....................................................................................................................5 2.1 J USTIFICATION .......................................................................................................................................................5 2.2 S CHEMATICS AND B LOCK D IAGRAM ......................................................................................................................5 2.3 E QUIPMENT M ODIFICATIONS .................................................................................................................................5 2.4 T EST S ETUP C ONFIGURATION ................................................................................................................................5 3 - SUMMARY OF TEST RESULTS..........................................................................................................................6 4 - RADIATED EMISSION TEST ..............................................................................................................................7 4.1 M EASUREMENT U NCERTAINTY ..............................................................................................................................7 4.2 EUT S ETUP ............................................................................................................................................................7 4.3 S PECTRUM A NALYZER S ETUP ................................................................................................................................7 4.4 T EST P ROCEDURE ..................................................................................................................................................8 4.5 C ORRECTED A MPLITUDE & M ARGIN C ALCULATION .............................................................................................8 4.6 S UMMARY OF T EST R ESULTS .................................................................................................................................8 4.7 R ADIATED E MISSIONS T EST R ESULT D ATA ...........................................................................................................9 Newmen Technology Corp., Ltd. FCC ID: QF5MS-019RF Report # R031082Rpt.doc Page 3 of 9 FCC ID Per 15.227 Report 1 - GENERAL INFORMATION 1.1 Product Description for Equipment Under Test (EUT) The Newmen Technology Corp., Ltd. ’s product, model MS-019OR or the "EUT" as referred to in this report is a wireless mouse. The transmitter part measures approximately 4.5” L x 2.5” W x 1.2” H. The EUT was fed by host PC Bestec Electronics Corp. power supply, M/N: ATX100-5, S/N: 0011A064353. * The test data gathered is from typical production samples provided by the manufacturer. 1.2 Objective This Type approval report is prepared on behalf of Newmen Technology Corp, Ltd. in accordance with Part 2, Subpart J, and Part 15, Subparts A and C of the Federal Communication Commissions rules. The objective of the manufacturer is to demonstrate compliance with FCC rules, Part 15, sec 15.209 and sec 15.227. 1.3 Related Submittal(s)/Grant(s) No Related Submittals. 1.4 Test Methodology All measurements contained in this report were conducted with ANSI C63.4-1992, American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the range of 9 kHz to 40 GHz. All radiated and conducted emissions measurement was performed at BACL. The radiated testing was performed at an antenna-to-EUT distance of 3 meters. 1.5 Test Facility The Open Area Test site used by BACL to collect radiated and conducted emission measurement data is located in the back parking lot of the building at 230 Commercial Street, Sunnyvale, California, USA. Test site at BACL has been fully described in reports submitt…

Text truncated - open the document above for the full version.

APPENDIX B - TEST SETUP PHOTOGRAPHS Radiated Emission - Front View Radiated Emission - Rear View
