QF5MS-025ORNemwen Mouse

Note : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

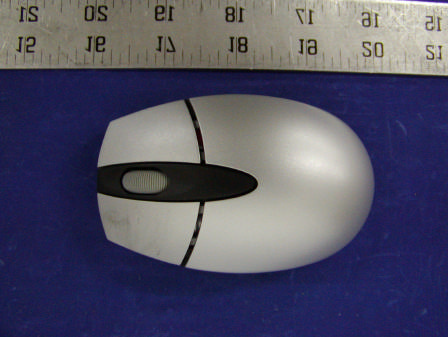

NEWMEN TECHNOLOGY CORP., LTD. FCC ID: QF5MS-025OR APPENDIX C - EUT PHOTOGRAPHS Chassis - Top View Chassis - Bottom View

APPENDIX A - FCC PRODUCT LABELING AND WARNING STATEMENT FCC ID Label Specifications: Text is black in color and is left justified. Labels are printed in indelible ink on permanent adhesive backing and shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT Bottom Side of EUT/FCC ID Label Proposed Location FCC Warning Statement If the EUT is too small, the FCC statement could be presented in the user manual. Generally, appendix B contains one copy of user manual. The following is one sample of the FCC Statement: “ This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.” FCC ID: QYHHJ288RF This device complies with Part15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference. and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: QF5MS-025OR

NEWMEN TECHNOLOGY CORP., LTD. FCC ID: QF5MS-025OR Board and Housing View Main Board - Component View NEWMEN TECHNOLOGY CORP., LTD. FCC ID: QF5MS-025OR Main Board – Solder View

MS-025OR Product Description Purpose: MS-025OR is a wireless optical mouse, identical to current mice, adds the convenience of being free of cable. The system uses the 27 MHz ISM band. The transmitter realize a low power mode for batteries saving. System : this wireless optical mouse MS-025OR works with the MS-019RX or all compatible receiver. Microprocessor : EM78P257M Radio transmission: no directional, from mouse to computer only. Number of channels: 2 channel select method : slide switch. Carrier frequencies: 27.045MHz / 27.145MHz. Modulation: FSK Transmission range : over 1.5m typical, free space. Power consumption : - 8dBm typical when in movement. Effective radiated power : -45dBm typical. Antenna : inductive loop antenna, integrated on printed circuit board. Battery : alkaline , 2 x AA power shut off voltage: 2..04v + 5%. Data rate: 5800 bit/s. Operating voltage: 2.1~3.3 Vdc. Current consumption (operation): 28mA. (stand-by): 18mA. (sleep1): 1mA. (sleep2): 150uA resolution : 800 DPI . micro switch: chock-per : 1,000,000 cycles. number of button/wheel : 3 button , 1 wheel. running life: 3 years operation force in any direction : Max: 100gf. NEWMEN CONFIDENTIAL Saturday,June 18, 2003

Item Material NumberCommodity SpecificationQnty 1PCB Board RFMSO25B1 2Chip resistance 1Ω 0603 ±5%1 3Chip resistance 10Ω 0603 ±5%2 4Chip resistance 100Ω 0603 ±5%1 5Chip resistance 390Ω 0603 ±5%1 6Chip resistance 1.5K 0603 ±5%1 7Chip resistance 3K 0603 ±5%2 8Chip resistance 3.9K 0603 ±5%2 9Chip resistance 10K 0603 ±5%1 10Chip resistance 15K 0603 ±5%5 11Chip resistance 30K 0603 ±5%1 12Chip resistance 39K 0603 ±5%1 13Chip resistance 51K 0603 ±5%3 14Chip resistance 100K 0603 ±5%1 15Chip metal membrane resistance 147K 0603 ±1%1 16Chip metal membrane resistance 200K 0603 ±1%1 17NPO Chip Capacitance 7PF/50V 0603 ±5%1 18NPO Chip Capacitance 15PF/50V 0603 ±5%1 19NPO Chip Capacitance 20PF/50V 0603 ±5%2 20NPO Chip Capacitance 100PF/50V 0603 ±5%4 21NPO Chip Capacitance 120PF/50V 0603 ±5%1 22NPO Chip Capacitance 151/50V 0603 ±5%1 23Chip Capacitance 102/50V 0603 ±20%3 24Chip Capacitance 103/50V 0603 +80%~-20%1 25Chip Capacitance 104/50V 0603 ±10%1 26Chip Capacitance 104/50V 0603 +80%~-20%6 27Electrolysis capacitance 10uF/25V 4*7 ±20%1 28Tantalum Capacitance 22uF/16V 5.5*8mm ±20%1 29 Electrolysis capacitance 47μF/10V 4*7mm ±20% 1 30 Electrolysis capacitance 47μF/16V 5*5mm ±20% 1 31Ceramic resonator 6.0MHz 3P ±0.3%1 32Ceramic resonator 18MHz 2PIN ±0.5%1 33Quartz crystalloid vibration 13.5215MHz 2PIN ±20PP M1 34Quartz crystalloid vibration 13.5715MHz 2PIN ±20PP M1 35Chip inductance 1uH 0805 ±5%1 36Chip inductance 270uH 1210 ±10%1 37Light diode HLMP-ED80 1 38Chip diode 4148 3 39SMD DIODE KDR7291 40Chip dynatron 2SC2714 SOT-23 Level=Y3 41Chip IC EM78257B (RFOZ6BAT)1 42Photoelectricity IC A2030 1 43Up-grade stress IC RT9261-33CX1 44Switch on-off SK12D01VG4 2 45Mini on-off 60-70G3 46Eradiate tall foot crystalloid LTE-322L1-M J Level. Pur p1 47Receive tall foot crystalloid LTR-5576DHL2 D Level. Blu e1 48Spring1 49Spring1 Total:76 NEWMEN TECHNOLOG BOM(A) Material Classification: Electronic Material Number: Mo Confirmed by general manager Confirmed by manager Confirmed First confirmed by Prepared by Remarks: Site 2003-3-10 RRXY R7, R9 R13 RZ R5 RB2,R32 R2, R4 R6 RXY,RP1,RP2,RP3,RP4 R1 R10 RB1,RCK,RPD R3 R21 R22 C6 C15 C3,C12 C5,C13,C21,CB C8 C11 C9,C10,C16 C1 C31 CB2,CB1,CB4,CB3,CC1,C2 CB5 TC1 EC1 EC2 Y1 Y2 X1 X2 L2 L1 LED1 DL,DR,DM DS1 Q2,Q3,Q4 U3 U2 Q1 SW1,SW2 SWM SWL,SWR. For the reference of production technical specification IRZY PHZY BAT+ For the reference of production technical s pecification BAT- For the reference of production technical s pecification PCS GY odel:MS-025OR d by R&D director

1 2 3 4 56 ABCD 6 5 4 3 2 1 D CBA SCLK 1 XA 2 XB 3 YA 4 YB 5 LED 6 REFA 7 REFB 8 OSCI 9 GND 10 OSCO 11 GND 12 VDD5 13 R_BIN 14 PD 15 SDIO 16 U2 HDNS2030 + EC1 47uF/10V BAT12X1.5V. L1270uH LX 3 VSS 1 OUT 2 Q1RT9261-33CX D1 1N5189 SCHOTTY + TC122uF/16V VBAT VCC Y218M R13100RRXY51K RB15K CB2104 3V3 3V3 SDIO SPWR SCLK XY_LED CB4104 RCK51K RRXY0.68R LED1EPLD-80 +CB510uF VBAT 3V3 RZ390R PHZXLTR-5576DL1 PHZY LTR-5576DL1 IRZY LTE322-I/J IRZX LTE322-I/J 3V3 3V33V3 WHEEL DL1N4148DR1N4148DM1N4148 SWLDM-03P-S SWR DM-03P-S SWM SM-03P-S RG1270R 3V3 1234 CON1 Dout VBAT PWR DOUTPWR RB23K CB100PFC31 104 10% VBAT RB151K R323K XY_LED P60 7 P61 8 P62 9 P63 10 P57 20 P51 19 P50 18 P55 17 P70 16 VDD 15 P67 14 P66 13 P65 12 P64 11 P53 3 P52 2 P56 1 P54 4 RESET 5 VSS 6 U?EM78P257 XHPPWRXLEDZSLMRSM45 ZY1MZY2 3V3 CB2104Y16MHz LEDGSCLKSDIO M4ZX1LM5ZX2RZY1M SLMRSLMRSLMR R21 147K 1% R22200K 1% C21 100P 5% RED 3V3 XLEDZ M4ZX1L M5ZX2R ZY1MZY2 R23.9K R130K R610K C4102 C16102 Q32SC2688 C1512P X1 13.5215MHz X2 13.5715MHz SW4 SW SPDT Q22SC2688 C13100P C1212P R1039K R51.5K R710R C11150P Q1 2SC2668 C5100P C8120P C67P ANT1ANT C1103 DATA PWR PWR VBAT VBAT C10102 R3100KR43.9K L11uH C320P C2 104 CC1104 + EC110u R910R ZX1ZX2ZY1ZY2 M5ZX2RM4ZX1L C6ANC REMOVED RP1 15K*4

Note: This test report is specially limited to the above client company and the product model only. It may not be duplicated without prior written consent of Bay Area Compliance Laboratory Corporation. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. FCC ID PER PART 15.227 EMI MEASUREMENT AND TEST REPORT For NEWMEN TECHNOLOGY CORP., LTD. No.1 Newmen Road, Tong Sheng Village, Long Hua, Shenzhen, China FCC ID: QF5MS-025OR 2003-08-08 This Report Concerns: Original Report Equipment Type: Wireless Mouse, ITE Test Engineer:Benjamin Jin, Hang Tan Report No.:R0307148 Test Date:2003-07-24 Reviewed By:Ling Zhang Prepared By:Bay Area Compliance Laboratory Corporation (BACL) 230 Commercial Street Sunnyvale, CA 94085 Tel: (408) 732-9162 Fax: (408) 732-9164 NEWMEN TECHNOLOGY CORP., LTD. FCC ID: QF5MS-025OR Report # R0307148RptPage 2 of 8FCC ID Per 15.227 Report TABLE OF CONTENTS 1 - GENERAL INFORMATION.................................................................................................................................................3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT).........................................................................................3 1.2 OBJECTIVE................................................................................................................................................................................3 1.3 RELATED SUBMITTAL(S)/GRANT(S)......................................................................................................................................3 1.4 TEST METHODOLOGY.............................................................................................................................................................3 1.5 TEST FACILITY.........................................................................................................................................................................3 1.6 TEST EQUIPMENT LIST............................................................................................................................................................4 2 - SYSTEM TEST CONFIGURATION..................................................................................................................................5 2.1 JUSTIFICATION.........................................................................................................................................................................5 2.2 SPECIAL ACCESSORIES............................................................................................................................................................5 2.3 SCHEMATICS AND BLOCK DIAGRAM....................................................................................................................................5 2.4 EQUIPMENT MODIFICATIONS.................................................................................................................................................5 2.5 TEST SETUP CONFIGURATION................................................................................................................................................5 2.6 TEST SETUP BLOCK DIAGRAM..............................................................................................................................................5 3 - SUMMARY OF TEST RESULTS........................................................................................................................................6 4 - RADIATED EMISSION TEST..............................................................................................................................................7 4.1 MEASUREMENT UNCERTAINTY.............................................................................................................................................7 4.2 EUT SETUP...............................................................................................................................................................................7 4.3 SPECTRUM ANALYZER SETUP...............................................................................................................................................7 4.4 TEST PROCEDURE....................................................................................................................................................................8 4.5 CORRECTED AMPLITUDE & MARGIN CALCULATION........................................................................................................8 4.6 SUMMARY OF TEST RESULTS.................................................................................................................................................8 4.7 RADIATED EMISSIONS TEST RESULT DATA........................................................................................................................8 NEWMEN TECHNOLOGY CORP., LTD. FCC ID: QF5MS-025OR Report # R0307148RptPage 3 of 8FCC ID Per 15.227 Report 1 - GENERAL INFORMATION 1.1 Product Description for Equipment Under Test (EUT) The NEWMEN TECHNOLOGY CORP., LTD. ’s product, model MS-025OR or the "EUT" as referred to in this report is a wireless mouse, which measures approximately 3.5” L x 2.2” W x 1.1” H. * The test data gathered are from typical production samples provided by the manufacturer. 1.2 Objective This Type approval report is prepared on behalf of NEWMEN TECHNOLOGY CORP., LTD. in accordance with Part 2, Subpart J, and Part 15, Subparts A and C of the Federal Communication Commissions rules. The objective of the manufacturer is to demonstrate compliance with FCC rules, Part 15, sec 15.209 and sec 15.227. 1.3 Related Submittal(s)/Grant(s) No Related Submittals. 1.4 Test Methodology All measurements contained in this report were conducted with ANSI C63.4-1992, American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the…

Text truncated - open the document above for the full version.

NEWMEN TECHNOLOGY CORP., LTD. FCC ID: QF5MS-025OR APPENDIX B - TEST SETUP PHOTOGRAPHS Radiated Emission - Front View Radiated Emission - Rear View
