QF5MS-020ORWireless Mouse

Note : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Emitter Pane Drawing MS-020OR MCU Control Unit Key’s Signal Optical Sense displacement signal Z axes encode signal Modulate and enlarge Battery group Carrier Wave 1 27.043 MHz Carrier Wave 2 27.143 MHz Transmit 1 = 27.045 MHz Transmit 2 = 27.145 MHz Antenna

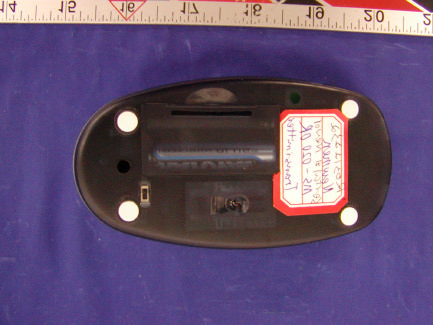

APPENDIX C - EUT PHOTOGRAPHS EUT - Top View EUT - Bottom View

APPENDIX A - FCC ID LABEL INFORMATION Proposed FCC ID Label Specifications: Text is black in color and is left justified. Labels are printed in indelible ink on permanent adhesive backing and shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT Bottom Side of EUT/FCC ID Label Proposed Location FCC IDL: QF5MS-020OR This device complies with Part 15 o the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 2.1875" 1.0"

EUT – Chassis and Housing View EUT – Board Top View EUT - Board Bottom View EUT - Main Board Top View ETU - Main Board Bottom View

MS-020OR Pruduct Description Purpose: MS-020OR is a wireless optical mouse, identical to current mice, adds the convenience of being free of cable. The system uses the 27 MHz ISM band. The transmitter realize a low power mode for batteries saving. System: This wireless optical mouse MS-020OR works with the MS-019RX or all compatible receiver. Microprocessor: EM78P257M Radio transmission: no directional, from mouse to computer only. Number of channels: 2 Channel select method: slide switch. Carrier frequencies: 27.045MHz / 27.145MHz Modulation: FSK Transmission range: over 1.5m typical, free space. Power consumption: -8dBm typical when in movement. Effective radiated power: -45dBm typical. Antenna: inductive loop antenna, integrated on printed circuit board. Battery: alkaline, 2 x AA Power shut off voltage: 2.04v±5%; Data rate: 5800 bit/s. Operating voltage: 2.1~3.3 Vdc. Current consumption (operation): 28mA. (stand-by): 18mA. (sleep 1): 1mA (sleep 2): 150uA Resolution: 800DPI. Micro switch: chock-per: 1,000,000 cycles. Number of button/wheel: 3 button, 1 wheel. Running life: 3 years Operation force in any direction: Max: 100gf.

Note: This test report is specially limited to the above client company and product model only. It may not be duplicated without prior written consent of Bay Area Compliance Laboratory Corporation. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. FCC PART 15.227 EMI MEASUREMENT AND TEST REPORT For Newmen Technology Corp., Ltd. No.1 Newmen Road, Tong Sheng Village, Long Hua, Shen Zhen, China FCC ID: QF5MS-020OR 2004-01-16 This Report Concerns: Original Report Equipment Type: Transmitter, Wireless Mouse Test Engineer: Ming Jing Report No.: R0312232(T) Test Date: 2003-12-29 Reviewed By: Ling Zhang Prepared By: Bay Area Compliance Laboratory Corporation 230 Commercial Street Sunnyvale, CA 94085 Tel: (408) 732-9162 Fax: (408) 732-9164 Newmen Technology Corp., Ltd. FCC ID: QF5MS-020OR Report # R0312232Rpt.doc Page 2 of 11 FCC ID Per 15.227 Report TABLE OF CONTENTS GENERAL INFORMATION......................................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)...............................................................................................3 OBJECTIVE.......................................................................................................................................................................................3 RELATED SUBMITTAL(S)/GRANT(S)............................................................................................................................................3 TEST METHODOLOGY....................................................................................................................................................................3 TEST FACILITY................................................................................................................................................................................3 SYSTEM TEST CONFIGURATION........................................................................................................................................5 DESCRIPTION OF TEST CONFIGURATION.....................................................................................................................................5 EQUIPMENT MODIFICATIONS........................................................................................................................................................5 TEST SETUP CONFIGURATION.......................................................................................................................................................5 SUMMARY OF TEST RESULTS..............................................................................................................................................6 §15.203 - ANTENNA REQUIREMENT...................................................................................................................................7 STANDARD APPLICABLE................................................................................................................................................................7 ANTENNA CONNECTED CONSTRUCTION.....................................................................................................................................7 §15.205, §15.209, §15.227(B) - RADIATED EMISSIONS TEST.......................................................................................8 MEASUREMENT UNCERTAINTY....................................................................................................................................................8 EUT SETUP......................................................................................................................................................................................8 SPECTRUM ANALYZER SETUP......................................................................................................................................................8 TEST EQUIPMENT LIST AND DETAILS..........................................................................................................................................8 TEST PROCEDURE...........................................................................................................................................................................9 CORRECTED AMPLITUDE & MARGIN CALCULATION...............................................................................................................9 SUMMARY OF TEST RESULTS........................................................................................................................................................9 RADIATED EMISSIONS TEST RESULT DATA.............................................................................................................................10 §15.227(B) - OUT OF BAND EMISSION...............................................................................................................................11 Newmen Technology Corp., Ltd. FCC ID: QF5MS-020OR Report # R0312232Rpt.doc Page 3 of 11 FCC ID Per 15.227 Report GENERAL INFORMATION Product Description for Equipment Under Test (EUT) The Newmen Technology Corp., Ltd. ’s product, model MS-020OR or the "EUT" as referred to in this report is a wireless mouse Transmitter. The EUT is measured approximately 4.5” L x 2.2” W x 1.1” H. * The test data gathered are from production sample, serial number: NEW01, provided by the manufacturer. Objective This Type approval report is prepared on behalf of Newmen Technology Corp., Ltd. in accordance with Part 2, Subpart J, and Part 15, Subparts A and B of the Federal Communication Commissions rules. The objective is to determine compliance with FCC rules, sec 15.209 and sec 15.227. Related Submittal(s)/Grant(s) No Related Submittals. Test Methodology All measurements contained in this report were conducted with ANSI C63.4-2001, American National S…
