QH7HIT731HANDHELD RFID READER

HIT 731-UHF Manual Page 1 of 24 Hana Micron America HIT 731-UHF User’s Manual HIT 731-UHF Manual Page 2 of 24 Hana Micron America Hana Micron Table of Contents User’s Warning.........................................................................................................................................................................4 Product Component...............................................................................................................................................................5 Boot-up Screen........................................................................................................................................................................6 Start Screen...............................................................................................................................................................................6 Main Menu.................................................................................................................................................................................7 Registration................................................................................................................................................................................8 Cow Registration.................................................................................................................................................................8 Farm Registration................................................................................................................................................................9 Identification..........................................................................................................................................................................12 Cow Identification...........................................................................................................................................................12 Farm Identification..........................................................................................................................................................13 Procedures...............................................................................................................................................................................14 Trade......................................................................................................................................................................................14 Vaccination.........................................................................................................................................................................15 Count Cows........................................................................................................................................................................16 Update......................................................................................................................................................................................17 Setting.......................................................................................................................................................................................18 GPRS......................................................................................................................................................................................18 Key, ICON component of HIT 731-UHF......................................................................................................................21 SIM, Smart Card aux slot..................................................................................................................................................22 Troubleshooting....................................................................................................................................................................24 HIT 731-UHF Manual Page 3 of 24 Hana Micron America FCC Compliance Information This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Caution Modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: (1) the device may not cause interference, and (2) the device must accept any interference, including interference that may cause undesired operation of this device. FCC RF Radiation Exposure Statement: When RFID function is used, this equipment should be operated with a minimum distance of 20 centimeters between the radiator and your body.This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. HIT 731-UHF Manual Page 4 of 24 Hana Micron America User’s Warning To clean this product, turn the power off and use only a damp cloth for cleaning exterior of terminal using either water of light detergent. Do not use flammable substances such as benzene thinner Before the use of this product, read all instructions in your user’s manual and keep it for future references Do not unplug terminal while it’s in use. If you wish to unplug the terminal, please make sure the machine is turned off, then unplug it. Do not attempt to service this terminal yourself, as open…

Text truncated - open the document above for the full version.

2F, Fortis B/D, 106-3, Imae-Dong, Bundang-Gu, Seongnam-City, Gyeonggi-Do, Korea 463-829 TEL No : +82-2-697-7029 FAX No : +82-2-697-7033 April 20, 2010 Timco Engineering, Inc. 849 NW State Road 45 P.O.Box 370 Newberry,m Florida 32669 LETTER OF AUTHORIZATION To whom it may concern: We, the undersigned, hereby authorize LTA Co., Ltd., to act on our behalf in all manners relating to application for equipment authorization for FCC ID: QH7HIT731 including signing of all documents relating to these matters. Any and all acts carried out by LTA Co., Ltd., on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from HANA Micron Inc. LTA Co.,LTD. (Contact Person) Contact name: LEE, Kyung-Taek Position: Manager Phone:(82)31-323-6008 E-mail: [email protected] Sincerely, Sang Yeul Yeum Senior Manager

2F, Fortis B/D, 106-3, Imae-Dong, Bundang-Gu, Seongnam- City, Gyeonggi-Do, Korea 463-829 TEL No : +82-2-697-7029 FAX No : +82-2-697-7033 April 20, 2010 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re : HANA Micron Inc. FCC ID: QH7HIT731 Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, HANA Micron Inc. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give HANA Micron Inc. temporary confidentiality of commercially sensitive information prior to product release. The requested Confidential and Temporary Confidential exhibits are listed as follows: Exhibit Type File Name Schematics CONF APPENDIX QH7HIT731 SCH DIA.pdf Parts list CONF APPENDIX QH7HIT731 PL.pdf Block diagram CONF APPENDIX QH7HIT731 BLK DIA.pdf CONFIDENTIAL Operational description CONF APPENDIX QH7HIT731 OpDes.pdf Internal Photos SHORT-TERM CONF QH7HIT731 INT Photo.pdf SHORT-TERM CONFIDENTIAL User’s Manual SHORT-TERM CONF QH7HIT731 Manual.pdf The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Sang Yeul Yeum Senior Manager

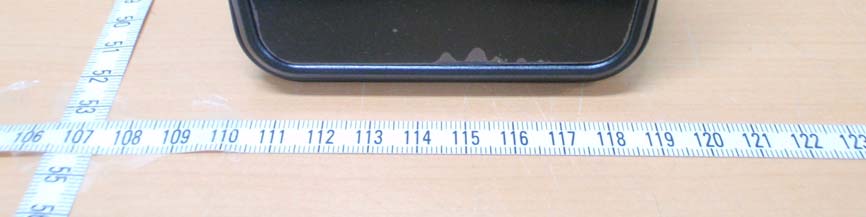

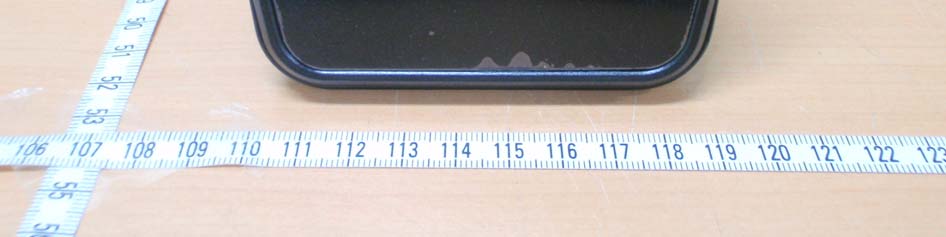

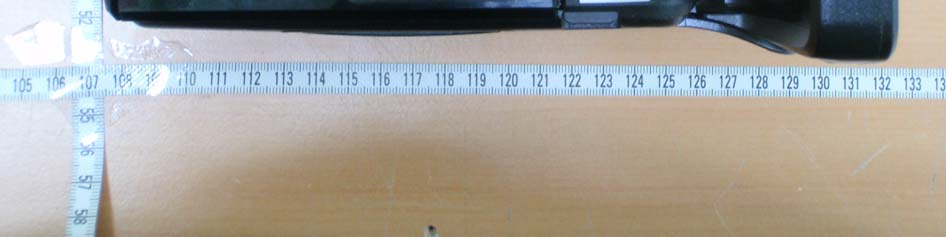

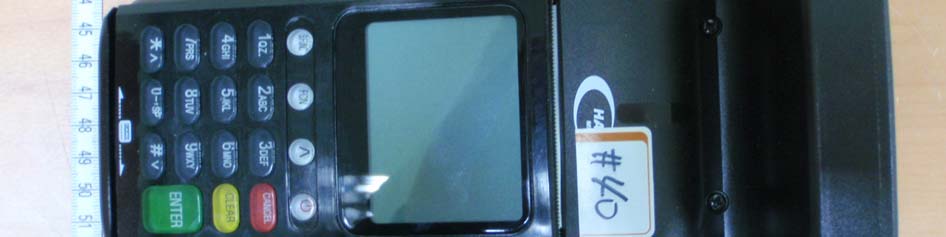

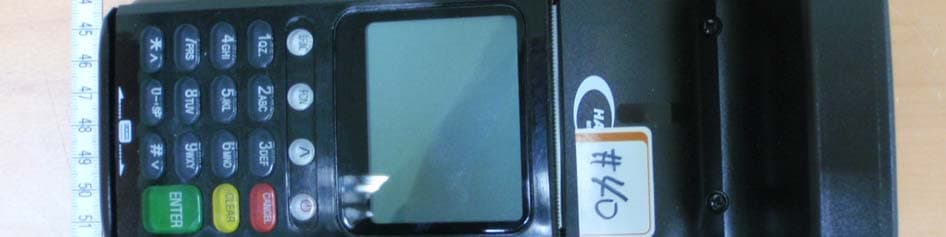

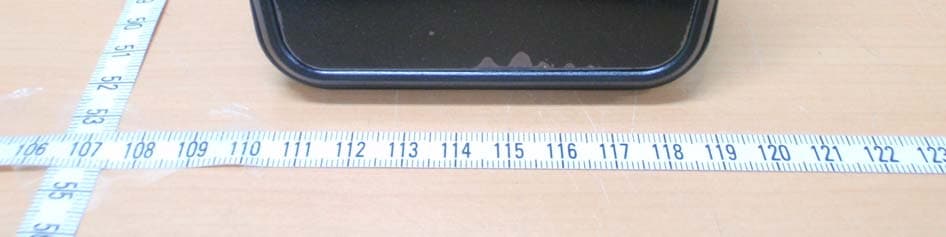

FCC ID: QH7HIT731 Copyright ○ c 2010, LTA Co., Ltd. Page 1 of 4 FCC ID: QH7HIT731 Copyright ○ c 2010, LTA Co., Ltd. Page 2 of 4 FCC ID: QH7HIT731 Copyright ○ c 2010, LTA Co., Ltd. Page 3 of 4 FCC ID: QH7HIT731 Copyright ○ c 2010, LTA Co., Ltd. Page 4 of 4 Ant location_DSS Ant location_GPRS

FCC ID: QH7HIT731 Copyright Ⓒ 2010, LTA Co., Ltd. SAMPLE LABEL & LOCATION FCC ID: QH7HIT731 M/N: HIT731-UHF This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: (1) the device may not cause interference, and (2) the device must accept anyinterference, including interference that may cause undesired operation of this device. M ade in Korea

FCC ID: QH7HIT731 Copyright ○ c 2010, LTA Co., Ltd. Page 1 of 12 FCC ID: QH7HIT731 Copyright ○ c 2010, LTA Co., Ltd. Page 2 of 12 FCC ID: QH7HIT731 Copyright ○ c 2010, LTA Co., Ltd. Page 3 of 12 FCC ID: QH7HIT731 Copyright ○ c 2010, LTA Co., Ltd. Page 4 of 12 FCC ID: QH7HIT731 Copyright ○ c 2010, LTA Co., Ltd. Page 5 of 12 FCC ID: QH7HIT731 Copyright ○ c 2010, LTA Co., Ltd. Page 6 of 12 FCC ID: QH7HIT731 Copyright ○ c 2010, LTA Co., Ltd. Page 7 of 12 FCC ID: QH7HIT731 Copyright ○ c 2010, LTA Co., Ltd. Page 8 of 12 GPRS module FCC ID: QH7HIT731 Copyright ○ c 2010, LTA Co., Ltd. Page 9 of 12 RFID Module FCC ID: QH7HIT731 Copyright ○ c 2010, LTA Co., Ltd. Page 10 of 12 FCC ID: QH7HIT731 Copyright ○ c 2010, LTA Co., Ltd. Page 11 of 12 GPRS ANT FCC ID: QH7HIT731 Copyright ○ c 2010, LTA Co., Ltd. Page 12 of 12 RFID ANT

2F, Fortis B/D, 106-3, Imae-Dong, Bundang-Gu, Seongnam-City, Gyeonggi-Do, Korea 463-829 TEL No : +82-2-697-7029 FAX No : +82-2-697-7033 TUNE-UP PROCEDURE Programming of this product's transmit frequencies can be performed ONLY by the manufacturer or by service or maintenance personnel. The operator cannot program transmit frequencies using the equipment's external operation.

ATTACHMENT FCC ID: QH7HIT731 ** MPE Calculations ** The EUT will only be used with a separation of 20 centimeters or greater between the antenna and the body of the user. The MPE calculation for this exposure is shown below. The peak radiated output power (EIRP) is calculated as follows: EIRP = P + G EIRP = 29.43 dBm + 1.0dBi EIRP = 30.43dBm Where, P = Power input to the antenna (mW) G = Power gain of the antenna (dBi) Power density at the specific separation: S = PG/(4R 2 π) S = (877 * 1.26) / (4 * 20 2 * π) S = 0.2198 mW/cm 2 Where, S = Maximum power density (mW/cm 2 ) P = Power input to the antenna (mW) G = Numeric power gain of the antenna R = Distance to the center of the radiation of the antenna (20cm = limit for MPE) The Maximum permissible exposure (MPE) for the general population is 1 mW/cm 2 . The power density at 2 0cm does not exceed the 1 mW /cm 2 limit. Therefore, the exposure condition is compliant with FCC rules. Estimated safe separation: R = √(PG / 4π) R = √(877 * 1.26 / 4π) R = 9.38Cm Where, P = Power input to the antenna (mW) G = Numeric power gain of the antenna R = Distance to the center of the radiation of the antenna (20cm = limit for MPE) The numeric gain(G) of the antenna with a gain specified in dB is determined by: G = Log -1 (dB antenna gain / 10) G = Log-1 ((1) / 10) G = 1.26

Ref. No.: LR500191004C Copyright ○ c 2010, LTA Co., Ltd. Page 1 of 34 243 Jubug-Ri,Yangji-Myeon, Yongin-Si, Gyeonggi-Do, Korea 449-822 Tel: +82-31-323-6008 Fax: +82-31-323-6010 http://www.ltalab.com CERTIFICATION OF COMPLIANCE FCC ID. APPLICANT FCC Classification : FHSS Sequence Spread Spectrum (FHSS) Manufacturing Description : Handheld RFID Reader Manufacturer : HANA Micron Inc. Model name : HIT731-UHF Test Device Serial No.: : - Rule Part(s) : FCC Part 15.247 Subpart C; ANSI C-63.4-2003 Frequency Range : 910 ~ 920MHz RF power : 0.88 W - Conducted Data of issue : April 28, 2010 This test report is issued under the authority of: The test was supervised by: Kyung-Taek LEE, Technical Manager Hyun-Chae You, Test Engineer This test result only responds to the tested sample. It is not allowed to copy this report even partly without the allowance of the test laboratory. This report must not be used by the applicant to claim product endorsement by any agency. NVLAP LAB Code.: 200723-0 Dates of Tests: April 12~28, 2010 Test Report S/N: LR500191004C Test Site : LTA CO., LTD. QH7HIT731 HANA Micron Inc. Ref. No.: LR500191004C Copyright ○ c 2010, LTA Co., Ltd. Page 2 of 34 TABLE OF CONTENTS 1. GENERAL INFORMATION’S -------------------------------------------------------------------------- 2. INFORMATION’S ABOUT TEST ITEM ------------------------------------------------------------- 3. TEST REPORT --------------------------------------------------------------------------------------------- 3.1 SUMMARY OF TESTS ------------------------------------------------------------------------------ 3.2 TECHNICAL CHARACTERISTICS TEST ------------------------------------------------------- 3.2.1 CARRIER FREQUENCY SEPARATION ---------------------------------------------------- 3.2.2 NUMBER OF HOPPING FREQUENCIES -------------------------------------------------- 3.2.3 20 dB BANDWIDTH ---------------------------------------------------------------------------- 3.2.4 TIME OF OCCUPANCY (Dwell Time) ------------------------------------------------------- 3.2.5 TANSMITTER OUTPUT POWER ---------------------------------------------------------- 3.2.6 BAND – EDGE (Conducted) ------------------------------------------------------------------- 3.2.7 FIELD STRENGTH OF HARMONICS ------------------------------------------------------ 3.2.8 AC CONDUCTED EMISSIONS -------------------------------------------------------------- APPENDIX APPENDIX TEST EQUIPMENT USED FOR TESTS ------------------------------------------- 3 4 5 5 6 6 8 10 12 14 16 21 26 33 Ref. No.: LR500191004C Copyright ○ c 2010, LTA Co., Ltd. Page 3 of 34 1. General information’s 1-1 Test Performed Company name : LTA Co., Ltd. Address : 243, Jubug-ri,Yangji-Myeon,Youngin-Si, Kyunggi-Do, Korea. 449-822 Web site : http://www.ltalab.com E-mail : [email protected] Telephone : +82-31-323-6008 Facsimile +82-31-323-6010 Quality control in the testing laboratory is implemented as per ISO/IEC 17025 which is the “General requirements for the competents of calibration and testing laboratory”. 1-2 Accredited agencies LTA Co., Ltd. is approved to perform EMC testing by the following agencies: Agency Country Accreditation No. Validity Reference NVLAP U.S.A 200723-0 2010-09-30 ECT accredited Lab. RRL KOREA KR0049 2011-06-20 EMC accredited Lab. FCC U.S.A 610755 2011-04-22 FCC filing VCCI JAPAN R2133, C2307 2011-06-21 VCCI registration IC CANADA IC5799 2010-05-03 IC filing Ref. No.: LR500191004C Copyright ○ c 2010, LTA Co., Ltd. Page 4 of 34 2. Information’s about test item 2-1 Client Company name : HANA Micron Inc. Address : 2F, Fortis B/D, 106-3, Imae-dong Bundang-guSeongnam-City, Gyeonggi-Do South Korea Tel / Fax : +82-31-697-7029 / +82-31-697--7033 2-2 Equipment Under Test (EUT) Trade name : Handheld RFID Reader FCC ID : QH7HIT731 Model name : HIT731-UHF Serial number : Identification Date of receipt : April 09, 2010 EUT condition : Pre-production, not damaged Frequency Range : 910 ~ 920MHz RF output power : 0.88 W- Conducted Number of channels : 50 Channel spacing : 200KHz Channel Access Protocol : Frequency Hopping Power Source : 7.4VDC by Battery 2-3 Tested frequency LOW MID HIGH Frequency (MHz) 910 915 920 2-4 Ancillary Equipment Equipment Model No. Serial No. Manufacturer PC HP Compaq dx7400 Microtower CNG8330J95 HP Monitor HPL1710 CNC816QHF2 HP KEYBOARD SK-8115 68A-04Q6 DELL MOUSE MO56UO 520107013 DELL PRINTER STYLUS C65 - EPSON Ref. No.: LR500191004C Copyright ○ c 2010, LTA Co., Ltd. Page 5 of 34 3. Test Report 3.1 Summary of tests FCC Part Section(s) Parameter Limit Test Condition Status (note 1) 15.247(a) Carrier Frequency Separation > 25 kHz C 15.247(a) Number of Hopping Frequencies ≥ 50 hops C 15.247(a) 20 dB Bandwidth - C 15.247 Dwell Time < 0.4 seconds C 15.247(b) Transmitter Output Power < 1Watt C 15.247(d) Conducted Spurious emission > 20 dBc C 15.247(d) Band Edge > 20 dBc Conducted C 15.249 / 15.209 Field Strength of Harmonics < 54 dBuV (at 3m) Radiated C 15.207 /15.107 AC Conducted Emissions EN 55022 Line Conducted C Note 1: C=Complies NC=Not Complies NT=Not Tested NA=Not Applicable Note 2: The data in this test report are traceable to the national or international standards. The sample was tested according to the following specification: FCC Parts 15.247; ANSI C-63.4-2003  Antenna Requirement The HANA Micron Inc. HIT731-UHF unit complies with the requirement of §15.203. The Antenna type is Internal Type ; Refer to the Internal photo Ref. No.: LR500191004C Copyright ○ c 2010, LTA Co., Ltd. Page 6 of 34 3.2 Transmitter requirements 3.2.1 Carrier Frequency Separation Procedure: The carrier frequency separation was measured with a spectrum analyzer connected to the antenna terminal, while EUT had its hopping function enabled. After the trace being stable, the reading value between the peaks of the adjacent channels using the marker-delta function was recorded as the measurement results. The spectrum analyzer is set to: Span = 1 MHz (wide enough to capture the pea…

Text truncated - open the document above for the full version.

FCC ID: QH7HIT731 Copyright Ⓒ 2010, LTA Co., Ltd. Radiated Emission FCC ID: QH7HIT731 Copyright Ⓒ 2010, LTA Co., Ltd. Conducted Emission
