QH7HMDV-512MBUSB Flash Drive

Specification and information of all the product could be changed without any advanced report. Quick install & guide Mobile Disk & VoIP Phone ■ Caution for User Content for protecting user’s property and security. Read carefully and use the product in right way. If you don’t follow the instruction, it will cause user’s slight hurting and damage of product. Caution 1. Don’t give strong impact or punch with shrpe thing. 2. Don’t leave in hot temperature or heat up. 3. Keep away from the water, and please don’t connect to PC when the product is wet.. 4. Kepp away from children and pet. 5. Don’t remold, break, repair. 6. Keep away from the sunlight or heat, ourside molding could be changed. 7. Keep away from a strong magnetic field. ■ Name of each part ■ Composition Mobile Disk, USB cable, Neck strip, Certification ■ Before using Mobile Disk 1. Please be well aware of instruction of this product before using it. 2. For user of Windows 98[SE], please istall Driver before connecting Mobile Disk to computer. 3. Please connect to USB Port of PC directly. 4. Please back up date when you use Mobile Disk for security. 5. When you detach the Mobile Disk from the PC, please follow the instruction. 6. Critical damage might be happened if you detach the product during the data transmission. 7. Please back up the important data. Data could be lost by impact, magnetic field, bad product. **** Hana micron is not responsible for any data lost from Mobile Disk. ! USB connector Writing Protection LED 360 ̊ Swivel Cap ■ Detaching Mobile Disk for each OS Please use Mobile Disk after fully understand the basic instruction and how to detach Mobile disk for easch OS. Wrong detaching may cause data loss or inferior product. Don’t detach Mobile Disk when LED is blinking.(10times/sec) - Windows ME/2000/2003/XP How to use : In Windows ME/2000/2003/XP, you can use the basic function without installing driver. If you connect toproduct to USB port, you will find the Mobile Disk in MY COMPUTER. Basic method is same as Floppy disk.(Availability of Sending menu is different for each system) Delete/Eject : Please close every file in Mobile Disk. After checking that LED is blinking per 1sec, please click the “harware delete/eject icon ‘( ) and click [usb port– drive(*:) eject] Please click clear when you find the [Hardware Eject] and LED turn off. Now detach the Mobile disk from USB Port. If processing file is not closed or copy is not cleared, the message below will be shown. (sometimes OS has wrong factor) Window ME has the same Detach/ Eject, please see Window 98’s method. - Windows 98[SE] How to use : Install Driver first for using on Windows 98[SE]. 1. Please find the Homepage of Hanamicron(http://www.hanausb.co.kr ). And click the Client support/Download Center at the upper menu. Download Driver for Window 98. Caution : please don’t connect the Mobile Disk to USB port yet. 2. Open the downloaded Driver file and install it as instruction. 3. After intall the Driver, connect the Mobile Disk to USB port. 4. Basic using instruction is same as Floppy Disk. Delete/Eject : [Windows ME] Close every file in Mobile Disk. 1. After check the LED is blinking per 1sec, detach the Mobile Disk from USB port. 2. or click the system menu of mobile disk from my computer, select the Eject. After check the LED is turned off, detach the Mobile Disk from USB Port. - Linux How to use : please follow the instruction below when you use Mobile Disk on Linux. 1. Log in by root after connecting Mobile Disk to USB Port. 2. Open xterm,hanterm. 3. Creat Mobile disk folder by ordering mkdir /mnt/Mobile. 4. Mount by ordering ‘mount /dev/sda1 /mnt/ Mobile. 5. please check the mounted by ordering ‘df. ‘/dev/sda1 127684 8 127676 1%/mnt/ Mobile Disk ’ 6. move to Mobile disk folder by ordering ‘cd /mnt/ Mobile Disk. 7. Use the mounted folder. Delete/Eject : Unmount after Read/Write by ordering ‘unmount /dev/sda1’. [Caution] This Mobile Disk is available upper class of Linux 2.4.0+. Disk manger is not available. - Macintosh How to use : Disk Icon will be created after connecting Mobile Disk to USB port. Delete/Eject : Drag the Disk Icon to Trash can, and Eject is done. [Caution] Mobile Disk is available upper class of Mac 9.0+. Disk manger is not available. ■ Mobile Disk SPECIFICATION Supporting OS Windows 98[SE]/ME/2000/XP/2003/CE.NET, Mac 9.0+, Linux 2.4.0+ (Driver install is required only for Windows 98[SE]) Requirement IBM PC/AT or compatible, Desktop/ Notebook /Sub-Notebook, Mac which has USB port. Interface USB 1.1, VoIP(S/W Supprot) Power USB Bus Power(DC5V, 500mA) Speed Read: 8MB/s, Write: 7MB/s Size 55 X 17 X 14 mm (LWH) U.S. FCC CLASS B NOTICE Caution : Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B Digital Device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, if it is not installed or used by the instructions, it may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, that could be determined by tuning the equipment on and off, the user is encouraged to try to connect the interference with the following option: • Re-orient or relocate the reception of antenna. • Increase the separation between the equipment and the receiver • Connect the equipment into an outlet on a circuit different from that which the receiver is connected to. • Consult the dealer or an experienced Radio / Television technician for help. NOTE: The manufacturer is not responsible for any Radio or TV inte…

Text truncated - open the document above for the full version.

System Block Diagram USB CONNECTOR D-D+ VDD_5V USB CONTROLLER NAND FLASH ALE CLEWERECERB 12MHz AU9386 VCC VDD_3.3V

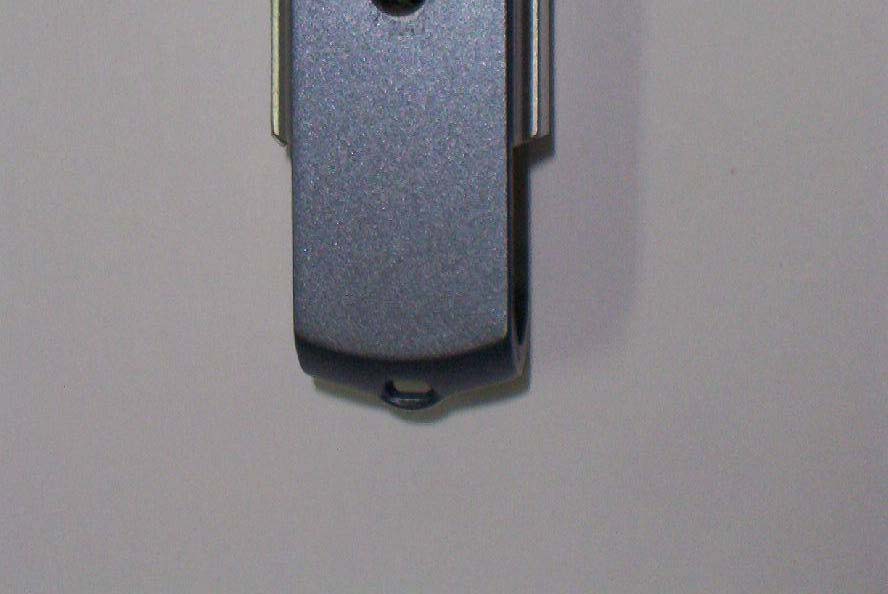

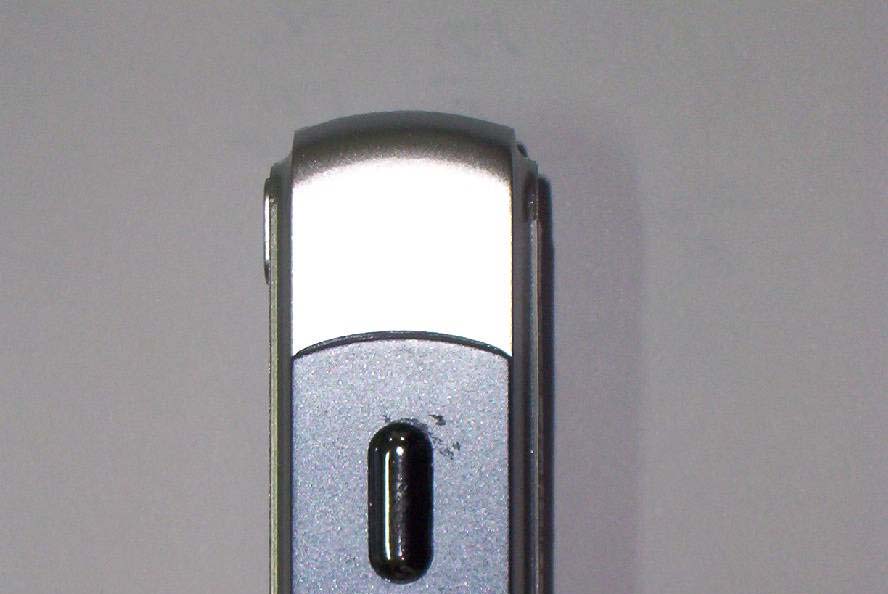

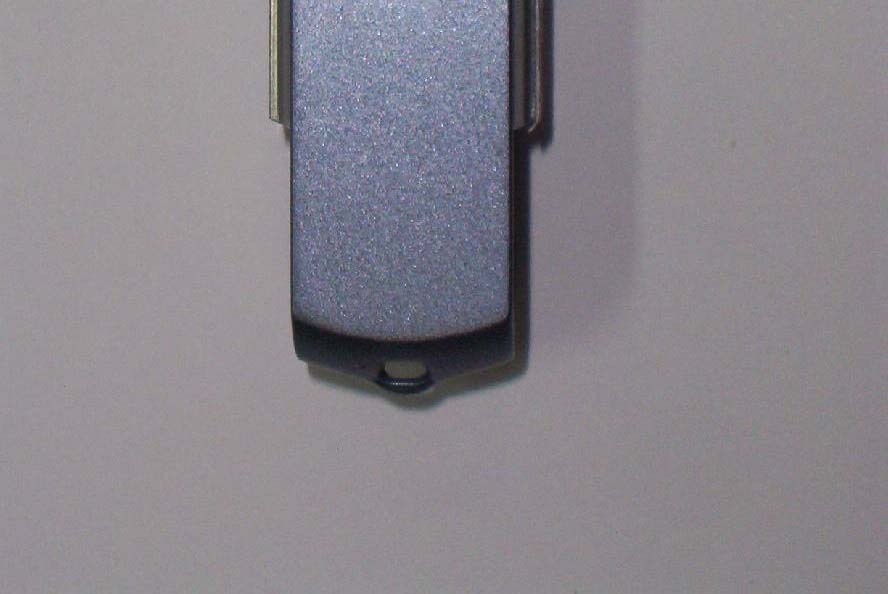

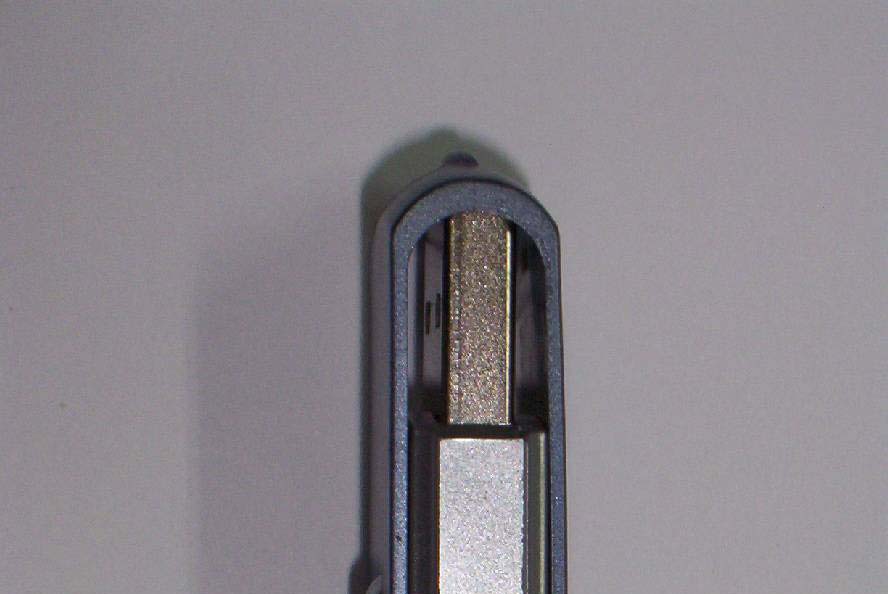

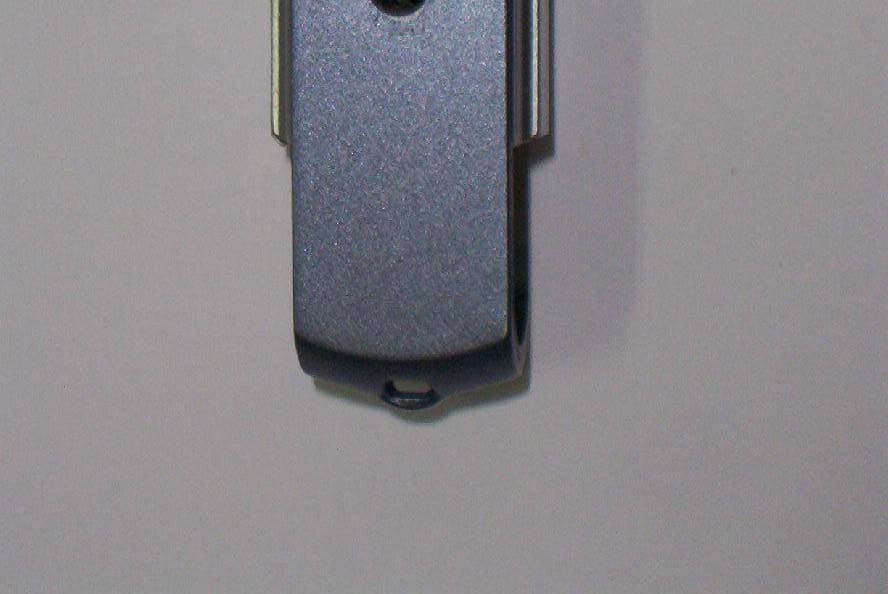

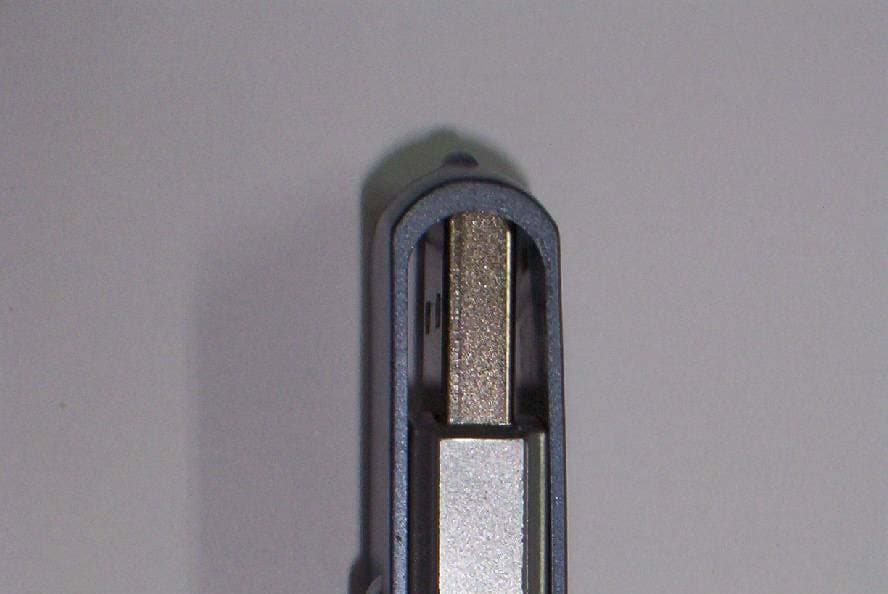

Photographs of EUT Front View Rear View Side View

Sample Label Labeling Requirements per section 2.925 & 15.19 The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. HANA MICRON Inc. USB Flash Drive MODEL : HMDV-512MB POWER : 5Vd.c. FCC ID. : QH7HMDV-512MB THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS : (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION Made In Korea

Inside View Board Front Board Rear

Page: 1 of 26 . . Report No.: STD-FCC-05031 STANDARD ENGINEERING www.stdeng.com Standard Engineering Co. Ltd. 377-11 Sinjang-Ri, Eumam-Myeon EMC Laboratory Seosan-Si, Chungnam, Korea Tel.: +82-41-663-9436, Fax :+82-41-663-9434 e-mail: [email protected] Test Report for Part 15 Report number: STD-FCC–05031 Type of EUT: USB Flash Drive Model number: HMDV-512MB Family Model HMDV-256MB HMDV-128MB HMDV-64MB HMDV-32MB Model difference; Memory Capacity Applicant: HANA MICRON Inc. Applied standards: FCC Part 15 Subpart B(Class B) The above mentioned EUT had been tested by EMC Laboratory of Standard Engineering Company in order to confirm the compliance with the requirements of FCC rules and this test was executed in accordance with the measurement method specified in ANSI C63.4-2003 I hereby certify that the accuracy of test-data is true and correct with my best knowledge and belief. Also I prove this measurement was performed by qualified person. Date of tested: 2005-12-15 Date of Issued: 2005-12-16 Tested by: Approved by: KW Jung / Test Engineer SS Seo / Senior Researcher Page: 2 of 26 . . Report No.: STD-FCC-05031 STANDARD ENGINEERING www.stdeng.com Standard Engineering Co. Ltd. 377-11 Sinjang-Ri, Eumam-Myeon EMC Laboratory Seosan-Si, Chungnam, Korea Tel.: +82-41-663-9436, Fax :+82-41-663-9434 e-mail: [email protected] Contents 1. General information 1.1 Product information 1.2 Client information 2. Information of EMC Laboratory 3. Procedure of measurement 3.1 Conducted emission 3.1.1 Configuration of measurement 3.1.2 Detector function selection and bandwidth 3.1.3 Frequency range to be scanned 3.1.4 Line impedance stabilization network (LISN) 3.2 Radiated emission 3.2.1 Configuration of measurement 3.2.2 Detector function selection and bandwidth 3.3 Method of calculation 4. Environment of measurement 4.1 Condition of environment 4.2 Measurement uncertainty 4.3 List of Test equipments 4.4 List of peripherals and cables 4.5 Configuration of EUT 4.6 Rating and Physical Characteristics 5. Result of measurement 5.1 Conducted emission 5.1.1 Test data 5.1.2 Result 5.2 Radiated emission 5.2.1 Test data 5.2.2 Result Page: 3 of 26 . . Report No.: STD-FCC-05031 STANDARD ENGINEERING www.stdeng.com Standard Engineering Co. Ltd. 377-11 Sinjang-Ri, Eumam-Myeon EMC Laboratory Seosan-Si, Chungnam, Korea Tel.: +82-41-663-9436, Fax :+82-41-663-9434 e-mail: [email protected] 6. Attachment 6.1 Sample Label 6.2 Photographs of Set-up 6.3 Photographs of EUT 6.4 Conducted emission data 6.5 Block Diagram/Circuit 6.6 User’s Manual Page: 4 of 26 . . Report No.: STD-FCC-05031 STANDARD ENGINEERING www.stdeng.com Standard Engineering Co. Ltd. 377-11 Sinjang-Ri, Eumam-Myeon EMC Laboratory Seosan-Si, Chungnam, Korea Tel.: +82-41-663-9436, Fax :+82-41-663-9434 e-mail: [email protected] 1. General Information 1.1 Product information Description of EUT : USB Flash Drive Model number : HMDV-512MB Family Model : HMDV-256MB HMDV-128MB HMDV-64MB HMDV-32MB Model difference; Memory Capacity Specification : DC5V Applied Standard : FCC Part 15 subpart B (Class B) Test method : ANSI C63.4 - 2003 1.2 Client information Applicant : HANA MICRON Inc. Address : #902 Ssangyong IT Twin-Tower 1,442-17 Sangdaewon1-Dong, Joongwon-Gu, Seongnam-City, Gyeonggi-Do, 462-807, Korea Phone No. : +82-31-608-5537 Fax. No. : +82-31-608-5400 Contact person : Nae Sung Woo/[email protected] Manufacturer : HANA MICRON Inc. Address : #902 Ssangyong IT Twin-Tower 1,442-17 Sangdaewon1-Dong, Joongwon-Gu, Seongnam-City, Gyeonggi-Do, 462-807, Korea Phone No.: +82-31-608-5537 Fax. No.: +82-31-608-5400 Page: 5 of 26 . . Report No.: STD-FCC-05031 STANDARD ENGINEERING www.stdeng.com Standard Engineering Co. Ltd. 377-11 Sinjang-Ri, Eumam-Myeon EMC Laboratory Seosan-Si, Chungnam, Korea Tel.: +82-41-663-9436, Fax :+82-41-663-9434 e-mail: [email protected] 2. Information of EMC Laboratory Name of test laboratory Standard Engineering Co., Ltd. Location 377-11 Sinjang-Ri, Eumam-Myeon, Seosan-Si Chungnam, Korea Phone No. : +82-41-663-9436~7 Fax. No. : +82-41-663-9434 FCC Filing Number : 284057 Environment of Laboratory This location can keep accuracy in measuring more than anywhere because surrounding noise ambient is low and silent excellently to be suitable in EMI's measuring. Map Page: 6 of 26 . . Report No.: STD-FCC-05031 STANDARD ENGINEERING www.stdeng.com Standard Engineering Co. Ltd. 377-11 Sinjang-Ri, Eumam-Myeon EMC Laboratory Seosan-Si, Chungnam, Korea Tel.: +82-41-663-9436, Fax :+82-41-663-9434 e-mail: [email protected] 3. Procedure of measurement 3.1 Conducted emissions 3.1.1 Configuration of measurement This measurement executed in shield-room and EUT was tested on 0.8m height wooden table located on the floor with 0.1m distance from the reference ground plane. EUT's rear part had a distance from VCP(Vertical Conducted Plane) with 0.4m length and LISN placed on the grounded plane with 1m distance from EUT's side part . Excess power cord and cables fixed in bundle style of 30~40cm length with non-inductive material, and power line was connected to power source through LISN to detect maximum EMI without external RFI from aux. instruments. Measuring equipments and EUT confirmed that warming-up was performed during enough time and calibration of antenna as well as calibration of measuring equipment also completed beforehand. This measurement was performed on condition of worst-case emission. 3.1.2 Detector function selection and bandwidth During conducted emission measurement, a radio noise meter that has a CISPR quasi-peak detector with 10 kHz IF bandwidth of 6 dB was utilized. 3.1.3 Frequency range to be scanned For conducted emissions measurement, frequency range of 150 kHz to 30 MHz included, was investigated. 3.1.4 Line impedance stabilization network (LISN) A LISN with characteristics that conform to the requirements of ANSI C63.4-2003 was used for the measurement of conducted power-line radio noise; (50 micro-henries / 50 ohms). Chassis and earth-points fo…
