QHC-I210G24Wireless Utility meter

SSI G24 I210 SmartMeter User Guide SMR45-4601B 1 SmartMeter™ System SSI G24 I210 SmartMeter User Guide SSI G24 I210 SmartMeter User Guide SMR45-4601B 2 Copyrights Copyright 2006 SmartSynch ® , Inc. All rights reserved. No part of this documentation may be reproduced transmitted, processed, or recorded by any means or form, or be released to any third party without the express written consent of SmartSynch, Inc. Trademarks SmartSynch ® , SmartSynch logo, TMS™, and SmartMeter™ are trademarks or registered trademarks of SmartSynch, Inc. All other companies, brands, and product names listed herein are trademarks or registered trademarks of their respective holders. Document Revisions The SSI G24 I210 SmartMeter User Guide can be referred to by its document number: Each revision of this document is designated with a letter, beginning with “A”. SmartSynch, Inc. reserves the right to revise this publication and to make any modifications to its content, at any time, without obligation to notify any party, person, or entity of such revisions or changes. Occasionally, changes or variations exist in the products that are not reflected in the documentation. Generally, if such changes or variations are known to exist and affect the product significantly, release notes will accompany the documentation. The information in this guide should not be considered as all-inclusive or covering all cases for events that may occur. If further information is required, consult your technical support representative. See the License Agreement contained in the product for complete license information. Contact your technical support representative for more information on any of our products. SSI G24 I210 SmartMeter User Guide SMR45-4601B 3 Table of Contents 1 INTRODUCTION ...............................................................................................................................................5 1.1 ABOUT THIS GUIDE........................................................................................................................................5 1.2 REFERENCE MATERIALS.................................................................................................................................5 1.3 CONTACTING SMARTSYNCH...........................................................................................................................5 1.3.1 Technical Support ..................................................................................................................................5 1.3.2 Documentation Feedback ......................................................................................................................6 1.3.3 SmartSynch Headquarters .....................................................................................................................6 2 GETTING STARTED.........................................................................................................................................7 2.1 OPERATIONS...................................................................................................................................................7 2.2 SAFETY PRECAUTIONS....................................................................................................................................7 2.2.1 Interference with Medical Equipment....................................................................................................7 2.2.2 Fire or Explosion Hazards ....................................................................................................................7 2.2.3 Interference with Other Devices ............................................................................................................8 2.3 PREREQUISITES...............................................................................................................................................8 3 INSTALLING THE SSI G24 I210 SMARTMETER .......................................................................................9 3.1 PRELIMINARY INSPECTIONS............................................................................................................................9 3.2 INSTALLATION PROCESS.................................................................................................................................9 3.2.1 Option 1: Direct Field Installation ........................................................................................................9 3.2.2 Option 2: Meter Shop Test and Field Installation .................................................................................9 3.2.3 Meter Installation ..................................................................................................................................9 3.3 PROVISIONING THE SMARTMETER...............................................................................................................10 4 TROUBLESHOOTING ....................................................................................................................................11 4.1 TROUBLESHOOTING PROCESS FLOW.............................................................................................................11 4.2 TROUBLESHOOTING PROCESS DESCRIPTION.................................................................................................12 5 REQUIREMENTS AND COMPLIANCE ......................................................................................................14 5.1 FCC GRANT STATEMENT.............................................................................................................................14 5.2 COMPLIANCE STATEMENT (PART 15.19/RSS-210/ICES-003)......................................................................14 5.3 WARNING (PART 15.21) ...............................................................................................................................14 5.4 RF RADIATION SAFETY GUIDELINES PER PART 2 OF FCC RULES …

Text truncated - open the document above for the full version.

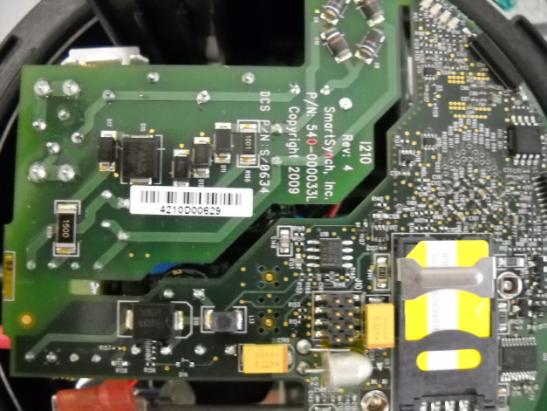

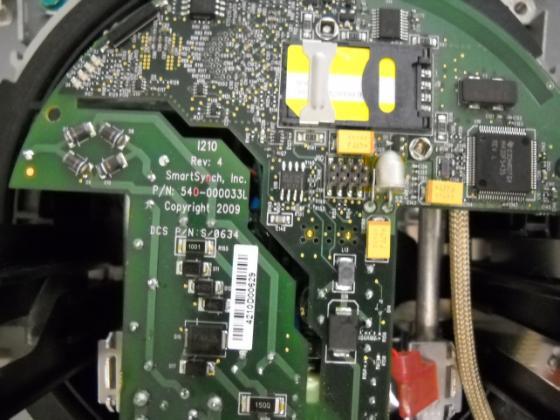

V2.0 2009-10-30 The BLUETOOTH trademarks are owned by Bluetooth SIG, Inc., U.S.A. and licensed to CETECOM Inc. © Copyright by CETECOM Internal Photographs FOR: Model Name:SSI G24 I210 Wireless Utility Meter FCC ID: QHC-I210G24 IC ID: 4393B-I210G24 Project #: EMC_ SMAR1_034_11001 FCC ID: QHC-I210G24 Date: 2011-07-07 Page 2 of 5 Internal Pictures Project #: EMC_ SMAR1_034_11001 FCC ID: QHC-I210G24 Date: 2011-07-07 Page 3 of 5 Project #: EMC_ SMAR1_034_11001 FCC ID: QHC-I210G24 Date: 2011-07-07 Page 4 of 5 Project #: EMC_ SMAR1_034_11001 FCC ID: QHC-I210G24 Date: 2011-07-07 Page 5 of 5

FCC-ID QHC-I210G24 IC-ID (Industry Canada) 4393B-I210G24 MPE Prediction Calculations can be made to predict RF field strength and power density levels around typical RF sources using the general equations (3) and (4) on page 19 of the following FCC document: “OET Bulletin 65, Edition 97-01 - Evaluating Compliance with FCC Guidelines for Human Exposure to Radio frequency Electromagnetic Fields”. The table below is excerpted from Table 1B of 47 CFR 1.1310 titled Limits for Maximum Permissible Exposure (MPE), Limits for General Population/Uncontrolled Exposure: Frequency Range (MHz) Power density (mW/cm 2 ) Averaging time (minutes) 300 – 1500 f (MHz) /1500 30 1500 – 100.000 1.0 30 Based on the above table the limits are: For 850 MHz frequency band device: 0.57 mW/cm 2 For 1900 MHz frequency band device: 1 mW/cm 2 Using the equation from page 19 of OET Bulletin 65, Edition 97-01: 2 4R PG S   where: S = power density (in appropriate units, e.g. mW/cm 2 ) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) Note: This device is to be used only for fixed and mobile applications. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all the persons and must not be co-located or operating in conjunction with any other antenna or transmitter. § 2.1091: The limit for 850 MHz mobile operations where no routine evaluation is required is: 1.5W ERP The limit for 1700 / 1900 MHz mobile operations where no routine evaluation is required is: 3W EIRP Max permissive power according to §24.232 : 2W EIRP Max permissive power according to §§22.913 (a): 7W ERP FCC-ID QHC-I210G24 IC-ID (Industry Canada) 4393B-I210G24 For the unit tested by Cetecom Inc., the power density at a distance of 20cm can be deducted as follows- Operation in cellular band (824-849 MHz) EIRP= 32.5+2.14= 34.64 dBm= 2910.7 mW Power density= EIRP*DutyCycle/(4πR 2 ) = 2910.7*0.5/(4*π*20 2 ) = 0.29 mW/cm 2 where duty cycle is 0.5 (worst case) and R is 20cm. The power density limit for 850 band operation is 0.55 mW/cm 2 . Hence the device is compliant with the rules on RF exposure. Operation in PCS band (1850-1910 MHz) EIRP= 30.00 dBm= 1000 mW Power density= EIRP*DutyCycle/(4πR 2 ) = 1000*0.5/(4*π*20 2 ) = 0.10 mW/cm 2 where duty cycle is 0.5 (worst case) and R is 20cm. The power density limit for 1900 band operation is 1 mW/cm 2 . Hence the device is compliant with the rules on RF exposure. Operation in Zigbee mode (2.4GHz) EIRP= 19.53 dBm= 89.74 mW Power density= EIRP/(4πR 2 ) = 89.74/(4*π*20 2 ) = 0.018 mW/cm 2 R is 20cm. The power density limit for 2.4Ghz band operation is 1 mW/cm 2 . Hence the device is compliant with the rules on RF exposure. FCC-ID QHC-I210G24 IC-ID (Industry Canada) 4393B-I210G24 Compliance with MPE limits can be guaranteed as the calculation below shows: 850 MHz frequency band Maximum output power considerations: Mode Maximum conducted output power (dBm) Maximum conducted output power (mW) Duty cycle Equivalent conducted output power (Maximum conducted output power x duty cycle) (mW) GSM 33.03 2009.0 25% 502.27 P Maximum power input to the antenna: 502.27 mW R Distance: 20 cm S MPE limit for uncontrolled exposure: 0,57 mW/cm 2 G 1 Antenna gain (dBi) to comply with MPE limits: 7.47 dBi ERP power limit according to §2.1091: 1,5 W ERP G 2 Antenna gain (dBi) to comply with ERP limits: 6.90 dBi (ERP = Equivalent conducted output power x Antenna gain / 1,64) ERP power limit according to §22.913: 7 W ERP G 3 Antenna gain (dBi) to comply with ERP limits: 7.57 dBi (ERP = Maximum conducted output power x Antenna gain / 1,64) G 850 MHz band Min (G 1 , G 2, G 3 ) 6.90 dBi Therefore the maximum antenna gain for mobile operation to comply with MPE and ERP limits shall not exceed 6.90 dBi. FCC-ID QHC-I210G24 IC-ID (Industry Canada) 4393B-I210G24 1900 MHz frequency band Maximum output power considerations: Mode Maximum conducted output power (dBm) Maximum conducted output power (mW) Duty cycle Equivalent conducted output power (Maximum conducted output power x duty cycle) (mW) GSM 30.17 1039.9 25% 259.98 P Maximum power input to the antenna: 259.98 mW R Distance: 20 cm S MPE limit for uncontrolled exposure: 1 mW/cm 2 G 1 Antenna gain (dBi) to comply with MPE limits: 12.85 dBi EIRP power limit according to §2.1091: 3 W EIRP G 2 Antenna gain (dBi) to comply with ERP limits: 12.77 dBi (EIRP = Equivalent conducted output power x Antenna gain ) EIRP power limit according to §24.232: 2 W EIRP G 3 Antenna gain (dBi) to comply with EIRP limits: 2.83 dBi (EIRP = Maximum conducted output power x Antenna gain) G 1900 MHz band Min (G 1 , G 2, G 3 ) 2.83 dBi Therefore the maximum antenna gain for mobile operation to comply with MPE and ERP limits shall not exceed 2.83 dBi. FCC-ID QHC-I210G24 IC-ID (Industry Canada) 4393B-I210G24 Prediction for Simultaneous Transmission The MPE limit was made using a separation distance of 1 cm to represent the worse case. Output power listed below is for 50% duty cycle in GSM mode. Antenna No. Total 1 2 Tx Status On On Frequency MHz 2440 848.8 MPE Limit mW/cm 2 1.00 0.57 Max % MPE % 52.9 1.8 51.2 Power (W) 1.545 0.090 1.455 Antenna Gain dBi 0.00 0.00 EIRP (W) 1.55 0.090 1.455 X (cm) -1.0 0.0 Y (cm) 0.0 0.0 Sector FALSE FALSE Arc FALSE FALSE  1  degs input -120 -120  2  60 60  1  actual -120 -120  2  60 60 FCC-ID QHC-I210G24 IC-ID (Industry Canada) 4393B-I210G24 Antenna No. Total 1 2 Tx Status On On Frequency MHz 2440 1850.2 MPE Limit mW/cm 2 1.00 1.00 Max % MPE % 11.7 1.8 9.9 Power (W) 0.590 0.090 0.500 Antenna Gain dBi 0.00 0.00 EIRP (W) 0.59 0.090 0.500 X (cm) -1.0 0.0 Y (cm) 0.0 0.0 Sector FALSE FALSE Arc FALSE FALSE  1  degs input -120 -120  2 60 60  1  actual -120 -120  2  60 60

Bluetooth Qualification Test Facility (BQTF) FCC listed: A2LA Accredited IC recognized # 3462B-1 CETECOM Inc. 411 Dixon Landing Road  Milpitas, CA 95035  U.S.A. Phone: + 1 (408) 586 6200  Fax: + 1 (408) 586 6299  E-mail: [email protected]  http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2113686 Board of Directors: Dr. Harald Ansorge, Hans Peter May. V3.0 2010-10-30 The BLUETOOTH trademarks are owned by Bluetooth SIG, Inc., U.S.A. and licensed to CETECOM Inc. © Copyright by CETECOM FCC Test Report FOR: Model Name: SSI G24 I210 Wireless Utility Meter FCC ID: QHC-I210G24 IC ID: 4393B-I210G24 47 CFR Part 15B TEST REPORT #: EMC_SMAR1_034_11001_FCC15B DATE: 2011-07-08 Test Report #: EMC_SMAR1_034_11001_FCC15B FCC ID:QHC-I210G24 Date of Report 2011-07-08 Page 2 of 17 TABLE OF CONTENTS 1 Assessment _____________________________________________________________________ 3 2 Administrative Data _____________________________________________________________ 4 2.1 Identification of the Testing Laboratory Issuing the EMC Test Report _____________________ 4 2.2 Identification of the Client __________________________________________________________ 4 2.3 Identification of the Manufacturer ___________________________________________________ 4 3 Equipment under Test (EUT) ______________________________________________________ 5 3.1 Specification of the Equipment under Test ____________________________________________ 5 3.2 Identification of the Equipment Under Test (EUT) _____________________________________ 5 4 Subject of Investigation __________________________________________________________ 6 5 Summary of Measurement Results _________________________________________________ 6 6 Radiated Emissions ______________________________________________________________ 7 6.1 §15.109 Radiated emission limits- Unintentional Radiators: _____________________________ 7 6.2 Measurement Procedure: ___________________________________________________________ 8 6.3 Results _________________________________________________________________________ 10 7 AC Power Line Conducted Emissions ______________________________________________ 12 7.1 § 15.107 Conducted limits- Unintentional Radiators __________________________________ 12 7.2 Measurement Procedure: __________________________________________________________ 13 7.3 Results: _________________________________________________________________________ 15 8 Test Equipment and Ancillaries used for tests________________________________________ 16 9 Block Diagrams- _______________________________________________________________ 17 Test Report #: EMC_SMAR1_034_11001_FCC15B FCC ID:QHC-I210G24 Date of Report 2011-07-08 Page 3 of 17 1 Assessment The following device was tested against the applicable criteria specified in FCC rules Part 15B of the Code of Federal Regulations and no deviations were ascertained during the course of the tests performed. Company Description Model # SmartSynch Inc. Wireless Utility Meter SSI G24 I210 Smart Meter Responsible for Testing Laboratory: 2011-07-08 Compliance Sajay Jose (Test Lab Manager) Date Section Name Signature Responsible for the Report: 2011-07-08 Compliance David Lang (Test Engineer) Date Section Name Signature The test results of this test report relate exclusively to the test item specified in Section3. CETECOM Inc. USA does not assume responsibility for any conclusions and generalizations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of CETECOM Inc. USA. Test Report #: EMC_SMAR1_034_11001_FCC15B FCC ID:QHC-I210G24 Date of Report 2011-07-08 Page 4 of 17 2 Administrative Data 2.1 Identification of the Testing Laboratory Issuing the EMC Test Report Company Name: CETECOM Inc. Department: Compliance Address: 411 Dixon Landing Road Milpitas, CA 95035 U.S.A. Telephone: +1 (408) 586 6200 Fax: +1 (408) 586 6299 Test Lab Director: Heiko Strehlow Responsible Project Leader: Sajay Jose 2.2 Identification of the Client Applicant’s Name: SmartSync Inc Street Address: 4400 Old Canton Road, Suite 300 City/Zip Code Jackson / 39211 Mississippi Country U.S.A. Contact Person: Mike Mathis Phone No. 601-362-1780 ext 1089 Fax: 601-362-1787 e-mail: [email protected] 2.3 Identification of the Manufacturer Manufacturer’s Name: Same as applicant. Manufacturers Address: City/Zip Code Country Test Report #: EMC_SMAR1_034_11001_FCC15B FCC ID:QHC-I210G24 Date of Report 2011-07-08 Page 5 of 17 3 Equipment under Test (EUT) 3.1 Specification of the Equipment under Test Marketing Name / Model No: SSI G24 I210 SmartMeter HW / SW Revision : 55M-000600010 Rev 1 / 660-040200-P01 FCC-ID : QHC-I210G24 IC ID: 4393B-I210G24 Product Description: Wireless Utility Meter Frequency Range / number of channels: GSM 850: 824.2-848.8MHz / 125; PCS 1900: 1850.2-1909.8MHz / 300; ZigBee: 2405-2480MHz / 16; ISM Band Receiver: 902-928MHz. Type(s) of Modulation: 2G: GMSK ZigBee: OQPSK ISM Band: FSK Antenna Type / gain / position / min. distance to other antenna (if appl): GSM/GPRS – Dual band di-pole, Gain = 2dBi. ZigBee – PCB Embedded, Gain = 3.3dBi. ISM Band Receiver: PCB Embedded. Power Supply 115V / 60Hz Operating Temperature Range 0ºC to 45ºC Prototype / Production unit Production 3.2 Identification of the Equipment Under Test (EUT) EUT # Serial Number HW Version SW Version Notes/Comments 1 45866433 55M-000600010 Rev 1 660-040200-P01 --- Test Report #: EMC_SMAR1_034_11001_FCC15B FCC ID:QHC-I210G24 Date of Report 2011-07-08 Page 6 of 17 4 Subject of Investigation Testing was performed on the Wireless Utility Meter according to FCC 15 subpart B. Radiated Emission tests are carried out to show that the EUT complies with FCC15.109 (a) radiated emissions limit for Class B device. Conducted Emission tests are carri…
