QHC-SSI2101XWireless Utility Meter with CDMA & ZiGBEE radios

SSI I210 1x SmartMeter User Guide SMR45-4601B 1 SmartMeter™ System SSI I210 1x SmartMeter User Guide SSI I210 1x SmartMeter User Guide SMR45-4601B 2 Copyrights Copyright 2006 SmartSynch ® , Inc. All rights reserved. No part of this documentation may be reproduced transmitted, processed, or recorded by any means or form, or be released to any third party without the express written consent of SmartSynch, Inc. Trademarks SmartSynch ® , SmartSynch logo, TMS™, and SmartMeter™ are trademarks or registered trademarks of SmartSynch, Inc. All other companies, brands, and product names listed herein are trademarks or registered trademarks of their respective holders. Document Revisions The SSI I210 1x SmartMeter User Guide can be referred to by its document number: Each revision of this document is designated with a letter, beginning with “A”. SmartSynch, Inc. reserves the right to revise this publication and to make any modifications to its content, at any time, without obligation to notify any party, person, or entity of such revisions or changes. Occasionally, changes or variations exist in the products that are not reflected in the documentation. Generally, if such changes or variations are known to exist and affect the product significantly, release notes will accompany the documentation. The information in this guide should not be considered as all-inclusive or covering all cases for events that may occur. If further information is required, consult your technical support representative. See the License Agreement contained in the product for complete license information. Contact your technical support representative for more information on any of our products. SSI I210 1x SmartMeter User Guide SMR45-4601B 3 Table of Contents 1 INTRODUCTION ............................................................................................................................................... 5 1.1 ABOUT THIS GUIDE ........................................................................................................................................ 5 1.2 REFERENCE MATERIALS ................................................................................................................................. 5 1.3 CONTACTING SMARTSYNCH........................................................................................................................... 5 1.3.1 Technical Support .................................................................................................................................. 5 1.3.2 Documentation Feedback ...................................................................................................................... 6 1.3.3 SmartSynch Headquarters ..................................................................................................................... 6 2 GETTING STARTED ......................................................................................................................................... 7 2.1 OPERATIONS ................................................................................................................................................... 7 2.2 SAFETY PRECAUTIONS.................................................................................................................................... 7 2.2.1 Interference with Medical Equipment .................................................................................................... 7 2.2.2 Fire or Explosion Hazards .................................................................................................................... 7 2.2.3 Interference with Other Devices ............................................................................................................ 8 2.3 PREREQUISITES ............................................................................................................................................... 8 3 INSTALLING THE SSI I210 1X SMARTMETER .......................................................................................... 9 3.1 PRELIMINARY INSPECTIONS ............................................................................................................................ 9 3.2 INSTALLATION PROCESS ................................................................................................................................. 9 3.2.1 Option 1: Direct Field Installation ........................................................................................................ 9 3.2.2 Option 2: Meter Shop Test and Field Installation ................................................................................. 9 3.2.3 Meter Installation .................................................................................................................................. 9 3.3 PROVISIONING THE SMARTMETER ............................................................................................................... 10 4 TROUBLESHOOTING .................................................................................................................................... 11 4.1 TROUBLESHOOTING PROCESS FLOW ............................................................................................................ 11 4.2 TROUBLESHOOTING PROCESS DESCRIPTION ................................................................................................. 12 5 REQUIREMENTS AND COMPLIANCE ...................................................................................................... 14 5.1 FCC GRANT STATEMENT ............................................................................................................................. 14 5.2 COMPLIANCE STATEMENT (PART 15.19) ...................................................................................................... 14 5.3 WARNING (PART 15.21) ............................................................................................................................... 14 5.4 RF …

Text truncated - open the document above for the full version.

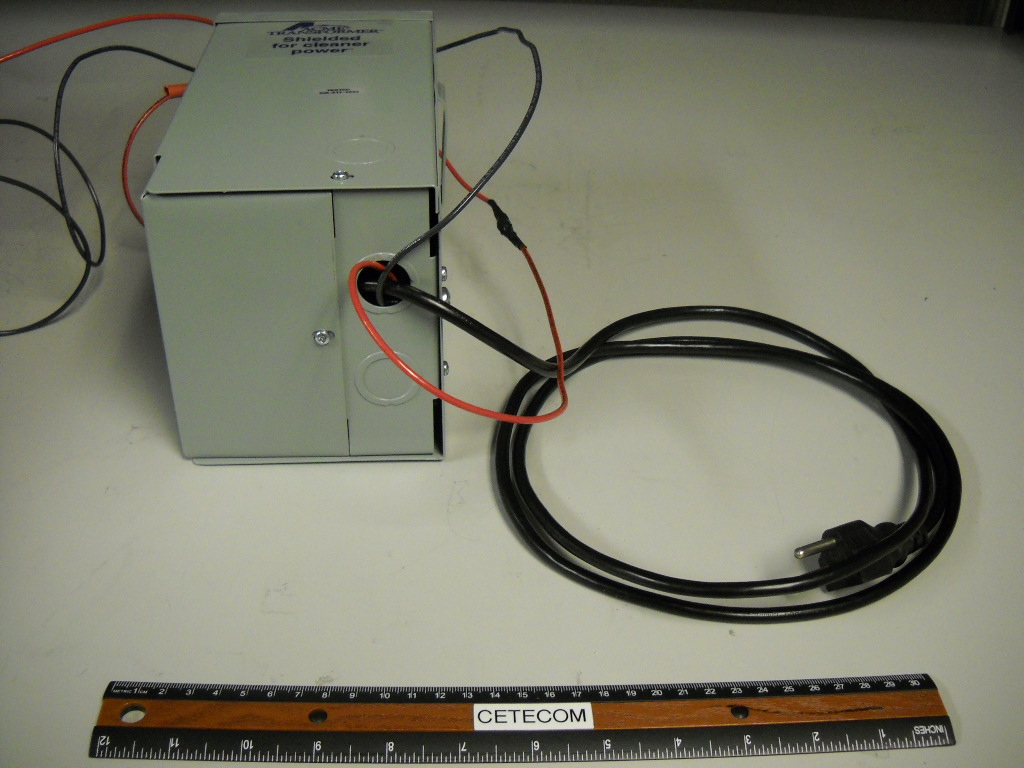

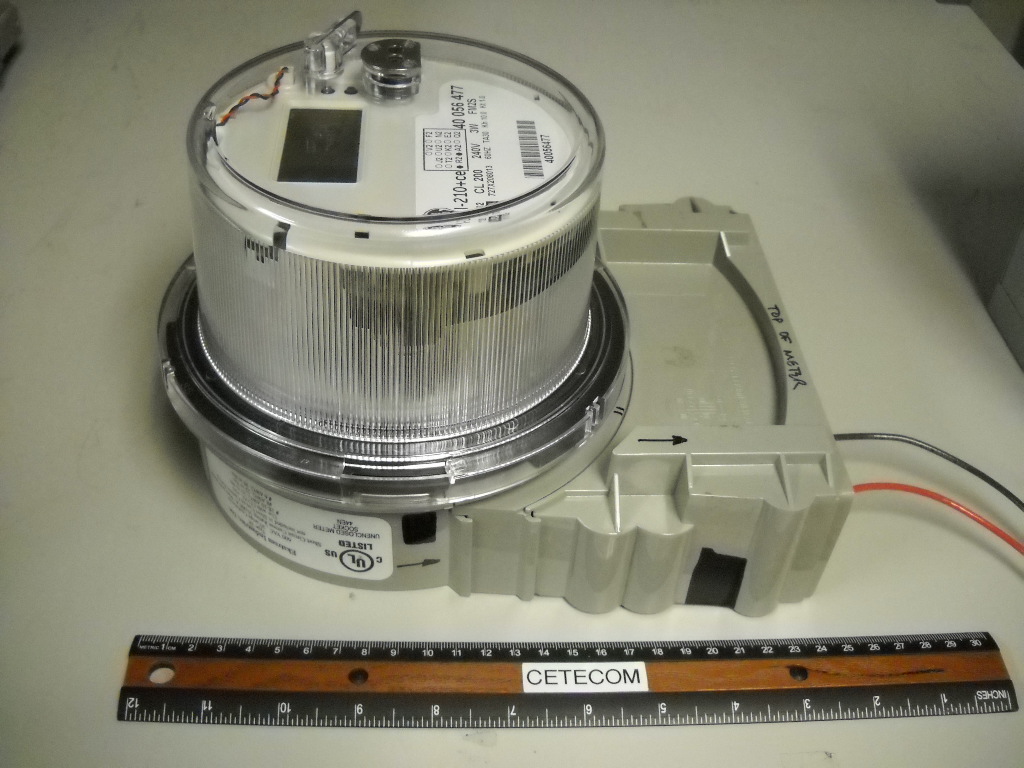

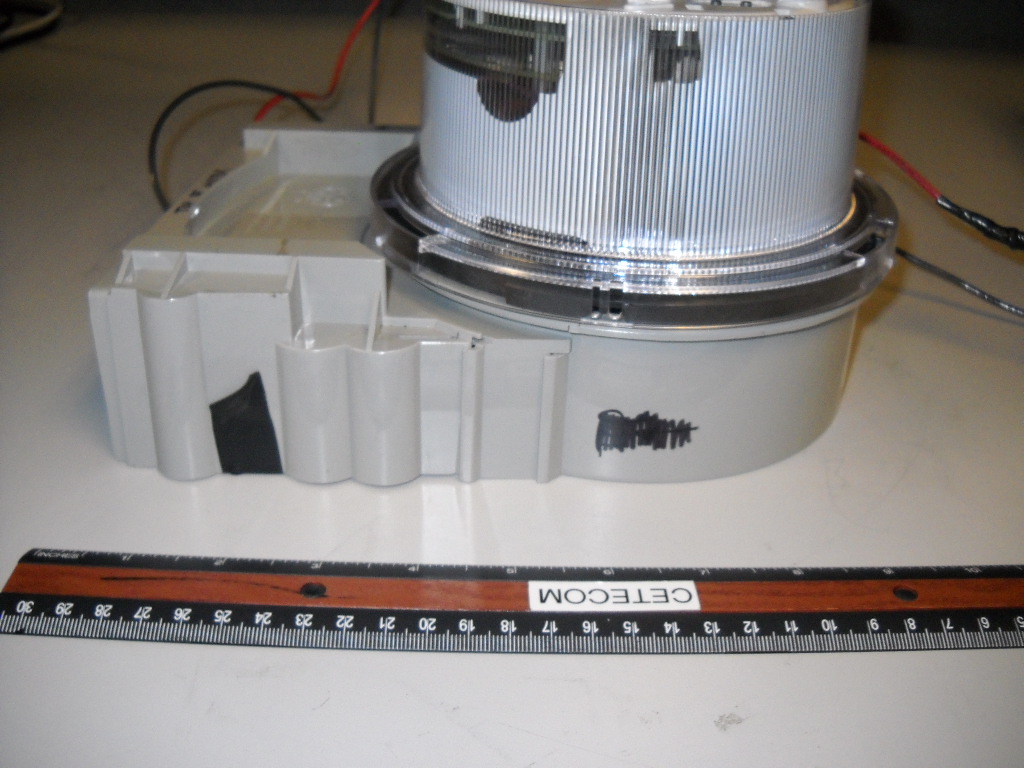

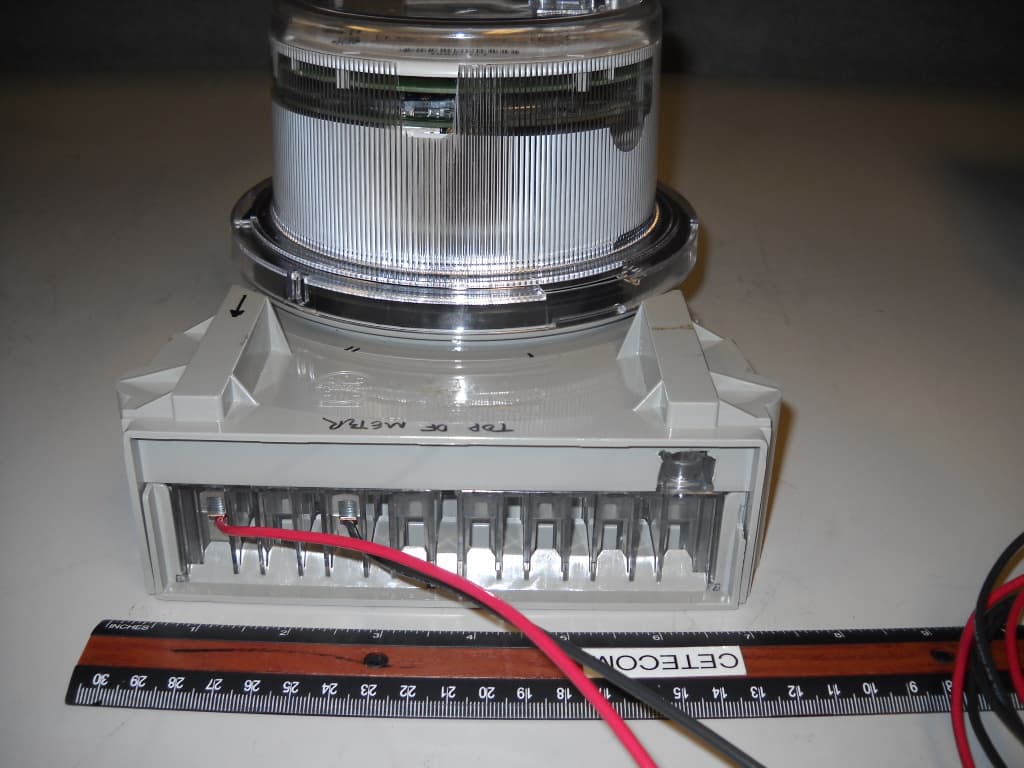

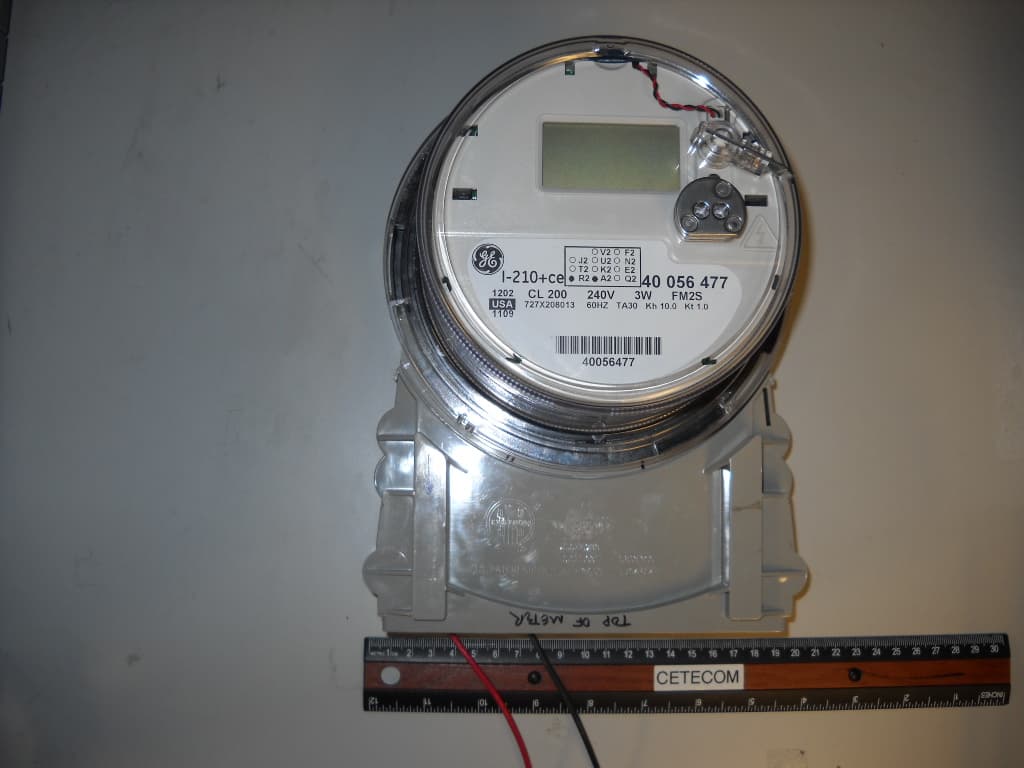

External Photos EUT Front EUT Side EUT Side EUT Bottom EUT Top EUT Back Power Transformer Power Transformer EUT and Power Transformer

FCC Label FCC Label FCC Label Location

Internal Photos SSI Cellular Antenna RF Cable SSI Cellular Antenna

FCC-ID QHC-SSI2101X IC-ID (Industry Canada) 4393B-SSI2101X PREDICTION OF MPE AT A GIVEN DISTANCE Calculations can be made to predict RF field strength and power density levels around typical RF sources using the general equations (3) and (4) on page 19 of the following FCC document: “OET Bulletin 65, Edition 97-01 - Evaluating Compliance with FCC Guidelines for Human Exposure to Radio frequency Electromagnetic Fields”. These equations are generally accurate in the far field of an antenna but will over predict power density in the near field, where they could be used for making a “worst case” prediction. S = PG/4πR 2 (3) Where S = power density (in appropriate units, e.g. mW/cm 2 ) P = power input to the antenna (in appropriate units e.g. mW) G = power gain of the antenna in the direction of interest relative to the isotropic radiator R = distance to the center of radiation of the antenna (appropriate units e.g. cm) or, S = EIRP/4πR 2 (4) Where EIRP = Equivalent Isotropically radiated power General Limits: §1.1307 Cellular Radiotelephone Service (subpart H of part 22) Non-building-mounted antennas: height above ground level to lowest point of antenna < 10 m and total power of all channels > 1000 W ERP (1640 W EIRP) §1.1307 Personal Communications Services (part 24) Broadband PCS (subpart E): non-building-mounted antennas: height above ground level to lowest point of antenna < 10 m and total power of all channels > 2000 W ERP (3280 W EIRP) §1.1310 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) (B) Limits for General Population/Uncontrolled Exposure 300–1500 MHz: f/1500 mW/cm² 1500–100,000 MHz: 1.0 mW/cm² §2.1091 No routine evaluation required when the device ...operate at frequencies of 1.5 GHz or below and their effective radiated power (ERP) is 1.5 watts or more, or if they operate at frequencies above 1.5 GHz and their ERP is 3 watts or more. FCC-ID QHC-SSI2101X IC-ID (Industry Canada) 4393B-SSI2101X §24.232 (a) Base stations are limited to 1640 watts peak equivalent isotropically radiated power (e.i.r.p.) with an antenna height up to 300 meters HAAT. b) Mobile/portable stations are limited to 2 watts e.i.r.p. peak power, ... §22.913 (a) Maximum ERP. The effective radiated power (ERP) of base transmitters and cellular repeaters must not exceed 500 Watts. The ERP of mobile transmitters and auxiliary test transmitters must not exceed 7 Watts. The table below is excerpted from Table 1B of 47 CFR 1.1310 titled “Limits for Maximum Permissible Exposure (MPE), Limits for General Population/Uncontrolled Exposure” Frequency Range (MHz) Power Density (mW/cm 2 ) 300 -1500 f/1500 1500 - 100000 1.0 Prediction for Part 22 Maximum radiated power EIRP: 27.14 dBm (517.6 mW) @ 824.7MHz Lowest limit for 850 MHz fixed operations (@20cm) where no routine evaluation is required is § 1.1310: (f/1500)mW/cm 2 =0.5498 mW/cm 2 Calculated at distance of 20cm for reference antenna: Power density = 517.6 / (4 x pi x 20 2 ) = 0.103 mW/cm 2 Result: Configuration complies with rules as power density is below MPE limit. Prediction for Part 24 Maximum radiated power EIRP: 32.1 dBm (1621.8mW) @1851.25 MHz Lowest limit for 1900 MHz fixed operations (@20cm) where no routine evaluation is required is § 1.1310 : 1 mW/cm 2 Calculated at distance of 20cm: Power density = 1851.25 / (4 x pi x 20 2 ) = 0.3685 mW/cm 2 Result: Configuration complies with rules as power density is below MPE limit. FCC-ID QHC-SSI2101X IC-ID (Industry Canada) 4393B-SSI2101X Prediction for Part 15.247 Maximum radiated power EIRP: 11.686 dBm (14.74 mW) @2440MHz Lowest limit for 2400 MHz fixed operations (@20cm) where no routine evaluation is required is § 1.1310: 1 mW/cm 2 Calculated at distance of 20cm: Power density = 14.74 / (4 x pi x 20 2 ) = 0.0029 mW/cm 2 Result: Configuration complies with rules as power density is below MPE limit. Prediction for Simultaneous Transmission The MPE limit was made using a separation distance of 1 cm to represent the worse case. FCC-ID QHC-SSI2101X IC-ID (Industry Canada) 4393B-SSI2101X Date: 2010-06-17 Name: Josie Sabado Title: EMC Project Engineer Company: Cetecom Inc. Address: 411 Dixon Landing Rd, Milpitas, CA 95035, USA Phone: +1 408 586 6230 Email: [email protected]

Bluetooth Qualification Test Facility (BQTF) FCC listed A2LA Accredited IC recognized # 3462B CETECOM Inc. 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. Phone: + 1 (408) 586 6200 Š Fax: + 1 (408) 586 6299 Š E-mail: [email protected] Š http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2113686 Board of Directors: Dr. Harald Ansorge, Dr. Klaus Matkey, Hans Peter May V2.0 2009-10-30 The BLUETOOTH trademarks are owned by Bluetooth SIG, Inc., U.S.A. and licensed to CETECOM Inc. © Copyright by CETECOM FCC/IC Test Report FOR: Manufacturer: SmartSynch Inc. Model Name: SSI I210 1x FCC ID: QHC-SSI2101X IC ID: 4393B-SSI2101X 47 CFR Part 15.247 for DSSS Systems IC RSS-210 Issue 7 TEST REPORT #: EMC_SMAR1_023_10001 _15.247 DATE: 2010-06-17 Test Report #: EMC_ SMAR1_023_10001_15.247 Date of Report : 2010-06-17 Page 2 of 58 TABLE OF CONTENTS 1 Assessment _____________________________________________________________________ 4 2 Administrative Data _____________________________________________________________ 5 2.1 Identification of the Testing Laboratory Issuing the EMC Test Report _____________________ 5 2.2 Identification of the Client __________________________________________________________ 5 2.3 Identification of the Manufacturer ___________________________________________________ 5 3 Equipment under Test (EUT) ______________________________________________________ 6 3.1 Specification of the Equipment under Test _____________________________________________ 6 3.2 Identification of the Equipment under Test (EUT) ______________________________________ 6 3.3 Identification of Accessory equipment ________________________________________________ 6 4 Subject Of Investigation __________________________________________________________ 7 5 Measurements __________________________________________________________________ 8 5.1 Radiated Measurement Procedure ___________________________________________________ 8 5.2 Conducted Measurement Procedure _________________________________________________ 11 5.3 Maximum Peak Output Power §15.247 (b)(3) _________________________________________ 12 5.3.1 Limits: §15.247 (b)(1) ___________________________________________________________________ 12 5.3.2 Test Conditions: ________________________________________________________________________ 12 5.3.3 Test Result: ____________________________________________________________________________ 12 5.3.4 Test Data/plots: _________________________________________________________________________ 13 5.4 Restricted Band Edge Compliance __________________________________________________ 19 5.4.1 Limits: §15.247/15.205 ___________________________________________________________________ 19 5.4.2 Test Conditions: ________________________________________________________________________ 19 5.4.3 Test Data/plots: _________________________________________________________________________ 20 5.5 Spectrum Bandwidth/ 20dB Bandwidth § 15.247 (a)(2) _________________________________ 24 5.5.1 Limits: § 15.247 (a)(1) ___________________________________________________________________ 24 5.5.2 Test Result: ____________________________________________________________________________ 24 5.5.3 Test Data/plots: _________________________________________________________________________ 25 5.6 Power Spectral Density ____________________________________________________________ 31 5.6.1 Limits: § 15.247 (e) _____________________________________________________________________ 31 5.6.2 Test results: ____________________________________________________________________________ 31 Transmitter Spurious Emissions- Conducted § 15.247 (c) ______________________________________ 35 5.6.3 Limits: § 15.247 (d) _____________________________________________________________________ 35 5.6.4 Test Conditions: ________________________________________________________________________ 35 5.6.5 Test data/ plots: _________________________________________________________________________ 35 5.6.6 Test data/ plots: _________________________________________________________________________ 36 5.7 Transmitter Spurious Emissions- Radiated ___________________________________________ 42 5.7.1 Limits: §15.247/15.205 ___________________________________________________________________ 42 5.7.2 Limits: §15.209 _________________________________________________________________________ 42 5.7.3 Limits: §15.209 _________________________________________________________________________ 43 5.7.4 Test Conditions: ________________________________________________________________________ 43 5.7.5 Test Result: ____________________________________________________________________________ 43 Test Report #: EMC_ SMAR1_023_10001_15.247 Date of Report : 2010-06-17 Page 3 of 58 5.7.6 Test data/ plots: _________________________________________________________________________ 44 5.8 Receiver Spurious Emissions- Radiated ______________________________________________ 49 5.8.1 Limits: §15.109 _________________________________________________________________________ 49 5.8.2 Test Conditions: ________________________________________________________________________ 49 5.8.3 Test Result: ____________________________________________________________________________ 49 5.8.4 Test data/ plots: _________________________________________________________________________ 50 5.9 AC Power Line Conducted Emissions ________________________________________________ 52 5.9.1 Limits: §15.107/15.207 ___________________________________________________________________ 52 5.9.2 Test Conditions: ________________________________________________________________________ 52 5.9.3 Test Result: ____________________________________________________________________________ 52 5.9.4 Test data/ plots: _________________________________________________________________________ 53 6 Test Equipment and Ancillaries used for tests ________________________________________ 55 7 BLOCK DIAGRAMS _________________________…

Text truncated - open the document above for the full version.

Test Setup Photos EIRP Radiated Emissions < 1GHz Radiated Emissions > 1GHz Bandedge Conducted Emissions Conducted Emissions
