QI2-EMSG-100-CRWireless Cable Ready Gateway

TD2002COPYRIGHT © 2002 INVENYS HOME CONTROL SYSTEMS8/5/02 EMSG-100-CR Invensys RF Gateway General Instructions Introduction The Invensys RF Gateway is a high performance wireless broadband server that is a central part of the Invensys GoodWatts system. In addition to basic product description, this document provides specifications and specific instructions for setup. Note:This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help. Caution:This equipment is authorized for use under the United States Federal Communication Commission Rules and Regulations, Code of Federal Regulations Chapter 47 part 15 and must be installed in accordance with the instructions provided in this document. Failure to install or operate this equipment as instructed in this document could void the user’s authority to operate the equipment. This equipment contains no user serviceable parts. Any modification or repairs to the internal components or to the antenna configuration of the equipment without the express written consent of Invensys Home Control Systems could void the user's authority to operate the equipment. FIGURE 1.Invensys RF Gateway Note:To comply with FCC RF exposure requirements in section 1.1307, a minimum separation distance of 20 cm (8 inches) is required between the antenna and all persons. Inspection Inspect the product carton for damage. If damaged, notify carrier immediately. Inspect Invensys RF Gateway for damage. Return damaged products. Check that the contents includes all components, as listed below and shown in FIGURE 2. Invensys RF Gateway Components : –Invensys RF Gateway – Power adapter INVENSYS RF GATEWAYGENERAL INSTRUCTIONS 2PRELIMINARY DOCUMENTTD2002 FIGURE 2.Invensys RF Gateway Components Installation Before you begin installation, please confirm the following system requirements are met and check that possible conflicting applications are addressed: Location The Invensys RF Gateway is an Energy Star compliant low power consumption, “always-on” server appliance. Proper location and setup of the device is essential for achieving top performance and longevity. The Invensys RF Gateway should be situated in a clean, flat, stable, open environment with adequate ventilation and isolated from any forms of moisture, dust and contaminates. Placement of the device on or near a desktop or industrial shelving is recommended, however, placement within a wiring closet or wall mounting (professional installation recommended) are also viable alternatives. Your Invensys RF Gateway package should contain the following items: Invensys RF Gateway Power Adapter GENERAL INSTRUCTIONSLOCATION 8/5/02PRELIMINARY DOCUMENT3 Connections The following section provides instructions for connecting to the Internet and the procedural steps for applying power to the gateway. FIGURE 3.Invensys RF Gateway connections 1. Refer to FIGURE 3. Invensys RF Gateway connections, and connect your Invensys RF Gateway to the Direct Cable Outlet Connection, as shown. 2. Plug the supplied power adaptor into the DC connector on the back of the Invensys RF Gateway and insert the power plug into a wall socket with surge protection. Note:There is NO power switch located on the Invensys RF Gateway unit. The unit is “on” when you plug it in to a power outlet. Turning the gateway “off” is controlled via the gateway software or by unplugging the power adapter. 3. The Invensys RF Gateway will automatically run a 2-3 minute sequential self-test. The LED light located on the front of the gateway will indicate the status of the process, starting from a green blinking light through a solid green light if every test passes. Note:You may see a very subtle orange blinking over the Solid Green light when the data is processing 4. Follow the LED readouts and proceed accordingly. Refer to TABLE 1. LED indicator descriptions for a listing of light indications. Direct Cable Outlet Connection (EMSG-100-CR) Power Adapter DATA PORT INVENSYS QUALIFIED TECHNICIAN INVENSYS RF GATEWAYGENERAL INSTRUCTIONS 4PRELIMINARY DOCUMENTTD2002 TABLE 1. LED indicator descriptions Operation The Invensys RF Gateway is pre-configured to automatically use the WAN interface for connecting to the GoodWatts.com server. After a connection is made, the home-specific information is downloaded into the gateway and the RF device network is started, as shown in FIGURE 4. GoodWatts RF device network. FIGURE 4.GoodWatts RF device network LED StatusIndicationAction Green Blinking (1 blink)Process basic hardware testingWait for LED status change Green Blinking (2 blinks) Process extensive hardware testingWait for LED status change Green Blinking (3 blinks) Process software testingWait for LED status change Green Blinking (4 blinks) Indicates Internet (WAN) connection needs configuration via Invensys RF Gateway software Contact Technical Support Solid Green lightIndicates Internet (WAN) connectivity is complete No action necessary Red BlinkingAn internal failure has occurredContact technical sup…

Text truncated - open the document above for the full version.

tel: 650-726-1263 fax: 650-726-1252 [email protected] Thomas N. Cokenias EMC &Radio Approvals Test & Consulting Services for Commercial, Military, International Compliance P.O. Box 1086 El Granada, CA 94018 FCC Laboratory31 July 2002 7435 Oakland Mills Road Columbia, MD 21046 Attention: Application Examiner Reviewing Engineer Applicant: Invensys Home Control Systems FCC ID: QI2-EMSG-100-CR Cable Ready RF Gateway To whom it may concern, Request is hereby submitted, on behalf of my client Invensy HCS to withhold from public review certain portions of the application for equipment certification for the referenced FCC identifier. In particular, the following sections of the application and report are requested to be kept confidential: Block Diagrams Schematic Operational Description Rationale for request for confidentiality: Invensys has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the confidential portions of this application to competitors would give them competitive advantage in developing similar products.  If you have questions or need further information, please contact the undersigned. Sincerely, tel: 650-726-1263 fax: 650-726-1252 [email protected] THOMAS N. COKENIAS EMC Consultant/Agent for Robershaw Control Systems (dba Invensys Home Control systems)

From: Mike Kuo Sent: Thursday, August 08, 2002 2:12 PM To: Tom Cokenias (E-mail) Subject: FW: Invensys Home Control Systems, FCC ID:QI2-EMSG-100-CR, AN02T2164 -----Original Message----- From: CERTADM Sent: Thursday, August 08, 2002 2:10 PM To: '[email protected]' Subject: Invensys Home Control Systems, FCC ID:QI2-EMSG-100-CR, AN02T2164 Notice_content ------------- Question #1: Please provide radiated emission data from 30 -1000MHz. Best Regards Mike Kuo / TCB Certifier The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 60 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

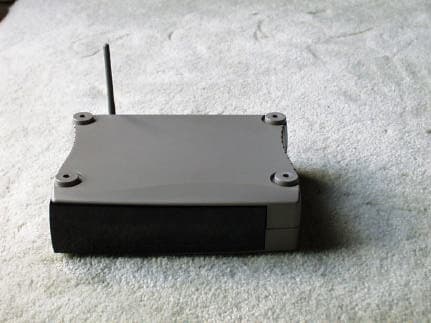

FCC ID: QI2-EMSG-100-CR Invensys Cable Ready Gateway FCC ID: QI2-EMSG-100-CR FCC ID: QI2-EMSG-100-CR

FCC Label/Location FCC ID: QI2-EMSG-100-CR This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference than may cause undesired operation bottom of unit

FCC ID: QI2-EMSG-100-CR FCC ID: QI2-EMSG-100-CR Cable modem interface board with Toshiba cable modem (sealed unit) FCC ID: QI2-EMSG-100-CR FCC ID: QI2-EMSG-100-CR FCC ID: QI2-EMSG-100-CR FCC ID: QI2-EMSG-100-CR FCC ID: QI2-EMSG-100-CR FCC ID: QI2-EMSG-100-CR FCC ID: QI2-EMSG-100-CR




 !  "  #  $ % & '()*+,  -   ./- &,
0    ./- 1 &   "1 (/. # )/23 0 3/() & - )/4. 56'()*+, (/)     "   /( 7 / -
                 -&,   8  8  97 9   / )/- /' ((/ .'/'- (/ / .'/4- (/( ../3 )/(- /4 )/ )/)- / 2/ )/.- /2 23/ )/- /3 34/3 )/)- / '/ )/3- / ((/ )/'- / ((/ )(/- / (./3 )(/- / (./ )(/- / ()2/ )(/(- /( (3/ )(/- / (24/3 )/4- /( (4/ )/3- / ('(/ )/- /) / )/.- /2 (./3 )/.- /2 / )/.- /2 .2/ )/)- / )3/ )/- /) 4/3 )/)- / 3/ )/)- / 4(/ )/- /3 '/ )/(- /4 ../3 )/- /' .(/ )/- /' .2/ .'/'- (/ ..3/ .'/'- (/ .)4/3 .'/'- (/
  ! "#  ! "/#  ! ).(  ( 8  97 9   $ %  & ' (
)      - (::(;.#*

FCC ID: QI2-EMSG-100-CR Invensys HCS Cable Ready Gateway 16 of 16 900MHz FHSS RF Exposure (MPE) Calculations 905 - 924.6 MHz Frequency Hopping Spread Spectrum Radio Applicant: Robertshaw Controls Company FCC ID: QI2-EMSG-100-CR RF Hazard Distance Calculation (worst case) mW/cm2 from Table1:0.60 Max RF PowerTX AntennaMPE P, dBmG, dBiSafe Distance, cm 12.751.151.8 Basis of Calculations: E^2/3770 = S, mW/cm2 E, V/m = (Pwatts*Ggain*30)^.5/d, meters d = ((Pwatts*G*30)/3770*S))^0.5Pwatts*Ggain = 10^(PdBm-30+GdBi)/10) NOTE: For mobile or fixed location transmitters, minimum separation distance is 20 cm, even if calculations indicate MPE distance is less

FCC ID: QI2-EMSG-100-CR Invensys HCS Cable Ready Gateway 1 of 16 900MHz FHSS EMISSIONS TEST REPORT FOR A LOW POWER TRANSMITTER I. GENERAL INFORMATION Requirement:Federal Communications Commissions Test Requirements: 15.205, 15.207, 15.209, 15.247 Applicant: Robertshaw Controls Company d/b/a Invensys Home Control Systems Product ID: FCC ID: QI2-EMSG-100-CR II. DESCRIPTION OF EQUIPMENT UNDER TEST (EUT) The Invensys FCC ID: QI2-EMSG-100-CR is a frequency hopping spread spectrum (FHSS) transceiver. The Invensys “Cable Ready RF Gateway” unit utilizes an iCon OEM transceiver module to communicate between r.f. modules, a LAN and a cable modem within the home. This allows the user to control home appliances (e.g. climate control devices) from any place where there is a computer connected to the internet. Transmitter Specification TX Power12dBm Frequency Deviation (FSK)+/- 20 kHz Frequency of operation905 – 924.6 MHz Data Rate19.2 kbps Number of channels50 Channel Separation400 kHz Typical 20dB occupied bandwidth 150 kHz III. TEST LOCATION All tests were performed at: Compliance Certification Services 561F Monterey Road Morgan Hill, CA 95037 T.N. Cokenias29 July 2002 EMC Consultant/Agent for Breezecom FCC ID: QI2-EMSG-100-CR Invensys HCS Cable Ready Gateway 2 of 16 900MHz FHSS 15.203 Antenna connector requirement The antenna is permanently attached to the product. 15.204 Antenna description The Cable Ready RF Gateway uses a permanently attached antenna: Antenna descriptionGainMFR name Sleeve dipole1.15 dBi maxInvensys HCS Measured antenna data and radiation patterns are presented in a separate pdf attachment. 15.247(a) Frequency hopping spread spectrum definition Pseudorandom frequency hopping sequence: The transmitter cannot coordinate its hopping sequence with the hopping sequence of other transmitters, or vice versa, for the purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters Each access unit has an individual ID number and there is no link or association between two access units so there is no simultaneous occupancy of individual hopping frequency transmission of two or more access units. Equal hopping frequency use: The EUT utilizes 50 hopping channels. Hopset is 50 channels long, then repeats. On average all channels are used equally. System receiver input bandwidth and receiver hopping capability: Receiver 26 dB bandwidth is 200 kHz, approximately equal to 26 dB bandwidth of TX. Receiver channel hops are synchronized to transmitter operating frequency. FCC ID: QI2-EMSG-100-CR Invensys HCS Cable Ready Gateway 3 of 16 900MHz FHSS TEST DATA and TEST PROCEDURES - CCS Laboratory Radiated Emissions Test Requirement: 15.205, 15.247 Out of Band Measurements Test Requirement: 15.247 Measurement Equipment Used: HP 8566 Spectrum Analyzer, 30-1000 MHz GHz HP 8447D Pre-amplifier, .1 - 1300 MHz Schaffner/Chase CBL6112B Bilog Antenna, 30 - 2000 MHz HP 8593EM Spectrum Analyzer, 1 - 9.5 GHz Miteq NSP2600-44 Microwave pre-amplifier, 1-26.5 GHz EMCO 3115 Double Ridged Horn antenna, 1 - 18 GHz Radiated emissions generated by the transmitter portion of the EUT were measured. 1. The EUT was placed on a wooden table resting on a turntable on the open air test site. The search antenna was placed 3m from the EUT. The EUT antenna was mounted vertically as per normal installation. 2. The turntable was slowly rotated to locate the direction of maximum emission at each emission falling in the restricted bands of 15.205. 3. Radiated emissions were investigated for a LOW channel, a MID channel, and HIGH channel. Emissions were investigated to the 10 th harmonic. 4. Once maximum direction was determined, the search antenna was raised and lowered in both vertical and horizontal polarizations. The maximum readings so obtained are recorded in the data listed below. Test Results: Worst case results are presented. Refer to data sheets in separate attachments. Restricted band emissions meet 54 dBuV/m. Other undesired emissions from the transmitter meet the -20 dBc requirement in 15.247(c). 24-26 July 2002Engineer;C. Pang Compliance Certification Services, Morgan Hill Open Field SiteSite A Invensys Metering Systmes HCS FCC ID: QI2-EMSG Cable Ready Hub Equipment for 1-18 GHzEquipment for 18-26.5 GHzEquipment for 26.5-40 GHz HP8566B AnalyzerHP8566B AnalyzerHP8566B Analyzer MITEQ NSP2600-44 PreampHP11975A Preamp (LO)HP 11975A Amplifier (LO) EMCO 3115 Antenna; S/N:2238ARA MWH-1826B & HP11970KHP 11970A External mixer/antenna Cable:15.0feetCable:3.0Cable: IF Only (321 MHz) Conns:4Conns:4 Spectrum Analyzer Settings AveragePeak RBW 1 Mhz1 MHz VBW 10 Hz1 MHz fDistRead PkRead AvAFCLAmpD CorrPk EAv EPk LimitMargin PkAv LimitMargin AvPolarityNotes GHzcmdBuVdBuVdB/mdBdBdBdBuV/mdBuV/mdBuV/mdBdBuV/mdB 905 MHz109.0 1.810300.034.027.92.9-42.50.022.389.0-66.7vertical 2.715300.051.043.030.93.4-42.30.043.035.074.0-31.054.0-19.0vertical 3.620300.046.034.032.74.1-42.00.040.828.874.0-33.254.0-25.2vertical 4.525300.044.533.534.44.7-41.90.041.730.774.0-32.354.0-23.3vertical 5.430300.044.034.036.25.3-41.70.043.833.874.0-30.254.0-20.2vertical 6.335300.044.034.036.95.7-41.50.045.189.0-43.9vertical 7.240300.044.034.038.36.1-41.20.047.289.0-41.8vertical 8.145300.044.034.039.16.5-40.30.049.439.474.0-24.654.0-14.6vertical 9.050300.044.034.039.86.9-39.40.051.341.374.0-22.754.0-12.7vertical 915 MHz108.8 1.830300.035.428.02.9-42.50.023.888.8-20.0vertical 2.745300.048.539.531.03.4-42.20.040.731.774.0-33.354.0-22.3vertical 3.660300.045.634.032.74.1-42.00.040.428.854.0-13.654.0-25.2vertical 4.575300.044.233.434.54.8-41.80.041.688.8-47.2vertical 5.490300.045.034.236.35.3-41.70.044.988.8-43.9vertical 6.405300.044.033.537.05.8-41.50.045.388.8-43.5vertical 7.320300.044.034.038.46.2-41.10.047.537.574.0-26.554.0-16.5vertical 8.235300.044.034.039.26.6-40.20.049.639.674.0-24.454.0-14.4vertical 9.150300.044.033.339.87.0-39.40.051.440.774.0-22.654.0-13.3vertical 924.6 MHz108.9 1.849300.034.528.12.9-42.50.023.088.9-65.9ver…
