  1. Home/
  2. Telit Cinterion Deutschland GmbH/
  3. QIPAHS3-W

QIPAHS3-WGSM/GPRS/UMTS/HSPA Module

Telit Cinterion Deutschland GmbH
GSM/GPRS/UMTS/HSPA Module - FCC ID QIPAHS3-W - Telit Cinterion Deutschland GmbH
Click to zoom

Application Details

Equipment Class
PCB - PCS Licensed Transmitter
Date of Grant
Oct 01, 2012
Application Purpose
Original Equipment
Date of Application
Oct 01, 2012
Equipment Note
GSM/GPRS/UMTS/HSPA Module
Frequency Range
1850.20000000 - 1909.80000000
Company
Telit Cinterion Deutschland GmbH
Country
Germany

Documents & Files

Select a file to view

Users Manual

Cover Letter(s)

↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗
↗

Test Setup Photos

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

External Photos

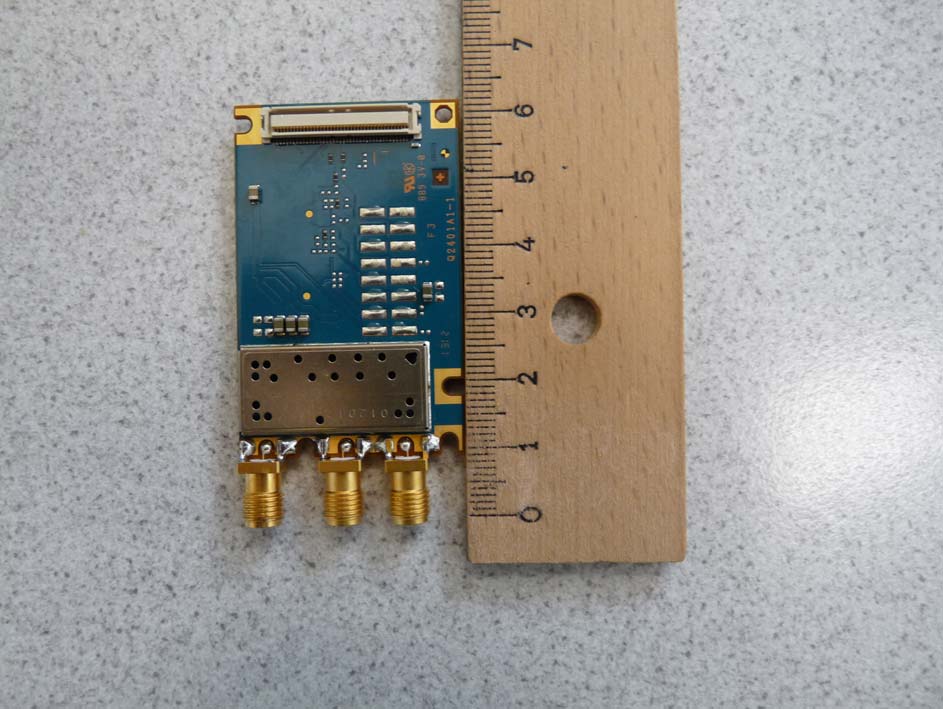

Test Laboratory: Borsigstr. 11 Germany 7Layers AG 40880 Ratingen Note: The following test results relate only to the devices specified in this document. This report shall not be reproduced in parts without the written approval of the test laboratory. 7Layers AG Aufsichtsratsvorsitzender Registergericht registered in: Borsigstrasse 11 Chairman of the Supervisory Board: Düsseldorf, HRB 44096 40880 Ratingen, Germany Ralf Mertens USt-IdNr VAT No.: Phone: +49 (0) 2102 749 0 Vorstand Board: DE 203159652 Fax: +49 (0) 2102 749 350 Dr. H.-J. Meckelburg TAX No. 147/5869/0385 www.7Layers.com Photo Report on EUT (External Photos) Report Reference: MDE_CINTE_1214_FCC_Photo_EUT Test report Reference: MDE_CINTE_1214_FCC_Photo_EUT Page 2 of 3 Photo 1: EUT (top view) Test report Reference: MDE_CINTE_1214_FCC_Photo_EUT Page 3 of 3 Photo 2: EUT (bottom view)

ID Label/Location Info

Cinterion Wireless Module AHS3-W AHS3-W Top side AHS3-W Bottom side

Internal Photos

Cinterion Wireless Module AHS3-W AHS3-W Top side AHS3-W Bottom Side

RF Exposure Info

7 layers AG Aufsichtsratsvorsitzenderh Registergerichth registered in Borsigstrasse 11 Chairman of the Supervisory Board: Düsseldorf, HRB 44096 40880 Ratingen, Germany Ralf Mertens USt-IdNr h VAT No.: Phone: +49 (0) 2102 749 0 Vorstandh Board: DE 203159652 Fax: +49 (0) 2102 749 350 Dr. H.-J. Meckelburg TAX No. 147/5869/0385 www.7Layers.com Mr. Pascal Jordan 2012-08-24 Phone +49 (0) 2102 749 288 Fax +49 (0) 2102 749 350 e-Mail : [email protected] Maximum Permissible Exposure for product: Cinterion Wireless Module AHS3-W Dear Mr. Liebig, please find enclosed your Maximum Permissible Exposure calculations for the Cinterion Wireless Module AHS3-W. Best Regards Pascal Jordan (Project Manager) Cinterion Wireless Modules GmbH Mr. Thorsten Liebig Siemensdamm 50 13629 Berlin Germany MDE_CINTE_1214 - 2 - Maximum Permissible Exposure (as specified in Table 1B of 47 CFR 1.1310 – Limits for Maximum Permissible Exposure (MPE), Limits for General Population/Uncontrolled Exposure) Frequency range (MHz) Power density (mW/cm²) 300 – 1500 f/1500 1,500 – 100000 1.0 General Comment Calculations 850 MHz band Maximum average output power at Antenna terminal: 30.49 dBm (Max average power = 33.50 dBm – 3.01 dBm duty cycle) Maximum output power at Antenna terminal: 33.80 dBm (Max peak power = 33.80 dBm) Prediction distance R: 20 cm Prediction frequency: 824.20 MHz MPE limit S: 0.5495 mW/cm² Equation OET bulletin 65, page 18, edition 97-01: S = P*G / (4πR²) S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the centre of radiation of the antenna Maximum permissible antenna gain (Table 1B of 47 CFR 1.1310): 3.92 dBi Maximal permissible antenna gain considering output power limitation of 7 Watts ERP (FCC §22.931). G=10*log(7000)-33.80+2.15 6.79 dBi Prediction The maximum allowed MPE value of 0. 5495 mW/cm² will be reached in a distance of 20 cm in case that an antenna with an antenna gain of 3.92 dBi is used. Considering the max output power of 7 Watts ERP (FCC §22.931) for mobile stations the maximum antenna gain is 6.79 dBi, which is higher than 3.92 dBi. For mobile stations the antenna gain is limited to 3.92 dBi in accordance to the FCC regulations. - 3 - Calculations 1900 MHz band Maximum average output power at Antenna terminal: 27.29 dBm (Max average power = 30.30 dBm – 3.01 dBm duty cycle) Maximum output power at Antenna terminal: 30.50 dBm (Max peak power = 30.50 dBm) Prediction distance R: 20 cm Prediction frequency: 1880.00 MHz MPE limit S: 1 mW/cm² Equation OET bulletin 65, page 18, edition 97-01: S = P*G / (4πR²) S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the centre of radiation of the antenna Maximum permissible antenna gain (Table 1B of 47 CFR 1.1310): 9.72 dBi Maximum permissible antenna gain for mobile / portable stations: 2.51 dBi (Considering 2 Watts EIRP FCC §24.235: G=10*log(2000)-30.50) Prediction The maximum allowed MPE value of 1 mW/cm² will be reached in a distance of 20 cm in case that an antenna with an antenna gain of 9.72 dBi is used. Considering the max output power of 2 Watts EIRP (FCC §24.235) for mobile / portable stations the maximum antenna gain is 2.51 dBi, which is lower than 9.72 dBi. For mobile and portable stations the antenna gain is limited to 2.51 dBi in accordance with the FCC regulations.

Test Report

Final Report on Cinterion Wireless Module AHS3-W MDE_CINTE_1214_FCC22a_V1 acc. Title 47 CFR chapter I part 22 subpart H Report Reference: August 30, 2012Date: Test Laboratory: 7Layers AG Borsigstr. 11 40880 Ratingen Germany Note: The following test results relate only to the devices specified in this document. This report shall not be reproduced in parts without the written approval of the test laboratory. 7Layers AG Aufsichtsratsvorsitzender h Registergerichth registered in: Borsigstrasse 11 Chairman of the Supervisory Board: Düsseldorf, HRB 44096 40880 Ratingen, Germany Ralf Mertens USt-IdNr h VAT No.: Phone: +49 (0) 2102 749 0 Vorstandh Board: DE 203159652 Fax: +49 (0) 2102 749 350 Dr. H.-J. Meckelburg TAX No. 147/5869/0385 www.7Layers.com Reference: MDE_CINTE_1214_FCC22a_V1 acc. Title 47 CFR chapter I part 22 subpart H 1Administrative Data 1.1Project Data Mr. René HouxPro ject Responsible: 2012/08/30Date Of Test Re port: 2011/10/21Date of first test: 2011/12/01Date of last test: 1.2Applicant Data Company Name:Cinterion Wireless Modules GmbH Siemensdamm 50Street: 13629 Berlin City: GermanyCountry: Contact Person:Mr. Thorsten Liebig Manager ApprovalFunction: Approvals & StandardizationDepartment: +49 (30) 31102-8241Phone: +49 (160) 7074027Mobile: [email protected]: 1.3Test Laboratory Data The following list shows all places and laboratories involved for test result generation: 7 layers DE Company Name :7 layers AG Street :Borsigstrasse 11 City :40880 Ratingen Country :Germany Contact Person :Mr. Michael Albert Phone :+49 2102 749 201 Fax :+49 2102 749 444 E Mail :[email protected] Laboratory Details Accreditation InfoLab IDIdentificationResponsible DAkkS-Registration no. D-PL-12140-01-01Radiated EmissionsLab 1Mr. Robert Machulec Mr. Andreas Petz DAkkS-Registration no. D-PL-12140-01-01Radio LabLab 2Mr. Robert Machulec Mr. Andreas Petz Page 2 of 156 Reference: MDE_CINTE_1214_FCC22a_V1 acc. Title 47 CFR chapter I part 22 subpart H 1.4Signature of the Testing Responsible Marco Kullik responsible for tests performed in: Lab 1, Lab 2 1.5Signature of the Accreditation Responsible Accreditation scope responsible person responsible for Lab 1, Lab 2 Page 3 of 156 Reference: MDE_CINTE_1214_FCC22a_V1 acc. Title 47 CFR chapter I part 22 subpart H 2Test Object Data 2.1General OUT Description The following section lists all OUTs (Object's Under Test) involved during testing. OUT: AHS3-W Type / Model / Family:Cinterion Wireless Module AHS3-W Product Category:Module Manufacturer: Cinterion Wireless Modules GmbHCompany Name: Street:Siemensdamm 50 City:13629 Berlin Country:Germany Contact Person:Mr. Thorsten Liebig Function:Manager Approval Department:Approvals & Standardization Phone:+49 (30) 31102-8241 Mobile:+49 (160) 7074027 E-Mail:[email protected] ValueParameter name Parameter List: 120 (V)AC Power Supply not specified (dBi)Antenna gain 1900 band not specified (dBi)Antenna gain 850 band 12 (V)DC Power Supply 251 (848.8MHz) for GSM850, 810 (1909.8MHz) for GSM1900, 4233 (846.6MHz) for FDD5 highest channel 128 (824.2MHz) for GSM850, 512 (1850.2MHz) for GSM1900, 4132 (826.4MHz) for FDD5 lowest channel 190 (836.6MHz) for GSM850, 661 (1880.0MHz) for GSM1900, 4183 (836.6MHz) for FDD5 mid channel OUT: PHS8-P Type / Model / Family:Cinterion Wireless Module PHS8-P Product Category:Module Manufacturer: Cinterion Wireless Modules GmbHCompany Name: Street:Siemensdamm 50 City:13629 Berlin Country:Germany Contact Person:Mr. Thorsten Liebig Function:Manager Approval Department:Approvals & Standardization Phone:+49 (30) 31102-8241 Mobile:+49 (160) 7074027 E-Mail:[email protected] ValueParameter name Parameter List: Parameter for Scope FCC_v2: not specified (dBi)Antenna gain 1900 band not specified (dBi)Antenna gain 850 band Page 4 of 156 Reference: MDE_CINTE_1214_FCC22a_V1 acc. Title 47 CFR chapter I part 22 subpart H 4.2 (V)DC Power Supply 251 (848.8MHz) for GSM850, 810 (1909.8MHz) for GSM1900, 4233 (846.6MHz) for FDD5, 9538 (1907.6MHz) for FDD2 highest channel 128 (824.2MHz) for GSM850, 512 (1850.2MHz) for GSM1900, 4132 (826.4MHz) for FDD5, 9262 (1852.4MHz) for FDD2 (MHz) lowest channel 190 (836.6MHz) for GSM850, 661 (1880.0MHz) for GSM1900, 4183 (836.6MHz) for FDD5, 9400 (1880MHz) for FDD2 mid channel Page 5 of 156 Reference: MDE_CINTE_1214_FCC22a_V1 acc. Title 47 CFR chapter I part 22 subpart H 2.2Detailed Description of OUT Samples Sample : a01AHS3W OUT IdentifierAHS3-W Sample DescriptionSample #01 Serial No.S30960-S3000-A300-1 HW StatusB2 SW StatusRevision 03.000 Low VoltageLow Temp.3.3 V High Temp.High Voltage4.2 V Normal Temp.Nominal Voltage4.2 V+2 3 °C Parameter List: ValueParameter Description Parameter for Scope FCC_v2 IMEI004401080884147 Sample : C01 OUT IdentifierPHS8-P Sample DescriptionSample #03 HW StatusB1 SW StatusRevision 02.000 Date of Receipt2011/10/10 Low VoltageLow Temp.3.3 V-10 °C High Temp.High Voltage4.2 V+55 °C Normal Temp.Nominal Voltage4.2 V+20 °C Parameter List: ValueParameter Description Parameter for Scope FCC_v2 IMEI004401080650142 Page 6 of 156 Reference: MDE_CINTE_1214_FCC22a_V1 acc. Title 47 CFR chapter I part 22 subpart H Sample : F03 OUT IdentifierPHS8-P Sample DescriptionSample #06 HW StatusB1 SW StatusRevision 02.002 Date of Receipt2011/11/24 Low VoltageLow Temp.3.3 V-10 °C High Temp.High Voltage4.2 V+55 °C Normal Temp.Nominal Voltage4.2 V+20 °C Parameter List: ValueParameter Description Parameter for Scope FCC_v2 IMEI004401080662097 Page 7 of 156 Reference: MDE_CINTE_1214_FCC22a_V1 acc. Title 47 CFR chapter I part 22 subpart H 2.3OUT Features Features for OUT: AHS3-W Allowed ValuesDesignationDescriptionSupported Value(s) Features for scope: FCC_v2 ACThe OUT is powered by or connected to AC Mains DCThe OUT is powered by or connected to DC Mains EDGE850EUT supports EDGE in the band 824 MHz - 849 MHz EDGE1900 EUT supports EDGE in the band 1850 MHz - 1910 MHz FDD5EUT supports UMTS FDD5 in the band 824 MHz - 849 MHz GSM850EUT supp…

Text truncated - open the document above for the full version.

Test Report

Final Report on Cinterion Wireless Module AHS3-W MDE_CINTE_1214_FCC24a_V1 acc. Title 47 CFR chapter I part 24 subpart E Report Reference: August 31, 2012Date: Test Laborator y: 7Layers AG Borsigstr. 11 40880 Ratingen Germany Note: The following test results relate only to the devices specified in this document. This report shall not be reproduced in parts without the written approval of the test laboratory. 7Layers AG Aufsichtsratsvorsitzender h Registergerichth regist ered in: Borsigstrasse 11 Chairman of the Supe rv isory Board: Düsseldorf, HRB 44096 40880 Ratingen, Germany Ralf Mertens USt-IdNr h VAT No.: Phone: +49 (0) 2102 749 0 Vorstandh Board: DE 203159652 Fax: +49 (0) 2102 749 350 Dr. H.-J. Meckelburg TAX No. 147/5869/0385 www.7Layers.com Reference: MDE_CINTE_1214_FCC24a_V1 acc. Title 47 CFR chapter I part 24 subpart E 1Administrative Data 1.1Project Data Mr. René HouxProject Responsible: 2012/08/31Date Of Test Report: 2011/10/23Date of first test: 2011/12/01Date of last test: 1.2Applicant Data Company Name:Cinterion Wireless Modules GmbH Siemensdamm 50Street: 13629 Berlin City: GermanyCountry: Contact Person:Mr. Thorsten Liebig Manager ApprovalFunction: Approvals & StandardizationDepartment: +49 (30) 31102-8241Phone: +49 (160) 7074027Mobile: [email protected]: 1.3Test Laboratory Data The following list shows all places and laboratories involved for test result generation: 7 layers DE Company Name :7 layers AG Street :Borsigstrasse 11 City :40880 Ratingen Country :Germany Contact Person :Mr. Michael Albert Phone :+49 2102 749 201 Fax :+49 2102 749 444 E Mail :[email protected] Laboratory Details Accreditation InfoLab IDIdentificationResponsible DAkkS-Registration no. D-PL-12140-01-01Radiated EmissionsLab 1Mr. Robert Machulec Mr. Andreas Petz DAkkS-Registration no. D-PL-12140-01-01Radio LabLab 2Mr. Robert Machulec Mr. Andreas Petz Page 2 of 83 Reference: MDE_CINTE_1214_FCC24a_V1 acc. Title 47 CFR chapter I part 24 subpart E 1.4Signature of the Testing Responsible Marco Kullik responsible for tests performed in: Lab 1, Lab 2 1.5Signature of the Accreditation Responsible Accreditation scope responsible person responsible for Lab 1, Lab 2 Page 3 of 83 Reference: MDE_CINTE_1214_FCC24a_V1 acc. Title 47 CFR chapter I part 24 subpart E 2Test Object Data 2.1General OUT Description The following section lists all OUTs (Object's Under Test) involved during testing. OUT: AHS3-W Type / Model / Family:Cinterion Wireless Module AHS3-W Product Category:Module Manufacturer: Cinterion Wireless Modules GmbHCompany Name: Street:Siemensdamm 50 City:13629 Berlin Country:Germany Contact Person:Mr. Thorsten Liebig Function:Manager Approval Department:Approvals & Standardization Phone:+49 (30) 31102-8241 Mobile:+49 (160) 7074027 E-Mail:[email protected] ValueParameter name Parameter List: 120 (V)AC Power Supply not specified (dBi)Antenna gain 1900 band not specified (dBi)Antenna gain 850 band 12 (V)DC Power Supply 251 (848.8MHz) for GSM850, 810 (1909.8MHz) for GSM1900, 4233 (846.6MHz) for FDD5 highest channel 128 (824.2MHz) for GSM850, 512 (1850.2MHz) for GSM1900, 4132 (826.4MHz) for FDD5 lowest channel 190 (836.6MHz) for GSM850, 661 (1880.0MHz) for GSM1900, 4183 (836.6MHz) for FDD5 mid channel OUT: PHS8-P Type / Model / Family:Cinterion Wireless Module PHS8-P Product Category:Module Manufacturer: Cinterion Wireless Modules GmbHCompany Name: Street:Siemensdamm 50 City:13629 Berlin Country:Germany Contact Person:Mr. Thorsten Liebig Function:Manager Approval Department:Approvals & Standardization Phone:+49 (30) 31102-8241 Mobile:+49 (160) 7074027 E-Mail:[email protected] ValueParameter name Parameter List: Parameter for Scope FCC_v2: not specified (dBi)Antenna gain 1900 band not specified (dBi)Antenna gain 850 band Page 4 of 83 Reference: MDE_CINTE_1214_FCC24a_V1 acc. Title 47 CFR chapter I part 24 subpart E 4.2 (V)DC Power Supply 251 (848.8MHz) for GSM850, 810 (1909.8MHz) for GSM1900, 4233 (846.6MHz) for FDD5, 9538 (1907.6MHz) for FDD2 highest channel 128 (824.2MHz) for GSM850, 512 (1850.2MHz) for GSM1900, 4132 (826.4MHz) for FDD5, 9262 (1852.4MHz) for FDD2 (MHz) lowest channel 190 (836.6MHz) for GSM850, 661 (1880.0MHz) for GSM1900, 4183 (836.6MHz) for FDD5, 9400 (1880MHz) for FDD2 mid channel Page 5 of 83 Reference: MDE_CINTE_1214_FCC24a_V1 acc. Title 47 CFR chapter I part 24 subpart E 2.2Detailed Description of OUT Samples Sample : a01AHS3W OUT IdentifierAHS3-W Sample DescriptionSample #01 Serial No.S30960-S3000-A300-1 HW StatusB2 SW StatusRevision 03.000 Low Voltage 3.3 V High Voltage 4.2 V Normal Temp.Nominal Voltage4.2 V+23 °C Parameter List: ValueParameter Description Parameter for Scope FCC_v2 IMEI004401080884147 Sample : C01 OUT IdentifierPHS8-P Sample DescriptionSample #03 HW StatusB1 SW StatusRevision 02.000 Date of Receipt2011/10/10 Low VoltageLow Temp.3.3 V-10 °C High Temp.High Voltage4.2 V+55 °C Normal Temp.Nominal Voltage4.2 V+20 °C Parameter List: ValueParameter Description Parameter for Scope FCC_v2 IMEI004401080650142 Page 6 of 83 Reference: MDE_CINTE_1214_FCC24a_V1 acc. Title 47 CFR chapter I part 24 subpart E Sample : F03 OUT IdentifierPHS8-P Sample DescriptionSample #06 HW StatusB1 SW StatusRevision 02.002 Date of Receipt2011/11/24 Low VoltageLow Temp.3.3 V-10 °C High Temp.High Voltage4.2 V+55 °C Normal Temp.Nominal Voltage4.2 V+20 °C Parameter List: ValueParameter Description Parameter for Scope FCC_v2 IMEI004401080662097 Page 7 of 83 Reference: MDE_CINTE_1214_FCC24a_V1 acc. Title 47 CFR chapter I part 24 subpart E 2.3OUT Features Features for OUT: AHS3-W Allowed ValuesDesignationDescriptionSupported Value(s) Features for scope: FCC_v2 ACThe OUT is powered by or connected to AC Mains DCThe OUT is powered by or connected to DC Mains EDGE850EUT supports EDGE in the band 824 MHz - 849 MHz EDGE1900 EUT supports EDGE in the band 1850 MHz - 1910 MHz FDD5EUT supports UMTS FDD5 in the band 824 MHz - 849 MHz GSM850EUT supports GSM850 band 824MH…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Leandro Wan-Dall(Head of Certification Management)
[email protected]00490166355178Fax: 00490166355178

Test Firm

7layers AGRobert Machulec
[email protected]49-2102-749-313Fax: 49-2102-749-350

Technical Specifications

#Rule PartsFrequency RangePower OutputEmissionTolerance
524E1.85 GHz - 1.91 GHz871.00 mW241KG7W2.5 ppm
Modular Type
Single Modular Approval
Confidentiality
Long Term
Grant Notes
Output power listed is peak conducted. This device contains functions that are not operational in U.S Territories. This filing is only applicable for US operations. This module is approved for use in products operating as fixed or mobile transmitting device. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. A separate approval is required for portable operating configurations, as defined in 2.1093 of the rules. The final product operating with this transmitter must include operating instructions and applicable warnings for endusers and installers to satisfy RF exposure compliance requirements. Antenna gain must meet RF exposure and max radiated output power limits of the applicable rule section. This Grant is valid only when the device is sold to integrators and the integrators are instructed to ensure that the end user has no manual instructions to remove or install the device. The max. antenna gain for this device based on the peak output power with respect to RF Exposure (mobile/fixed) and EIRP/ERP limits is: 3.92 dBi (850MHz) and 2.5 dBi (1900MHz).
