QIPELS31-VLTE Module

Telit Cinterion Deutschland GmbH
LTE Module - FCC ID QIPELS31-V - Telit Cinterion Deutschland GmbH
Click to zoom

Application Details

Equipment Class
TNB - Licensed Non-Broadcast Station Transmitter
Date of Grant
Dec 15, 2015
Application Purpose
Original Equipment
Date of Application
Dec 15, 2015
Equipment Note
LTE Module
Frequency Range
779.50000000 - 784.50000000
Company
Telit Cinterion Deutschland GmbH
Country
Germany

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

Parts List/Tune Up Info

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

 M2M.GEMALTO.COM Cinterion ® ELS31-V/ELS51-V Hardware Interface Overview Version:00.502 DocId:ELS31-V_ELS51-V_HIO_v00.502 GENERAL NOTE THE USE OF THE PRODUCT INCLUDING THE SOFTWARE AND DOCUMENTATION (THE "PROD- UCT") IS SUBJECT TO THE RELEASE NOTE PROVIDED TOGETHER WITH PRODUCT. IN ANY EVENT THE PROVISIONS OF THE RELEASE NOTE SHALL PREVAIL. THIS DOCUMENT CONTAINS INFORMATION ON GEMALTO M2M PRODUCTS. THE SPECIFICATIONS IN THIS DOCUMENT ARE SUBJECT TO CHANGE AT GEMALTO M2M'S DISCRETION. GEMALTO M2M GMBH GRANTS A NON- EXCLUSIVE RIGHT TO USE THE PRODUCT. THE RECIPIENT SHALL NOT TRANSFER, COPY, MODIFY, TRANSLATE, REVERSE ENGINEER, CREATE DERIVATIVE WORKS; DISASSEMBLE OR DECOMPILE THE PRODUCT OR OTHERWISE USE THE PRODUCT EXCEPT AS SPECIFICALLY AUTHORIZED. THE PRODUCT AND THIS DOCUMENT ARE PROVIDED ON AN "AS IS" BASIS ONLY AND MAY CONTAIN DEFICIENCIES OR INADEQUACIES. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, GEMALTO M2M GMBH DISCLAIMS ALL WARRANTIES AND LIABILITIES. THE RECIPIENT UNDERTAKES FOR AN UNLIMITED PERIOD OF TIME TO OBSERVE SECRECY REGARDING ANY INFORMATION AND DATA PROVIDED TO HIM IN THE CONTEXT OF THE DELIV- ERY OF THE PRODUCT. THIS GENERAL NOTE SHALL BE GOVERNED AND CONSTRUED ACCORDING TO GERMAN LAW. Copyright Transmittal, reproduction, dissemination and/or editing of this document as well as utilization of its con- tents and communication thereof to others without express authorization are prohibited. Offenders will be held liable for payment of damages. All rights created by patent grant or registration of a utility model or design patent are reserved. Copyright © 2015, Gemalto M2M GmbH, a Gemalto Company Trademark Notice Gemalto, the Gemalto logo, are trademarks and service marks of Gemalto and are registered in certain countries. Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corpora- tion in the United States and/or other countries. All other registered trademarks or trademarks mentioned in this document are property of their respective owners. ELS31-V_ELS51-V_HIO_v00.5022015-12-07 Confidential / Preliminary Cinterion ® ELS31-V/ELS51-V Hardware Interface Overview 2 Page 2 of 35 Document Name: Cinterion ® ELS31-V/ELS51-V Hardware Interface Overview Version: 00.502 Date: 2015-12-07 DocId: ELS31-V_ELS51-V_HIO_v00.502 Status: Confidential / Preliminary Cinterion ® ELS31-V/ELS51-V Hardware Interface Overview Contents 35 ELS31-V_ELS51-V_HIO_v00.5022015-12-07 Confidential / Preliminary Page 1 of 35 Contents 1Introduction ................................................................................................................. 2 1.1Key Features at a Glance .................................................................................. 2 1.2ELS31-V / ELS51-V System Overview .............................................................. 5 2Interface Characteristics ............................................................................................ 6 2.1Application Interface .......................................................................................... 6 2.1.1USB Interface........................................................................................ 6 2.1.2Serial Interface ASC0 ........................................................................... 7 2.1.3Serial Interface ASC1 (ELS51-V Only) ................................................. 8 2.1.4UICC/SIM/USIM Interface ..................................................................... 9 2.1.5GPIO Interface .................................................................................... 11 2.1.6I 2 C Interface ........................................................................................ 12 2.1.7SPI Interface ....................................................................................... 13 2.1.8Pulse Counter ..................................................................................... 13 2.1.9HSIC Interface (ELS51-V Only) .......................................................... 13 2.1.10 SDIO Interface (ELS51-V Only) .......................................................... 13 2.1.11 Control Signals.................................................................................... 13 2.1.11.1 Status LED .......................................................................... 13 2.1.11.2 Fast Shutdown .................................................................... 13 2.2RF Antenna Interface ....................................................................................... 14 2.2.1Antenna Installation ............................................................................ 15 2.3Sample Application .......................................................................................... 16 3Operating Characteristics ........................................................................................ 18 3.1Operating Modes ............................................................................................. 18 3.2Power Supply ................................................................................................... 19 4Mechanical Dimensions, Mounting and Packaging ............................................... 20 4.1Mechanical Dimensions of ELS31-V / ELS51-V .............................................. 20 5Regulatory and Type Approval Information ........................................................... 22 5.1Directives and Standards ................................................................................. 22 5.2SAR requirements specific to portable mobiles ............................................... 24 5.3Reference Equipment for Type Approval ......................................................... 25 5.4Compliance with FCC and IC Rules and Regulations ..................................... 26 6Document Information.............................................................................................. 28 6.1Revision History .............................…

Text truncated - open the document above for the full version.

Cover Letter(s)

gemalto GemaltD M2M GmbH, Siemensdamm 50 • 13629 Berlin • Germany Name Thorsten Liebig Federal: Communications Commission Department Approvals Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Phone +49 30 31102-8241 Columbia MD 21046 Fax +493031102-8305 USA E-Mail [email protected] Y our letter 01 Our relerence Date 30 November 2015 Subject: Request for Short Term Confidentiality FCC 10: QIPELS31-V To Whom It May Concern: In accordance with §0.459(d) of CFR 47 and Public Notice DA 04--1705, Gemalto M2M GmbH requests short term confidentiality for the following items of product ELS31-V until the product will be publicly announced: 1. External Photos 2. Internal Photos 3. Test Setup Photos 4. User Manual These items contain detailed system and equipment description and related information about the product which Gemalto M2M GmbH considers to be proprietary, confidential and a custom design which otherwise would not be released to the general public. Since this design is a basis from which future technological product will evolve, Gemalto M2M GmbH also feels that this information would be of benefit to its competitors, and that the disclosure of the information in these exhibits would give our competitors an unfair advantage in the market. Sincerely, {d.. 0/(.{ Thorsten Liebig Manager Approvals www.gemallo.com/m2m Registered Office: Managing Direeters: Commerciat register, Reg . No.: Gemalto M2M GmbH Norbert Muhrer. Sebastien Gallois Amtsgericht München, HRB 172"715 St.-Martin-Str.60 WEEE-Reg.-Nr . DE 58893809 81541 Munich Germany

External Photos

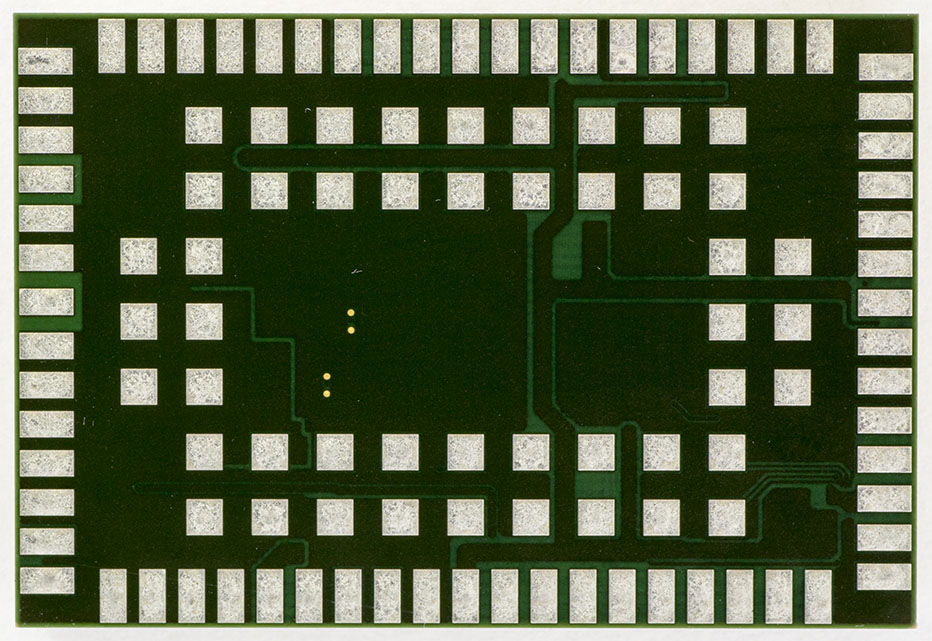

Cinterion ELS31-V External Photos Top Side Bottom Side

ID Label/Location Info

Module Cinterion ELS31‐V Label location ELS31‐V label location lasing on shielding

Internal Photos

Cinterion Module ELS31-V Internal Photos Top Side Bottom Side

RF Exposure Info

FCC Recognized A2LA Accredited IC recognized # 3462E-1 CETECOM Inc. 6370 Nancy Ridge Drive Suite 101  San Diego, CA 92121  U.S.A. Phone: + 1 (858) 362 2400  Fax: + 1 (858) 587 4809  E-mail: [email protected]  http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2905571 V5.0 2015-10-27 © Copyright by CETECOM RF Exposure Evaluation Report FOR: Gemalto M2M GmbH Model Number: ELS31-V Product Description: LTE Module FCC ID: QIPELS31-V IC ID: 7830A-ELS31V FCC CFR 47 Part 1.1310, 2.1091 IC RSS-102, Issue 5 TEST REPORT #: EMC_CETEC-139-15001_FCCICMPE_v1.1 DATE: 12-08-2015 Test Report #: EMC_ CETEC-139-15001_FCCICMPE_v1.1 FCC ID: QIPELS31-V Date of Report : 12-08-2015 ICID: 7830A-ELS31V Page 2 of 10 1 Assessment The following equipment, as detailed in section 3 of this test report, meets the RF exposure limits and/or the conditions for exemption from routine evaluation as defined in the following standards. Standard Version FCC CFR 47 Part 1.1310 Current as of 10-13-2015 FCC CFR 47 Part 2.1091 Current as of 10-13-2015 FCC KDB 447498 v05r02 OET Bulletin 65 Edition 97-01, August 1997 RSS 102 Issue 5 Responsible for Testing Laboratory: 12-08-2015 Compliance Milton Ponce de Leon (Test Lab Manager) Date Section Name Signature Responsible for the Report: 12-08-2015 Compliance Anthony Planinac (EMC Engineer) Date Section Name Signature The test results of this test report relate exclusively to the test item specified in Section 3. CETECOM Inc. USA does not assume responsibility for any conclusions and generalizations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of CETECOM Inc. USA. Test Report #: EMC_ CETEC-139-15001_FCCICMPE_v1.1 FCC ID: QIPELS31-V Date of Report : 12-08-2015 ICID: 7830A-ELS31V Page 3 of 10 2 Administrative Data 2.1 Identification of the Testing Laboratory Issuing the Test Report Company Name CETECOM Inc. Department Compliance Address 6370 Nancy Ridge Drive, Suite 101 San Diego, CA 92121 U.S.A. Telephone +1 (858) 362 2400 Fax +1 (858) 587 4809 Test Lab Manager Milton Ponce de Leon Project Manager Test Engineer Anthony Planinac 2.2 Identification of the Client Applicant’s Name: Gemalto M2M GmbH Street Address: Siemensdamm 50 City/Zip Code Berlin 13629 Country Germany Contact Person: Dr. Joerg Rook Phone No. +49 30 31102 8230 Fax: +49 30 31102 8305 e-mail: [email protected] 2.3 Identification of the Manufacturer Applicant’s Name: Gemalto M2M GmbH Street Address: Siemensdamm 50 City/Zip Code Berlin 13629 Country Thorsten Liebig Contact Person: +49 30 31102 8241 Phone No. +49 30 31102 8305 Fax: Thorsten Liebig e-mail: [email protected] Test Report #: EMC_ CETEC-139-15001_FCCICMPE_v1.1 FCC ID: QIPELS31-V Date of Report : 12-08-2015 ICID: 7830A-ELS31V Page 4 of 10 3 Equipment under Test (EUT) 3.1 Specification of the Equipment under Test Marketing Name: Cinterion® Model Number: ELS31-V FCC-ID : QIPELS31-V IC-ID: 7830A-ELS31V Product Description: CAT 1 LTE Module Operating Frequency Ranges (MHz) / Channels: LTE Band 13 (700MHz): 777 MHz – 787 MHz LTE Band 4 (1700 MHz): 1710 -1755 MHz Rated Max power: LTE Band 13=24dBm. LTE Band4=24dBm Type(s) of Modulation: QPSK and 16 QAM Antenna info (antenna presented for testing with the development board): LTE Band 4 (1700): Antenna gain = 2 dBi LTE Band 13 (700MHz): Antenna gain = -8 dBi Rated Operating Voltage Range: Vmin: 3.3V/ Vnom: 3.8V / Vmax: 4.5V Rated Operating Temperature Range: –10°C ~ +55°C Test Sample Status: Prototype Device Category ☐ Fixed Installation ☒ Mobile ☐ Portable Exposure Category ☐ Occupational/ Controlled ☒ General Population/ Uncontrolled Test Report #: EMC_ CETEC-139-15001_FCCICMPE_v1.1 FCC ID: QIPELS31-V Date of Report : 12-08-2015 ICID: 7830A-ELS31V Page 5 of 10 3.2 Identification of the Equipment Under Test (EUT) EUT # Serial Number Sample HW/SW Version 1 EVR15082100122 Radiated/Conducted 1.0/LR4.3.1.0 3.3 Identification of Accessory Equipment AE # Type Model HW Version SW Version 1 External Antenna OmniLOG 90200 NA NA 700MHz – 2.4GHz 3.4 Miscellaneous Information Test Report #: EMC_ CETEC-139-15001_FCCICMPE_v1.1 FCC ID: QIPELS31-V Date of Report : 12-08-2015 ICID: 7830A-ELS31V Page 6 of 10 4 RF Exposure Evaluation Requirements 4.1 FCC: Calculations can be made to predict RF field strength and power density levels around typical RF sources using the general equations (3) and (4) on page 19 of the following FCC document: “OET Bulletin 65, Edition 97-01 – Evaluating Compliance with FCC Guidelines for Human Exposure to Radio frequency Electromagnetic Fields”. The table below is excerpted from Table 1B of CFR 47 1.1310 titled Limits for Maximum Permissible Exposure (MPE), Limits for General Population/Uncontrolled Exposure: Frequency Range (MHz) Power density (mW/cm 2 ) Averaging time (minutes) 300 – 1500 f (MHz) /1500 30 1500 – 100.000 1.0 30 Using the equation from page 19 of OET Bulletin 65, Edition 97-01: 2 4R PG S   where: S = power density (in appropriate units, e.g. mW/cm 2 ) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) Additionally, according to § 2.1091: The limit for <1.5 GHz mobile operations where no routine evaluation is required is: 1.5W ERP The limit for >1.5 GHz mobile operations where no routine evaluation is required is: 3W ERP Note: 1. This device is to be used only for fixed and mobile applications. 2. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all the persons 4.2 IC: RSS-102 Section 2.5.2 RF exposure evaluation is required if the separation distance bet…

Text truncated - open the document above for the full version.

Test Report

FCC Recognized A2LA Accredited IC recognized # 3462E-1 CETECOM Inc. 6370 Nancy Ridge Drive Suite 101  San Diego, CA 92121  U.S.A. Phone: + 1 (858) 362 2400  Fax: + 1 (858) 587 4809  E-mail: [email protected]  http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2905571 V5.0 2015-10-27 © Copyright by CETECOM FCC Test Report FOR: Gemalto M2M GmbH Model Number: ELS31-V Product Description: LTE Module FCC ID: QIPELS31-V IC ID: 7830A-ELS31V 47 CFR Part 27 for LTE bands RSS-GEN Issue 3, RSS-139 Issue 2, RSS-130 Issue 1 TEST REPORT #: EMC_CETEC_139_15001_FCC27_LTE_V1.0 DATE: 12-03-2015 Test Report #: EMC_CETEC_139_15001_FCC27_LTE_V1.0 FCCID:QIPELS31-V ICID: 7830A-ELS31V Date of Report: 12-03-2015 Page 2 of 212 Table of Contents 1 Assessment ...................................................................................................................................................... 4 2 Administrative Data ......................................................................................................................................... 5 1.1 Identification of the Testing Laboratory Issuing the Test Report ........................................................................... 5 1.2 Identification of the Client ...................................................................................................................................... 5 1.3 Identification of the Manufacturer .......................................................................................................................... 6 3 Equipment under Test (EUT) .......................................................................................................................... 7 1.4 Specification of the Equipment under Test ............................................................................................................. 7 1.5 Identification of the Equipment under Test (EUT) ................................................................................................. 8 1.6 Identification of Accessory equipment ................................................................................................................... 8 1.7 Environmental conditions during Test .................................................................................................................... 8 1.8 Dates of Testing ...................................................................................................................................................... 8 4 Subject of Investigation ................................................................................................................................... 9 5 Summary of Measurement Results ................................................................................................................ 10 5.1 LTE Band 4 (1700 MHz): ..................................................................................................................................... 10 5.2 LTE Band 4 worst case condition for EIRP and PAR .......................................................................................... 10 5.3 LTE Band 13 (700 MHz): ..................................................................................................................................... 11 5.4 LTE Band 13 worst case condition for EIRP and PAR ........................................................................................ 11 6 Measurements ................................................................................................................................................ 12 6.1 Measurement Uncertainty ..................................................................................................................................... 12 6.2 RF Power Output .................................................................................................................................................. 13 6.2.1 References ..................................................................................................................................................... 13 6.2.2 Measurement Requirements: ......................................................................................................................... 13 6.2.3 Limits: ........................................................................................................................................................... 13 6.2.4 Measurement Procedure: .............................................................................................................................. 14 6.2.5 Test Results ................................................................................................................................................... 15 6.2.1 Test Verdict ................................................................................................................................................. 106 6.3 PEAK-AVERAGE Ratio .................................................................................................................................... 107 6.3.1 References ................................................................................................................................................... 107 6.3.2 Limits: ......................................................................................................................................................... 107 6.3.3 Results: ........................................................................................................................................................ 107 6.3.4 Verdict:........................................................................................................................................................ 107 6.4 Occupied Bandwidth ........................................................................................................................................... 108 6.4.1 References .....…

Text truncated - open the document above for the full version.

Test Setup Photos

FCC Recognized A2LA Accredited IC recognized # 3462E-1 CETECOM Inc. 6370 Nancy Ridge Drive Suite 101  San Diego, CA 92121  U.S.A. Phone: + 1 (858) 362 2400  Fax: + 1 (858) 587 4809  E-mail: [email protected]  http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2905571 V5.0 2015-10-27 © Copyright by CETECOM EMC_CETEC-0139-15001_TEST_PHOTOS FOR: Gemalto M2M GmbH Model Number: ELS31-V Product Description: LTE Module FCC ID: QIPELS31-V IC ID: 7830A-ELS31-V Test Report #: EMC_CETEC_139_15001_TEST_SETUO_PHOTOS FCCID:QIPELS31-V ICID: 7830A-ELS31-V Date of Report: 11-25-2015 Page 2 of 9 1 Setup Photos 1.1 Unit detail (1) Test Report #: EMC_CETEC_139_15001_TEST_SETUO_PHOTOS FCCID:QIPELS31-V ICID: 7830A-ELS31-V Date of Report: 11-25-2015 Page 3 of 9 1.2 Unit Detail (2) Test Report #: EMC_CETEC_139_15001_TEST_SETUO_PHOTOS FCCID:QIPELS31-V ICID: 7830A-ELS31-V Date of Report: 11-25-2015 Page 4 of 9 1.3 Unit Radiated test setup 9kHz-30MHz Test Report #: EMC_CETEC_139_15001_TEST_SETUO_PHOTOS FCCID:QIPELS31-V ICID: 7830A-ELS31-V Date of Report: 11-25-2015 Page 5 of 9 1.4 Unit Radiated test setup 30MHz-1GHz Test Report #: EMC_CETEC_139_15001_TEST_SETUO_PHOTOS FCCID:QIPELS31-V ICID: 7830A-ELS31-V Date of Report: 11-25-2015 Page 6 of 9 1.5 Unit Radiated test setup 1GHz-3GHz Test Report #: EMC_CETEC_139_15001_TEST_SETUO_PHOTOS FCCID:QIPELS31-V ICID: 7830A-ELS31-V Date of Report: 11-25-2015 Page 7 of 9 1.6 Unit Radiated test setup 3GHz-18GHz Test Report #: EMC_CETEC_139_15001_TEST_SETUO_PHOTOS FCCID:QIPELS31-V ICID: 7830A-ELS31-V Date of Report: 11-25-2015 Page 8 of 9 1.7 Conducted Setup Test Report #: EMC_CETEC_139_15001_TEST_SETUO_PHOTOS FCCID:QIPELS31-V ICID: 7830A-ELS31-V Date of Report: 11-25-2015 Page 9 of 9 1.8 Conducted Emissions

Contact Information

Applicant

Paolo Schiratti(VP Global Certification)
[email protected]00390404192285Fax: 00390404192285

Test Firm

CETECOM Inc.Sabrina Sarne
[email protected]408-586-6249Fax: 408 586 6299

Technical Specifications

#Rule PartsFrequency RangePower OutputEmissionTolerance
427779.5 MHz - 784.5 MHz131.00 mW4M59W7D0.23 ppm
Modular Type
Single Modular Approval
Confidentiality
Long Term
Grant Notes
Output power listed is conducted. This device supports LTE band 13 with bandwidths of 5/10 MHz for QPSK and 5 MHz for 16QAM; and LTE band 4 with bandwidths 5/10/15/20 MHz for QPSK and 5 MHz for 16QAM. Approval is limited to OEM installation only. RF exposure compliance is addressed for 1.1310 and 2.1091 MPE limits. The antenna(s) used for this transmitter must not transmit simultaneously with any other antenna or transmitter, except in accordance with FCC multi-transmitter product procedures. Under no conditions may an antenna gain be used that would exceed the EIRP power limits as specified in Part 27. The final product operating with this transmitter must include operating instructions and antenna installation instructions, for end-users and installers to satisfy RF exposure compliance requirements. OEM integrators must insure that the end user has no manual instructions to remove or install this module. The Grantee is responsible for providing the documentation required for modular use.
