  1. Home/
  2. Telit Cinterion Deutschland GmbH/
  3. QIPPCS3

QIPPCS3CDMA 1XRTT MODULE

Telit Cinterion Deutschland GmbH
CDMA 1XRTT MODULE - FCC ID QIPPCS3 - Telit Cinterion Deutschland GmbH
Click to zoom

Application Details

Equipment Class
PCB - PCS Licensed Transmitter
Date of Grant
Nov 07, 2013
Application Purpose
Original Equipment
Date of Application
Nov 04, 2013
Equipment Note
CDMA 1XRTT MODULE
Frequency Range
817.90000000 - 823.10000000
Company
Telit Cinterion Deutschland GmbH
Country
Germany

Documents & Files

Select a file to view

Users Manual

β†—

Cover Letter(s)

β†—
β†—
β†—
β†—

External Photos

β†—

ID Label/Location Info

β†—

Internal Photos

β†—

RF Exposure Info

β†—

Test Report

β†—
β†—

Test Setup Photos

β†—
β†—

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Hardwa r e Interface Description ο€  PCS3 Version: 01.000-03 Document: PCS3_HD_v01.000-03 PCS3_HD_v01.000-03 Confidential / Preliminary Page 2 of 101 2013-10-21 PCS3 Hardware Interface Description ο€  Document Name: PCS3 Hardware Interface Description Version: 01.000-03 Date: 2013-10-21 Document: PCS3_HD_v01.000-03 Status Confidential / Preliminary GENERAL NOTE THE USE OF THE PRODUCT INCLUDING THE SOFTWARE AND DOCUMENTATION (THE "PROD- UCT") IS SUBJECT TO THE RELEASE NOTE PROVIDED TOGETHER WITH PRODUCT. IN ANY EVENT THE PROVISIONS OF THE RELEASE NOTE SHALL PREVAIL. THIS DOCUMENT CON- TAINS INFORMATION ON CINTERION PRODUCTS. THE SPECIFICATIONS IN THIS DOCUMENT ARE SUBJECT TO CHANGE AT CINTERION'S DISCRETION. CINTERION WIRELESS MODULES GMBH GRANTS A NON-EXCLUSIVE RIGHT TO USE THE PRODUCT. THE RECIPIENT SHALL NOT TRANSFER, COPY, MODIFY, TRANSLATE, REVERSE ENGINEER, CREATE DERIVATIVE WORKS; DISASSEMBLE OR DECOMPILE THE PRODUCT OR OTHERWISE USE THE PRODUCT EXCEPT AS SPECIFICALLY AUTHORIZED. THE PRODUCT AND THIS DOCUMENT ARE PROVIDED ON AN "AS IS" BASIS ONLY AND MAY CONTAIN DEFICIENCIES OR INADEQUACIES. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, CINTERION WIRELESS MODULES GMBH DIS- CLAIMS ALL WARRANTIES AND LIABILITIES. THE RECIPIENT UNDERTAKES FOR AN UNLIMITED PERIOD OF TIME TO OBSERVE SECRECY REGARDING ANY INFORMATION AND DATA PRO- VIDED TO HIM IN THE CONTEXT OF THE DELIVERY OF THE PRODUCT. THIS GENERAL NOTE SHALL BE GOVERNED AND CONSTRUED ACCORDING TO GERMAN LAW. Copyright Transmittal, reproduction, dissemination and/or editing of this document as well as utilization of its con- tents and communication thereof to others without express authorization are prohibited. Offenders will be held liable for payment of damages. All rights created by patent grant or registration of a utility model or design patent are reserved. Copyright Β© 2013, Cinterion Wireless Modules GmbH Trademark Notice Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. CDMA2000 is a registered certification mark of the Telecommuni- cations Industry Association. All other registered trademarks or trademarks mentioned in this document are property of their respective owners. PCS3_HD_v01.000-03 Confidential / Preliminary Page 3 of 101 2013-10-21 PCS3 Hardware Interface Description Contents ο€  Contents 0 Document History ....................................................................................................... 8 1 Introduction .............................................................................................................. 10 1.1 Related Documents ......................................................................................... 10 1.2 Terms and Abbreviations ................................................................................. 10 1.3 Regulatory and Type Approval Information ..................................................... 13 1.3.1 Directives and Standards ................................................................... 13 1.3.2 SAR requirements specific to portable mobiles .................................. 15 1.3.3 SELV Requirements ........................................................................... 16 1.3.4 Safety Precautions ............................................................................. 16 2 Product Concept ....................................................................................................... 18 2.1 Key Features at a Glance ................................................................................ 18 2.2 PCS3 System Overview .................................................................................. 20 2.3 Circuit Concept ................................................................................................ 21 3 Application Interface ................................................................................................ 22 3.1 Operating Modes ............................................................................................. 23 3.2 Power Supply .................................................................................................. 24 3.2.1 Monitoring Power Supply by AT Command ........................................ 25 3.3 Power-Up / Power-Down Scenarios ................................................................ 26 3.3.1 Turn on PCS3 ..................................................................................... 26 3.3.2 Signal States after Startup .................................................................. 27 3.3.3 Turn off PCS3 Using AT Command .................................................... 28 3.3.4 Configuring the IGT Line for Use as ON/OFF Switch ......................... 29 3.3.5 Automatic Shutdown ........................................................................... 30 3.3.5.1 Thermal Shutdown .............................................................. 31 3.3.5.2 Undervoltage Shutdown ...................................................... 32 3.3.5.3 Overvoltage Shutdown ........................................................ 32 3.3.6 Automatic Reset ................................................................................. 32 3.3.7 Turn off PCS3 in Case of Emergency..........................................33 3.4 Power Saving .................................................................................................. 34 3.4.1 Power Saving while Attached to CDMA Networks .............................. 34 3.4.2 Timing of the CTS0 Signal, CDMA ..................................................... 34 3.4.3 Wake up from or Disabling Power Saving .......................................... 35 3.5 RTC Backup .................................................................................................... 36 3.6 USB Interface .................................................................................................. 37 3.6.1 Reducing Power…

Text truncated - open the document above for the full version.

Cover Letter(s)

Gemalto M2M GmbH Siemensdamm 50, Berlin 13629, Germany Tel: 004930311028241 ; Fax: 004930311028305 Date: November 1, 2013 Module Approval Checklist FCC ID: QIPPCS3 Item Requirements EUT 1. The modular transmitter must have its own RF shielding. The module is equipped with its own shielding case. 2. The modular transmitter must have buffered modulation / data inputs. The module has buffer modulation / data inputs. 3. The modular transmitter must have its own power supply regulation. The module has its own power supply regulation. 4. The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marketed and operated only with specific antenna(s), Not applicable to licensed modules. 5. The modular transmitter must be tested in a stand-alone configuration. The module was tested on evaluation board, and it’s not inside of another device during testing 6. The modular transmitter must be labeled with its own FCC ID number. The module transmitter will be labeled with its own FCC ID, and for OEM integration the integration manual contains labeling instructions for the host device per Part 15.212 (vi) 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. The module approved transmitter complies with all applicable rules and the integration manual contains any specific requirements addressed to the integrator and/or to the end-user of the final end-product. 8. The modular transmitter must comply with any applicable RF exposure requirement. Compliance with RF exposure requirement is address in RF exposure report.

External Photos

Photographs of EUT Report No.: EP382628 Brand Name: Cinterion / Model Name: PCS3 SPORTON INTERNATIONAL INC. Page Number : 1 of 5 TEL : 886-3-327-3456 Report Issued Date : Nov. 01, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : QIPPCS3 IC : 7830A-PCS3 1. External Photograph of EUT Photographs of EUT Report No.: EP382628 Brand Name: Cinterion / Model Name: PCS3 SPORTON INTERNATIONAL INC. Page Number : 2 of 5 TEL : 886-3-327-3456 Report Issued Date : Nov. 01, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : QIPPCS3 IC : 7830A-PCS3 Photographs of EUT Report No.: EP382628 Brand Name: Cinterion / Model Name: PCS3 SPORTON INTERNATIONAL INC. Page Number : 3 of 5 TEL : 886-3-327-3456 Report Issued Date : Nov. 01, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : QIPPCS3 IC : 7830A-PCS3 720510

ID Label/Location Info

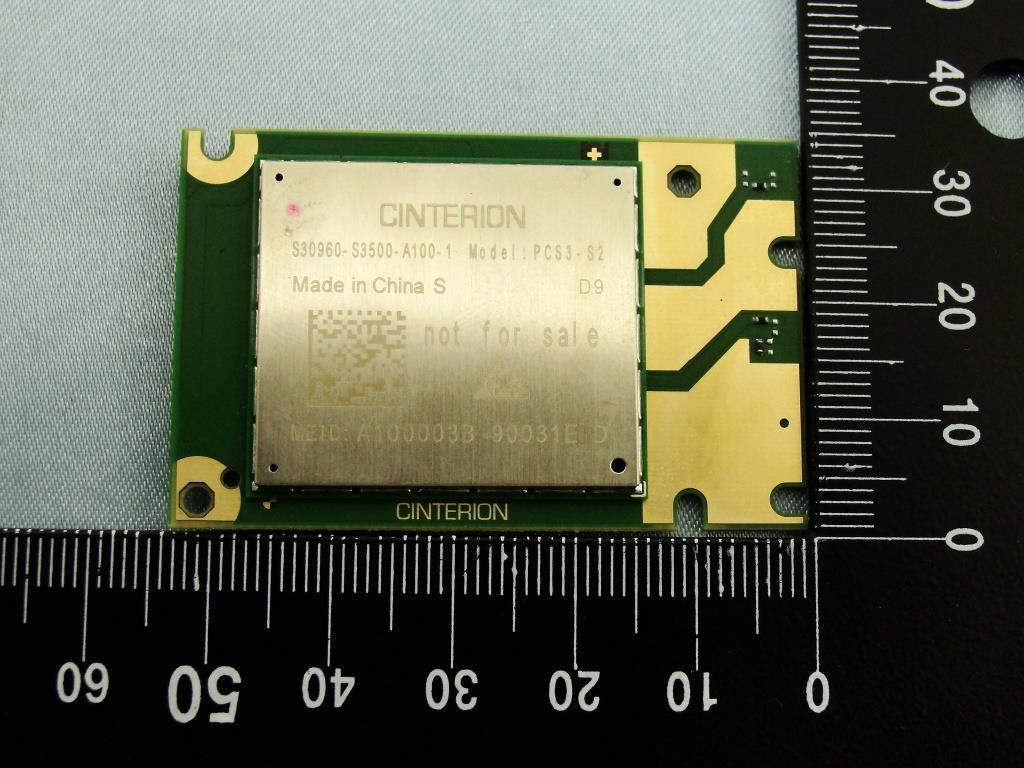

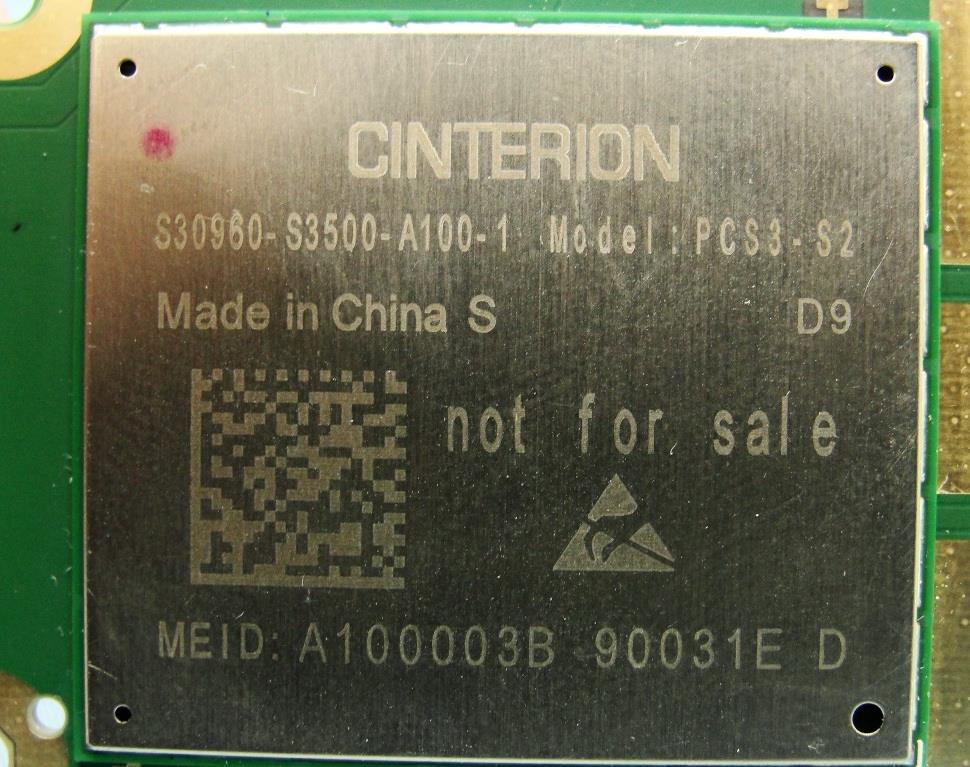

Frontof the EUT Shield Model: PCS3

Internal Photos

Photographs of EUT Report No.: EP382628 Brand Name: Cinterion / Model Name: PCS3 SPORTON INTERNATIONAL INC. Page Number : 4 of 5 TEL : 886-3-327-3456 Report Issued Date : Nov. 01, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : QIPPCS3 IC : 7830A-PCS3 2. Internal Photograph of EUT Photographs of EUT Report No.: EP382628 Brand Name: Cinterion / Model Name: PCS3 SPORTON INTERNATIONAL INC. Page Number : 5 of 5 TEL : 886-3-327-3456 Report Issued Date : Nov. 01, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : QIPPCS3 IC : 7830A-PCS3 720510

RF Exposure Info

SPORTON INTERNATIONAL INC. Page Number : 1 of 8 TEL : 886-3-327-3456 Report Issued Date : Nov. 01, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : QIPPCS3 RF Exposure Evaluation Report Report No. : FA382628 RF Exposure Evaluation Report APPLICANT : Gemalto M2M GMbH EQUIPMENT : CDMA 1XRTT Module BRAND NAME : Cinterion MODEL NAME : PCS3 FCC ID : QIPPCS3 STANDARD : 47 CFR Part 2.1091 We, SPORTON INTERNATIONAL INC., would like to declare that the device has been evaluated in accordance with 47 CFR Part 2.1091, and pass the limit. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. Approved by: Jones Tsai / Manager Reviewed by: Eric Huang / Deputy Manager SPORTON INTERNATIONAL INC. Page Number : 2 of 8 TEL : 886-3-327-3456 Report Issued Date : Nov. 01, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : QIPPCS3 RF Exposure Evaluation Report Report No. : FA382628 Table of Contents 1. ADMINISTRATION DATA ........................................................................................................................... 4 1.1. Testing Laboratory ............................................................................................................................. 4 1.2. Applicant ............................................................................................................................................ 4 1.3. Manufacturer ...................................................................................................................................... 4 2. DESCRIPTION OF EQUIPMENT UNDER TEST (EUT) ............................................................................. 5 3. MAXIMUM RF AVERAGE OUTPUT POWER AMONG PRODUCTION UNITS ........................................ 5 4. RF EXPOSURE LIMIT INTRODUCTION .................................................................................................... 6 5. RADIO FREQUENCY RADIATION EXPOSURE EVALUATION ............................................................... 7 5.1. Standalone Power Density Calculations............................................................................................ 7 5.2. Collocated Power Density Calculations ............................................................................................. 7 SPORTON INTERNATIONAL INC. Page Number : 3 of 8 TEL : 886-3-327-3456 Report Issued Date : Nov. 01, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : QIPPCS3 RF Exposure Evaluation Report Report No. : FA382628 Revision History REPORT NO. VERSION DESCRIPTION ISSUED DATE FA382628 Rev. 01 Initial issue of report Nov. 01, 2013 SPORTON INTERNATIONAL INC. Page Number : 4 of 8 TEL : 886-3-327-3456 Report Issued Date : Nov. 01, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : QIPPCS3 RF Exposure Evaluation Report Report No. : FA382628 1. Administration Data 1.1. Testing Laboratory Test Site SPORTON INTERNATIONAL INC. Test Site Location No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. TEL: +886-3-327-3456 FAX: +886-3-328-4978 1.2. Applicant Company Name Gemalto M2M GMbH Address Siemensdamm 50 Berlin 13629 Germany 1.3. Manufacturer Company Name HON HAI PRECISION IND. CO., LTD Address 5F-1,5 Hsin-An road, Hsinchu, Science-Bases Industrial Park 300, Taiwan, R.O.C SPORTON INTERNATIONAL INC. Page Number : 5 of 8 TEL : 886-3-327-3456 Report Issued Date : Nov. 01, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : QIPPCS3 RF Exposure Evaluation Report Report No. : FA382628 2. Description of Equipment Under Test (EUT) Product Feature & Specification EUT Type CDMA 1XRTT Module Brand Name Cinterion Model Name PCS3 FCC ID QIPPCS3 IMEI Code A100003B90013D1 Wireless Technology and Frequency Range CDMA2000 BC0: 824.7 MHz ~ 848.31 MHz CDMA 2000 BC10: 817.9 MHz ~ 823.1 MHz CDMA 2000 BC1: 1851.25 MHz ~ 1908.75 MHz Mode β€’CDMA2000 : 1xRTT Antenna Type Dipole Antenna HW Version S2 SW Version Revision 00.400.04 EUT Stage Production Unit Remark: The above EUT's information was declared by manufacturer. Please refer to the specifications or user's manual for more detailed description. 3. Maximum RF average output power among production units Band CDMA BC0 CDMA BC1 CDMA BC10 average power(dBm) 1xRTT RC1 SO55 25 25 25 1xRTT RC3 SO55 25 25 25 1xRTT RC3 SO32 25 25 25 SPORTON INTERNATIONAL INC. Page Number : 6 of 8 TEL : 886-3-327-3456 Report Issued Date : Nov. 01, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : QIPPCS3 RF Exposure Evaluation Report Report No. : FA382628 4. RF Exposure Limit Introduction According to ANSI/IEEE C95.1-1992, the criteria listed in Table 1 shall be used to evaluate the environmental impact of human exposure to radio frequency (RF) radiation as specified in Β§1.1310. The MPE was calculated at 20 cm to show compliance with the power density limit. The following formula was used to calculate the Power Density: 퐒= 퐏퐆 νŸ’ν›‘ν‘ ퟐ Where: S = Power Density P = Output Power at Antenna Terminals G = Gain of Transmit Antenna (linear gain) R = Distance from Transmitting Antenna SPORTON INTERNATIONAL INC. Page Number : 7 of 8 TEL : 886-3-327-3456 Report Issued Date : Nov. 01, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : QIPPCS3 RF Exposure Evaluation Report Report No. : FA382628 5. Radio Frequency Radiation Exposure Evaluation 5.1. Standalone Power Density Calculations Band Frequency (MHz) Antenna Gain (dBi) Maximum Power (dBm) Maximum ERP/EIRP (W) Maximum ERP/EIRP Limit (W) Average EIRP (mW) Power Density at 20cm (mW/cm2) Limit (mW/cm2) CDMA2000 BC10 817.9 9.0 25.0 1.53 7.0 2511.89 0.50 0.55 CDMA2000 BC0 824.7 9.0 25.0 1.53 7.0 2511.89 0.50 0.55 CDMA2000 BC1 1851.3 7.5 25.0 1.78 2.0 1778.28 0.35 1.00 Note: For conservativeness, the lowest uplink frequency of each band is used to determine the MPE…

Text truncated - open the document above for the full version.

Test Report

SPORTON INTERNATIOINAL INC. Page Number : 1 of 50 TEL : 886-3-327-3456 Report Issued Date : Nov. 01, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : QIPPCS3 IC : 7830A-PCS3 FCC/IC RF Test Report Report No. : FG382628 FCC/IC RF Test Report APPLICANT : Gemalto M2M GMbH EQUIPMENT : CDMA 1XRTT Module BRAND NAME : Cinterion MODEL NAME : PCS3 FCC ID : QIPPCS3 IC : 7830A-PCS3 STANDARD : FCC 47 CFR Part 2, 22(H), 24(E) IC RSS-132 issue 3 and RSS-133 issue 6 CLASSIFICATION : PCS Licensed Transmitter (PCB) The product was received on Aug. 26, 2013 and testing was completed on Sep. 10, 2013. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI / TIA / EIA-603-C-2004 and shown to be compliant with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Joseph Lin / Supervisor Approved by: Jones Tsai / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIOINAL INC. Page Number : 2 of 50 TEL : 886-3-327-3456 Report Issued Date : Nov. 01, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : QIPPCS3 IC : 7830A-PCS3 FCC/IC RF Test Report Report No. : FG382628 TABLE OF CONTENTS REVISION HISTORY .......................................................................................................................................... 3 SUMMARY OF TEST RESULT ......................................................................................................................... 4 1 GENERAL DESCRIPTION .......................................................................................................................... 5 1.1 Applicant ............................................................................................................................................ 5 1.2 Manufacturer ..................................................................................................................................... 5 1.3 Feature of Equipment Under Test ..................................................................................................... 5 1.4 Product Specification of Equipment Under Test ............................................................................... 5 1.5 Modification of EUT ........................................................................................................................... 5 1.6 Maximum Frequency Tolerance, and Emission Designator ............................................................. 6 1.7 Testing Site........................................................................................................................................ 6 1.8 Applied Standards ............................................................................................................................. 7 2 TEST CONFIGURATION OF EQUIPMENT UNDER TEST ........................................................................ 8 2.1 Test Mode.......................................................................................................................................... 8 2.2 Connection Diagram of Test System ................................................................................................ 9 2.3 Support Unit used in test configuration and system .......................................................................... 9 2.4 Measurement Results Explanation Example .................................................................................. 10 3 TEST RESULT ........................................................................................................................................... 11 3.1 Conducted Output Power ................................................................................................................ 11 3.2 Peak-to-Average Ratio .................................................................................................................... 13 3.3 99% Occupied Bandwidth and 26dB Bandwidth Measurement...................................................... 19 3.4 Band Edge Measurement ................................................................................................................ 27 3.5 Conducted Spurious Emission Measurement ................................................................................. 33 3.6 Field Strength of Spurious Radiation Measurement ....................................................................... 39 3.7 Frequency Stability Measurement ................................................................................................... 45 4 LIST OF MEASURING EQUIPMENT ........................................................................................................ 49 5 UNCERTAINTY OF EVALUATION ........................................................................................................... 50 APPENDIX A. SETUP PHOTOGRAPHS SPORTON INTERNATIOINAL INC. Page Number : 3 of 50 TEL : 886-3-327-3456 Report Issued Date : Nov. 01, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : QIPPCS3 IC : 7830A-PCS3 FCC/IC RF Test Report Report No. : FG382628 REVISION HISTORY REPORT NO. VERSION DESCRIPTION ISSUED DATE FG382628 Rev. 01 Initial issue of report Nov. 01, 2013 SPORTON INTERNATIOINAL INC. Page Number : 4 of 50 TEL : 886-3-327-3456 Report Issued Date : Nov. 01, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : QIPPCS3 IC : 7830A-PCS3 FCC/IC RF Test Report Report No. : FG382628 SUMMARY OF TEST RESULT Report Section FCC Rule IC Rule Description Limit Result Remark 3.1 Β§2.1046 RSS-132 (5.4) RSS-133 (6.4) Conducted Output Power N/A PASS - 3.2 Β§24.232(d) RSS-132 (5.4) RSS-133(6.4) Peak-to-Average Ratio < 13 dB PASS - 3.3 Β§2.1049 Β§22.917(a) Β§24.23…

Text truncated - open the document above for the full version.

Test Report

SPORTON INTERNATIOINAL INC. Page Number : 1 of 27 TEL : 886-3-327-3456 Report Issued Date : Nov. 01, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : QIPPCS3 FCC RF Test Report Report No. : FW382628 FCC RF Test Report APPLICANT : Gemalto M2M GMbH EQUIPMENT : CDMA 1XRTT Module BRAND NAME Cinterion MODEL NAME : PCS3 FCC ID : QIPPCS3 STANDARD : FCC 47 CFR Part 2, and 90(S) CLASSIFICATION : PCS Licensed Transmitter (PCB) Tx/Rx FREQUENCY RANGE : CDMA2000 BC10 : 817.9 MHz ~ 823.1 MHz / 862.9 MHz ~ 868.1 MHz The product was received on Aug. 26, 2013 and testing was completed on Sep. 10, 2013. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI / TIA / EIA-603-C-2004 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Joseph Lin / Supervisor Approved by: Jones Tsai / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIOINAL INC. Page Number : 2 of 27 TEL : 886-3-327-3456 Report Issued Date : Nov. 01, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : QIPPCS3 FCC RF Test Report Report No. : FW382628 TABLE OF CONTENTS REVISION HISTORY .......................................................................................................................................... 3 SUMMARY OF TEST RESULT ......................................................................................................................... 4 1 GENERAL DESCRIPTION .......................................................................................................................... 5 1.1 Applicant ............................................................................................................................................ 5 1.2 Manufacturer ..................................................................................................................................... 5 1.3 Feature of Equipment Under Test ..................................................................................................... 5 1.4 Product Specification of Equipment Under Test ............................................................................... 5 1.5 Modification of EUT ........................................................................................................................... 5 1.6 Testing Site........................................................................................................................................ 6 1.7 Applied Standards ............................................................................................................................. 6 2 TEST CONFIGURATION OF EQUIPMENT UNDER TEST ........................................................................ 7 2.1 Test Mode.......................................................................................................................................... 7 2.2 Connection Diagram of Test System ................................................................................................ 8 2.3 Support Unit used in test configuration and system .......................................................................... 8 3 TEST RESULT ............................................................................................................................................. 9 3.1 Conducted Output Power Measurement ........................................................................................... 9 3.2 Bandwidth Limitations Measurement .............................................................................................. 11 3.3 Emissions Mask Measurement ....................................................................................................... 13 3.4 Emissions Mask – Out Of Band Emissions Measurement .............................................................. 16 3.5 Field Strength of Spurious Radiation Measurement ....................................................................... 19 3.6 Frequency Stability Measurement ................................................................................................... 23 4 LIST OF MEASURING EQUIPMENT ........................................................................................................ 26 5 UNCERTAINTY OF EVALUATION ........................................................................................................... 27 APPENDIX A. SETUP PHOTOGRAPHS SPORTON INTERNATIOINAL INC. Page Number : 3 of 27 TEL : 886-3-327-3456 Report Issued Date : Nov. 01, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : QIPPCS3 FCC RF Test Report Report No. : FW382628 REVISION HISTORY REPORT NO. VERSION DESCRIPTION ISSUED DATE FW382628 Rev. 01 Initial issue of report Nov. 01, 2013 SPORTON INTERNATIOINAL INC. Page Number : 4 of 27 TEL : 886-3-327-3456 Report Issued Date : Nov. 01, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : QIPPCS3 FCC RF Test Report Report No. : FW382628 SUMMARY OF TEST RESULT Report Section FCC Rule Description Limit Result Remark 3.1 Β§2.1046 Conducted Output Power N/A , Reporting only PASS - 3.2 Β§2.1049 Β§90.209 Bandwidth limitations N/A, Reporting only PASS - 3.3 Β§2.1051 Β§90.691 Emission masks – In-band emissions < 50+10log 10 (P[Watts]) PASS - 3.4 Β§2.1051 Β§90.691 Emission masks – Out of band emissions < 43+10log 10 (P[Watts]) PASS - 3.5 Β§2.1053 Β§90.691 Field Strength of Spurious Radiation < 43+10log 10 (P[Watts]) PASS Under limit 38.45 dB at 3282.000 MHz 3.6 Β§2.1055 Β§90.213 Frequency Stability for Temperature & Voltage < 2.5 ppm PASS - SPORTON INTERNATIOINAL INC. Page Number : 5 of 27 TEL : 886-3-327-3456 Report Issued Date : Nov. 01, 2013 FAX : 886-3-328-4978 R…

Text truncated - open the document above for the full version.

Test Setup Photos

SPORTON INTERNATIONAL INC. Page Number : A1 of A1 TEL : 886-3-327-3456 Report Issued Date : Nov. 01, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : QIPPCS3 IC : 7830A-PCS3 FCC/IC RF Test Report Report No. : FG382628 Appendix A. Setup Photographs <Radiated Emission> LF HF

Test Setup Photos

SPORTON INTERNATIONAL INC. Page Number : A1 of A1 TEL : 886-3-327-3456 Report Issued Date : Nov. 01, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : QIPPCS3 FCC RF Test Report Report No. : FW382628 Appendix A. Setup Photographs <Radiated Emission> LF HF

Contact Information

Applicant

Paolo Schiratti(VP Global Certification)
[email protected]00390404192285Fax: 00390404192285

Test Firm

Sporton International Inc.Alex Chen
[email protected]886-3-327-3456Fax: 886-3-327-0973

Technical Specifications

#Rule PartsFrequency RangePower OutputEmissionTolerance
39817.9 MHz - 823.1 MHz281.20 mW1M28F9W0.0219 ppm
Modular Type
Single Modular Approval
Confidentiality
Long Term
Grant Notes
Single Modular Approval. Power listed is conducted. Approval is limited to OEM installation only. Compliance of this device in all final host configurations is the responsibility of the Grantee. This device is to be used only for mobile and fixed applications. The antenna(s) used for this transmitter must beSingle Modular Approval. Power listed is conducted. Approval is limited to OEM installation only. Compliance of this device in all final host configurations is the responsibility of the Grantee. This device is to be used only for mobile and fixed applications. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20cm from all persons and must not transmit simultaneously with any other antenna or transmitter, except in accordance with FCC multi-transmitter product procedures. The antenna installation and operating configurations of this transmitter, including antenna gain and cable loss must satisfy MPE categorical Exclusion Requirements of &sect;2.1091. For mobile and fixed operation configurations the antenna gain, including cable loss, must not exceed the limits 9.0 dBi (BC0), 9.0 dBi (BC10) and 7.5 dBi (BC1). OEM integrators must be provided with antenna installation instructions and labeling requirements for finished products. OEM integrators and end-Users must be provided with transmitter operation conditions for satisfying RF exposure compliance. This grant is valid only when the device is sold to OEM integrators and the OEM integrators are instructed to ensure that the end user has no manual instructions to remove or install the device. Separate approval is required for all other operating configurations, including portable configurations with respect to 2.1093 and different antenna configurations.
