Technical Specifications
| # | Rule Parts | Frequency Range | Power Output | Emission | Tolerance |
|---|
| 6 | 24E | 1.85 GHz - 1.91 GHz | 250.00 mW | 4M07F9W | 16
Hz |
Modular TypeSingle Modular ApprovalConfidentialityLong Term Grant NotesPower out is conducted at the antenna terminal. ERP for part 22 is 35.08 dBm and
EIRP for part 24 is 32.10 dBm. This device is to be used only for mobile and fixed

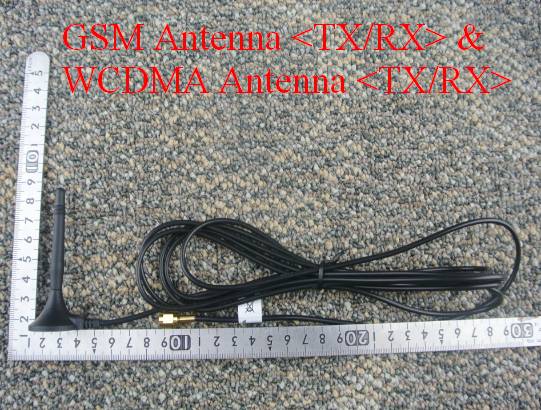

application. The antenna(s) used for this transmitter must be installed to provide a
separation distance of at least 20 cm from all persons and must not be co-located or
operating in conjunction with any other antenna or transmitter. End-Users must be
provided with transmitter operation conditions for satisfying RF exposure
compliance. OEM integrators must insure that the end user has no manual
instructions to remove or install the PDS6 module. For mobile and fixed operating
configurations the antenna gain, including cable loss, must not exceed 2.15 dBi at
1900 MHz and 2.15 dBi at 850 MHz as defined in 2.1091 for satisfying RF exposure
compliance. Under no condition may an antenna gain be used that would exceed
the 7W erp Part 22 and the 2W eirp Part 24 power limits. The Grantee is responsible
for providing the documentation required for modular use. The responsibility for the
use of this module, in all configurations utilized or contemplated, remains with the
Grantee.
