Cinterion Wireless Modules GmbH· Siemensdamm 50 • 13629 Berlin • Germany Name Thorsten Liebig Federal Communication Commission Department Manager Approval Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Phone +493031102-8241 Fax +493031102-8305 Columbia, MD 21048 E-Mail [email protected] Your letter of Our reference Date 30 November 2010 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission's Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, Cinterion requests confidentiality for the following products: FCC 10 Number Product Title/Model QIPPH8 Cinterion Wireless Module PH8 For the product stated above, we request that the following information be held confidential: 1. Circuit diagrams, BOM, and PCBs submitted as Equipment Authorization Electronic Filing attachment: "schematics". 2. Block diagram submitted as Equipment Authorization Electronic Filing attachment: "blockdiagram" . 3. Operational description submitted as Equipment Authorization Electronic Filing attachment: "operational description" (highly technical / not addressed to the public) 4. Integration Manual submitted as Authorization Electronic Filing attachment: "Integration Manual" (highly technical / not addressed to the public) 5. Tune Up Information submitted as Equipment Authorization Electronic Filing attachment: "Tune Up Info" The above exhibits contain Cinterion trade secrets and proprietary informati'on that could be of benefit to our competitors regarding the design of our mobile handset. This material is not customarily available to the general publk and we request that it be withheld from public inspection. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Thorsten Liebig Approval Manager Registered office: Managing directors: Commercial register, Reg . no.: Cinterion Wireless Modules GmbH Norbert Muhrer, BriUa Hubner Amtsgericht München, HRB 172715 St.·Marti n-Straße 53 WEEE·Reg.-Nr. OE 58893809 81669 München Germany
Commercial power of attorney This letter is a commercial power of attorney for PH8, FCC-ID: QIPPH8 Commercial power of attorney for the licencejregistration of PH8, FCC-ID: QIPPH8 in several countries. The company 7 layers AG, 40880 Ratingen, Germany, contact person Sven Lüngen has been contracted by Cinterion Wireless Modules GmbH to obtain approvals for the following electronic components, manufactured andjor released by Cinterion: Commercial name: Cinterion Wireless Module PH8 Product name: PH8 Engineering name: This is a GSM/UMTS/HSPA Module Unless future correspondence from Cinterion directs otherwise, please extend your full cooperation to 7 layers AG, contact person Sven Lüngen regarding matters to the above mentioned products for the period beginning November 30, 2010 and end December 31, 2010. Do not hesitate to contact me if you have any additional questions. Berlin November 30, 2010 Point of contact : Thorsten Liebig Company: Cinterion Wireless Modules GmbH Siemensdamm 50 13629 Berlin Germany Signed, Uwe Dummann Head of Research&Innovation Signed,

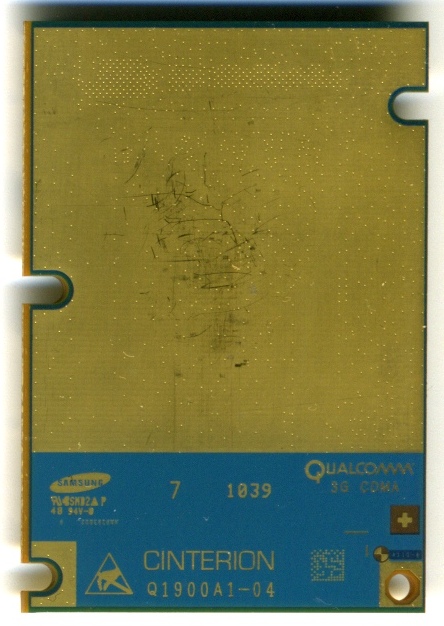

Cinterion Wireless Module PH8 PH8 Top side PH8 Bottom Side
Cinterion Wireless Module PH8 Label PH8 Label PH8 Label location
Cinterion Wireless Module PH8 PH8 Top side PH8 Bottom Side
7 layers AG Aufsichtsratsvorsitzenderh Registergerichth registered in: Borsigstrasse 11 Chairman of the Supervisory Board: Düsseldorf, HRB 44096 40880 Ratingen, Germany Markus Becker USt-IdNr h VAT No.: Phone: +49 (0) 2102 749 0 Vorstandh Board: DE 203159652 Fax: +49 (0) 2102 749 350 Dr. Hans Jürgen Meckelburg TAX No. 147/5869/0385 www.7Layers.com Wilfried Klassmann Mr. René Houx 2010-12-16 Phone +49 (0) 2102 749 318 Fax +49 (0) 2102 749 350 e-Mail : René[email protected] Maximum Permissible Exposure for product: Cinterion Wireless Module PH8 Dear Mr. Liebig, please find enclosed your Maximum Permissible Exposure calculations for the Cinterion Wireless Module PH8. Best Regards René Houx (Project Manager) Cinterion Wireless Modules GmbH Mr. Thorsten Liebig Siemensdamm 50 13629 Berlin Germany MDE_CINTE_0902 - 2 - Maximum Permissible Exposure (as specified in Table 1B of 47 CFR 1.1310 – Limits for Maximum Permissible Exposure (MPE), Limits for General Population/Uncontrolled Exposure) Frequency range (MHz)Power density (mW/cm²) 300 – 1500 f/1500 1,500 – 100000 1.0 (as specified in Table 2 in EN 1999/519-EC) Frequency range (MHz)Power density (mW/cm²) 400 – 2000 f/2000 2000 - 300000 1 mW/cm² General Comment Calculations 850 MHz band Maximum RMS output power at Antenna terminal: 30.09 dBm (Max RMS= 33.10 dBm – 3.01 dBm duty cycle) Maximum output power at Antenna terminal: 33.64 dBm Prediction distance R: 20 cm Prediction frequency: 824.2 MHz MPE limit S: 0.5495 mW/cm² Equation OET bulletin 65, page 18, edition 97-01: S = P*G / (4πR²) S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the centre of radiation of the antenna Maximum permissible antenna gain (Table 1B of 47 CFR 1.1310): 4.32 dBi Maximal permissible antenna gain considering output power limitation of 7 Watts ERP (FCC §22.931). G=10*log(7000)-33.64+2.15 6.95 dBi Prediction The maximum allowed MPE value of 0.5495 mW/cm²will be reached in a distance of 20 cm in case that an antenna with an antenna gain of 4.32 dBi is used. Considering the max output power of 7 Watts ERP (FCC §22.931) for mobile stations the maximum antenna gain is 6.95 dBi, which is higher than 4.32 dBi. For mobile stations the antenna gain is limited to 4.32 dBi in accordance to the FCC regulations. - 3 - Calculations 1900 MHz band Maximum RMS output power at Antenna terminal: 27.06 dBm (Max RMS=30.07 dBm – 3.01 dBm duty cycle) Maximum output power at Antenna terminal: 31.84 dBm Prediction distance R: 20 cm Prediction frequency: 1850.2 MHz MPE limit S: 1 mW/cm² Equation OET bulletin 65, page 18, edition 97-01: S = EF*P*G / (4πR²) S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the centre of radiation of the antenna Maximum permissible antenna gain (Table 1B of 47 CFR 1.1310): 9.95 dBi Maximum permissible antenna gain for mobile / portable stations: 1.17 dBi (Considering 2 Watts EIRP FCC §24.235: G=10*log(2000)-31.84) Prediction The maximum allowed MPE value of 1 mW/cm² will be reached in a distance of 20 cm in case that an antenna with an antenna gain of 9.95 dBi is used. Considering the max output power of 2 Watts EIRP (FCC §24.235) for mobile / portable stations the maximum antenna gain is 1.17 dBi, which is lower than 9.95 dBi. For mobile and portable stations the antenna gain is limited to 1.17 dBi in accordance with the FCC regulations. - 4 - Calculations 1700 MHz band Maximum RMS output power at Antenna terminal: 23.86 dBm Maximum output power at Antenna terminal: 33.39 dBm Prediction distance R: 20 cm Prediction frequency: 1740 MHz MPE limit S: 1 mW/cm² Equation OET bulletin 65, page 18, edition 97-01: S = P*G / (4πR²) S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the centre of radiation of the antenna Maximum permissible antenna gain (Table 1B of 47 CFR 1.1310): 13.15 dBi Maximum permissible antenna gain for mobile / portable stations: -3.39 dBi (Considering 1 Watt EIRP FCC §27.50: G=10*log(1000)-33.39) Prediction The maximum allowed MPE value of 1 mW/cm²will be reached in a distance of 20 cm in case that an antenna with an antenna gain of 13.15 dBi is udsed. Considering the max output power of 1 Watts EIRP (FCC §27.50) for mobile and portable stations the maximum antenna gain is -3.39 dBi, which is lower than 13.15 dBi. For mobile and portable stations the antenna gain is limited to -3.39 dBi in accordance to the FCC regulations.
Final Report on Cinterion Wireless Module PH8 MDE_CINTE_0902_FCCa acc. Title 47 CFR chapter I part 22 subpart H Report Reference: November 26, 2010Date: Test Laboratory: 7 layers AG Borsigstr. 11 DGA-PL-192/99-02 40880 Ratingen Germany Note: The following test results relate only to the devices specified in this document. This report shall not be reproduced in parts without the written approval of the test laboratory. 7 layers AG Aufsichtsratsvorsitzender h Registergerichth registered in: Borsigstrasse 11 Chairman of the Supervisory Board: Düsseldorf, HRB 44096 40880 Ratingen, Germany Markus Becker USt-IdNr h VAT No.: Phone: +49 (0) 2102 749 0 Vorstandh Board: DE 203159652 Fax: +49 (0) 2102 749 350 Dr. H.-J. Meckelburg TAX No. 147/5869/0385 www.7Layers.com Wilfried Klassmann Reference: MDE_CINTE_0902_FCCa acc. Title 47 CFR chapter I part 22 subpart H 2.2Detailed Description of OUT Samples Sample : G02 OUT IdentifierCinterion Wireless Module PH8 Sample Description HW StatusB2 SW StatusRevision 00.290 Date of Receipt2010/10/11 Low VoltageLow Temp.3.3 V-10 °C High Temp.High Voltage4.2 V+55 °C Normal Temp.Nominal Voltage4.2 V+22 °C Sample : Q03 OUT IdentifierCinterion Wireless Module PH8 Sample Description HW StatusB2.1 SW StatusRevision 00.330 Date of Receipt2010/11/02 Low VoltageLow Temp.3.3 V-10 °C High Temp.High Voltage4.2 V+55 °C Normal Temp.Nominal Voltage4.2 V+22 °C Sample : Y06 OUT IdentifierCinterion Wireless Module PH8 Sample DescriptionConducted HW StatusB2.2 SW StatusRevision 00.360 Date of Receipt2010/11/23 Low VoltageLow Temp.3.3 V-10 °C High Temp.High Voltage4.2 V+55 °C Normal Temp.Nominal Voltage4.2 V+22 °C Page 4 of 158 Reference: MDE_CINTE_0902_FCCa acc. Title 47 CFR chapter I part 22 subpart H 2.3OUT Features Features for OUT: Cinterion Wireless Module PH8 Allowed ValuesDesignationDescriptionSupported Value(s) Features for scope: FCC_v2 ACThe OUT is powered by or connected to AC Mains DCThe OUT is powered by or connected to DC Mains EDGE850EUT supports EDGE in the band 824 MHz - 849 MHz EDGE1900 EUT supports EDGE in the band 1850 MHz - 1910 MHz FDD2EUT supports UMTS FDD2 in the band 1850 MHz - 1910 MHz FDD4EUT supports UMTS FDD4 in the band 1710 MHz - 1755 MHz FDD5EUT supports UMTS FDD5 in the band 824 MHz - 849 MHz GSM850EUT supports GSM850 band 824MHz - 849MHz HSDPA- FDD2 EUT supports UMTS FDD2 HSDPA in the band 1850 MHz - 1910 MHz HSDPA- FDD4 EUT supports UMTS FDD4 HSDPA in the band 1710 MHz - 1755 MHz HSDPA- FDD5 EUT supports UMTS FDD5 HSDPA in the band 824 MHz - 849 MHz HSUPA- FDD2 EUT supports UMTS FDD2 HSUPA in the band 1850 MHz - 1910 MHz HSUPA- FDD4 EUT supports UMTS FDD4 HSUPA in the band 1710 MHz - 1755 MHz HSUPA- FDD5 EUT supports UMTS FDD5 HSUPA in the band 824 MHz - 849 MHz PantCpermanent fixed antenna connector, which may be built-in, designed as an indispensable part of the equipment PCS1900EUT supports PCS1900 band 1850MHz - 1910MHz 2.4Auxiliary Equipment AE No.Serial No.SW StatusHW StatusDescriptionType Designation AE 02Flex cable AE 04Shielded housing AE 03Test antenna AE 06ADP-80NBAC Adapter AE 01DSB75_B1.1_0152Evaluation board AE 05Toshiba PTM91E- 02800TGR 87060248HLaptop Page 5 of 158 Reference: MDE_CINTE_0902_FCCa acc. Title 47 CFR chapter I part 22 subpart H 2.5Setups used for Testing For each setup a relation is given to determine if and which samples and auxiliary equipment is used. The left side list all OUT samples and the right side lists all auxiliary equipment for the given setup. Sample No.Sample DescriptionAE No.AE Description Setup No.List of OUT samplesList of auxiliary equipment G02 AE 02Flex cableG02Sample: AE 04Shielded housing AE 03Test antenna AE 06AC Adapter AE 01Evaluation board AE 05Laptop Q03 AE 02Flex cableQ03Sample: AE 04Shielded housing AE 03Test antenna AE 06AC Adapter AE 01Evaluation board AE 05Laptop Y06 AE 02Flex cableY06ConductedSample: AE 06AC Adapter AE 01Evaluation board AE 05Laptop 3Results 3.1General Available at the test laboratory. The results of the inspection are described on the following pages, where 'Conformity' or 'Passed' means that the certification criteria were verified and that the tested device is conform to the applied standard. In cases where 'Declaration' is printed, the required documents are available in the manufacturers product documentation. In cases where 'not applicable' is printed, the test case requirements are not relevant to the specific equipment implementation. Documentation of tested devices: Interpretation of the test results: Page 6 of 158 Reference: MDE_CINTE_0902_FCCa acc. Title 47 CFR chapter I part 22 subpart H 3.2List of the Applicable Body (Body for Scope: FCC_v2) DesignationDescription Part 22, Subpart H - Cellular Radiotelephone ServiceFCC47CFRChIPART22PUBLIC MOBILE SERVICES 3.3List of Test Specification Test Specification:FCC part 2 and 22 Version: Version: 10-1-09 Edition Title:PART 2 - GENERAL RULES AND REGULATIONS PART 22 - PUBLIC MOBILE SERVICES Page 7 of 158 Reference: MDE_CINTE_0902_FCCa acc. Title 47 CFR chapter I part 22 subpart H 3.4Summary Test Case Identifier / Name SetupDate of TestResultTest (condition)Ref. Lab 22.1 RF Power Output §2.1046, §22.913 22.1; Frequency Band = 850, Mode = EDGE, Channel = 128, Frequency = 824.2MHz, Method = conducted 2010/11/24Y06Lab 2Passed 22.1; Frequency Band = 850, Mode = EDGE, Channel = 190, Frequency = 836.6MHz, Method = conducted 2010/11/24Y06Lab 2Passed 22.1; Frequency Band = 850, Mode = EDGE, Channel = 251, Frequency = 848.8MHz, Method = conducted 2010/11/24Y06Lab 2Passed 22.1; Frequency Band = 850, Mode = GSM, Channel = 128, Frequency = 824.2MHz, Method = conducted 2010/11/24Y06Lab 2Passed 22.1; Frequency Band = 850, Mode = GSM, Channel = 190, Frequency = 836.6MHz, Method = conducted 2010/11/24Y06Lab 2Passed 22.1; Frequency Band = 850, Mode = GSM, Channel = 251, Frequency = 848.8MHz, Method = conducted 2010/11/24Y06Lab 2Passed 22.1; Frequency Band = FDD5, Mode = HSDPA_subtest_1, Channel = 4132, Frequency = 826.4MHz, Method = c…
Text truncated - open the document above for the full version.
Final Report on Cinterion Wireless Module PH8 MDE_CINTE_0902_FCCb acc. Title 47 CFR chapter I part 24 subpart E Report Reference: November 26, 2010Date: Test Laboratory: 7 layers AG Borsigstr. 11 DGA-PL-192/99-02 40880 Ratingen Germany Note: The following test results relate only to the devices specified in this document. This report shall not be reproduced in parts without the written approval of the test laboratory. 7 layers AG Aufsichtsratsvorsitzender h Registergerichth registered in: Borsigstrasse 11 Chairman of the Supervisory Board: Düsseldorf, HRB 44096 40880 Ratingen, Germany Markus Becker USt-IdNr h VAT No.: Phone: +49 (0) 2102 749 0 Vorstandh Board: DE 203159652 Fax: +49 (0) 2102 749 350 Dr. H.-J. Meckelburg TAX No. 147/5869/0385 www.7Layers.com Wilfried Klassmann Reference: MDE_CINTE_0902_FCCb acc. Title 47 CFR chapter I part 24 subpart E 2.2Detailed Description of OUT Samples Sample : G02 OUT IdentifierCinterion Wireless Module PH8 Sample Description HW StatusB2 SW StatusRevision 00.290 Date of Receipt2010/10/11 Low VoltageLow Temp.3.3 V-10 °C High Temp.High Voltage4.2 V+55 °C Normal Temp.Nominal Voltage4.2 V+22 °C Sample : Q03 OUT IdentifierCinterion Wireless Module PH8 Sample Description HW StatusB2.1 SW StatusRevision 00.330 Date of Receipt2010/11/02 Low VoltageLow Temp.3.3 V-10 °C High Temp.High Voltage4.2 V+55 °C Normal Temp.Nominal Voltage4.2 V+22 °C Sample : Y06 OUT IdentifierCinterion Wireless Module PH8 Sample DescriptionConducted HW StatusB2.2 SW StatusRevision 00.360 Date of Receipt2010/11/23 Low VoltageLow Temp.3.3 V-10 °C High Temp.High Voltage4.2 V+55 °C Normal Temp.Nominal Voltage4.2 V+22 °C Page 4 of 165 Reference: MDE_CINTE_0902_FCCb acc. Title 47 CFR chapter I part 24 subpart E 2.3OUT Features Features for OUT: Cinterion Wireless Module PH8 Allowed ValuesDesignationDescriptionSupported Value(s) Features for scope: FCC_v2 ACThe OUT is powered by or connected to AC Mains DCThe OUT is powered by or connected to DC Mains EDGE850EUT supports EDGE in the band 824 MHz - 849 MHz EDGE1900 EUT supports EDGE in the band 1850 MHz - 1910 MHz FDD2EUT supports UMTS FDD2 in the band 1850 MHz - 1910 MHz FDD4EUT supports UMTS FDD4 in the band 1710 MHz - 1755 MHz FDD5EUT supports UMTS FDD5 in the band 824 MHz - 849 MHz GSM850EUT supports GSM850 band 824MHz - 849MHz HSDPA- FDD2 EUT supports UMTS FDD2 HSDPA in the band 1850 MHz - 1910 MHz HSDPA- FDD4 EUT supports UMTS FDD4 HSDPA in the band 1710 MHz - 1755 MHz HSDPA- FDD5 EUT supports UMTS FDD5 HSDPA in the band 824 MHz - 849 MHz HSUPA- FDD2 EUT supports UMTS FDD2 HSUPA in the band 1850 MHz - 1910 MHz HSUPA- FDD4 EUT supports UMTS FDD4 HSUPA in the band 1710 MHz - 1755 MHz HSUPA- FDD5 EUT supports UMTS FDD5 HSUPA in the band 824 MHz - 849 MHz PantCpermanent fixed antenna connector, which may be built-in, designed as an indispensable part of the equipment PCS1900EUT supports PCS1900 band 1850MHz - 1910MHz 2.4Auxiliary Equipment AE No.Serial No.SW StatusHW StatusDescriptionType Designation AE 02Flex cable AE 04Shielded housing AE 03Test antenna AE 06ADP-80NBAC Adapter AE 01DSB75_B1.1_0152Evaluation board AE 05Toshiba PTM91E- 02800TGR 87060248HLaptop Page 5 of 165 Reference: MDE_CINTE_0902_FCCb acc. Title 47 CFR chapter I part 24 subpart E 2.5Setups used for Testing For each setup a relation is given to determine if and which samples and auxiliary equipment is used. The left side list all OUT samples and the right side lists all auxiliary equipment for the given setup. Sample No.Sample DescriptionAE No.AE Description Setup No.List of OUT samplesList of auxiliary equipment G02 AE 02Flex cableG02Sample: AE 04Shielded housing AE 03Test antenna AE 06AC Adapter AE 01Evaluation board AE 05Laptop Q03 AE 02Flex cableQ03Sample: AE 04Shielded housing AE 03Test antenna AE 06AC Adapter AE 01Evaluation board AE 05Laptop Y06 AE 02Flex cableY06ConductedSample: AE 06AC Adapter AE 01Evaluation board AE 05Laptop 3Results 3.1General Available at the test laboratory. The results of the inspection are described on the following pages, where 'Conformity' or 'Passed' means that the certification criteria were verified and that the tested device is conform to the applied standard. In cases where 'Declaration' is printed, the required documents are available in the manufacturers product documentation. In cases where 'not applicable' is printed, the test case requirements are not relevant to the specific equipment implementation. Documentation of tested devices: Interpretation of the test results: Page 6 of 165 Reference: MDE_CINTE_0902_FCCb acc. Title 47 CFR chapter I part 24 subpart E 3.2List of the Applicable Body (Body for Scope: FCC_v2) DesignationDescription Part 24, Subpart E - Broadband PCSFCC47CFRChIPART24PERSONAL COMMUNICATIONS SERVICES 3.3List of Test Specification Test Specification:FCC part 2 and 24 Version: Version: 10-1-09 Edition Title:PART 2 - GENERAL RULES AND REGULATIONS PART 24 - PERSONAL COMMUNICATIONS SERVICES Page 7 of 165 Reference: MDE_CINTE_0902_FCCb acc. Title 47 CFR chapter I part 24 subpart E 3.4Summary Test Case Identifier / Name SetupDate of TestResultTest (condition)Ref. Lab 24.1 RF Power Output §2.1046, §24.232 24.1; Frequency Band = 1900, Mode = EDGE, Channel = 512, Frequency = 1850.2MHz, Method = conducted 2010/11/24Y06Lab 2Passed 24.1; Frequency Band = 1900, Mode = EDGE, Channel = 661, Frequency = 1880.0MHz, Method = conducted 2010/11/24Y06Lab 2Passed 24.1; Frequency Band = 1900, Mode = EDGE, Channel = 810, Frequency = 1909.8MHz, Method = conducted 2010/11/24Y06Lab 2Passed 24.1; Frequency Band = 1900, Mode = GSM, Channel = 512, Frequency = 1850.2MHz, Method = conducted 2010/11/24Y06Lab 2Passed 24.1; Frequency Band = 1900, Mode = GSM, Channel = 661, Frequency = 1880.0MHz, Method = conducted 2010/11/24Y06Lab 2Passed 24.1; Frequency Band = 1900, Mode = GSM, Channel = 810, Frequency = 1909.8MHz, Method = conducted 2010/11/24Y06Lab 2Passed 24.1; Frequency Band = FDD2, Mode = HSDPA_subtest_1, Channel = 9262, Frequency = 1852.4…
Text truncated - open the document above for the full version.
Final Report on Cinterion Wireless Module PH8 MDE_CINTE_0902_FCCc acc. Title 47 CFR chapter I part 27 subpart C Report Reference: November 26, 2010Date: Test Laboratory: 7 layers AG Borsigstr. 11 DGA-PL-192/99-02 40880 Ratingen Germany Note: The following test results relate only to the devices specified in this document. This report shall not be reproduced in parts without the written approval of the test laboratory. 7 layers AG Aufsichtsratsvorsitzender h Registergerichth registered in: Borsigstrasse 11 Chairman of the Supervisory Board: Düsseldorf, HRB 44096 40880 Ratingen, Germany Markus Becker USt-IdNr h VAT No.: Phone: +49 (0) 2102 749 0 Vorstandh Board: DE 203159652 Fax: +49 (0) 2102 749 350 Dr. H.-J. Meckelburg TAX No. 147/5869/0385 www.7Layers.com Wilfried Klassmann Reference: MDE_CINTE_0902_FCCc acc. Title 47 CFR chapter I part 27 subpart C 2.2Detailed Description of OUT Samples Sample : G02 OUT IdentifierCinterion Wireless Module PH8 Sample DescriptionConducted & Radiated HW StatusB2 SW StatusRevision 00.290 Date of Receipt2010/10/11 Low VoltageLow Temp.3.3 V-10 °C High Temp.High Voltage4.2 V+55 °C Normal Temp.Nominal Voltage4.2 V+22 °C Sample : Q03 OUT IdentifierCinterion Wireless Module PH8 Sample DescriptionConducted & Radiated Serial No.035419 HW StatusB2.1 SW StatusRevision 00.330 Date of Receipt2010/11/02 Low VoltageLow Temp.3.3 V-10 °C High Temp.High Voltage4.2 V+55 °C Normal Temp.Nominal Voltage4.2 V+22 °C Sample : Y06 OUT IdentifierCinterion Wireless Module PH8 Sample DescriptionConducted Serial No.036389 HW StatusB2.2 SW StatusRevision 00.360 Date of Receipt2010/11/23 Low VoltageLow Temp.3.3 V-10 °C High Temp.High Voltage4.2 V+55 °C Normal Temp.Nominal Voltage4.2 V+22 °C Page 4 of 140 Reference: MDE_CINTE_0902_FCCc acc. Title 47 CFR chapter I part 27 subpart C 2.3OUT Features Features for OUT: Cinterion Wireless Module PH8 Allowed ValuesDesignationDescriptionSupported Value(s) Features for scope: FCC_v2 ACThe OUT is powered by or connected to AC Mains DCThe OUT is powered by or connected to DC Mains EDGE850EUT supports EDGE in the band 824 MHz - 849 MHz EDGE1900 EUT supports EDGE in the band 1850 MHz - 1910 MHz FDD2EUT supports UMTS FDD2 in the band 1850 MHz - 1910 MHz FDD4EUT supports UMTS FDD4 in the band 1710 MHz - 1755 MHz FDD5EUT supports UMTS FDD5 in the band 824 MHz - 849 MHz GSM850EUT supports GSM850 band 824MHz - 849MHz HSDPA- FDD2 EUT supports UMTS FDD2 HSDPA in the band 1850 MHz - 1910 MHz HSDPA- FDD4 EUT supports UMTS FDD4 HSDPA in the band 1710 MHz - 1755 MHz HSDPA- FDD5 EUT supports UMTS FDD5 HSDPA in the band 824 MHz - 849 MHz HSUPA- FDD2 EUT supports UMTS FDD2 HSUPA in the band 1850 MHz - 1910 MHz HSUPA- FDD4 EUT supports UMTS FDD4 HSUPA in the band 1710 MHz - 1755 MHz HSUPA- FDD5 EUT supports UMTS FDD5 HSUPA in the band 824 MHz - 849 MHz PantCpermanent fixed antenna connector, which may be built-in, designed as an indispensable part of the equipment PCS1900EUT supports PCS1900 band 1850MHz - 1910MHz 2.4Auxiliary Equipment AE No.Serial No.SW StatusHW StatusDescriptionType Designation AE 02Flex cable AE 04Shielded housing AE 03Test antenna AE 06ADP-80NBAC Adapter AE 01DSB75_B1.1_0152Evaluation board AE 05Toshiba PTM91E- 02800TGR 87060248HLaptop Page 5 of 140 Reference: MDE_CINTE_0902_FCCc acc. Title 47 CFR chapter I part 27 subpart C 2.5Setups used for Testing For each setup a relation is given to determine if and which samples and auxiliary equipment is used. The left side list all OUT samples and the right side lists all auxiliary equipment for the given setup. Sample No.Sample DescriptionAE No.AE Description Setup No.List of OUT samplesList of auxiliary equipment G02 AE 02Flex cableG02Conducted & RadiatedSample: AE 04Shielded housing AE 03Test antenna AE 06AC Adapter AE 01Evaluation board AE 05Laptop Q03 AE 02Flex cableQ03Conducted & RadiatedSample: AE 04Shielded housing AE 03Test antenna AE 06AC Adapter AE 01Evaluation board AE 05Laptop Y06 AE 02Flex cableY06ConductedSample: AE 06AC Adapter AE 01Evaluation board AE 05Laptop 3Results 3.1General Available at the test laboratory. The results of the inspection are described on the following pages, where 'Conformity' or 'Passed' means that the certification criteria were verified and that the tested device is conform to the applied standard. In cases where 'Declaration' is printed, the required documents are available in the manufacturers product documentation. In cases where 'not applicable' is printed, the test case requirements are not relevant to the specific equipment implementation. Documentation of tested devices: Interpretation of the test results: Page 6 of 140 Reference: MDE_CINTE_0902_FCCc acc. Title 47 CFR chapter I part 27 subpart C 3.2List of the Applicable Body (Body for Scope: FCC_v2) DesignationDescription Part 27, Subpart C - Technical StandardsFCC47CFRChIPART27MISCELLANEOUS WIRELESS COMMUNICATIONS SERVICES 3.3List of Test Specification Test Specification:FCC part 2 and 27 Version: Version: 10-1-09 Edition Title:PART 2 - GENERAL RULES AND REGULATIONS PART 27 - MISCELLANEOUS WIRELESS COMMUNICATIONS SERVICES Page 7 of 140 Reference: MDE_CINTE_0902_FCCc acc. Title 47 CFR chapter I part 27 subpart C 3.4Summary Test Case Identifier / Name SetupDate of TestResultTest (condition)Ref. Lab 27.1 RF Power Output §2.1046, §27.250 27.1; Frequency Band = FDD4, Mode = HSDPA_subtest_1, Channel = 1312, Frequency = 1712.4MHz, Method = conducted 2010/11/23Y06Lab 2Passed 27.1; Frequency Band = FDD4, Mode = HSDPA_subtest_1, Channel = 1412, Frequency = 1732.4MHz, Method = conducted 2010/11/23Y06Lab 2Passed 27.1; Frequency Band = FDD4, Mode = HSDPA_subtest_1, Channel = 1450, Frequency = 1740.0MHz, Method = conducted 2010/11/23Y06Lab 2Passed 27.1; Frequency Band = FDD4, Mode = HSDPA_subtest_1, Channel = 1513, Frequency = 1752.6MHz, Method = conducted 2010/11/23Y06Lab 2Passed 27.1; Frequency Band = FDD4, Mode = HSDPA_subtest_2, Channel = 1312, Frequency = 1712.4MHz, Method = conducted 2010/11/23Y06Lab 2Passed …
Text truncated - open the document above for the full version.
7 layers AG Aufsichtsratsvorsitzender Registergericht registered in: Borsigstrasse 11 Chairman of the Supervisory Board: Düsseldorf, HRB 44096 40880 Ratingen, Germany Markus Becker USt-IdNr VAT No.: Phone: +49 (0) 2102 749 0 Vorstand Board: DE 203159652 Fax: +49 (0) 2102 749 350 Dr. H.-J. Meckelburg www.7Layers.com Wilfried Klassmann TAX No. 147/5869/0385 InterLab ® is a registered trademark of 7 layers AG Photo Report GSM/UMTS and GPS module PH8 Report Reference: MDE_CINTE_0902_FCC_Photo Test Laboratory: 7 layers AG Borsigstrasse 11 40880 Ratingen Germany email: [email protected] DGA-PL-192/99-02 Note: The following test results relate only to the devices specified in this document. This report shall not be reproduced in parts without the written approval of the testing laboratory. Test report Reference: MDE_CINTE_0902_FCC_Photo Page 2 of 7 1 Photo Report Photo 1: Setup for radiated tests, spurious emissions acc. to FCC Part 22, 24, 27 Test report Reference: MDE_CINTE_0902_FCC_Photo Page 3 of 7 Photo 2: Setup for radiated tests, spurious emissions acc. to FCC Part 15B computer peripheral setup Test report Reference: MDE_CINTE_0902_FCC_Photo Page 4 of 7 Photo 3: Setup for conducted tests, conducted emissions AC Mains acc. to FCC Part 15B, computer peripheral setup Test report Reference: MDE_CINTE_0902_FCC_Photo Page 5 of 7 Photo 4: OUT setup (OUT and auxiliary equipment) Test report Reference: MDE_CINTE_0902_FCC_Photo Page 6 of 7 Photo 5: OUT (module, front side) Test report Reference: MDE_CINTE_0902_FCC_Photo Page 7 of 7 Photo 6: OUT (module, rear side)
| # | Rule Parts | Frequency Range | Power Output | Emission | Tolerance |
|---|---|---|---|---|---|
| 7 | 27 | 1.71 GHz - 1.75 GHz | 1.56 W | 4M17F9W | 2.5 ppm |
