  1. Home/
  2. Telit Cinterion Deutschland GmbH/
  3. QIPPH8-P

QIPPH8-PGSM/GPRS/UMTS/HSPA Module

Telit Cinterion Deutschland GmbH
GSM/GPRS/UMTS/HSPA Module - FCC ID QIPPH8-P - Telit Cinterion Deutschland GmbH
Click to zoom

Application Details

Equipment Class
PCB - PCS Licensed Transmitter
Date of Grant
Oct 20, 2011
Application Purpose
Original Equipment
Date of Application
Oct 20, 2011
Equipment Note
GSM/GPRS/UMTS/HSPA Module
Frequency Range
1852.40000000 - 1907.60000000
Company
Telit Cinterion Deutschland GmbH
Country
Germany

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗
↗
↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

 PH8/PH8-P Version:02.000 DocId:PH8_PH8-P_HD_v02.000 Hardware Interface Overview GENERAL NOTE THE USE OF THE PRODUCT INCLUDING THE SOFTWARE AND DOCUMENTATION (THE "PROD- UCT") IS SUBJECT TO THE RELEASE NOTE PROVIDED TOGETHER WITH PRODUCT. IN ANY EVENT THE PROVISIONS OF THE RELEASE NOTE SHALL PREVAIL. THIS DOCUMENT CON- TAINS INFORMATION ON CINTERION PRODUCTS. THE SPECIFICATIONS IN THIS DOCUMENT ARE SUBJECT TO CHANGE AT CINTERION'S DISCRETION. CINTERION WIRELESS MODULES GMBH GRANTS A NON-EXCLUSIVE RIGHT TO USE THE PRODUCT. THE RECIPIENT SHALL NOT TRANSFER, COPY, MODIFY, TRANSLATE, REVERSE ENGINEER, CREATE DERIVATIVE WORKS; DISASSEMBLE OR DECOMPILE THE PRODUCT OR OTHERWISE USE THE PRODUCT EXCEPT AS SPECIFICALLY AUTHORIZED. THE PRODUCT AND THIS DOCUMENT ARE PROVIDED ON AN "AS IS" BASIS ONLY AND MAY CONTAIN DEFICIENCIES OR INADEQUACIES. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, CINTERION WIRELESS MODULES GMBH DIS- CLAIMS ALL WARRANTIES AND LIABILITIES. THE RECIPIENT UNDERTAKES FOR AN UNLIMITED PERIOD OF TIME TO OBSERVE SECRECY REGARDING ANY INFORMATION AND DATA PRO- VIDED TO HIM IN THE CONTEXT OF THE DELIVERY OF THE PRODUCT. THIS GENERAL NOTE SHALL BE GOVERNED AND CONSTRUED ACCORDING TO GERMAN LAW. Copyright Transmittal, reproduction, dissemination and/or editing of this document as well as utilization of its con- tents and communication thereof to others without express authorization are prohibited. Offenders will be held liable for payment of damages. All rights created by patent grant or registration of a utility model or design patent are reserved. Copyright © 2011, Cinterion Wireless Modules GmbH Trademark Notice Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. All other registered trademarks or trademarks mentioned in this document are property of their respective owners. PH8_PH8-P_HD_v02.000Page 2 of 462011-10-21 Confidential / Released PH8/PH8-P Hardware Interface Overview 2  Document Name: PH8/PH8-P Hardware Interface Overview Version: 02.000 Date: 2011-10-21 DocId: PH8_PH8-P_HD_v02.000 Status Confidential / Released PH8/PH8-P Hardware Interface Overview Contents 46 PH8_PH8-P_HD_v02.000Page 3 of 462011-10-21 Confidential / Released  Contents 1Introduction ................................................................................................................. 6 1.1Related Documents ........................................................................................... 6 1.2Terms and Abbreviations ................................................................................... 6 1.3Regulatory and Type Approval Information ....................................................... 9 1.3.1Directives and Standards ...................................................................... 9 1.3.2SAR requirements specific to portable mobiles .................................. 12 1.3.3SELV Requirements ........................................................................... 13 1.3.4Safety Precautions .............................................................................. 13 2Product Concept ....................................................................................................... 15 2.1Key Features at a Glance ................................................................................ 15 2.2PH8/PH8-P System Overview ......................................................................... 18 3Application Interface................................................................................................. 19 3.1Operating Modes ............................................................................................. 20 3.2Power Supply ................................................................................................... 21 3.3USB Interface................................................................................................... 22 3.4Serial Interface ASC0 ...................................................................................... 23 3.5UICC/SIM/USIM Interface ................................................................................ 25 3.6Analog Audio Interface..................................................................................... 27 3.7Digital Audio Interface ...................................................................................... 27 4GPS Receiver............................................................................................................. 28 5Antenna Interfaces.................................................................................................... 29 5.1GSM/UMTS Antenna Interface ........................................................................ 29 5.1.1Antenna Installation ............................................................................ 29 5.1.2Antenna Connector ............................................................................. 30 5.2GPS Antenna Interface .................................................................................... 34 6Mechanics.................................................................................................................. 35 6.1Mechanical Dimensions of PH8/PH8-P ........................................................... 35 6.2Mounting PH8/PH8-P to the Application Platform............................................ 37 6.3Board-to-Board Application Connector ............................................................ 37 7Sample Application................................................................................................... 41 8Reference Approval .................................................................................................. 43 8.1Reference Equipment for Type Approval ......................................................... 43 8.2Compliance with FCC and IC Rules and Regulations ..................................... 44 9Appendix.....................…

Text truncated - open the document above for the full version.

Cover Letter(s)

Cinterion Wireless Modules GmbH· Siemensdamm 50 • 13629 Benin· Germany Federal Communication Commission Name Thorsten Liebig Equipment Authorization Division, Application Department Manager Approval Processing Branch 7435 Oakland Mills Road Phone +49 30 31102-8241 Columbia, MD 21048 Fax +493031102-8305 E-Mail [email protected] Your letter of Our reference Date 18 October 2011 Request for Short Term Confidentiality FCC ID: QIPPH8-P To Whom It May Concern: In accordance with §0.459(d) of CFR 47 and Public Notice DA 04-1705, Cinterion requests The following item 1. User Guide / Installation Manual 2. Internal Photographs be held short term confidential until 31 st of December 2011 These items contain detailed system and equipment description and related information about the product which Cinterion considers to be proprietary, confidential and a custom design which otherwise would not be released to the general public. Since this design is a basis from which future technological products will evolve, Cinterion also feels that this information would be of benefit to its competitors, and that the disclosure of the information in these exhibits would give our competitors an unfair advantage in the market. Sincerely T /dJ JA / Thorsten Liebig k' ~~J f...t"vt Manager Approval Registered office: Managing directors : Ccmmercial register. Reg. no.: Cinterion Wiretess Modules GmbH Norbert Muhrer. Brilla Hübner Amtsgericht München. HRB 172715 SI.-Martin-Straße 53 WEEE-Reg-Nr. DE 58893809 81669 München Germany

Cover Letter(s)

Cintenoo Wireless Modules GmbH· Siemensdamm 50·13629 Berlin • Germany Name Thorsten Liebig Federal Communication Commission Department Manager Approval Equipment Authorization Division, Application Processing Branch 7435 Oakland MiUs Road Phone +49 30 31102-8241 Fax +493031102-8305 Columbia, MD 21048 E-Mail [email protected] Your letter of Our reference Date 18 October 2011 Request for Confidentiality FCC ID: QIPPH8-P To Whom It May Concern: Pursuant to Paragraphs §0.457 and 0.459 of the Commission's Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, Cinterion requests confidentiality for the following product: FCC 10 Number Product Title/Model QIPPH8-P Cinterion Wireless Module PH8-P For the product stated above, we request that the following information be held confidential: 1. Circuit diagrams, BOM, and PCBs submitted as Equipment Authorization Electronic Filing attachment: "schematics". 2. Block diagram submitted as Equipment Authorization Electronic Filing attachment: "blockdiagram" . 3. Operational description submitted as Equipment Authorization Electronic Filing attachment: "operational description" (highly technicall not addressed to the public) 4. Tune Up Information submitted as Equipment Authorization Electronic Filing attachment: ''Tune Up Info" The above exhibits contain Cinterion trade secrets and proprietary information that could be of benefit to our competitors regarding the design of our mobile handset. This material is not customarily available to the general public and we request that it be withheld from public inspection. If you have any questions, please feel free to contact me at the address shown below. Sincerely, ,~ Thorsten Liebig Manager Approval / (jJ/Jj iAA Registered office: Managing directors: Commercial register, Reg. no .: Cintenon Wireless Modules GmbH Nortlert Muhrer, Bntta Hübner Amtsgericht München, HRB 172715 St.·Martin·Straße 53 WEEE·Reg .· Nr. DE 58893809 81669 München Germany

Cover Letter(s)

Commercial power of attorney This letter is a commercial power of attorney for PH8-P, FCC-ID: QIPPH8-P Commercial power of attorney for the licencejregistration of PH8-P, FCC-ID: QIPPH8-P in several countries. The company 7 layers AG, 40880 Ratingen, Germany, contact person Rene Houx has been contracted by Cinterion Wireless Modules GmbH to obtain approvals for the following electronic components, manufactured andjor released by Cinterion: Commercial name: Cinterion Wireless Module PH8-P Product name: PH8-P Engineering name: This is a GSM/UMTS/HSPA Module Unless future correspondence from Cinterion directs otherwise, please extend your full cooperation to 7 layers AG, contact person Sven Lüngen regarding matters to the above mentioned products for the period beginning August 31, 2011 and end December 31, 2011. Do not hesitate to contact me if you have any additional questions. Berlin August 31, 2011 Point of contact-=--; Thorsten Liebig / 1/& Company; Cinterion Wireless Modules GmbH Siemensdamm 50 13629 Bedin Germany Signed, Dr. ]örg Rook Head of Resea rc

Cover Letter(s)

CI TERION • a.em.a.o colftpen, Cinterion Wireless Modules GmbH· Siemensdamm 50 • 13629 Benin· Germany Name Thorsten Liebig Department Manager Approval Federal Communication Commission 7435 Oakland Mills Road Phone +493031102-8241 Columbia, MD 21048 Fax +4930 31102-number E-Mail [email protected] Y our letter of Our reference Date 21 October 2011 Request for Single Modular Approval for QIPPH8-P To Whom It May Concern: We, Cinterion Wireless Modules GmbH, hereby requests for single modular approval ace to FCC 47CFR 15.212 BrandlTrade/Manufacturer's name: Cinterion Wireless Module PH8-P Model name: PH8-P FCC certification number: QIPPH8-P Cinterion confirms that the product complies with the requirements ace to FCC 47CFR 15.212 identified below: 1. The modular transmitter has its own RF shielding. 2. The module has buffered modulation/data input(s) (if such inputs are provided) to ensure that the module will comply with the requirements set out in the applicable RSS standard under conditions of excessive data rates er over-modulation. 3. The module shall have its own power supply regulation on the module. 4. The modular transmitter complies with the antenna requirements of Section 15.203, 15.204(b) and 15.204(c). 5. The modular transmitter is tested in a stand-arone configuration. 6. The modular transmitter is labelIed with its own FCC 10 number 7. The modular transmitter ,is comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer provide adequate instructions along with the module to expl'ain any such requirements 8. The modular transmitter complies with any applicable RF exposure requirements in its final configuration. __-~----'L· -~---v ~----L-/tJ40-..:::... '0 Thorsten Liebig tD (Manager Approval) Registered office: Managing direetors: Commercial register, Reg. no.: Cinterion Wireless Modules GmbH Norbert Muhrer, Britts Hubner Amtsgericht München, HRB 172715 St.-Martin-Straße 53 WEEE-Reg. ·Nr DE 58893809 81669 München Germany

External Photos

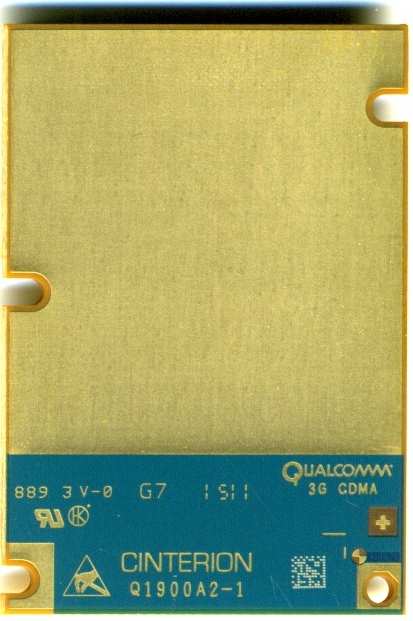

Cinterion Wireless Module PH8-P PH8-P Top side PH8-P Bottom Side

ID Label/Location Info

Cinterion Wireless Module PH8-P Label Label size: 24 x 15,5 mm PH8 Label PH8 Label location

Internal Photos

Cinterion Wireless Module PH8-P PH8-P Top side PH8-P Bottom Side

RF Exposure Info

- 2 - Maximum Permissible Exposure (as specified in Table 1B of 47 CFR 1.1310 – Limits for Maximum Permissible Exposure (MPE), Limits for General Population/Uncontrolled Exposure) Frequency range (MHz) Power density (mW/cm²) 300 – 1500 f/1500 1,500 – 100000 1.0 General Comment Calculations 850 MHz band Maximum average output power at Antenna terminal: 33.59 dBm Prediction distance R: 20 cm Prediction frequency: 836.6 MHz MPE limit S: 0.5577 mW/cm² Equation OET bulletin 65, page 18, edition 97-01: S = P*G / (4πR²) S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the centre of radiation of the antenna Maximum permissible antenna gain (Table 1B of 47 CFR 1.1310): 0.89 dBi Prediction The maximum allowed MPE value of 0.5577 mW/cm²will be reached in a distance of 20 cm in case that an antenna with an antenna gain of 0.89 dBi would be used. This means that the power density levels in a distance of 20 cm are in accordance with the FCC regulations as long as the used antenna has a gain below or equal 0.89 dBi. . - 3 - Calculations 1900 MHz band Maximum average output power at Antenna terminal: 30.85 dBm Prediction distance R: 20 cm Prediction frequency: 1850.2 MHz MPE limit S: 1 mW/cm² Equation OET bulletin 65, page 18, edition 97-01: S = EF*P*G / (4πR²) S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the centre of radiation of the antenna Maximum permissible antenna gain (Table 1B of 47 CFR 1.1310): 6.16 dBi Prediction The maximum allowed MPE value of 1 mW/cm² will be reached in a distance of 20 cm in case that an antenna with an antenna gain of 6.16 dBi is used. This means that the power density levels in a distance of 20 cm are in accordance with the FCC regulations as long as the used antenna has a gain below or equal 6.16 dBi.

Test Report

Final Report on Cinterion Wireless Module PH8-P HW: Release 2, B2 SW: Revision 01.370 MDE_CINTE_1107_FCCb acc. Title 47 CFR chapter I part 22 subpart H Report Reference: Se ptember 22, 2011Date: Test Laboratory: 7Layers AG Borsigstr. 11 40880 Ratingen Germany Note: The following test results relate only to the devices specified in this document. This report shall not be reproduced in parts without the written approval of the test laboratory. 7Layers AG Aufsichtsratsvorsitzender Registergericht registered in: Borsigstrasse 11 Chairman of the Supervisory Board: Düsseldorf, HRB 44096 40880 Ratingen, Germany Markus Becker USt-IdNr VAT No.: Phone: +49 (0) 2102 749 0 Vorstand Board: DE 203159652 Fax: +49 (0) 2102 749 350 Dr. H.-J. Meckelburg TAX No. 147/5869/0385 www.7Layers.com Reference: MDE_CINTE_1107_FCCb acc. Title 47 CFR chapter I part 22 subpart H 2.2Detailed Description of OUT Samples Sample : b01 OUT IdentifierPH8-P Sample Descriptionsample #02 Serial No.IMEI: 004401080640028 HW StatusRelease 2, B2 SW StatusRevision 01.370 Date of Receipt2011/08/05 Low VoltageLow Temp.3.3 V-10 °C High Temp.High Voltage4.2 V+55 °C Normal Temp.Nominal Voltage4.2 V+22 °C 2.3OUT Features Features for OUT: PH8-P Allowed ValuesDesignationDescriptionSupported Value(s) Features for scope: FCC_v2 ACThe OUT is powered by or connected to AC Mains DCThe OUT is powered by or connected to DC Mains EDGE850EUT supports EDGE in the band 824 MHz - 849 MHz EDGE1900EUT supports EDGE in the band 1850 MHz - 1910 MHz FDD2EUT supports UMTS FDD2 in the band 1850 MHz - 1910 MHz FDD5EUT supports UMTS FDD5 in the band 824 MHz - 849 MHz GSM850EUT supports GSM850 band 824MHz - 849MHz HSDPA- FDD2 EUT supports UMTS FDD2 HSDPA in the band 1850 MHz - 1910 MHz HSDPA- FDD5 EUT supports UMTS FDD5 HSDPA in the band 824 MHz - 849 MHz HSUPA- FDD2 EUT supports UMTS FDD2 HSUPA in the band 1850 MHz - 1910 MHz HSUPA- FDD5 EUT supports UMTS FDD5 HSUPA in the band 824 MHz - 849 MHz PantCpermanent fixed antenna connector, which may be built-in, designed as an indispensable part of the equipment PCS1900EUT supports PCS1900 band 1850MHz - 1910MHz Page 4 of 210 Reference: MDE_CINTE_1107_FCCb acc. Title 47 CFR chapter I part 22 subpart H 2.4Auxiliary Equipment AE No.Serial No.SW StatusHW StatusDescriptionType Designation AE 09----Direct RF coupler to SMA AE 02----Flex cable AE Ant1----GSM/UMTS antenna AE Ant2----UMTS antenna AE Ant3ANN-MS-0-005 M827B 601657--GPS antenna AE 01DSB75_B1.1_0152---Evaluation board 2.5Setups used for Testing For each setup a relation is given to determine if and which samples and auxiliary equipment is used. The left side list all OUT samples and the right side lists all auxiliary equipment for the given setup. Sample No.Sample DescriptionAE No.AE Description Setup No.List of OUT samplesList of auxiliary equipment B01_direct (used for measurement using antenna port at the module) AE 09Direct RF coupler to SMAb01sample #02Sample: AE 02Flex cable AE 01Evaluation board B01_rad (used for radiated measurement using external antennas) AE 02Flex cableb01sample #02Sample: AE Ant1GSM/UMTS antenna AE Ant2UMTS antenna AE Ant3GPS antenna AE 01Evaluation board B01_RF1 (used for measurement at external RF connector RF1) AE 02Flex cableb01sample #02Sample: AE 01Evaluation board Page 5 of 210 Reference: MDE_CINTE_1107_FCCb acc. Title 47 CFR chapter I part 22 subpart H 3Results 3.1General Available at the test laboratory. The results of the inspection are described on the following pages, where 'Conformity' or 'Passed' means that the certification criteria were verified and that the tested device is conform to the applied standard. In cases where 'Declaration' is printed, the required documents are available in the manufacturers product documentation. In cases where 'not applicable' is printed, the test case requirements are not relevant to the specific equipment implementation. Documentation of tested devices: Interpretation of the test results: 3.2List of the Applicable Body (Body for Scope: FCC_v2) DesignationDescription Part 22, Subpart H - Cellular Radiotelephone ServiceFCC47CFRChIPART22PUBLIC MOBILE SERVICES 3.3List of Test Specification Test Specification:FCC part 2 and 22 Version10-1-10 Edition Title:PART 2 - GENERAL RULES AND REGULATIONS PART 22 - PUBLIC MOBILE SERVICES Page 6 of 210 Reference: MDE_CINTE_1107_FCCb acc. Title 47 CFR chapter I part 22 subpart H 3.4Summary Test Case Identifier / Name SetupDate of TestResultTest (condition)Ref. Lab 22.1 RF Power Output §2.1046, §22.913 22.1; Frequency Band = 850, Mode = EDGE, Channel = 128, Frequency = 824.2MHz, Method = conducted 2011/08/19B01_directLab 2Passed 22.1; Frequency Band = 850, Mode = EDGE, Channel = 190, Frequency = 836.6MHz, Method = conducted 2011/08/19B01_directLab 2Passed 22.1; Frequency Band = 850, Mode = EDGE, Channel = 251, Frequency = 848.8MHz, Method = conducted 2011/08/19B01_directLab 2Passed 22.1; Frequency Band = 850, Mode = GSM, Channel = 128, Frequency = 824.2MHz, Method = conducted 2011/08/19B01_directLab 2Passed 22.1; Frequency Band = 850, Mode = GSM, Channel = 190, Frequency = 836.6MHz, Method = conducted 2011/08/19B01_directLab 2Passed 22.1; Frequency Band = 850, Mode = GSM, Channel = 251, Frequency = 848.8MHz, Method = conducted 2011/08/19B01_directLab 2Passed 22.1; Frequency Band = FDD5, Mode = HSDPA_subtest_1, Channel = 4132, Frequency = 826.4MHz, Method = conducted 2011/08/19B01_directLab 2Passed 22.1; Frequency Band = FDD5, Mode = HSDPA_subtest_1, Channel = 4183, Frequency = 836.6MHz, Method = conducted 2011/08/19B01_directLab 2Passed 22.1; Frequency Band = FDD5, Mode = HSDPA_subtest_1, Channel = 4233, Frequency = 846.6MHz, Method = conducted 2011/08/19B01_directLab 2Passed 22.1; Frequency Band = FDD5, Mode = HSDPA_subtest_2, Channel = 4132, Frequency = 826.4MHz, Method = conducted 2011/08/19B01_directLab 2Passed 22.1; Frequency Band = FDD5, Mode = HSDPA_subtest_2, Channel = 4183, Frequency = 836.6MHz, Method = conducted 2011/08/19B01_directLab 2Pass…

Text truncated - open the document above for the full version.

Test Report

Reference: MDE_CINTE_1107_FCCb acc. Title 47 CFR chapter I part 22 subpart H Detailed Results: detectortrace resolution bandwidth /kHz frequency /MHz peak value /dBm limit /dBm margin to limit /dB azimuth /° antenna polarization EUT orientation ve r d i c t peakmaxhold3823.9178-27.59-13.0014.59-180.0verticalhorizontalpassed peakmaxhold3823.9359-25.97-13.0012.97-180.0verticalhorizontalpassed peakmaxhold3823.9499-21.08-13.008.08-180.0verticalhorizontalpassed peakmaxhold3823.9539-24.98-13.0011.98-90.0horizontalverticalpassed peakmaxhold3823.9599-19.04-13.006.04-180.0verticalhorizontalpassed peakmaxhold3823.9820-16.93-13.003.93-180.0verticalhorizontalpassed peakmaxhold3823.9880-26.31-13.0013.31-90.0horizontalverticalpassed peakmaxhold3823.9980-15.01-13.002.01-180.0verticalhorizontalpassed no further values have been found with a margin of less than 20 dB Test: 22.4; Frequency Band = 850, Mode = GSM, Channel = 190, Frequency = 836.6MHz Result:Passed Setup No.:B01_rad Date of Test:2011/08/17 2:15 Body:FCC47CFRChIPART22PUBLIC MOBILE SERVICES Test Specification:FCC part 2 and 22 Page 111 of 210 Reference: MDE_CINTE_1107_FCCb acc. Title 47 CFR chapter I part 22 subpart H Detailed Results: detectortrace resolution bandwidth /kHz frequency /MHz peak value /dBm limit /dBm margin to limit /dB azimuth /° antenna polarization EUT orientation ve r d i c t peakmaxhold1000980.2-41.53-13.0028.530.0horizontalverticalpassed no further values have been found with a margin of less than 20 dB Test: 22.4; Frequency Band = 850, Mode = GSM, Channel = 251, Frequency = 848.8MHz Result:Passed Setup No.:B01_rad Date of Test:2011/08/17 3:15 Body:FCC47CFRChIPART22PUBLIC MOBILE SERVICES Test Specification:FCC part 2 and 22 Page 112 of 210 Reference: MDE_CINTE_1107_FCCb acc. Title 47 CFR chapter I part 22 subpart H Detailed Results: detectortrace resolution bandwidth /kHz frequency /MHz peak value /dBm limit /dBm margin to limit /dB azimuth /° antenna polarization EUT orientation ve r d i c t peakmaxhold3849.0040-16.90-13.003.90-180.0verticalhorizontalpassed peakmaxhold3849.0160-16.49-13.003.49-90.0horizontalverticalpassed peakmaxhold3849.0281-17.25-13.004.25-180.0verticalhorizontalpassed peakmaxhold3849.0381-20.63-13.007.6390.0horizontalverticalpassed peakmaxhold3849.0421-18.84-13.005.8490.0horizontalverticalpassed peakmaxhold3849.0501-25.31-13.0012.31-90.0horizontalverticalpassed peakmaxhold3849.0561-26.68-13.0013.68-90.0horizontalverticalpassed peakmaxhold3849.0621-27.94-13.0014.9490.0verticalverticalpassed peakmaxhold3849.0661-30.06-13.0017.0690.0horizontalverticalpassed peakmaxhold3849.0741-30.62-13.0017.62-90.0horizontalverticalpassed peakmaxhold3849.0782-27.43-13.0014.4390.0horizontalverticalpassed peakmaxhold3849.0882-29.94-13.0016.9490.0horizontalverticalpassed peakmaxhold3849.0942-29.56-13.0016.5690.0horizontalverticalpassed no further values have been found with a margin of less than 20 dB Test: 22.4; Frequency Band = FDD5, Mode = HSDPA, Channel = 4132, Frequency = 826.4MHz Result:Passed Setup No.:B01_rad Date of Test:2011/08/16 23:55 Body:FCC47CFRChIPART22PUBLIC MOBILE SERVICES Test Specification:FCC part 2 and 22 Page 113 of 210 Reference: MDE_CINTE_1107_FCCb acc. Title 47 CFR chapter I part 22 subpart H Detailed Results: detectortrace resolution bandwidth /kHz frequency /MHz peak value /dBm limit /dBm margin to limit /dB azimuth /° antenna polarization EUT orientation ve r d i c t peakmaxhold1000812.4-32.21-13.0019.21-90.0horizontalverticalpassed peakmaxhold1000814.0-31.63-13.0018.63-180.0horizontalhorizontalpassed peakmaxhold100817.35-32.59-13.0019.59-180.0verticalhorizontalpassed peakmaxhold100818.31-32.83-13.0019.83-180.0verticalhorizontalpassed peakmaxhold100818.69-32.82-13.0019.82-180.0verticalhorizontalpassed peakmaxhold100818.80-32.99-13.0019.99-180.0verticalhorizontalpassed peakmaxhold100819.00-32.34-13.0019.34-180.0verticalhorizontalpassed peakmaxhold100819.18-32.89-13.0019.89-180.0verticalhorizontalpassed peakmaxhold100819.77-32.55-13.0019.55-180.0verticalhorizontalpassed peakmaxhold100819.95-31.16-13.0018.16-180.0verticalhorizontalpassed peakmaxhold100820.08-32.45-13.0019.45-180.0verticalhorizontalpassed peakmaxhold100820.85-31.79-13.0018.7990.0verticalverticalpassed peakmaxhold100822.53-29.21-13.0016.2190.0verticalverticalpassed peakmaxhold100822.73-30.53-13.0017.53-90.0horizontalverticalpassed peakmaxhold100822.95-24.76-13.0011.76-180.0verticalhorizontalpassed peakmaxhold50823.10-27.35-13.0014.35-180.0verticalhorizontalpassed peakmaxhold50823.84-23.19-13.0010.19-180.0verticalhorizontalpassed peakmaxhold50823.96-22.21-13.009.21-180.0verticalhorizontalpassed peakmaxhold1000851.8-28.17-13.0015.17-180.0verticalhorizontalpassed peakmaxhold1000853.0-29.56-13.0016.5690.0horizontalverticalpassed no further values have been found with a margin of less than 20 dB Test: 22.4; Frequency Band = FDD5, Mode = HSDPA, Channel = 4183, Frequency = 836.6MHz Result:Passed Setup No.:B01_rad Date of Test:2011/08/16 23:14 Body:FCC47CFRChIPART22PUBLIC MOBILE SERVICES Test Specification:FCC part 2 and 22 Page 114 of 210 Reference: MDE_CINTE_1107_FCCb acc. Title 47 CFR chapter I part 22 subpart H Detailed Results: detectortrace resolution bandwidth /kHz frequency /MHz peak value /dBm limit /dBm margin to limit /dB azimuth /° antenna polarization EUT orientation ve r d i c t peakmaxhold1000816.6-24.68-13.0011.6890.0verticalverticalpassed peakmaxhold1000818.2-30.49-13.0017.49-180.0verticalverticalpassed peakmaxhold1000819.8-28.11-13.0015.1190.0horizontalverticalpassed peakmaxhold1000821.4-22.69-13.009.69-180.0verticalhorizontalpassed peakmaxhold1000823.0-25.46-13.0012.4690.0verticalverticalpassed peakmaxhold1000852.1-24.05-13.0011.0590.0horizontalverticalpassed peakmaxhold1000856.0-29.37-13.0016.3790.0horizontalverticalpassed no further values have been found with a margin of less than 20 dB Test: 22.4; Frequency Band = FDD5, Mode = HSDPA, Channel = 4233, Frequency = 846.6MHz Result:Passed Setup No.:B01_rad Date of Test:201…

Text truncated - open the document above for the full version.

Test Report

Final Report on Cinterion Wireless Module PH8-P HW: Release 2, B2 SW: Revision 01.370 MDE_CINTE_1107_FCCc acc. Title 47 CFR chapter I part 24 subpart E Report Reference: Se ptember 22, 2011Date: Test Laboratory: 7Layers AG Borsigstr. 11 40880 Ratingen Germany Note: The following test results relate only to the devices specified in this document. This report shall not be reproduced in parts without the written approval of the test laboratory. 7Layers AG Aufsichtsratsvorsitzender Registergericht registered in: Borsigstrasse 11 Chairman of the Supervisory Board: Düsseldorf, HRB 44096 40880 Ratingen, Germany Markus Becker USt-IdNr VAT No.: Phone: +49 (0) 2102 749 0 Vorstand Board: DE 203159652 Fax: +49 (0) 2102 749 350 Dr. H.-J. Meckelburg TAX No. 147/5869/0385 www.7Layers.com Reference: MDE_CINTE_1107_FCCc acc. Title 47 CFR chapter I part 24 subpart E 2.2Detailed Description of OUT Samples Sample : b01 OUT IdentifierPH8-P Sample Descriptionsample #02 Serial No.IMEI: 004401080640028 HW StatusRelease 2, B2 SW StatusRevision 01.370 Date of Receipt2011/08/05 Low VoltageLow Temp.3.3 V-10 °C High Temp.High Voltage4.2 V+55 °C Normal Temp.Nominal Voltage4.2 V+22 °C 2.3OUT Features Features for OUT: PH8-P Allowed ValuesDesignationDescriptionSupported Value(s) Features for scope: FCC_v2 ACThe OUT is powered by or connected to AC Mains DCThe OUT is powered by or connected to DC Mains EDGE850EUT supports EDGE in the band 824 MHz - 849 MHz EDGE1900EUT supports EDGE in the band 1850 MHz - 1910 MHz FDD2EUT supports UMTS FDD2 in the band 1850 MHz - 1910 MHz FDD5EUT supports UMTS FDD5 in the band 824 MHz - 849 MHz GSM850EUT supports GSM850 band 824MHz - 849MHz HSDPA- FDD2 EUT supports UMTS FDD2 HSDPA in the band 1850 MHz - 1910 MHz HSDPA- FDD5 EUT supports UMTS FDD5 HSDPA in the band 824 MHz - 849 MHz HSUPA- FDD2 EUT supports UMTS FDD2 HSUPA in the band 1850 MHz - 1910 MHz HSUPA- FDD5 EUT supports UMTS FDD5 HSUPA in the band 824 MHz - 849 MHz PantCpermanent fixed antenna connector, which may be built-in, designed as an indispensable part of the equipment PCS1900EUT supports PCS1900 band 1850MHz - 1910MHz Page 4 of 213 Reference: MDE_CINTE_1107_FCCc acc. Title 47 CFR chapter I part 24 subpart E 2.4Auxiliary Equipment AE No.Serial No.SW StatusHW StatusDescriptionType Designation AE 09----Direct RF coupler to SMA AE 02----Flex cable AE Ant1----GSM/UMTS antenna AE Ant2----UMTS antenna AE Ant3ANN-MS-0-005 M827B 601657--GPS antenna AE 01DSB75_B1.1_0152---Evaluation board 2.5Setups used for Testing For each setup a relation is given to determine if and which samples and auxiliary equipment is used. The left side list all OUT samples and the right side lists all auxiliary equipment for the given setup. Sample No.Sample DescriptionAE No.AE Description Setup No.List of OUT samplesList of auxiliary equipment B01_direct (used for measurement using antenna port at the module) AE 09Direct RF coupler to SMAb01sample #02Sample: AE 02Flex cable AE 01Evaluation board B01_rad (used for radiated measurement using external antennas) AE 02Flex cableb01sample #02Sample: AE Ant1GSM/UMTS antenna AE Ant2UMTS antenna AE Ant3GPS antenna AE 01Evaluation board B01_RF1…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Leandro Wan-Dall(Head of Certification Management)
[email protected]00490166355178Fax: 00490166355178

Test Firm

7layers AGRobert Machulec
[email protected]49-2102-749-313Fax: 49-2102-749-350

Technical Specifications

#Rule PartsFrequency RangePower OutputEmissionTolerance
624E1.85 GHz - 1.91 GHz1.38 W4M17F9W2.5 ppm
Modular Type
Single Modular Approval
Confidentiality
Long Term
Grant Notes
Output power listed is peak conducted. This device contains functions that are not operational in U.S Territories. This filing is only applicable for US operations. This OEM module is approved for use in products operating as fixed or portable transmitting device. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. A separate approval is required for portable operating configurations, as defined in 2.1093 of the rules. The final product operating with this transmitter must include operating instructions and applicable warnings for endusers and installers to satisfy RF exposure compliance requirements. Antenna gain must meet RF exposure and max radiated output power limits of the applicable rule section. This Grant is valid only when the device is sold to OEM integrators and the OEM integrators are instructed to ensure that the end user has no manual instructions to remove or install the device. The max. antenna gain for this device as reported to the FCC is: 0.89 dBi (850MHz) and 1.6 dBi (1900MHz).
