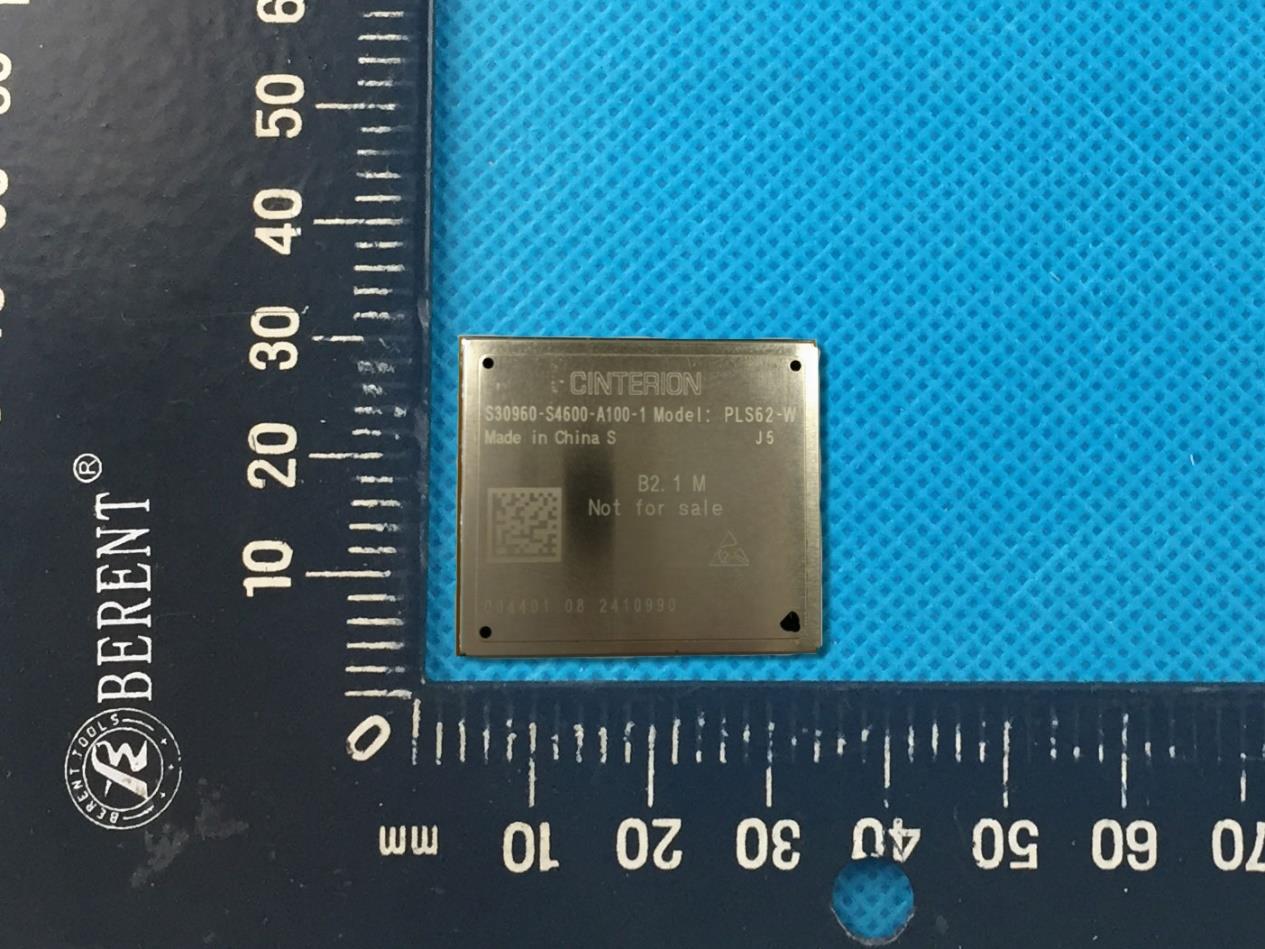

QIPPLS62-W1LTE Data-Only SMT World-Module

Telit Cinterion Deutschland GmbH

Click to zoom

Application Details

Equipment Class: PCB - PCS Licensed Transmitter
Date of Grant: Aug 18, 2020
Application Purpose: Original Equipment
Date of Application: Aug 17, 2020
Equipment Note: LTE Data-Only SMT World-Module
Frequency Range: 704.00000000 - 711.00000000
Company: Telit Cinterion Deutschland GmbH
Country: Germany

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Cinterion ® PLS62-W Hardware Interface Overview Version:02.010a DocId:PLS62-W_hio_v02.010a GENERAL NOTE THIS DOCUMENT CONTAINS INFORMATION ON THALES PRODUCTS. THALES RESERVES THE RIGHT TO MAKE CHANGES TO THE PRODUCTS DESCRIBED HEREIN. THE SPECIFICATIONS IN THIS DOCUMENT ARE SUBJECT TO CHANGE AT THE DISCRETION OF THALES. THE PRODUCT AND THIS DOCUMENT ARE PROVIDED ON AN "AS IS" BASIS ONLY AND MAY CONTAIN DEFICIEN- CIES OR INADEQUACIES. THALES DOES NOT ASSUME ANY LIABILITY FOR INFORMATION PRO- VIDED IN THE DOCUMENT OR ARISING OUT OF THE APPLICATION OR USE OF ANY PRODUCT DESCRIBED HEREIN. THALES GRANTS A NON-EXCLUSIVE RIGHT TO USE THE DOCUMENT. THE RECIPIENT SHALL NOT COPY, MODIFY, DISCLOSE OR REPRODUCE THE DOCUMENT EXCEPT AS SPECIFICALLY AUTHORIZED BY THALES. Copyright © 2020, THALES DIS AIS Deutschland GmbH Trademark Notice Thales, the Thales logo, are trademarks and service marks of Thales and are registered in certain coun- tries. Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. All other registered trademarks or trademarks mentioned in this document are property of their respective owners. tPLS62-W_hio_v02.010a2020-08-18 Public / Released Cinterion ® PLS62-W Hardware Interface Overview 2 Page 2 of 50 Document Name: Cinterion ® PLS62-W Hardware Interface Overview Version: 02.010a Date: 2020-08-18 DocId: PLS62-W_hio_v02.010a Status Public / Released Cinterion ® PLS62-W Hardware Interface Overview Contents 50 tPLS62-W_hio_v02.010a2020-08-18 Public / Released Page 3 of 50 Contents 1Introduction ................................................................................................................. 7 1.1Key Features at a Glance .................................................................................. 7 1.2PLS62-W System Overview............................................................................. 11 2Interface Characteristics .......................................................................................... 12 2.1Application Interface ........................................................................................ 12 2.1.1USB Interface...................................................................................... 12 2.1.2Serial Interface ASC0 ......................................................................... 13 2.1.3Serial Interface ASC1 ......................................................................... 14 2.1.4UICC/SIM/USIM Interface ................................................................... 15 2.1.4.1SIM_SWITCH Line .............................................................. 17 2.1.5GPIO Interface .................................................................................... 18 2.1.6I 2 C Interface ........................................................................................ 19 2.1.7SPI Interface ....................................................................................... 19 2.1.8PWM Interfaces .................................................................................. 19 2.1.9Pulse Counter ..................................................................................... 19 2.1.10 Status LED .......................................................................................... 19 2.1.11 Fast Shutdown .................................................................................... 20 2.1.12 700MHz Antenna Switch Control ........................................................ 20 2.1.13 TX Activity Signal ................................................................................ 20 2.2RF Antenna Interface ....................................................................................... 21 2.2.1Antenna Installation ............................................................................ 22 2.2.2RF Line Routing Design ...................................................................... 22 2.2.2.1Line Arrangement Examples ............................................... 22 2.2.2.2Routing Example ................................................................. 27 2.3Sample Application .......................................................................................... 28 3Operating Characteristics ........................................................................................ 30 3.1Operating Modes ............................................................................................. 30 3.2Power Supply ................................................................................................... 31 4Mechanical Dimensions, Mounting and Packaging ............................................... 32 4.1Mechanical Dimensions of PLS62-W............................................................... 32 5Regulatory and Type Approval Information ........................................................... 34 5.1Directives and Standards ................................................................................. 34 5.2SAR requirements specific to portable mobiles ............................................... 37 5.3Reference Equipment for Type Approval ......................................................... 38 5.4Compliance with FCC and ISED Rules and Regulations................................. 39 5.5Compliance with Japanese Rules and Regulations ......................................... 42 Cinterion ® PLS62-W Hardware Interface Overview Contents 50 tPLS62-W_hio_v02.010a2020-08-18 Public / Released Page 4 of 50 6Document Information.............................................................................................. 43 6.1Revision History ............................................................................................... 43 6.2Related Documents ......................................................................................... 43 6.3Terms and Abbreviations .................................................................…

Text truncated - open the document above for the full version.

Cover Letter(s)

www.thalesgroup.com THALES DIS AIS Deutschland GmbH Werinherstr. 81, 81541 Munich - Germany Managing Directors: Andreas Haegele, Sébastien Gallois Registered seat: Munich; commercial register Munich, reg.no.: HRB 172715, WEEE-Reg.-Nr. DE58893809 THALES DIS AIS Deutschland GmbH Siemensdamm 50 13629 Berlin Germany Authority to Act as Agent Date: 2020/04/03 TIMCO ENGINEERING, Inc. 849 NW State Road 45, Newberry, Florida 32669, USA To Whom It May Concern: East China Institute of Telecommunications /Yan Zhou is authorized to act on our behalf, until otherwise notified, for applications to TIMCO ENGINEERING, Inc. We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: 12 months By: 09.04.2020 X Axel Heike Axel Heike Certification Manager Signed by: HEIKE Axel On behalf of: THALES DIS AIS Deutschland GmbH

Cover Letter(s)

Registered Office: THALES DIS AIS Deutschland GmbH Werinherstr. 81 81541 Munich Germany Managing Directors: Andreas Haegele, Sébastien Gallois Commercial register, Reg. No.: Amtsgericht München, HRB 172715 WEEE-Reg.-Nr. DE 58893809 www.thalesgroup.com THALES DIS AIS Deutschland GmbH Siemensdamm 50 13629 Berlin Germany Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 USA Name Axel Heike Department System Test - Certifications Phone +49 30 31102-8146 Fax +49 30 31102-8305 E-Mail [email protected] Your letter of Our reference Date 05 August 2020 Ref: FCC Modular approval letter for FCC ID: QIPPLS62-W1 To whom it may concern: The following attestation addresses the requirements to support modular approval pursuant to §15.212 of the Commission’s Rules: Modular approval requirement Yes No* (i) The radio elements of the modular transmitter must have their own shielding. The physical crystal and tuning capacitors may be located external to the shielded radio elements. X (ii) The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with part 15 requirements under conditions of excessive data rates or over-modulation. X (iii) The modular transmitter must have its own power supply regulation. X (iv) The modular transmitter must comply with the antenna and transmission system requirements of §§15.203, 15.204(b) and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). The “professional installation” provision of §15.203 is not applicable to modules but can apply to limited modular approvals under paragraph (b) of this section. X (v) The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing for compliance with part 15 requirements. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in §15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see §15.27(a)). The length of these lines shall be the length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified and commercially available (see §15.31(i)). X www.gemalto.com/m2m (vi) The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. X (vii) The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. X (viii) The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. X * Shall provide a detailed explanation if the answer is “No”. If you have any questions, please feel free to contact us at the address shown above. Sincerely, 05.08.2020 X Axel Heike Certification Project Manager Signed by: HEIKE Axel

ID Label/Location Info

Label Location: Label:

RF Exposure Info

TEST REPORT No. I20D00079-SAR01 For Client : Thales DIS AIS Deutschland GmbH Production : LTE Data-Only SMT World-Module Model Name : PLS62-W FCC ID: QIPPLS62-W1 IC: 7830A-PLS62W Hardware Version: B2.1 Software Version: 02.000 Issued date: 2020-08-05 Note: The test results in this test report relate only to the devices specified in this report. This report shall not be reproduced except in full without the written approval of ECIT Shanghai. Test Laboratory: ECIT Shanghai, East China Institute of Telecommunications Add: Building 4, No. 766, Jingang Road, Pudong, Shanghai, P.R. China Tel: (+86)-021-63843300, E-Mail: [email protected] SAR Test Report Reported No.: I20D00079-SAR01 East China Institute of Telecommunications Page Number : 2 of 17 TEL: +86 21 63843300FAX:+86 21 63843301 Report Issued Date : Aug 05, 2020 Revision Version Report Number Revision Date Memo I20D00079-SAR01 00 2020-07-31 Initial creation of test report SAR Test Report Reported No.: I20D00079-SAR01 East China Institute of Telecommunications Page Number : 3 of 17 TEL: +86 21 63843300FAX:+86 21 63843301 Report Issued Date : Aug 05, 2020 CONTENTS 1. TEST LABORATORY ........................................................................................................................ 4 1.1. TESTING LOCATION ........................................................................................................................ 4 1.2. PROJECT DATA .................................................................................................................................. 4 1.3. SIGNATURE ......................................................................................................................................... 4 2. CLIENT INFORMATION ................................................................................................................... 5 2.1. APPLICANT INFORMATION ........................................................................................................... 5 2.2. MANUFACTURER INFORMATION ................................................................................................ 5 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ............................. 6 3.1. ABOUT EUT ......................................................................................................................................... 6 3.2. INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST ........................................ 6 3.3. INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ........................................... 6 4. POWER OUTPUT TEST RESULTS .................................................................................................. 7 4.1. RF POWER OUTPUT .......................................................................................................................... 7 5. REFERENCE DOCUMENTS FOR FCC .......................................................................................... 8 5.1. APPLICABLE STANDARDS .............................................................................................................. 8 5.2. TEST LIMITS ....................................................................................................................................... 8 5.3. CALCULATION INFORMATION .................................................................................................. 10 5.4. MAX. ANTENNA GAIN CALCULATIONS..................................................................................... 11 5.5. CONCLUSION FOR MAXIMUM ADMISSIBLE ANTENNA GAIN (FCC) .............................. 12 6. REFERENCE DOCUMENTS FOR IC ............................................................................................ 13 6.1. APPLICABLE STANDARDS ............................................................................................................ 13 6.2. TEST LIMITS ..................................................................................................................................... 13 6.3. CALCULATION INFORMATION .................................................................................................. 14 6.4. RESULT OF LTE ................................................................................................................................ 14 6.5. MAX. ANTENNA GAIN CALCULATIONS.................................................................................... 14 6.6. CONCLUSION FOR MAXIMUM ADMISSIBLE ANTENNA GAIN (IC) .................................. 15 7. SUMMARY ......................................................................................................................................... 16 SAR Test Report Reported No.: I20D00079-SAR01 East China Institute of Telecommunications Page Number : 4 of 17 TEL: +86 21 63843300FAX:+86 21 63843301 Report Issued Date : Aug 05, 2020 1. Test Laboratory 1.1. Testing Location Company Name: ECIT Shanghai, East China Institute of Telecommunications Address: Building 4, No. 766, Jingang Road, Pudong, Shanghai, P.R. China Postal Code: 201206 Telephone: (+86)-021-63843300 Fax: (+86)-021-63843301 1.2. Project Data Project Leader: Zhou Yan 1.3. Signature Wang Yubin (Prepared this test report) Yan Hang (Reviewed this test report) Zheng Zhongbin (Approved this test report) SAR Test Report Reported No.: I20D00079-SAR01 East China Institute of Telecommunications Page Number : 5 of 17 TEL: +86 21 63843300FAX:+86 21 63843301 Report Issued Date : Aug 05, 2020 2. Client Information 2.1. Applicant Information Company Name: Thales DIS AIS Deutschland GmbH Address /Post: Werinherstr. 81, 81541 Munich, Germany Telephone: + 86 10 59378342 Postcode: / 2.2. Manufacturer Information Company Name: Thales DIS AIS Deutschland GmbH Address /Post: Werinherstr. 81, 81541 Munich, Germany Telephone: + 86 10 59378342 Postcode: / SAR Test Report Reported No.: I20D00079-SAR01 East China Institute of Telecommunications Page Number : 6 of 17 TEL: +86 21 63843300FAX:+86 21 6…

Text truncated - open the document above for the full version.

Test Report

TEST REPORT No. I20D00079-SRD26 For Client: Thales DIS AIS Deutschland GmbH Production: LTE Data-Only SMT World-Module Model Name: Brand Name: PLS62-W CINTERION FCC ID : QIPPLS62-W1 Hardware Version: B2.1 Software Version: 02.000 Issued date: 2020-08-10 Report No.: I20D00079-SRD26 East China Institute of Telecommunications Page Number: 2 of 66 Report Issued Date: Aug. 10, 2020 NOTE 1. The test results in this test report relate only to the devices specified in this report. 2. This report shall not be reproduced except in full without the written approval of China Telecommunication Technology Labs. 3. For the test results, the uncertainty of measurement is not taken into account when judging the compliance with specification, and the results of measurement or the average value of measurement results are taken as the criterion of the compliance with specification directly. Test Laboratory: East China Institute of Telecommunications Add: Block No.4, No.766, Jingang Road, Pudong District, Shanghai, P. R. China Tel: +86 21 63843300 E-Mail: [email protected] Report No.: I20D00079-SRD26 East China Institute of Telecommunications Page Number: 3 of 66 Report Issued Date: Aug. 10, 2020 Revision Version Report Number Revision Date Memo I20D00079-SRD26 00 2020-08-10 Initial creation of test report Report No.: I20D00079-SRD26 East China Institute of Telecommunications Page Number: 4 of 66 Report Issued Date: Aug. 10, 2020 CONTENTS 1. TEST LABORATORY ............................................................................................................................... 6 1.1. TESTING LOCATION ................................................................................................................ 6 1.2. TESTING ENVIRONMENT ........................................................................................................ 6 1.3. SIGNATURE .............................................................................................................................. 6 2. CLIENT INFORMATION........................................................................................................................... 7 2.1. APPLICANT INFORMATION .................................................................................................... 7 2.2. MANUFACTURER INFORMATION .......................................................................................... 7 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ............................................ 8 3.1. ABOUT EUT .............................................................................................................................. 8 3.2. INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST ........................................ 8 3.3. INTERNAL IDENTIFICATION OF AE USED DURING THE TEST .......................................... 8 4. REFERENCE DOCUMENTS ................................................................................................................... 9 4.1. DOCUMENTS SUPPLIED BY APPLICANT ............................................................................. 9 4.2. REFERENCE DOCUMENTS FOR TESTING ........................................................................... 9 5. TEST RESULTS ..................................................................................................................................... 10 5.1. SUMMARY OF TEST RESULTS ............................................................................................. 10 5.2. STATEMENTS ......................................................................................................................... 10 6. TEST EQUIPMENTS UTILIZED ............................................................................................................ 11 6.1. CONDUCTED TEST SYSTEM ................................................................................................ 11 6.2. RADIATED EMISSION TEST SYSTEM .................................................................................. 11 7. MEASUREMENT UNCERTAINTY ......................................................................................................... 13 8. TEST ENVIRONMENT ........................................................................................................................... 14 ANNEX A. DETAILED TEST RESULTS ................................................................................................ 15 ANNEX A.1. OUTPUT POWER ............................................................................................................ 15 ANNEX A.2. PEAK-TO-AVERAGE POWER RATIO ............................................................................ 19 Report No.: I20D00079-SRD26 East China Institute of Telecommunications Page Number: 5 of 66 Report Issued Date: Aug. 10, 2020 ANNEX A.3. OCCUPIED BANDWIDTH................................................................................................ 21 ANNEX A.4. -26DB EMISSION BANDWIDTH ..................................................................................... 27 ANNEX A.5. BAND EDGE AT ANTENNA TERMINALS ...................................................................... 34 ANNEX A.6. FREQUENCY STABILITY ................................................................................................ 38 ANNEX A.7. CONDUCTED SPURIOUS EMISSION ............................................................................ 44 ANNEX A.8. RADIATED ........................................................................................................................ 53 ANNEX B. ACCREDITATION CERTIFICATE ....................................................................................... 66 Report No.: I20D00079-SRD26 East China Institute of Telecommunications Page Number: 6 of 66 Report Issued Date: Aug. 10, 2020 1. Test Laboratory 1.1. Testing Location Company Name ECIT Shanghai,East China Institute of Telecommunications Address 1.7-8F, G Area, No. 668, Beijing…

Text truncated - open the document above for the full version.

Test Report

Full TEST REPORT No. I20D00079-SRD27 For Client: Thales DIS AIS Deutschland GmbH Production: LTE Data-Only SMT World-Module Model Name: PLS62-W Brand Name: CINTERION FCC ID: QIPPLS62-W1 Hardware Version: B2.1 Software Version: 02.000 Issued date: 2020-08-07 Report No.I20D00079-SRD27 East China Institute of Telecommunications Page Number: 2 of 81 Report Issued Date: Aug.07.2020 NOTE 1. The test results in this test report relate only to the devices specified in this report. 2. This report shall not be reproduced except in full without the written approval of East China Institute of Telecommunications. 3. For the test results, the uncertainty of measurement is not taken into account when judging the compliance with specification, and the results of measurement or the average value of measurement results are taken as the criterion of the compliance with specification directly. Test Laboratory: East China Institute of Telecommunications Add: Block No.4, No.766, Jingang Road, Pudong District, Shanghai, P. R. China Tel: +86 21 63843300 E-Mail: [email protected] Report No.I20D00079-SRD27 East China Institute of Telecommunications Page Number: 3 of 81 Report Issued Date: Aug.07.2020 Revision Version Report Number Revision Date Memo I20D00079-SRD27 00 2020-08-07 Initial creation of test report Report No.I20D00079-SRD27 East China Institute of Telecommunications Page Number: 4 of 81 Report Issued Date: Aug.07.2020 CONTENTS 1. TEST LABORATORY ............................................................................................................... 6 1.1. TESTING LOCATION ............................................................................................................... 6 1.2. TESTING ENVIRONMENT ....................................................................................................... 6 1.3. PROJECT DATA ....................................................................................................................... 6 1.4. SIGNATURE ............................................................................................................................. 6 2. CLIENT INFORMATION ........................................................................................................... 7 2.1. APPLICANT INFORMATION ................................................................................................... 7 2.2. MANUFACTURER INFORMATION ......................................................................................... 7 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ............................ 8 3.1. ABOUT EUT ............................................................................................................................. 8 3.2. INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST ....................................... 8 3.3. INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ......................................... 8 4. REFERENCE DOCUMENTS .................................................................................................... 9 4.1. REFERENCE DOCUMENTS FOR TESTING .......................................................................... 9 5. TEST RESULTS ...................................................................................................................... 10 5.1. SUMMARY OF TEST RESULTS ............................................................................................ 10 5.2. STATEMENTS......................................................................................................................... 11 6. TEST EQUIPMENT UTILIZED ............................................................................................... 12 7. TEST ENVIRONMENT ........................................................................................................... 14 8. MEASUREMENT UNCERTAINTY ........................................................…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Leandro Wan-Dall(Head of Certification Management)

[email protected]00490166355178Fax: 00490166355178

Test Firm

Industrial Internet Innovation Center (Shanghai)Zheng Zhongbin

[email protected]86-21-63843300

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
27	27	704 MHz - 711 MHz	182.00 mW	9M04W7D	0.1 ppm

Modular Type

Single Modular Approval

Confidentiality

Long Term

Grant Notes

Single Modular Approval. Power listed is conducted. This device is to be used only for mobile and fixed applications. This device supports LTE Band 2, 4, 5, 7, and 12. The device was tested for QPSK, and 16QAM. This device supports LTE of 1.4, 3, 5, 10, 15 and 20 MHz bandwidth modes for Band 2, and 4; and LTE of 1.4, 3, 5 and 10 MHz bandwidth modes for Band 5 and 12; and LTE of 5, 10, 15 and 20 MHz bandwidth modes for Band 7. This module can only be used with the antenna design in strict compliance with the OEM instructions provided. The maximum antenna gain for this module as reported to the FCC is 5.15 dBi. The module antenna must be installed to meet the RF exposure compliance separation distance of 20 cm and any additional testing and authorization process as required. Co-location of this module with other transmitters that operate simultaneously is required to be evaluated using the FCC multi-transmitter procedures. OEM integrators and end-Users must be provided with transmitter operating conditions for satisfying RF exposure compliance. This grant is valid only when the device is sold to OEM integrators and the OEM integrators are instructed to ensure that the end user has no manual instructions to remove or install the device. Separate approval is required for all other operating configurations, including portable configurations with respect to 2.1093 and different antenna configurations. This device contains functions that are not operational in U.S. Territories. This filing is only applicable for U.S. operations.
