QIPTC63Quadband GSM/GPRS Module

Hardware Interface Descri p tion TC63 Siemens Cellular Engine Version: 00.432 DocID: TC63_HD_V00.432 s TC63 Hardware Interface Description Strictly confidential / Draft s TC63_HD_V00.432 Page 2 of 97 11.05.2005 Document Name: TC63 Hardware Interface Description Version: 00.432 Date: May 11, 2005 DocId: TC63_HD_V00.432 Status: Strictly confidential / Draft General note Product is deemed accepted by Recipient and is provided without interface to Recipient ́s products. The Product constitutes pre-release version and code and may be changed substantially before commercial release. The Product is provided on an “as is” basis only and may contain deficiencies or inadequacies. The Product is provided without warranty of any kind, express or implied. To the maximum extent permitted by applicable law, Siemens further disclaims all warranties, including without limitation any implied warranties of merchantability, fitness for a particular purpose and noninfringement of third-party rights. The entire risk arising out of the use or performance of the Product and documentation remains with Recipient. This Product is not intended for use in life support appliances, devices or systems where a malfunction of the product can reasonably be expected to result in personal injury. Applications incorporating the described product must be designed to be in accordance with the technical specifications provided in these guidelines. Failure to comply with any of the required procedures can result in malfunctions or serious discrepancies in results. Furthermore, all safety instructions regarding the use of mobile technical systems, including GSM products, which also apply to cellular phones must be followed. Siemens AG customers using or selling this product for use in any applications do so at their own risk and agree to fully indemnify Siemens for any damages resulting from illegal use or resale. To the maximum extent permitted by applicable law, in no event shall Siemens or its suppliers be liable for any consequential, incidental, direct, indirect, punitive or other damages whatsoever (including, without limitation, damages for loss of business profits, business interruption, loss of business information or data, or other pecuniary loss) arising out the use of or inability to use the Product, even if Siemens has been advised of the possibility of such damages. Subject to change without notice at any time. Copyright Transmittal, reproduction, dissemination and/or editing of this document as well as utilization of its contents and communication thereof to others without express authorization are prohibited. Offenders will be held liable for payment of damages. All rights created by patent grant or registration of a utility model or design patent are reserved. Copyright © Siemens AG 2005 TC63 Hardware Interface Description Strictly confidential / Draft s TC63_HD_V00.432 Page 3 of 97 11.05.2005 Contents 0 Document History .........................................................................................................7 1 Introduction ...................................................................................................................8 1.1 Related Documents ...............................................................................................8 1.2 Terms and Abbreviations .......................................................................................9 1.3 Type Approval......................................................................................................12 1.4 Safety Precautions...............................................................................................14 2 Product Concept .........................................................................................................16 2.1 Key Features at a Glance ....................................................................................16 2.2 TC63 System Overview .......................................................................................19 2.3 Circuit Concept ....................................................................................................20 3 Application Interface...................................................................................................21 3.1 Operating Modes .................................................................................................22 3.2 Power Supply.......................................................................................................24 3.2.1 Minimizing Power Losses ......................................................................24 3.2.2 Measuring the Supply Voltage V BATT+ ....................................................25 3.2.3 Monitoring Power Supply by AT Command ...........................................25 3.3 Power Up / Power Down Scenarios.....................................................................26 3.3.1 Turn on TC63.........................................................................................26 3.3.1.1 Turn on TC63 Using Ignition Line IGT ...................................................26 3.3.1.2 Turn on TC63 Using the VCHARGE Signal...........................................28 3.3.1.3 Reset TC63 via AT+CFUN Command ...................................................29 3.3.1.4 Reset or Turn off TC63 in Case of Emergency......................................29 3.3.2 Turn off TC63.........................................................................................30 3.3.2.1 Turn off TC63 Using AT Command .......................................................30 3.3.2.2 Leakage Current in Power Down Mode .................................................31 3.3.3 Automatic Shutdown ..............................................................................32 3.3.3.1 Temperature Dependent Shutdown.......................................................32 3.3.3.2 Temperature Control during Emergency call .........................................33 3.3.3…

Text truncated - open the document above for the full version.

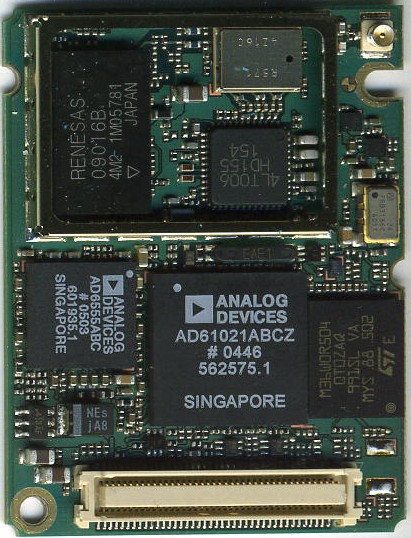

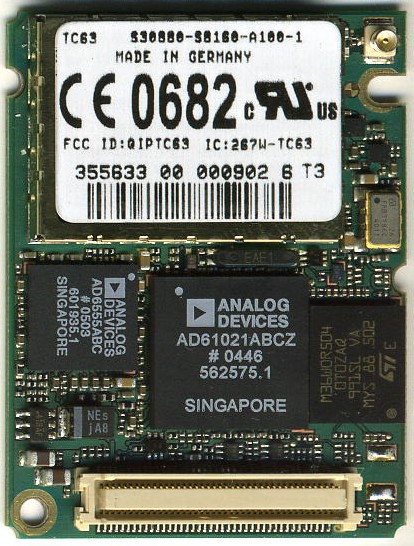

Siemens Cellular Engine TC63 Photos TC63: component side TC63: component side shielding opened TC63: rear side

Siemens Cellular Engine TC63 Photos TC63: component side TC63: component side shielding opened

Siemens Cellular Engine TC63 Photos TC63: component side TC63: component side shielding opened TC63: rear side

www.siemens.com/wm TC63 Wireless Modules TC63 – Top-of-the-scale m2m Connectivity Customers who require a high-quality GSM/GPRS wireless module for their m2m applications but don’t need the TC65’s Java ™ platform should take a close look at the new TC63. Featuring quadband technology, GPRS class 12, and an integrated TCP/IP stack, this module enables GSM/GPRS connectivity of the highest standard. You can make use of the TC63 for your new ideas in the following business segments: •Security applications •Vending machines •Fleet management •POS devices and barcode scanners •Metering and remote monitoring •GPRS modems •... and many more. Siemens is offering the TC63 to customers in conjunction with technical services to match their individual needs. So if you opt for this module, you are also deciding in favor of all- around professional support right from the start. The quadband technology incorporated in the TC63 makes it suitable for use in any GSM network anywhere in the world. Being equipped with two serial interfaces, USB, I 2 C bus, and an integrated TCP/IP stack, the TC63 provides flexible and wide-range connectivity. In addition, the module is capable of operating at temperatures from - 30 to + 65 ̊C, which is required by many m2m applications. As far as environmental friendliness is concerned, the module is ahead of the times: the TC63 is lead-free, meeting the European requirement on limiting the use of certain hazardous substances in electrical and electronic devices (RoHS). TC63 – global, easy to integrate, and as tough as can be General features • Quadband: 850/900/1800/1900 MHz • GSM release 99 • Output power: • Class 4 (2W) for EGSM 850 and 900 • Class 1 (1W) for GSM 1800 and 1900 • AT commands Hayes GSM 07.05 and GSM 07.07 • SIM application toolkit release 99 • Supply voltage range: 3.2 to 4.5 V • Recommended supply voltage: 3.8 +/- 0.2 V • Power consumption: • Power down 50 μA • Sleep mode (registered DRX=6) 3 mA • Talk mode (average) 300 mA • GPRS class 12 (average) 600 mA • Charging control for Lithium batteries • Dimensions 34 x 45 x 3.5 mm • Weight < 10 g • Ambient temperature range: – 30 to + 65°C • Automatic switch off at +75 °C Specification for GPRS data transmission • Class 12 multislot • PBCCH support • Coding scheme 1 to 4 • Class B mobile station Specification for CSD data transmission • Up to 14.4 kbit/s • V.110 • Non-transparent mode • USSD support Specification for fax • Group 3, class 1 Specification for voice • Triple-rate codec for HR, FR, and EFR • Adaptive multirate AMR • Basic hands-free operation • Echo cancellation • Noise reduction Specification for SMS • Via GSM or GPRS • Point-to-point MO and MT • Text and PDU mode • SMS cell broadcast Special features • TCP/IP stack access via AT commands • Character framing 7E1 and 8E1 at serial interface • Programmable module reset Approvals • R&TTE, FCC, UL, IC, GCF, PTBRC • Local approvals and network operator certifications Interfaces • Molex 80-pin board-to-board connector • Hirose U.FL 50 ohm antenna connector • Antenna solder pad • Audio: 2x analog, 1x digital • 2 serial interfaces with the ITU-T V.24 protocol • USB 2.0 full speed • SIM card interface, 3 V, 1.8 V •I 2 C bus More about Siemens Wireless Modules at: www.siemens.com/wm Copyright 2005, Siemens AG Wireless Modules Haidenauplatz 1 81667 Munich, Germany Subject to changes in technology, design and availability Order No.: A31001-W25-A320-X-7600 Printed in Germany Technical Data Original size

- 2 - Maximum Permissable Exposure (as specified in Table 1B of 47 CFR 1.1310 – Limits for Maximum Permissable Exposure (MPE), Limits for General Population/Uncontrolled Exposure) Frequency range (MHz) Power density (mW/cm²) 300 – 1,500 f/1500 1,500 – 100,000 1.0 Calculations 850 MHz band Maximum peak output power at antenna input terminal: 31.5 dBm (1.41 W) (see 7 layers test report 4_SIE_0504_GSM_FCCc – FCC ID QIPMC75) Prediction distance R: 20 cm Prediction frequency: 836,4 MHz MPE limit S: 0.5576 mW/cm² Equation OET bulletin 65, page 18, edition 97-01: S = P*G / (4πR²) S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to to the center of radiation of the antenna) Maximum allowable antenna gain: 2.98 dBi Prediction The maximum allowed MPE value of 0.5576 mW/cm²will be reached in a distance of 20 cm in case that an antenna with an antenna gain of 2,98 dBi would be used. This means that the power density levels in a distance of 20 cm are in accordance with the FCC regulations as long as the used antenna has a gain below 2,98 dBi. - 3 - Calculations 1900 MHz band Maximum peak output power at antenna input terminal: 28.6 dBm (0,7244 W) (see 7 layers test report 4_SIE_0504_GSM_FCCa – FCC ID QIPMC75) Prediction distance R: 20 cm Prediction frequency: 1880 MHz MPE limit S: 1 mW/cm² Equation OET bulletin 65, page 18, edition 97-01: S = P*G / (4πR²) S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to to the center of radiation of the antenna) Maximum allowable antenna gain: 8.41 dBi Prediction The maximum allowed MPE value of 1 mW/cm² will be reached in a distance of 20 cm in case that an antenna with an antenna gain of 8,41 dBi would be used. This means that the power density levels in a distance of 20 cm are in accordance with the FCC regulations as long as the used antenna has a gain below 8,41 dBi.

FCC Measurement/Technical Report on 4_Siem_0504_GSM_FCCd 7 Layers AG Borsigstr. 11 40880 Ratingen Germany Note: The following test results relate only to the devices specified in this document. This report shall not be reproduced in parts without the written approval of the testing laboratory. GSM Module TC63 Siemens Cellular Engine TC63 7 layers AG, Borsigstrasse 11 40880 Ratingen, Germany Phone: +49 (0) 2102 749 0 Fax: +49 (0) 2102 749 350 http://www.7Layers.com Aufsichtsratsvorsitzender - Chairman of the Supervisory Board: Michael Abels Vorstand - Board of Directors: Dr. Hans-Jürgen Meckelburg René Schildknecht Registergericht - registered in: Düsseldorf, HRB 44096 USt-IdNr VAT Nr: DE 203159652 Report Reference: TTI-P-G 178/99 Test Laboratory (Headquarter): Interlab is a registered trademark of 7 layers AG Table of Contents 0. Summary 0.1 Technical Report Summary 0.2 Measurement Summary 1. Administrative Data 1.1 Testing Laboratory 1.2 Project Data 1.3 Applicant Data 1.4 Manufacturer Data 2. Testobject Data 2.1 General EUT Description 2.2 EUT Main Components 2.3 Ancillary Equipment 2.4 EUT Setups 2.5 Operating Modes 3. Test Results 3.1 RF Power Output 3.3 Spurious Emissions at Antenna Terminals 3.2 Frequency Stability 3.4 Field Strength of Spurious Radiation 4. Testequipment 5. Foto Report 6. Setup Drawings 7. Annex 3 3 4 5 5 5 5 5 6 6 7 7 7 7 8 8 11 14 17 19 21 3.5 Emission and Occupied Bandwidth 3.6 Modulation Charcteristics Page 2 of 21Testreport Reference: 4_Siem_0504_GSM_FCCd 0 Summary 0.1 Technical Report Summary Type of Authorization Certification for a broadband PCS device Applicable FCC Rules Prepared in accordance with the requirements of FCC Rules and Regulations as listed in 47 CFR Ch.1 Parts 0 to 19 and Parts 20 to 69 (10-1-98 Edition). The following subparts are applicable to the results in this test report. Part 2 Subpart J - Equipment Authorization Procedures, Certification § 2.1046 Measurement required: RF power output § 2.1049 Measurement required: Occupied bandwidth § 2.1051 Measurement required: Spurious emissions at antenna terminals § 2.1053 Measurement required: Field strength of spurious emission § 2.1055 Measurement required: Frequency stability § 2.1057 Frequency spectrum to be investigated Part 24 Subpart E - Broadband PCS § 24.232 Power and antenna height limits § 24.235 Frequency stability § 24.238 Emission limits Summary Test Results: The EUT complied with all performed tests as listed in chapter 0.2 Measurement Summary. Page 3 of 21Testreport Reference: 4_Siem_0504_GSM_FCCd 1. Administrative Data 1.1 Testing Laboratory Company Name: Address: The test facility is also accredited by the following accreditation organisation: Responsible for Accreditation Scope: 7 Layers AG Borsigstr. 11 40880 Ratingen Germany DAR-Registration no. TTI-P-G 178/99 Dipl.-Ing Bernhard Retka Dipl.-Ing Arndt Stöcker Dipl.-Ing Thomas Hoell This facility has been fully described in a report submitted to the FCC and accepted under the registration number 96716 . - Deutscher Akkreditierungs Rat 2005-05-02 Dipl.-Ing. Robert Machulec 2005-05-06 2005-05-02 Responsible for testing and report Receipt of EUT: Date of Test(s): Date of Report: 1.2 Project Data Siemens AG (BLN) Thorsten Liebig Siemensdamm 50 13629 Berlin Germany please see Applicant data 1.4 Manufacturer Data Company Name: Address: Contact Person: Company Name: Address: Contact Person: 1.3 Applicant Data Page 5 of 21Testreport Reference: 4_Siem_0504_GSM_FCCd 2. Testobject Data Type Designation: Kind of Device: (optional) Voltage Type: Nominal Voltage: Equipment under Test: Siemens Cellular EngineTC63 GSM 850/900/1800/1900 GSM Module TC63 DC 4.5 V Ports 2.1 General EUT Description General product description: GSM module for mobile phones which is able to operate in the bands 850, 900, 1800 and 1900. The manufacturer declared that nominal voltage is equal to high voltage. The EUT provides the following ports: Maximum Voltage: Minimum Voltage: 4.5 V 3.2 V antenna connector enclosure + antenna The main components of EUT are listed and described in Chapter 2.2 Page 6 of 21Testreport Reference: 4_Siem_0504_GSM_FCCd Short Description Equipment under Test Type Designation 2.2 EUT Main components: Type, S/N, Short Descriptions etc. used in this Test Report HW StatusSW StatusSerial No.Date of Receipt Rev.B2.5Rev.00.432IMEI: 355633000010085 2005-05-02TC63GSM ModuleEUT A EUT A is connected to the development board. The SMA antenna connector is provided by the development board. For radiated tests an external antenna will be used additionally.. NOTE: The short description is used to simplify the identification of the EUT in this test report 2.3 Ancillary Equipment Short Description Equipment under Test Type DesignationHW StatusSW StatusSerial No.FCC Id For the purposes of this test report, ancillary equipment is defined as equipment which is used in conjunction with the EUT to provide operational and control features to the EUT. It is necessary to configure the system in a typical fashion, as a customer would normally use it. But never the less Ancillary Equipment can influence the test AE2Development BoardDSB75--B1 0077- AE1Allgon-MiniMAG Dualband Antenna Ordering number: 1140.26 --EMV Referenz Antenne_02 - Setup No.Combination of EUTsDescription 2.4 EUT Setups This chapter describes the combination of EUT's and ancillary equipment used for testing. setup_a01EUT A + AE2setup for spurious emissions conducted test setup_a02EUT A + AE1 + AE2setup for spurious emissions radiated test Op. Mode Description of Operating Modes Remarks 2.5 Operating Modes This chapter describes the operating modes of the EUT's used for testing. op-mode 1Call established on Traffic Channel (TCH) 512, Carrier Frequency 1850,2 MHz 512 is the lowest channel op-mode 2Call established on Traffic Channel (TCH) 661, Carrier Frequency 1880 MHz 661 is a mid channel of the full PCS band (blocks A to F) op-mode 3Call established on Traffic Channel (TCH) 810, Carrier Frequency…

Text truncated - open the document above for the full version.

7 layers AG Aufsichtsratsvorsitzenderh Registergerichth registered in: Borsigstrasse 11 Chairman of the Supervisory Board: Düsseldorf, HRB 44096 40880 Ratingen, Germany Michael Abels USt-IdNr h VAT Nr: Phone: +49 (0) 2102 749 0 Vorstandh Board: DE 203159652 Fax: +49 (0) 2102 749 350 Dr. Hans-Jürgen Meckelburg www.7Layers.com René Schildknecht InterLab  is a registered trademark of 7 layers AG FCC Measurement/Technical Report on GSM Module TC63 Siemens Cellular Engine TC63 Report Reference: 4_SIEM_0504_GSM_FCCe Test Laboratory: 7 layers AG Borsigstrasse 11 40880 Ratingen Germany email: [email protected] TTI-P-G 178/99 Note: The following test results relate only to the devices specified in this document. This report shall not be reproduced in parts without the written approval of the testing laboratory. Testreport Reference: 4_SIEM_0504_GSM_FCCe Page 2 of 23 Table of Contents 0 Summary 3 0.1 Technical Report Summary 3 0.2 Measurement Summary 4 1 Administrative Data 5 1.1 Testing Laboratory 5 1.2 Project Data 5 1.3 Applicant Data 5 1.4 Manufacturer Data 5 2 Testobject Data 6 2.1 General EUT Description 6 2.2 EUT Main components 7 2.3 Ancillary Equipment 7 2.4 EUT Setups 7 2.5 Operating Modes 7 3 Test Results 8 3.1 Spurious emissions at antenna terminals 8 3.2 Field strength of spurious radiation 11 4 Test Equipment 14 5 Photo Report 17 6 Setup Drawings 21 7 Annex 23 Testreport Reference: 4_SIEM_0504_GSM_FCCe Page 3 of 23 0 Summary 0.1 Technical Report Summary Type of Authorization Certification for a GSM cellular radiotelephone device Applicable FCC Rules Prepared in accordance with the requirements of FCC Rules and Regulations as listed in 47 CFR Ch.1 Parts 0 to 19 and Parts 20 to 69 (10-1-01 Edition). The following subparts are applicable to the results in this test report. Part 2 Subpart J - Equipment Authorization Procedures, Certification § 2.1046 Measurement required: RF power output § 2.1049 Measurement required: Occupied bandwidth § 2.1051 Measurement required: Spurious emissions at antenna terminals § 2.1053 Measurement required: Field strength of spurious emission § 2.1055 Measurement required: Frequency stability § 2.1057 Frequency spectrum to be investigated Part 22 Subpart H – Cellular Radiotelephone Service § 22.355 Frequency tolerance § 22.913 Effective radiated power limits § 22.917 Emission limitations for cellular Summary Test Results: The EUT complied with all performed tests as listed in chapter 0.2 Measurement Summary. Testreport Reference: 4_SIEM_0504_GSM_FCCe Page 5 of 23 1 Administrative Data 1.1 Testing Laboratory Company Name: 7 Layers AG Address Borsigstr. 11 40880 Ratingen Germany This facility has been fully described in a report submitted to the FCC and accepted under the registration number 96716 . The test facility is also accredited by the following accreditation organisation: - Deutscher Akkreditierungs Rat DAR-Registration no. TTI-P-G 178/99 Responsible for Accreditation Scope: Dipl.-Ing. Bernhard Retka Dipl.-Ing. Arndt Stöcker Dipl.-Ing. Thomas Hoell Report Template Version: 2005-04-20 1.2 Project Data Responsible for testing and report: Dipl.-Ing. Robert Machulec Receipt of EUT: 2005-05-02 Date of Test(s): 2005-05-02 Date of Report: 2005-05-06 1.3 Applicant Data Company Name: Siemens AG Address: Siemensdamm 50 13629 Berlin Germany Contact Person: Thorsten Liebig 1.4 Manufacturer Data Company Name: please see applicant data Address: Contact Person: Testreport Reference: 4_SIEM_0504_GSM_FCCe Page 6 of 23 2 Testobject Data 2.1 General EUT Description Equipment under GSM Module TC63 Type Designation: Siemens Cellular Engine TC63 Kind of Device: (optional) GSM 850/900/1800/1900 Voltage Type: DC Nominal Voltage: 4,5 V Maximum Voltage: 4,5 V Minimum Voltage: 3,2 V General product description: GSM module for mobile phones which is able to operate in the bands 850, 900, 1800 and 1900. The manufacturer declared that nominal voltage is equal to high voltage. In GSM 850 mode the card operates in channel blocks A and B from 824,2 MHz (lowest channel = 128) to 848,8 MHz (highest channel = 251). The EUT provides the following ports: Ports antenna connector enclosure The main components of the EUT are listed and described in Chapter 2.2 Testreport Reference: 4_SIEM_0504_GSM_FCCe Page 7 of 23 2.2 EUT Main components Type, S/N, Short Descriptions etc. used in this Test Report Short Description Equipment under Test Type Designation Serial No. HW Status SW Status Date of Receipt EUT A GSM Phone TC63 3556330000 10085 Rev.B2.5 Rev.00.432 2005-05-02 Remark: EUT A is connected to the development board. The SMA antenna connector is provided by the development board. For radiated tests an external antenna will be used additionally. NOTE: The short description is used to simplify the identification of the EUT in this test report. 2.3 Ancillary Equipment For the purposes of this test report, ancillary equipment is defined as equipment which is used in conjunction with the EUT to provide operational and control features to the EUT. It is necessary to configure the system in a typical fashion, as a customer would normally use it. But nevertheless Ancillary Equipment can influence the test results. Short Description Equipment under Test Type Designation HW Status SW Status Serial no. FCC ID AE1 Allgon- MiniMAG Dualband Antenna Ordering number: 1140.26 – – EMV Referenz Antenne No.02 – AE2 Develop- ment Board DSB75 B1 0077 – 2.4 EUT Setups This chapter describes the combination of EUT's and ancillary equipment used for testing. Setup No. Combination of EUTs Description setup_a01 EUT A + AE2 setup for spurious emissions conducted test setup_a02 EUT A + AE1 + AE2 setup for spurious emissions radiated test 2.5 Operating Modes This chapter describes the operating modes of the EUT's used for testing. Op. Mode Description of Operating Modes Remarks op-mode 1 Call established on Traffic Channel (TCH) 128, Carrier Frequency 824,2 MHz 128 is the lowest channel op-mode 2 Call established on Traff…

Text truncated - open the document above for the full version.

5. Foto Report Picture1EUT connected to the development board: Picture2EUT (top side): Page 17 of 21Testreport Reference: 4_Siem_0504_GSM_FCCd Picture3EUT (bottom side): Picture4Setup for radiated tests: Page 18 of 21Testreport Reference: 4_Siem_0504_GSM_FCCd
