QIPXT65Quadband GSM/GPRS/GPS Module

s XT65/XT75 Siemens Cellular Engine Version:00.130 DocId:XT65_XT75_HO_v00.130 Supported Products:XT65, XT75 Hardware Interface Overview XT65/XT75 Hardware Interface Overview XT65_XT75_HO_v00.130Page 2 of 582006-10-12 Confidential / Preliminary s General Notes Product is deemed accepted by Recipient and is provided without interface to Recipient ́s products. The Product constitutes pre-release version and code and may be changed substantially before commercial release. The Product is provided on an “as is” basis only and may contain deficiencies or inadequacies. The Product is pro- vided without warranty of any kind, express or implied. To the maximum extent permitted by applicable law, Si- emens further disclaims all warranties, including without limitation any implied warranties of merchantability, fitness for a particular purpose and noninfringement of third-party rights. The entire risk arising out of the use or performance of the Product and documentation remains with Recipient. This Product is not intended for use in life support appliances, devices or systems where a malfunction of the product can reasonably be expected to result in personal injury. Applications incorporating the described product must be designed to be in accordance with the technical specifications provided in these guidelines. Failure to comply with any of the required proce- dures can result in malfunctions or serious discrepancies in results. Furthermore, all safety instructions regarding the use of mobile technical systems, including GSM products, which also apply to cellular phones must be fol- lowed. Siemens AG customers using or selling this product for use in any applications do so at their own risk and agree to fully indemnify Siemens for any damages resulting from illegal use or resale. To the maximum extent permitted by applicable law, in no event shall Siemens or its suppliers be liable for any consequential, incidental, direct, indirect, punitive or other damages whatsoever (including, without limitation, damages for loss of business profits, business interruption, loss of business information or data, or other pecuniary loss) arising out the use of or inability to use the Product, even if Siemens has been advised of the possibility of such damages. Subject to change without notice at any time. Copyright Transmittal, reproduction, dissemination and/or editing of this document as well as utilization of its contents and communication thereof to others without express authorization are prohibited. Offenders will be held liable for payment of damages. All rights created by patent grant or registration of a utility model or design patent are re- served. Copyright © Siemens AG 2006 Document Name: XT65/XT75 Hardware Interface Overview Version: 00.130 Date: 2006-10-12 DocId: XT65_XT75_HO_v00.130 Status Confidential / Preliminary Supported Products: XT65, XT75 XT65/XT75 Hardware Interface Overview Contents s XT65_XT75_HO_v00.130Page 3 of 582006-10-12 Confidential / Preliminary Contents 1Introduction.............................................................................................................................................. 6 1.1Related Documents......................................................................................................................... 6 1.2Terms and Abbreviations ................................................................................................................ 7 1.3Regulatory and Type Approval Information................................................................................... 10 1.3.1Directives and Standards............................................................................................... 10 1.3.2SAR requirements specific to portable mobiles ............................................................. 11 1.3.3SELV Requirements ...................................................................................................... 12 1.3.4Safety Precautions.........................................................................................................12 2Product Concept.................................................................................................................................... 14 2.1Key Features at a Glance.............................................................................................................. 14 3Application Interface ............................................................................................................................. 18 3.1Operating Modes........................................................................................................................... 19 4GSM Antenna Interface ......................................................................................................................... 20 4.1Antenna Installation....................................................................................................................... 20 4.2Antenna Pad.................................................................................................................................. 21 4.2.1Suitable Cable Types..................................................................................................... 22 4.3Antenna Connector ....................................................................................................................... 23 5GPS Antenna Interface.......................................................................................................................... 27 5.1Antenna Installation....................................................................................................................... 27 5.2GPS Antenna ................................................................................................................................ 28 6Electrical, Reliability and Radio Characteristics ................................................................................ 29 6.1Absolute Maximum R…

Text truncated - open the document above for the full version.

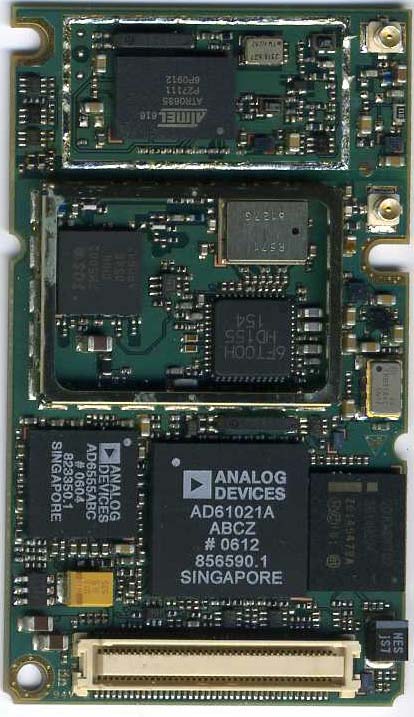

Siemens Cellular Engine XT75 / XT65 Top side Siemens Cellular Engine XT75 / XT65 Top side without shielding Siemens Cellular Engine XT75 / XT65 Bottom Side

94600XT Z30880-Z9999-Z94-* IMEI LPT1 600DPI Labelname Partno. baselabel Description Resolution T y p e Printer IMEI-LABEL XT65 Add.information (# INFO 5 #) IC: 267-XT65 Add. information (# INFO 4 #) FCC ID:QIPXT65 CE0682 BMP Datecode assignment by PICS Devicepartnumber S30XXX-SXXXX-XXXX-1 E1-ECE BMP IMEI as barcode assignment by PICS IMEI as plain writing assignment by PICS Made in text depending on product location Produkttyp (# INFO 2 #) XT65 S30880-S8835-A100-05 05.10.2006 1 Page 1 of 05.10.2006 1 Page 1 of LabelDocument V7.05 04.08.2005 Name KimDarov Documentnumber

Siemens Cellular Engine XT75 / XT65 Top side Siemens Cellular Engine XT75 / XT65 Top side without shielding Siemens Cellular Engine XT75 / XT65 Bottom Side

4_SIEM_0906_GSM Siemens AG Attn. Thorsten Liebig A&D SC WM RD TI AS Siemensdamm 50 13629 Berlin Germany Sven Lüngen 31.10.2006 Phone +49 (0) 2102 749 153 Fax +49 (0) 2102 749 350 Siemens Cellular Engine XT65 – predictions for Maximum Permissible Exposure Dear Mr. Liebig, please find our Maximum Permissible Exposure calculations for the GSM module XT65. Best Regards Sven Lüngen 7 layers AG Aufsichtsratsvorsitzenderh Registergerichth registered in: Borsigstrasse 11 Chairman of the Supervisory Board: Düsseldorf, HRB 44096 40880 Ratingen, Germany Markus Becker USt-IdNr h VAT Nr: Phone: +49 (0) 2102 749 0 Vorstandh Board: DE 203159652 Fax: +49 (0) 2102 749 350 Dr. Hans-Jürgen Meckelburg www.7Layers.com René Schildknecht - 2 - Maximum Permissible Exposure (as specified in Table 1B of 47 CFR 1.1310 – Limits for Maximum Permissible Exposure (MPE), Limits for General Population/Uncontrolled Exposure) Frequency range (MHz) Power density (mW/cm²) 300 – 1,500 f/1500 1,500 – 100,000 1.0 Calculations 850 MHz band Maximum peak output power at antenna input terminal: 33.4 dBm (2187,76 mW) (see 7 layers test report 4_SIEM_0406_UMTS_FCCa) Prediction distance R: 20 cm Prediction frequency: 848,8 MHz MPE limit S: 0.5658 mW/cm² Equation OET bulletin 65, page 18, edition 97-01: S = P*G / (4πR²) S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the centre of radiation of the antenna Maximum permissible antenna gain: 1,1398 dBi Prediction The maximum allowed MPE value of 0.5658 mW/cm²will be reached in a distance of 20 cm in case that an antenna with an antenna gain of 1,1398 dBi would be used. This means that the power density levels in a distance of 20 cm are in accordance with the FCC regulations as long as the used antenna has a gain below 1,1398 dBi. - 3 - Calculations 1900 MHz band Maximum peak output power at antenna input terminal: 29.8 dBm (954,99 mW) (see 7 layers test report 4_SIEM_0406_GSM_FCCb) Prediction distance R: 20 cm Prediction frequency: 1850,2 MHz MPE limit S: 1 mW/cm² Equation OET bulletin 65, page 18, edition 97-01: S = P*G / (4πR²) S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the centre of radiation of the antenna Maximum permissible antenna gain: 7.2127 dBi Prediction The maximum allowed MPE value of 1 mW/cm² will be reached in a distance of 20 cm in case that an antenna with an antenna gain of 7,2127 dBi would be used. This means that the power density levels in a distance of 20 cm are in accordance with the FCC regulations as long as the used antenna has a gain below 7,2127 dBi.

7 layers AG Aufsichtsratsvorsitzenderh Registergerichth registered in: Borsigstrasse 11 Chairman of the Supervisory Board: Düsseldorf, HRB 44096 40880 Ratingen, Germany Markus Becker USt-IdNr h VAT Nr: Phone: +49 (0) 2102 749 0 Vorstandh Board: DE 203159652 Fax: +49 (0) 2102 749 350 Dr. Hans-Jürgen Meckelburg www.7Layers.com René Schildknecht InterLab ® is a registered trademark of 7 layers AG FCC Measurement/Technical Report on GSM Module Siemens Cellular Engine XT75 Report Reference: 4_Siem_0406_GSM_FCCa Test Laboratory: 7 layers AG Borsigstrasse 11 40880 Ratingen Germany email: [email protected] DAT-P-192/99-01 Note: The following test results relate only to the devices specified in this document. This report shall not be reproduced in parts without the written approval of the testing laboratory. Test report Reference: 4_Siem_0406_GSM_FCCa Page 2 of 54 Table of Contents 0 Summary 3 0.1 Technical Report Summary 3 0.2 Measurement Summary 4 1 Administrative Data 6 1.1 Testing Laboratory 6 1.2 Project Data 6 1.3 Applicant Data 6 1.4 Manufacturer Data 6 2 Testobject Data 7 2.1 General EUT Description 7 2.2 EUT Main components 8 2.3 Ancillary Equipment 8 2.4 EUT Setups 8 2.5 Operating Modes 9 3 Test Results 10 3.1 RF Power Output 10 3.2 Frequency stability 13 3.3 Spurious emissions at antenna terminals 17 3.4 Field strength of spurious radiation 21 3.5 Emission and Occupied Bandwidth 25 3.6 Band edge compliance 29 4 Test Equipment 31 5 Photo Report 34 6 Setup Drawings 37 7 Annex 39 Measurement Plots Test report Reference: 4_Siem_0406_GSM_FCCa Page 3 of 54 0 Summary 0.1 Technical Report Summary Type of Authorization Certification for a GSM cellular radiotelephone device Applicable FCC Rules Prepared in accordance with the requirements of FCC Rules and Regulations as listed in 47 CFR Ch.1 Parts 0 to 19 and Parts 20 to 69 (10-1-05 Edition). The following subparts are applicable to the results in this test report. Part 2 Subpart J - Equipment Authorization Procedures, Certification § 2.1046 Measurement required: RF power output § 2.1049 Measurement required: Occupied bandwidth § 2.1051 Measurement required: Spurious emissions at antenna terminals § 2.1053 Measurement required: Field strength of spurious radiation § 2.1055 Measurement required: Frequency stability § 2.1057 Frequency spectrum to be investigated Part 22 Subpart C – Operational and Technical Requirements § 22.355 Frequency tolerance Subpart H – Cellular Radiotelephone Service § 22.913 Effective radiated power limits § 22.917 Emission limitations for cellular equipment Summary Test The EUT complied with all performed tests as listed in chapter 0.2 Measurement Summary. Test report Reference: 4_Siem_0406_GSM_FCCa Page 4 of 54 0.2 Measurement Summary RF Power Output The measurement was performed according to FCC §2.1046 10-1-05 OP-Mode Setup Port Final Result op-mode 1 Setup_a01 antenna connector passed op-mode 2 Setup_a01 antenna connector passed op-mode 3 Setup_a01 antenna connector passed op-mode 4 Setup_a01 antenna connector passed op-mode 5 Setup_a01 antenna connector passed op-mode 6 Setup_a01 antenna connector passed Frequency stability The measurement was performed according to FCC §2.1055 10-1-05 OP-Mode Setup Port Final Result op-mode 2 Setup_a01 antenna connector passed op-mode 5 Setup_a01 antenna connector passed Spurious emissions at antenna terminals The measurement was performed according to FCC §2.1051 10-1-05 OP-Mode Setup Port Final Result op-mode 1 Setup_a01 antenna connector passed op-mode 2 Setup_a01 antenna connector passed op-mode 3 Setup_a01 antenna connector passed op-mode 4 Setup_a01 antenna connector passed op-mode 5 Setup_a01 antenna connector passed op-mode 6 Setup_a01 antenna connector passed Field strength of spurious radiation The measurement was performed according to FCC §2.1053 10-1-05 OP-Mode Setup Port Final Result op-mode 1 Setup_a02 enclosure passed op-mode 2 Setup_a02 enclosure passed op-mode 3 Setup_a02 enclosure passed op-mode 4 Setup_a02 enclosure passed op-mode 5 Setup_a02 enclosure passed op-mode 6 Setup_a02 enclosure passed Emission and Occupied Bandwidth The measurement was performed according to FCC §2.1049 10-1-05 OP-Mode Setup Port Final Result op-mode 1 Setup_a01 antenna connector passed op-mode 2 Setup_a01 antenna connector passed op-mode 3 Setup_a01 antenna connector passed op-mode 4 Setup_a01 antenna connector passed op-mode 5 Setup_a01 antenna connector passed op-mode 6 Setup_a01 antenna connector passed Test report Reference: 4_Siem_0406_GSM_FCCa Page 6 of 54 1 Administrative Data 1.1 Testing Laboratory Company Name: 7 Layers AG Address Borsigstr. 11 40880 Ratingen Germany This facility has been fully described in a report submitted to the FCC and accepted under the registration number 96716 . The test facility is also accredited by the following accreditation organisation: - Deutscher Akkreditierungs Rat DAR-Registration no. DAT-P-192/99-01 Responsible for Accreditation Scope: Dipl.-Ing. Bernhard Retka Dipl.-Ing. Robert Machulec Dipl.-Ing. Thomas Hoell Report Template Version: 2006-08-31 1.2 Project Data Responsible for testing and report: Dipl.-Ing. Robert Machulec Receipt of EUT: 2006-09-18 Date of Test(s): 2006-09-18 to 2006-09-27 Date of Report: 2006-09-29 1.3 Applicant Data Company Name: Siemens AG Address: Siemensdamm 50 13629 Berlin Germany Contact Person: Thorsten Liebig 1.4 Manufacturer Data Company Name: please see applicant data Address: Contact Person: Test report Reference: 4_Siem_0406_GSM_FCCa Page 7 of 54 2 Testobject Data 2.1 General EUT Description Equipment under Test: GSM Module Type Designation: Siemens Cellular Engine XT75 Kind of Device: (optional) GSM 850/900/1800/1900 with EDGE and GPS receiver Voltage Type: DC Nominal Voltage: 4,5 V Maximum Voltage: 4,5 V Minimum Voltage: 3,2 V General product description: The Equipment Under Test (EUT) is a GSM 850/900/1800/1900 with EDGE phone module and GPS receiver. In GSM 850 mode the EUT operates in channel blocks A a…
