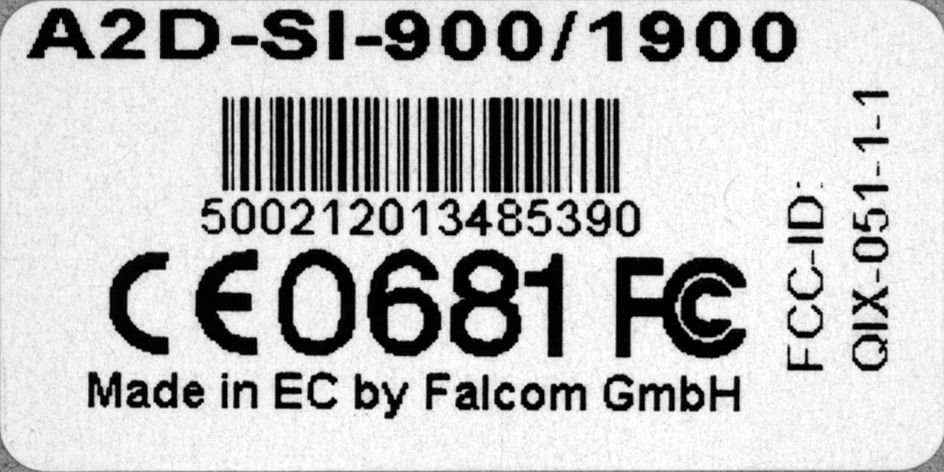

QIX-051-1-1Transmitter Module for mobile applications

Description Embedded GSM/GPS–Module A2D–JP © 2001 The information in this document is copyrighted for Falcom Wireless Communications GmbH. Any reproduction of this User Manual in whole or in part, electronic storage or translation in other languages are permitted only with the prior written consent of Fal- com Wireless Communications GmbH. All details of FALCOM’s products, particularly those in catalogues, in printed or other form, contain diagrams and details of products and performances which are not gua- ranteed features, but approximations. In respect of these, only the agreements in the contract of supply are valid. All rights reserved. DescriptionContents A2D–JPVersion 1.03Side 1 Contents 1Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 1.1General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 1.2Used abbreviations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 1.3Related documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 1.4Alert symbols used . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 2Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 2.1General information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 2.2Exposure to RF energy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 2.3Efficient modem operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 2.4Antenna care and replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 2.5Driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 2.6Electronic devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 2.7Vehicle electronic equipment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 2.8Medical electronic equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 2.9Aircraft . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 2.10Children . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 2.11Blasting areas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 2.12Potentially explosive atmospheres . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 2.13Non-ionising radiation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 3Safety standards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 4Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 5GSM–modem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 5.1General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 5.1.1GSM capability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 5.1.2GSM data services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 5.1.3RF characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 5.1.4SIM card reader. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16 5.1.5RS 232 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16 5.1.6Possible external devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16 5.2Special functionality pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16 5.2.1Firmware download procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19 5.2.2Resetting the GSM–module by AT+CFUN=1,1. . . . . . . . . . . . . . . . . . . . . . .19 5.3GSM 07.05. and 07.07. commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19 DescriptionContents A2D–JPVersion 1.03Side 2 5.3.1General AT commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20 5.3.2SMS AT commands (GSM 07.05) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20 5.3.3GSM AT commands (GSM 07.07). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21 6GPS receiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 6.1General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22 6.2Product overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23 6.2.1GPS receiver architecture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23 6.2.2Product applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24 6.3Technical description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24 6.3.1General information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24 6.3.2Hardware interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25 6.3.2.1 Configuration and timing signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25 6.3.3Serial communication signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26 6.3.4DC input signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28 6.3.5Software interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . …

Text truncated - open the document above for the full version.

Subject: Request for Confidentiality FCC ID: QIX-051-1-1 To Whom It May Concern: In accordance with §0.459 of CFR 47, Falcom GmbH Gewerbering 6 D-98704 Langewiesen Germany requests confidentiality for the following items 1. Schematic Diagram (Exhibit 4) 2. Part List (Exhibit 10) 3. Operational Description (Exhibit12). These items contain detailed system and equipment description and related information about the product which Falcom GmbH considers to be proprietary, confidential and a custom design which otherwise would not be released to the general public. Since this design is a basis from which future technological products will evolve, Falcom GmbH also feels that this information would be of benefit to its competitors, and that the disclosure of the information in these exhibits would give our competitors an unfair advantage in the market. Best Regards, On behalf of Falcom GmbH Karin Silberhorn CETECOM GmbH

CETECOM ICT Services GmbH Test report nr.:2_2796-01-01/02Issue date: 2002-04-19Page 57 (59) Photographs of the equipment Photograph no.: 2 CETECOM ICT Services GmbH Test report nr.:2_2796-01-01/02Issue date: 2002-04-19Page 58 (59) Photographs of the equipment Photograph no.: 3

CETECOM ICT Services GmbH Test report nr.:2_2796-01-01/02Issue date: 2002-04-19Page 59 (59) Photographs of the equipment Photograph no.: 4

Application QIX-051-1-1 Prediction of MPE limit at given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 2 4R PG S π = where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Prediction for GSM 1900 (1850-1910 MHz) Band Maximum peak output power at antenna input terminal: 29.01 dBm Maximum peak output power at antenna input terminal: 796.16mW Prediction distance: 20 cm Prediction frequency: 1880 MHz MPE limit for uncontrolled exposure at prediction frequency: 1 2 cm mW Maximum Permissive antenna gain: 6.313495211 numeric Maximum Permissive Antenna gain: 8 dBi The factory tuning procedure ensures that the transmitter output power conducted does not exceed 1 watt. An antenna with the antenna gain of 8dBi would have as result the MPE value of 1 mW/cm 2 . Therefore a typical antenna with a gain of 7dBi would be below the limit.

CETECOM ICT Services GmbH Radio Satellite Communication Untertürkheimer Straße 6-10 . D-66117 SaarbrückenTelefon: +49 (0)681 598-9100Telefax: -9075 RSC11issue test report consist of 59 PagesPage 1 (59) BLUETOOTH TM is a trademark owned by Bluetooth SIG, Inc. and licensed to CETECOM TTI-P-G-166/98-30 Accredited Bluetooth Test Facility (BQTF) Test report no.: 2_2796-01-01/02 FCC Part 24 A2D-SI 900/1900 CETECOM – ICT Services GmbH Untertürkheimerstr. 6-10 66117 Saarbrücken, Germany Telephone: + 49 (0) 681 / 598-0 Fax: + 49 (0) 681 / 9075 CETECOM ICT Services GmbH Test report nr.:2_2796-01-01/02Issue date: 2002-04-19Page 2 (59) Table of Contents 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of applicant 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test report 1 General information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM ICT Services GmbH does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM ICT Services GmbH. 1.2Testing laboratory CETECOM ICT Services GmbH Untertürkheimer Straße 6 - 10 66117 Saarbrücken Germany Telefone: + 49 681 598 - 9100 Telefax : + 49 681 598 - 9075 E-mail: [email protected] Internet: www.cetecom.de Accredited testing laboratory DAR-registration number : TTI-P-G-166/98-30 Accredited Bluetooth TM Test Facility (BQTF) BLUETOOTH TM is a trademark owned by Bluetooth SIG, Inc. and licensed to CETECOM CETECOM ICT Services GmbH Test report nr.:2_2796-01-01/02Issue date: 2002-04-19Page 3 (59) 1.3Details of applicant Name :Falcom GmbH Street :Gewerbering 6 City :D-98704 Langewiesen Country :Germany Telephone:+49 3677 8042-0 Telefax :+49 3677 8042-215 Contact :Mr. Ulrich Telephone:+49 3677 8042-225 1.4Application details Date of receipt of application : 12.04.2002 Date of receipt of test item : 18.04.2002 Date of test : 18.-19.04.2002 1.5Test item Type of equipment :Dual Band GSM module with GPS Type designation:A2D-SI 900/1900 Rev. 1.a Manufacturer:Applicant Street: City: Country: Serial number:IMEI 500187011142490 Additional informations:: Frequency:1850 – 1910 MHz Type of modulation:300KF2D Number of channels :300 Antenna:Socket Power supply:5V DC ext. Output power:29.23 dBm Peak Type of equipment:Temperature range : -30°C - +60°C FCC – ID: Hardware:1.0 Software:4.21 1.6Test standards: FCC Part 24 CETECOM ICT Services GmbH Test report nr.:2_2796-01-01/02Issue date: 2002-04-19Page 4 (59) 2 Technical test The radiated measurements were performed vertical and horizontal over the whole frequency range. We start at 1 m high with vertical receiving antenna and rotate the dish continuously. During rotation we use the antenna lift system to vary the high from 1 to 4 m. So we find maximum radiation output. At this points we do manual re-measurements. After this we do the same measurements in horizontal position of the receiving antenna. This (horizontal and vertical) is made for all the three planes of the test sample. We use the maximum received results. The detector function and selection of bandwidth are according ANSI C63.2-1996 item 8.2.1 and ANSI C63.4-1992 Item 4.2. Antennas are conform with ANSI C63.2-1996 item 15. 150 kHz - 30 MHz: Quasi Peak measurement, 9kHz Bandwidth, passive loop antenna. 30 MHz - 200 MHz: Quasi Peak measurement, 120KHz Bandwidth, biconical antenna 200MHz - 1GHz: Quasi Peak measurement, 120KHz Bandwidth, log periodic antenna 1GHz: Average, RBW 1MHz, VBW 10 MHz, waveguide horn 2.1Summary of test results No deviations from the technical specification(s) were ascertained in the course of the tests performed. FINAL VERDICT: PASS Technical responsibility for area of testing : 2002-04-22RSC 8411Berg M. DateSectionNameSignature Technical responsibility for area of testing : 2002-04-22RSC8412Hausknecht D. DateSectionNameSignature CETECOM ICT Services GmbH Test report nr.:2_2796-01-01/02Issue date: 2002-04-19Page 5 (59) 2.2Testreport TEST REPORT Test report no. : 2_2796-01-01/02 CETECOM ICT Services GmbH Test report nr.:2_2796-01-01/02Issue date: 2002-04-19Page 6 (59) TEST REPORT REFERENCE LIST OF MEASUREMENTS PARAMETER TO BE MEASURED ParagraphPAGE POWER OUTPUT SUBCLAUSE § 24.2327 FREQUENCY STABILITY SUBCLAUSE § 24.2358 AFC FREQ ERROR vs. VOLTAGE9 AFC FREQ ERROR vs. TEMPERATURE9 EMISSIONS LIMITS §24.23811 CONDUCTED SPURIOUS EMISSIONS35 OCCUPIED BANDWIDTH §2.98944 TEST SITE53 PHOTOGRAPHS OF THE EQUIPMENT56 CETECOM ICT Services GmbH Test report nr.:2_2796-01-01/02Issue date: 2002-04-19Page 7 (59) REFERENCE NUMBER(S) OF TEST EQUIPMENT USED (for reference numbers see test equipment listing) 64 POWER OUTPUT SUBCLAUSE § 24.232 Summery: This paragraph contains both average , peak output powers and EIRP measurements for the mobile station. In all cases, the peak output power is wthin the required mask (this mask is specified in the JTC standarts, TIA PN3389 Vol. 1 Chap 7, and is no FCC requirement). Method of Measurements: The mobile was set up for the max. output power with pseudo random data modulation. The power was measured with R&S Spectrum Analyzer FSIQ 26 ( peak and average) This measurements were done at 3 frequencies, 1850,2 MHz, 1880,0 MHz and 1909,8 MHz (bottom, middle and top of operational frequency range) Limits: Power StepNominal Peak Output Power (dBm) Tolerance (dB) 0+30± 2 Power Measurements: Conducted: Frequency (MHz) Power Step Peak Output Power (dBm) Average Output Power (dBm) 1850.2029.2329.01 1880.0028.5628.37 1909.8028.2328.11 Measurement uncertainty±0.5 dB CETECOM ICT Services GmbH Test report nr.:2_2796-01-01/02Issue date: 2002-04-19Page 8 (59) REFERENCE NUMBER(S) OF TEST EQUIPM…

Text truncated - open the document above for the full version.

CETECOM ICT Services GmbH Test report nr.:2_2796-01-01/02Issue date: 2002-04-19Page 53 (59) Test site RADIATED EMISSIONS CETECOM ICT Services GmbH Test report nr.:2_2796-01-01/02Issue date: 2002-04-19Page 54 (59) Test site CETECOM ICT Services GmbH Test report nr.:2_2796-01-01/02Issue date: 2002-04-19Page 55 (59) Test site CETECOM ICT Services GmbH Test report nr.:2_2796-01-01/02Issue date: 2002-04-19Page 56 (59) Photographs of the equipment Photograph no.: 1
