QIXSTEPPIIIGSM/GPRS/GPS unit

THIS DOCUMENT IS AVAILABLE AT http://www.falcom.de/. STEPPIII GSM/GPRS/GPS TERMINAL HARDWARE DESCRIPTION Preliminary - Subject to change Version 1.0.0; Created: Tuesday 29 May 2007 STEPPIII Hardware descriptionVersion 1.0.0 Index of contents 1 INTRODUCTION ........................................................................6 1.1 GENERAL ..............................................................................................................6 1.2 CIRCUIT CONCEPT ...................................................................................................8 1.3 USED ABBREVIATIONS ..............................................................................................9 1.4 RELATED DOCUMENTS ..............................................................................................9 2 SECURITY ...............................................................................10 2.1 GENERAL INFORMATION ..........................................................................................10 2.2 EXPOSURE TO RF ENERGY .....................................................................................10 2.3 EFFICIENT MODEM OPERATION ..................................................................................11 2.4 ANTENNA CARE AND REPLACEMENT ............................................................................11 2.5 DRIVING ..............................................................................................................11 2.6 ELECTRONIC DEVICES .............................................................................................11 2.7 VEHICLE ELECTRONIC EQUIPMENT ..............................................................................11 2.8 MEDICAL ELECTRONIC EQUIPMENT .............................................................................11 2.9 AIRCRAFT ............................................................................................................12 2.10 CHILDREN .........................................................................................................12 2.11 BLASTING AREAS .................................................................................................12 2.12 POTENTIALLY EXPLOSIVE ATMOSPHERES ....................................................................12 2.13 NON-IONIZING RADIATION ......................................................................................12 3 SAFETY STANDARDS ............................................................14 4 TECHNICAL DATA ..................................................................15 4.1 GENERAL SPECIFICATIONS OF TERMINAL STEPPIII .....................................................15 4.1.1 Backup Battery Technical Data (1100 mA/h) ..............................................17 4.1.2 Power consumption .....................................................................................17 4.1.3 Operating temperatures ..............................................................................17 4.2 TECHNICAL SPECIFICATIONS OF GSM/GPRS ENGINE ...................................................18 4.3 TECHNICAL SPECIFICATIONS OF GPS RECEIVER ............................................................19 4.4 NMEA DATA MESSAGE ..........................................................................................20 5 STEPPIII APPLICATION INTERFACE ....................................21 5.1 POWER SUPPLY ....................................................................................................21 5.1.1 Power supply pins (15 and 16) on the MOLEX 16-pin connector ................21 5.1.2 Automatic shutdown ....................................................................................21 5.2 DETERMINING THE EXTERNAL EQUIPMENT TYPE ...........................................................21 6 HARDWARE INTERFACES ....................................................22 6.1 INTERFACE A (16-PIN MOLEX 43045-1609) ............................................................23 6.1.1 MOLEX connector pinout ............................................................................23 6.1.2 Special pin description ................................................................................24 6.1.2.1 Analog inputs (2, 4, 6, 8) .........................................................................................................24 6.1.2.2 Digital Inputs (pin 10,12) .........................................................................................................25 6.1.2.3 Outputs (pin 5, 7, 9, 11) .........................................................................................................26 6.1.2.4 Ignition (pin 13) .......................................................................................................................27 6.2 INTERFACE B (SIM CARD INTERFACE MOLEX-91228-0002) .........................................27 This confidential document is a property of FALCOM and may not be copied or circulated without previous permission. Page 2 STEPPIII Hardware descriptionVersion 1.0.0 6.3 INTERFACES C AND D ............................................................................................28 6.4 INTERFACE E (AMP 558556-1 CONNECTOR) ...........................................................29 6.4.1 AMP connector pinout .................................................................................29 6.4.2 Special pin description ................................................................................30 6.4.2.1 VC 5 ........................................................................................................................................30 6.4.2.2 Serial communication signals (RxA, TxA and Rx4, Tx4) ........................................................30 6.5 INTERFACE F (LED’S DESCRIPTION) ..........................................................................31 6.6 INTERFACE E (MOUNTING HOLES) .......................................................…

Text truncated - open the document above for the full version.

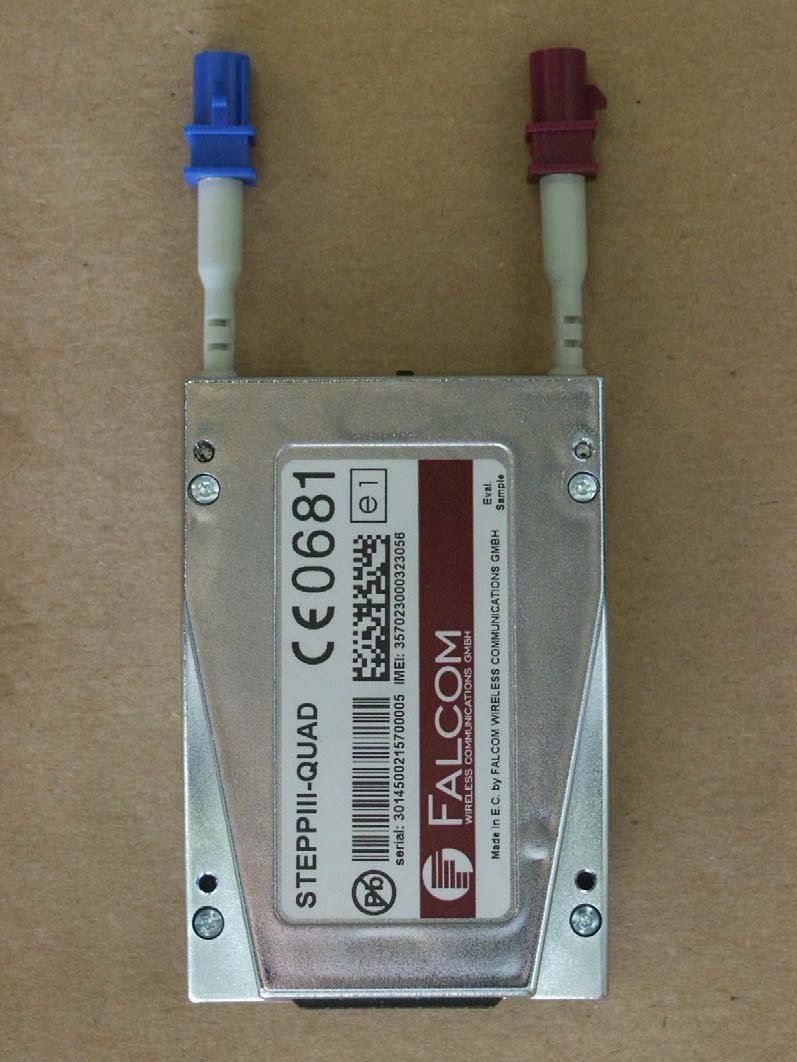

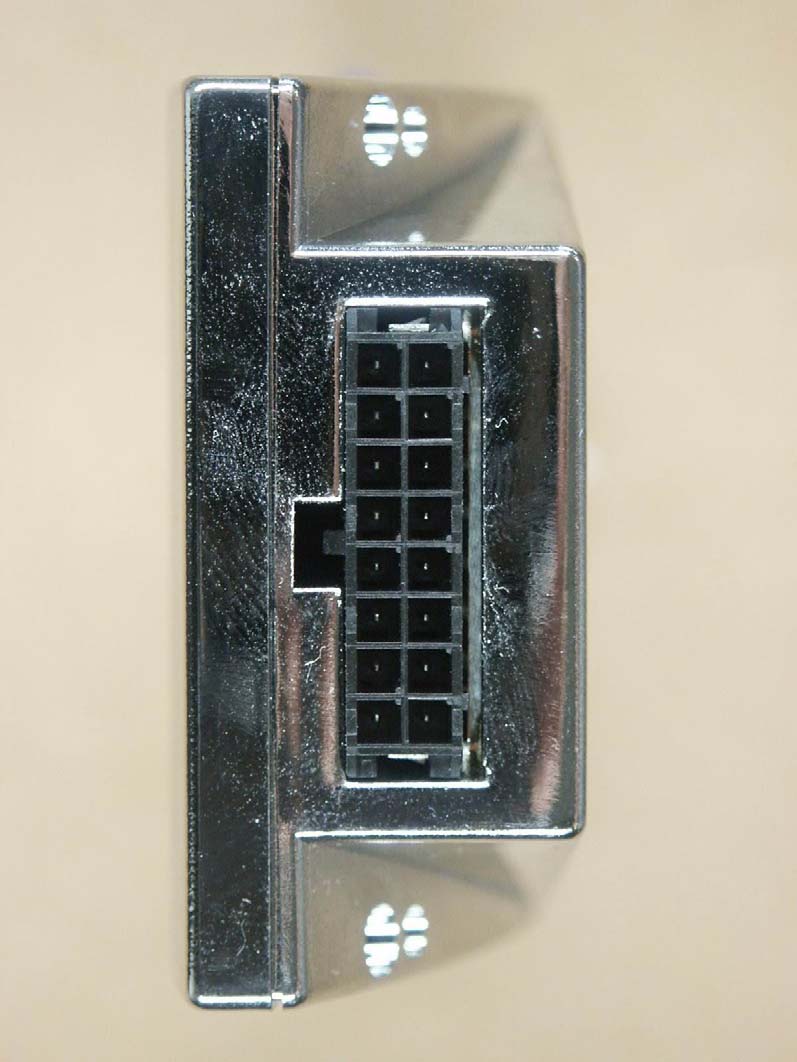

ETS Product Service AG, Germany Registration number: G0M20704-1336-P-2224 Page 1 of 12 Appendix A. Pictures ETS Product Service AG, Germany Registration number: G0M20704-1336-P-2224 Page 2 of 12 ETS Product Service AG, Germany Registration number: G0M20704-1336-P-2224 Page 3 of 12 ETS Product Service AG, Germany Registration number: G0M20704-1336-P-2224 Page 4 of 12

ETS Product Service AG, Germany Registration number: G0M20704-1336-P-2224 Page 5 of 12 ETS Product Service AG, Germany Registration number: G0M20704-1336-P-2224 Page 6 of 12 ETS Product Service AG, Germany Registration number: G0M20704-1336-P-2224 Page 7 of 12 ETS Product Service AG, Germany Registration number: G0M20704-1336-P-2224 Page 8 of 12 ETS Product Service AG, Germany Registration number: G0M20704-1336-P-2224 Page 9 of 12

___________________________________________________________________________________ ETS Handelsregister: Bankverbindung: Electronic Technology Systems Dr. Genz GmbH Amtsgericht Frankfurt/Oder HRB 5151 Sparkasse Oder-Spree Storkower Strasse 38c Geschäftsführung: Dr. Dietmar Genz BLZ 170 550 50 D-15526 Reichenwalde b. Berlin Norbert Kaspar Kto. Nr. 3105165974 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH RF Exposure Calculation Applicant: FALCOM GmbH FCC ID: QIXSTEPPIII The internal antenna used for this mobile transmitter must provide a separation distance of at least 20 cm from all persons and must not be co-located or operated in conjunction with any other antenna or transmitter. A safety statement concerning minimum separation distances from enclosure of the STEPPIII will be integrated in the user’s manual to provide end-users with transmitter operating conditions for satisfying RF exposure compliance. The appropriate Max conducted power can be drawn from the test report no. G0M20704- 1336-P-2224. For transmitter operating in the 824-849 MHz range, paragraph 1.1310 Table 1 limits maximum permissible exposure (MPE) to 0.549 mW/cm² for uncontrolled environments and 2.75 mW/cm² for controlled environments. For transmitter operating in the 1850-1910 MHz range, paragraph 1.1310 Table 1 limits maximum permissible exposure (MPE) to 1 mW/cm² for uncontrolled environments and 5 mW/cm² for controlled environments. The far field on-axis power flux density (W/m²) is calculated using the following formula: S = Power density (mW/cm²) ERP = effective radiated power (mW) EIRP = isotropically radiated power (mW) r = Distance in cm Calculations ___________________________________________________________________________________ ETS Handelsregister: Bankverbindung: Electronic Technology Systems Dr. Genz GmbH Amtsgericht Frankfurt/Oder HRB 5151 Sparkasse Oder-Spree Storkower Strasse 38c Geschäftsführung: Dr. Dietmar Genz BLZ 170 550 50 D-15526 Reichenwalde b. Berlin Norbert Kaspar Kto. Nr. 3105165974 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ___________________________________________________________________________________ ETS Handelsregister: Bankverbindung: Electronic Technology Systems Dr. Genz GmbH Amtsgericht Frankfurt/Oder HRB 5151 Sparkasse Oder-Spree Storkower Strasse 38c Geschäftsführung: Dr. Dietmar Genz BLZ 170 550 50 D-15526 Reichenwalde b. Berlin Norbert Kaspar Kto. Nr. 3105165974 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH

ETS PRODUCT SERVICE AG TEST - REPORT FCC RULES PARTS 22H and 24E IC RADIO STANDARDS RSS 132 and RSS 133 FCC ID: QIXSTEPPIII IC: 5383A-STEPPIII Model Name: Stepp III Test report no.: G0M20704-1336-P-2224 Certificate #1983.01 ETS STORKOWER STRASSE 38C, D-15526 REICHENWALDE B. BERLIN PRODUCT SERVICE AG PHONE +49-33631-888 00 FAX +49-33631-888 660 ETS Product Service AG, Germany Registration number: G0M20704-1336-P-2224 Page 1 of 36 TABLE OF CONTENTS 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of approval holder 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test environment 2.3 Test equipment utilized 2.4 General test procedure 2.5 Test results 3 Transmitter parameters 3.1 RF power output conducted 3.2 RF power output radiated (ERP, EIRP) 3.3 Occupied bandwidth, emission bandwidth 3.4 Frequency stability 3.5 Spurious emission conducted (antenna terminal) 3.6 Spurious emission radiated 3.7 Block edge compliance 3.8 AC power line conducted emission 4 Receiver parameters 4.1 Radiated emission APPENDIX ETS Product Service AG, Germany Registration number: G0M20704-1336-P-2224 Page 2 of 36 1 General information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the ETS PRODUCT SERVICE AG. Tester: 14.06.2007 M. Schlaps Date ETS-Lab. Name Signature Technical responsibility for area of testing: 14.06.2007 N. Kaspar Date ETS Name Signature ETS Product Service AG, Germany Registration number: G0M20704-1336-P-2224 Page 3 of 36 1.2 Testing laboratory 1.2.1 Location ETS PRODUCT SERVICE AG Storkower Strasse 38c D-15526 Reichenwalde b. Berlin Germany Telephone : +49 33631 888 00 Telefax : +49 33631 888 660 1.2.2 Details of accreditation status ACCREDITED TESTING LABORATORY DAR-REGISTRATION NUMBER: DAT-P-201/96 ACCREDITED COMPETENT BODY BNETZA-REGISTRATION NUMBER: BNETZA-ZS-026/96 FCC FILED TEST LABORATORY: REG. NO. 96970 INDUSTRY CANADA FILED TEST LABORATORY REG. NO. IC 3470 A2LA ACCREDITED CERTIFICATE NUMBER: #1983.01 BLUETOOTH QUALIFICATION TEST FACILITY (BQTF) ACCREDITED BY: BLUETOOTH QUALIFICATION REVIEW BOARD (BQRF) 1.3 Details of approval holder Name : Falcom Wireless Communications GmbH Street : Gewerbering 6 Town : 98704 Langewiesen Country : Germany Telephone : +49(0)3677 8042-0 Fax : +49(0)3677 8042-215 Contact : Herr Ralf Leipoldt E-Mail : +49(0)3677 8042-0 ETS Product Service AG, Germany Registration number: G0M20704-1336-P-2224 Page 4 of 36 1.4 Application details Date of receipt of application : 16.04.2007 Date of receipt of test item : 16.04.2007 Date of test : 07.06.2007 - 11.06.2007 1.5 Test item Description of test item : GSM/GPRS-GPS-tracking unit Type identification : Stepp III Serial number : without Photos : See annex A. Technical data Frequency range Tx - GSM 850 : 824.2 - 848.80 MHz Frequency range Tx - PCS : 1850.2 - 1909.8 MHz Frequency range Rx - GSM 850 : 869.2 - 893.8 MHz Frequency range Rx - PCS : 1930.2 - 1989.8 MHz Antenna Type : external antenna FAL ANT-007 Antenna Gain : 3 dBi (manufacturer declaration) Power supply : 13.5 V DC Operating mode : duplex Type of modulation : GMSK (GSM modulation) Emission : GXW Manufacturer: (if applicable) Name : Street : Town : Country : ETS Product Service AG, Germany Registration number: G0M20704-1336-P-2224 Page 5 of 36 1.6 Test standards Technical standard : FCC Parts: 22H, 24E, 2, 15 IC Standards: RSS 132, RSS 133 Additional information : Because of using the GSM 850 as an alternative technology in 850 MHz band, not all test cases of FCC Part 22 are required. 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course : of the tests performed. or The deviations as specified in 2.5 were ascertained in the course of the tests … performed. 2.2 Test environment Temperature : 25 ° C Relative humidity content : 20 ... 75 % Air pressure : 86 ... 103 kPa ETS Product Service AG, Germany Registration number: G0M20704-1336-P-2224 Page 6 of 36 2.3 Test equipment utilized No. Test equipment Type Manufacturer ETS 0001 ESD Gun SESD 30000 Schlöder ETS 0002 Test receiver ESVP R & S ETS 0003 Diode Power Sensor NRV-Z2 R & S ETS 0004 Spektrum- and Network- Analyzer FSMS 26 R & S ETS 0005 RF amplifier matrix RSU-ETS-CTR6 ETS ETS 0006 HP-Filter H1G04G01 Microwave ETS 0007 Horn antenna AT 4004 ar ETS 0008 Antenna Loop antenna Siemens ETS 0009 Comb Generator Emitter CGE 02 York EMC Services ETS 0011 Antenna (van Veen/Frame) HM020Z3 R & S ETS 0012 Biconical Antenna HK 116 R & S ETS 0013 LPD Antenna HL 223 R & S ETS 0014 Log Periodical Antenna HL 025 R & S ETS 0015 Log Periodical Antenna HL 025 R & S ETS 0016 Precision antenna kit VHAP Schwarzbeck ETS 0017 Precision antenna kit UHAP Schwarzbeck ETS 0018 Horn antenna BBHA 9120 D Schwarzbeck ETS 0019 Horn antenna BBHA 9120 D Schwarzbeck ETS 0020 Antenna DP 21 MEB ETS 0021 Antenna DP 3 MEB ETS 0022 Antenna SAS-200/ 521 A.H. Systeme+D65 ETS 0023 Antenna DP 1 MEB ETS 0024 Antenna mast AF 2 MEB ETS 0025 Antenna mast AF 2 MEB ETS…

Text truncated - open the document above for the full version.

ETS Product Service AG, Germany Registration number: G0M20704-1336-P-2224 Page 10 of 12 ETS Product Service AG, Germany Registration number: G0M20704-1336-P-2224 Page 11 of 12 ETS Product Service AG, Germany Registration number: G0M20704-1336-P-2224 Page 12 of 12
