QIXMAMBO56Mobile Phone

This document is available at http://www.falcom.de/ MAMBO56 GSM / GPRS / GPS / Bluetooth device Operational description Version 1.00, 24/04/2006 Mambo Operational Description Version 1.00 This confidential document is a property of FALCOM GmbH and may not be copied or circulated without previous permission. Page 1 OPERATIONAL DESCRIPTION Based on the GSM/GPRS and state-of-art GPS technology for satellite navigation, FALCOM introduces a new powerful pocket size device with a stand- alone software system for personal safety and security as well as asset monitoring. FALCOM MAMBO consists of the GSM/GPRS engine, 20-channel GPS receiver, Bluetooth™ class 2.0 and a 3-D motion detector (in the state of inactivity it can be set into the low power mode) as an all-in-one solution. FALCOM MAMBO is a Tri-band GSM/GPRS engine that works on the three frequencies either GSM 900/1800/1900 MHz or GSM 850/1800/1900 MHz. The integrated GPS receiver architecture based on the SiRFstarIII chipset, provides more than enough precise location information using satellite signals to enable it to track people wherever they are in the world. With its integral housing, compact design, ultra-low power consumption, easy-to-carry and easy-to-use, it is an outstanding quality, high-performance, operating as a stand-alone device ideally suited for personal security, asset management and automotive applications as well. The configurable internal firmware is a fundamental component, which in combination with the excellent hardware performance makes the FALCOM MAMBO device to be the best application where the fleet management and personal security today are required. Operating as a stand-alone personal security device, manufactured in a form factor 85 mm x 59 mm x 25 mm and weighing less than 120 grams with battery, it can be easily fit in a jacket pocket (e.g. into a child's pocket). Ease-of-use is ensured with just three touch-buttons and three LEDs. Each LED includes three- different lighting colors. Each Button and LED is free-configurable. Based on the internal firmware all Buttons and LEDs can be adjusted to the user requirements. Depending on the user-defined configuration, each touch-button can execute more than one action (voice call, TCP packets, SMS generation etc.). In the event of emergency, the person carrying the device can contact a range of services by pressing just a button. Upon button activation, the equipment uses the GPS signals to define its accurate position, and it sends a SMS message with its location information or it performs a voice call to one of the predefined numbers via the GSM network. With the help of the implemented TCP/IP protocol, FALCOM MAMBO (person who carrying it) can be continually tracked and monitored live from any Internet connection point around the world. FALCOM MAMBO provides Geofence features, which can be used for territory management, route verification, prohibited locations, and more. Once a Geofence area is manually set-up, the device automatically notifies the destination number via SMS, Voice or Data calls or TCP, if the person carrying it enters into and/or leaves the pre-defined area(s). The FALCOM MAMBO contains a History function which enables it to archive unique locations in sequence for up to 45 days long (for example, archive interval up to 20 sec.) and at a later time the history data can be downloaded either locally via Bluetooth or over-air GSM network or TCP-connection for further evaluation. Additionally, the FALCOM MAMBO is also a high-capacity navigation system, an intelligent and dynamic destination guidance that allows you to navigate freely without the hassle of messy wire connections. The integrated Class 2 Bluetooth™ transceiver in the FALCOM MAMBO is capable to communicate with any Serial Port Profile Bluetooth™ device and to transmit its data within a 10m radius. The FALCOM MAMBO in communication with your installed GPS Mapping software on the Bluetooth™-enabled device points you the way comfortably and reliably from the current location A to your desired destination B. Mambo Operational Description Version 1.00 This confidential document is a property of FALCOM GmbH and may not be copied or circulated without previous permission. Page 2 FALCOM MAMBO is equipment that can be used in a variety of applications such as: ♦ Personal safety and security ♦ Fleet tracking and management ♦ Remote tracking (Locating people) ♦ Real-time Navigation and Positioning ♦ Finding streets and routes ♦ Travel planning and many others ... BUTTON-ASSIGNMENTS & LED-BEHAVOIRS Figure 1: MAMBO & Headset Button assignments Actions Button number & Duration of depressing 1 2 3 4 Turns power on long (>5s) - - - Turns power off - - double - Sends actual position to server short - - - Sends alarm as SMS long (>2) - - - Establishes voice calls* double - - double Hanges up an established call* short short short short Accepts an incoming call* short short short short Hanges up an outgoing call* short short short short * alternative button allocation LED behavoirs LED name LED color Short blinking Permanent Red network search in progress GSM Blue data transfer Yellow TCP search in progress Off GSM/TCP is connected Green battery state 65-100% *battery charging state 90-100% Mambo Operational Description Version 1.00 This confidential document is a property of FALCOM GmbH and may not be copied or circulated without previous permission. Page 3 Yellow battery state 30-65% *battery charging state 10-90% STAT Red battery state 0-35% *battery charging state 0-10% Blue Bluetooth is connected Off device OFF GPS Red GPS invalid Off GPS valid * only in charge mode CIRCUIT CONCEPT The MAMBO architecture includes the following major functional components: ™ ARCHITECTURE INTEGRATES: 9 high-performance Tri Band GSM/GPRS core (operating at 26MHz) 9 20 parallel channel low-power GPS core (operating at L1 1575.42 MHz and C/A code 1,023 MHz chip rate) 9 ARM7TDMI Processor (at speed 25MHz) that controls…

Text truncated - open the document above for the full version.

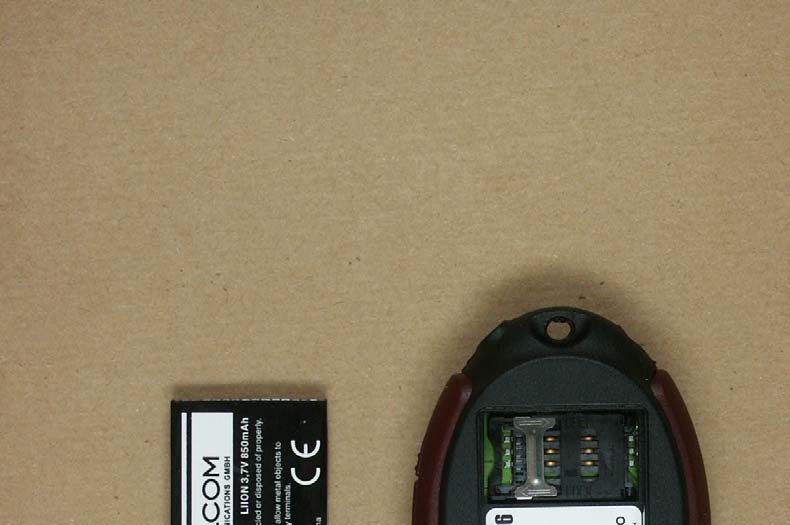

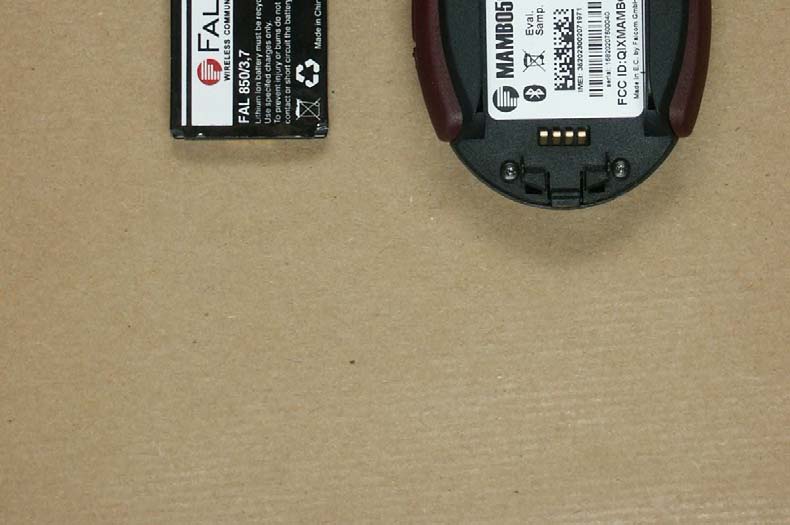

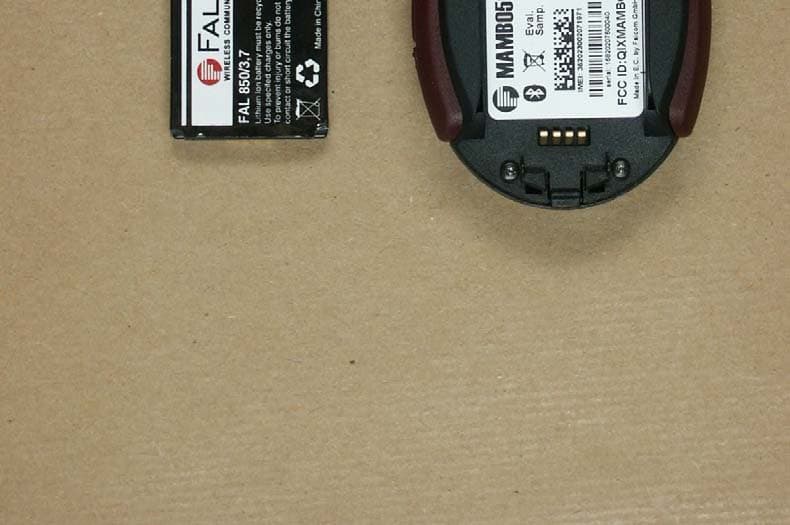

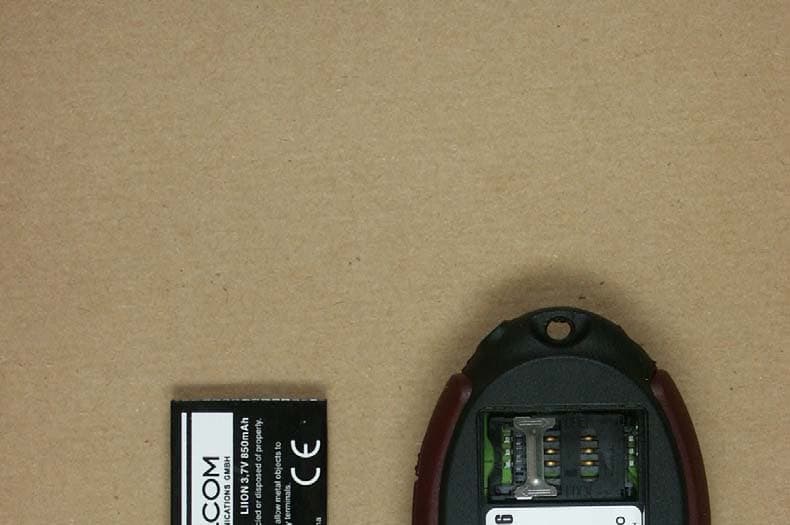

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20603-0284-P-2224 Page 1 of 14 Appendix A. Pictures ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20603-0284-P-2224 Page 2 of 14 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20603-0284-P-2224 Page 3 of 14

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20603-0284-P-2224 Page 4 of 14 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20603-0284-P-2224 Page 5 of 14 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20603-0284-P-2224 Page 6 of 14 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20603-0284-P-2224 Page 7 of 14 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20603-0284-P-2224 Page 8 of 14 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20603-0284-P-2224 Page 9 of 14 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20603-0284-P-2224 Page 10 of 14

___________________________________________________________________________________ ETS Handelsregister: Bankverbindung: Electronic Technology Systems Dr. Genz GmbH Amtsgericht Frankfurt/Oder HRB 5151 Sparkasse Oder-Spree Storkower Strasse 38c Geschäftsführung: Dr. Dietmar Genz BLZ 170 550 50 D-15526 Reichenwalde b. Berlin Norbert Kaspar Kto. Nr. 3105165974 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH RF Exposure Calculation Applicant: FALCOM GmbH FCC ID: QIXMAMBO56 The internal antenna used for this mobile transmitter must provide a separation distance of at least 20 cm from all persons and must not be co-located or operated in conjunction with any other antenna or transmitter. A safety statement concerning minimum separation distances from enclosure of the MAMBO56 will be integrated in the user’s manual to provide end-users with transmitter operating conditions for satisfying RF exposure compliance. The appropriate Max conducted power can be drawn from the test report no. G0M20603- 0284-P-2224. For transmitter operating in the 824-849 MHz range, paragraph 1.1310 Table 1 limits maximum permissible exposure (MPE) to 0.549 mW/cm² for uncontrolled environments and 2.75 mW/cm² for controlled environments. For transmitter operating in the 1850-1910 MHz range, paragraph 1.1310 Table 1 limits maximum permissible exposure (MPE) to 1 mW/cm² for uncontrolled environments and 5 mW/cm² for controlled environments. The far field on-axis power flux density (W/m²) is calculated using the following formula: S = Power density (mW/cm²) ERP = effective radiated power (mW) EIRP = isotropically radiated power (mW) r = Distance in cm Calculations ___________________________________________________________________________________ ETS Handelsregister: Bankverbindung: Electronic Technology Systems Dr. Genz GmbH Amtsgericht Frankfurt/Oder HRB 5151 Sparkasse Oder-Spree Storkower Strasse 38c Geschäftsführung: Dr. Dietmar Genz BLZ 170 550 50 D-15526 Reichenwalde b. Berlin Norbert Kaspar Kto. Nr. 3105165974 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ___________________________________________________________________________________ ETS Handelsregister: Bankverbindung: Electronic Technology Systems Dr. Genz GmbH Amtsgericht Frankfurt/Oder HRB 5151 Sparkasse Oder-Spree Storkower Strasse 38c Geschäftsführung: Dr. Dietmar Genz BLZ 170 550 50 D-15526 Reichenwalde b. Berlin Norbert Kaspar Kto. Nr. 3105165974 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH

ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH TEST - REPORT FCC RULES PARTS 22H and 24E IC RADIO STANDARDS RSS 132 and RSS 133 FCC ID: QIXMAMBO56 IC: 5383A-MAMBO56 Model Name: Mambo56 Test report no.: G0M20603-0284-P-2224 Certificate 1983-01 ELECTRONIC TECHNOLOGY SYSTEMS STORKOWER STRASSE 38C, D-15526REICHENWALDE B. BERLIN DR. GENZ GMBH PHONE +49-33631-888 00 FAX +49-33631-888 660 ETS Dr. Genz GmbH, Germany Registration number: G0M20603-0284-P-2224 Page 1 of 37 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH TABLE OF CONTENTS 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of approval holder 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test environment 2.3 Test equipment utilized 2.4 General test procedure 2.5 Test results 3 Transmitter parameters 3.1 RF power output conducted 3.2 RF power output radiated (ERP, EIRP) 3.3 Occupied bandwidth, emission bandwidth 3.4 Frequency stability 3.5 Spurious emission conducted (antenna terminal) 3.6 Spurious emission radiated 3.7 Block edge compliance 3.8 AC power line conducted emission 4 Receiver parameters 4.1 Radiated emission APPENDIX ETS Dr. Genz GmbH, Germany Registration number: G0M20603-0284-P-2224 Page 2 of 37 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1 General information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH. Tester: 23.06.2006 K. Damm Date ETS-Lab. Name Signature Technical responsibility for area of testing: 23.06.2006 N. Kaspar Date ETS Name Signature ETS Dr. Genz GmbH, Germany Registration number: G0M20603-0284-P-2224 Page 3 of 37 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.2 Testing laboratory 1.2.1 Location ELECTRONIC TECHNOLOGY SYSTEM DR. GENZ GMBH (ETS) Storkower Straße 38c D-15526 Reichenwalde b. Berlin Germany Telephone : +49 33631 888 00 Telefax : +49 33631 888 66 1.2.2 Details of accreditation status A CCREDITED TESTING LABORATORY DAR-REGISTRATION NUMBER: DAT-P-201/96 A CCREDITED COMPETENT BODY DAR-REGISTRATION NUMBER: BPT-ZE-026/96 FCC FILED TEST LABORATORY: REG. NO. 96970 I NDUSTRY CANADA FILED TEST LABORATORY REG. NO. IC 3470 A2LA ACCREDITED CERTIFICATE NUMBER: 1983-01 B LUETOOTH QUALIFICATION TEST FACILITY (BQTF) ACCREDITED BY: BLUETOOTH QUALIFICATION REVIEW BOARD (BQRF) 1.3 Details of approval holder Name : Falcom Wireless Communications GmbH Street : Gewerbering 6 Town : 98704 Langewiesen Country : Germany Telephone : +49(0)3677 8042-0 Fax : +49(0)3677 8042-215 Contact : Herr Ralf Leipoldt E-Mail : +49(0)3677 8042-0 ETS Dr. Genz GmbH, Germany Registration number: G0M20603-0284-P-2224 Page 4 of 37 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.4 Application details Date of receipt of application : 03.03.2006 Date of receipt of test item : 03.03.2006 Date of test : 27.04.2006 1.5 Test item Description of test item : GSM/GPRS/GPS/Bluetooth-Personal-Tracker Type identification : Mambo56 Serial number : without Photos : See annex A. Technical data Frequency range Tx - GSM 850 : 824.2 - 848.80 MHz Frequency range Tx - PCS : 1850.2 - 1909.8 MHz Frequency range Rx - GSM 850 : 869.2 - 893.8 MHz Frequency range Rx - PCS : 1930.2 - 1989.8 MHz Antenna Type : internal antenna Antenna Gain : 1 dBi Power supply : 3,7 V DC Operating mode : duplex Type of modulation : GMSK (GSM modulation) Emission : GXW Manufacturer: (if applicable) Name : Street : Town : Country : ETS Dr. Genz GmbH, Germany Registration number: G0M20603-0284-P-2224 Page 5 of 37 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.6 Test standards Technical standard : FCC Parts: 22H, 24E, 2, 15 IC Standards: RSS 132, RSS 133 Additional information: Because of using the GSM 850 as an alternative technology in 850 MHz band, not all test cases of FCC Part 22 are required. This device contains 1800 MHz not operational in U.S. Territories. This filing is only applicable for 850/1900 MHz operations. 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course : of the tests performed. or The deviations as specified in 2.5 were ascertained in the course of the tests … performed. 2.2 Test environment Temperature : 25 ° C Relative humidity content : 20 ... 75 % Air pressure : 86 ... 103 kPa ETS Dr. Genz GmbH, Germany Registration number: G0M20603-0284-P-2224 Page 6 of 37 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 2.3 Test equipment utilized No. Test equipment Type Manufacturer ETS 0002 Test receiver ESVP Rohde & Schwarz ETS 0003 Diode power sensor NRV-Z2 Rohde & Schwarz ETS 0004 Spectrum and network analyzer FSMS 26 Rohde & Schwarz ETS 0007 Horn antenna AT 4004 ar ETS 0008 Antenna Loop antenna Siemens ETS 0009 Antenna ARA 2 MEB ETS 0010 Antenna Loop antenna MEB ETS 0011 Antenna van Veen/ Frame Rohde & Schwarz ETS 0012 Antenna HK 116 Rohde & Schwarz ETS 0013 Antenna HL 223 Rohde & Schwarz ETS 0014 Antenna HL 025 Rohde & Schwarz ETS 0015 Antenna HL 025 Rohde & Schwarz ETS 0016 Precision antenna kit VHAP Schwarzbeck ETS 0017 Precision antenna kit UHAP …

Text truncated - open the document above for the full version.

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20603-0284-P-2224 Page 11 of 14 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20603-0284-P-2224 Page 12 of 14 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20603-0284-P-2224 Page 13 of 14 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20603-0284-P-2224 Page 14 of 14
