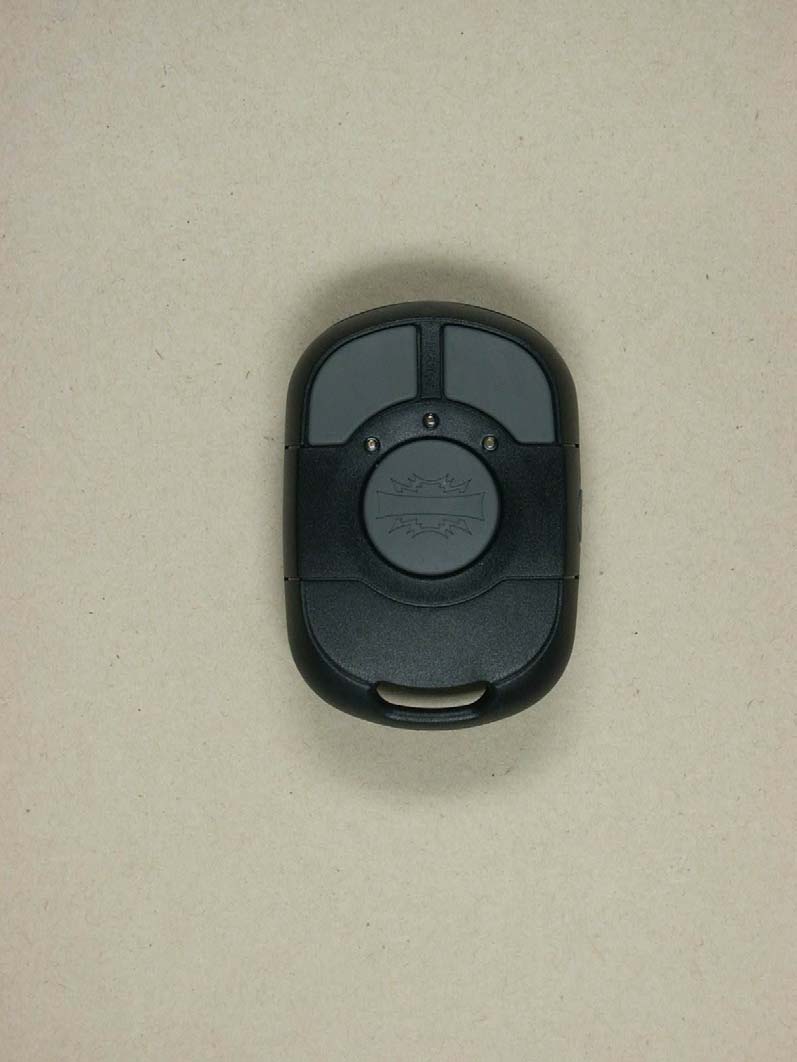

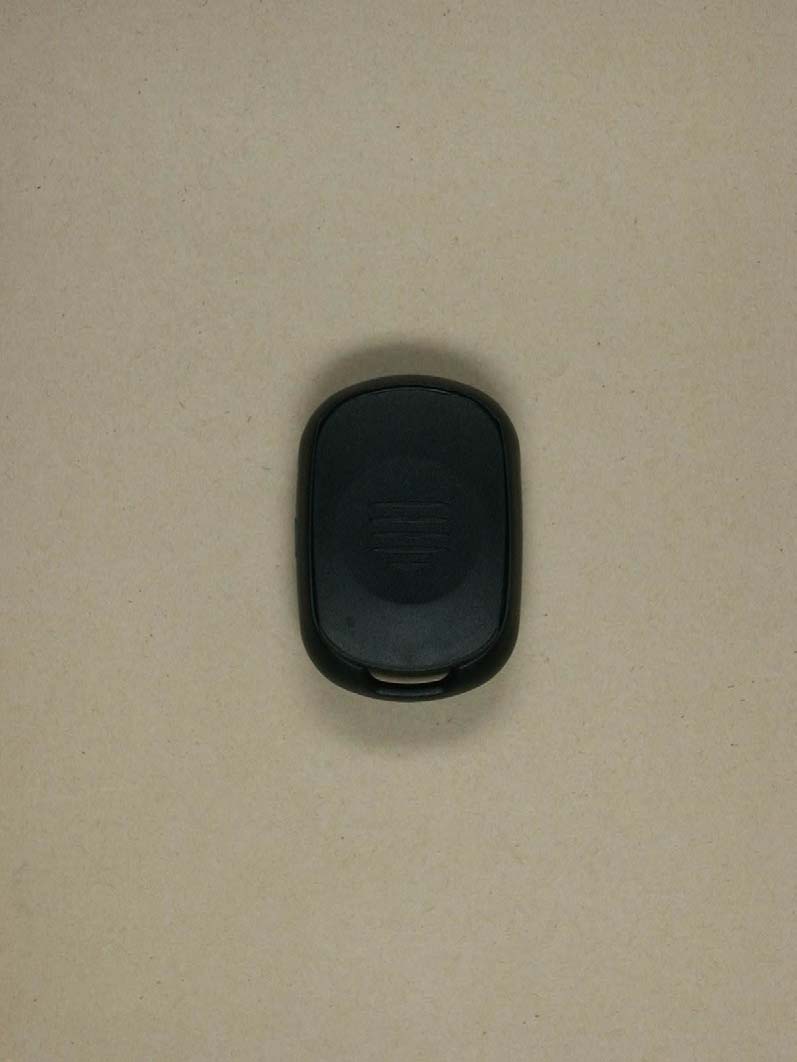

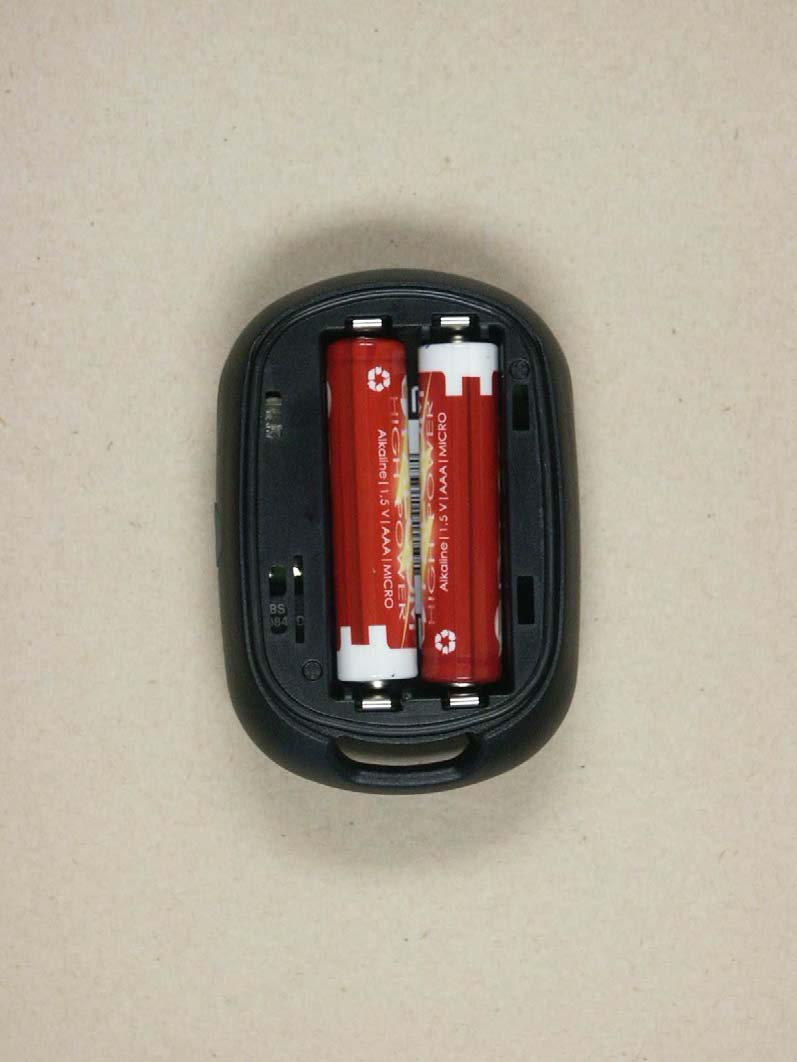

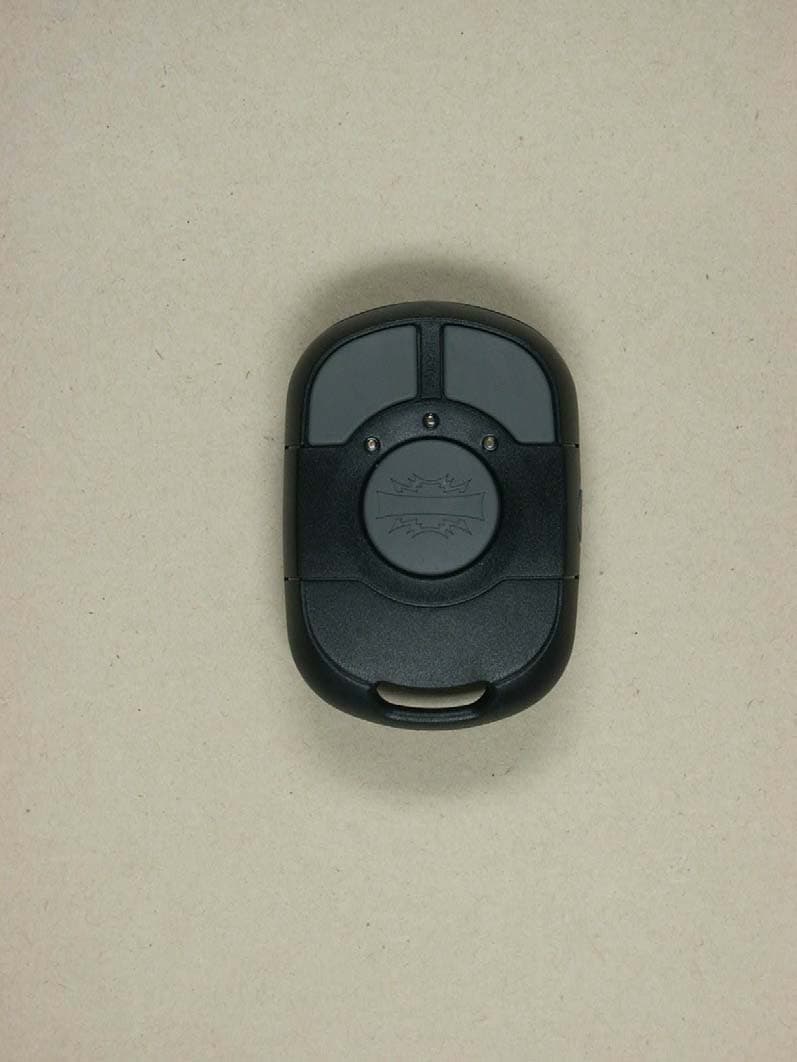

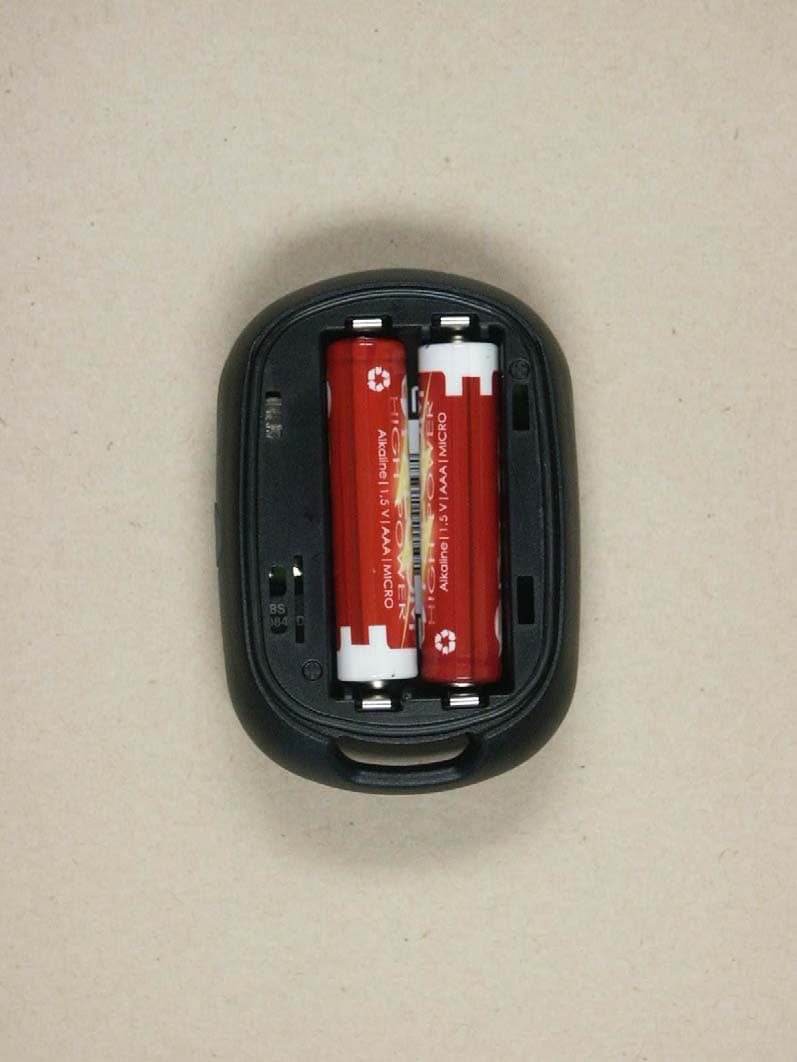

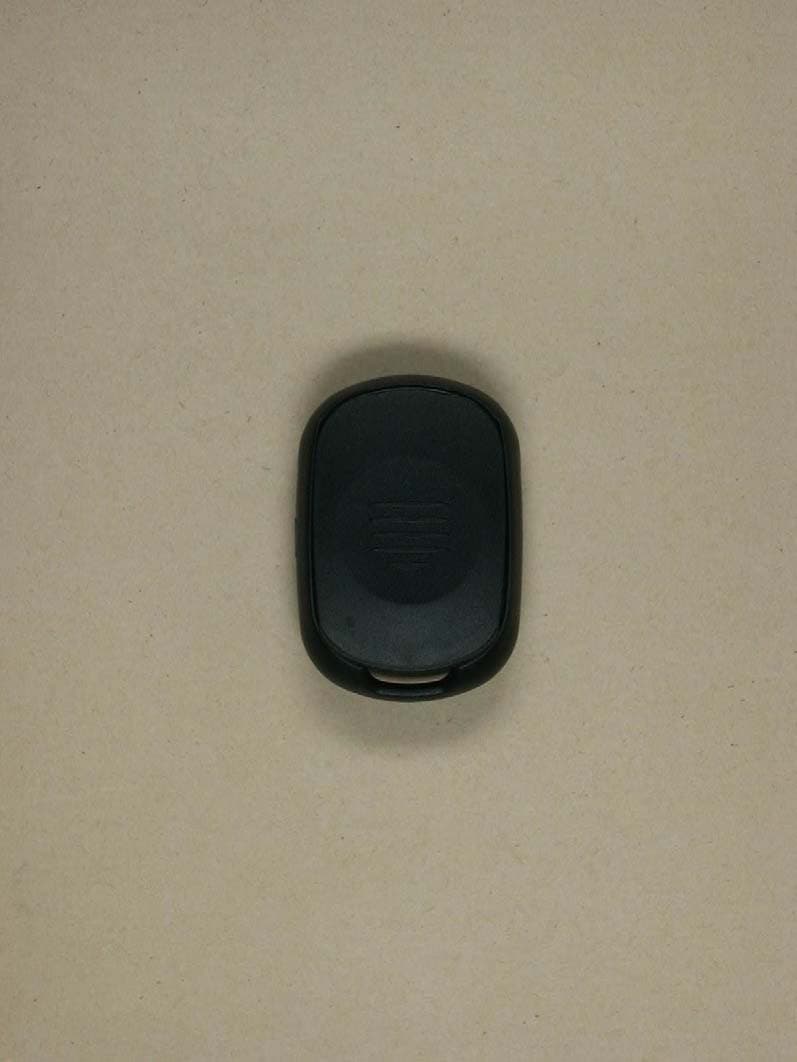

QIXKEYFOBKEYFOB

THIS DOCUMENT IS AVAILABLE AT http://www.falcom.de/ Keyfob Hardware description (brief) Preliminary/Draft Version 1.00, 25/07/2005 KEYFOB HARDWARE DESCRIPTION VERSION 1.00 Index of contents 0 INTRODUCTION.......................................................................4 0.1 GENERAL................................................................................................................................4 0.2 CIRCUIT CONCEPT...................................................................................................................4 1 TECHNICAL DATA...................................................................6 1.1 GENERAL SPECIFICATIONS OF KEYFOB.......................................................................................6 2 BI-DIRECTIONAL KEYFOB, REMOTE OPERATION ...................7 3 RF EXPOSURES.........................................................................9 This confidential document is a property of FALCOM GmbH and may not be copied or circulated without previous permission. Page 1 KEYFOB HARDWARE DESCRIPTION VERSION 1.00 Version history: Version number Author Changes 1.00 Fadil Beqiri - Initial version This confidential document is a property of FALCOM GmbH and may not be copied or circulated without previous permission. Page 2 KEYFOB HARDWARE DESCRIPTION VERSION 1.00 Cautions Information furnished herein by FALCOM are accurate and reliable. However, no responsibility is assumed for its use. Please, read carefully the safety precautions. If you have any technical questions regarding this document or the product described in it, please contact your vendor. General information about FALCOM and its range of products are available at the following Internet address: http://www.falcom.de/ Trademarks Some mentioned products are registered trademarks of their respective companies. Copyright This manual is copyrighted by FALCOM GmbH with all rights reserved. No part of this manual may be produced in any form without the prior written permission of FALCOM GmbH. FALCOM GmbH. No patent liability is assumed with respect to the use of the information contained herein. This confidential document is a property of FALCOM GmbH and may not be copied or circulated without previous permission. Page 3 KEYFOB HARDWARE DESCRIPTION VERSION 1.00 0 INTRODUCTION 0.1 General This description is focused on the IEEE 802.15.4 TM Keyfob remote control from FALCOM GmbH. It contains short information about purpose and use of the Keyfob concept. The Keyfob remote control contains an IEEE 802.15.4 TM module that works on the 2.4 GHz ISM-Band. It uses 16-channels in interval of 5 MHz (2405–2480 MHz). The Keyfob supports an over-the-air data rate of 250 kb/s by using the O-QPSK (offset quadrature phase-shift keying) modulation type. The duty-cycle with the PHD100 device is: - 1 ms transmit (Tx) - 300 ms receive (Rx) - 5 s sleep Based on these features, the Keyfob will spend most of its operational life in a sleep state that favor the AAA-batteries a long lifetime; however, the Keyfob periodically listens to the RF channel in order to determine whether a message is pending. The Keyfob has an internal Multi-Layer-Ceramics antenna from Murata with the gain of –1 dB. The IEEE 802.15.4 TM module works with a chipset from Freescale called MC13192 (Transceiver), MC9S08GT60 (8-bit Processor). The keyfob operates with the help of three buttons. It supports 3 LEDs, a buzzer and a vibrator for signal indication. 0.2 Circuit concept The Keyfob architecture includes the following major functional components: ™ ARCHITECTURE INTEGRATES: 9 high-performance IEEE802.15.4 wireless module for communication 9 1 x Buzzer 9 1 x Vibrator 9 MC9S08GT60 Processor (8-bit) that controls all functions of the system 9 Power Control for AAA Batteries 9 IEEE antenna ™ PHYSICAL INTERFACES: 9 3 x push-buttons. 9 3 x LEDs 9 2 X AAA batteries This confidential document is a property of FALCOM GmbH and may not be copied or circulated without previous permission. Page 4 KEYFOB HARDWARE DESCRIPTION VERSION 1.00 Figure 1: Architecture of the Keyfob remote control This confidential document is a property of FALCOM GmbH and may not be copied or circulated without previous permission. Page 5 KEYFOB HARDWARE DESCRIPTION VERSION 1.00 1 TECHNICAL DATA 1.1 General specifications of Keyfob ™ Power supply: ¾ O perating voltage from 2.4 V to 3.3 VDC ¾ Powered by 2 x AAA batteries ™ Temperature range: ¾ N ormal operation: -25 °C to +55 °C ™ Physical characteristics: ¾ S ize: 66 mm x 46 mm x 20 mm ¾ W eight: approx. 55 g ™ Audio: ¾ 1 x Buzzer ™ Vibration: ¾ 1 x Vibrator ™ Connectivity: ¾ IEEE 802.15.4 TM connectivity. ™ Channels: ¾ 16 channels Channel Frequency 1 2.405 GHz 2 2.410 GHz 3 2.415 GHz 4 2.420 GHz 5 2.425 GHz 6 2.430 GHz 7 2.435 GHz 8 2.440 GHz 9 2.445 GHz 10 2.450 GHz 11 2.455 GHz 12 2.460 GHz 13 2.465 GHz 14 2.470 GHz 15 2.475 GHz 16 2.480 GHz This confidential document is a property of FALCOM GmbH and may not be copied or circulated without previous permission. Page 6 KEYFOB HARDWARE DESCRIPTION VERSION 1.00 2 BI-DIRECTIONAL KEYFOB, REMOTE OPERATION The Keyfob gives you remote operation of your security system. This Keyfob operates with the push of one button or buttons combination. It also gives you direct feedback on its operation with a blinking light as well as with voice prompts, so you can be sure that your security system is operating as you intended. The communication to the Keyfob unit is based on the IEEE 802.15.4 wireless network systems. Figure 2: Keyfob control with allocated Buttons and LEDs names Buttons common functionalities Items Buttons overview Using the marked Button(s) Description/Functionalities 1 Button 1 B1 Tests the range of remote control 2 Button 2 B2 Sets the alarm active 3 Button 2 B2 If no alarm activated, activates the alarm, otherwise returnes activated alarm to inactive (see also Item 2). 4 Button 3 B3 Checks the status of the internal batteries 5 Button 1 + 3 B1+ B3 Switches the Key…
