QIXPHD1000GSM/GPS unit

THIS DOCUMENT IS AVAILABLE AT http://www.falcom.de/ Phantom Hardware description (brief) Preliminary/Draft Version 1.00, 30/06/2005 PHANTOM HARDWARE DESCRIPTION VERSION 0.01 Index of contents 0 INTRODUCTION.......................................................................4 0.1 GENERAL................................................................................................................................4 0.2 CIRCUIT CONCEPT...................................................................................................................5 0.3 PACKAGE CONTENTS...............................................................................................................5 0.4 RELATED DOCUMENTS..............................................................................................................6 1 SECURITY.................................................................................7 1.1 GENERAL INFORMATION...........................................................................................................7 1.2 EXPOSURE TO RF ENERGY.........................................................................................................7 1.3 EFFICIENT MODEM OPERATION..................................................................................................7 1.4 ANTENNA CARE AND REPLACEMENT..........................................................................................7 1.5 DRIVING.................................................................................................................................8 1.6 ELECTRONIC DEVICES...............................................................................................................8 1.7 VEHICLE ELECTRONIC EQUIPMENT..............................................................................................8 1.8 MEDICAL ELECTRONIC EQUIPMENT............................................................................................8 1.9 AIRCRAFT...............................................................................................................................8 1.10 CHILDREN...............................................................................................................................8 1.11 BLASTING AREAS......................................................................................................................9 1.12 POTENTIALLY EXPLOSIVE ATMOSPHERES......................................................................................9 1.13 NON-IONIZING RADIATION.......................................................................................................9 2 SAFETY STANDARDS..............................................................10 3 TECHNICAL DATA.................................................................11 3.1 GENERAL SPECIFICATIONS OF PHANTOM UNIT......................................................................11 3.1.1 Power consumption .......................................................................................................11 3.2 TECHNICAL SPECIFICATIONS OF GSM/GPRS ENGINE.............................................................12 3.3 TECHNICAL SPECIFICATIONS OF GPS RECEIVER.......................................................................13 4 APPLICATION INTERFACE .....................................................15 4.1 DESCRIPTION OF THE 8-PIN ROW-CONNECTOR........................................................................15 4.2 DESCRIPTION OF LED INDICATORS.........................................................................................16 4.3 INTERFACES FOR EXTERNAL GSM/GPS ANTENNAS..................................................................17 4.4 BI-DIRECTIONAL KEYFOB, REMOTE OPERATION........................................................................18 5 FIRST STEPS TO MAKE IT WORKS...........................................20 5.1 MINIMUM SET-UP CONNECTION.............................................................................................20 This confidential document is a property of FALCOM GmbH and may not be copied or circulated without previous permission. Page 1 PHANTOM HARDWARE DESCRIPTION VERSION 0.01 Version history: Version number Author Changes 1.00 Fadil Beqiri - Initial version This confidential document is a property of FALCOM GmbH and may not be copied or circulated without previous permission. Page 2 PHANTOM HARDWARE DESCRIPTION VERSION 0.01 Cautions Information furnished herein by FALCOM are accurate and reliable. However, no responsibility is assumed for its use. Please, read carefully the safety precautions. If you have any technical questions regarding this document or the product described in it, please contact your vendor. General information about FALCOM and its range of products are available at the following Internet address: http://www.falcom.de/ Trademarks Some mentioned products are registered trademarks of their respective companies. Copyright This manual is copyrighted by FALCOM GmbH with all rights reserved. No part of this manual may be produced in any form without the prior written permission of FALCOM GmbH. FALCOM GmbH. No patent liability is assumed with respect to the use of the information contained herein. This confidential document is a property of FALCOM GmbH and may not be copied or circulated without previous permission. Page 3 PHANTOM HARDWARE DESCRIPTION VERSION 0.01 0 INTRODUCTION 0.1 General This description is focused on the GSM/GPRS and GPS unit Phantom from FALCOM GmbH. It contains short information about purpose and use of the Phantom concept. This guide completes information needed to prepare and build applications incorporating the Phantom unit. The Phantom unit is a Tri-band GSM/GPRS engine that works on the three frequencies GSM 850/1800/1900 MHz. The integrated GPS receiver architecture based on the SiRFstarIII chipset provides more then enough precise location information using satellite signals to enable to tra…

Text truncated - open the document above for the full version.

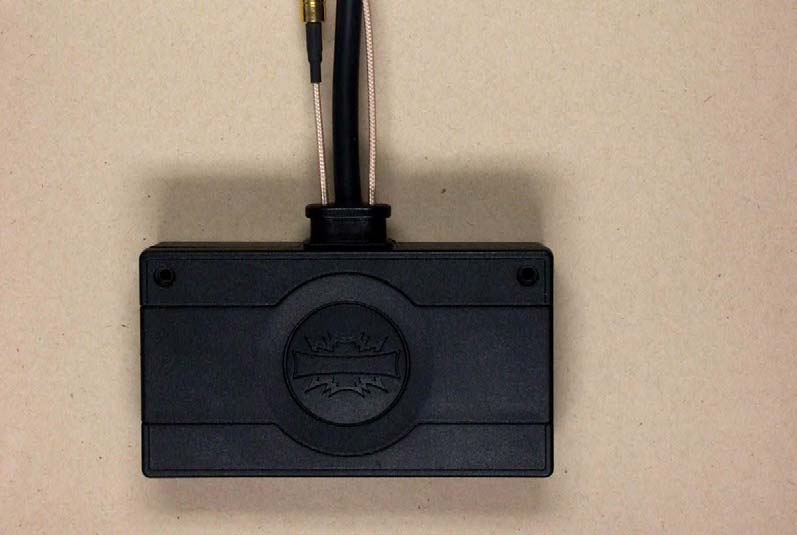

-ETS- DR. Genz GmbH, Germany Reference number: G0M20506-9586 Page 1 of 11 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Appendix: A Photos of the EUT -ETS- DR. Genz GmbH, Germany Reference number: G0M20506-9586 Page 2 of 11 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH

-ETS- DR. Genz GmbH, Germany Reference number: G0M20506-9586 Page 3 of 11 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH -ETS- DR. Genz GmbH, Germany Reference number: G0M20506-9586 Page 4 of 11 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH -ETS- DR. Genz GmbH, Germany Reference number: G0M20506-9586 Page 5 of 11 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH -ETS- DR. Genz GmbH, Germany Reference number: G0M20506-9586 Page 6 of 11 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH -ETS- DR. Genz GmbH, Germany Reference number: G0M20506-9586 Page 7 of 11 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH -ETS- DR. Genz GmbH, Germany Reference number: G0M20506-9586 Page 8 of 11 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH -ETS- DR. Genz GmbH, Germany Reference number: G0M20506-9586 Page 9 of 11 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH

___________________________________________________________________________________ ETS Handelsregister: Bankverbindung: Electronic Technology Systems Dr. Genz GmbH Amtsgericht Frankfurt/Oder HRB 5151 Sparkasse Oder-Spree Storkower Strasse 38c Geschäftsführung: Dr. Dietmar Genz BLZ 170 550 50 D-15526 Reichenwalde b. Berlin Norbert Kaspar Kto. Nr. 3105165974 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH RF Exposure Calculation Applicant: FALCOM GmbH FCC ID: QIXPHD1000 The internal / external antennas used for this mobile transmitter must provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. A safety statement concerning minimum separation distances from enclosure of the PHD1000 will be integrated in the user’s manual to provide end-users with transmitter operating conditions for satisfying RF exposure compliance. The appropriate Max conducted power can be drawn from the test report no. G0M20506-9586-P-2224. For transmitter operating in the 824-849 MHz range, paragraph 1.1310 Table 1 limits maximum permissible exposure (MPE) to 0.549 mW/cm² for uncontrolled environments and 2.75 mW/cm² for controlled environments. For transmitter operating in the 1850-1910 MHz range, paragraph 1.1310 Table 1 limits maximum permissible exposure (MPE) to 1 mW/cm² for uncontrolled environments and 5 mW/cm² for controlled environments. The far field on-axis power flux density (W/m²) is calculated using the following formula: S = Power density (mW/cm²) ERP = effective radiated power (mW) EIRP = isotropically radiated power (mW) r = Distance in cm Calculations ___________________________________________________________________________________ ETS Handelsregister: Bankverbindung: Electronic Technology Systems Dr. Genz GmbH Amtsgericht Frankfurt/Oder HRB 5151 Sparkasse Oder-Spree Storkower Strasse 38c Geschäftsführung: Dr. Dietmar Genz BLZ 170 550 50 D-15526 Reichenwalde b. Berlin Norbert Kaspar Kto. Nr. 3105165974 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH

ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH TEST - REPORT FCC RULES PART 15 / SUBPART C FCC ID: QIXPHD1000 Test report no.: G0M20506-9586-P-15 Certificate 1983-01 ELECTRONIC TECHNOLOGY SYSTEMS STORKOWER STRASSE 38C, D-15526 REICHENWALDE B. BERLIN DR. GENZ GMBH PHONE +49-33631-888 00 FAX +49-33631-888 660 ETS Dr. Genz GmbH, Germany Registration number: G0M20506-9586-P-15 Page 1 of 35 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH TABLE OF CONTENTS 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of approval holder 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test environment 2.3 Test equipment utilized 2.4 General Test Procedure 3 Test Results 3.1 Peak output power 3.2 Equivalent isotropic radiated power 3.3 RF exposure radiated emission 3.4 Antenna requirement 3.5 Out of band radiated emission 3.6 Transmitter radiated emissions in restricted bands 3.7 Spurious emissions (tx) 3.8 Carrier frequency separation 3.9 Number of hopping frequency 3.10 Time of occupancy 3.11 20 dB bandwidth 3.12 Band-edge compliance of RF emissions 3.13 Conducted measurement at (AC) power line ETS Dr. Genz GmbH, Germany Registration number: G0M20506-9586-P-15 Page 2 of 35 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has Passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH. Tester: 23.08.2005 D. Hoppe Date ETS-Lab. Name Signature Technical responsibility for area of testing: 23.08.2005 N. Kaspar Date ETS Name Signature ETS Dr. Genz GmbH, Germany Registration number: G0M20506-9586-P-15 Page 3 of 35 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.2 Testing laboratory 1.2.1 Location ELECTRONIC TECHNOLOGY SYSTEM DR. GENZ GMBH (ETS) Storkower Straße 38c D-15526 Reichenwalde b. Berlin Germany Telefon : +49 33631 888 00 Telefax : +49 33631 888 66 1.2.2 Details of accreditation status A CCREDITED TESTING LABORATORY DAR-REGISTRATION NUMBER: TTI-P-G 126/96 ACCREDITED COMPETENT BODY DAR- REGISTRATION NUMBER: BPT-ZE-026/96 FCC FILED TEST LABORATORY REG. NO. 96970 BLUETOOTH QUALIFICATION TEST FACILITY (BQTF) A CCREDITED BY BLUETOOTH QUALIFICATION REVIEW BOARD INDUSTRY CANADA FILED TEST LABORATORY REG. NO. IC 3470 A2LA ACCREDITED Certificate Number 1983-01 1.3 Details of approval holder Name : FALCOM GmbH Street : Gewerbering 6 Town : 98704 Langewiesen Country : Germany Telephone : +49(0)3677 8042-0 Fax : +49(0)3677 8042-215 Contact : Herr Ralf Leipoldt E-mail : [email protected] ETS Dr. Genz GmbH, Germany Registration number: G0M20506-9586-P-15 Page 4 of 35 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.4 Application details Date of receipt of application : 21.06.2005 Date of receipt of test item : 21.06.2005 Date of test : 21.06.2005 – 06.04.2005 1.5 Test item Description of test item : Integrated AVL solution Type identification : PHD1000 Serial number : without Photos : See Appendix A Technical data Frequency band : 2.4GHz – 2.4835GHz Frequency ( ch A) : 2402 MHz Frequency (ch B) : 2441 MHz Frequency (ch C) : 2480 MHz Transmitter Vnom Vnom –15 % Vnom +15 % Power (ch A) : Conducted: -1.59 dBm Conducted: -1.60 dBm Conducted: -1.56 dBm Power (ch B) : Conducted: 0.26 dBm Conducted: 0.26 dBm Conducted: 0.27 dBm Power (ch C) : Conducted: -2.73 dBm Conducted: -2.73 dBm Conducted: -2.72 dBm Transmitter Vnom Power (ch A) : Radited: -3.85 dBm Power (ch B) : Radited: -4.58 dBm Power (ch C) : Radited: -12.53 dBm Power supply : 12.0 V DC Operating mode : duplex Type of modulation : FHSS Antenna type : internal BT antenna – Murata ANCM12G45SAA072TT1 Antenna gain : -1 dBi ETS Dr. Genz GmbH, Germany Registration number: G0M20506-9586-P-15 Page 5 of 35 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Host device : none Classification : Fixed Device Mobile Device (Human Body distance > 20cm) Portable Device (Human Body distance < 20cm) Manufacturer: (if applicable) Name : FALCOM GmbH Street : Gewerbering 6 Town : 98704 Langewiesen Country : Germany Additional information: The test sample is designed as Bluetooth device. Its pseudorandom hopping scheme, authentication, receiver parameters, synchronization procedure and other parameters are determined by Bluetooth Core Specification. According to attached declaration of manufacturer this device don’t work in master inquiry mode. So we have only one frequency hopping system and the hopping sequence of the master inquiry mode is not very fied. ETS Dr. Genz GmbH, Germany Registration number: G0M20506-9586-P-15 Page 6 of 35 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.6 Test standards Technical standard : FCC RULES PART 15 / SUBPART C § 15.247 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course : of the tests performed. or The deviations as specified in 2.5 were ascertained in the course of the tests … performed. 2.2 Test environment Temperature : 25 o C Relative humidity content : 20 ... 75 % Air pressure : 86 ... 103 kPa Details of power supply : 12.0 V DC Ext…

Text truncated - open the document above for the full version.

ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH FCC - TEST - REPORT FCC RULES PARTS 22 and 24 FCC ID: QIXPHD1000 Test report no.: G0M20506-9586-P-2224 Certificate 1983-01 ELECTRONIC TECHNOLOGY SYSTEMS STORKOWER STRASSE 38C, D-15526 REICHENWALDE B. BERLIN DR. GENZ GMBH PHONE +49-33631-888 00 FAX +49-33631-888 660 ETS Dr. Genz GmbH, Germany Registration number: G0M20506-9586-P-2224 Page 1 of 41 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH TABLE OF CONTENTS 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of approval holder 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test environment 2.3 Test equipment utilized 2.4 General Test Procedure 3 Test Results 4 RF Power Output, FCC 2.1046 4.1 Test Procedure 4.2 Test Results 5 Radiated Power FCC 22.913, FCC 24.232 5.1 Test Procedure 5.2 Test Results 6 Modulation Deviation Limiting, FCC 2.1047, 22.915(b)(c) 6.1 Test Procedure 6.2 Test Results 7 Audio Filter Characteristics, FCC 22.915(d) 7.1 Test Procedure 7.2 Test Results 8 Emission Limitations, , FCC 2.1049 8.1 Test Procedure 8.2 Test Results 9 Occupied Bandwidth FCC 22.917(b)(d); FCC 2.1049 9.1 Test Procedure 9.2 Test Results 10 Out of Band Emissions at Antenna Terminals, FCC 24.238(a) 10.1 Test Procedure 10.2 Test results 11 Field Strength of Spurious Radiation, FCC 2.1053, 24.236 11.1 Test Procedure 11.2 Test Results ETS Dr. Genz GmbH, Germany Registration number: G0M20506-9586-P-2224 Page 2 of 41 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 12 Line Conducted Emissions, FCC 15.207 12.1 Test Procedure 12.2 Test Results 13 Frequency Stability vs Temperature, FCC 2.1055, 22.355, 24. 235 13.1 Test Procedure 13.2 Test Equipment 14 Frequency Stability vs Voltage, FCC 2.1055, 22.355, 24.235 14.1 Test Procedure 14.2 Test Equipment ETS Dr. Genz GmbH, Germany Registration number: G0M20506-9586-P-2224 Page 3 of 41 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH. Tester: 20.07.2005 Date ETS-Lab. Name Signature Technical responsibility for area of testing: 20.07.2005 N. Kaspar Date ETS Name Signature ETS Dr. Genz GmbH, Germany Registration number: G0M20506-9586-P-2224 Page 4 of 41 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.2 Testing laboratory 1.2.1 Location ELECTRONIC TECHNOLOGY SYSTEM DR. GENZ GMBH (ETS) Storkower Straße 38c D-15526 Reichenwalde b. Berlin Germany Telephone : +49 33631 888 00 Telefax : +49 33631 888 66 1.2.2 Details of accreditation status A CCREDITED TESTING LABORATORY DAR-REGISTRATION NUMBER: TTI-P-G 126/96 A CCREDITED COMPETENT BODY DAR-REGISTRATION NUMBER: BPT-ZE-026/96 FCC FILED TEST LABORATORY REG. NO. 96970 BLUETOOTH QUALIFICATION TEST FACILITY (BQTF) ACCREDITED BY: BLUETOOTH QUALIFICATION REVIEW BOARD (BQRF) I NDUSTRY CANADA FILED TEST LABORATORY REG. NO. IC 3470 A2LA ACCREDITED Certificate Number: 1983-01 1.3 Details of approval holder Name : FALCOM GmbH Street : Gewerbering 6 Town : 98704 Langewiesen Country : Germany Telephone : +49(0)3677 8042-0 Fax : +49(0)3677 8042-215 Contact : Herr Ralf Leipoldt E-Mail : [email protected] ETS Dr. Genz GmbH, Germany Registration number: G0M20506-9586-P-2224 Page 5 of 41 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.4 Application details Date of receipt of application : 21.06.2005 Date of receipt of test item : 21.06.2005 Date of test : 06.07.2005 – 19.07.2005 1.5 Test item Description of test item : Integrated AVL solution Type identification : PHD1000 Serial number : Test model without serial number. Photos : See annex A. Technical data Frequency range Tx – GSM 850 : 824.2 – 848.80 MHz Frequency range Tx – PCS : 1850.2 – 1909.8 MHz Frequency range Rx - GSM 850 : 869.2 – 893.8 MHz Frequency range Rx - PCS : 1930.2 – 1989.8 MHz Antenna transmitter : external fixed antenna, FAL-ANT-06 Antenna Gain : 3 dBi Power supply : 12.0 V DC Operating mode : duplex Type of modulation : GMSK (GSM modulation) Emission : GXW Manufacturer: (if applicable) Name : Street : Town : Country : ETS Dr. Genz GmbH, Germany Registration number: G0M20506-9586-P-2224 Page 6 of 41 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.6 Test standards Technical standard : FCC Parts 22, 24, 2, 15 Additional information : Because of using the GSM 850 as an alternative technology in 850 MHz band, not all test cases of FCC Part 22 are required. 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course : of the tests performed. or The deviations as specified in 2.5 were ascertained in the course of the tests … performed. 2.2 Test environment Temperature : 23 o C Relative humidity content : 20 ... 75 % Air pressure : 86 ... 103 kPa ETS Dr. Genz GmbH, Germany Registration number: G0M20506-9586-P-2224 Page 7 of 41 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 2.3 Test equipment utilized No. Test equipment Type Manufacturer ETS 0001 ESD Gun SESD 30000 Schlöder ETS 0002 Test receiver ESVP Rohde & Schwar…

Text truncated - open the document above for the full version.

ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH TEST - REPORT FCC Part 15 C for IEEE 802.15.4 device FCC ID: QIXPHD1000 Test report no.: G0M20506-9586-C-1 Certificate 1983-01 ELECTRONIC TECHNOLOGY SYSTEMS STORKOWER STRASSE 38C, D-15526 REICHENWALDE B. BERLIN DR. GENZ GMBH PHONE +49-33631-888 00 FAX +49-33631-888 66 ETS Dr. Genz GmbH, Germany Registration number: G0M20506-9586 -C-1 1 of 31 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH TABLE OF CONTENTS 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of approval holder 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test environment 2.3 Test equipment utilized 2.4 Test Procedure 3 Test Results 3.1 Peak Output Power 3.2 De Facto Equivalent Isotropic Radiated Power 3.3 Antenna Requirement 3.4 Transmitter Radiated Emissions in Restricted Bands 3.5 Spurious Emissions 3.6 Minimum 6 dB Bandwidth 3.7 Peak Power Spectral Density 3.8 Spurious emissions related to AC power line ETS Dr. Genz GmbH, Germany Registration number: G0M20506-9586 -C-1 2 of 31 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has Passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extractes from the report requires the prior written approval of the ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH. Tester: 23.08.2005 D. Hoppe Date ETS-Lab. Name Signature Technical responsibility for area of testing: 23.08.2005 N. Kaspar Date ETS Name Signature ETS Dr. Genz GmbH, Germany Registration number: G0M20506-9586 -C-1 3 of 31 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.2 Testing laboratory 1.2.1 Location ELECTRONIC TECHNOLOGY SYSTEM DR. GENZ GMBH (ETS) Storkower Straße 38c D-15526 Reichenwalde b. Berlin Germany Telefon : +49 33631 888 00 Telefax : +49 33631 888 66 1.2.2 Details of accreditation status A CCREDITED TESTING LABORATORY DAR-REGISTRATION NUMBER: TTI-P-G 126/96 ACCREDITED COMPETENT BODY DAR-REGISTRATION NUMBER: BPT-ZE-026/96 FCC FILED TEST LABORATORY REG. NO. 96970 A2LA Accredited Certification No.1983-01 B LUETOOTH QUALIFICATION TEST FACILITY (BQTF) Accredited by Bluetooth Qualification Review Board INDUSTRY CANADA FILED TEST LABORATORY REG. NO. IC 3470 1.3 Details of approval holder Name : FALCOM GmbH Street : Gewerbering 6 Town : 98704 Langewiesen Country : Germany Telephone : +49(0)3677 8042-0 Fax : +49(0)3677 8042-215 Contact : Herr Ralf Leipoldt E-mail : [email protected] ETS Dr. Genz GmbH, Germany Registration number: G0M20506-9586 -C-1 4 of 31 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.4 Application details Date of receipt of application : 21.06.2005 Date of receipt of test item : 21.06.2005 Date of test : 21.06.2005 – 08.08.2005 1.5 Test item Description of test item : Integrated AVL solution Type identification : PHD1000 Hardware version : 1D Software version : 1.05 Serial number : Test sample without serial number Photos : See Appendix A Technical data Frequency band : 2.4GHz – 2.4835GHz Frequency ( ch A) : 2405 MHz Frequency (ch B) : 2440 MHz Frequency (ch C) : 2480 MHz Number of Channels : 16 Operating Modes : duplex Type of modulation : DSSS Data Rate (Mbit/s) Modulation Support 1 DSSS 2 DSSS 5,5 DSSS 11 DSSS Antenna : Internal IEEE antenna Murata ANCM12G45SAA072TT1 Antenna gain : -1 dBi ETS Dr. Genz GmbH, Germany Registration number: G0M20506-9586 -C-1 5 of 31 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Host device : none Classification : Fixed Device Mobile Device (Human Body distance > 20cm Portable Device (Human Body distance < 20cm Transmitter Unom Unom –15 % Unom + 15 % Power (ch A) : Conducted: 7.82 dBm Conducted: 7.17 dBm Conducted: 7.30 dBm Power (ch B) : Conducted: 8.53 dBm Conducted: 8.53 dBm Conducted: 8.53 dBm Power (ch C) : Conducted: 7.55 dBm Conducted: 7.55 dBm Conducted: 7.55 dBm Transmitter Unom Power (ch A) : Radiated: 6.25 dBm Power (ch B) : Radiated: 8.09 dBm Power (ch C) : Radiated: 7.94 dBm Manufacturer: (if applicable) Name : Street : Town : Country : Additional information: The sample for low Rate Wireless Personal Area Networks (LR-WPAN) technology according IEEE 802.15.4. The scheme for frequency generation, spectrum spreading, receiver parameters, synchronization procedure, and other parameters are determined by the mentioned standard above. ETS Dr. Genz GmbH, Germany Registration number: G0M20506-9586 -C-1 6 of 31 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.6 Test standards Technical standard : FCC RULES PART 15 / SUBPART C § 15.247 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course : of the tests performed. or The deviations as specified in 2.5 were ascertained in the course of the tests … performed. 2.2 Test environment Temperature : 25 o C Relative humidity content : 20 ... 75 % Air pressure : 86 ... 103 kPa Details of power supply : 12.0 V DC 120 V AC/DC Adapter Extrem conditions parameters: : test voltage - extreme min.: 7.0 V DC max: 32.0 V DC Extreme test voltages were declared by manufacturer. ETS Dr. Genz GmbH, Germany Registration number: G0M20506-9586 -C-1 7 of 31 ELECTRONIC TECHNOLOGY SYSTEMS D…

Text truncated - open the document above for the full version.

-ETS- DR. Genz GmbH, Germany Reference number: G0M20506-9586 Page 10 of 11 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH -ETS- DR. Genz GmbH, Germany Reference number: G0M20506-9586 Page 11 of 11 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH
