QIXSAMBA56GSM/GPRS-Stick-Phone

This document is available at HTTP://WWW.FALCOM.DE/ . SAMBA 55/56 GSM/GPRS User’s guide Version 1.03 SAMBA 55/56 VERSION 1.03 Contents 0 INTRODUCTION..............................................................4 0.1 SCOPE OF DELIVERY.......................................................................................................................5 0.2 USED ABBREVIATIONS....................................................................................................................6 0.3 RELATED DOCUMENTS....................................................................................................................7 1 SECURITY.........................................................................8 1.1.1 GENERAL.....................................................................................................................................8 1.1.2 EXPOSURE TO RF ENERGY .....................................................................................................8 1.1.3 EFFICIENT MODEM OPERATION............................................................................................8 1.1.4 ANTENNA CARE AND REPLACEMENT .................................................................................9 1.1.5 DRIVING ......................................................................................................................................9 1.1.6 ELECTRONIC DEVICES.............................................................................................................9 1.1.7 VEHICLE ELECTRONIC EQUIPMENT ....................................................................................9 1.1.8 MEDICAL ELECTRONIC EQUIPMENT ...................................................................................9 1.1.9 AIRCRAFT...................................................................................................................................9 1.1.10 CHILDREN .................................................................................................................................10 1.1.11 BLASTING AREAS................................................................................................................... 10 1.1.12 POTENTIALLY EXPLOSIVE ATMOSPHERES......................................................................10 1.1.13 NON-IONISING RADIATION ..................................................................................................10 1.2 SAFETY STANDARDS.....................................................................................................................11 2 SAMBA MODEM............................................................12 2.1 TECHNICAL DATA........................................................................................................................12 2.2 GENERAL CHARACTERISTICS........................................................................................................12 2.2.1 General.........................................................................................................................................12 2.2.2 Electrical......................................................................................................................................12 2.2.3 Physical........................................................................................................................................12 2.2.4 Basic Features..............................................................................................................................12 2.2.5 Interfaces.....................................................................................................................................13 2.2.6 Power consumption.....................................................................................................................14 2.3 AIR INTERFACE OF THE SAMBA GSM/GPRS PART....................................................................14 2.4 RELIABILITY CHARACTERISTICS...................................................................................................15 3 INTERFACES IN OVERVIEW.....................................17 3.2 FUNCTIONAL DESCRIPTION...........................................................................................................20 4 GSM/GPRS APPLICATION INTERFACE..................21 4.1 DESCRIPTION OF OPERATING MODES............................................................................................21 4.1.1 Normal mode operation...............................................................................................................21 4.1.2 Power down .................................................................................................................................22 4.1.3 Alarm mode.................................................................................................................................22 5 SYSTEM REQUIREMENTS..........................................23 5.1 HARDWARE & SOFTWARE REQUIREMENTS...................................................................................23 6 GETTING STARTED......................................................24 6.1 INSTALLING YOUR SAMBA IN A LAPTOP COMPUTER RUNNING WINDOWS® 98, 2000, ME, XP................................................................................................................................................24 6.1.1 Getting started to GPRS Network................................................................................................31 6.1.2 Communications software........................................................................................................... 32 6.1.3 PIN & PUK..................................................................................................................................32 6.1.4 Text messages..............................................................................................................................32 6.1.5 Voice calls..............…

Text truncated - open the document above for the full version.

___________________________________________________________________________________ ETS Handelsregister: Bankverbindung: Electronic Technology Systems Dr. Genz GmbH Amtsgericht Frankfurt/Oder HRB 5151 Sparkasse Oder-Spree Storkower Strasse 38c Geschäftsführung: Dr. Dietmar Genz BLZ 170 550 50 D-15526 Reichenwalde b. Berlin Norbert Kaspar Kto. Nr. 3105165974 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH BZT ETS CERTIFICATION GMBH Mr. D. Griep, Mr. A. Herrmann Storkower Str. 38c 15526 Reichenwalde - GERMANY - IHR ZEICHEN / YOUR REF. IHR SCHREIBEN / YOUR INFORM. UNSER ZEICHEN / OUR REF. DATUM / DATE am 6/22/2004 Subject: Request of Confidentially Applicant: Falcom GmbH Equipment: Samba56 FCC ID: QIXSAMBA56 Dear Sirs, Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission's Rules, the Applicant hereby requests confidential treatment of information accompanying as outlined below: • Schematic drawing • Operational Description • BOM/Parts List The above materials contain trade secrets and proprietary information not customarily released to the public. Public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and accompanying documentation will not be made before the date of the Grant for this application. Should you have any questions or comments concerning the above, please contact the following e- mail addresses: [email protected] Best Regards Axel Müller

___________________________________________________________________________________ ETS Handelsregister: Bankverbindung: Electronic Technology Systems Dr. Genz GmbH Amtsgericht Frankfurt/Oder HRB 5151 Sparkasse Oder-Spree Storkower Strasse 38c Geschäftsführung: Dr. Dietmar Genz BLZ 170 550 50 D-15526 Reichenwalde b. Berlin Norbert Kaspar Kto. Nr. 3105165974 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH BZT ETS CERTIFICATION GMBH Mr. D. Griep; Mr. A. Herrmann Storkower Str. 38c 15526 Reichenwalde b. Berlin - GERMANY - IHR ZEICHEN / YOUR REF. IHR SCHREIBEN / YOUR INFORM. UNSER ZEICHEN / OUR REF. DATUM / DATE am 2004-06-29 Subject: Application for TCB Certification Applicant:. Falcom GmbH Equipment: GSM/GPRS-Stick-Phone FCC ID: QIXSAMBA56 Dear Sirs, Submitted herewith, on behalf of Falcom GmbH, is an application for certification under FCC Rule 22 and 24 of the following equipment: GSM/GPRS-Stick-Phone Attached are the 731Form, Confidentiality request letter, test report (TestRpt1=test data, TestRpt2=test plots), FCC ID label and label location information, test setup photographs, internal and external photographs, operational description, block diagrams, schematics, antenna spec. information and user manual. In accordance with 0.459 of CFR 47 Innostream Inc. hereby requests confidentiality of all Block Diagrams and Circuit Diagrams (Schematics), (see attached Confidentiality Request Letter) for the subject application. Should you have any questions or comments concerning the above, please contact the following e-mail addresses: [email protected] Best Regards Axel Müller

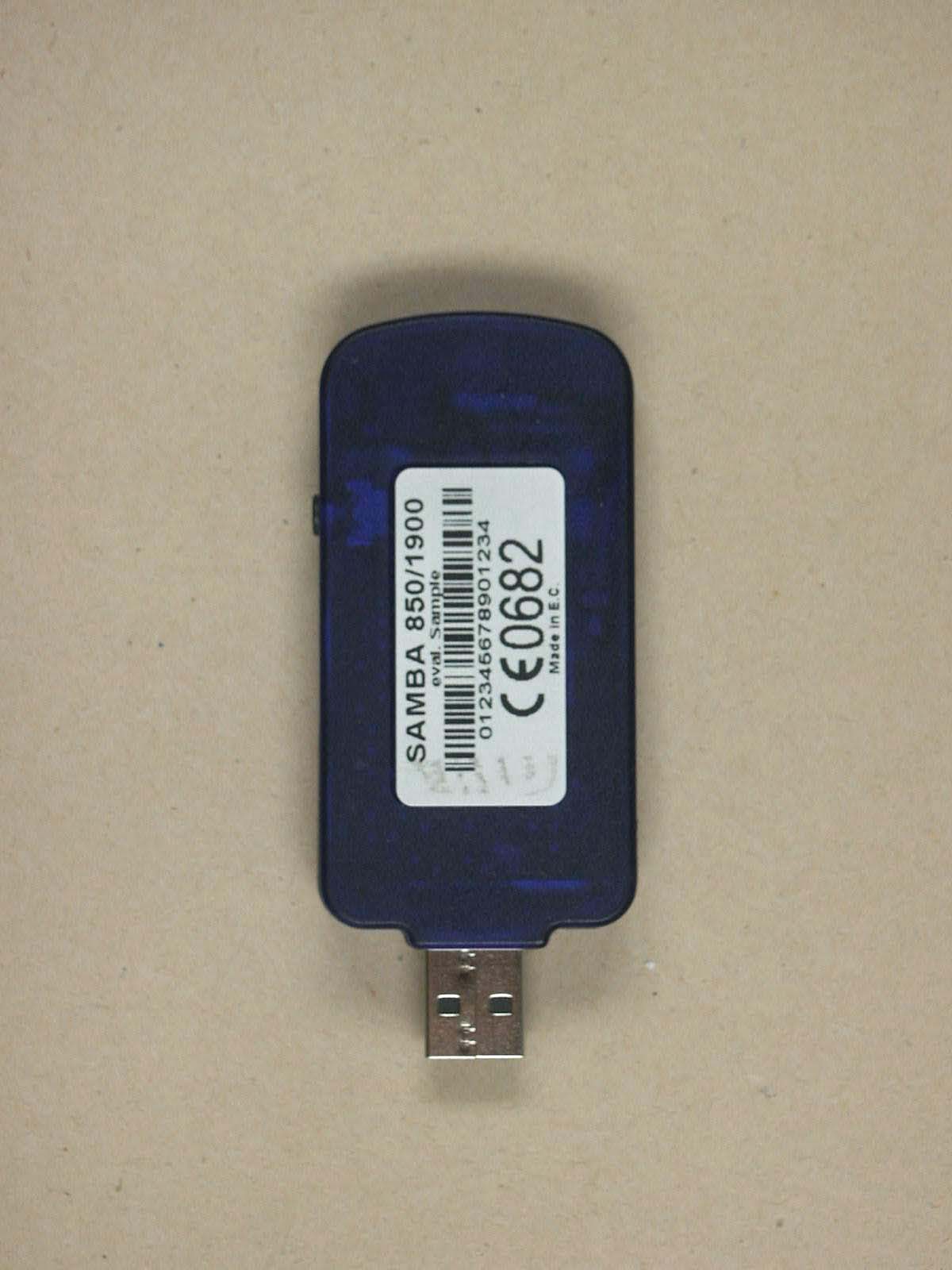

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20404-8660-P-2224Page 1 of 13 Appendix A. Pictures ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20404-8660-P-2224Page 2 of 13

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20404-8660-P-2224Page 3 of 13 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20404-8660-P-2224Page 4 of 13 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20404-8660-P-2224Page 5 of 13 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20404-8660-P-2224Page 6 of 13 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20404-8660-P-2224Page 7 of 13 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20404-8660-P-2224Page 8 of 13 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20404-8660-P-2224Page 9 of 13

ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH TEST - REPORT SAR Compliance Test Report Test report no.: G0M20404-8660-S-1 SAR ELECTRONIC TECHNOLOGY SYSTEMS STORKOWER STRASSE 38C, D-15526 REICHENWALDE B. BERLIN DR. GENZ GMBH PHONE +49-33631-888 00 FAX +49-33631-888 660 ETS Dr. Genz GmbH, Germany Registration number: G0M20404-8660-S-1 Page 1 of 24 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH TABLE OF CONTENTS 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of approval holder 1.4 Manufacturer 1.5 Application details 1.6 Test item 1.7 Test results 1.8 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test environment 2.3 Test equipment utilized 2.4 Definitions 2.5 Measurement system description 2.6 Test system specification 2.7 Measurement procedure 2.8 Reference points 2.9 Test positions 2.10 Measurement uncertainty 3 Tissue and system verification 3.1 Tissue verification 3.2 System verification 4 Test Results 5 References 6 Appendix ETS Dr. Genz GmbH, Germany Registration number: G0M20404-8660-S-1 Page 2 of 24 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualification of all persons taking them. Tester: 12.05.2004 N. Kaspar Date ETS-Lab. Name Signature Technical responsibility for area of testing: 12.05.2004 Dr. Genz Date ETS Name Signature ETS Dr. Genz GmbH, Germany Registration number: G0M20404-8660-S-1 Page 3 of 24 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.2 Testing laboratory 1.2.1 Location ELECTRONIC TECHNOLOGY SYSTEM DR. GENZ GMBH (ETS) Storkower Straße 38c D-15526 Reichenwalde b. Berlin Germany Telephone : +49 33631 888 00 Fax : +49 33631 888 660 1.2.2 Details of accreditation status ACCREDITED TESTING LABORATORY DAR-REGISTRATION NUMBER: TTI-P-G 126/96 FCC FILED TEST LABORATORY REG. NO. 96970 BLUETOOTH QUALIFICATION TEST FACILITY (BQTF) ACCREDITED BY BLUETOOTH QUALIFICATION REVIEW BOARD INDUSTRY CANADA FILED TEST LABORATORY REG. NO. IC 3470 A2LA ACCREDITED Certificate Number 1983-01 1.3 Details of approval holder Name : FALCOM GmbH Street : Gewerbering 6 Town : 98704 Langewiesen Country : Germany Telephone : 03677 80420 Fax : 03677 8042215 Contact : Herr Ralf Leipoldt E-Mail : [email protected] 1.4 Manufacturer: (if applicable) Name : Street : Town : Country : ETS Dr. Genz GmbH, Germany Registration number: G0M20404-8660-S-1 Page 4 of 24 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.5 Application details Date of receipt of application : 23.04.2004 Date of receipt of test item : 23.04.2004 Date of test : 07.05. - 10.05.04 1.6 Test item FCC ID : QIXSAMBA56 Description of test item : GSM/GPRS-Stick-Phone Type identification : SAMBA 56 Serial number : without; Identical prototype Device category : PCB (Licensed Base Station) Technical data GSM850 PCS 1900 TX Frequency range : 824,2 - 848,8 MHz 1850,2 - 1909,8 MHz RX Frequency range : 869,2 - 893,8 MHz 1930,2 - 1989,8 MHz Max. Conducted RF output power : 31.78 dBm / (1.507 W) 28.62 dBm / (0.727 W) Power supply : 5,0 V DC USB voltage Antenna Tx : integral Antenna RX : integral Additional information : Tx and Rx. antenna are the same. 1.7 Test Results Max. SAR Measurement : 0.915 W/kg (averaged over 1 gram) This EUT has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-2003 December 2003. ETS Dr. Genz GmbH, Germany Registration number: G0M20404-8660-S-1 Page 5 of 24 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.8 Test standards Standards : - IEEE Std. 1528™-2003 December 2003 FCC Rule Part(s) : - FCC OET Bulletin 65, Supplement C, Edition 01-01 2 Technical test 2.1 Summary of test results Handset (Head) Handset (Body) Headset (Head) Body Worn Equipment X EUT complies with the RF radiation exposure limits of the FCC as shown by the SAR measurement results. These measurements are taken to simulate the RF effects exposure under worst-case conditions. The EUT complies with the requirements in respect to all parameters subject to the test. The test results and statements relate only to the item(s) tested. Please note that the absorption and distribution of electromagnetic energy in the body are very complex phenomena that depend on the mass, shape, and size of the body, the orientation of the body with respect to the field vectors, and the electrical properties of both the body and the environment. Other variables that may play a substantial role in possible biological effects are those that characterize the environment (e.g. ambient temperature, air velocity, relative humidity, and body insulation) and those that character…

Text truncated - open the document above for the full version.

ETS Dr. Genz GmbH, GermanyRegistration number: G0M20404-8660-S-1Appendix B ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Appendix B Measurement Plots Date/Time: 05/07/04 08:59:38 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH Dipol Valid.900(m)_250mW_07.05.2004 DUT: Dipole 900 MHz; Type: D900V2; Serial: 164 Communication System: CW; Frequency: 900 MHz;Duty Cycle: 1:1 Medium: Muscle 900 MHz Medium parameters used: f = 900 MHz; σ = 1.04 mho/m; ε r = 54.4; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(6, 6, 6); Calibrated: 12/16/2003 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 1/12/2004 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 Dipol 900 (250mW)/Area Scan (81x121x1): Measurement grid: dx=10mm, dy=10mm Reference Value = 58 V/m; Power Drift = -0.0 dB Maximum value of SAR (interpolated) = 3.18 mW/g Dipol 900 (250mW)/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 58 V/m; Power Drift = -0.0 dB Maximum value of SAR (measured) = 3.11 mW/g Peak SAR (extrapolated) = 4.19 W/kg SAR(1 g) = 2.56 mW/g; SAR(10 g) = 1.72 mW/g 0 dB = 3.11mW/g Date/Time: 05/07/04 14:39:58 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH Dipol Valid.1900(m)_250mW_07.05.2004 DUT: Dipole 1900 MHz; Type: D1900V2; Serial: 5d025 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: Muscle 1900 MHz Medium parameters used: f = 1900 MHz; σ = 1.58 mho/m; ε r = 51.9; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(4.6, 4.6, 4.6); Calibrated: 12/16/2003 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 1/12/2004 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 Dipol 1900 (250mW)/Area Scan (81x81x1): Measurement grid: dx=10mm, dy=10mm Reference Value = 92.3 V/m; Power Drift = -0.1 dB Maximum value of SAR (interpolated) = 12.7 mW/g Dipol 1900 (250mW)/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 92.3 V/m; Power Drift = -0.1 dB Maximum value of SAR (measured) = 12.6 mW/g Peak SAR (extrapolated) = 18.5 W/kg SAR(1 g) = 11 mW/g; SAR(10 g) = 5.89 mW/g 0 dB = 12.6mW/g Date/Time: 05/10/04 06:05:52 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH Dipol Valid.1900(m)_250mW_10.05.2004 DUT: Dipole 1900 MHz; Type: D1900V2; Serial: 5d025 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: Muscle 1900 MHz Medium parameters used: f = 1900 MHz; σ = 1.58 mho/m; ε r = 51.9; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(4.6, 4.6, 4.6); Calibrated: 12/16/2003 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 1/12/2004 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 Dipol 1900 (250mW)/Area Scan (81x81x1): Measurement grid: dx=10mm, dy=10mm Reference Value = 93.4 V/m; Power Drift = -0.0 dB Maximum value of SAR (interpolated) = 12.2 mW/g Dipol 1900 (250mW)/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 93.4 V/m; Power Drift = -0.0 dB Maximum value of SAR (measured) = 11.7 mW/g Peak SAR (extrapolated) = 16.9 W/kg SAR(1 g) = 11.3 mW/g; SAR(10 g) = 6.04 mW/g 0 dB = 11.7mW/g Date/Time: 05/07/04 13:04:12 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH 850_flat_ch128_back DUT: GSM/GPRS-Stick-Phone; Type: SAMBA 56; Serial: --- Communication System: GSM 850; Frequency: 824.2 MHz;Duty Cycle: 1:8.3 Medium: Muscle 850 MHz Medium parameters used (interpolated): f = 824.2 MHz; σ = 0.966 mho/m; ε r = 55.1; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(6, 6, 6); Calibrated: 12/16/2003 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 1/12/2004 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 SAMBA 56/Area Scan (81x161x1): Measurement grid: dx=10mm, dy=10mm Reference Value = 29.5 V/m; Power Drift = 0.0 dB Maximum value of SAR (interpolated) = 0.999 mW/g SAMBA 56/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 29.5 V/m; Power Drift = 0.0 dB Maximum value of SAR (measured) = 1.01 mW/g Peak SAR (extrapolated) = 1.31 W/kg SAR(1 g) = 0.915 mW/g; SAR(10 g) = 0.608 mW/g 0 dB = 1.01mW/g Date/Time: 05/07/04 10:30:36 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH 850_flat_ch189_front DUT: GSM/GPRS-Stick-Phone; Type: SAMBA 56; Serial: --- Communication System: GSM 850; Frequency: 836.4 MHz;Duty Cycle: 1:8.3 Medium: Muscle 850 MHz Medium parameters used (interpolated): f = 836.4 MHz; σ = 0.975 mho/m; ε r = 55.1; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(6, 6, 6); Calibrated: 12/16/2003 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 1/12/2004 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 SAMBA 56/Area Scan (81x161x1): Measurement grid: dx=10mm, dy=10mm Reference Value = 23.6 V/m; Power Drift = -0.1 dB Maximum value of SAR (interpolated) = 0.568 mW/g SAMBA 56/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 23.6 V/m; Power Drift = -0.1 dB Maximum value of SAR (measured) = 0.566 mW/g Peak SAR (extrapolated) = 0.750 W/kg SAR(1 g) = 0.521 mW/g; SAR(10 g) = 0.349 mW/g 0 dB = 0.566mW/g Date/Time: 05/07/04 11:39:11 Test Laboratory: ELECTRONIC TECHNOL…

Text truncated - open the document above for the full version.

ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH TEST - REPORT FCC RULES PARTS 22 and 24 FCC ID:QIXSAMBA56 Test report no.: G0M20404-8660-P-2224 FCC ELECTRONIC TECHNOLOGY SYSTEMSSTORKOWER STRASSE 38C, D-15526 REICHENWALDE B. BERLIN DR. GENZ GMBHPHONE +49-33631-888 00 FAX +49-33631-888 66 ETS Dr. Genz GmbH, GermanyRegistration number: G0M20404-8660-P-2224Page 1 of 41 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH TABLE OF CONTENTS 1General information 1.1Notes 1.2Testing laboratory 1.3Details of approval holder 1.4Application details 1.5Test item 1.6Test standards 2Technical test 2.1Summary of test results 2.2Test environment 2.3Test equipment utilized 2.4General Test Procedure 3 Test Results 4 RF Power Output, FCC 2.1046 4.1 Test Procedure 4.2 Test Results 5 Radiated Power FCC 22.913, FCC 24.232 5.1 Test Procedure 5.2 Test Results 6 Modulation Deviation Limiting, FCC 2.1047, 22.915(b)(c) 6.1 Test Procedure 6.2 Test Results 7 Audio Filter Characteristics, FCC 22.915(d) 7.1 Test Procedure 7.2 Test Results 8 Emission Limitations, , FCC 2.1049 8.1 Test Procedure 8.2 Test Results 9 Occupied Bandwidth FCC 22.917(b)(d); FCC 2.1049 9.1 Test Procedure 9.2 Test Results 10 Emission in Receiver Critical Band FCC 22.917(f) 10.1Test Procedure 10.2Test results 11 Out of Band Emissions at Antenna Terminals , FCC 2.1051, FCC 22.917(e), FCC 22.917(f), 24.238(a) 11.1. Test Procedure 11.2. Test Results ETS Dr. Genz GmbH, GermanyRegistration number: G0M20404-8660-P-2224Page 2 of 41 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 12 Field Strength of Spurious Radiation, FCC 2.1053, 24.236 13.1 Test Procedure 12.2 Test Results 13 Line Conducted Emissions, FCC 15.207 13.1 Test Procedure 13.2 Test Results 14 Frequency Stability vs Temperature, FCC 2.1055, 22.355, 24.235 14.1 Test Procedure 14.2 Test Equipment 15 Frequency Stability vs Voltage, FCC 2.1055, 22.355, 24.235 15.1 Test Procedure 15.2 Test Equipment ETS Dr. Genz GmbH, GermanyRegistration number: G0M20404-8660-P-2224Page 3 of 41 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1General Information 1.1Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH. Tester: 06.05.2004N. Kaspar DateETS-Lab.NameSignature Technical responsibility for area of testing: 06.05.2004Dr. Genz DateETSNameSignature ETS Dr. Genz GmbH, GermanyRegistration number: G0M20404-8660-P-2224Page 4 of 41 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.2 Testing laboratory 1.2.1Location ELECTRONIC TECHNOLOGY SYSTEM DR. GENZ GMBH (ETS) Storkower Straße 38c D-15526 Reichenwalde b. Berlin Germany Telephone : +49 33631 888 00 Telefax: +49 33631 888 66 1.2.2Details of accreditation status A CCREDITED TESTING LABORATORY DAR-REGISTRATION NUMBER: TTI-P-G 126/96 ACCREDITED COMPETENT BODY DAR-REGISTRATION NUMBER: BPT-ZE-026/96 FCC FILED TEST LABORATORY REG. NO. 96970 BLUETOOTH QUALIFICATION TEST FACILITY (BQTF) ACCREDITED BY: BLUETOOTH QUALIFICATION REVIEW BOARD (BQRF) I NDUSTRY CANADA FILED TEST LABORATORY REG. NO. IC 3470 A2LA A CCREDITEDCertificate Number: 1983-01 1.3Details of approval holder Name: FALCOM GmbH Street: Gewerbering 6 Town: 98704 Langewiesen Country: Germany Telephone: 03677 80420 Fax: 03677 8042215 Contact: Herr Ralf Leipoldt E-Mail: [email protected] ETS Dr. Genz GmbH, GermanyRegistration number: G0M20404-8660-P-2224Page 5 of 41 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.4Application details Date of receipt of application: 23.04.2004 Date of receipt of test item: 23.04.2004 Date of test: 28.04.2004 – 04.05.2004 1.5Test item Description of test item: GSM/GPRS-Stick-Phone Type identification: SAMBA 56 Serial number: Test model without serial number. Photos: See annex A. Technical data Frequency range Tx – GSM 850: 824.2 – 848.80 MHz Frequency range Tx – PCS: 1850.2 – 1909.8 MHz Frequency range Rx - GSM 850: 869.2 – 893.8 MHz Frequency range Rx - PCS: 1930.2 – 1989.8 MHz Antenna transmitter: integral (internal antenna) TYCO 100717 Antenna Gain: 1 dBi Power supply : 120 V AC powered by USB-port Operating mode: duplex Type of modulation: GMSK (GSM modulation) Emission: GXW Manufacturer: (if applicable) Name: Street: Town: Country: ETS Dr. Genz GmbH, GermanyRegistration number: G0M20404-8660-P-2224Page 6 of 41 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.6Test standards Technical standard : FCC Parts 22, 24, 2, 15 Additional information: Because of using the GSM 850 as an alternative technology in 850 MHz band, not all test cases of FCC Part 22 are required. 2Technical test 2.1Summary of test results No deviations from the technical specification(s) were ascertained in the course
of the tests performed. or The deviations as specified in 2.5 were ascertained in the course of the tests performed. 2.2Test environment Temperature: 23 o C Relative humidity content: 20 ...75 % Air pressure: 86 ...103 kPa This device contains 1800 MHz GSM funktions that are not operational in U.S. Territories. This filing is only applicable for 850/1900 MHz PCS operations. ETS Dr. Genz GmbH, GermanyRegistration number: G0M20404-8660-P-2224Pa…

Text truncated - open the document above for the full version.

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20404-8660-P-2224Page 10 of 13 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20404-8660-P-2224Page 11 of 13 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20404-8660-P-2224Page 12 of 13 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20404-8660-P-2224Page 13 of 13
