This document is available at HTTP://WWW.FALCOM.DE/ SAMBA 75 User’s manual Version 1.01, 18/10/2005 SAMBA 75 USER’S GUIDE VERSION 1.01 Index of contents 0 INTRODUCTION.......................................................................5 0.1 GENERAL................................................................................................................................5 0.2 SCOPE OF DELIVERY.................................................................................................................6 0.3 USED ABBREVIATIONS...............................................................................................................6 0.4 RELATED DOCUMENTS..............................................................................................................7 1 SECURITY.................................................................................8 1.1 GENERAL INFORMATION...........................................................................................................8 1.2 EXPOSURE TO RF ENERGY.........................................................................................................8 1.3 EFFICIENT MODEM OPERATION..................................................................................................8 1.4 ANTENNA CARE AND REPLACEMENT..........................................................................................8 1.5 DRIVING.................................................................................................................................9 1.6 ELECTRONIC DEVICES...............................................................................................................9 1.7 VEHICLE ELECTRONIC EQUIPMENT..............................................................................................9 1.8 MEDICAL ELECTRONIC EQUIPMENT............................................................................................9 1.9 AIRCRAFT...............................................................................................................................9 1.10 CHILDREN...............................................................................................................................9 1.11 BLASTING AREAS...................................................................................................................10 1.12 POTENTIALLY EXPLOSIVE ATMOSPHERES...................................................................................10 1.13 NON-IONIZING RADIATION....................................................................................................10 2 SAFETY STANDARDS..............................................................11 3 TECHNICAL DATA.................................................................12 3.1 GENERAL SPECIFICATIONS OF SAMBA 75 .............................................................................12 3.1.1 Power consumption .......................................................................................................14 4 INTERFACES IN OVERVIEW...................................................15 4.1.1.1 Interface A (4-pin USB Type A connector) ..............................................................................15 4.1.1.2 Interface B (Optical interface) .................................................................................................16 4.1.1.3 Interface C (SIM-Card interface) .............................................................................................16 4.2 FUNCTIONAL DESCRIPTION.....................................................................................................17 5 GSM/GPRS APPLICATION INTERFACE .................................18 5.1 DESCRIPTION OF OPERATING MODES......................................................................................18 5.1.1 Normal mode operation ...............................................................................................18 5.1.1.1 GSM/GPRS SLEEP........................................................................................................................18 5.1.1.2 GSM IDLE.....................................................................................................................................18 5.1.1.3 GPRS/EDGE IDLE.........................................................................................................................18 5.1.1.4 GPRS/EDGE DATA.....................................................................................................................18 5.1.2 Power down....................................................................................................................18 5.1.3 Alarm mode....................................................................................................................19 5.2 POWER UP / POWER DOWN SCENARIOS...............................................................................19 This confidential document is a property of FALCOM GmbH and may not be copied or circulated without previous permission. Page 1 SAMBA 75 USER’S GUIDE VERSION 1.01 5.2.1 Turn on SAMBA 75...........................................................................................................19 5.2.1.1 Reset SAMBA 75 via AT+CFUN Command ..............................................................................19 5.2.2 Turn off SAMBA 75...........................................................................................................19 5.2.2.1 Turn off SAMBA 75 Using AT Command ...................................................................................19 5.2.3 Automatic Shutdown.....................................................................................................20 5.3 AUTOMATIC EGPRS/GPRS MULTISLOT CLASS CHANGE........................................................20 6 SYSTEM REQUIREMENTS........................................................22 6.1 HARDWARE & SOFTWARE REQUIREMENTS................................................…

Text truncated - open the document above for the full version.

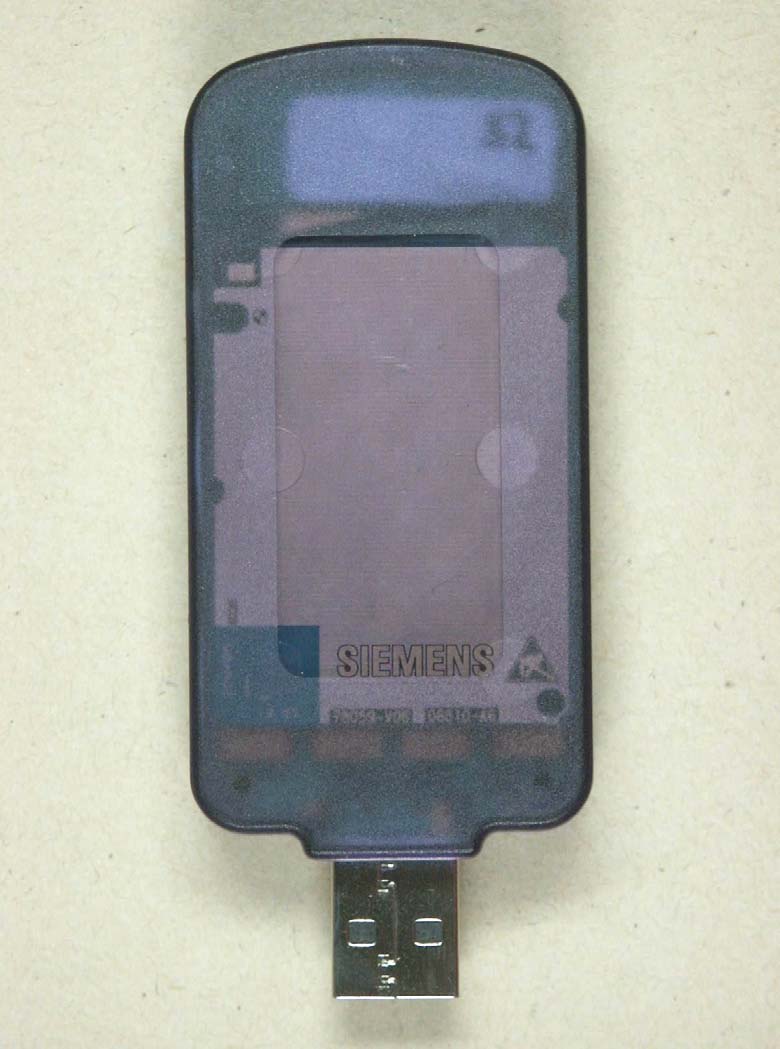

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20507-9679-P2224 Page 1 of 10 Appendix A. Pictures ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20507-9679-P2224 Page 2 of 10

Made in E.C. SAMBA 75 352023000029690 FCC ID: QIXSAMBA75 QIXSAMBA56 IC: 5383A-SAMBA75

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20507-9679-P2224 Page 3 of 10 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20507-9679-P2224 Page 4 of 10 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20507-9679-P2224 Page 5 of 10 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20507-9679-P2224 Page 6 of 10

ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH TEST - REPORT SAR Compliance Test Report Test report no.: G0M20507-9679-S-1 SAR ELECTRONIC TECHNOLOGY SYSTEMS STORKOWER STRASSE 38C, D-15526 REICHENWALDE B. BERLIN DR. GENZ GMBH PHONE +49-33631-888 00 FAX +49-33631-888 660 ETS Dr. Genz GmbH, Germany Registration number: G0M20507-9679-S-1 Page 1 of 27 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH TABLE OF CONTENTS 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of approval holder 1.4 Manufacturer 1.5 Application details 1.6 Test item 1.7 Test results 1.8 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test environment 2.3 Test equipment utilized 2.4 Definitions 2.5 Measurement system description 2.6 Test system specification 2.7 Measurement procedure 2.8 Reference points 2.9 Test positions 2.10 Measurement uncertainty 3 Tissue and system verification 3.1 Tissue verification 3.2 System verification 4 Test Results 5 References 6 Appendix ETS Dr. Genz GmbH, Germany Registration number: G0M20507-9679-S-1 Page 2 of 27 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualification of all persons taking them. Tester: 07.09.2005 Mr. Cersovsky Date ETS-Lab. Name Signature Technical responsibility for area of testing: 07.09.2005 N. Kaspar Date ETS Name Signature ETS Dr. Genz GmbH, Germany Registration number: G0M20507-9679-S-1 Page 3 of 27 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.2 Testing laboratory 1.2.1 Location ELECTRONIC TECHNOLOGY SYSTEM DR. GENZ GMBH (ETS) Storkower Straße 38c D-15526 Reichenwalde b. Berlin Germany Telephone : +49 33631 888 00 Fax : +49 33631 888 660 1.2.2 Details of accreditation status ACCREDITED TESTING LABORATORY DAR-REGISTRATION NUMBER: TTI-P-G 126/96 FCC FILED TEST LABORATORY REG. NO. 96970 BLUETOOTH QUALIFICATION TEST FACILITY (BQTF) ACCREDITED BY BLUETOOTH QUALIFICATION REVIEW BOARD INDUSTRY CANADA FILED TEST LABORATORY REG. NO. IC 3470 A2LA ACCREDITED Certificate Number 1983-01 1.3 Details of approval holder Name : FALCOM GmbH Street : Gewerbering 6 Town : 98704 Langewiesen Country : Germany Telephone : +49(0)3677 8042-0 Fax : +49(0)3677 8042-215 Contact : Herr Ralf Leipoldt E-Mail : [email protected] 1.4 Manufacturer: (if applicable) Name : Street : Town : Country : ETS Dr. Genz GmbH, Germany Registration number: G0M20507-9679-S-1 Page 4 of 27 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.5 Application details Date of receipt of application : 21.07.2005 Date of receipt of test item : 21.07.2005 Date of test : 31.08.2005 - 02.09.2005 1.6 Test item FCC ID : QIXSAMBA75 Description of test item : GSM Stickphone Type identification : SAMBA75 Serial number : without; Identical prototype Device category : PCB (Licensed Base Station) Technical data GSM 850 EGSM 900 TX Frequency range : 824,2 - 848,8 MHz 880,2 - 914,8 MHz RX Frequency range : 869,2 - 893,8 MHz 925,2 - 959,8 MHz Max. Conducted RF output power : 32,27 dBm / (1686,55 mW) DCS 1800 PCS 1900 TX Frequency range : 1710,2 - 1784,8 MHz 1850,2 - 1909,8 MHz RX Frequency range : 1805,2 - 1879,8MHz 1930,2 - 1989,8 MHz Max. Conducted RF output power : 29,21 dBm / (833,68 mW) Power supply : 5.0 V powered by USB port Antenna Tx : integral Antenna RX : integral Additional information : Tx and Rx. antenna are the same. This test sample was tested according FCC OET Bulletin 65, Supplement C, Edition 01-01 on the used (European) Frequency band. This Procedure is requested by customer. This device contains 900 MHz GSM and 1800 MHz DCS functions that are not operational in U. S. Territories. This filing is only applicable for 850 MHz GSM and 1900 MHz PCS operations. ETS Dr. Genz GmbH, Germany Registration number: G0M20507-9679-S-1 Page 5 of 27 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.7 Test Results Max. SAR Measurement : 1.500 W/kg (averaged over 1 gram) This EUT has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-2003, December 2003. 1.8 Test standards Standards : - IEEE Std. 1528-2003, December 2003 FCC Rule Part(s) : - FCC OET Bulletin 65, Supplement C, Edition 01-01 ETS Dr. Genz GmbH, Germany Registration number: G0M20507-9679-S-1 Page 6 of 27 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 2 Technical test 2.1 Summary of test results Handset (Head) Handset (Body) Headset (Head) Body Worn Equipment X EUT complies with the RF radiation exposure limits of the FCC as shown by the SAR measurement results. These measurements are taken to simulate the RF effects exposure under worst-case conditions. The EUT complies with…

Text truncated - open the document above for the full version.

ETS Dr. Genz GmbH, Germany Registration number: G0M20507-9679-S-1 Appendix B ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Appendix B Measurement Plots Date/Time: 09/01/05 17:40:45 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH Dipol Valid.900 (m)_250mW1.9.2005 DUT: Dipole 900 MHz; Type: D900V2; Serial: 164 Communication System: CW; Frequency: 900 MHz;Duty Cycle: 1:1 Medium: Muscle 900 MHz Medium parameters used: f = 900 MHz; σ = 1.04 mho/m; ε r = 54.4; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(6, 6, 6); Calibrated: 12/16/2003 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 1/12/2004 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.4 Build 3; Postprocessing SW: SEMCAD, V1.8 Build 130 Dipol 900 (250mW)/Area Scan (81x161x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 3.19 mW/g Dipol 900 (250mW)/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 56.5 V/m; Power Drift = -0.0 dB Peak SAR (extrapolated) = 4.37 W/kg SAR(1 g) = 2.92 mW/g; SAR(10 g) = 1.87 mW/g Maximum value of SAR (measured) = 3.18 mW/g 0 dB = 3.18mW/g Date/Time: 09/02/05 09:00:21 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH Dipol Valid.900 (m)_250mW2.9.2005 DUT: Dipole 900 MHz; Type: D900V2; Serial: 164 Communication System: CW; Frequency: 900 MHz;Duty Cycle: 1:1 Medium: Muscle 900 MHz Medium parameters used: f = 900 MHz; σ = 1.04 mho/m; ε r = 54.4; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(6, 6, 6); Calibrated: 12/16/2003 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 1/12/2004 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.4 Build 3; Postprocessing SW: SEMCAD, V1.8 Build 130 Dipol 900 (250mW)/Area Scan (81x161x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 3.14 mW/g Dipol 900 (250mW)/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 57.7 V/m; Power Drift = -0.0 dB Peak SAR (extrapolated) = 4.45 W/kg SAR(1 g) = 2.9 mW/g; SAR(10 g) = 1.86 mW/g Maximum value of SAR (measured) = 3.27 mW/g 0 dB = 3.27mW/g Date/Time: 08/31/05 16:55:46 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH Dipol Valid.1800(m)_250mW31.08.2005 DUT: Dipole 1800 MHz (D1800V2); Type: SA AAD 180 BA; Serial: 2d046 Communication System: CW; Frequency: 1800 MHz;Duty Cycle: 1:1 Medium: Muscle 1800 MHz Medium parameters used: f = 1800 MHz; σ = 1.58 mho/m; ε r = 54.3; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(4.6, 4.6, 4.6); Calibrated: 12/16/2003 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 1/12/2004 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.4 Build 3; Postprocessing SW: SEMCAD, V1.8 Build 130 Dipol 1800 (250mW)/Area Scan (61x81x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 11.9 mW/g Dipol 1800 (250mW)/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 93.4 V/m; Power Drift = -0.0 dB Peak SAR (extrapolated) = 17.4 W/kg SAR(1 g) = 10.2 mW/g; SAR(10 g) = 5.47 mW/g Maximum value of SAR (measured) = 11.6 mW/g 0 dB = 11.6mW/g Date/Time: 08/31/05 17:32:08 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH Dipol Valid.1900(m)_250mW31.08.2005 DUT: Dipole 1900 MHz; Type: D1900V2; Serial: 5d025 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: Muscle 1900 MHz Medium parameters used: f = 1900 MHz; σ = 1.58 mho/m; ε r = 51.9; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(4.6, 4.6, 4.6); Calibrated: 12/16/2003 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 1/12/2004 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.4 Build 3; Postprocessing SW: SEMCAD, V1.8 Build 130 Dipol 1900 (250mW)/Area Scan (61x81x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 12.8 mW/g Dipol 1900 (250mW)/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 92.1 V/m; Power Drift = -0.0 dB Peak SAR (extrapolated) = 19 W/kg SAR(1 g) = 10.9 mW/g; SAR(10 g) = 5.69 mW/g Maximum value of SAR (measured) = 12.6 mW/g 0 dB = 12.6mW/g Date/Time: 09/01/05 16:18:16 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH Dipol Valid.1900(m)_250mW1.09.2005 DUT: Dipole 1900 MHz; Type: D1900V2; Serial: 5d025 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: Muscle 1900 MHz Medium parameters used: f = 1900 MHz; σ = 1.58 mho/m; ε r = 51.9; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(4.6, 4.6, 4.6); Calibrated: 12/16/2003 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 1/12/2004 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.4 Build 3; Postprocessing SW: SEMCAD, V1.8 Build 130 Dipol 1900 (250mW)/Area Scan (61x81x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 12.5 mW/g Dipol 1900 (250mW)/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 96.2 V/m; Power Drift = 0.007 dB Peak SAR (extrapolated) = 18.9 W/kg SAR(1 g) = 11 mW/g; SAR(10 g) = 5.74 mW/g Maximum value of SAR (measured) = 12.4 mW/g 0 dB = 12.4mW/g Date/Time: 09/02/05 08:22:08 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH 850_flat_front_ch128_dist_5mm DUT: GSM Stickphone; Type: Falcom; Serial: Samba 75 Communication System: GSM 850; Frequency: 824.2 MHz;Duty Cycle: 1:8.3 Medium: Muscle 900 MHz Medium parameters used (interpolated)…

Text truncated - open the document above for the full version.

ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH FCC - TEST - REPORT FCC RULES PARTS 22 and 24 FCC ID: QIXSAMBA75 Test report no.: G0M20507-9679-P-2224 Certificate 1983-01 ELECTRONIC TECHNOLOGY SYSTEMS STORKOWER STRASSE 38C, D-15526 REICHENWALDE B. BERLIN DR. GENZ GMBH PHONE +49-33631-888 00 FAX +49-33631-888 660 ETS Dr. Genz GmbH, Germany Registration number: G0M20507-9679-P-2224 Page 1 of 41 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH TABLE OF CONTENTS 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of approval holder 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test environment 2.3 Test equipment utilized 2.4 General Test Procedure 3 Test Results 4 RF Power Output, FCC 2.1046 4.1 Test Procedure 4.2 Test Results 5 Radiated Power FCC 22.913, FCC 24.232 5.1 Test Procedure 5.2 Test Results 6 Modulation Deviation Limiting, FCC 2.1047, 22.915(b)(c) 6.1 Test Procedure 6.2 Test Results 7 Audio Filter Characteristics, FCC 22.915(d) 7.1 Test Procedure 7.2 Test Results 8 Emission Limitations, , FCC 2.1049 8.1 Test Procedure 8.2 Test Results 9 Occupied Bandwidth FCC 22.917(b)(d); FCC 2.1049 9.1 Test Procedure 9.2 Test Results 10 Out of Band Emissions at Antenna Terminals, FCC 24.238(a) 10.1 Test Procedure 10.2 Test results ETS Dr. Genz GmbH, Germany Registration number: G0M20507-9679-P-2224 Page 2 of 41 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 11 Spurious Radiation, FCC 2.1053, 24.236 11.1 Test Procedure 11.2 Test Results 12 Line Conducted Emissions, FCC 15.207 12.1 Test Procedure 12.2 Test Results 13 Frequency Stability vs Temperature, FCC 2.1055, 22.355, 24. 235 13.1 Test Procedure 13.2 Test Equipment 14 Frequency Stability vs Voltage, FCC 2.1055, 22.355, 24.235 14.1 Test Procedure 14.2 Test Equipment ETS Dr. Genz GmbH, Germany Registration number: G0M20507-9679-P-2224 Page 3 of 41 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH. Tester: 19.09.2005 M. Handrik Date ETS-Lab. Name Signature Technical responsibility for area of testing: 19.09.2005 N. Kaspar Date ETS Name Signature ETS Dr. Genz GmbH, Germany Registration number: G0M20507-9679-P-2224 Page 4 of 41 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.2 Testing laboratory 1.2.1 Location ELECTRONIC TECHNOLOGY SYSTEM DR. GENZ GMBH (ETS) Storkower Straße 38c D-15526 Reichenwalde b. Berlin Germany Telephone : +49 33631 888 00 Telefax : +49 33631 888 660 1.2.2 Details of accreditation status A CCREDITED TESTING LABORATORY DAR-REGISTRATION NUMBER: TTI-P-G 126/96 A CCREDITED COMPETENT BODY DAR-REGISTRATION NUMBER: BPT-ZE-026/96 FCC FILED TEST LABORATORY REG. NO. 96970 BLUETOOTH QUALIFICATION TEST FACILITY (BQTF) ACCREDITED BY: BLUETOOTH QUALIFICATION REVIEW BOARD (BQRF) I NDUSTRY CANADA FILED TEST LABORATORY REG. NO. IC 3470 A2LA ACCREDITED Certificate Number: 1983-01 1.3 Details of approval holder Name : FALCOM GmbH Street : Gewerbering 6 Town : 98704 Langewiesen Country : Germany Telephone : +49(0)3677 8042-0 Fax : +49(0)3677 8042-215 Contact : Herr Ralf Leipoldt E-Mail : [email protected] ETS Dr. Genz GmbH, Germany Registration number: G0M20507-9679-P-2224 Page 5 of 41 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.4 Application details Date of receipt of application : 21.07.2005 Date of receipt of test item : 02.08.2005 Date of test : 19.08.2005 - 29.08.2005 1.5 Test item Description of test item : GSM Stickphone Type identification : SAMBA75 Serial number : Test model without serial number. Photos : See annex A. Technical data Frequency range Tx – GSM 850 : 824.2 – 848.80 MHz Frequency range Tx – PCS : 1850.2 – 1909.8 MHz Frequency range Rx - GSM 850 : 869.2 – 893.8 MHz Frequency range Rx - PCS : 1930.2 – 1989.8 MHz Antenna transmitter : internal antenna TYCO 100717 Antenna Gain : 1 dBi Power supply : 5 V powered by USB port Operating mode : duplex Type of modulation : GMSK (GSM modulation) Emission : GXW Manufacturer: (if applicable) Name : Street : Town : Country : ETS Dr. Genz GmbH, Germany Registration number: G0M20507-9679-P-2224 Page 6 of 41 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.6 Test standards Technical standard : FCC Parts 22, 24, 2, 15 Additional information : Because of using the GSM 850 as an alternative technology in 850 MHz band, not all test cases of FCC Part 22 are required. This device contains GSM, GPRS Class 12 and EGPRS Class 10 functions in 900 and 1800 MHz Band which are not operational in U. S. Territories. 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course : of the tests performed. or The deviations as specified in 2.5 were ascertained in the course of the tests … performed. 2.2 Test environment Temperature : 25 o C Relative humidity content : 20 ... 75 % Air pressure : 86 ... 103 kPa ETS Dr. Genz GmbH, Germany Registration number: G0M20507-9679-P-2224 Page 7 of 41 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 2.3 Test …

Text truncated - open the document above for the full version.

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20507-9679-P2224 Page 7 of 10 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20507-9679-P2224 Page 8 of 10 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20507-9679-P2224 Page 9 of 10 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20507-9679-P2224 Page 10 of 10
