QIXSTEPPII-56GSM/GPS unit

This document is available at HTTP://WWW.FALCOM.DE/ . STEPP II Hardware description Version 1.01 STEPP II HARDWARE DESCRIPTION VERSION 1.01 Index of contents 0 INTRODUCTION..............................................................4 0.1 GENERAL........................................................................................................................................4 0.2 CIRCUIT CONCEPT...........................................................................................................................5 0.3 SCOPE OF DELIVERY.......................................................................................................................6 0.4 USED ABBREVIATIONS....................................................................................................................6 0.5 RELATED DOCUMENTS....................................................................................................................7 1 SECURITY.........................................................................8 1.1 GENERAL INFORMATION.................................................................................................................8 1.2 EXPOSURE TO RF ENERGY..............................................................................................................8 1.3 EFFICIENT MODEM OPERATION.......................................................................................................8 1.4 ANTENNA CARE AND REPLACEMENT..............................................................................................9 1.5 DRIVING.........................................................................................................................................9 1.6 ELECTRONIC DEVICES.....................................................................................................................9 1.7 VEHICLE ELECTRONIC EQUIPMENT.................................................................................................9 1.8 MEDICAL ELECTRONIC EQUIPMENT................................................................................................9 1.9 AIRCRAFT.......................................................................................................................................9 1.10 CHILDREN....................................................................................................................................10 1.11 BLASTING AREAS..........................................................................................................................10 1.12 POTENTIALLY EXPLOSIVE ATMOSPHERES.....................................................................................10 1.13 NON-IONIZING RADIATION............................................................................................................10 2 SAFETY STANDARDS...................................................11 3 TECHNICAL DATA........................................................12 3.1 GENERAL SPECIFICATIONS OF TERMINAL STEPP II......................................................................12 3.1.1 Power consumption.....................................................................................................................13 3.1.2 Operating temperatures................................................................................................................13 3.2 TECHNICAL SPECIFICATIONS OF GSM/GPRS ENGINE*.................................................................14 3.2.1 Air interface of the STEPP II GSM/GPRS part ...........................................................................16 3.3 TECHNICAL SPECIFICATIONS OF GPS RECEIVER...........................................................................16 3.4 NMEA DATA MESSAGE................................................................................................................17 4 FUNCTIONAL DESCRIPTION.....................................19 4.1 HOW DOES IT WORKS....................................................................................................................19 4.2 FALCOM STEPP II TYPICAL APPLICATIONS...............................................................................21 5 STEPP II APPLICATION INTERFACE......................23 5.1 POWER SUPPLY.............................................................................................................................23 5.1.1 Power up/down scenarios ............................................................................................................23 5.1.2 Power supply pins (14, 15 and 16) on the 16-pin connector........................................................23 5.1.3 Automatic shutdown ....................................................................................................................24 5.1.3.1 Over voltage shutdown.................................................................................................................................24 5.2 AUTOMATIC GPRS MULTISLOT CLASS CHANGE..........................................................................24 5.3 DETERMINING THE EXTERNAL EQUIPMENT TYPE.........................................................................24 6 HARDWARE INTERFACES.........................................26 6.1 INTERFACE A (16-PIN MOLEX 43045-1609).................................................................................27 6.1.1 Description of the 16-pin connector............................................................................................27 6.1.2 Special pin description.................................................................................................................28 6.1.2.1 Analog inputs (pin 2, 4)................................................................................................................................28 6.1.2.2 Inputs (pin 6, 8, 10, 12).....................................................................................................................…

Text truncated - open the document above for the full version.

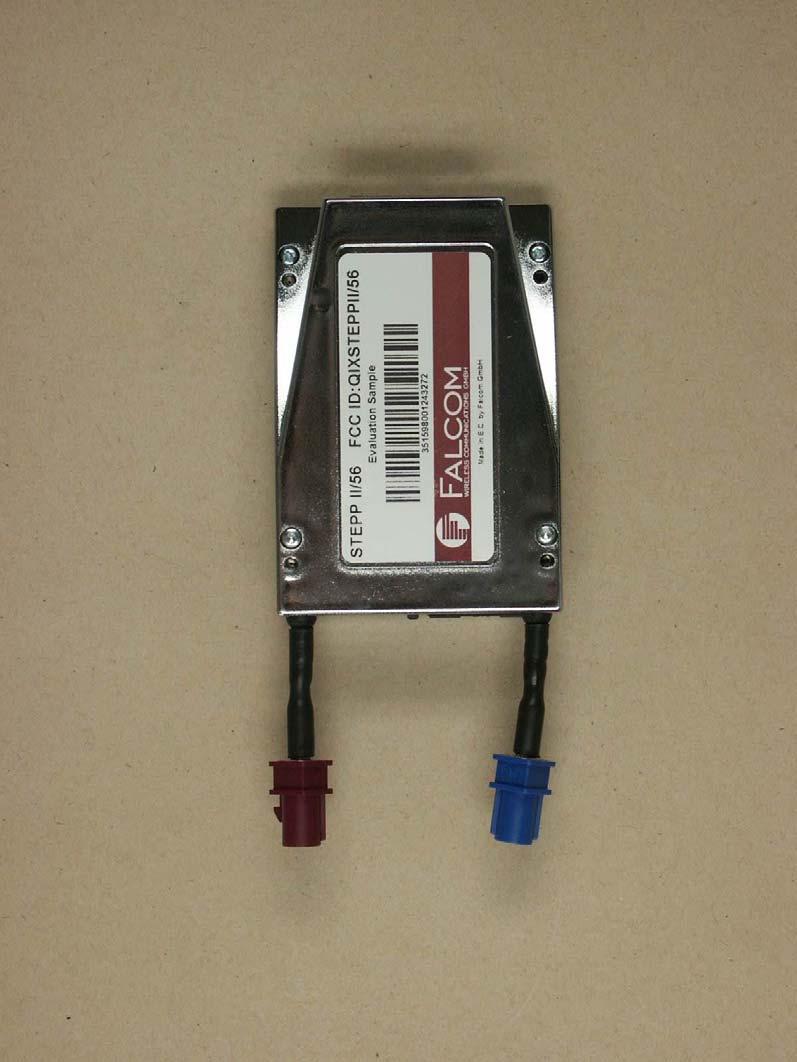

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20409-9020-P-2224 Page 1 of 19 Appendix A. Pictures ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20409-9020-P-2224 Page 2 of 19 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20409-9020-P-2224 Page 3 of 19 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20409-9020-P-2224 Page 4 of 19

The CrossCheck GSM/GPRS 850/1900 radio is a regular GSM product exclusively esigned for mainly mobile applications (Please refer to CrossCheck GSM/GPRS 850/1900 data sheet) for Asset management applications like fleet management etc. Included in the users manual (page 86) are definitions for fixed and mobile applications and limitations of the antenna gain as appropriate for each application to ensure that the end user have been provided with the right information to permit them to avoid exceeding RF exposure guidelines as provided in the Commission’s rule. This information includes the following: A minimum separation distance of 20 cm must be maintained between the antenna and the person for this device to satisfy the RF exposure requirements of the FCC. For fixed mount operation, the antenna co-location requirements of Section 1.1307 (b) (3) of the FCC rules must be satisfied. RF Human Exposure Analysis as per 47CFR § 1.1310 For transmitter operating in the 824-890 Mhz range, paragraph 1.1310 Table 1 limits maximum permissible exposure (MPE) to f/1500 mW/cm² for uncontrolled environments and f/300 mW/cm² for controlled environments. For transmitter operating in the 1850-1990 Mhz range, paragraph 1.1310 Table 1 limits maximum permissible exposure (MPE) to 1.0 mW/cm² for uncontrolled environments and 5.0 mW/cm² for controlled environments. The far field on-axis power flux density (W/m²) is calculated using the following formula: S = G P T / 4 π r² S = Power density (mW/cm²) P = Transmitted power in mW r = Distance in cm Calculations Cellular Band 824-890 MHz – Limit 0.549 / 2.746 Max conducted average power = Max conducted peak power * Duty Cycle = 1862 mW *(1:8.3) = 215mW Maximum average ERP = 215mW * 2.0 = 430 mW S = 430mW*1,64 / (4 · π · 20²) = 0,140 mW/cm² < 0.549 mW/cm² PCS Band 1850-1990 MHz - Limit 1.0 / 5.0 Max conducted average power = Max conducted peak power * Duty Cycle = 925 mW *(1:8.3) = 128mW Maximum average EIRP = 128mW * 2.0 = 256 mW S = 256 / (4 · π · 20²) = 0,051 mW/cm² < 1.0 mW/cm²

ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH FCC - TEST - REPORT FCC RULES PARTS 22 and 24 FCC ID: QIXSTEPPII-56 Test report no.: G0M20409-9020-P-2224 ELECTRONIC TECHNOLOGY SYSTEMS STORKOWER STRASSE 38C, D-15526 REICHENWALDE B. BERLIN DR. GENZ GMBH PHONE +49-33631-888 00 FAX +49-33631-888 660 ETS Dr. Genz GmbH, Germany Registration number: G0M20409-9020-P-2224 Page 1 of 40 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH TABLE OF CONTENTS 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of approval holder 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test environment 2.3 Test equipment utilized 2.4 General Test Procedure 3 Test Results 4 RF Power Output, FCC 2.1046 4.1 Test Procedure 4.2 Test Results 5 Radiated Power FCC 22.913, FCC 24.232 5.1 Test Procedure 5.2 Test Results 6 Modulation Deviation Limiting, FCC 2.1047, 22.915(b)(c) 6.1 Test Procedure 6.2 Test Results 7 Audio Filter Characteristics, FCC 22.915(d) 7.1 Test Procedure 7.2 Test Results 8 Emission Limitations, , FCC 2.1049 8.1 Test Procedure 8.2 Test Results 9 Occupied Bandwidth FCC 22.917(b)(d); FCC 2.1049 9.1 Test Procedure 9.2 Test Results 10 Out of Band Emissions at Antenna Terminals, FCC 24.238(a) 10.1 Test Procedure 10.2 Test results 11 Field Strength of Spurious Radiation, FCC 2.1053, 24.236 11.1 Test Procedure 11.2 Test Results ETS Dr. Genz GmbH, Germany Registration number: G0M20409-9020-P-2224 Page 2 of 40 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 12 Line Conducted Emissions, FCC 15.207 12.1 Test Procedure 12.2 Test Results 13 Frequency Stability vs Temperature, FCC 2.1055, 22.355, 24. 235 13.1 Test Procedure 13.2 Test Equipment 14 Frequency Stability vs Voltage, FCC 2.1055, 22.355, 24.235 14.1 Test Procedure 14.2 Test Equipment ETS Dr. Genz GmbH, Germany Registration number: G0M20409-9020-P-2224 Page 3 of 40 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH. Tester: 05.10.2004 N. Kaspar Date ETS-Lab. Name Signature Technical responsibility for area of testing: 05.10.2004 Dr. Genz Date ETS Name Signature ETS Dr. Genz GmbH, Germany Registration number: G0M20409-9020-P-2224 Page 4 of 40 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.2 Testing laboratory 1.2.1 Location ELECTRONIC TECHNOLOGY SYSTEM DR. GENZ GMBH (ETS) Storkower Straße 38c D-15526 Reichenwalde b. Berlin Germany Telephone : +49 33631 888 00 Telefax : +49 33631 888 66 1.2.2 Details of accreditation status A CCREDITED TESTING LABORATORY DAR-REGISTRATION NUMBER: TTI-P-G 126/96 A CCREDITED COMPETENT BODY DAR-REGISTRATION NUMBER: BPT-ZE-026/96 FCC FILED TEST LABORATORY REG. NO. 96970 BLUETOOTH QUALIFICATION TEST FACILITY (BQTF) ACCREDITED BY: BLUETOOTH QUALIFICATION REVIEW BOARD (BQRF) I NDUSTRY CANADA FILED TEST LABORATORY REG. NO. IC 3470 A2LA ACCREDITED Certificate Number: 1983-01 1.3 Details of approval holder Name : FALCOM GmbH Street : Gewerbering 6 Town : 98704 Langewiesen Country : Germany Telephone : +49(0)3677 8042-0 Fax : +49(0)3677 8042-215 Contact : Herr Ralf Leipoldt E-Mail : [email protected] ETS Dr. Genz GmbH, Germany Registration number: G0M20409-9020-P-2224 Page 5 of 40 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.4 Application details Date of receipt of application : 25.08.2004 Date of receipt of test item : 25.08.2004 Date of test : 30.09.2004 – 01.10.2004 1.5 Test item Description of test item : GSM/GPRS/GPS-Module Type identification : Stepp II/56 Serial number : Test model without serial number. Photos : See annex A. Technical data Frequency range Tx – GSM 850 : 824.2 – 848.80 MHz Frequency range Tx – PCS : 1850.2 – 1909.8 MHz Frequency range Rx - GSM 850 : 869.2 – 893.8 MHz Frequency range Rx - PCS : 1930.2 – 1989.8 MHz Antenna type : external antenna FAL ANT-010 Antenna Gain : 3 dBi Power supply : 12 V DC Operating mode : duplex Type of modulation : GMSK (GSM modulation) Emission : GXW Manufacturer: (if applicable) Name : Street : Town : Country : ETS Dr. Genz GmbH, Germany Registration number: G0M20409-9020-P-2224 Page 6 of 40 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.6 Test standards Technical standard : FCC Parts 22, 24, 2, 15 Additional information : Because of using the GSM 850 as an alternative technology in 850 MHz band, not all test cases of FCC Part 22 are required. 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course : of the tests performed. or The deviations as specified in 2.5 were ascertained in the course of the tests … performed. 2.2 Test environment Temperature : 23 o C Relative humidity content : 20 ... 75 % Air pressure : 86 ... 103 kPa ETS Dr. Genz GmbH, Germany Registration number: G0M20409-9020-P-2224 Page 7 of 40 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 2.3 Test equipment utilized No. Test equipment Type Manufacturer ETS 0001 Test receiver ESHS 10 Rohde & Schwarz ETS 0002 Test receiver ESVP Rohde & Schwarz ETS 0003 Te…
