QJ8ARRIVABluetooth headset

Manual Buyer Version. Part Vol Up Logo Vol Down & Next Track & Previous Track EARPHONE Molding MICROPHONE Power Key LED Lamp USB Micro 5pin QUICK-START GUIDE TO USING YOUR ARRIVA, PAIRING FOR THE FIRST TIME ·Your ARRIVA must be off with no blinking light. ·Press and hold Power button during 7 seconds for Pairing. Red light will be on. ·Turn your cell phone or music player’s Bluetooth feature on, then press ‘Pair’. ·Your ARRIVA will quickly ‘Pair’ with your device, and its blue light charge from continuous to blinking. The pairing ID is 0000. ·Then click ‘Link’ (or on some phones ‘Connect’ ) on your device, and the device and your ARRIVA are paired, linked, and ready to provide voice and music to your ARRIVA. ·All music play functions are controlled by your cell/smartphone and music player. The volume controls on your ARRIVA may or may not control the volume set on your cell/smartphone, or music player. ANSWER & END CALL ·When the phone’s ringing, press Power button 1 time. ·If you will hang up, Press Power button 1 time again. ·Making call and Redialing will be activated on pressing Power button for 1 second. ·Press power button for 1 second if you want to transfer talking between BT heaedset and phone. User Guide MUSIC PLAY ·Press power button for music play and pause. If you want to stop music, press power button for 1 second. ·Next and previous music can be activated by pressing ‘+’ or ‘-’ buttony for 1 second. VOLUME CONTROL ·Press ‘+’ button for volume up and ‘-’ button for volume down. BATTERY ·Charge fully before using. The ARRIVA must be turned off before charging. Charging time is about 100minutes. Your fully charged ARRIVA will deliver about 4.5 hours of talk, about 5 hours of music play, and about 10 days on standby. SPECIFICATION ·Bluetooth 2.1 @ EDR ·HSP, HFP, A2DP, AVRCP Profile ·Charging time : 100 min ·Talk time : 4.5 hours ·Play time : 5 hours ·Stand by time : 240 hours User Guide FunctionConditionKeyActionBeep ActionRemark Auto Pairingif Pow er OffPow er keyPress and hol d for 3 secon dsInitial Pow er On- directly into the auto pairing mod e Pow er onif Pow er OffPow er keyPress and hol d for 3 secon dsDo~ Mi~Sol ~Not initial power-on Pairingif Pow er OffPow er keyPress and hol d for 7 secon dsNot initial power-on , re-pa iring mod e Pow er of fif Pow er OnPow er keyPress and hol d for 5secon dsSol ~Mi~ Do~ Stand-byif con nection-- Re con nectingif not con necting--Automatically Answer callRingingPow er keyPressMi~ End calltalkingPow er keyPressDo~ Redialingstand-byPow er keyPress and hol d for 1 secon dMi~ Reject callRingingPow er keyPress and hol d for 1 secon d transfertalkingPow er keyPress and hol d for 1 secon dDo~ Do~BT headset to ph on e transfertalkingPow er keyPress and hol d for 1 secon dMi~Mi~ph on e to BT headse t Music PlayStand-byPow er keyPress Music PausePow er keyPressMi~ same Led term Music StopPow er keyPress and hol d for 1 secon dMi~Do~ NextVol + Press and hol d for 1 secon dSol ~ Previou sVol -Press and hol d for 1 secon dSol ~Sol ~ Vol ume Up"+" keypr essIf Max then Sol ~Sol ~Sol ~ Vol ume Dow n"-" keypr essIf Min then Do~ Do~ Do~ Charging Charging compl ete Low ba tteryCut of fPa Pa Pa Pa PaAs LED flash Vol ume Ta lking or Music pl ayi ng tot al 8 Step and default level is level 5. Charging Pow er & Pairing Action Answer / End call Music Play Music pl aying Function Vol + Vol - Power Key FCC ID: QJ8ARRIVA IMPORTANT REGULATORY INFORMATION This device complies with Part 15 of the FCC Rules: Operation is subject to the following two conditions: 1. This device may not cause harmful interference and 2. This device must accept any interference that is received, including any interference that may cause undesired operation. WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Sep.01, 2011 Federal Communication Commission Authorization and Evaluation Division FCC ID: QJ8ARRIVA Re: Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below: 1: Block Diagram 2: Circuit Diagram 3: Operational Description 4: Parts List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rules 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Samsin Innotec Co.,Ltd. Contact person: Han-Ho Yeo Title: Senior Engineer

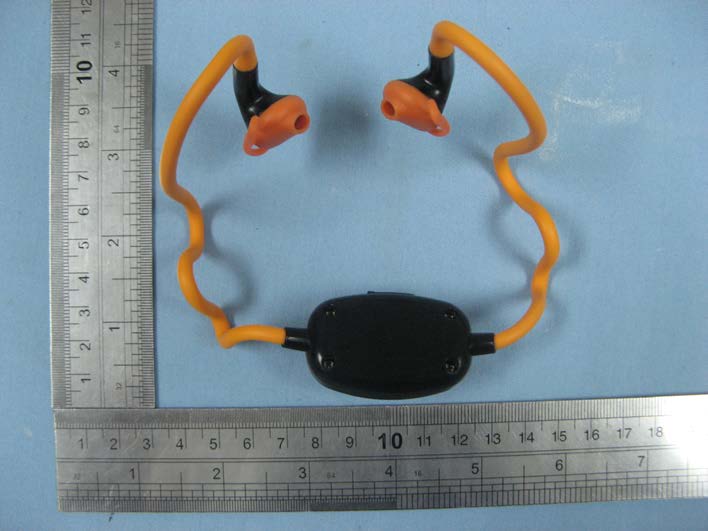

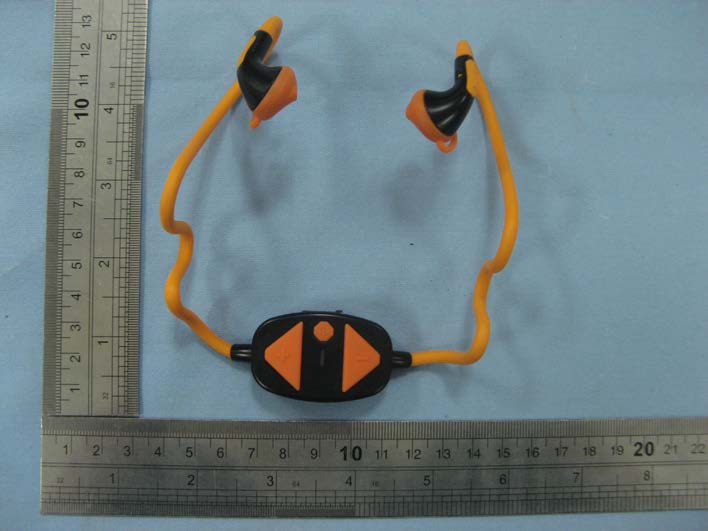

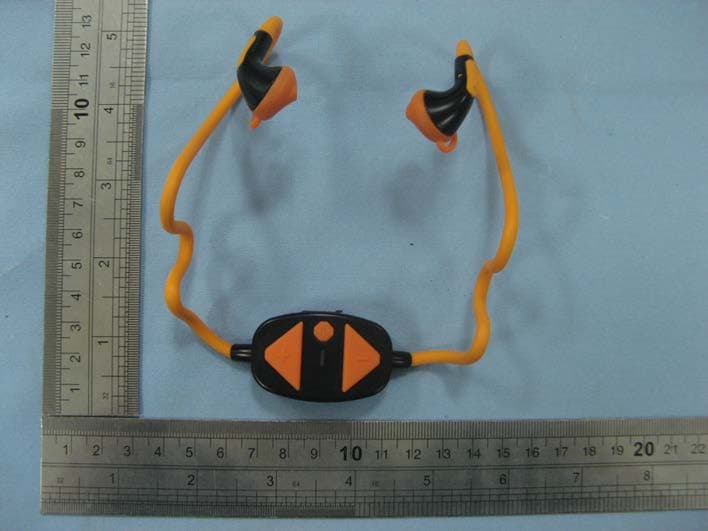

TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT

Model: Arriva Leo FCC ID: QJ8ARRIVA

INTERNAL VIEW OF SAMPLE – 1 INTERNAL VIEW OF SAMPLE – 2 Bluetooth Antenna

FCC Test Report Report No.: AGC 08H110802‐1F2 FCC ID : QJ8ARRIVA PRODUCT DESIGNATION : Bluetooth headset BRAND NAME : samsin TEST MODEL : Arriva Leo CLIENT : Samsin Innotec Co., Ltd. DATE OF ISSUE : Aug. 24, 2011 STANDARD(S) : FCC Part 15 Rules Attestation of Global Compliance Co., Ltd. CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC08H110802-1F2 Page 1 of 36 VERIFICATION OF COMPLIANCE Applicant Samsin Innotec Co., Ltd. 252-23,Sarihyun-Dong,Ilsandong-gu,Goyang City, Kyonggi-Do, 411-530 Korea Manufacturer Samsin Innotec Co., Ltd. 252-23,Sarihyun-Dong,Ilsandong-gu,Goyang City, Kyonggi-Do, 411-530 Korea Product Designation Bluetooth headset Brand Name samsin Model Name Arriva Leo, 6089 389 002258 Model Difference All the same except for the color and appearance FCC ID QJ8ARRIVA Report Number AGC08H110802-1F2 Date of Test Aug. 24, 2011 to Aug. 29, 2011 WE HEREBY CERTIFY THAT: The above equipment was tested by Attestation of Global Compliance Co., Ltd. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2003) and the energy emitted by the sample EUT tested as described in this report is in compliance with radiated emission limits of FCC Rules Part 15.247. Tested By: Angela Li Aug.29, 2011 Reviewed By: Forrest Lei Aug.29, 2011 Authorized By: Solger Zhang Aug.29, 2011 Report No.: AGC08H110802-1F2 Page 2 of 36 TABLE OF CONTENTS 1. GENERAL INFORMATION ..................................................................................................................................................... 4 1.1 PRODUCT DESCRIPTION ................................................................................................................................................ 4 1.2 TABLE OF CARRIER FREQUENCYS ............................................................................................................................ 4 1.3 RECEIVER INPUT BANDWIDTH ..................................................................................................................................... 4 1.4 EXAMPLE OF A HOPPING SEQUENCY IN DATA MODE ......................................................................................... 5 1.5 EQUALLY AVERAGE USE OF FREQUENCIES AND BEHAVIOUR ......................................................................... 5 1.6 RELATED SUBMITTAL(S) / GRANT (S) ......................................................................................................................... 5 1.7 TEST METHODOLOGY ..................................................................................................................................................... 5 1.8 TEST FACILITY ................................................................................................................................................................... 6 1.9 SPECIAL ACCESSORIES ................................................................................................................................................. 6 1.10 EQUIPMENT MODIFICATIONS ..................................................................................................................................... 6 2. SYSTEM TEST CONFIGURATION ....................................................................................................................................... 7 2.1 CONFIGURATION OF EUT SYSTEM ............................................................................................................................. 7 2.2 EQUIPMENT USED IN EUT SYSTEM ............................................................................................................................ 7 3. SUMMARY OF TEST RESULTS ........................................................................................................................................... 8 4. DESCRIPTION OF TEST MODES ......................................................................................................................................... 8 5. PEAK OUTPUT POWER ......................................................................................................................................................... 9 5.1 MEASUREMENT PROCEDURE ...................................................................................................................................... 9 5.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ....................................................................................... 9 5.3 MEASUREMENT EQUIPMENT USED ......................................................................................................................... 10 5.4 LIMITS AND MEASUREMENT RESULT ...................................................................................................................... 10 6 20 DB BANDWIDTH ............................................................................................................................................................... 11 6.1 MEASUREMENT PROCEDURE .................................................................................................................................... 11 6.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ..................................................................................... 11 6.3 MEASUREMENT EQUIPMENT USED ......................................................................................................................... 11 6.4 LIMITS AND MEASUREMENT RESULTS ................................................................................................................... 11 7 CONDUCTED SPURIOUS EMISSION ................................................................................................................................. 13 7.1 MEASUREMENT PROCEDURE ...................................…
