QJ8HBS-110Bluetooth Headset

-1- LG ElectronicsBluetooth ® Stereo Headset HBS-110 User Manual EnglishSpanish ICON Description Indicates the status of Bluetooth connectionIndicates Headset / Hands-free profile connectedIndicates A2DP / AVRCP profile connectedAppears when a call is in progress Appears when buttons are lockedDisplays the volume levelDisplays the battery levelDisplays the caller’s number, Bluetooth connection, and music status (not the title of the song being played) -2- -3- Table of contents Parts Description LCD DescriptionsKEY Descriptions LCD DescriptionKey DescriptionPower onPower offChargingLow batteryPairingConnectingVolume controlCalling - Answering a call- Making a call- Ending a call- Transferring a call- Call waiting Music - Music play- Pause- Resume- Stop- Next song- Previous song Hold switch LCD on/offSummarySpecificationDeclaration of ConfirmationAdditional InformationLimited Warranty PLAY/PAUSE PREVIOUS SONG(REW) HOLD KEY LCD DISPLAY NEXT SONG(FF) VOLUME CONTROL PWR/END - Press and hold the PWR/END key 2 seconds. ✓ The power will turn on and a tone will play. - When turning on the Power initially after purchase, the headset will enter to the “Pairing Mode” automatically. - The screen will display “LG HBS-110”. ✓ When there is no operation for 15 seconds, the LCD will turn off and the headset will enter Power Saving mode. - When the PWR/END key is pressed with the HOLD switch on, “LOCKED” will be displayed on the screen. ✓ A sharp beep will sound and the power will be turned off. - Press and hold the PWR/END key for 5 seconds. ✓ A shutdown tone will play , the Bluetooth link will be disconnected, and the power will be turned off. - “Power off” is displayed on the screen for 2 seconds- Remove the cover for the power connector and connect the charger to the power port.- When the charger is connected with power on or off , the LCD displays “charging” along with the animated battery icon to indicate that the battery is being charged. - The LCD will turn off after 15 second and turn back on when the user press any key.- The keys will not function while the device is charging- It takes 3 hours to fully charge the headset.- “Battery full” is displayed on the screen when charging is complete.- The battery Icon on the LCD will blink when the battery power is low. - When battery is not charged, the LCD will display “Low Battery” and then turn off.- In this case, the battery needs to be charged. - After turning on the HBS-110, press and hold the PLAY/PAUSE button for more than 5 seconds. ✓ You will hear 2 beeps, then a melody, and the screen will display “Pairing Mode”. - When turning on the Power initially after purchase, the headset will enter to the “Pairing Mode” automatically. Ȟ Using your handset, find the Bluetooth Menu and “search for” or “add” new devices. Ȟ Select “LG HBS-110” from the list of devices and pair it with your handset. ✓ When asked for the Pass/PIN code during the pairing procedure, please enter “0000” (4 Zeros). ✓ Once pairing has completed successfully, you will hear a beep. Ȟ After pairing successfully, be sure to “Connect” to the HBS-110. - When the stereo profile is connected, the LCD will display “ ”.- When the handsfree profile is connected, the LCD will display “ ”.- If you want to pair with other devices in the future, the headset must be in Pairing Mode. When only the handsfree profile is connected, music cannot be played in the headset.To cancel Pairing Mode, press the PLAY/PAUSE button more than five seconds.If the headset is not paired to another Bluetooth device within 3 minutes, it will automatically return to standby mode. [ Call connection]- Briefly press the PWR/END key to access Voice Command. (Your handset MUST support this feature). ✓ Press the PWR/END key again to return to the main screen. ✓ Press the PWR/END key for 2 seconds to access Last Number Redial. (Your handset MUST support this feature). - When you end a call, the screen will display “Call Ended” and the call will be terminated.[ Auto Reconnect ]- When the HBS-110 and your handset are separated by a distance of 33 feet(10meters) or more, the headset will display “Disconnected”, followed by “Out of Range”. When the handset and HBS-110 are brought back within the required distance, the HBS-110 will automatically reconnect with the handset. -5- -4- Power on PairingConnecting Power offChargingLow battery ᵎᵎ ᵎ - Press the VOLUME UP or VOLUME DOWN key to adjust the speaker volume.- There are seven volume levels on the HBS-110. You will see the number of bars on the LCD changing as you press one of volume keys. - There are two types of volume levels.- 1. Standard volume. - 2. Volume for AV Streaming. ✓ When audio streaming starts, the preset value of the AV volume will be automatically applied (level 4). - When you answer a call, the Standard Volume level applies (level 3). After ending a call - It will automatically return to the music play [volume level 4].Answering a Call- When there is an incoming call, the headset will ring. If Caller ID is available, the LCD will display the phone number of the caller. - If the phone does not provide a melody to the headset, the headset will play its own ring tone. - Press the PWR/END key to answer an incoming call.- When the call begins, the phone icon below is displayed at the top of the LCD to indicate a call is in progress. Making a Call- If you make a call from the Handset, the call will (subject to phone settings) be automatically transferred to the Headset. If the call is not automatically transferred to the headset, manually transfer the call by pressing the PWR/END button on the HBS-110. Ending a call- Press the PWR/END button shortly to end a call. -7- -6- Volume control Transferring a call- To transfer a call to the Handset from the headset, press the PLAY/PAUSE button.- To transfer a call back to the HBS-110, press the PLAY/PAUSE button.- The HBS-110 will display “Audio Transfer”.Call waiting- Answer a second call without hanging up the first call by …

Text truncated - open the document above for the full version.

Samsin Innotec Co.,Ltd 252-23, Sarihyun-Dong, Ilsandong-Gu Goyang-City, Kyonggi-Do, 411-530, Tel : +82-31-900-9815, Fax : +82-31-900-9812 Chief, Equipment Approval Services Federal Communications Commission PO Box 358315 Pittsburg, PA 15251-5315 Seoul, August 17, 2006 Authorization Letter Dear Sir or Madam: We, Samsin Innotec Co.,Ltd., hereby authorize O.N.R Tech Inc. 463-49, Sinlim-dong, Gwanak-gu, Seoul ,151-870, Republic of Korea To act as our agent and to process and sign on our behalf for equipment authorization under FCC Part 15, Subpart C. This authorization is applicable for the product: SON80 B/T STEREO HEADSET (HBS-110 ) with FCC ID: QJ8HBS-110. Sincerely, Signature : Printed Name: Han-ho Yeo Title : Principal Engineer Company Stamp:

Samsin Innotec Co.,Ltd 252-23, Sarihyun-Dong, Ilsandong-Gu Goyang-City, Kyonggi-Do, 411-530, Tel : +82-31-900-9815, Fax : +82-31-900-9812 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Seoul, August 17, 2006 REQUEST FOR CONFIDENTIALITY, FCC ID: QJ8HBS-110 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission's Rules, the Applicant hereby requests confidential treatment of information accompanying as outlined below: • Schematic drawing • Bill of Materials • Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. Public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Signature : Printed Name: Han-ho Yeo Title : Principal Engineer Company Stamp:

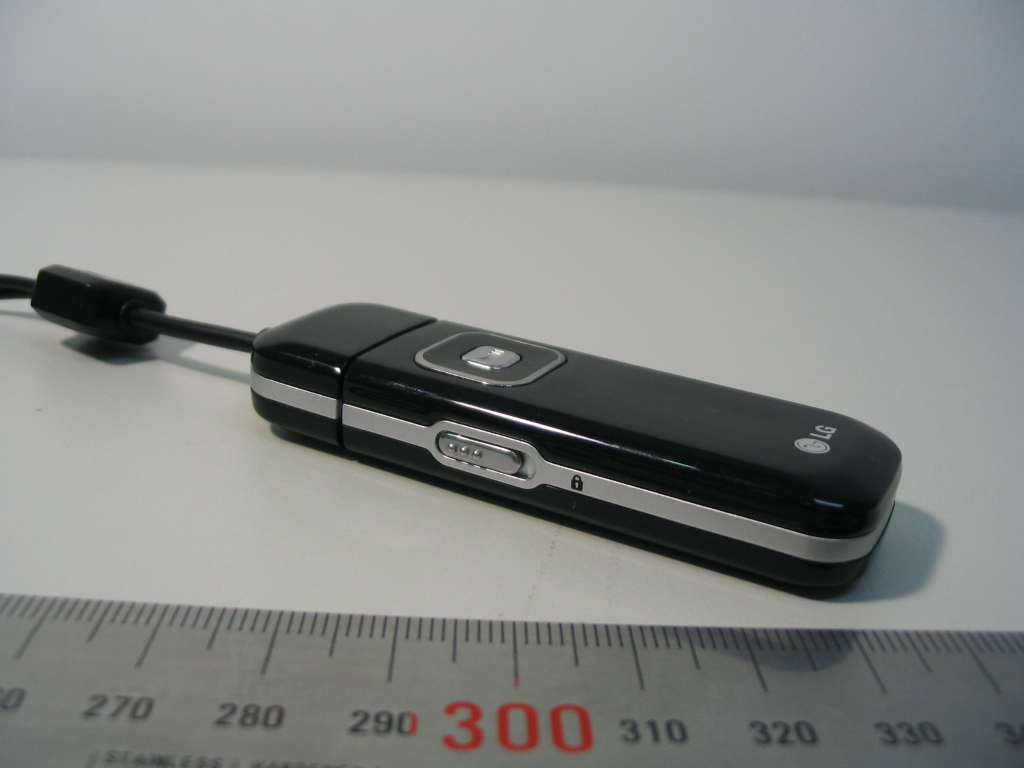

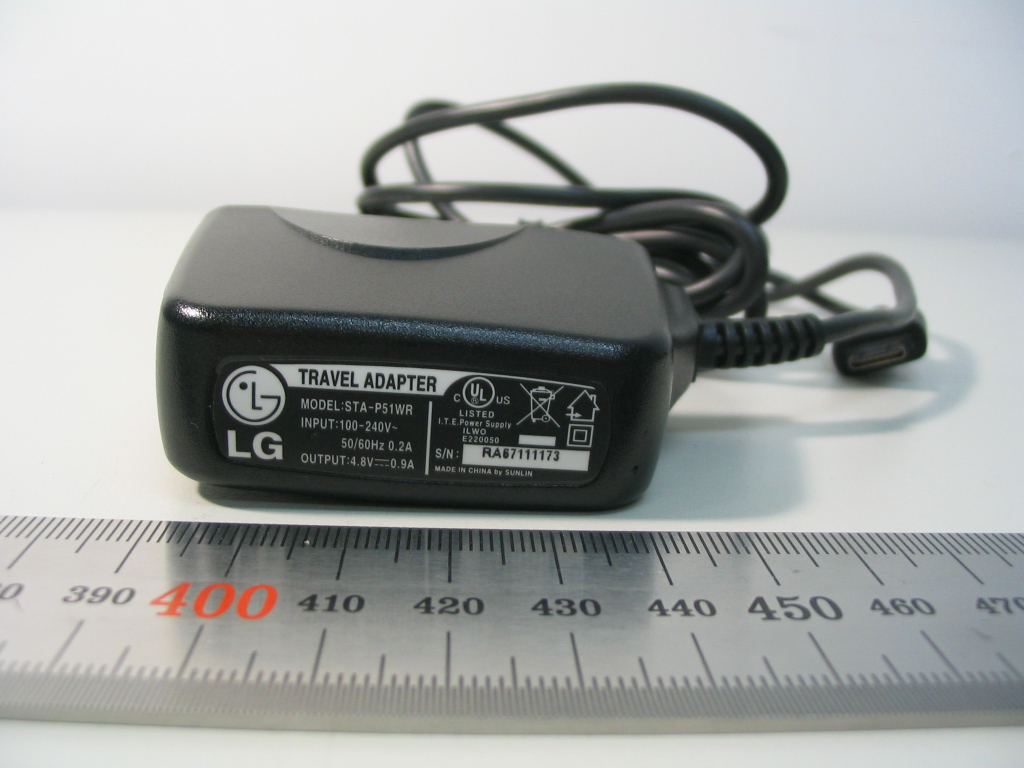

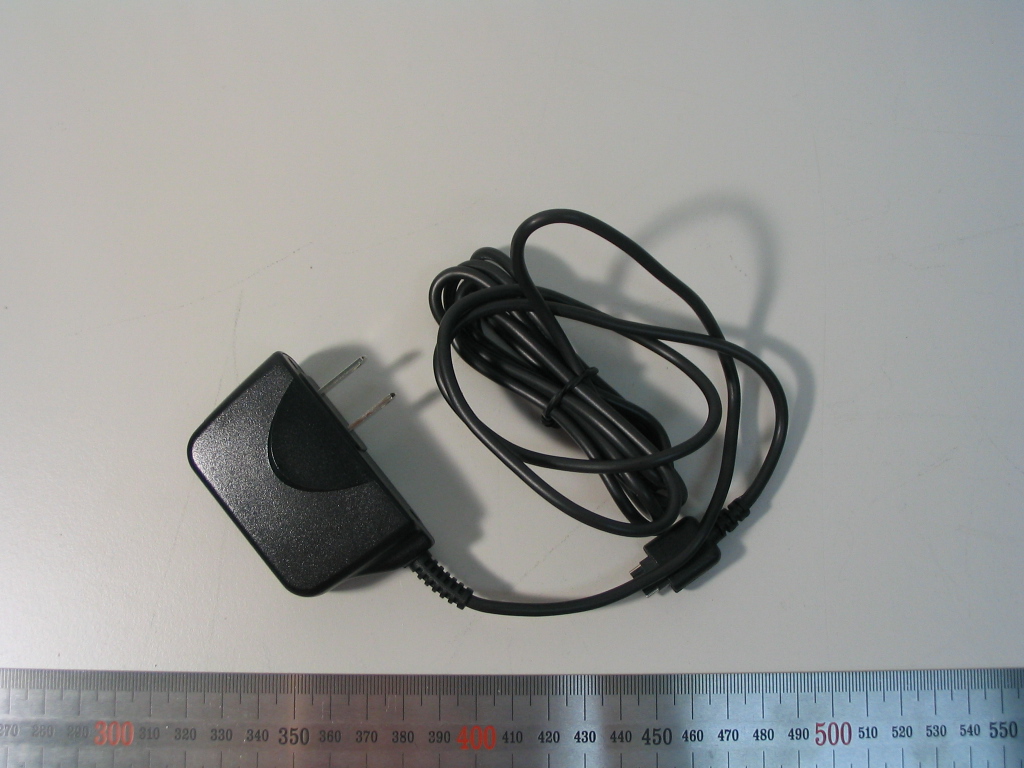

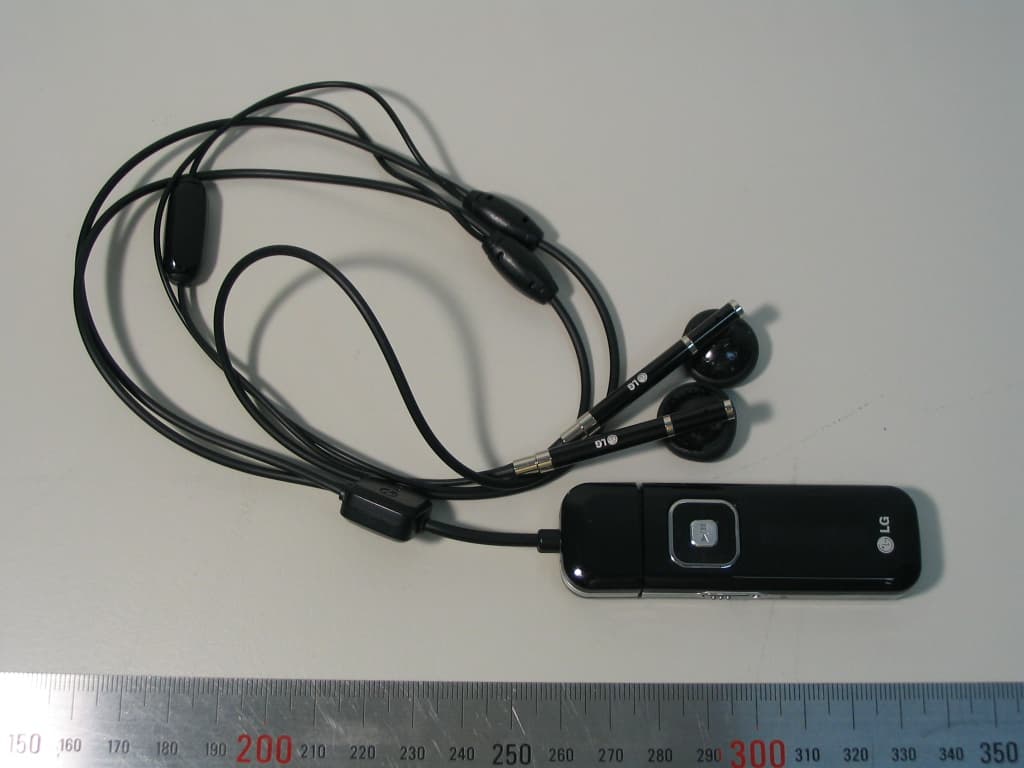

Revision No : 1.0 Page: 1 External Photos Samsin Innotec * External view 1. Top side view 2. Right side view Revision No : 1.0 Page: 2 External Photos Samsin Innotec 3. Rear side 4. Left side view Revision No : 1.0 Page: 3 External Photos Samsin Innotec 5. Charger and Ear port view 6. AC adapter view Revision No : 1.0 Page: 4 External Photos Samsin Innotec 7. Label view of AC adapter

FCC Label and Location Samsin Innotec Revision No : 1.0 Page: 1 of 1 z FCC Label and Location Label Position * Label 14mm 8mm

FCC Label and Location Samsin Innotec Revision No : 1.0 Page: 1 of 1 z FCC Label and Location Label Position z Label 14mm 8mm

Revision No : 1.0 Page: 1 Internal Photos Samsin Innotec 1. Top PCB View 2. Bottom PCB View with LCD Bluetooth Antenna Bluetooth Chipset Bluetooth X-tal Revision No : 1.0 Page: 2 Internal Photos Samsin Innotec 3. Bottom PCB View without LCD Revision No : 1.0 Page: 3 Internal Photos Samsin Innotec 4. TOP View for Battery PCB 5. Bottom View for Battery PCB

Samsin Innotec Page 1 of 1 EUT Description This Product is a Bluetooth Stereo handsfree featuring a state of the art Bluetooth Wireless technology. This device also features well-defined Man Machine interface with 6 buttons , OLED which are : „ Buttons : 6 pcs [Power, Volume up/down, FF/REW, Play] „ OLED : 96X16 mono And it is also fully compliant with Bluetooth 2.0 specification. * General specifications Item Description Bluetooth Specification V2.0 Supported Profile Headset/Handfree profile A2DP,AVRCP Rx. Sensitivity Typ. -80 dBm Low Power Current (Idle Mode) ≤ 10 mA Operating Temperature -10°C ~ 60°C Operating Humidity 5% ~ 85% RH Storage Temperature -20°C ~ 85°C Storage Humidity 85% RH * General EUT Information Type Transmitter Receiver FCC Classification FHSS Sequence Spread Spectrum ( FHSS) FHSS Sequence Spread Spectrum ( FHSS) Operating frequency range 2402 – 2480 MHz 2402 – 2480 MHz Bands of operation 2.400 – 2.4835 GHz 2.400 – 2.4835 GHz Number of Channels 79 79 Channel Separation 1MHz 1MHz Type of Antenna Chip Antenna Chip Antenna Power Supply DC 3.7 V Li-Polymer Battery DC 3.7 V Li-Polymer Battery

BCM2037 ® BLUETOOTH ® 2.0 EDR WIRELESS AUDIO PROCESSOR BCM2037 Block Diagram • Single-chip Bluetooth 2.0 transceiver supporting enhanced data rate (EDR), backward compatible to BT 1.2 and BT 1.1 • High performance ARM7TDMI processor with 120 KB of on- chip SRAM eliminating need for external DSP • Low-power 1.8V operation • On-chip support for battery monitoring and charging control • Fully configurable PCM and I 2 S interfaces with on-chip PLL to interface to a variety of high quality audio codecs • Up to 28 fully configurable GPIOs to address applications with sophisticated user interfaces • ZSound audio software package including application, upper layer stack with profiles and lower layer stack • Available in 7x7 BGA package with integrated RF • BT2.0 EDR enables: •Lower power consumption •Multilink stereo •Increasingly complex BT systems •Lower latency •Improved robustness • 1.8V operation: •Longer play and talk time • High quality: •Near CD quality streaming stereo •Choice of best-in-class stereo codecs • Low cost: •Single-chip Bluetooth transceiver •Integrated RF, battery monitor, and charging controls Time-to-market: •HW reference designs for common wireless audio applications •Includes ZSound software suite • Wireless headphones (stereo) • Wireless stereo headsets (stereo plus mono) • Mono headsets • Stereo line-in adapters • Portable audio devices • Stereo speakers FEATURES SUMMARY OF BENEFITS APPLICATIONS USB I 2 S UART PCM ADC PDM SPI Boot ROMBoot ROM ARM7 TDMI ARM7 TDMI IRAMIRAM GPIO LPO MPLL CPU Bridge LCLC RadioRadio MAC Interrupt Controller Interrupt Controller DMA Controller DMA Controller TimerTimer BRAMBRAM Dual LDO Codec PLL FLASH OVERVIEW ® Phone: 949-450-8700 Fax: 949-450-8710 E-mail: [email protected] Web: www.broadcom.com BROADCOM CORPORATION 16215 Alton Parkway, P.O. Box 57013 Irvine, California 92619-7013 © 2005 by BROADCOM CORPORATION. All rights reserved. 2037-PB00-R05/26/05 Broadcom ® , the pulse logo, Connecting everything ® , and the Connecting everything logo are among the trademarks of Broadcom Corporation and/or its affiliates in the United States, certain other countries and/or the EU. Any other trademarks or trade names mentioned are the property of their respective owners. Bluetooth ® is a trademark of the Bluetooth SIG. The BCM2037 enables low-cost, low-power stereo audio solutions making it ideal for stereo headsets, plug-and-play USB adapters, and analog line-in adapters. Used in conjunction with a high quality external stereo codec, the BCM2037 solution delivers end-to-end streaming digital stereo at near CD audio quality. In addition, support for the remote control profile (AVRCP) allows a stereo headset to control a variety of remote music sources. The BCM2037 is capable of transmitting using enhanced data rate (EDR) permitting lower power, increased robustness, and lower latency as compared to BT1.2-based audio solutions. Additional bandwidth of EDR enables complex Bluetooth environments with multiple active Bluetooth devices and provides support for multiple simultaneous stereo links. A stereo headset combining mono and stereo functions can be accomplished by combining the BCM2037 with a codec that has stereo output and MIC input. An audio gateway can be implemented by combining the BCM2037 with a codec that has stereo outputs and stereo inputs. A USB plug-and-play adapter can be implemented without using a codec by using the built-in USB interface on the BCM2037. The BCM2037 can be bundled with ZSound, a complete production- ready, qualified software package including starting applications, Bluetooth profiles, and protocol stack, facilitating time-to-market. This complete solution makes the BCM2037 an excellent choice for a wide variety of wireless audio applications. 8 Mb Flash 1.8V Stereo Codec B utton Controls Stereo Headset Solution B attery Management AV-enabled Cellular Phone AV-enabled PC or USB adapter MIC M o n o H S c a l l S t e r e o S t r e a m i n g V O I P S t r e a m i n g S t e r e o BCM2037

REPORT NO : NF-TA-R060020 NEX1 Future Co., Ltd. Revision No : 1.0 Page: 1 of 47 FCC TEST REPORT August 29, 2006 NEX 1 Future Co., Ltd. REPORT NO : NF-TA-R060020 NEX1 Future Co., Ltd. Revision No : 1.0 Page: 2 of 47 TEST REPORT CERTIFICATION Applicant : Samsin Innotec Co.,Ltd. Address : 252-23, Sarihyun-Dong, Ilsandong-Gu Goyang-City, Kyonggi-Do, 411-530, Korea EUT Name : SON80 B/T STEREO HEADSET Model No. : HBS-110 Serial No. : Engineering Sample FCCID : QJ8HBS-110 Testing location : Nex1 Future Co., Ltd. 133, Kongdan-Dong, Gumi-City, Kyeongsangbuk-Do, 730-030, R.O.K Applied specification : FCC Part 15 Test result : The above mentioned test item passed. Test Date August 29, 2006 Review Date August 29, 2006 Tested by Hyo-Jeung, Cho Reviewed by Jeong-Hi, Jin Title Engineer Title EMC Manager Signature Signature I HEREBY CERTIFY THAT the data shown in this report were made in accordance with the procedures given in the applied specification and I assume full responsibility for accuracy and completeness of these data. Note : This test report relates to the a. m. test item. Without permission of the test center this test report is Not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark on this or similar products. REPORT NO : NF-TA-R060020 NEX1 Future Co., Ltd. Revision No : 1.0 Page: 3 of 47 Contents 1. GENERAL INFORMATION.................................................................................................5 1.1 PRODUCT DESCRIPTION................................................................................................5 1.2 PROJECT DATA............................................................................................................5 1.3 APPLICANT..................................................................................................................5 1.4 MANUFACTURER..........................................................................................................5 2. EUT INFORMATION........................................................................................................6 2.1 GENERAL EUT INFORMATION.......................................................................................6 2.2 CENTER FREQUENCY OF TESTED CHANNEL...................................................................6 2.3 TEST ENVIRONMENT.....................................................................................................6 2.4 ACCESSORIES AND ANCILLARY EQUIPMENT...................................................................6 3. TESTING FACILITIES.......................................................................................................7 4. EUT DESCRIPTION AND OPERATIONAL DESCRIPTION.......................................................7 5. TEST SET-UP.................................................................................................................8 5.1 PRINCIPLE OF CONFIGURATION......................................................................................8 5.2 OPERATIONAL MODES..................................................................................................8 5.3 APPLIED SPECIFICATION...............................................................................................8 6. TEST REPORT SUMMARY................................................................................................9 7. TEST RESULTS.............................................................................................................10 7.1 ANTENNA CONNECTOR REQUIREMENTS.......................................................................10 7.2 AC CONNECTED EMISSION.........................................................................................11 7.3 CARRIER FREQUENCY SEPARATION.............................................................................12 7.4 TIME OF OCCUPANCY(DWELL TIME).............................................................................14 7.5 20DB BANDWIDTH.....................................................................................................16 7.6 NUMBER OF HOPPING FREQUENCIES REQUIREMENTS...................................................20 7.7 PSEUDORANDOM FHS AND EQUAL HOPPING FREQUENCY USE REQUIREMENTS.............22 7.8 RECEIVER INPUT BANDWIDTH REQUIREMENTS.............................................................23 REPORT NO : NF-TA-R060020 NEX1 Future Co., Ltd. Revision No : 1.0 Page: 4 of 47 7.9 PEAK OUTPUT POWER...............................................................................................24 7.10 BAND-EDGE COMPLIANCE.........................................................................................28 7.11 SPURIOUS CONDUCTED EMISSIONS............................................................................32 7.12 SPURIOUS RADIATED EMISSIONS...............................................................................43 8. LIST OF TEST AND MEASUREMENT INSTRUMENTS...........................................................46 9. NOTES........................................................................................................................47 REPORT NO : NF-TA-R060020 NEX1 Future Co., Ltd. Revision No : 1.0 Page: 5 of 47 1. General Information 1.1 Product Description Product Name : SON80 B/T STEREO HEADSET Product ID : HBS-110 Serial No. : Prototype FCC ID : QJ8HBS-110 1.2 Project data Receipt of EUT : August 22, 2006 Date of Test : August 28, 2006 Data of report : August 29, 2006 1.3 Applicant Company Name : Samsin Innotec Co.,Ltd. Address : 252-23, Sarihyun-Dong, Ilsandong-Gu Goyang-City, Kyonggi-Do, 411-530,Korea Contact Person : Mr. Han-ho Yeo 1.4 Manufacturer Company Name : Samsin Innotec Co.,Ltd. Address : 252-23, Sarihyun-Dong, Ilsandong-Gu Goyang-City, Kyonggi-Do, 411-530,Korea Contact Person : Mr. Han-ho Yeo REPORT NO : NF-TA-R060020 NEX1 Future Co., Ltd. Revision No : 1.0 Page: 6 of 47 2. EUT Information 2.1 General EUT Information Type Transmitter Recei…

Text truncated - open the document above for the full version.

Revision No : 1.0 Page: 1 Test Setup Photos Samsin Innotec * Test set-up 1. Radiated Set up Revision No : 1.0 Page: 2 Test Setup Photos Samsin Innotec 2 Spurious Radiated Emissions 2.1 Radiated test ( 12 MHz ~ 30 MHz ) Revision No : 1.0 Page: 3 Test Setup Photos Samsin Innotec 2.2 Radiated test ( 30 MHz ~ 1GHz ) Revision No : 1.0 Page: 4 Test Setup Photos Samsin Innotec 2.3 Radiated test ( 1 GHz ~ 13GHz ) Revision No : 1.0 Page: 5 Test Setup Photos Samsin Innotec 2.4 Radiated test ( 13 GHz ~ 18GHz ) Revision No : 1.0 Page: 6 Test Setup Photos Samsin Innotec 2.5 Radiated test ( 18 GHz ~ 25GHz )
