QJE-HZD-4300HotZone Duo

HotZone Duo 1.0 IAP and MWR Users Guide July 2006 HotZone Duo 1.0 IAP and MWR Users Guide ii July 2006 This page intentionally left blank. HotZone Duo 1.0 IAP and MWR Users Guide iii July 2006 Copyrights The Motorola products described in this document may include copyrighted Motorola computer programs. Laws in the United States and other countries reserve for Motorola certain exclusive rights for copyrighted computer programs. Accordingly, any copyrighted Motorola computer programs contained in the Motorola products described in this document may not be copied or reproduced in any manner without the express written permission of Motorola. Furthermore, the purchase of Motorola products shall not be deemed to grant either directly or by implication, estoppels or otherwise, any license under the copyrights, patents or patent applications of Motorola, except for the normal nonexclusive, royalty-free license to use that arises by operation of law in the sale of a product. Disclaimer Please note that certain features, facilities and capabilities described in this document may not be applicable to or licensed for use on a particular system, or may be dependent upon the characteristics of a particular mobile subscriber unit or configuration of certain parameters. Please refer to your Motorola contact for further information. Trademarks Motorola, the Motorola logo, and all other trademarks identified as such herein are trademarks of Motorola, Inc. All other product or service names are the property of their respective owners. Copyrights © 2006 Motorola, Inc. All rights reserved. No part of this document may be reproduced, transmitted, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, without the prior written permission of Motorola, Inc. HotZone Duo 1.0 IAP and MWR Users Guide iv July 2006 This page intentionally left blank. v July 2006 Table of Contents Contents ............................................. . . . . Chapter 1: Product Introduction............................................................................ 1-1 HotZone Duo Infrastructure Devices............................................................................................................... 1-1 IAPs and MWRs within a HOTZONE DUO Wireless Network.......................................................................... 1-2 HotZone Duo Infrastructure Device Specifications......................................................................................... 1-3 Chapter 2: Infrastructure Device Installation........................................................ 2-1 Software Requirements......................................................................................................................................... 2-1 MWR and IAP Hardware Installation Notes........................................................................................................ 2-1 Equipment Specification.................................................................................................................................. 2-2 Ports and Connections.............................................................................................................................................. 2-2 Operator Supply List................................................................................................................................................ 2-2 Optional Antennas......................................................................................................................................................... 2-3 HotZone Duo Infrastructure Device Label..................................................................................................................... 2-3 Infrastructure Device MAC Address Table.............................................................................................................. 2-4 Infrastructure Device Assembly....................................................................................................................... 2-5 Infrastructure Device Deployment and Installation.......................................................................................... 2-5 Grounding Considerations............................................................................................................................................. 2-6 Assembling the IAP and the MWR Device.................................................................................................................... 2-7 Initial Infrastructure Device Configuration Information................................................................................................ 2-7 Device Connectivity Testing.......................................................................................................................................... 2-7 Chapter 3: Device Configuration............................................................................ 3-1 Adding an Infrastructure Device in MeshManager............................................................................................... 3-1 Chapter 4: License Information.............................................................................. 4-1 Motorola End User License Agreement................................................................................................................ 4-1 Third Party Licensing Agreements....................................................................................................................... 4-7 OpenSSL - Copyright and License Information............................................................................................... 4-7 XSupplicant version 1.2.3 - Copyright and License Information..................................................................... 4-9 Hostapd - Copyright and License Information............................................................................................... 4-10 Chapte…

Text truncated - open the document above for the full version.

DOC-FCC009 4/14/2005 Page 1 of 2 FEDERAL COMMUNICATIONS COMMISSION - FCC FORM 731 APPLICATION FOR EQUIPMENT AUTHORIZATION Approved by OMB 3060 - 0934 Expires 02/28/2005 Item 1. Applicant's complete, legal business name: Motorola Inc. Item 2. Applicant's mailing address Line 1: 485 Keller Rd Line 2: Suite 250 City: Maitland State: FL Country (if foreign address): USA Zip/Postal Code: 32751 Item 3. FCC ID: QJE-HZD-4300 Grantee code: QJE Equipment Product Code (14 characters maximum): - HZD-4300 Item 4. Person at the applicant's address to receive grant or for contact: First Name: Daniel Last Name: DiLuzio Telephone: 407.659.5360 Title: Systems Engineer, MNPG E-mail: [email protected] Fax No: 407.659.5318 Item 5. Instead of Applicant, the original Grant is authorized to be mailed to: N/A Item 6. Technical Contact: Firm Name: Motorola Inc. First Name: Daniel Last Name: DiLuzio Telephone: 407.659.5360 Title: Systems Engineer, MNPG E-mail: [email protected] Fax No: 407.659.5318 Item 7. Non-Technical Contact: Firm Name: Motorola Inc. First Name: Scott Last Name: Garlington Telephone: 407.659.5339 Title: Manager, Product Management E-mail: [email protected] Fax No: 407.659.5318 Item 8. * Does this application include a request for confidentiality for any portion(s) of the data contained in this application pursuant to 47 CFR § 0.459 of the Commission Rules? If "Yes" see instructions. Yes (please mark as appropriate) Τ Yes Ο No Item 9. Does the applicant request that the Commission defer grant of this application pursuant 47 CFR § 0.457(d)(1)(ii)? (See instructions) No If so, specify date when grant may be issued (MM/DD/YYYY format): Item 10. * Equipment Class: NII • Description of Product as it is Marketed: HotZone Duo This text will appear below the equipment class on the grant) Item 11. * Application is for: (please mark as appropriate) Τ Original Equipment (See instructions) Ο Change in identification of presently authorized equipment: Original FCC ID: Grant Date (MM/DD/YYYY format): Ο Class II permissive change or modification of presently authorized equipment (See instructions) Item 12. Is the equipment in this application: * (a) a composite device subject to an additional equipment authorization? * (b) part of a system that operates with, or is marketed with, another device that requires an equipment authorization? If either of the above questions is answered "Yes" complete section 12(c). Τ Yes Ο No Ο Yes Τ No (c) The related application: Ο has been granted under the FCC ID listed to the right Τ is in the process of being filed under the FCC ID listed to the right Ο is pending with the FCC under the FCC ID listed to the right FCC ID QJE-HZD-4300 DOC-FCC009 4/14/2005 Page 2 of 2 Item 13. Name of test firm and contact person on file with the FCC, if different from applicant or contact person: Firm Name: MET Laboratories Address: 914 West Patapsco Avenue City: Baltimore State & Zip: MD 21230 Last Name: Confroy First Name: Marie Telephone: 410-354-3300 Ext: 412 Fax No.: 410-354-3313 E-mail: [email protected] Item 14. Enter any text that you would like to appear at the bottom of the Grant of Equipment Authorization. N/A Read each certification carefully before answering and signing this application Equipment Specifications: Rule Part Frequency Range (MHz) Power (W) Frequency Tolerance and Units Emission Designator Note Codes 15E 5725-5825 - - - - WILLFUL FALSE STATEMENTS MADE ON THIS FORM ARE PUNISHABLE BY FINE AND IMPRISONMENT (U.S. CODE, TITLE 18, SECTION 1001), AND/OR REVOCATION OF ANY STATION LICENSE OR CONSTITUTION PERMIT (U.S. CODE, TITLE 47, SECTION 312(a)(1)), AND/OR FORFEITURE (U.S. CODE, TITLE 47, SECTION 503). Item 15. *SECTION 5301 (ANTI-DRUG ABUSE) CERTIFICATION: The applicant must certify that neither the applicant nor any party to the application is subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. § 862 because of a conviction for possession or distribution of a controlled substance. See 47 CFR 1.2002(b) for the definition of a "party" for these purposes. Does the applicant or authorized agent so certify? Τ Yes Ο No Item 16. APPLICANT/AGENT CERTIFICATION: I certify that I am authorized to sign this application. All of the statements herein and the exhibits attached hereto, are true and correct to the best of my knowledge and belief. IN accepting a Grant of Equipment Authorization issued by the FCC as a result of the representations made in this application, the applicant is responsible for (1) labeling the equipment with the exact FCC ID specified in this application, (2) compliance statement labeling pursuant to the applicable rules, and (3) compliance of the equipment with the applicable technical rules. If the applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC's technical requirements. Authorizing an agent to sign this application, is done solely at the applicant's discretion; however, the applicant remains responsible for all statements in this application. If an agent has signed this application on behalf of the applicant, a written letter of authorization which includes information to enable the agent to respond to the above section 5301 (Anti-Drug Abuse) Certification statement has been provided by the applicant. It is understood that the letter of authorization must be submitted to the FCC upon request, and that the FCC reserves the right to contact the applicant directly at any time. * Signature of Authorized Person Filing: Daniel DiLuzio Title of authorized signature: Systems Engineer MNPG

MET TCB SERVICE AGREEMENT DOCJ-TCB002 11/24/04 Page 1 of 3 THIS AGREEMENT is made at Baltimore, Maryland this day of , 20 , by and between MET LABORATORIES, INC. (hereinafter referred to as MET) and the following: Applicant: Motorola Inc. (Hereinafter referred to as the "Responsible Party") Address: 485 Keller Rd Suite 250 Maitland FL 32751 Only the product(s) designed and engineered by the Applicant/Responsible Party and manufactured by the Manufacturer at the Manufacturer's facility at the above address, which have been certified by MET are covered by this service Agreement. NOW, THEREFORE, in consideration of the premises set forth in this agreement, the above mentioned parties agree that; Upon successful evaluation, MET will issue the Applicant/Responsible Party a Grant of Equipment Authorization Certificate, granting the Applicant/Responsible Party permission to market the certified product(s). At a minimum the product's identification plate or label will include the FCC ID Number or the Registration/Certification Number as well as any other information as might be required bystatute. The FCC requires that MET perform random post-certification surveillance. Surveillance for continued certification compliance can be accomplished by the Applicant/Responsible Party providing production models of the product to MET at MET’s request or to other locations as approved by MET for the purpose of compliance testing. The Manufacturer agrees to allow free and unrestricted access to the Manufacturer's facility during normal working hours for the purpose of permitting supervision. The Applicant/Responsible Party or Manufacturer agrees to provide and deliver to MET or locations approved by MET models of the certified product at MET’s request. All costs associated with testing of the device will be borne by the Applicant/Responsible Party or the Manufacturer and paid within 30 days of notice. If required the Applicant/Responsible Party agrees to provide to MET for MET review certain identified technical documents or quality documents that provide for a review of product update and compliance. Acceptable Markings are found in 47 CFR 2.925, 2.926, 15.19, and part 68.300. Only products visually bearing the appropriate FCC identification label and identified as to model and type will be acknowledged as being an authorized product. The Applicant/Responsible Party is responsible for applying the label to the product in accordance with current FCC requirements. An Applicant/Responsible Party is required to submit to MET a sample of the label or plate showing the FCC ID Number or the Registration/Certification Number for approval prior to applying to the product. The Applicant/Responsible Party is required to submit to MET a label location drawing or photograph showing the location of the mark on the product. Any reference to MET certification shall not be permitted on any non-eligible product(s), packaging, or literature. If the Applicant/Responsible Party or the Manufacturer applies the FCC identification label to unauthorized products, then the Applicant/Responsible Party and the Manufacturer shall save, indemnify, and hold harmless MET LABORATORIES, INC. from any and all claims which may arise out of said unauthorized action. The label and/or references to MET are permitted on promotional, advertising, and packaging of Certified Product(s) provided that misrepresentation of results of the marking process and/or this agreement do not occur. Final judgment in the suitability of use of the label or the MET Laboratories name is reserved by MET. (continued, next page) MET TCB SERVICE AGREEMENT DOCJ-TCB002 11/24/04 Page 2 of 3 The Applicant/Responsible Party shall maintain or require the manufacturer to maintain a record of all complaints made known to them relating to the product's compliance with the requirements of the relevant standard and agrees to make these records available to MET when requested. The Aplicant/Responsible Party agrees to take appropriate action, or have the manufacturer take appropriate action with respect of such complaints and/or any deficiencies found in products or services that affect compliance with the requirements for certification. Compliance with all requirements and stipulations of the Certification Program and this agreement between MET and the Applicant/Responsible Party is required for program compliance. Non-compliance with all or part of this agreement may result in termination of the agreement and the notification to the FCC to withdraw certification of the product. The Applicant/Responsible Party assumes responsibility for complying with the requirements of the product's certification and this agreement regarding the application of the FCC identification label. The Applicant/Responsible Party understands that any violation of the requirements of this agreement can immediately, at MET's discretion, terminate this agreement. Upon notification by MET, the Applicant/Responsible Party shall immediately take action to correct non-conformance that may have been found during surveillance or during modification to the product by the Applicant/Responsible Party. The Applicant/Responsible Party understands that corrective actions must be immediate. The Applicant/Responsible Party also understands that MET is required to report to the FCC any noted non-compliance. MET will also report corrective actions taken and the status of corrective action. The FCC will determine if any certificate or grants will be withdrawn. Upon termination of this agreement, the Applicant/Responsible Party agrees to remove any references to MET Laboratories from all literature, stationary, packaging, or other promotional media as may have been used by the Applicant/Responsible Party. Additionally, upon termination of this agreement, MET Laboratories will inform the FCC of such termination. The observance of the aforementioned requirements for the product, is a condition for continued use of the FCC iden…

Text truncated - open the document above for the full version.

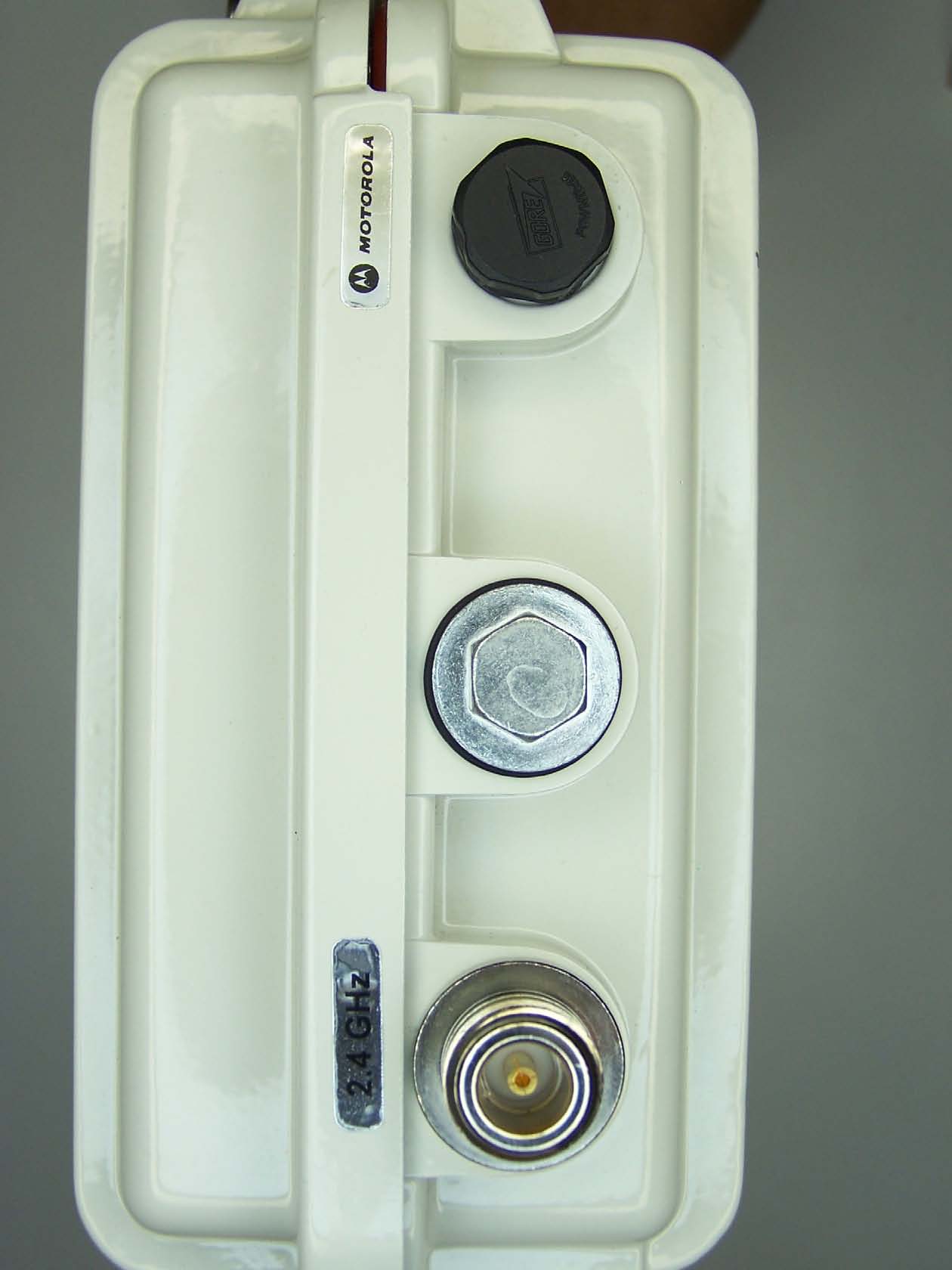

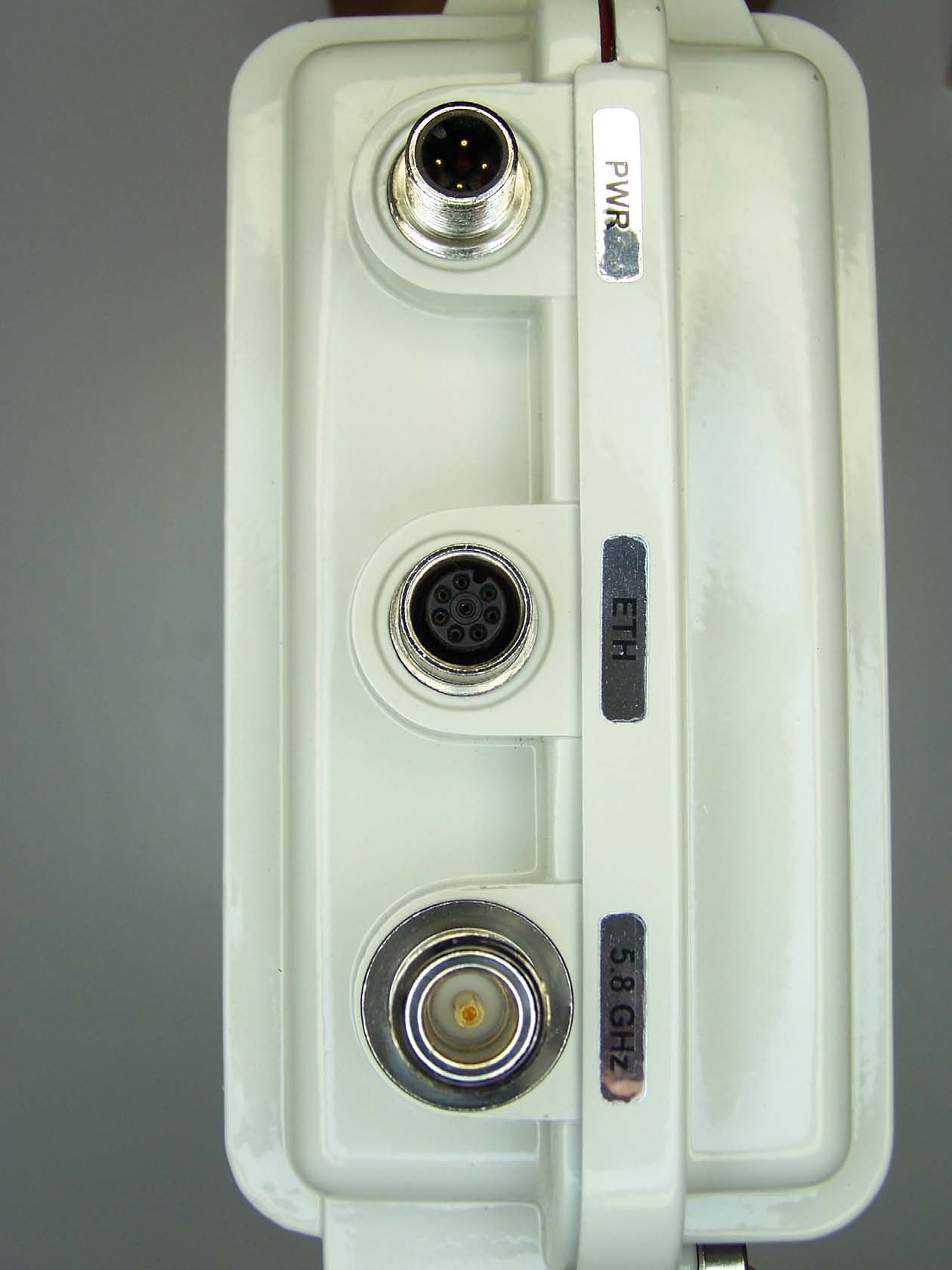

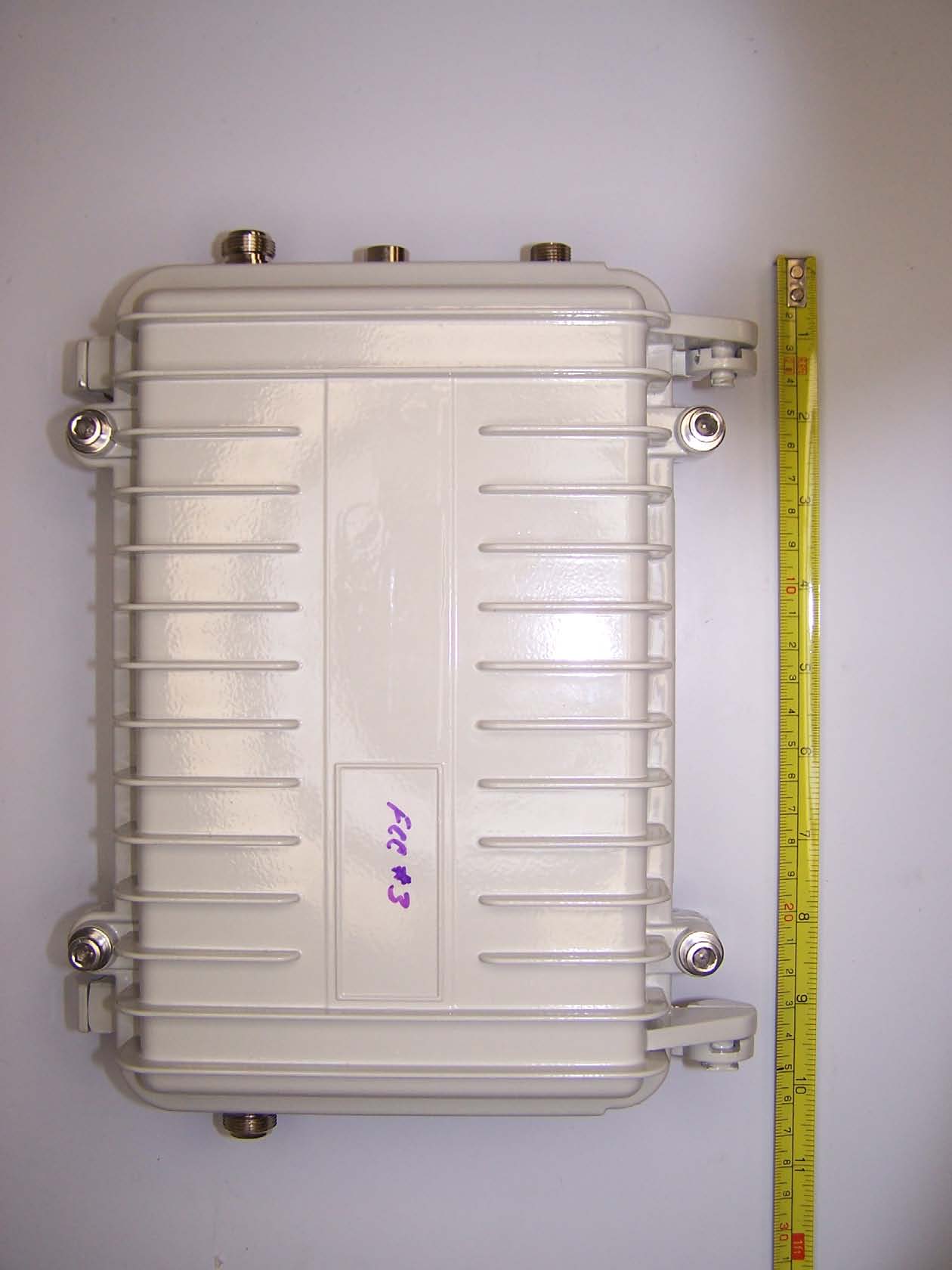

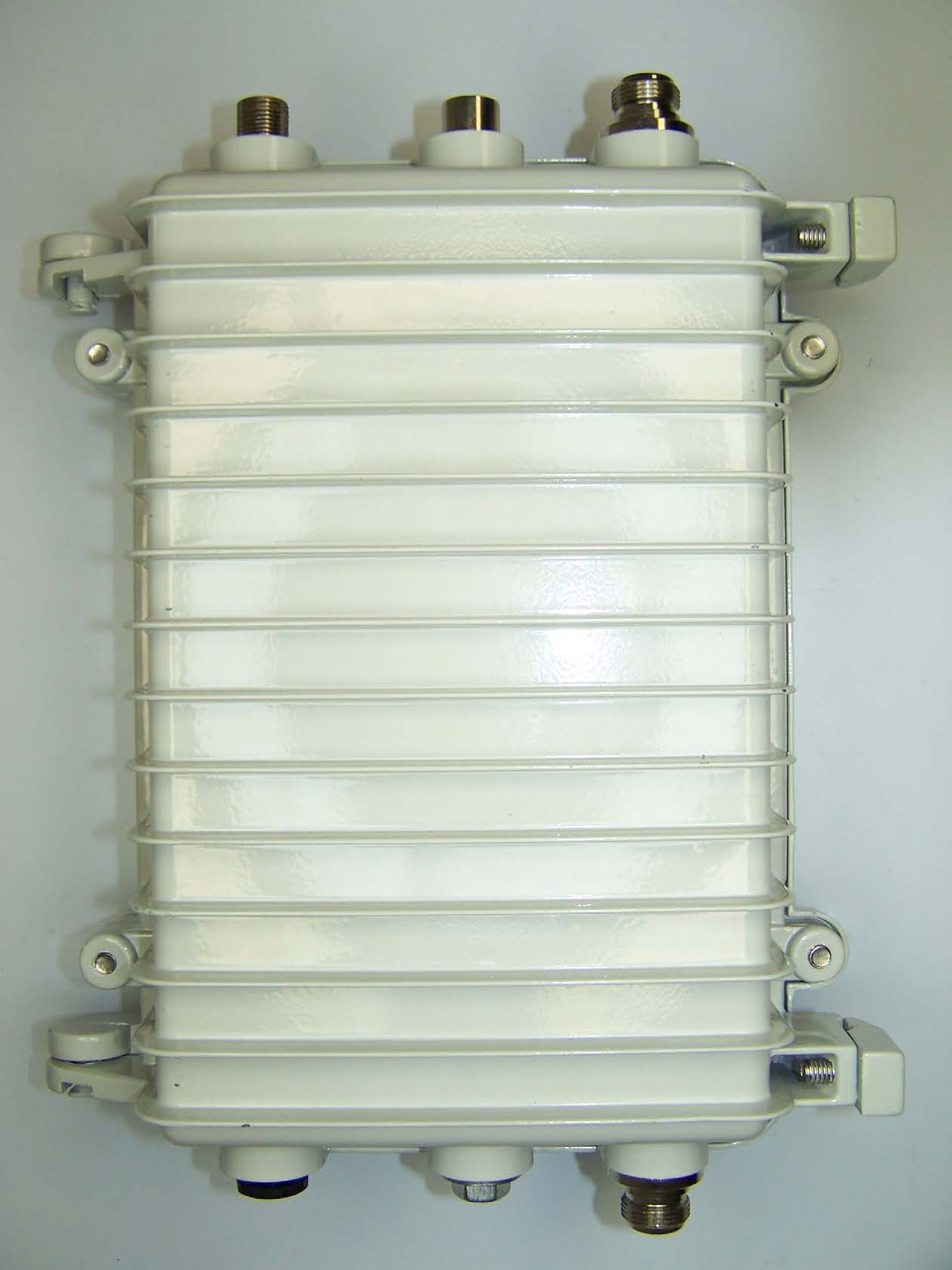

HotZone Duo Side A HotZone Duo Side B

HotZone Duo Modulation Description: The HZD design is based on the Atheros AP30 reference design which uses a three chip solution from Atheros to support both 802.11a and 802.11b/g radios. These radios use standards based 802.11 a/b/g radio modulation and waveform structures as detailed in the follow IEEE specifications: IEEE 802.11-1999 IEEE 802.11a-1999 IEEE 802.11b-1999 IEEE 802.11g-2003 These standards can be found at http://standards.ieee.org

3.6 RF Exposure RF Exposure Requirements - §15.247(b)(5): Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. RF Radiation Exposure Limits: §1.1310: As specified in this section, the Maximum Permissible Exposure (MPE) Limit shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in Sec. 1.1307 (b), except in the case of portable devices which shall be evaluated according to the provisions of Sec. 2.1903 of this chapter. Note: F = Frequency in MHz Test Results: MPE Limit Calculation: the EUT’s operating frequencies @ 5745 – 5805 MHz; max conducted peak power from 802.11 a = 25.32 dBm (628.1 mW) with maximum antenna gain of 10 dBi. Therefore, Limit for Uncontrolled exposure: 1 mW/ cm ² Equation from page 18 of OET 65, Edition 97-01 S = PG / 4πR² Where, S = Power Density P = Power Input to antenna (341.2 mW) G = Antenna Gain (10 numeric) R = distance to the center of radiation of antenna (20 centimeters) S = 341.2*10 / (4π*20*20) = 0.679 mW/ cm ² Therefore EUT meets the Uncontrolled Exposure limit Test Engineer: Len Knight Test Date: October 31, 2006

MET Laboratories, Inc. Safety Certification - EMI - Telecom Environmental Simulation 914 WEST PATAPSCO AVENUE ! BALTIMORE, MARYLAND 21230-3432 ! PHONE (410) 354-3300 ! FAX (410) 354-3313 The Nation’s First Licensed Nationally Recognized Testing Laboratory November 15, 2006 Motorola - Mesh Networks Product Group 485 Keller Rd, Suite 250 Maitland, FL 32751 Dear Daniel DiLuzio, Enclosed is the EMC test report for compliance testing of the Motorola - Mesh Networks Product Group, HotZone Duo as tested to the requirements of Title 47 of the CFR, Ch. 1 (10-1-03 ed.), Title 47 of the CFR, Part 15.407 for U-NII devices. Thank you for using the services of MET Laboratories, Inc. If you have any questions regarding these results or if MET can be of further service to you, please feel free to contact me. Sincerely yours, MET LABORATORIES, INC. Angela D. Brown Documentation Department Reference: (\Motorola - Mesh Networks Product Group\EMC19771-FCC407 Rev 3) Certificates and reports shall not be reproduced except in full, without the written permission of MET Laboratories, Inc. While use of the National Voluntary Laboratory Accreditation Program (NVLAP) letters or the NVLAP Logo, the Standards Council of Canada Logo, A2LA, or the Nationally Recognized Testing Laboratory (NRTL) Letters in this report reflects MET Accreditation under these programs, these letters, logo, or statements do not claim product endorsement by these organizations or any Agency of the U.S. Government. This letter of transmittal is not a part of the attached report. MET Laboratories, Inc. Safety Certification - EMI - Telecom Environmental Simulation 914 WEST PATAPSCO AVENUE ! BALTIMORE, MARYLAND 21230-3432 ! PHONE (410) 354-3300 ! FAX (410) 354-3313 MET Report: EMC19771-FCC407 © 2006, MET Laboratories, Inc. Page i of vi Electromagnetic Compatibility Criteria Test Report for the Motorola - Mesh Networks Product Group HotZone Duo Verified under the FCC Certification Rules contained in Title 47 of the CFR, Part 15.407 For U-NII Devices MET Report: EMC19771-FCC407 November 15, 2006 Prepared For: Motorola - Mesh Networks Product Group 485 Keller Rd, Suite 250 Maitland, FL 32751 Prepared By: MET Laboratories, Inc. 914 W. Patapsco Avenue Baltimore, MD 221230 Electromagnetic Compatibility Motorola – Mesh Networks Product Group Equipment Configuration HotZone Duo CFR Title 47, Part 15, Subpart E MET Report: EMC19771-FCC407 © 2006, MET Laboratories, Inc. Page ii of vi Electromagnetic Compatibility Criteria Test Report for the Motorola - Mesh Networks Product Group HotZone Duo Tested Under the FCC Certification Rules contained in Title 47 of the CFR, Part 15.407 and 15.247 for U-NII Devices Len Knight, Project Engineer Angela D. Brown Electromagnetic Compatibility Lab Documentation Department Engineering Statement: The measurements shown in this report were made in accordance with the procedures indicated, and the emissions from this equipment were found to be within the limits applicable. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurements made, the equipment tested is capable of operation in accordance with the requirements of Parts 15.407 and 15.247, of the FCC Rules under normal use and maintenance. Kevin A. Mehaffey, Manager Electromagnetic Compatibility Lab Electromagnetic Compatibility Motorola – Mesh Networks Product Group Equipment Configuration HotZone Duo CFR Title 47, Part 15, Subpart E MET Report: EMC19771-FCC407 © 2006, MET Laboratories, Inc. Page iii of vi Report Status Sheet Revision Report Date Reason for Revision ∅ October 5, 2006 Initial Issue. 1 November 2, 2006 Follow up conducted emissions to address RTs. 2 November 14, 2006 Follow up harmonic emissions to address RTs. 3 November 15, 2006 Editorial change on pg. 43. Electromagnetic Compatibility Motorola – Mesh Networks Product Group Equipment Configuration HotZone Duo CFR Title 47, Part 15, Subpart E MET Report: EMC19771-FCC407 © 2006, MET Laboratories, Inc. Page iv of vi Table of Contents I. Executive Summary .................................................................................................................................................1 A. Purpose of Test ...................................................................................................................................................2 B. Executive Summary ............................................................................................................................................3 II. Equipment Configuration .......................................................................................................................................4 A. Overview.............................................................................................................................................................5 B. References...........................................................................................................................................................6 C. Test Site ..............................................................................................................................................................6 D. Description of Test Sample.................................................................................................................................6 E. Equipment Configuration....................................................................................................................................8 F. Support Equipment .............................................................................................................................................8 G. Ports and Cabling Information ............................................................................................................................9 H. Method of Monitoring EUT Operation ........…

Text truncated - open the document above for the full version.

Motorola - Mesh Networks Product Group Test Equipment HotZone Duo CFR Title 47, Part 15, Subpart C MET Report: EMC19771-FCC247 © 2006, MET Laboratories, Inc. Page 21 of 57 Conducted Emission Limits Test Setup Photograph 1. Conducted Emissions Test Setup Motorola - Mesh Networks Product Group Test Equipment HotZone Duo CFR Title 47, Part 15, Subpart C MET Report: EMC19771-FCC247 © 2006, MET Laboratories, Inc. Page 34 of 57 Photograph 4. Peak Power Output and RF Exposure, Test Setup Motorola - Mesh Networks Product Group Test Equipment HotZone Duo CFR Title 47, Part 15, Subpart C MET Report: EMC19771-FCC247 © 2006, MET Laboratories, Inc. Page 43 of 57 Photograph 5. Test Equipment and setup for various Radiated Measurements
