QJEWMC63000303Wireless PCMCIA Modem Card

DMM000001-02 Copyright 2003, MeshNetworks, Inc. All Rights Reserved Draft WMC6300 Wireless Modem Card User’s Guide (Windows 2000) WMC6300 Windows 2000 User’s Guide iii Foreword This document describes in detail the confidential and proprietary technology of MeshNetworks’ ™ Architecture. MeshNetworks products and technology are protected by US and international patent and patent pending technology. This document represents the current design; the contents are subject to change at any time at the discretion of MeshNetworks, Inc. , MeshTray, and MeshNetworks’ logo are trademarks or registered trademarks of MeshNetworks, Inc. Microsoft, Windows, Windows 2000, and Windows PocketPC are registered trademarks of Microsoft Corporation. All other product names and services identified throughout this publication are trademarks or registered trademarks of their respective companies. No such uses or the use of any trade name is intended to convey endorsement or other affiliation with this publication. Copyright 2003, MeshNetworks, Inc. All Rights Reserved. WMC6300 Windows 2000 User’s Guide v Table of Contents 1 Introduction........................................................................................................................1 System Requirements .......................................................................................................1 General System Requirements........................................................................................1 What’s in the Box...............................................................................................................2 Approved Antennas Options for WMC6300 ....................................................................2 WMC6300 External Connections and Lights....................................................................3 INSTALLING THE SOFTWARE .................................................................................................4 Installing Software (Windows 2000 Clients Only).................................................4 Configuring the DNS Address...........................................................................................8 Connect the Antenna Assembly (Laptop Computer).......................................................9 Connect the Magnetic Antenna Assembly (Optional) ................................................... 10 Insert the WMC6300 Wireless Modem Card ................................................................... 11 Uninstalling Application Software .................................................................................. 14 OVERVIEW OF MESHNETWORKS’ MESHTRAY ................................................................... 15 MeshTray™ ......................................................................................................................15 MeshTray Status .............................................................................................................. 16 Starting MeshTray............................................................................................................ 16 Terminating MeshTray..................................................................................................... 16 CUSTOMER SERVICE INFORMATION................................................................................... 17 LICENSE AND WARRANTY INFORMATION .......................................................................... 18 Important Information...................................................................................................... 18 REGULATORY INFORMATION............................................................................................... 20 WMC6300 Windows 2000 User’s Guide vi FCC Information............................................................................................................... 20 FCC RF Radiation Exposure Statement ......................................................................... 20 Safety Information for the WMC6300................................................................... 21 Safety Certification .......................................................................................................... 22 WMC6300 Windows 2000 User’s Guide 1 Introduction Thank you for purchasing the WMC6300 Wireless Modem Card. Please install the Application Software and Drivers before inserting the Wireless Modem Card in your system. To get started proceed to the Installing the Software section of this document. is a wireless communication system capable of supporting high data rate mobile communication at vehicular speeds. The system is designed to allow standard client hosts with a PCMCIA interface to have a mobile broadband Ethernet connection. The system works transparently to the client host in a manner similar to an Ethernet connection. provides Internet Protocol based data and location services. Its geo- location accuracy and availability is better than ±10 meters within 1 second. It is capable of supporting subscribers traveling up to 100 miles per hour. Figure 1. MeshLAN WMC6300 Wireless Modem Card The system provides a secure and reliable transport for the client host. The client host may still require configuration and authentication before it will be allowed to access services on the core network. Access to the core network is controlled by the network administrator according to current operating practice. This document provides detailed installation and configuration instructions for use when installing the WMC6300 Wireless Modem Card and its Software. System Requirements General System Requirements For best results, ensure the computers meet the following minimum requirements: • Intel based Laptop or Notebook PC running the Microsoft Windows 2000 operating systems • 5 MB of available hard disk storage • Keyboard • Mouse • CD-ROM drive or DVD drive • Available Type II PCMCIA card slot in the Host device WMC6300 Windows 2000 User’s Guide 2 What’s …

Text truncated - open the document above for the full version.

DMM000016-02 Copyright 2002-2003, MeshNetworks, Inc. All Rights Reserved Draft WMC6300 Wireless Modem Card User’s Guide (PocketPC 2002) WMC6300 PocketPC 2002 User’s Guide iii Foreword This document describes in detail the confidential and proprietary technology of MeshNetworks’ ™ Architecture. MeshNetworks products and technology are protected by US and international patent and patent pending technology. This document represents the current design; the contents are subject to change at any time at the discretion of MeshNetworks, Inc. , MeshTray, and MeshNetworks’ logo are trademarks or registered trademarks of MeshNetworks, Inc. Microsoft, Windows, Windows XP, and PocketPC are registered trademarks of Microsoft Corporation. All other product names and services identified throughout this publication are trademarks or registered trademarks of their respective companies. No such uses or the use of any trade name is intended to convey endorsement or other affiliation with this publication. Copyright 2002-2003, MeshNetworks, Inc. All Rights Reserved. MeshNetworks iv WMC6300 PocketPC 2002 User’s Guide v Table of Contents 1 Introduction........................................................................................................................1 System Requirements .......................................................................................................1 General System Requirements........................................................................................1 What’s in the Box...............................................................................................................2 WMC6300 External Connections and Lights....................................................................3 INSTALLING THE WMC6300 WIRELESS MODEM CARD .......................................................4 Install Software (PocketPC 2002 Clients Only).....................................................4 Connect the Antenna Assembly .......................................................................................6 Connect the Magnetic Antenna Assembly (Optional Equipment) ..................................6 Insert the WMC6300 Wireless Modem Card .....................................................................8 Configuring the DNS Address...........................................................................................9 Removing the WMC6300 Wireless Modem Card............................................................ 10 Uninstalling Application Software .................................................................................. 11 OVERVIEW OF THE MESHTRAY APPLICATION................................................................... 12 MeshTray™ ......................................................................................................................12 MeshTray Status .............................................................................................................. 13 Starting MeshTray............................................................................................................ 13 Terminating MeshTray..................................................................................................... 13 CUSTOMER SERVICE INFORMATION................................................................................... 14 LICENSE AND WARRANTY INFORMATION .......................................................................... 15 REGULATORY INFORMATION............................................................................................... 20 FCC Information............................................................................................................... 20 MeshNetworks vi FCC RF Radiation Exposure Statement ......................................................................... 20 Safety Information for the WMC6300................................................................... 21 Safety Certification .......................................................................................................... 22 WMC6300 Pocket PC 2002 User’s Guide 1 Introduction Thank you for purchasing the WMC6300 Wireless Modem Card. To get started proceed to the Installing the WMC6300 Wireless Modem Card section of this document. is a wireless communication system capable of supporting high data rate mobile communication at vehicular speeds. The system is designed to allow standard client hosts with a PCMCIA interface to have a mobile broadband Ethernet connection. The system works transparently to the client host in a manner similar to an Ethernet connection. provides Internet Protocol based data and location services. Its geo-location accuracy and availability is better than ±10 meters within 1 second. It is capable of supporting subscribers traveling up to 100 miles per hour. Figure 1. MeshLAN WMC6300 Wireless Modem Card The system provides a secure and reliable transport for the client host. The client host may still require configuration and authentication before it will be allowed to access services on the core network. Access to the core network is controlled by the network administrator according to current operating practice. This document provides detailed installation and configuration instructions for use when installing the WMC6300 Wireless Modem Card and its Software. System Requirements General System Requirements For best results, ensure the computers meet the following minimum requirements: • PDA running the Microsoft PocketPC 2002 operating systems, with an available Type II PCMCIA slot • Intel based laptop computer running the Microsoft Win2000 or WinXP operating system, with the following: • Keyboard • Mouse • CD-ROM drive or DVD drive • ActiveSynch utility program installed MeshNetworks 2 • Cable to connect the PC and the PDA What’s in the Box Each WMC6300 Wireless Modem Card is a full-featured wireless networking interface. The following is a list of the items provided with each WMC630…

Text truncated - open the document above for the full version.

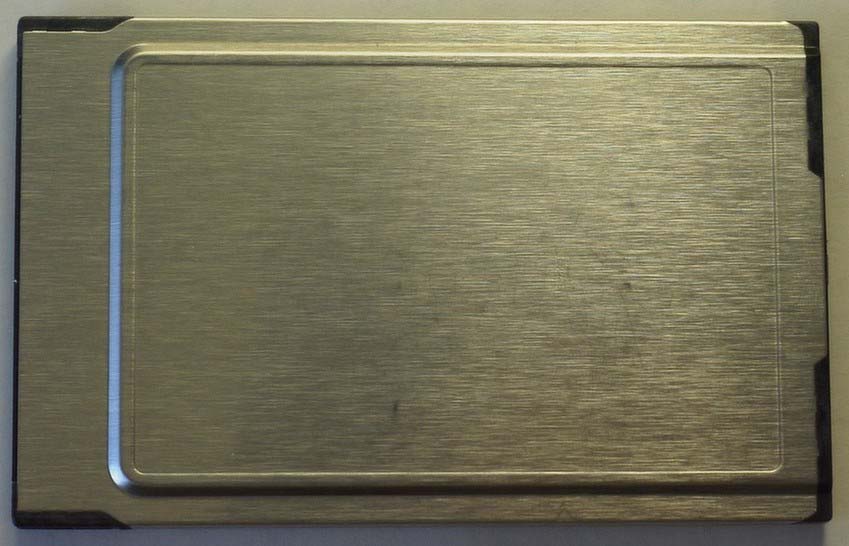

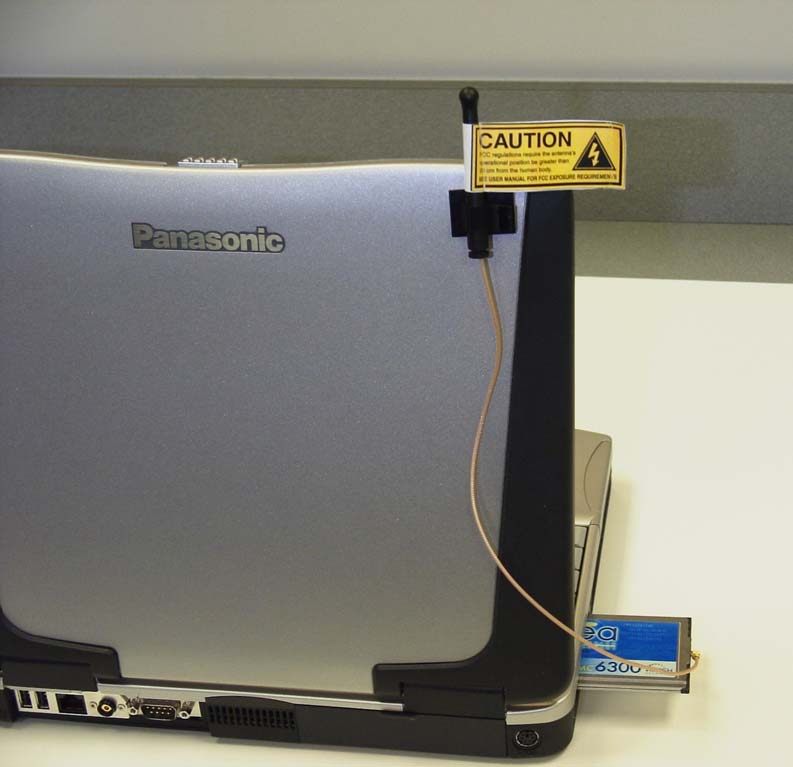

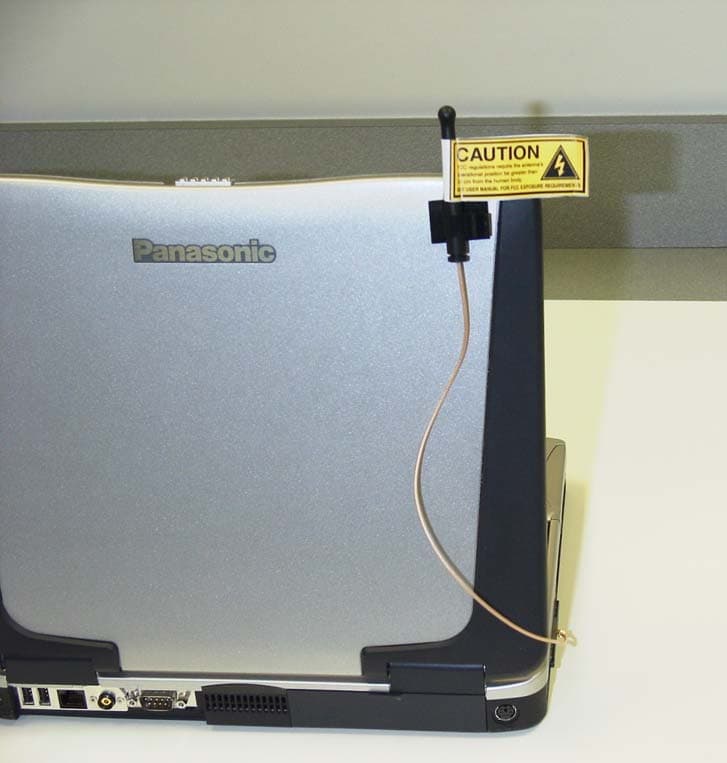

WMC6300 Top View WMC6300 Bottom View Copyright 2002 MeshNetworks Inc 1 All Rights Reserved Company Confidential WMC6300 PCMCIA Side View WMC6300 RF Port Side View Copyright 2002 MeshNetworks Inc 2 All Rights Reserved Company Confidential WMC6300 Antenna WMC6300 Antenna and Card Copyright 2002 MeshNetworks Inc 3 All Rights Reserved Company Confidential WMC6300 Antenna & Card in Laptop PCMCIA Slot Copyright 2002 MeshNetworks Inc 4 All Rights Reserved Company Confidential WMC6300 Antenna & Clip on Laptop Copyright 2002 MeshNetworks Inc 5 All Rights Reserved Company Confidential

FCC Label Sample for WMC6300

WMC6300 FCC Label Location Copyright 2002 MeshNetworks Inc 1 All Rights Reserved Company Confidential

MWR6300 PCMCIA Top Side MWR6300 PCMCIA Bottom Side Copyright 2002 MeshNetworks Inc 1 All Rights Reserved Company Confidential MWR6300 PCMCIA Adapter Card Top Side MWR6300 PCMCIA Adapter Card Bottom Side Copyright 2002 MeshNetworks Inc 2 All Rights Reserved Company Confidential MWR6300 PCMCIA Adapter card & Power Supply MWR6300 PCMCIA Adapter card & Power Supply with PCMCIA Card Copyright 2002 MeshNetworks Inc 3 All Rights Reserved Company Confidential

SAR EVALUATION CERTIFICATE OF COMPLIANCE FCC ID: QJEWMC63000303 APPLICANT: MeshNetworks Inc. EUT: WMC 6300 PCMCIA card Date of Receipt:April 12, 2003 Device Category:Part 15 C RF exposure environment:Uncontrolled RF exposure category:Portable Power supply:Powered by Battery and AC/DC adaptor Antenna:Detachbale external Production/prototype:Identical Prototype Measured Standards:Oet 65 Supplement C ( Edition 01-01 ) Modulation:DSSS Crest Factor:DSSS = 1 TX Range:2.4 12– 2.472 GHz RX Range:2.4 12– 2.472 GHz Used TX Channels:Low: ch. 2412 MHzCenter: ch 2452MHzHigh: ch. 2472MHz Maximum RF Power Output:0.2W Conducted Maximum SAR Measurement (averaged over: 1g) 1.423 W/kg Body Len Knight EMC Lab Manager APPLICANT NAME AND ADDRESS: DATE OF TEST:April 18-30, 2003 MeshNetworks Inc. TEST LOCATION:MET LABORATORIES 485 Keller Road Suite 250 914 West Patapsco Ave. Maitland, FL 32751 Baltimore, Maryland 21230 This wireless portable device has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-200X (July 2001), and has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1 - 1992. I attest to the accuracy of this data. All reported measurements were performed by me, or were made under my supervision, and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. I also certify that no party to this application has been denied the FCC benefits pursuant to Section 5.301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. MeshNetworks Inc.WMC 6300 PCMCIA card FCC ID: QJEWMC63000303 April 18-30, 2003 EMC13694-SARCopyright 2003, MET Laboratories, Inc.Page 2 of 128 May 12, 2003 MeshNetworks Inc. 485 Keller Road Suite 250 Maitland, FL 32751 Reference:WMC 6300 PCMCIA card FCC ID: QJEWMC63000303 Dear Ms. Rosalie Bibona: Enclosed is the EMC SAR Evaluation Report for the WMC 6300 PCMCIA card FCCID:QJEWMC63000303 was tested in accordance with the measurement procedures specified in FCC OET 65 Supplement C:01-01 and shown to be capable to be in compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in FCC OET 65 Supplement C:01-01. Thank you for using the testing services of MET Laboratories. If you have any questions regarding these results or if MET can be of further assistance to you, please feel free to contact me. We appreciate your business and look forward to working with you again soon. Kindest Regards, MET LABORATORIES, INC. Marianne T. Bosley EMC Administrator Enclosures: DOCTEM-23 Jan 02 Certificates and reports shall not be reproduced except in full, without the written permission of MET Laboratories, Inc. The Nation’s First Licensed Nationally Recognized Testing Laboratory MeshNetworks Inc.WMC 6300 PCMCIA card FCC ID: QJEWMC63000303 April 18-30, 2003 EMC13694-SARCopyright 2003, MET Laboratories, Inc.Page 3 of 128 Dosimetric Assessment Test Report for the MeshNetworks Inc. WMC 6300 PCMCIA card Tested and Evaluated In Accordance With FCC OET 65 Supplement C:01-01 MET REPORT: EMC13694-SAR April 18-30, 2003 PREPARED FOR: MeshNetworks Inc. 485 Keller Road Suite 250 Maitland, FL 32751 PREPARED BY: MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, Maryland 21230-3432 MeshNetworks Inc.WMC 6300 PCMCIA card FCC ID: QJEWMC63000303 April 18-30, 2003 EMC13694-SARCopyright 2003, MET Laboratories, Inc.Page 4 of 128 Dosimetric Assessment TEST REPORT for the MeshNetworks Inc. WMC 6300 PCMCIA card Tested and Evaluated In Accordance With FCC OET Supplement C: 01-01 Prepared for MeshNetworks Inc. 485 Keller Road Suite 250 Maitland, FL 32751 Report Prepared By Marianne T. Bosley EMC ADMINISTRATOR Report Reviewed By Liming Xu TEST ENGINEER Final Review By EMC LAB MANAGER Len Knight EMC LAB MANAGER Engineering Statement: The measurements shown in this report were made in accordance with the procedures specified in Supplement C to OET Bulletin 65 of the Federal Communications Commission (FCC) Guidelines [FCC 2001] for uncontrolled exposure. I assume full responsibility for the accuracy and completeness of these measurements, and for the qualifications of all persons taking them. It is further stated that upon the basis of the measurements made, the equipment evaluated is capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992.  MeshNetworks Inc. WMC6300 PCMCIA card FCC ID: QJEWMC63000303 April 18-30, 2003 EMC13694-SARCopyright 2003, MET Laboratories, Inc.Page 5 of 128 Quick Links • Summary of test Report • EUT Description • Test Conditions • Host Laptops Used • System Validation • SAR results summary • SAR Area Scans • Setup Pictures • Measurement System  MeshNetworks Inc. WMC6300 PCMCIA card FCC ID: QJEWMC63000303 April 18-30, 2003 EMC13694-SARCopyright 2003, MET Laboratories, Inc.Page 6 of 128 OBJECTIVE The objective of the procedure was to perform a dosimetric assessment for the multiple hosts ( Three PDAs and Laptops). The measurements have been carried out with the dosimetric assessment system “SARA2", and were made according to the Supplement C to OET Bulletin 65 of the Federal Communications Commission (FCC) Guidelines [FCC 2001] for evaluating compliance of mobile and portable devices with FCC limits for human exposure in the general population to radio frequency emissions. INTRODUCTION In the United States, the most recent FCC RF exposure criteria is documented in the publication OET 65 Supplement C Edition 01-01 [FCC 2001], which sets limits for human exposure to radio frequency electromagnetic fields in the frequency range 3kHz to 300GHz. The safety limits used for the environmental evaluation …

Text truncated - open the document above for the full version.

 MeshNetworks Inc. WMC6300 PCMCIA card FCC ID: QJEWMC63000303 April 18-30, 2003 EMC13694-SARCopyright 2003, MET Laboratories, Inc.Page 65 of 128 Test Position: Configuration 1 Per Test process Table 11 Test Date:April 24, 2003 Antenna Position:Attached Probe: IXP-050/SN 0122 – SARf (0.946,0.946,0.946) Probe Cal Date 10/10/2002 Med. Parameters: Body: εε r =52.9; σσ = 1.98 Pre Test Room Temp.24.2C Post Test Room Temp.24.4C Pre Test Simulant Liquid Temp.24.0C Post Test Simulant Liquid Temp. 24.6C CH 3Crest Factor=1 SAR Drift<5% SAR (1g) W/Kg0.553  MeshNetworks Inc. WMC6300 PCMCIA card FCC ID: QJEWMC63000303 April 18-30, 2003 EMC13694-SARCopyright 2003, MET Laboratories, Inc.Page 66 of 128 Test Position: Configuration 3 Per Test process Table 11 Test Date:April 24, 2003 Antenna Position:Attached Probe: IXP-050/SN 0122 – SARf (0.946,0.946,0.946) Probe Cal Date 10/10/2002 Med. Parameters: Body: εε r =52.9; σσ = 1.98 Pre Test Room Temp.24.2C Post Test Room Temp.24.4C Pre Test Simulant Liquid Temp.24.0C Post Test Simulant Liquid Temp. 24.6C CH 3Crest Factor=1 SAR Drift<5% SAR (1g) W/Kg0.871  MeshNetworks Inc. WMC6300 PCMCIA card FCC ID: QJEWMC63000303 April 18-30, 2003 EMC13694-SARCopyright 2003, MET Laboratories, Inc.Page 67 of 128 Test Position: Configuration 5 Per Test process Table 11 Test Date:April 24, 2003 Antenna Position:Attached Probe: IXP-050/SN 0122 – SARf (0.946,0.946,0.946) Probe Cal Date 10/10/2002 Med. Parameters: Body: εε r =52.9; σσ = 1.98 Pre Test Room Temp.24.2C Post Test Room Temp.24.4C Pre Test Simulant Liquid Temp.24.0C Post Test Simulant Liquid Temp. 24.6C CH 3Crest Factor=1 SAR Drift<5% SAR (1g) W/Kg0.812  MeshNetworks Inc. WMC6300 PCMCIA card FCC ID: QJEWMC63000303 April 18-30, 2003 EMC13694-SARCopyright 2003, MET Laboratories, Inc.Page 68 of 128 Test Position: Configuration 1 Per Test process Table 12 Test Date:April 24, 2003 Antenna Position:Attached Probe: IXP-050/SN 0122 – SARf (0.946,0.946,0.946) Probe Cal Date 10/10/2002 Med. Parameters: Body: εε r =52.9; σσ = 1.98 Pre Test Room Temp.24.1C Post Test Room Temp.24.2C Pre Test Simulant Liquid Temp.24.0C Post Test Simulant Liquid Temp. 24.4C CH 4Crest Factor=1 SAR Drift<5% SAR (1g) W/Kg0.517  MeshNetworks Inc. WMC6300 PCMCIA card FCC ID: QJEWMC63000303 April 18-30, 2003 EMC13694-SARCopyright 2003, MET Laboratories, Inc.Page 69 of 128 Test Position: Configuration 3 Per Test process Table 12 Test Date:April 24, 2003 Antenna Position:Attached Probe: IXP-050/SN 0122 – SARf (0.946,0.946,0.946) Probe Cal Date 10/10/2002 Med. Parameters: Body: εε r =52.9; σσ = 1.98 Pre Test Room Temp.24.1C Post Test Room Temp.24.2C Pre Test Simulant Liquid Temp.24.0C Post Test Simulant Liquid Temp. 24.4C CH 4Crest Factor=1 SAR Drift<5% SAR (1g) W/Kg0.790  MeshNetworks Inc. WMC6300 PCMCIA card FCC ID: QJEWMC63000303 April 18-30, 2003 EMC13694-SARCopyright 2003, MET Laboratories, Inc.Page 70 of 128 Test Position: Configuration 5 Per Test process Table 12 Test Date:April 24, 2003 Antenna Position:Attached Probe: IXP-050/SN 0122 – SARf (0.946,0.946,0.946) Probe Cal Date 10/10/2002 Med. Parameters: Body: εε r =52.9; σσ = 1.98 Pre Test Room Temp.24.1C Post Test Room Temp.24.2C Pre Test Simulant Liquid Temp.24.0C Post Test Simulant Liquid Temp. 24.4C CH 4Crest Factor=1 SAR Drift<5% SAR (1g) W/Kg0.695  MeshNetworks Inc. WMC6300 PCMCIA card FCC ID: QJEWMC63000303 April 18-30, 2003 EMC13694-SARCopyright 2003, MET Laboratories, Inc.Page 71 of 128 Test Position: Configuration 1 Per Test process Table 13 Test Date:April 30, 2003 Antenna Position:Attached Probe: IXP-050/SN 0122 – SARf (0.946,0.946,0.946) Probe Cal Date 10/10/2002 Med. Parameters: Body: εε r =52.9; σσ = 1.98 Pre Test Room Temp.24.1C Post Test Room Temp.24.0C Pre Test Simulant Liquid Temp.24.0C Post Test Simulant Liquid Temp. 24.3C CH 1Crest Factor=1 SAR Drift<5% SAR (1g) W/Kg1.032  MeshNetworks Inc. WMC6300 PCMCIA card FCC ID: QJEWMC63000303 April 18-30, 2003 EMC13694-SARCopyright 2003, MET Laboratories, Inc.Page 72 of 128 Test Position: Configuration 3 Per Test process Table 13 Test Date:April 30, 2003 Antenna Position:Attached Probe: IXP-050/SN 0122 – SARf (0.946,0.946,0.946) Probe Cal Date 10/10/2002 Med. Parameters: Body: εε r =52.9; σσ = 1.98 Pre Test Room Temp.24.1C Post Test Room Temp.24.0C Pre Test Simulant Liquid Temp.24.0C Post Test Simulant Liquid Temp. 24.3C CH 1Crest Factor=1 SAR Drift<5% SAR (1g) W/Kg1.003  MeshNetworks Inc. WMC6300 PCMCIA card FCC ID: QJEWMC63000303 April 18-30, 2003 EMC13694-SARCopyright 2003, MET Laboratories, Inc.Page 73 of 128 Test Position: Configuration 5 Per Test process Table 13 Test Date:April 30, 2003 Antenna Position:Attached Probe: IXP-050/SN 0122 – SARf (0.946,0.946,0.946) Probe Cal Date 10/10/2002 Med. Parameters: Body: εε r =52.9; σσ = 1.98 Pre Test Room Temp.24.1C Post Test Room Temp.24.0C Pre Test Simulant Liquid Temp.24.0C Post Test Simulant Liquid Temp. 24.3C CH 1Crest Factor=1 SAR Drift<5% SAR (1g) W/Kg0.696  MeshNetworks Inc. WMC6300 PCMCIA card FCC ID: QJEWMC63000303 April 18-30, 2003 EMC13694-SARCopyright 2003, MET Laboratories, Inc.Page 74 of 128 Test Position: Configuration 1 Per Test process Table 14 Test Date:April 30, 2003 Antenna Position:Attached Probe: IXP-050/SN 0122 – SARf (0.946,0.946,0.946) Probe Cal Date 10/10/2002 Med. Parameters: Body: εε r =52.9; σσ = 1.98 Pre Test Room Temp.24.1C Post Test Room Temp.24.0C Pre Test Simulant Liquid Temp.24.0C Post Test Simulant Liquid Temp. 24.3C CH 3Crest Factor=1 SAR Drift<5% SAR (1g) W/Kg0.810  MeshNetworks Inc. WMC6300 PCMCIA card FCC ID: QJEWMC63000303 April 18-30, 2003 EMC13694-SARCopyright 2003, MET Laboratories, Inc.Page 75 of 128 Test Position: Configuration 3 Per Test process Table 14 Test Date:April 30, 2003 Antenna Position:Attached Probe: IXP-050/SN 0122 – SARf (0.946,0.946,0.946) Probe Cal Date 10/10/2002 Med. Parameters: Body: εε r =52.9; σσ = 1.98 Pre Test Room Temp.24.1C Post Test Room Temp.24.0C Pre Test Simulant Liquid Temp.24.0C Post Test Simulant Liquid Te…

Text truncated - open the document above for the full version.

 MeshNetworks Inc. WMC6300 PCMCIA card FCC ID: QJEWMC63000303 April 18-30, 2003 EMC13694-SARCopyright 2003, MET Laboratories, Inc.Page 98 of 128 Figure S8. Setup Configuration 3 of table 7, 8 and 9 ( the EUT’s bottom-face is in parallel and in contact (0 cm) with the flat phantom)  MeshNetworks Inc. WMC6300 PCMCIA card FCC ID: QJEWMC63000303 April 18-30, 2003 EMC13694-SARCopyright 2003, MET Laboratories, Inc.Page 99 of 128 Figure S9. Setup Configuration 5 of table 7, 8 and 9 The EUT( center of antenna ) is perpendicular to phantom with recommended spacing of 1.5 cm.  MeshNetworks Inc. WMC6300 PCMCIA card FCC ID: QJEWMC63000303 April 18-30, 2003 EMC13694-SARCopyright 2003, MET Laboratories, Inc.Page 100 of 128 Figure S10. Setup Configuration 1 of table 10, 11 and 12 ( the EUT’s bottom-face is in parallel and in contact (0 cm) with the flat phantom)  MeshNetworks Inc. WMC6300 PCMCIA card FCC ID: QJEWMC63000303 April 18-30, 2003 EMC13694-SARCopyright 2003, MET Laboratories, Inc.Page 101 of 128 Figure S11. Setup Configuration 3 of table 10, 11 and 12 ( the EUT’s bottom-face is in parallel and in contact (0 cm) with the flat phantom)  MeshNetworks Inc. WMC6300 PCMCIA card FCC ID: QJEWMC63000303 April 18-30, 2003 EMC13694-SARCopyright 2003, MET Laboratories, Inc.Page 102 of 128 Figure S12. Setup Configuration 5 of table 10, 11 and 12 The EUT( center of antenna ) is perpendicular to phantom with recommended spacing of 1.5 cm.  MeshNetworks Inc. WMC6300 PCMCIA card FCC ID: QJEWMC63000303 April 18-30, 2003 EMC13694-SARCopyright 2003, MET Laboratories, Inc.Page 103 of 128 Figure S13. Setup Configuration 1 of table 13, 14 and 15 ( the EUT’s bottom-face is in parallel and in contact (0 cm) with the flat phantom)  MeshNetworks Inc. WMC6300 PCMCIA card FCC ID: QJEWMC63000303 April 18-30, 2003 EMC13694-SARCopyright 2003, MET Laboratories, Inc.Page 104 of 128 Figure S14. Setup Configuration 3 of table 13, 14 and 15 ( the EUT’s bottom-face is in parallel and in contact (0 cm) with the flat phantom)  MeshNetworks Inc. WMC6300 PCMCIA card FCC ID: QJEWMC63000303 April 18-30, 2003 EMC13694-SARCopyright 2003, MET Laboratories, Inc.Page 105 of 128 Figure S15. Setup Configuration 5 of table 13, 14 and 15 The EUT( center of antenna ) is perpendicular to phantom with recommended spacing of 1.5 cm.  MeshNetworks Inc. WMC6300 PCMCIA card FCC ID: QJEWMC63000303 April 18-30, 2003 EMC13694-SARCopyright 2003, MET Laboratories, Inc.Page 106 of 128 Figure S16. Setup Configuration 1 of table 16, 17 and 18 ( the EUT’s bottom-face is in parallel and in contact (0 cm) with the flat phantom)  MeshNetworks Inc. WMC6300 PCMCIA card FCC ID: QJEWMC63000303 April 18-30, 2003 EMC13694-SARCopyright 2003, MET Laboratories, Inc.Page 107 of 128 Figure S17. Setup Configuration 3 of table 16, 17 and 18 ( the EUT’s bottom-face is in parallel and in contact (0 cm) with the flat phantom)  MeshNetworks Inc. WMC6300 PCMCIA card FCC ID: QJEWMC63000303 April 18-30, 2003 EMC13694-SARCopyright 2003, MET Laboratories, Inc.Page 108 of 128 Figure S18. Setup Configuration 5 of table 16, 17 and 18 The EUT( center of antenna ) is perpendicular to phantom with recommended spacing of 1.5 cm.  MeshNetworks Inc. WMC6300 PCMCIA card FCC ID: QJEWMC63000303 April 18-30, 2003 EMC13694-SARCopyright 2003, MET Laboratories, Inc.Page 109 of 128 Measurement System  MeshNetworks Inc. WMC6300 PCMCIA card FCC ID: QJEWMC63000303 April 18-30, 2003 EMC13694-SARCopyright 2003, MET Laboratories, Inc.Page 110 of 128 Measurement System - SARA2 System Specification The SAR measurement system being used is the IndexSAR SARA2 system, which consists of a Mitsubishi RV-E2 6-axis robot arm and controller, IndexSAR probe and amplifier and SAM phantom Head Shape. The robot is used to articulate the probe to programmed positions inside the phantom head to obtain the SAR readings from the EUT. The system is controlled remotely from a PC, which contains the software to control the robot and data acquisition equipment. The software also displays the data obtained from test scans. Figure 9. Block Diagram of SARA 2 System The position and digitized shape of the phantom heads/flat baths are made available to the software for accurate positioning of the probe and reduction of set-up time. The SAM phantom heads/flat baths are individually digitized using a Mitutoyo CMM machine to a precision of 0.001mm. The data is then converted into a shape format for the software, providing an accurate description of the phantom shell. In operation, the system first performs an area (2D) scan at a fixed depth within the liquid from the inside wall of the phantom. When the maximum SAR point has been found, the system will then carry out a 3D scan centred at that point to determine volume averaged SAR level.  MeshNetworks Inc. WMC6300 PCMCIA card FCC …

Text truncated - open the document above for the full version.
