QJEWMC63000902Wireless Mobile Card

WMC6300 Wireless Modem Card User’s Guide Version 1.0 DRAFT DMM000001-01 Copyright 2002, MeshNetworks, Inc. All Rights Reserved WMC6300 Client User’s Guide Foreword This document describes in detail the confidential and proprietary technology of MeshNetworks’ ™ Architecture. MeshNetworks products and technology are protected by US and international patent and patent pending technology. This document represents the current design; the contents are subject to change at any time at the discretion of MeshNetworks, Inc. , MeshTray, and MeshNetworks’ logo are trademarks or registered trademarks of MeshNetworks, Inc. Microsoft, Windows, Windows 2000 and Windows CE are registered trademarks of Microsoft Corporation. All other product names and services identified throughout this publication are trademarks or registered trademarks of their respective companies. No such uses or the use of any trade name is intended to convey endorsement or other affiliation with this publication. Copyright 2002, MeshNetworks, Inc. All Rights Reserved. iii MeshNetworks iv WMC6300 Client User’s Guide Table of Contents ..........................................................................................................................................1 Introduction..........................................................................................................................1 System Requirements.........................................................................................................1 General System Requirements.........................................................................................1 What’s in the Box................................................................................................................. 2 INSTALLING THE SOFTWARE...................................................................................................3 Installing Software (Windows 2000 Clients Only) .................................................3 Configuring the DNS Address............................................................................................8 Installing the Antenna Assembly on a Laptop Computer................................................9 Installing the Magnetic Antenna Assembly (Optional)...................................................11 Installing the WMC6300 Wireless Modem Card..............................................................12 Removing the WMC6300 Wireless Modem Card.............................................................13 Uninstalling Application Software (Windows 2000 Clients Only) ................................14 OVERVIEW OF MESHNETWORKS’ MESHTRAY....................................................................15 MeshTray™......................................................................................................................... 15 MeshTray Status................................................................................................................16 Starting MeshTray..............................................................................................................16 Terminating MeshTray.......................................................................................................16 CUSTOMER SERVICE INFORMATION....................................................................................17 LICENSE AND WARRANTY INFORMATION ...........................................................................18 Important Information........................................................................................................18 REGULATORY INFORMATION ................................................................................................21 FCC Information.................................................................................................................21 FCC RF Radiation Exposure Statement...........................................................................21 Safety Information for the WMC6300....................................................................22 v MeshNetworks vi WMC6300 Client User’s Guide Introduction Thank you for purchasing the WMC6300 Wireless Modem Card. Please install the Application Software and Drivers before inserting the Wireless Modem Card in your system. To get started proceed to the Installing the Software section of this document. is a wireless communication system capable of supporting high data rate mobile communication at vehicular speeds. The system is designed to allow standard client hosts with a PCMCIA interface to have a mobile broadband Ethernet connection. The system works transparently to the client host in a manner similar to an Ethernet connection. provides Internet Protocol based data and location services. Its geo-location accuracy and availability is better than ±10 meters within 1 second. It is capable of supporting subscribers traveling up to 100 miles per hour. Figure 1. MeshLAN WMC6300 Wireless Modem Card The hoclientst may still require configuration and authentication before it will be allowed to access services on the core network. Access to the core network is controlled by the network administrator according to current operating practice. This document provides detailed installation and configuration instructions for use when installing the WMC6300 Wireless Modem Card and its Software. system pros a secure and reliable transport for the client hvideost. The System Requirements General System Requirements ure the computers meet the following minimum • Intel based Laptop or Notebook PC running the Microsoft Windows 2000 • rd disk storage drive or DVD drive d slot in the Host device For best results, ens requirements: operating systems 5 MB of available ha • Keyboard • Mouse • CD-ROM • Available Type II PCMCIA car 1 MeshNetworks What’s in theo Bx Each WMC6300 Wireless Modem Card is a full-featured wireless networking interface. The following is a list of the items provided with each WMC6300 card: • WMC …

Text truncated - open the document above for the full version.

WMC6300 Wireless Modem Card User’s Guide (Windows 2000) Version 1.1 DMM000001-03 Copyright 2002, MeshNetworks, Inc. All Rights Reserved WMC6300 Windows 2000 User’s Guide Foreword This document describes in detail the confidential and proprietary technology of MeshNetworks’ ™ Architecture. MeshNetworks products and technology are protected by US and international patent and patent pending technology. This document represents the current design; the contents are subject to change at any time at the discretion of MeshNetworks, Inc. , MeshTray, and MeshNetworks’ logo are trademarks or registered trademarks of MeshNetworks, Inc. Microsoft, Windows, Windows 2000, and Windows CE are registered trademarks of Microsoft Corporation. All other product names and services identified throughout this publication are trademarks or registered trademarks of their respective companies. No such uses or the use of any trade name is intended to convey endorsement or other affiliation with this publication. Copyright 2002, MeshNetworks, Inc. All Rights Reserved. iii MeshNetworks iv WMC6300 Windows 2000 User’s Guide Table of Contents ..........................................................................................................................................1 Introduction..........................................................................................................................1 System Requirements.........................................................................................................1 General System Requirements.........................................................................................1 What’s in the Box................................................................................................................. 2 WMC6300 External Connections and Lights.....................................................................3 INSTALLING THE SOFTWARE...................................................................................................4 Installing Software (Windows 2000 Clients Only).................................................4 Configuring the DNS Address............................................................................................8 Connect the Antenna Assembly (Laptop Computer).......................................................9 Connect the Magnetic Antenna Assembly (Optional)....................................................11 Insert the WMC6300 Wireless Modem Card....................................................................12 Removing the WMC6300 Wireless Modem Card.............................................................13 Uninstalling Application Software....................................................................................14 OVERVIEW OF MESHNETWORKS’ MESHTRAY....................................................................15 MeshTray™......................................................................................................................... 15 MeshTray Status................................................................................................................16 Starting MeshTray..............................................................................................................16 Terminating MeshTray.......................................................................................................16 CUSTOMER SERVICE INFORMATION....................................................................................17 LICENSE AND WARRANTY INFORMATION...........................................................................18 Important Information........................................................................................................18 REGULATORY INFORMATION................................................................................................20 FCC Information.................................................................................................................20 FCC RF Radiation Exposure Statement...........................................................................20 Safety Information for the WMC6300....................................................................21 v MeshNetworks vi WMC6300 Windows 2000 User’s Guide Introduction Thank you for purchasing the WMC6300 Wireless Modem Card. Please install the Application Software and Drivers before inserting the Wireless Modem Card in your system. To get started proceed to the Installing the Software section of this document. is a wireless communication system capable of supporting high data rate mobile communication at vehicular speeds. The system is designed to allow standard client hosts with a PCMCIA interface to have a mobile broadband Ethernet connection. The system works transparently to the client host in a manner similar to an Ethernet connection. provides Internet Protocol based data and location services. Its geo-location accuracy and availability is better than ±10 meters within 1 second. It is capable of supporting subscribers traveling up to 100 miles per hour. Figure 1. MeshLAN WMC6300 Wireless Modem Card The hoclientst may still require configuration and authentication before it will be allowed to access services on the core network. Access to the core network is controlled by the network administrator according to current operating practice. This document provides detailed installation and configuration instructions for use when installing the WMC6300 Wireless Modem Card and its Software. system pros a secure and reliable transport for the client hvideost. The System Requirements General System Requirements ure the computers meet the following minimum • Intel based Laptop or Notebook PC running the Microsoft Windows 2000 • rd disk storage drive or DVD drive d slot in the Host device For best results, ens requirements: operating systems 5 MB of available ha • Keyboard • Mouse • CD-ROM • Available Type II PCMCIA car 1 MeshNetworks What’s in theo Bx …

Text truncated - open the document above for the full version.

WMC6300 Wireless Modem Card User’s Guide (Windows 2000) Version 1.1 DMM000001-03 Copyright 2002, MeshNetworks, Inc. All Rights Reserved WMC6300 Windows 2000 Userís Guide Foreword This document describes in detail the confidential and proprietary technology of MeshNetworks’ ™ Architecture. MeshNetworks products and technology are protected by US and international patent and patent pending technology. This document represents the current design; the contents are subject to change at any time at the discretion of MeshNetworks, Inc. , MeshTray, and MeshNetworks’ logo are trademarks or registered trademarks of MeshNetworks, Inc. Microsoft, Windows, Windows 2000, and Windows CE are registered trademarks of Microsoft Corporation. All other product names and services identified throughout this publication are trademarks or registered trademarks of their respective companies. No such uses or the use of any trade name is intended to convey endorsement or other affiliation with this publication. Copyright 2002, MeshNetworks, Inc. All Rights Reserved. iii MeshNetworks iv WMC6300 Windows 2000 Userís Guide Table of Contents ..........................................................................................................................................1 Introduction..........................................................................................................................1 System Requirements.........................................................................................................1 General System Requirements.........................................................................................1 Whatís in the Box................................................................................................................. 2 WMC6300 External Connections and Lights.....................................................................3 INSTALLING THE SOFTWARE...................................................................................................4 Installing Software (Windows 2000 Clients Only).................................................4 Configuring the DNS Address............................................................................................8 Connect the Antenna Assembly (Laptop Computer).......................................................9 Connect the Magnetic Antenna Assembly (Optional)....................................................11 Insert the WMC6300 Wireless Modem Card....................................................................12 Removing the WMC6300 Wireless Modem Card.............................................................13 Uninstalling Application Software....................................................................................14 OVERVIEW OF MESHNETWORKSí MESHTRAY....................................................................15 MeshTrayô......................................................................................................................... 15 MeshTray Status................................................................................................................16 Starting MeshTray..............................................................................................................16 Terminating MeshTray.......................................................................................................16 CUSTOMER SERVICE INFORMATION....................................................................................17 LICENSE AND WARRANTY INFORMATION...........................................................................18 Important Information........................................................................................................18 REGULATORY INFORMATION................................................................................................20 FCC Information.................................................................................................................20 FCC RF Radiation Exposure Statement...........................................................................20 Safety Information for the WMC6300....................................................................21 v MeshNetworks vi WMC6300 Windows 2000 Userís Guide Introduction Thank you for purchasing the WMC6300 Wireless Modem Card. Please install the Application Software and Drivers before inserting the Wireless Modem Card in your system. To get started proceed to the Installing the Software section of this document. is a wireless communication system capable of supporting high data rate mobile communication at vehicular speeds. The system is designed to allow standard client hosts with a PCMCIA interface to have a mobile broadband Ethernet connection. The system works transparently to the client host in a manner similar to an Ethernet connection. provides Internet Protocol based data and location services. Its geo-location accuracy and availability is better than ±10 meters within 1 second. It is capable of supporting subscribers traveling up to 100 miles per hour. Figure 1. MeshLAN WMC6300 Wireless Modem Card The hoclientst may still require configuration and authentication before it will be allowed to access services on the core network. Access to the core network is controlled by the network administrator according to current operating practice. This document provides detailed installation and configuration instructions for use when installing the WMC6300 Wireless Modem Card and its Software. system pros a secure and reliable transport for the client hvideost. The System Requirements General System Requirements ure the computers meet the following minimum • Intel based Laptop or Notebook PC running the Microsoft Windows 2000 • rd disk storage drive or DVD drive d slot in the Host device For best results, ens requirements: operating systems 5 MB of available ha • Keyboard • Mouse • CD-ROM • Available Type II PCMCIA car 1 MeshNetworks What’s in theo Bx …

Text truncated - open the document above for the full version.

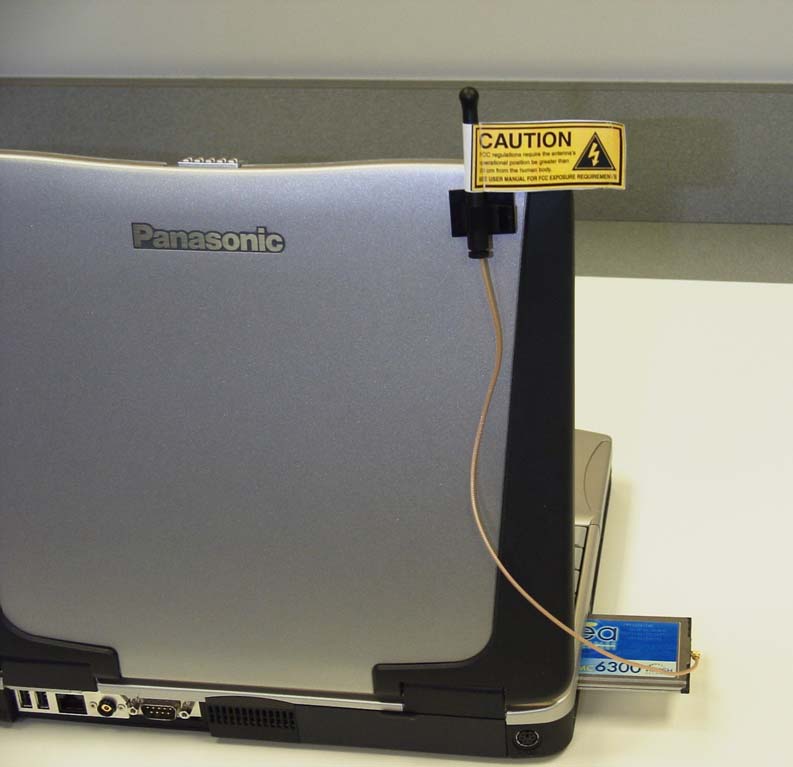

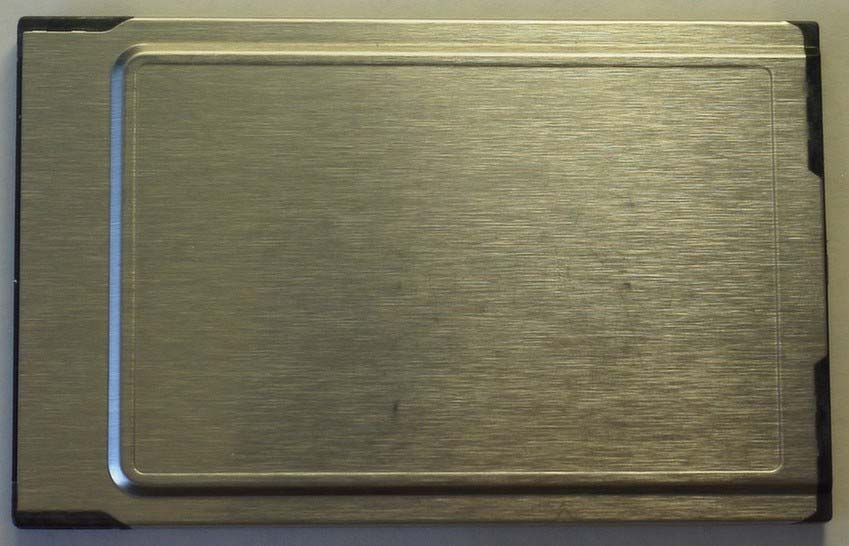

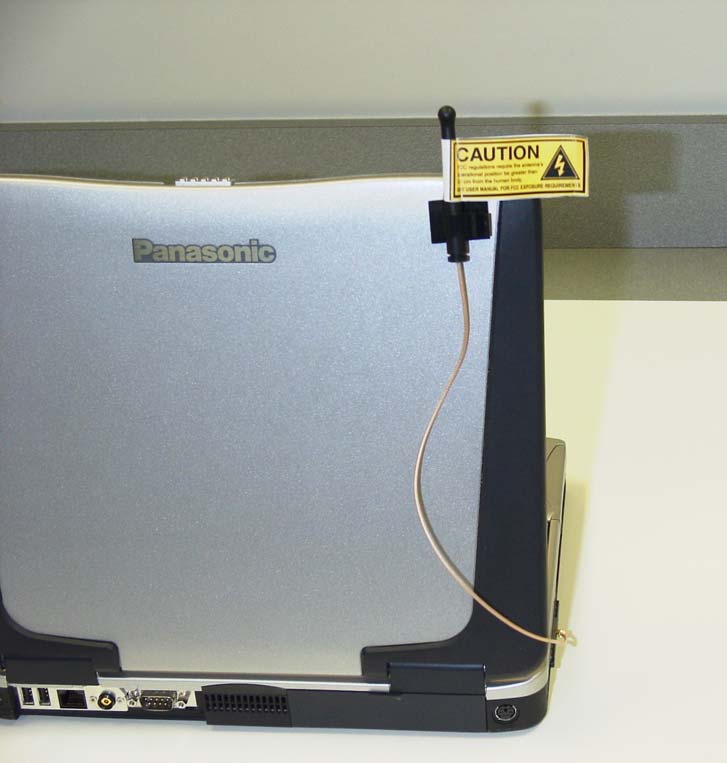

WMC6300 Top View WMC6300 Bottom View Copyright 2002 MeshNetworks Inc 1 All Rights Reserved Company Confidential WMC6300 PCMCIA Side View WMC6300 RF Port Side View Copyright 2002 MeshNetworks Inc 2 All Rights Reserved Company Confidential WMC6300 Antenna WMC6300 Antenna and Card Copyright 2002 MeshNetworks Inc 3 All Rights Reserved Company Confidential WMC6300 Antenna & Card in Laptop PCMCIA Slot Copyright 2002 MeshNetworks Inc 4 All Rights Reserved Company Confidential WMC6300 Antenna & Clip on Laptop Copyright 2002 MeshNetworks Inc 5 All Rights Reserved Company Confidential

WMC6300 FCC Label Location

WMC6300 FCC Label Sample

WMC6300 PCMCIA Top Side WMC6300 PCMCIA Bottom Side WMC6300 PCMCIA Top Side – No Shield WMC6300 PCMCIA Top Side WMC6300 PCMCIA Bottom Side Copyright 2002 MeshNetworks Inc 1 All Rights Reserved Company Confidential

81 An ISO-9001 Registered Company Miniature Magnetic Mount - BMMG 2.4 GHz ISM Miniature Magnetic Mount Antenna Series The Mini-Mag antennas are among our most cost-effective, easy to install anten- na solutions. :eaturing 12 feet of integrated low-loss, high performance cable and a compact low profile design, these antennas are easy to install and can be used for fixed or mobile applications. The Mini-Mag antennas are available with a wide variety of connector options. General Specifications: Miniature Magnetic Mount Mobile Antenna Series Radiator Material: .062” diameter, stainless steel, black chrome finish Polarization: Vertical Bushing: Black chrome triple-plated brass Nominal Impedance: 50 Ohms Mount Method: Magnetic base Connector Options: Male BNC (part #BN) Male N (part #NCP with ML195 cable) Male N (part #UN with ML100 cable) :emale SMA (part #:SMA) Male SMA (part #MSMA) :emale SMA, reverse threaded (part #:SMART) Male SMA, reverse threaded (part #MSMART) Male TNC (part #C) Male Mini-UH: (part #PL) :emale :ME (part #::ME) :eatures and Benefits: • One piece construction that includes a magnet, whip and cable. :acilitates installation without the need to tune or purchase a separate mount. • Black coated whip assembly and machined polymer base. Inconspicuous appearance, less susceptible to theft or vandalism. • Low-loss cable. Provides maximum power to the antenna to help optimize system performance. The BMMG antennas feature a magnetic base that provides added mount flexibility for a variety of fixed or mobile applications. Mechanical Specifications Electrical Specifications #ledoMepyTlioC/doRthgieHelbaC *00042GMMBthgiartS)mm57.13("52.1A001RML)mm8281('6 *591LM00042GMMBthgiartS)mm57.13("52.1591RML)mm7563('21 *50042GMMBnepO/raenilirT)mm6.822("9A001RML)mm8281('6 *591LM50042GMMBnepO/raenilirT)mm6.822("9591RML)mm7563('21 .gniredronehwnoitporotcennocyficepsesaelP* #ledoMegnaRycneuqerRWSV mumixaM rewoPniaG *00042GMMBzHG484.2-004.21:5.1<sttaW61ytinU *591LM00042GMMBzHG484.2-004.21:5.1<sttaW61ytinU *50042GMMBzHG484.2-004.21:5.1<sttaW61iBd5 *591LM50042GMMBzHG484.2-004.21:5.1<sttaW61iBd5 .gniredronehwnoitporotcennocyficepsesaelP* ORDER (800) 323-9122 :AX (630) 372-8077 www.maxrad.com Specs and Patterns 10 190 20 200 30 210 40 220 50 230 60 240 70 250 80 260 90 270 100 280 110 290 120 300 130 310 140 320 150 330 160 340 170 350 1800 −30−30−25−25−20−20−15−15−10−10−5−500 BMMG2400 Elevation Cut

WMC6300 Quick Start Installation Guide (Windows 2000) Step 1 – Installing the Software 1. The kit contains (1) WMC6300 Wireless Modem Card, (1) Antenna, and (1) Antenna Clip as shown in the photo to the right. The kit also contains the WMC6300 Software and Documentation CD, which include an on-line version of the product documentation and the installation executables. Note: The Quick Start Installation Guide is intended for more experienced users. If you need additional information and instructions, please print out and review the WMC6300 Wireless Modem Card User’s Guide before proceeding with the installation process. 2. Insert the WMC6300 Software and Documentation CD into the computer’s CD- ROM drive. The setup program will be displayed. Note: If the installation program does not start automatically, open the Windows Start menu, click on Run, and then type d:setup.exe (where d is the letter of the CD-ROM drive) and click the “OK” button. 3. Follow the directions onscreen through the remainder of the software installation process. 4. When the software installation is complete, click on the “Finish” button. Step 2 – Installing the Antenna on a Laptop Computer 1. Locate the Antenna and insert the connector into the antenna port. Note: The connector will “snap” into place when fully inserted. 2. Locate the Antenna Clip and remove paper that protects the adhesive backing. 3. Attach the Antenna Clip to the back of the laptop computer display approximately 1/4 inch from the top corner of the display. Ensure that the location selected for the Antenna Clip will reach the WMC6300 with the provided cable length. WARNING The operational position of the Antenna must be greater than 20 cm from the human body and position the Antenna vertically so that it extends above the laptop when in use. Use only the MeshNetworks supplied antenna. Use of another antenna is prohibited and violates FCC regulations. This unit is not FCC certified for use in a PDA. Always eject card when not in use. See Other Side DMM000002-02 DMM000002-02 Installing the Antenna - Continued 4. Insert the Antenna into the Antenna Clip as shown in the following photograph. 5. When using the WMC6300, orient the Antenna vertically to maximize radio performance. WARNING Never Use the WMC6300 with the Antenna Removed from the Clip Never use the WMC6300 with the Antenna Disconnected from the Card. Never use the WMC6300 with the display in the closed position. Step 3 – Installing the WMC6300 Wireless Modem Card 1. When the Software installation is complete, locate an available Type II PCMCIA card slot in the computer. If necessary, remove the slot dust cover from the slot. 2. To ensure the correct orientation of the card is observed, insert the WMC6300 Wireless Modem Card into the computer’s PCMCIA card slot with the label side up as shown. CAUTION - Never force the card into the slot 3. The New Hardware Found Wizard is displayed. The “Install the software automatically (Recommended)” radio button should be selected. Click on “Next” to continue the installation process. 4. The “Hardware Installation” window is displayed to indicate that the software is not “Windows Logo tested....” Click on “Continue Anyway” to continue the installation process. 5. Follow the prompts through the remainder of the driver update to complete the software installation procedure. A Popup Window is displayed to indicate a successful connection to the network. For additional For information about solving difficulties in setting up your WMC6300, please see the Frequently Asked Questions in the support page at http://www.meshnetworks.com/. If you have read the WMC6300 User’s Guide, reviewed the FAQ, and made every effort to resolve installation or operation issues yourself and still require help, please contact your WMC6300 supplier for assistance.

Maximum Duty Cycle Rate (Mbps)Duty Cycle 1.5057.1% 3.0043.2%

ID: QJEWMC63000902 Created on 10/7/2002 10:29 AM Page 1 of 4 FCC RF Exposure Requirements 1. General information: FCCID: QJEWMC63000902 Device category: Mobile per Part 2.1091 Environment: General Population/Uncontrolled Exposure 2. Antenna: Antenna p/n Type/Connector Gain (dBi) Miniature Magnetic Mount Maxrad – BMMG24000 Omni/MMCX 0.0 Dipole – Centurion WCP2400MMCX12 ½ wave/MMCX 1.0 3. Operating configuration and exposure conditions: Antenna: Dipole – Centurion WCP2400MMCX12 The antenna is located at more than 20cm from the body during normal operation. ID: QJEWMC63000902 Created on 10/7/2002 10:29 AM Page 2 of 4 ID: QJEWMC63000902 Created on 10/7/2002 10:29 AM Page 3 of 4 Antenna: Vehicle operation - Miniature Magnetic Mount Maxrad – BMMG24000 The antenna is located at more than 20cm from any persons, including bystanders and passengers, during normal operation. MPE Calculation: The minimum separation distance is calculated as follows: The limit for general population/uncontrolled exposure environment above 1500MHz is 1mW/cm2 ID: QJEWMC63000902 Created on 10/7/2002 10:29 AM Page 4 of 4 Channel Frequency: 2432 MHz Antenna Gain (dBi) Antenna Gain (dBi) Separation Distance 0 1 Power EIRP (mW) Duty Cycle (%)* (in) (cm) (in) (cm) 141 100 <1.5 3.3 <1.5 3.8 80.5 57.1 1.0 2.5 <1.5 2.8 *The maximum duty cycle that can be used with this device is presented in a separate exhibit. Conclusion: The device complies with the MPE requirements by providing a safe separation distance between the antenna, including any radiating structure, and any persons.

ID: QJEWMC63000902 Created on 10/7/2002 10:29 AM Page 1 of 4 FCC RF Exposure Requirements 1. General information : FCCID: QJEWMC63000902 Device category: Mobile per Part 2.1091 Environment: General Population/Uncontrolled Exposure 2. Antenna: Antenna p/n Type/Connector Gain (dBi) Miniature Magnetic Mount Maxrad – BMMG24000 Omni/MMCX 0.0 Dipole – Centurion WCP2400MMCX12 ½ wave/MMCX 1.0 3. Operating configuration and exposure conditions: Antenna: Dipole – Centurion WCP2400MMCX12 The antenna is located at more than 20cm from the body during normal operation. ID: QJEWMC63000902 Created on 10/7/2002 10:29 AM Page 2 of 4 ID: QJEWMC63000902 Created on 10/7/2002 10:29 AM Page 3 of 4 Antenna: Vehicle operation - Miniature Magnetic Mount Maxrad – BMMG24000 The antenna is located at more than 20cm from any persons, including bystanders and passengers, during normal operation. MPE Calculation: The minimum separation distance is calculated as follows: The limit for general population/uncontrolled exposure environment above 1500MHz is 1mW/cm2 ID: QJEWMC63000902 Created on 10/7/2002 10:29 AM Page 4 of 4 Channel Frequency: 2432 MHz Antenna Gain (dBi) Antenna Gain (dBi) Power Density at 20 cm distance 0 1 Power (mW) Duty Cycle (%)* (mW/cm 2 ) (mW/cm 2 ) 160 100 0.03 0.04 91.4 57.1 0.02 0.02 *The maximum duty cycle that can be used with this device is presented in a separate exhibit. Conclusion: The device complies with the MPE requirements by providing a safe separation distance between the antenna, including any radiating structure, and any persons.

APPLICANT: MESH NETWORKS FCC ID: QJEWMC63000901 REPORT #: M/MeshNetworks\863UT2\863UT2TestReport.doc TABLE OF CONTENTS LIST APPLICANT: MESH NETWORKS FCC ID: QJEWMC63000902 TABLE OF CONTENTS TEST REPORT CONTAINING: PAGE 1.............LETTER OF EXPLANATION PAGE 2-4...........LIST OF TEST EQUIPMENT PAGE 5.............TEST PROCEDURES PAGE 6.............PRODUCT DESCRIPTION PAGE 7.............POWERLINE CONDUCTED INTERFERENCE PAGE 8-9...........POWERLINE CONDUCTED PLOTS PAGE 10............OCCUPIED BANDWIDTH AND POWER OUTPUT PAGE 11............6 dB BANDWIDTH PLOT PAGE 12............METHOD OF MEASURING RF CONDUCTED AND SPURIOUS EMISSIONS AT ANTENNA TERMINALS DATA PAGE 13-14.........RADIATION INTERFERENCE TEST DATA PAGE 15............METHOD OF MEASURING RADIATED SPURIOUS EMISS. PAGE 16............RADIATED SPURIOUS EMISSIONS INTO ADJACENT RESTRICTED BANDS PAGE 17-20.........BANDEDGE PLOTS PAGE 21............POWER SPECTRAL DENSITY PAGE 22............POWER SPECTRAL DENSITY PLOTS EXHIBIT ATTACHMENTS: EXHIBIT 1...........REQUEST FOR CONFIDENTIALITY LETTER EXHIBIT 2...........FCC ID LABEL SAMPLE EXHIBIT 3...........SKETCH OF FCC ID LABEL LOCATION EXHIBIT 4...........EXTERNAL PHOTOGRAPHS EXHIBIT 5...........INTERNAL PHOTOGRAPHS EXHIBIT 6...........BLOCK DIAGRAM EXHIBIT 7...........SCHEMATICS EXHIBIT 8...........USERS MANUAL EXHIBIT 9...........OPERATIONAL DESCRIPTION EXHIBIT 10..........ANTENNA SPECIFICATIONS EXHIBIT 11..........RF EXPOSURE AND MPE CALCULATIONS EXHIBIT 12..........TEST SETUP PHOTOGRAPHS EXHIBIT 13..........DUTY CYCLE CORRECTION FACTOR APPLICANT: MESH NETWORKS FCC ID: QJEWMC63000902 REPORT #: M/MeshNetworks\863UT2\863UT2TestReport.doc Page 1 of 22 October 4, 2002 Federal Commun…
