QK3-BT0001Notebook PC with Bluetooth transmitter

LIFEBOOK Operating Manual BLUETOOTH™ with Plugfree English Are there ... ... any technical problems or other questions which you would like to be clarified? Please contact: _ your sales partner _ your sales outlet Further information can be found in the "Safety" and "Warranty" manuals. The latest information on our products, tips, updates, etc., can be found on the internet under: http://www.fujitsu-siemens.com Published by Fujitsu Siemens Computers GmbH Order No.: A26391-K118-Z130-1-7619 Printed in the Federal Republic of Germany AG 0602 06/02 BLUETOOTH™ with Plugfree Operating Manual June 2002 edition The BLUETOOTH trademarks are the property of BLUETOOTH SIG, Inc., U.S.A. licensed for Fujitsu Siemens Computers GmbH. Microsoft, MS, MS-DOS, Windows, and Windows NT are registered trademarks of Microsoft Corporation. VESA and DPMS are trademarks of Video Electronics Standards Association. PS/2 is a registered trademark of International Business Machines, Inc. Pentium is a registered trademark of Intel Corporation, USA. All other trademarks referenced are trademarks or registered trademarks of their respective owners, whose protected rights are acknowledged. Copyright _ Fujitsu Siemens Computers GmbH 2002 All rights, including rights of translation, reproduction by printing, copying or similar methods, in part or in whole, are reserved. Offenders will be liable for damages. All rights, including rights created by patent grant or registration of a utility model or design, are reserved. Delivery subject to availability. Right of technical modification reserved. This manual was produced by cognitas. Gesellschaft für Technik-Dokumentation mbH www.cognitas.de A26391-K118-Z130-2-7619 Contents Introduction to wireless communication .......................................................................................1 Notational conventions ......................................................................................................................2 Important notes ...............................................................................................................................3 Safety ................3 CE marking........4 Selecting a location ...........................................................................................................................4 Producing readiness for operation ................................................................................................5 Installing BLUETOOTH device drivers...............................................................................................5 Plugfree software for BLUETOOTH...................................................................................................6 Installing the Plugfree software..................................................................................................7 Starting BLUETOOTH and Plugfree software ............................................................................8 Search for other BLUETOOTH devices .....................................................................................9 Establishing connection ...........................................................................................................10 Disconnecting connection........................................................................................................11 Ending Plugfree .......................................................................................................................11 Troubleshooting ............................................................................................................................13 Index...............15 Regulatory Compliance Statements A26391-K118-Z130-2-7619 1 Introduction to wireless communication With your notebook with an integrated BLUETOOTH™ module you can communicate wirelessly with other BLUETOOTH devices, e.g. with another notebook. This notebook with integrated BLUETOOTH is a Power Class 1 device, i.e. it has a maximum range of 100 meters. The range of the communication paths is shortened depending on the user environment (e.g. walls or furniture), building structure and output power class of the partner. BLUETOOTH supports many functions (Services), e.g. wireless printing of documents, accessing the Internet and transmitting or receiving data, e-mails and faxes. i However, please note that not every BLUETOOTH device can make use of all Services. Details are contained in the operating manual for your device. Technical information on wireless communication can be found on our website at www.fujitsu-siemens.com/wireless. This operating manual describes how to put BLUETOOTH into operation and install the related Plugfree software. Read through this manual carefully before you use BLUETOOTH for the first time. Familiarise yourself with the proper use of the technology. What must be observed when setting up the notebook and when operating notebooks with a radio connection is contained in the chapter "Important notes". You will find additional information in the manuals for your notebook, your operating system and the Plugfree online help. wireless communication Introduction to wireless communication Notational conventions 2 A26391-K118-Z130-2-7619 Notational conventions The meanings of the symbols and fonts used in this manual are as follows: ! Indicates information which is important for your health or for preventing physical damage. Failure to follow the instructions may lead to loss of data, invalidate your warranty, destroy the notebook, or endanger your life. i Indicates important information which is required to use the system properly. E Text which follows this symbol describes activities that must be performed in the order shown. Text in this typeface indicates screen outputs. Text in italics indicates program names, commands or menu items. "Quotation marks" indicate names of chapters, disks and other media and terms that are being emphasised. A26391-K118-Z130-2-7619 3 Important notes S…

Text truncated - open the document above for the full version.

UGXZ1-#### Block Diagram DAC LNA Demodulator ADC PA Clock generation Physical layer hardware engine DSP Burst mode controller Memory management unit RAM Memory mapped control / status USB Syncronous Serial Interface UART Audio PCM Interface Extended Memory Driver 18 16 Programmable PIO RISC micro- controller Interrupt controller Event timer RF Synthesizer /N/N+1 Fref Tune -45 +45 AUX DAC VDD_MEM VDD_PADS VDD_RADIO VDD_VCO VDD_ANA VDD_CORE VSS_MEM VSS_PADS VSS_PIO VSS_RADIO VSS_VCO VSS_ANA VSS_CORE X'tal (16MHz) 1.8V Voltage Regrlator Baseband and Logic Microcontroller RF Synthesizer RF Transmitter RF Receiver IQ Demod. IQ mod. RSSI 4Mb Flash ROM BlueCore TM 2-EXT Loop Filter UART_RxD (#19) UART_TxD (#20) UART_CTS (#21) UART_RTS (#22) PCM_CLK (#14) PCM_OUT (#15) PCM_SYNC (#16) PCM_IN (#17) SPI_CLK (TP) SPI_MISO (TP) SPI_MOSI (TP) SPI_CSB (TP) USB_D+ (#23) USB_D- (#24) PORT1 (#10) USB_WAKE (#9) VBUS_IN (#7) USB_DETACH (#8) PIO[2] PIO[3] PIO[4] PIO[5] UART_RX UART_TX UART_CTS UART_RTS PCM_CLK PCM_OUT PCM_SYNC PCM_IN SPI_CLK SPI_MISO SPI_MOSI SPI_CSB USB_D+ USB_D- PIO[6] PIO[7] PIO[8] PIO[9] PIO[10] PIO[11] PORT3 (#12) PORT2 (#11) Balun PA PIO[1]/TXEN AUX_DAC PIO[0]/RXEN ANT-SW RF-BPF RF IN/OUT (#5) VCC (#2) VDD (#3) RESET GND (#1, 6, 13, 18) RF front-end RESET (#4) ALPS PROPRIETARY INFORMATION CONFIDENTIAL REQUESTED Copyright (c) 2002 ALPS Electric Co., Ltd.

FUJITSU AUSTRALIA LIMITED ACN 001 011 427 5 Lakeside Drive Burwood East, Victoria 3151 Australia Tel (+61 3) 9845 4300 Fax (+61 3) 9845 4600 ENGINEERING SERVICES, TELECOMMUNICATIONS Federal Communications Commission Equipment Authorization Division Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21045 26 th March 2003 Reference:FCC ID: QK3-BT0001 Subject: Request for Confidentiality for FCC Certification Application - M030235_FCC_Ginger_BT Company:Fujitsu Australia Ltd Test Sample:Ginger Bluetooth device Product Type Low power transmitter (intentional radiator) Pursuant to Rule 47 CFR, Chapter 1, Section 0.457(d)(1)(ii), Fujitsu Australia Ltd, requests that prior to the equipment authorization grant for the LIFEBOOK Ginger Bluetooth device, the entire application be classified and deemed confidential by the Federal Communications Commission (FCC) and as such be withheld from public inspection. As per 47 CFR, Chapter 1, Section 0.457, the exhibits tendered for the purpose of this grant, contain details of trade secrets and technical data that is not made available to competitors and the general public. This information is treated in a confidential manner by Fujitsu Australia Ltd and guarded from disclosure to our competitors. The exhibits outlined below are not routinely made available Fujitsu Australia Ltd staff, with such access granted only to those specifically involved with this particular project. They contain information detailing the unique technology and circuitry of the product that would be of significant benefit to our competitors. All employees treat this technical data in a confidential manner. The manufacture of this product has taken place after an extensive research and development process that has seen the company invest a considerable amount of time and money. The time and effort taken has enabled the product to meet the specific demands of the competitive market for which it is intended and it would be therefore detrimental to allow competitors easy access to design and development details. Apart from a limited number of employees, the information has previously only been disclosed to the Test House responsible for conducting testing and authorized to act as our agent during the certification process. Pursuant to 47CFR Chapter 1, Section 0.459, Fujitsu Australia Ltd requests post-grant confidentiality for the following items, ensuring that this material continue to be withheld from public inspection following the grant of this authorization. Exhibit - PCB Layouts47 CFR 2.1033, Complete technical PCB Layouts Exhibit - Schematics47 CFR 2.1033, Complete technical schematic circuit diagrams Exhibit - Antenna InformationDetailed technical antenna information Sincerely Yours, ___________________ Praveen Rao Senior Compliance Engineer, Fujitsu Australia Ltd.

Response to TCB Findings Question: Please provide a confirmation from your client stating compliance to 15.247(a)(1) on the following issues - Each frequency is being used equally on the average by each transmitter. - System receivers have input bandwidths that match the hopping channel bandwidth of their corresponding transmitter. - System receivers have the ability to shift frequencies in synchronization with the transmitted signals. Response: Compliance confirmed by the manufacturer - The Bluetooth device is certified by a BTQB and hence meets these requirements. Question: Please provide a confirmation from your client stating the compliance to 15.247(g) and 15.257(h) Response: Compliance confirmed by the manufacturer - The Bluetooth device is certified by a BTQB and hence meets these requirements.

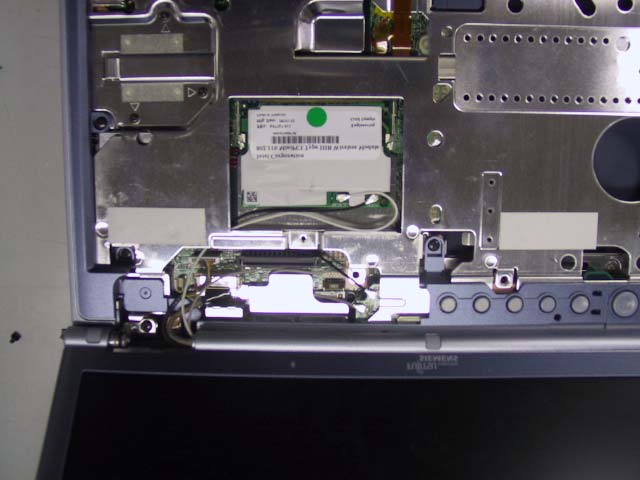

EMC Technologies Report Number : M030235_FCC_Ginger_BT Page 1 of 2 EMC Technologies Pty Ltd, 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com APPENDIX B3 Bluetooth & Antenna LOCATION Ginger Antenna BT module EMC Technologies Report Number : M030235_FCC_Ginger_BT Page 2 of 2 EMC Technologies Pty Ltd, 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emctech.com EUT Location BT module

EMC Technologies Report No. M030235_FCC_Ginger_BT Page 1 of 2 APPENDIX E FCC ID LABELLING DETAILS APPR. CHECK DATE EDIT FMV WORD FDCC-4967-2 2001.3 TITLE 1 CUST DESIG. DESCRIPTION DESIG. CHECK APPR. DRAW. NO. 15 54g Wireless LAN Card (Mini PCI for 11ch) Purchase Specification L0CP024081-XX FUJITSU LIMITED S H E E T The label is printed on Mylar material and fixed to the unit FCC ID: QK3-BT0001 IC-337H-BT0001 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation Bottom Panel of the Notebook LABEL LCD Screen side

EMC Technologies Report No. M030235_FCC_Ginger_BT Page 1 of 2 APPENDIX E FCC ID LABELLING DETAILS APPR. CHECK DATE EDIT FMV WORD FDCC-4967-2 2001.3 TITLE 1 CUST DESIG. DESCRIPTION DESIG. CHECK APPR. DRAW. NO. 15 54g Wireless LAN Card (Mini PCI for 11ch) Purchase Specification L0CP024081-XX FUJITSU LIMITED S H E E T The label is printed on Mylar material and fixed to the unit FCC ID: QK3-BT0001 IC-337H-BT0001 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation Bottom Panel of the Notebook LABEL LCD Screen side

EMC Technologies Report No. M030235_FCC_Ginger_BT Page 1 of 6 APPENDIX K GINGER SPECIFICATIONS 1 GENERAL 1-1 Purpose and Scope of this document This document contains the specifications pertinent to the module for Bluetooth™ system, which comply with BLUETOOTH™ Specifications Version 1.1. This document specifies and describes General, Mechanical, Electrical, Software and Reliability specifications and aspects for ALPS Bluetooth TM Module ver2. 1-2 Product Overview ALPS Bluetooth™ Module contains complete radio part and base band controller section (16bits RISC processor, RAM and Flash memory). Also, high accuracy reference oscillator and sub clock for extremely low power management are built in. Protocol software is already downloaded into integrated Flash memory and interfaces to HCI layer of upper layer protocol stack on an appropriate host system. ALPS Bluetooth™ Module permits standard operating conditions according to the following table and will perform typical features described on the second table. 1-2-1 Standard Operating Conditions Items Conditions Operating Temperature Nominal: +15 °C to +35 °C Extreme: -20°C to +75 °C Operable Temperature -20°C to +75 °C Storage Temperature -30 °C to +85 °C Supply Voltage ; VCC Nominal: +3.3 V Extreme: +3.3 V ± 0.1 V Absolute Maximum Ratings Supply Voltage VCC : -0.4V ~ +3.6V 1-2-2 Features List Features Contents Power level +20 dBm Max. Program memory 4M bits (256k bytes x 16 bits) Flash RAM 32k bytes x 16 bits Reference oscillator Built in Sub clock oscillator Built in Audio interface PCM A-Law, μ-Law (CVSD) USB interface USB (v1.1 : OHCI and UHCI) Physical connection SMD (solder ball bump array) EMC Technologies Report No. M030235_FCC_Ginger_BT Page 2 of 6 1-3 Radio part Bluetooth™ Module has fully integrated 2.4GHz radio transceiver with Class1 power amplifier, receiver and frequency-hopping synthesizer. In order to facilitate power management, each section of the radio may be powered up and down separately. Various software controllable switches have been implemented to control power to the transmitter, the frequency synthesizer/VCO, the receiver and the LNA. 1-4 Base band part Bluetooth™ Module contains link controller, which performs all the real-time functions of the Bluetooth™ baseband protocol layer, including data transfer and connection management. The device also controls states of operation enables sniff, park and hold modes of operation. Real-time functions such as frequency-hopping burst timing and clock synchronization are also implemented in this hardware. Further processing is required to format the data into the Bluetooth™ packet format before it may be applied to the GFSK modulator. On the receive side the controller performs error correction and de-scrambling before de-packetizing the incoming payload and storing it in RX buffers. The link controller hardware also implements the basic, repetitive actions of paging, inquiry, page or inquiry scans and the general Bluetooth™ modes of park and sniff. This ensures that the processor used to implement the Link Manager and other lower layer protocol can be kept inactive. Also base band contains the following functionality. 1-4-1 FEC – Forward Error Correction FEC provides the ability to correct any errors, which might have occurred during the transmission of the original data. FEC rate of 1/3, 2/3, and Automatic Repeat Request (ARQ) are implemented. 1-4-2 Whiten / De-whiten – Scramble/Unscramble Whitening/Scramble refers to the addition of randomized data to avoid any undesirable DC bias effects in the transfer of data packets. De-whitening/Unscramble is the reversal of the original process where the original data can be extracted. 1-4-3 Encrypt/Decrypt – Apply/Remove Encryption Encryption is the security feature where keys are used to prevent the access of data to unauthorized sources. This functional block is responsible for the processing of authentication and key management functions required by Bluetooth™ 1-4-4 CRC – Cyclic Redundancy Check This is the error detection function implemented to process the CRC field within the payload section of a Bluetooth™ transfer packet. On the receive side, the CRC is checked with the expected value based on EMC Technologies Report No. M030235_FCC_Ginger_BT Page 3 of 6 algorithms. On the transmit, and proper CRC is generated to and appended to the payload. 1-4-5 HEC – Header Error Correction This is the error correction function implemented dealing with the 8-bit HEC field of the Bluetooth™ packet header as specified in Version 1.1 spec. 1-5 Attention for FAA (Federal Aviation Association) compliance FAA proposal is to restrict use of any wireless devices during entire flight. This restriction is applied for also Bluetooth™ as well. Customer must implements disable switch of Bluetooth™ functionality by hardware or software. Module contains disable and enable radio over extended HCI commands, which shall be implemented into application software for any products, which might be carried out to airplane. 1-6 LIFE SUPPORT APPLICATIONS This product is not designed for use in life support appliances, devices or systems where malfunction of this product can reasonably be expected to result in personal injury. ALPS customers using or selling this product for use in such applications do so at their own risk and agree to fully indemnify ALPS for any damages resulting from such improper use or sale. 2 RADIO PART (RF) SPECIFICATIONS All RF specification items below are specified in accordance with Bluetooth TM RF Test Specification Revision 0.91 dated on 2001-Jul-02 and corresponding Critical Erratum. 2-1 Common Physical Layer Specifications Operating Frequency 2402 MHz to 2480 MHz Carrier Spacing 1.0 MHz Channel 79 Duplexing TDD Symbol Rate 1 Mbps Modulation Method GFSK BbT = 0.5 Reference Oscillator 16MHz (built in) RF input and output impedance Nominal 50 ohm EMC Technologies Report No. M030235_FCC_Ginger_BT Page 4 of 6 2-2 TX Specifications Spec.…

Text truncated - open the document above for the full version.

Page 1 of 27 EMI TEST REPORT for CERTIFICATION to FCC PART 15.247 and RSS-210 FCC ID: QK3-BT0001 Industry Canada ID: IC-337H-BT0001 Test Sample: LIFEBOOK Ginger Bluetooth Tested for: Fujitsu Australia Ltd Report Number: M030235R_FCC_Ginger_BT (Replacement for Report Number M030235_FCC_Ginger_BT) Issue Date: 9 th April 2003 EMC Technologies Pty Ltd reports apply only to the specific samples tested under stated test conditions. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. EMC Technologies Pty Ltd shall have no liability for any deductions, inferences or generalisations drawn by the client or others from EMC Technologies Pty Ltd issued reports. This report shall not be used to claim, constitute or imply product endorsement by EMC Technologies Pty Ltd. The tests, calibrations or measurements covered by this document have been performed in accordance with NATA requirements which include the requirements of ISO/IEC 17025 and are traceable to national standards of measurement. This document shall not be reproduced, except in full. NATA Accredited Laboratory Number: 5292 EMC Technologies Pty Ltd ABN 82 057 105 549 57 Assembly Drive Tullamarine Victoria Australia 3043 Ph: + 613 9335 3333 Fax: + 613 9338 9260 email: [email protected] FCC ID: QK3-BT0001 Report No. M030235R_FCC_Ginger_BT Page 2 of 27 This Laboratory is accredited by the National Association of Testing Authorities, Australia. The tests reported herein have been performed in accordance with its terms of accreditation for FCC Part 15.This document shall not be reproduced, except in full. EMI TEST REPORT FOR CERTIFICATION to FCC Part 15.247/RSS-210 EMC Technologies Report No. M030235R_FCC_Ginger_BT Issue Date: 9 th April 2003 CONTENTS 1.0 SUMMARY of TEST RESULTS 2.0 GENERAL INFORMATION 3.0 TEST CONFIGURATION 4.0 CONDUCTED EMI MEASUREMENTS 5.0 RADIATED EMI MEASUREMENTS 6.0 COMPLIANCE STATEMENT APPENDIX A: MEASUREMENT INSTRUMENT DETAILS APPENDIX B: TEST SAMPLE PHOTOGRAPHS APPENDIX C: EUT BLOCK DIAGRAM APPENDIX D: EUT RADIO SPECIFICATIONS APPENDIX E: FCC ID LABELLING APPENDIX F: TEST SAMPLE SCHEMATICS APPENDIX G: PCB LAYOUTS APPENDIX H: GRAPHS of EMI MEASUREMENTS APPENDIX I: CHANNEL BANDWIDTH PLOTS APPENDIX J: ANTENNA INFORMATION (MONOPOLE) APPENDIX K: GINGER SPECIFICATION APPENDIX L: USER MANUAL FCC ID: QK3-BT0001 Report No. M030235R_FCC_Ginger_BT Page 3 of 27 This Laboratory is accredited by the National Association of Testing Authorities, Australia. The tests reported herein have been performed in accordance with its terms of accreditation for FCC Part 15.This document shall not be reproduced, except in full. EMI TEST REPORT FOR CERTIFICATION to FCC PART 15.247 and RSS 210 Report Number: M030235R_FCC_Ginger_BT Test Sample: LIFEBOOK Ginger Bluetooth FCC ID: QK3-BT0001 Industry Canada ID: IC-337H-BT0001 LifeBook Manufacturer: Fujitsu Ltd. Tested for: Fujitsu Australia Ltd Address: 5 Lakeside Drive, Burwood East, VIC 3151 Australia Phone: +613 9845 4300 Fax: +613 9845 4600 Responsible Party: Mr Praveen Rao Senior Compliance Engineer Equipment Type: Intentional Radiator (Transmitter) Test Standards: FCC Part 15, Subpart C - Intentional Radiators FCC Part 15.247 2400 - 2483.5 MHz Operation Band FCC Part 15.205 Operation in Restricted Bands FCC Part 15.207 Conducted Emissions FCC Part 15.209 Radiated Emissions ANSI C63.4-1992 OET Bulletin No. 63 RSS 210 Issue 5 Low Power Licence-Exempt RadioCommunication Devices 6.2.2 (o) 2400 – 2483.5 MHz Spread Spectrum Devices Test Dates: 3 rd - 27 th March 2003 Test Officers: _____________ Chieu Huynh B. Eng (Hons) Kevin Hansen Assoc. Diploma (Electronics) Steven Kolar B. Eng Attestation: I hereby certify that the device(s) described herein were tested as described in this report and that the data included is that which was obtained during such testing. Authorised Signature: _________________ Chris Zombolas Technical Director EMC Technologies Pty Ltd FCC ID: QK3-BT0001 Report No. M030235R_FCC_Ginger_BT Page 4 of 27 This Laboratory is accredited by the National Association of Testing Authorities, Australia. The tests reported herein have been performed in accordance with its terms of accreditation for FCC Part 15.This document shall not be reproduced, except in full. EMI TEST REPORT FOR CERTIFICATION to FCC PART 15.247 and RSS-210 1.0 INTRODUCTION This report details the results of EMI tests and measurements performed on LifeBook Ginger Bluetooth, in accordance with the Federal Communications Commission (FCC) regulations as detailed in Title 47 CFR, Part 15 Subpart C Rules for intentional radiators, particularly Section 15.247 (Operation in the frequency band 2400 - 2483.5 MHz). The results and technical details of the test sample are detailed in this report. The test sample complies with the requirements of 47 CFR, Part 15 Subpart C - Radio Frequency Devices (intentional radiators), Section 15.247. It also complies with the Industry Canada RSS-210 issue 5 (Low Power Licence-Exempt Radiocommunication Devices (All Frequency Bands)) clauses 6.2.2(o) requirements. 1.1 Summary of Results FCC Part 15, Subpart C Clauses Industry Canada RSS-210 Clauses Test Performed Result 15.203 5.5 Antenna Requirement Not Applicable Integral antenna 15.205 6.3 Operation in Restricted Bandwidth Complies 15.207 6.6 Conducted Emissions Complies 15.209 6.3 Radiated Emissions Complies 15.247 (a)(1)&(3) 6.2.2(o)(ii) Channel Occupancy/Bandwidth Complies 15.247 (b)(1) 6.2.2(o)(b) Peak Output Power Complies 15.247 (b)(5) Radio Frequency Hazard Complies 15.247 (c) 6.2.2(o)(e1) Out of Band Transmissions Complies The measurement procedure used was in accordance with ANSI C63.4-1992 and OET Bulletin No. 96-43. The instrumentation conformed to the requirements of ANSI C63.2-1987. 1.2 Modifications by EMC Technologies No modifications were required. FCC ID: QK3-BT0001 Report No. M030235R_FCC_Ginger_BT Page 5 of 27 This …

Text truncated - open the document above for the full version.

FCC ID: QK3-BT0001 Report No. M030235R_FCC_Ginger_BT Page 11 of 27 This Laboratory is accredited by the National Association of Testing Authorities, Australia. The tests reported herein have been performed in accordance with its terms of accreditation for FCC Part 15.This document shall not be reproduced, except in full. 4.3.1 Frequency Band: 1 – 25 GHz All recorded emissions complied with the FCC average limit by a margin of greater than 20 dB. No harmonics were recorded within the restricted bands of up to 25 GHz. Harmonics were below the limit in section 15.209. The measurement uncertainty for radiated emissions in this band was ± 4.1 dB. Frequency Level Limit Antenna Detector Bandwidth Result MHz dBuV/m dBuV/m (dB) Pol 2402 88.80 - Vert peak 100 kHz Pass 4804 - 54.0 Vert/Hort average 1 MHz Pass 7206 - 54.0 Vert/Hort average 1 MHz Pass 9608 - (-20.0) Vert/Hort peak 100 kHz Pass 12010 - 54.0 Vert/Hort average 1 MHz Pass 14412 - (-20.0) Vert/Hort peak 100 kHz Pass 16814 - 54.0 Vert/Hort average 1 MHz Pass 19216 - 54.0 Vert/Hort average 1 MHz Pass 21618 - (-20.0) Vert/Hort peak 100 kHz Pass 24020 - 54.0 Vert/Hort average 1 MHz Pass Frequency Level Limit Antenna Detector Bandwidth Result MHz dBuV/m dBuV/m (dB) Pol 2441 89.19 - Vert peak 100 kHz Pass 4882 - 54.0 Vert/Hort average 1 MHz Pass 7323 - 54.0 Vert/Hort average 1 MHz Pass 9764 - (-20.0) Vert/Hort peak 100 kHz Pass 12205 - 54.0 Vert/Hort average 1 MHz Pass 14646 - (-20.0) Vert/Hort peak 100 kHz Pass 17087 - 54.0 Vert/Hort average 1 MHz Pass 19258 - 54.0 Vert/Hort average 1 MHz Pass 21969 - (-20.0) Vert/Hort peak 100 kHz Pass 24410 - 54.0 Vert/Hort average 1 MHz Pass Frequency Level Limit Antenna Detector Bandwidth Result MHz dBuV/m dBuV/m (dB) Pol 2480 88.84 - Vert peak 100 kHz Pass 4960 - 54.0 Vert/Hort average 1 MHz Pass 7440 - 54.0 Vert/Hort average 1 MHz Pass 9920 - (-20.0) Vert/Hort peak 100 kHz Pass 12400 - 54.0 Vert/Hort average 1 MHz Pass 14880 - (-20.0) Vert/Hort peak 100 kHz Pass 17360 - 54.0 Vert/Hort average 1 MHz Pass 19840 - 54.0 Vert/Hort average 1 MHz Pass 22320 - 54.0 Vert/Hort peak 100 kHz Pass 24800 - 54.0 Vert/Hort average 1 MHz Pass Result: Complies

EMC Technologies Pty. Ltd. - Global Product CertificationFCC Class B Job No:M030235 Test Date: 03/03/03 GRAPH No. 1 r:\pcf\M030235F_1.PCF Melbourne- 57 Assembly Drv Tullamarine, 3043, Vic, Australia Ph+(613) 9335 3333 Fax+(613) 9338 9260Sydney---- 16,6 Gladstone Rd Castle Hill, 2154, NSW, Australia Ph+(612) 9899 4599 Fax+(612) 9899 4019Fujitsu Australia Limited Lifebook - Ginger Conducted Emissions - Active Line Conducted Emissions (dBuV) M020235c Limits: Legend: Source: _ FCC_BQPN FCC PART 15 CLASS B CONDUCTED QP LIMITS (2002) _ FCC_BAVN FCC PART 15 CLASS B CONDUCTED AVERAGE LIMIT (2002) __ Active Line 7 8 9 Ver 5.5 Build 71conducted lab 3 using L-22 25A LISN t:L0220104 c1:C1610503 c2:C1520503 p:NONE a:L0171103Site ID: Room#3,57 Assembly Drv. Tullamarine, VIC Test Officer:Chieu Huynh Peaks:No Freq Peak Qp Val FCC_BQPN dL1 Av Val FCC_BAVN dL2 (MHz) (dBuV) (dBuV) (dB) (dBuV) (dBuV) (dB) 1 .56 48.1 46.7 56.0 -9.3 40.6 46.0 -5.4 2 .42 46.7 45.6 57.4 -11.8 39.5 47.4 -7.9 3 .21 50.7 49.3 63.1 -13.8 43.3 53.1 -9.8 4 .29 49.5 48.2 60.6 -12.4 40.3 50.6 -10.3 5 .49 41.7 40.4 56.2 -15.8 33.0 46.2 -13.2 6 .58 46.9 45.7 56.0 -10.3 31.7 46.0 -14.3 7 2.95 38.5 35.5 56.0 -20.5 28.1 46.0 -17.9 8 24.71 44.2 37.7 60.0 -22.3 31.1 50.0 -18.9 Frequency (MHz) 1 10 .15 30 10 20 30 40 50 60 70 v ^ 1 ~ * v ^ 2 ~ * v ^ 3 ~ * v ^ 4 ~ * v ^ 5 ~ * v ^ 6 ~ * v ^ 7 ~ * v ^ 8 ~ * EMC Technologies Pty. Ltd. - Global Product CertificationFCC Class B Job No:M030235 Test Date: 03/03/03 GRAPH No. 2 r:\pcf\M030235F_2.PCF Melbourne- 57 Assembly Drv Tullamarine, 3043, Vic, Australia Ph+(613) 9335 3333 Fax+(613) 9338 9260Sydney---- 16,6 Gladstone Rd Castle Hill, 2154, NSW, Australia Ph+(612) 9899 4599 Fax+(612) 9899 4019Fujitsu Australia Limited Lifebook - Ginger Conducted Emissions - Neutral Line Conducted Emissions (dBuV) M020235c Limits: Legend: Source: _ FCC_BQPN FCC PART 15 CLASS B CONDUCTED QP LIMITS (2002) _ FCC_BAVN FCC PART 15 CLASS B CONDUCTED AVERAGE LIMIT (2002) __ Neutral 10 11 12 Ver 5.5 Build 71conducted lab 3 using L-22 25A LISN t:L0220104 c1:C1610503 c2:C1520503 p:NONE a:L0171103Site ID: Room#3,57 Assembly Drv. Tullamarine, VIC Test Officer:Chieu Huynh Peaks:No Freq Peak Qp Val FCC_BQPN dL1 Av Val FCC_BAVN dL2 (MHz) (dBuV) (dBuV) (dB) (dBuV) (dBuV) (dB) 1 .56 47.3 45.5 56.0 -10.5 37.2 46.0 -8.8 2 .50 44.9 43.2 56.0 -12.8 36.1 46.0 -9.9 3 .28 48.9 47.2 60.7 -13.5 40.5 50.7 -10.2 4 .43 45.0 43.8 57.3 -13.5 37.0 47.3 -10.3 5 .65 43.9 42.4 56.0 -13.6 33.6 46.0 -12.4 6 .58 47.1 45.7 56.0 -10.3 33.3 46.0 -12.7 7 .21 49.8 47.3 63.0 -15.7 40.2 53.0 -12.8 8 2.80 39.7 37.3 56.0 -18.7 31.2 46.0 -14.8 9 14.46 43.2 39.6 60.0 -20.4 32.4 50.0 -17.6 Frequency (MHz) 1 10 .15 30 10 20 30 40 50 60 70 v ^ 1 ~ * v ^ 2 ~ * v ^ 3 ~ * v ^ 4 ~ * v ^ 5 ~ * v ^ 6 ~ * v ^ 7 ~ * v ^ 8 ~ * v ^ 9 ~ *

EMC Technologies Report No. M030235_FCC_Ginger_BT EMC Technologies Pty Ltd, 57 Assembly Drive, Tullamarine VIC 3043 Australia www.emc…
