FCC ID: QK3-WL0002-1 (IC ID: IC-337H-WL0002-1) Report No. M030402_Certification_Comet2 This Laboratory is accredited by the National Association of Testing Authorities, Australia. The tests reported herein have been performed in accordance with its terms of accreditation for FCC Part 15.This document shall not be reproduced, except in full. EMC Technologies Pty Ltd - Report No. M030402_Certification_Comet2 APPENDIX C: EUT SPECIFICATION (BLOCK DIAGRAM) Askey Computer CORP. NO.119, CHIENKANG RD., CHUNG-HO HSIN-TIEN, TAIPEI, TAIWAN, R.O.C TEL: 886-2-2228-7588 FAX: 886-2-3234-9340 http: www.askey.com.tw WLL3010-D50 OVERVIEW 1. Specifications Host Interfaces Mini PCI Form factor Type III B Chipset Broadcom BCM 4306 & BCM 2050 Operation Voltage 3.3VDC Network Standards IEEE 802.11b (Wi-Fi™) standard and IEEE 802.11g draft standard (54G) Modulation Techniques DBPSK,DQPSK,CCK,16QAM,64QAM Modulation Technology OFDM,DSSS Data Rate 802.11b: 11, 5.5, 2, 1 Mbps 802.11g: 54, 48, 36, 24, 18, 12, 9, 6 Mbps Network Architectures Infrastructure and Ad Hoc Operating Frequencies 2.4-2.497 GHz Operating Channels 802.11b: 14 for Japan, 802.11g: 13 for Japan RF Output Power 15 dBm maximum output power (14 dBm nominal ± 1 dBm over operating temperature Receiver sensitivity (PER <10%) -80dBm @ 6Mbps Antenna Type Hardware diversity support: transmit and receive on Main and Auxiliary antenna connectors. Range 802.11b: 11 Mbps up to 180m LOS, 60m indoors; 1 Mbps up to 570m LOS, 125m indoors 802.11g: 54 Mbps up to 50m LOS, 20m indoors; 18 Mbps up to 150m LOS, 75m indoors Power Consumption Tx peak: 550 ma @ 3.3VDC; Rx peak: 350 ma @ 3.3VDC; Idle: 225mA @ 3.3VDC Security Hardware 64/128-bit WEP engine; WEP weak-key avoidance, TKIP, hardware AES engine supporting CCM and OCB, 802.1x, SSN Delay Tolerance 802.11b: Multipath R.M.S Delay Spread @ 1% FER: 11 Mbps > 250 nsec; 5.5 Mbps > 300 nsec Client Utility Automatic location profile, site monitor, current link status, and diagnostics Software Support Microsoft WHQL certified for Windows XP, 2000, and ME. Linux and VxWorks embedded drivers. LED Indicators WLAN Activity Monitor, WLAN Radio Status Indicators Switch Manual radio on/off disables transmit and receive to comply with aviation in-flight restrictions Temperatures Operates from 0 to 70 Storage from -40 to 90 Humidity (non-condensing) 5 to 95% Certifications Wi-Fi; FCC part 15C/15.247; ETS 300 328-2; UL; IEC60950; EN 301 489-1,17; prEN50371 ;CE Mark; TELEC 1 Askey Computer CORP. NO.119, CHIENKANG RD., CHUNG-HO HSIN-TIEN, TAIPEI, TAIWAN, R.O.C TEL: 886-2-2228-7588 FAX: 886-2-3234-9340 http: www.askey.com.tw 2. Pin Assignment 1 NC 43 RESERVED 85 AD[08] 2 NC 44 AD[26] 86 C/BE[0]# 3 NC 45 C/BE[3]# 87 AD[07] 4 NC 46 AD[24] 88 3.3V 5 NC 47 AD[23] 89 +3.3V 6 NC 48 IDSEL 90 AD[06] 7 NC 49 GND 91 AD[05] 8 NC 50 GND 92 AD[04] 9 NC 51 AD[21] 93 NC 10 NC 52 AD[22] 94 AD[02] 11 LED_RESERVED 53 AD[19] 95 AD[03] 12 LED_RESERVED 54 AD[20] 96 AD[00] 13 ENABLE/DISABLE 55 GND 97 NC 14 NC 56 PAR 98 ENABLE/DISABLE 15 NC 57 AD[17] 99 AD[01] 16 NC 58 AD[18] 100NC 17 NC 59 C/BE[2]# 101GND 18 NC 60 AD[16] 102GND 19 3.3V 61 IRDY# 103NC 20 INTA# 62 GND 104M66EN 21 NC 63 +3.3V 105NC 22 NC 64 FRAME# 106NC 23 GND 65 CLKRUN# 107NC 24 3.3VAUX 66 TRDY# 108NC 25 CLK 67 SERR# 109NC 26 RST# 68 STOP# 110NC 27 GND 69 GND 111NC 28 3.3V 70 3.3V 112NC 29 REQ# 71 PERR# 113NC 30 GNT# 72 DEVSEL# 114GND 31 3.3V 73 C/BE[1]# 115NC 32 GND 74 GND 116NC 33 AD[31] 75 AD[14] 117NC 34 PME# 76 AD[15] 118NC 35 AD[29] 77 GND 119NC 36 RESERVED 78 AD[13] 120NC 37 GND 79 AD[12] 121NC 38 AD[30] 80 AD[11] 122MPCIACT# 39 AD[27] 81 AD[10] 123NC 40 3.3V 82 GND 1243.3VAUX 41 AD[25] 83 GND 42 AD[28] 84 AD[09] 3. block Diagram 2

FUJITSU AUSTRALIA LIMITED ACN 001 011 427 5 Lakeside Drive Burwood East, Victoria 3151 Australia Tel (+61 3) 9845 4300 Fax (+61 3) 9845 4600 ENGINEERING SERVICES, TELECOMMUNICATIONS Federal Communications Commission Equipment Authorization Division Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21045 26 th March 2003 Reference: FCC ID: QK3-WL0002-1 (Report M030402_Cetification_Comet2) Subject: Request for Confidentiality for FCC Certification Application Company:Fujitsu Australia Ltd Test Sample:Mini-PCI Wireless LAN Module (Broadcom) Product Type Low power transmitter (intentional radiator) Pursuant to Rule 47 CFR, Chapter 1, Section 0.457(d)(1)(ii), Fujitsu Australia Ltd, requests that prior to the equipment authorization grant for the Mini-PCI Wireless LAN Module (Broadcom), the entire application be classified and deemed confidential by the Federal Communications Commission (FCC) and as such be withheld from public inspection. As per 47 CFR, Chapter 1, Section 0.457, the exhibits tendered for the purpose of this grant, contain details of trade secrets and technical data that is not made available to competitors and the general public. This information is treated in a confidential manner by Fujitsu Australia Ltd and guarded from disclosure to our competitors. The exhibits outlined below are not routinely made available Fujitsu Australia Ltd staff, with such access granted only to those specifically involved with this particular project. They contain information detailing the unique technology and circuitry of the product that would be of significant benefit to our competitors. All employees treat this technical data in a confidential manner. The manufacture of this product has taken place after an extensive research and development process that has seen the company invest a considerable amount of time and money. The time and effort taken has enabled the product to meet the specific demands of the competitive market for which it is intended and it would be therefore detrimental to allow competitors easy access to design and development details. Apart from a limited number of employees, the information has previously only been disclosed to the Test House responsible for conducting testing and authorized to act as our agent during the certification process. Pursuant to 47CFR Chapter 1, Section 0.459, Fujitsu Australia Ltd requests post-grant confidentiality for the following items, ensuring that this material continue to be withheld from public inspection following the grant of this authorization. Exhibit - PCB Layouts47 CFR 2.1033, Complete technical PCB Layouts Exhibit - Schematics47 CFR 2.1033, Complete technical schematic circuit diagrams Exhibit - Antenna InformationDetailed technical antenna information Sincerely Yours, ___________________ Praveen Rao Senior Compliance Engineer, Fujitsu Australia Ltd.

Response to TCB Findings 1. On page 11 of the report for radiated emissions data (1-25GHz) the frequencies in the restricted band are measured with an average detector. Besides this, same measurements need to be repeated with peak detector with 1MHz bandwidth and compared to 74.0dBuV/m. according to 15.35(b). Please submit measurements with "peak" detectors as well as "average" detectors. Measurements provided – Refer to Report M030402R_Certification_Comet2, Section 4.2.1 (p11) 2. On the same page in the first table the frequency 14472MHz and in the third table the frequency 22158MHz are in restricted bands and therefore they need to be compared to 54.0dBuV/m average and 74.0dBuV/m peak limits. Corrected – Refer to Report M030402R_Certification_Comet2, Section 4.2.1 (p11) 3. For the readings on Page 11 of the report please specify the noise floor if the readings are at insignificant levels . Noise floor levels provided – Refer to Report M030402R_Certification_Comet2, Section 4.2.1 (p11) 4. Please provide a band-edge radiated emissions reading at 2483.5MHz when the unit is operating at the highest channel allowed for U.S. If this reading is below the noise floor, please specify the noise floor level at that frequency. Band-edge radiated emission reading provided – Refer to Report M030402R_Certification_Comet2, Section 4.2.1 (p11) 5. Please add the statement below to the user manual. “This device must not be co-located or operating with any other antenna or transmitter” Statement added – Refer to user manual. 6. Please provide a confirmation from your client stating that the manual we are seeing will be provided to all the end users with the LifeBooks . Customer has confirmed that user manual provided with submission is the manual that will be provided to all end users with the LifeBooks

FCC ID: QK3-WL0002-1 (IC ID: IC-337H-WL0002-1) Report No. M030402_Certification_Comet2 This Laboratory is accredited by the National Association of Testing Authorities, Australia. The tests reported herein have been performed in accordance with its terms of accreditation for FCC Part 15.This document shall not be reproduced, except in full. EMC Technologies Pty Ltd - Report No. M030402_Certification_Comet2 APPENDIX B3: EUT & ANTENNA LOCATION EUT Host - LifeBook N Series, Model N3010 (Comet2) WLAN and Antenna Location Photos WLAN MODULE Antenna Antenna Antenna Location Comet2 Antenna WL module

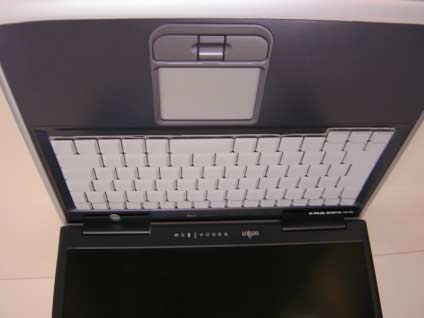

FCC ID: QK3-WL0002-1 (IC ID: IC-337H-WL00021) Report No. M030402R_Certification_Comet2 This Laboratory is accredited by the National Association of Testing Authorities, Australia. The tests reported herein have been performed in accordance with its terms of accreditation for FCC Part 15.This document shall not be reproduced, except in full. EMC Technologies Pty Ltd - Report No. M030402_Certification_Comet2 APPENDIX B4 - EUT HOST PHOTOGRAPHS FCC ID: QK3-WL0002-1 (IC ID: IC-337H-WL00021) Report No. M030402R_Certification_Comet2 This Laboratory is accredited by the National Association of Testing Authorities, Australia. The tests reported herein have been performed in accordance with its terms of accreditation for FCC Part 15.This document shall not be reproduced, except in full. EUT HOST PHOTOGRAPHS EUT HOST - LIFEBOOK N Series, Model N3010 (Comet2) FCC ID: QK3-WL0002-1 (IC ID: IC-337H-WL00021) Report No. M030402R_Certification_Comet2 This Laboratory is accredited by the National Association of Testing Authorities, Australia. The tests reported herein have been performed in accordance with its terms of accreditation for FCC Part 15.This document shall not be reproduced, except in full. EUT HOST - LIFEBOOK N Series, Model N3010 (Comet2) EUT HOST PHOTOGRAPHS

FCC ID: QK3-WL0002-1 (IC ID: IC-337H-WL0002-1) Report No. M030402_Certification_Comet2 This Laboratory is accredited by the National Association of Testing Authorities, Australia. The tests reported herein have been performed in accordance with its terms of accreditation for FCC Part 15.This document shall not be reproduced, except in full. EMC Technologies Pty Ltd - Report No. M030402_Certification_Comet2 APPENDIX D: EUT FCC LABELLING DETAILS APPR.CHECKDATE EDIT FMV WORD FDCC-4967-2 2001.3 TITLE 1 CUST DESIG.DESCRIPTION DESIG. CHECKAPPR. DRAW. 15 54g Wireless LAN Card (Mini PCI for 11ch) Purchase Specification L0CP024081-XX FUJITSU LIMITED S H E E T The label is printed on Mylar material and fixed to the unit Label FCC ID: QK3-WL0002-1 IC-337H-WL0002-1 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation FCC ID: QK3-WL0002-1 IC-337H-WL0002-1 Bottom Panel of the Notebook WLAN MODULE LABEL LCD Screen side

FCC ID: QK3-WL0002-1 (IC ID: IC-337H-WL0002-1) Report No. M030402_Certification_Comet2 This Laboratory is accredited by the National Association of Testing Authorities, Australia. The tests reported herein have been performed in accordance with its terms of accreditation for FCC Part 15.This document shall not be reproduced, except in full. EMC Technologies Pty Ltd - Report No. M030402_Certification_Comet2 APPENDIX B1: TEST SAMPLE PHOTOGRAPHS APPENDIX B1 TEST SAMPLE Test Sample - Wireless LAN Module (Broadcom), Model WLL3010 Test Sample - Wireless LAN Module (Broadcom), Model WLL3010

FCC ID: QK3-WL0002-1 (IC ID: IC-337H-WL0002-1) Report No. M030402_Certification_Comet2 This Laboratory is accredited by the National Association of Testing Authorities, Australia. The tests reported herein have been performed in accordance with its terms of accreditation for FCC Part 15.This document shall not be reproduced, except in full. EMC Technologies Pty Ltd - Report No. M030402_Certification_Comet2 APPENDIX G: GRAPHS OF EMI MEASUREMENT EMC Technologies Pty. Ltd. - Global Product CertificationFCC Class B Job No:M030402 Test Date: 9.04.03 GRAPH No. 1 r:\pcf\M030402F_1.PCF Melbourne- 57 Assembly Drv Tullamarine, 3043, Vic, Australia Ph+(613) 9335 3333 Fax+(613) 9338 9260Sydney---- 16,6 Gladstone Rd Castle Hill, 2154, NSW, Australia Ph+(612) 9899 4599 Fax+(612) 9899 4019Fujitsu Australia Pty Ltd LifeBook - Comet2 Active Line Conducted Emissions (dBuV) m030402c Limits: Legend: Source: _ FCC_BQPN FCC PART 15 CLASS B CONDUCTED QP LIMITS (2002) _ FCC_BAVN FCC PART 15 CLASS B CONDUCTED AVERAGE LIMIT (2002) __ Active Line 17 18 19 Ver 5.5 Build 73conducted lab 1, L-019 10A LISN t:L0190104 c1:C1610503 c2:C1620503 p:NONE a:L0171103Site ID: Room#3,57 Assembly Drv. Tullamarine, VIC Test Officer:Chieu Huynh Peaks:No Freq Peak Qp Val FCC_BQPN dL1 Av Val FCC_BAVN dL2 (MHz) (dBuV) (dBuV) (dB) (dBuV) (dBuV) (dB) 1 0.407 35.7 32.2 57.7 -25.5 16.5 47.7 -31.2 2 10.17 38.7 33.6 60.0 -26.4 27.1 50.0 -22.9 Frequency (MHz) 1 10 .15 30 10 20 30 40 50 60 70 v ^ 1 ~ * v ^ 2 ~ * EMC Technologies Pty. Ltd. - Global Product CertificationFCC Class B Job No:M030402 Test Date: 9.04.03 GRAPH No. 2 r:\pcf\M030402F_2.PCF Melbourne- 57 Assembly Drv Tullamarine, 3043, Vic, Australia Ph+(613) 9335 3333 Fax+(613) 9338 9260Sydney---- 16,6 Gladstone Rd Castle Hill, 2154, NSW, Australia Ph+(612) 9899 4599 Fax+(612) 9899 4019Fujitsu Australia Pty Ltd LifeBook - Comet2 Neutral Line Conducted Emissions (dBuV) m030402c Limits: Legend: Source: _ FCC_BQPN FCC PART 15 CLASS B CONDUCTED QP LIMITS (2002) _ FCC_BAVN FCC PART 15 CLASS B CONDUCTED AVERAGE LIMIT (2002) __ Neutral Line 16 14 15 Ver 5.5 Build 73conducted lab 3 using L-22 25A LISN t:L0220104 c1:C1530503 c2:C1570503 p:NONE a:L0171103Site ID: Room#3,57 Assembly Drv. Tullamarine, VIC Test Officer:Chieu Huynh Peaks:No Freq Peak Qp Val FCC_BQPN dL1 Av Val FCC_BAVN dL2 (MHz) (dBuV) (dBuV) (dB) (dBuV) (dBuV) (dB) 1 0.408 39.8 36.7 57.7 -21.0 20.5 47.7 -27.2 2 0.274 43.1 39.3 61.0 -21.7 24.4 51.0 -26.6 Frequency (MHz) 1 10 .15 30 10 20 30 40 50 60 70 v ^ 1 ~ * v ^ 2 ~ *

FCC ID: QK3-WL0002-1 (IC ID: IC-337H-WL0002-1) Report No. M030402_Certification_Comet2 This Laboratory is accredited by the National Association of Testing Authorities, Australia. The tests reported herein have been performed in accordance with its terms of accreditation for FCC Part 15.This document shall not be reproduced, except in full. EMC Technologies Pty Ltd - Report No. M030402_Certification_Comet2 APPENDIX H: CHANNEL BANDWIDTH PLOTS

EMI TEST REPORT for CERTIFICATION to FCC PART 15.247 & RSS 210 FCC ID: QK3-WL0002-1 Industry Canada ID: IC-337H-WL0002-1 Test Sample: Mini-PCI Wireless LAN Module Wireless Module: Broadcom Model Number: WLL3010 Tested for: Fujitsu Australia Ltd Report Number: M030402R_Certification_Comet2 (Replacement for Report Number M030402_Certification_Comet2) Issue Date: 30 th April 2003 EMC Technologies Pty Ltd reports apply only to the specific samples tested under stated test conditions. It is the manufacturer’s responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. EMC Technologies Pty Ltd shall have no liability for any deductions, inferences or generalisations drawn by the client or others from EMC Technologies Pty Ltd issued reports. This report shall not be used to claim, constitute or imply product endorsement by EMC Technologies Pty Ltd. The tests, calibrations or measurements covered by this document have been performed in accordance with NATA requirements which include the requirements of ISO/IEC 17025 and are traceable to national standards of measurement. This document shall not be reproduced, except in full. NATA Accredited Laboratory Number: 5292 EMC Technologies Pty Ltd ABN 82 057 105 549 57 Assembly Drive Tullamarine Victoria Australia 3043 Ph: + 613 9335 3333 Fax: + 613 9338 9260 email: [email protected] FCC ID: QK3-WL0002-1 (IC ID: IC-337H-WL0002-1) Report No. M030402R_Certification_Comet2 Page 2 of 27 This Laboratory is accredited by the National Association of Testing Authorities, Australia. The tests reported herein have been performed in accordance with its terms of accreditation for FCC Part 15.This document shall not be reproduced, except in full. EMI TEST REPORT FOR CERTIFICATION to FCC Part 15.247/RSS-210 EMC Technologies Report No. M030402R_Certification_Comet2 Issue Date: 30 th April 2003 CONTENTS 1.0 SUMMARY of TEST RESULTS 2.0 GENERAL INFORMATION 3.0 TEST CONFIGURATION 4.0 CONDUCTED EMI MEASUREMENTS 5.0 RADIATED EMI MEASUREMENTS 6.0 COMPLIANCE STATEMENT APPENDIX A: MEASUREMENT INSTRUMENT DETAILS APPENDIX B: TEST SAMPLE PHOTOGRAPHS APPENDIX C: EUT SPECIFICATION (BLOCK DIAGRAM) APPENDIX D: FCC ID LABELLING APPENDIX E: TEST SAMPLE SCHEMATICS APPENDIX F: PCB LAYOUTS APPENDIX G: GRAPHS of EMI MEASUREMENTS APPENDIX H: CHANNEL BANDWIDTH PLOTS APPENDIX I: ANTENNA INFORMATION (INVERTED F) APPENDIX J: USER MANUAL (SUPPLIED TO ALL END USERS) FCC ID: QK3-WL0002-1 (IC ID: IC-337H-WL0002-1) Report No. M030402R_Certification_Comet2 Page 3 of 27 This Laboratory is accredited by the National Association of Testing Authorities, Australia. The tests reported herein have been performed in accordance with its terms of accreditation for FCC Part 15.This document shall not be reproduced, except in full. EMI TEST REPORT FOR CERTIFICATION to FCC PART 15.247/RSS-210 Report Number: M030402R_Certification_Comet2 Test Sample: Mini-PCI Wireless LAN Module Wireless Module: Broadcom Model Number: WLL3010 Manufacturer: Askey Computer Corp. FCC ID: QK3-WL0002-1 Industry Canada ID: IC-337H-WL0002-1 Tested for: Fujitsu Australia Ltd Address: 5 Lakeside Drive, Burwood East, VIC 3151 Australia Phone: +613 9845 4300 Fax: +613 9845 4600 Responsible Party: Mr Praveen Rao Senior Compliance Engineer Equipment Type: Intentional Radiator (Transmitter) Test Standards: FCC Part 15, Subpart C - Intentional Radiators FCC Part 15.247 2400 - 2483.5 MHz Operation Band FCC Part 15.205 Operation in Restricted Bands FCC Part 15.207 Conducted Emissions FCC Part 15.209 Radiated Emissions ANSI C63.4-1992 OET Bulletin No. 63 RSS 210 Issue 5 Low Power Licence-Exempt RadioCommunication Devices 6.2.2 (o) 2400 – 2483.5 MHz Spread Spectrum Devices Test Dates: 2 - 14 th April 200 Test Officer: ____________ Chieu Huynh B. Eng (Hons) Electronics Attestation: I hereby certify that the device(s) described herein were tested as described in this report and that the data included is that which was obtained during such testing. Authorised Signature: _________________ Chris Zombolas Technical Director EMC Technologies Pty Ltd FCC ID: QK3-WL0002-1 (IC ID: IC-337H-WL0002-1) Report No. M030402R_Certification_Comet2 Page 4 of 27 This Laboratory is accredited by the National Association of Testing Authorities, Australia. The tests reported herein have been performed in accordance with its terms of accreditation for FCC Part 15.This document shall not be reproduced, except in full. EMI TEST REPORT FOR CERTIFICATION to FCC PART 15.247/RSS-210 1.0 INTRODUCTION This report details the results of EMI tests and measurements performed on the Mini-PCI Wireless LAN Module (Broadcom), Model WLL3010 in accordance with the Federal Communications Commission (FCC) regulations as detailed in Title 47 CFR, Part 15 Subpart C Rules for intentional radiators, particularly Section 15.247 (Operation in the frequency band 2400 - 2483.5 MHz). The results and technical details of the test sample are detailed in this report. The test sample complies with the requirements of 47 CFR, Part 15 Subpart C - Radio Frequency Devices (intentional radiators), Section 15.247. It also complies with the Industry Canada RSS-210 issue 5 (Low Power Licence-Exempt Radiocommunication Devices (All Frequency Bands)) clauses 6.2.2(o) requirements. 1.1 Summary of Results FCC Part 15, Subpart C Clauses Industry Canada RSS-210 Clauses Test Performed Result 15.203 5.5 Antenna Requirement Not Applicable 15.205 6.3 Operation in Restricted Bandwidth Complies 15.207 6.6 Conducted Emissions Complies 15.209 6.3 Radiated Emissions Complies 15.247 (a)(2) 6.2.2(o)(iv) Channel Occupancy/Bandwidth Complies 15.247 (b)(3) 6.2.2(o)(b) Peak Output Power Complies 15.247 (b)(5) Radio Frequency Hazard Complies 15.247 (c) 6.2.2(o)(e1) Out of Band Transmissions Complies 15.247 (d) 6.2.2(o)(iv) Peak Power Spectral Density Complies The measurement procedure used was in accordance with ANSI C63.4-1992 and OET Bulletin No. 96-43…

Text truncated - open the document above for the full version.

FCC ID: QK3-WL0002-1 (IC ID: IC-337H-WL0002-1) Report No. M030402_Certification_Comet2 This Laboratory is accredited by the National Association of Testing Authorities, Australia. The tests reported herein have been performed in accordance with its terms of accreditation for FCC Part 15.This document shall not be reproduced, except in full. EMC Technologies Pty Ltd - Report No. M030402_Certification_Comet2 APPENDIX B2: TEST SETUP PHOTOGRAPHS FCC ID: QK3-WL0002-1 (IC ID: IC-337H-WL0002-1) Report No. M030402_Certification_Comet2 This Laboratory is accredited by the National Association of Testing Authorities, Australia. The tests reported herein have been performed in accordance with its terms of accreditation for FCC Part 15.This document shall not be reproduced, except in full. EUT Host - LifeBook N Series, Model N3010 (Comet2) Conducted Emissions Test Setup (Mains) Conducted Emissions set-up: rear (Mains) FCC ID: QK3-WL0002-1 (IC ID: IC-337H-WL0002-1) Report No. M030402_Certification_Comet2 This Laboratory is accredited by the National Association of Testing Authorities, Australia. The tests reported herein have been performed in accordance with its terms of accreditation for FCC Part 15.This document shall not be reproduced, except in full. EUT Host - LifeBook N Series, Model N3010 (Comet2) Radiated Emissions Test Set Up (10 metre test distance) Radiated Emissions Test Set Up- rear FCC ID: QK3-WL0002-1 (IC ID: IC-337H-WL0002-1) Report No. M030402_Certification_Comet2 This Laboratory is accredited by the National Association of Testing Authorities, Australia. The tests reported herein have been performed in accordance with its terms of accreditation for FCC Part 15.This document shall not be reproduced, except in full. EUT Host - LifeBook N Series, Model N3010 (Comet2) Radiated Emissions Test Set Up (3 metre test distance)
