QKK-MC1RADAR DETECTOR

INTERCEPTOR OWNER’S MANUAL ROCKY MOUNTAIN RADAR INTRODUCTION Thank you for purchasing the INTERCEPTOR radar/laser developed by Rocky Mountain Radar. INTERCEPTOR is the first and unique sophisticated device in the world which has wireless data communication for motorcycle. We are pleased to have you as a valued customer and hope you will be delighted with your Interceptor. This manual provides all the information you need putting the Interceptor to work for you. NOTE: Always obey all local and federal laws when using this device. z FCC ID: QKK-MC1 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. In addition, any changes or modifications to this product, which are not expressly approved by Rocky Mountain Radar in writing, could void the user’s authority to operate this product. 1. WHAT’S IN THE PACKAGE - Radar Detector - Headset - Bracket for radar detector - Screws and washers for bracket - Dual lock tapes - Locking cable ties - Power cable - Speaker - AC/DC Adaptor 2. INSTALLATION For the best performance of radar unit, mount on a centered location that will not obstruct the view of the driver. Mount the radar detector using bracket and screws then connect the power wires to 12V battery directly. Mount the headset on the helmet using the dual lock tape and speaker inside of the helmet using tapes. 3. POWER CONNECTION Connect the radar power cable to 12V battery directly and turn on the motorcycle power. Press the POWER button on the helmet device. Communication between radar and helmet device will be automatically connected. The radar detector has automatic power on/off function according to motorcycle power on/off. 4. FUNCTIONS - K and Ka band detection - Laser signal detection - LED Display - Auto Mute - Volume Level memory - Headset Low Battery Alarm - Auto Power Off - Headset Battery Charge Mode - Headset Three Buttons [ Volume Up – Power – Volume Down] 5. LED DISPLAY OPERATION The LED of the headset displays all kinds of alerts. - Stand by: LED OFF - K band, Ka band and Laser alert: LED blinking - Radar Signal Strength Level 1: blinking slow - Radar Signal Strength Level 2: blinking fast - Radar Signal Strength Level 3: blinking faster than level 2 - Headset Low Battery Alarm: LED blinks 5 times every 20 minutes - Headset Auto Power Off Alarm: LED blinks once per second for 10 seconds - Headset Battery Charge Mode: LED On during battery charge and LED off when completed. 6. PREAMBLE OPERATION The LED will stay on for 3 seconds with one beep alert when you turn on the power. If press Volume Up or Down button, the unit stops preamble operation. 7. POWER BUTTON Press Power button to turn the unit off. Press and hold Power button for two seconds to turn off the power. The headset will give power off beep with LED blinking. 8. VOLUME UP BUTTON Press Volume up button to increase it from 1 level to 5 level. Volume 1 and 5 levels give one long beep and 2-3-4 levels one short beep. 9. VOLUME DOWN BUTTON Press Volume down button to decrease it from 5 level to 1 level. Volume 1 and 5 levels give one long beep and 2-3-4 levels one short beep. Factory default is level 3. 10. RADAR AND HEADSET CONNECTION Headset will give one beep when it is connected with radar. If headset does not receive any data from the radar unit for 5 seconds, headset will give 2 beep alerts for every 10 seconds as disconnection alert. 11. HEADSET AUTO POWER OFF Headset will give Auto Power off warning alarm if disconnection continues more than 60 minutes. Headset will give one beep per second for 10 seconds with LED blinking. Press any buttons to cancel Auto Power off during 10 seconds warning. 12. RADAR & LASER SIGNAL STRENGTH There are 3 levels signal strength alarms for K, Ka and laser 13. AUTO MUTE OPERATION The headset will give 4 times alerts for K, Ka and laser detection then keep mute status for 2 minutes until signals are disappeared or new signals are detected. 14. HEADSET LOW BATTERY ALARM The headset will give 5 times alarm for every 20 minutes with LED blinking. Charge the battery using the adaptor. 15. HEADSET BATTERY CHARGE Connect the adaptor to power jack to charge the battery. The LED will stay on during battery charge then off when completed. 16. MEMORY The headset stores the volume levels in the memory. 17. SPEAKER Connect the speaker jack into the audio hole of the headset and mount it in helmet. 18. LIMITED WARRANTY The manufacturer warrants your INTERCEPTOR against all defects in materials and workmanship for a period of one(1) year from the date of the original purchase, subject to the following terms and conditions: The sole responsibility of the manufacturer under this Warranty is limited to either repair or, at the option of the manufacturer, replacement of the INTERCEPTOR. There are no expressed or implied warranties, including those of fitness for a particular purpose of merchantability, which extend beyond the face hereof. Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to you. 19. SPECIFICATIONS - Radar Receiver Type: Dual conversion superheterodyne - Antenna Type: Linear polarized self-contained Antenna - Device Type: Frequency discriminator - Frequency of Operation z 24.050 _ 24.250GHz(K band) z 33.400 – 36.000GHz(Ka super wide band) - Laser Receiver Type: Pulsed laser signal receiver - Operation Temperature: -20C --- +70C - Storage Temperature: -30c --- +100C - Power Requirement: 12V to 15V DC, 150mA negative ground Specification are typical. Individual units might vary. Specifications are subject to change without notice. THE END

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 April 18, 2011 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Rocky Mountain Radar hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): RADAR DETECTOR / INTERCEPTOR (FCC ID: QKK-MC1) We affirm that between SIEMIC and Rocky Mountain Radar, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Michael Churchman / President Rocky Mountain Radar 6469 Doniphan Drive, El Paso, TX 79932, USA

SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 April 18, 2011 To: Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: QKK-MC1 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Circuit Diagram - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Michael Churchman / President Rocky Mountain Radar 6469 Doniphan Drive, El Paso, TX 79932, USA

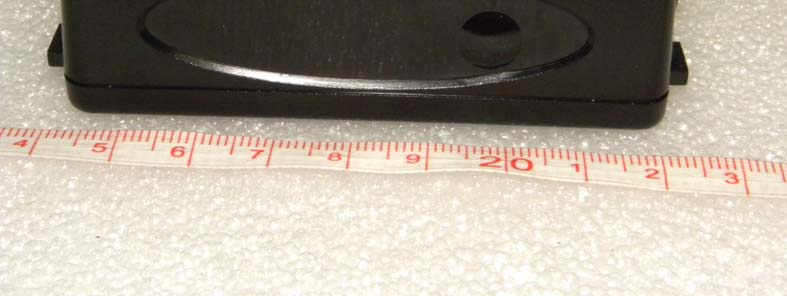

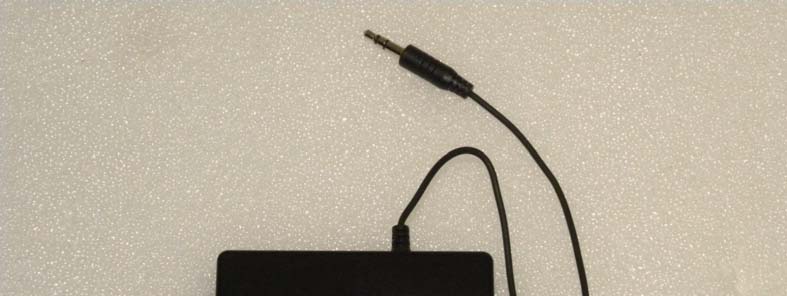

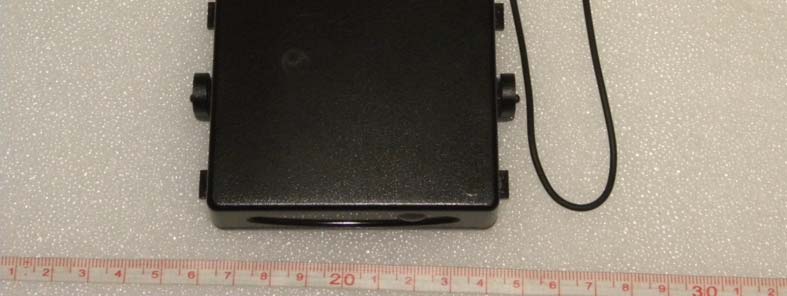

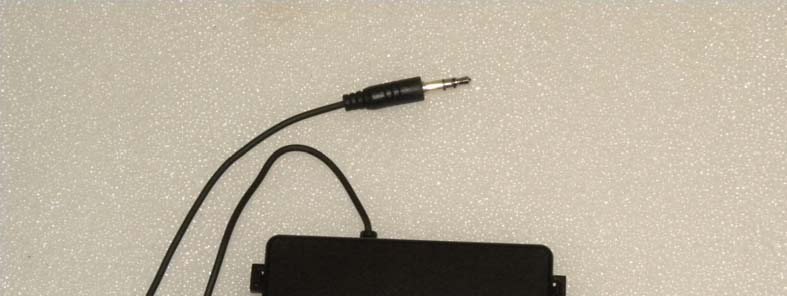

Appendix C. External Photographs Report no. ETLE110322.0212, Page C1 of C3 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:QKK-MC1 Front view of EUT Rear view of EUT Appendix C. External Photographs Report no. ETLE110322.0212, Page C2 of C3 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:QKK-MC1 Left side view of EUT Right side view of EUT Appendix C. External Photographs Report no. ETLE110322.0212, Page C3 of C3 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:QKK-MC1 Top side view of EUT Bottom side view of EUT

Appendix A. FCC ID Label and Location Report no. ETLE110322.0212, Page A1 of A1 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:QKK-MC1 Product Label Sample with FCC Label information Following is a sample copy of the label that will be placed on the rear cabinet of the product. The FCC ID Label and compliance statement are marked in the product label. The warning statement and Information to the User are described in the user manual. Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) Label here

Appendix D. Internal Photographs Report no. ETLE110322.0212, Page D1 of D4 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:QKK-MC1 Inside view of EUT Appendix D. Internal Photographs Report no. ETLE110322.0212, Page D2 of D4 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:QKK-MC1 Top side view of main board #1 Appendix D. Internal Photographs Report no. ETLE110322.0212, Page D3 of D4 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:QKK-MC1 Top side view of main board #1-1 (Open case) Appendix D. Internal Photographs Report no. ETLE110322.0212, Page D4 of D4 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:QKK-MC1 Bottom side view of main board

Report no. ETLE110322.0212, Page 2 of 23 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC TEST REPORT FCC ID: QKK-MC1 Table of Contents FCC Measurement Report 1. Introduction 2. Product Information 3. Description of Tests 4. Test Condition 5. Test Results 5.1 Summary of Test Results 5.2 Radiated Emissions Measurement 5.3 Occupied Bandwidth Measurement 5.4 Periodic Operation Measurement Plot 6. Sample Calculation 7. List of test Equipment used for Measurement Appendix A. FCC ID Label and Location Appendix B. Test Setup Photographs Appendix C. External Photographs Appendix D. Internal Photographs Appendix E. Block Diagram Appendix F. Operating Description Appendix G. User Manual Appendix H. Circuit Diagram Appendix I. Antenna Requirement Report no. ETLE110322.0212, Page 3 of 23 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC TEST REPORT FCC ID: QKK-MC1 FCC MEASUREMENT REPORT Scope – Measurement and determination of electromagnetic emission(EME) of radio frequency devices including intentional radiators and/or unintentional radiators for compliance with the technical rules and regulations of the U.S Federal Communications Commission(FCC) General Information  EUT Type : RADAR DETECTOR  Model Number : INTERCEPTOR  FCC ID : QKK-MC1  S/N : Proto-type  Frequency Range : 433.92 MHz  FCC Rule Part(s) : FCC Part 15 Subpart C section 15.231  Test Procedure : ANSI C63.4-2003  FCC Classification : DSC: Part 15 Security/Remote Control Transmitter  Dates of Tests : March 23, 2011 to March 24, 2011  Place of Tests : ETL Inc. Testing Lab. Radiated Emission test; #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea Conducted Emission test; ETL Inc. Testing Lab. 371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea  Test Report No. : ETLE110322.0212 Applicant Name : Rocky Mountain Radar Address : 6469 Doniphan Drive, El Paso, TX 79932, USA Attention : Michael Churchman / President Report no. ETLE110322.0212, Page 4 of 23 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC TEST REPORT FCC ID: QKK-MC1 1. INTRODUCTION The measurement test for radiated and conducted emission test was conducted at the ETL Inc. The site is constructed in conformance with the requirements of the ANSI C63.4-2003 and CISPR Publication 16. The ETL has site descriptions on file with the FCC for 3 m and 10 m site configurations. Detailed description of test facility was found to be in compliance with FCC Rules according to the ANSI C63.4-2003 and registered to the Federal Communications Commission (FCC Designation Number : KR0022). The measurement procedure described in American National Standard for Method of Measurement of Radio- Noise Emission from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz (ANSI C63.4-2003) was used in determining radiated and conducted emissions from the Rocky Mountain Radar Model: INTERCEPTOR Report no. ETLE110322.0212, Page 5 of 23 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC TEST REPORT FCC ID: QKK-MC1 2. PRODUCT INFORMATION 2.1 Equipment Description The Equipment Under Test (EUT) is the RADAR DETECTOR, Model: INTERCEPTOR 2.2 General Specification General Power Requirement 12 Vdc (Car battery) Carrier Frequencies 433.92 MHz (Single Channel) Operating -20 °C to +70 °C Temperature Range Storage -30 °C to +100 °C Laser Receiver Type Pulsed laser signal receiver Detector Type Digital signal processor pulse width discriminator Optical sensor Dual convex condenser lens and high speed photo diode detector, 800 nanometers (nm) ~ 1 100 nanometers (nm) Radar Receiver Type Dual conversion super-heterodyne Antenna Type Linear polarized, self-contained Detector Type Scanning frequency discriminator K Band: 24.150 GHz ± 100 MHz Frequency of Operation Ka Band (Super-wide): 34.700 GHz ± 1 300 MHz Report no. ETLE110322.0212, Page 6 of 23 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC TEST REPORT FCC ID: QKK-MC1 3. DESCRIPTION OF TESTS 3.1 Radiated Emission Measurement Radiated emission measurements were made in accordance with § 13 in ANSI C63.4-2003 "Measurement of Intentional radiators” The measurements were performed over the frequency range of 30 MHz to 40 GHz using antenna as the input transducer to a Spectrum analyzer or a Field Intensity Meter. The measurements were made with the detector set for "Peak, Quasi-peak, Average" within a bandwidth of 100 Hz, 9 kHz, 120 kHz and above 1 GHz is 1 MHz. Preliminary measurements were made at 3 m using broadband antennas, and spectrum analyzer to determine the frequency producing the maximum emission in shielded room. Appropriate precaution was taken to ensure that all emission from the EUT were maximized and investigated. The system configuration, mode of operation, turntable azimuth and height with respect to the antenna were noted for each frequency found. The spectrum was scanned from 9 kHz to 30 MHz using Loop antenna and 30 MHz to 1 000 MHz using Log-Bicon antenna. Above 1 GHz, linearly polarized double ridge horn antennas were used. Final measurements were made open site at 3 m. The test equipment was laced on a wooden turn-table. Sufficient time for the EUT, support equipment, and test equipment was allowed in order for them to warm up to their normal operating condition. Each frequency found during pre-scan measurements was re-examined by manual. The detector function was set to CISPR Quasi-peak mode and the bandwidth of the receiver was set to 100 Hz, 9 kHz, 120 kHz or 1 MHz depending on the frequency of type of signal. The EUT, support equipment and interconnecting cables were re- configured to the set-up p…

Text truncated - open the document above for the full version.

Appendix B. Test Setup Photographs Report no. ETLE110322.0212, Page B1 of B3 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:QKK-MC1 Radiated Emission Test Setup (9 kHz - 30 MHz) Appendix B. Test Setup Photographs Report no. ETLE110322.0212, Page B2 of B3 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:QKK-MC1 Radiated Emission and Fundamental Test Setup (30 MHz - 1 000 MHz) Appendix B. Test Setup Photographs Report no. ETLE110322.0212, Page B3 of B3 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:QKK-MC1 Radiated Emission Test Setup (1 GHz Above)
