QLM0140608Bluetooth Stero Headset: BT81

Introduction 3 Package Contents 3 Battery Charging 3 Appearance 4 Operations 5 Important Information 9 LED Light guide 10 Warranty 11 This User's Guide is published by ATO without any warranty. Improvements and changes to this User's Guide necessitated by typographical errors, inaccuracies of current information ,or improvements to programs and /or equipment, may be made by ATO at any time and without notice. The Bluetooth trademarks are owned by Bluetooth SIG, Inc.USA. Table of contents Warranty Appearance Front view LED indicator Mic. Control button Stereo headphones plug USB jack Stereo Headset BT81 User's Manual Thank you for purchasing the BT81 Bluetooth Stereo Headset by ATA. This device is a complete Bluetooth stereo headset that can switch easily between headset, handsfree and audio streaming modes. BT81 Bluetooth Stereo Headset Stereo Headphones USB converter User’s Manual Charging the Battery 8. This product may need to be reset manually if it has been subjected to a strong electrostatic discharge. 9. If this device is exposed to strong radio frequency interference it may not function normally. *Remark: This is product would need reset manually under a strong electrostatic discharge. In locations subject to readio frequeny interference, this many not function normally. LED Light Guide. It is always possible to check the status of this device by checking the LED light display. Activity LED Light activity Battery charging Red light constantly ON (When connected to a charger) Battery fully charged Both lights OFF (When connected to a charger) Battery low Red light constantly on (When not connected to a charger) Both lights flashing rapidly (approx. twice per second) Blue light flashes slowly (around once every 2 seconds) Call currently active Blue light stays on for half a second, then off for 2 seconds. Music currently streaming Blue light stays on for half a second, then off for 1 second. Device currently idle Blue light flashes, then stays off for 4 seconds. Thank you for purchasing this Bluetooth Stereo Headset BT81. If this product fails to operate properly due to faulty assembly or materials within the specified warranty period then the authorized dealer will, at their option, either replace or repair the product in accordance with the following terms and conditions: 1. The warranty is valid only if the original receipt issued upon original purchase from an authorized ATA dealer is presented with the faulty product. The date of purchase and product serial number should be specified on the receipt. Please contact your local ATA dealer to find out more about their replacement policies and procedures. 2. The warranty does not cover any failure due to normal wear and tear or misuse (including but not limited to use in the manner outlined in this manual). The warranty also does not cover any failure of the product due to modification, adjustment, accident, acts of God or any improper use or storage. 3. The warranty does not cover product failure caused through the use of non-authorized ATA dealers or service partners. 4. The warranty does not cover product failures caused by the use of non-original ATA accessories. 5. ATA shall not be liable for any losses or damages whatsoever, including but not limited to any loss of profits, damage to property, personal injury or death arising Introduction Please read all the below information before using this device. 1. Please note that only an ATA authorized dealer or service partner should remove, replace or repair this device and its components. 2. Please use ATA original accessories only. Use of non-ATA original accessories may result in damage, loss of performance to the product, injury, electrical shock or even fire. 3. Please do not expose the device to extreme high or low temperatures, moisture or fluid. 4. Please do not drop, throw or bend the device as rough treatment could damage it. 5. Some medical equipment can be adversely affected by devices such as this. You should not use this device near medical equipment without permission. 6. Airline communications equipment can be adversely affected by devices such as this. You should not use this device on commercial aircraft. 7. Keep this device away from small children as it contains small parts. Important Information Package Contents Instructions Connect the USB converter between a PC and the headset. It will start recharging automatically. AC-to-USB Adaptor Note: when the battery is charging the red LED light will remain on constantly. Once the battery is fully charged the light will turn off. For more information about the LED lights and what they indicate please refer to the table later in this manual. There are 2 ways to recharge this device: Interface USB Convertor Connect the AC-to-USB adaptor between the power supply and the headset. It will start recharging automatically. Back view Cloth clip Stereo headphones (1) Pairing your Bluetooth Headset with a Bluetooth Dongle This device can receive an audio signal from a compatible Bluetooth dongle, but it first needs to search for a dongle to pair up with. To pair this device to a dongle you need to do the following: 1 – Check the device is turned OFF, then press and hold down the “ON/OFF” button for 5 seconds. When you release the button you will see both the red and blue LED lights flash rapidly (around twice a second). This means the device is searching for a dongle to pair up with. Once the device finds a compatible dongle the red LED will stop flashing and the blue LED will flash more slowly (around once every 2 seconds). This means it has paired with a compatible dongle. 2 – Turn OFF the device for at least 5 seconds (until you see the blue LED turn off). 3 – Turn the device ON again and it will now connect automatically to the dongle it was just paired with. Operating the buttons to play music via a Bluetooth dongle Button Action ON/OFF Short Press (around 1sec.) - turn ON Long Press (around 5sec.) - turn OFF VOL + Volume up…

Text truncated - open the document above for the full version.

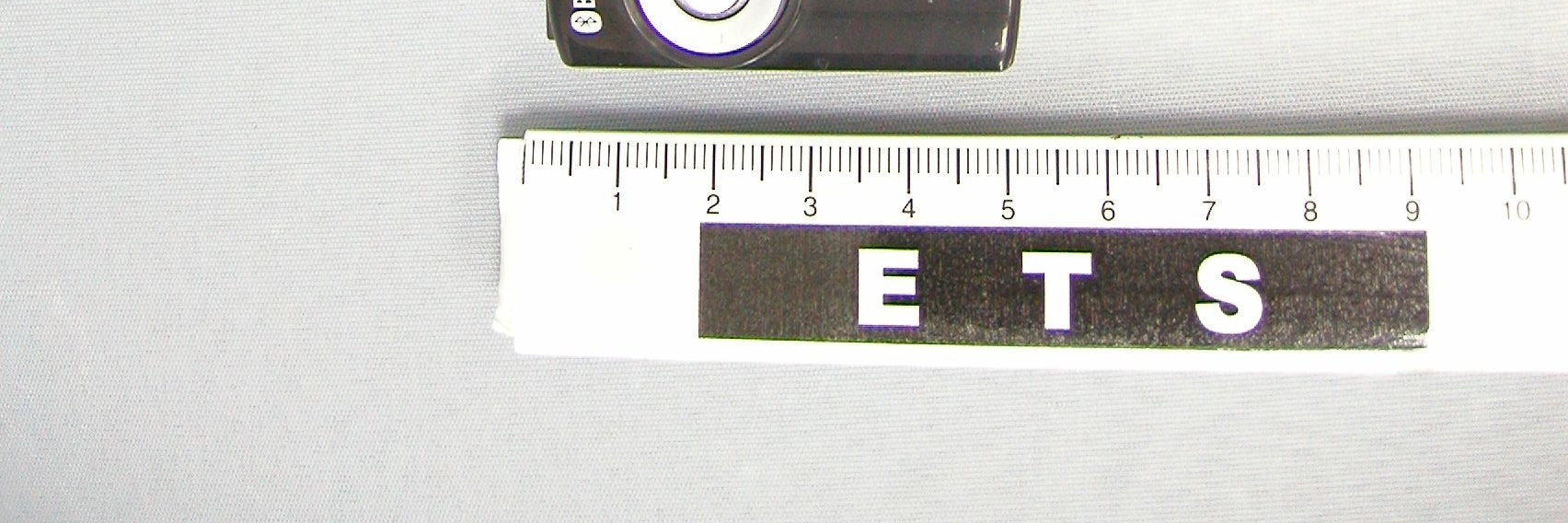

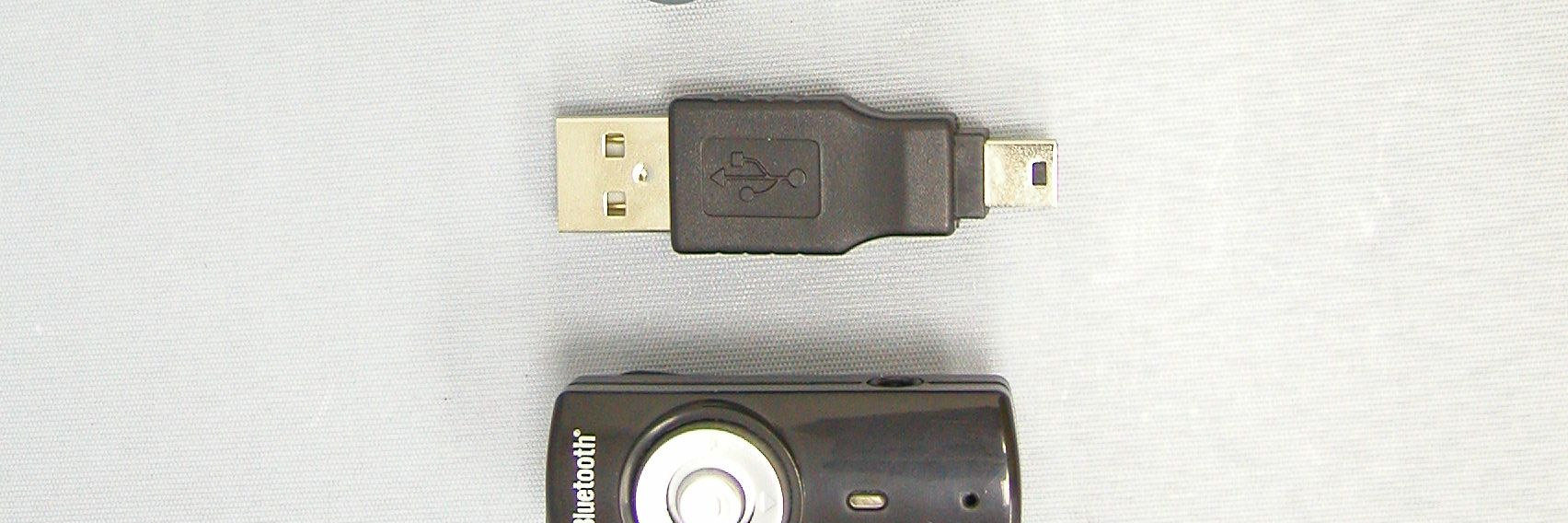

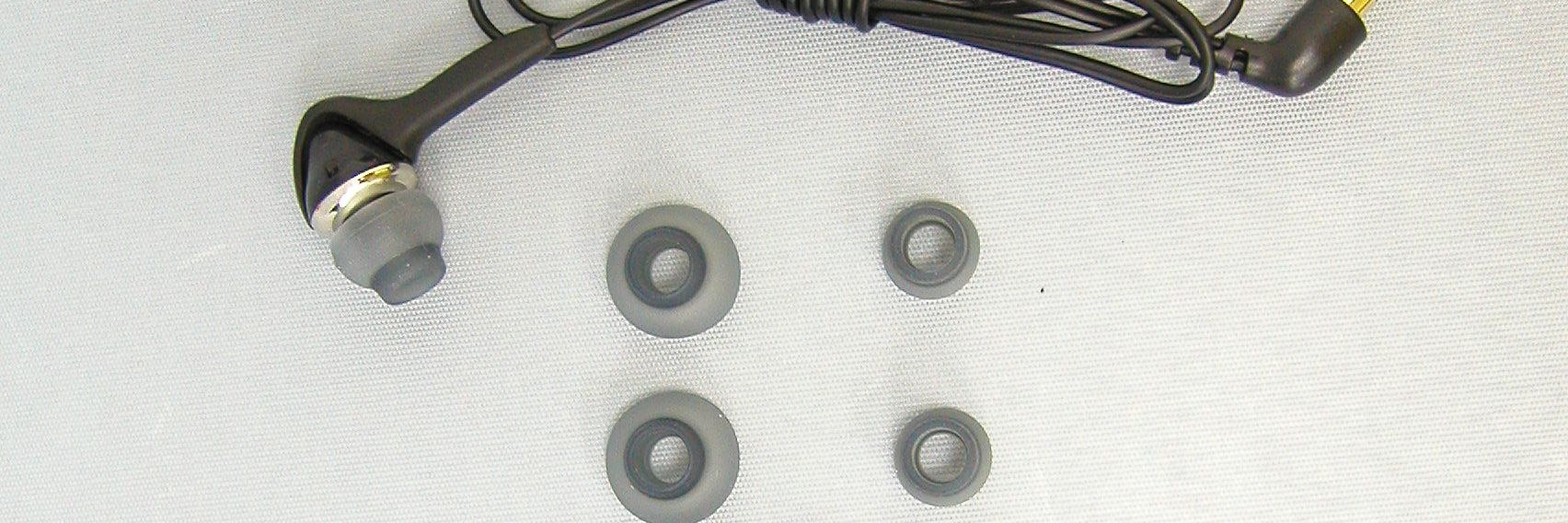

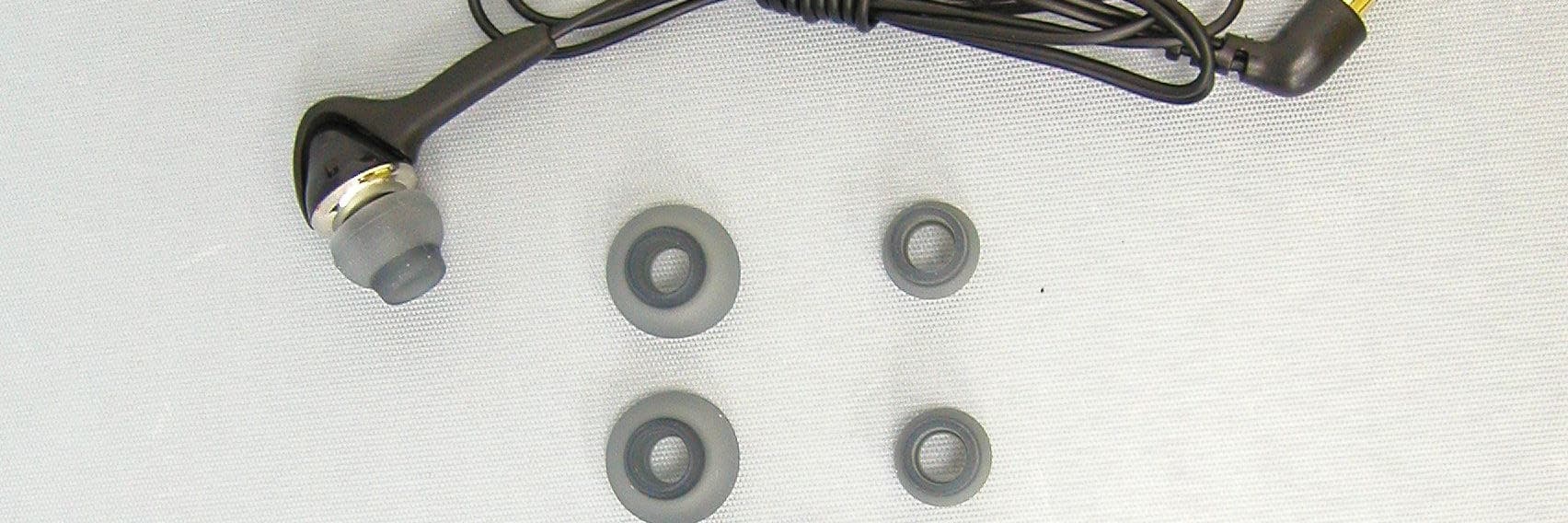

REGISTRATIONNUMBER: H1M20606-016721-P-15 ETS PRODUCT SERVICE AG Appendix STORKOWER STRASSE 38c, D-15526 REICHENWALDE B. BERLIN Page 1 of 11 Appendix A. Pictures REGISTRATIONNUMBER: H1M20606-016721-P-15 ETS PRODUCT SERVICE AG Appendix STORKOWER STRASSE 38c, D-15526 REICHENWALDE B. BERLIN Page 2 of 11 REGISTRATIONNUMBER: H1M20606-016721-P-15 ETS PRODUCT SERVICE AG Appendix STORKOWER STRASSE 38c, D-15526 REICHENWALDE B. BERLIN Page 3 of 11 REGISTRATIONNUMBER: H1M20606-016721-P-15 ETS PRODUCT SERVICE AG Appendix STORKOWER STRASSE 38c, D-15526 REICHENWALDE B. BERLIN Page 4 of 11 REGISTRATIONNUMBER: H1M20606-016721-P-15 ETS PRODUCT SERVICE AG Appendix STORKOWER STRASSE 38c, D-15526 REICHENWALDE B. BERLIN Page 5 of 11 REGISTRATIONNUMBER: H1M20606-016721-P-15 ETS PRODUCT SERVICE AG Appendix STORKOWER STRASSE 38c, D-15526 REICHENWALDE B. BERLIN Page 6 of 11

FCC ID: QLM0140608 Model: BT81

ETS PRODUCT SERVICE AG TEST - REPORT FCC RULES PARTS 15.247 FCC ID: QLM0140608 Model Name: BT81 Test report no.: H1M20606-016941-P-15 Certificate 1983-01 ETS PRODUCT SERVICE AG STORKOWER STRASSE 38C D-15526 REICHENWALDE B. BERLIN PHONE +49-33631-888 0 FAX +49-33631-888 660 ETS Product Service AG, Germany Registration number: H1M20606-016941-P-15 Page 1 of 34 TABLE OF CONTENTS 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of approval holder 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test environment 2.3 Test equipment utilized 2.4 General test procedure 2.5 Test results 3 Transmitter parameters 3.1 RF power output conducted 3.2 RF power output radiated (EIRP) 3.3 20 dB bandwidth 3.4 Time of occupancy (dwell time) 3.5 Number of hopping frequencies 3.6 Carrier frequency separation 3.7 Spurious emission conducted 3.8 Spurious emission radiated 3.9 Band-edge compliance 3.10 AC power line conducted emission 4 Receiver parameters 4.1 Radiated emission APPENDIX ETS Product Service AG, Germany Registration number: H1M20606-016941-P-15 Page 2 of 34 1 General information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the ETS PRODUCT SERVICE AG. Tester: 06.09.2006 F.Schulz Date ETS-Lab. Name Signature Technical responsibility for area of testing: 06.09.2006 N. Kaspar i.A.. Date ETS Name Signature ETS Product Service AG, Germany Registration number: H1M20606-016941-P-15 Page 3 of 34 1.2 Testing laboratory 1.2.1 Location ETS PRODUCT SERVICE AG (ETS) Storkower Straße 38c D-15526 Reichenwalde b. Berlin Germany Telephone : +49 33631 888 0 Telefax : +49 33631 888 660 1.2.2 Details of accreditation status ACCREDITED TESTING LABORATORY DAR-REGISTRATION NUMBER: DAT-P-201/96 ACCREDITED COMPETENT BODY DAR-REGISTRATION NUMBER: BPT-ZE-026/96 FCC FILED TEST LABORATORY: REG. NO. 96970 INDUSTRY CANADA FILED TEST LABORATORY REG. NO. IC 3470 A2LA ACCREDITED CERTIFICATE NUMBER: 1983-01 BLUETOOTH QUALIFICATION TEST FACILITY (BQTF) ACCREDITED BY: BLUETOOTH QUALIFICATION REVIEW BOARD (BQRF) 1.3 Details of approval holder Name : ANTONIO PRECISE PRODUCTS MANUFACTORY LTD. Street : 3/F., PHOTONICS CENTER, NO. 2 SCIENCE PARK EAST AVENUE, H.K. SCIENCE PARK Town : SHATIN, N.T. Country : HONG KONG Telephone : +852 2952 7622 Fax : +852 2775 5718 Contact : MR. REX HO E-Mail : +852 2952 7622 ETS Product Service AG, Germany Registration number: H1M20606-016941-P-15 Page 4 of 34 1.4 Application details Date of receipt of application : 28.06.2006 Date of receipt of test item : 28.06.2006 Date of test : 01.08.2006 1.5 Test item Description of test item : STEREO BT HEADSET Type identification : BT81 Brand Name : ATA Serial number : ./. Photos : See annex A. Technical data Frequency band : 2.4 - 2.4835 GHz Frequency Ch A : 2402 MHz Frequency Ch B : 2441 MHz Frequency Ch C : 2480 MHz Transmitter Vnom Power (ch A) : Conducted: 1.53 dBm Power (ch B) : Conducted: 0.55 dBm Power (ch C) : Conducted: 0.00 dBm Antenna Type : internal antenna Antenna Gain : 0.5 dBi Power supply : 3.7V rechargeable Li ION battery Operating mode : duplex Type of modulation : FHSS Host device : none ETS Product Service AG, Germany Registration number: H1M20606-016941-P-15 Page 5 of 34 Classification : Fixed Device Mobile Device (Human Body distance > 20 cm) Portable Device (Human Body distance < 20 cm) Manufacturer: (if applicable) Name : SUN FAT ELECTRONICS & PLASTICS FACTORY Street : 17, WAN AH SHAN,SHAJIN, BAOAN, Town : GUANGDONG PROVINCE, Country : CHINA Additional information: The test sample is designed as Bluetooth device. Its pseudorandom hopping scheme, authentication, receiver parameters, synchronization procedure and other parameters are determined by Bluetooth Core Specification. ETS Product Service AG, Germany Registration number: H1M20606-016941-P-15 Page 6 of 34 1.6 Test standards Technical standard: FCC Parts: 15.247 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course
of the tests performed. or The deviations as specified in 2.5 were ascertained in the course of the tests  performed. 2.2 Test environment Temperature : 25° C Relative humidity content : 20 ... 75 % Air pressure : 86 ... 103 kPa ETS Product Service AG, Germany Registration number: H1M20606-016941-P-15 Page 7 of 34 2.3 Test equipment utilized No. Test equipment Type Manufacturer ETS 0001 ESD Gun SESD 30000 Schlöder ETS 0002 Test receiver ESVP R & S ETS 0003 Diode Power Sensor NRV-Z2 R & S ETS 0004 Spektrum- and Network- Analyzer FSMS 26 R & S ETS 0005 RF amplifier matrix RSU-ETS-CTR6 ETS ETS 0006 HP-Filter H1G04G01 Microwave ETS 0007 Horn antenna AT 4004 ar ETS 0008 Antenna Loop antenna Siemens ETS 0009 Comb Generator Emitter CGE 02 York EMC Services ETS 0011 Antenna (van Veen/Frame) HM020Z3 R & S ETS 0012 Biconical Antenna HK 116 R & S ETS 0013 LPD Antenna HL 223 R & S ETS 0014 Log Periodical Antenna HL 025 R & S ETS 0015 Log Periodical Antenna HL 025 R & S ETS 0016 Precision anten…

Text truncated - open the document above for the full version.

REGISTRATIONNUMBER: H1M20606-016721-P-15 ETS PRODUCT SERVICE AG Appendix STORKOWER STRASSE 38c, D-15526 REICHENWALDE B. BERLIN Page 10 of 11 Radiated Setup Picture REGISTRATIONNUMBER: H1M20606-016721-P-15 ETS PRODUCT SERVICE AG Appendix STORKOWER STRASSE 38c, D-15526 REICHENWALDE B. BERLIN Page 11 of 11 Conducted Setup Picture
