QLM0160609Bluetooth Stereo Headset

Introduction 2 Package Contents 2 Charging method 2 Appearance 3 Operations 4 Important Information 6 Warranty 7 This User's Guide is published by ATO without any warranty. Improvements and changes to this User's Guide necessitated by typographical errors, inaccuracies of current information ,or improvements to programs and /or equipment, may be made by ATO at any time and without notice. The Bluetooth trademarks are owned by Bluetooth SIG, Inc.USA. Thank you for purchasing BT95 by ATA. BT95 is a complete Bluetooth Stereo Headset that provides Headset, Handsfree and Audio Streaming which is compliant with Bluetooth specification v1.2. BT95 profiles supported: Headset, Handsfree, A2DP, and AVRCP. BT95 Bluetooth Stereo Headset USB changing cable User's Manual Table of contents Introduction Package Contents Appearance Front view BT95 - foldable headband for easy storage LED indicator Ear clip Rotary mic. ON/OFF button Vol. button Charging jack 234 Stereo Headset BT95 User's Manual Scenario 1: Bluetooth headset and Bluetooth dongle (a) Pairing 1) Press and hold the ON/OFF button about 5 sec. until the LEDs (Blue and Red color) are flashing in 0.5s interval. 2) The LED (Blue color) will flash in 1.5s interval if pairing is succeed. 3) Press and hold the ON/OFF button about 5 sec. until the LED (Blue color) turns off. (b) Button operation while playing music (A2DP) Button Description ON/OFF Short Press (around 1sec.) - turn ON Long Press (around 5sec.) - turn OFF VOL + Volume up VOL - Volume down (c) Button operation during phone call (Handsfree) Button Description ON/OFF Short Press (around 1sec.) - turn ON Long Press (around 5sec.) - turn OFF VOL + Volume up VOL - Volume down Scenario 2: Bluetooth headset and Bluetooth mobile (a) Pairing and connection 1) Activate the Bluetooth functions on the mobile phone. 2) Search for the Bluetooth stereo headset device (BT95). 3) Press and hold (about 5 sec.) the ON/OFF button of the stereo headset (BT95) until the LEDs (Blue and Red color) is flashing in 0.5s time interval 4) Select the name of the stereo headset from the device list showing Bluetooth devices which in discoverable mode within the range. 5) Enter the PIN "0000" to request pairing. 6) The LED (Blue color) will flash in 1.5s time interval. In the case, the Headset profile should be connected (but no A2DP profile). 7) Connect A2DP profile from the mobile. Please refer to the operations stated in the user's manual of the mobile phone. (For example: open the music player program in the mobile phone and play the music via headset.) (b) Button operation while playing music (A2DP) Button Description ON/OFF Play or Pause muisc, turn ON/OFF VOL + Volume up VOL - Volume down (c) Button operation during phone call (Handsfree) Button Description ON/OFF Short press (around 1 sec.)-pick up call (call active state) Short press (around 1 sec.)-hang up call / release active accpet other call (call active state) Long press (around 2 sec.)-call transfer to the mobile phone / hold active accept other call (call active state) Long press (around 2 sec.)-reject call (incoming call state) Double click - mic mute (call active state) Short press (around 1 sec.)- turn ON Long press (around 5 sec.)- turn OFF (any state) VOL + Volume up VOL - Volume down Remarks: 1) When the headset and dongle are paired the end user is required to press both ON/OFF button for 1 sec. then both devices will be connected again automatically. 2) Don't use Linear AC-DC adaptor but use Switching AC-DC adaptor (5.5v) or USB jack. 3 4) This equipment is to be supplied from an identitied USB port complying with the requirements of Limited Power Source. ) Fixed PIN code: 0000 Please read all this information before using BT95 1. Please note that only the ATA authorized dealer or service partner should remove and/or replace the unit, or any other components. 2. Please use ATA original accessories only. Use of non-ATA original accessories may result in damage, loss of per- formance to the product, injury, electric shock or even fire. 3. Please do not expose the product to extreme high or low temperatures, moisture or fluid. 4. Please do not drop, throw or bend the product as rough treatment will damage it. 5. Some medical electronic equipment may not be shielded from RF energy. Therefore, please do not use the headset near medical equipment without permission. 6. Please turn off the unit before boarding any aircraft. To prevent any interference with communication systems, please do not use the unit while the plane is in the air. 7.Please do not allow children to play with the unit since it contains small parts. Thank you for purchasing BT95 Bluetooth stereo headset. Within the warranty period, if the product fails to operate under normal use and service, due to improper workmanship or material, the authorized dealers will, at their option, either replace or repair the product in accordance with the following terms and conditions: 1. The warrnaty is valid only if the original receipt issued to the original purchase by ATA authorized dealer is presented with the product to be replaced or repaired. The date of purchase and serial number shall be specified in receipt. For the replacement and repair policies and procedures in the countries / provinces which the product is purchased, please refer to the local ATA authorized dealer. 2. The warranty does not cover any failure of product due to normal tear and wear, or misuses, including but not limit to use in other than the manner according to the instructions for operation and maintenance of the product. The warranty also does not cover any failure of the product due to modification, adjustment, accident, acts of God, or any improper use or storage. 3. The warranty does not cover product failure due to improper repair, modification, adjustment, installation, or service by a non authorized ATA services partner. 4. The warranty does not cover product failures caused by the use of non ATA original acce…

Text truncated - open the document above for the full version.

BT95 Block Diagram Tx & Rx (2402.000MHz~2480.000MHz) ANT Module (BTR200A) Signal I/O Control Power Power Supply MIC Earphones Prepared by: Rex Ho Date: 15JUN, 07 RX TX RF SW MCU Audio Battery Charger LED SW Internal X’tal 16MHz

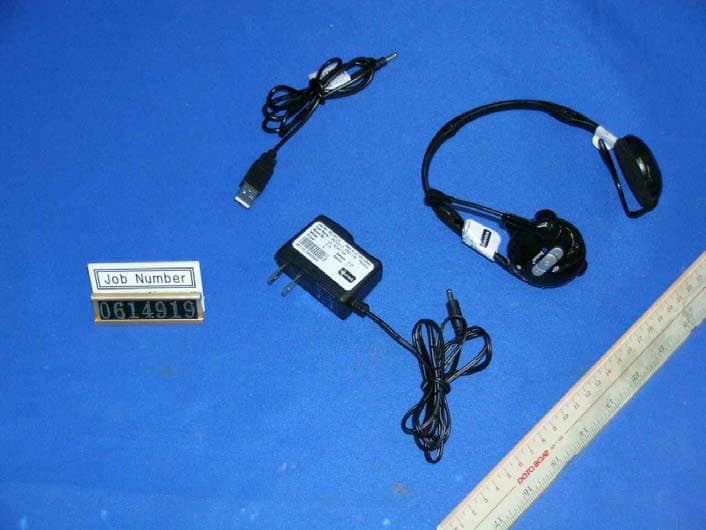

INTERTEK TESTING SERVICES External Photos FCC ID: QLM0160609 external photos - 1 of 1

Left Arm of Headband 25.0mm 3 . 0 m m Right Arm of Headband 25.0mm

INTERTEK TESTING SERVICES Internal photos FCC ID: QLM0160609 internal photos - 1 of 4 Headset assembly Headset Main PCB comp side (View 1) INTERTEK TESTING SERVICES Internal photos FCC ID: QLM0160609 internal photos - 2 of 4 Headset Main PCB comp side (View 2) Headset Main PCB solder side (View 1) INTERTEK TESTING SERVICES Internal photos FCC ID: QLM0160609 internal photos - 3 of 4 Headset Main PCB solder side (View 2) Headset rechargeable battery front side INTERTEK TESTING SERVICES Internal photos FCC ID: QLM0160609 internal photos - 4 of 4 Headset rechargeable battery rear side

BT95 Circuit Description: CATEGORY PART NUMBER PART NAME DESCRIPTION Antenna ANT002-2G450 Chip antenna (U5) Chip antenna Module BTR200A Blue t ooth Module (A1) 2.4GHz Blue t ooth Module LED VS3227BRSC-11G LED (D4) DUAL LED RED/BLUE Switch Switch (S4~S6) Tact Switch for volume Up/down & On/Off Battery PR0520 Battery Li-Ion Re-Chargeable 4.2V IC LTC4054L-4.2 Battery Charger IC (U9) Battery Charger IC IC XC6024B332MR Regulator (U1) Voltage Regulator 3.3V IC XCS921A18CMR DC-DC Converter (U4) DC-DC CONVERTER 1.8V TRANSISTOR PUMX1 Double transistor (U2) NPN general purpose double trans istor TRANSISTOR MMBT3904LT1 Transistor (Q1) NPN general purpose double trans istor BLUETOOTH SPECIFICATION 1. FREQUENCY BANDS AND CHANNEL ARRANGEMENT The Bluetooth system operates in the 2.4 GHz ISM band. This frequency band is 2400 - 2483.5 MHz. Regulatory Range RF Channels 2.400-2.4835 GHz f=2402+k MHz, k=0,...,78 Table 1.1: Operating frequency bands RF channels are spaced 1 MHz and are ordered in channel number k as shown in Table 1.1. In order to comply with out-of-band regulations in each country, a guard band is used at the lower and upper band edge. Lower Guard Band Upper Guard Band 2 MHz 3.5 MHz Table 1.2: Guard Bands Bluetron TM 400 Series www.avantwave.com Tel: (852) 2648 9887 Fax: (852) 2646 3713 [email protected]  ƒ Compact size: 20 mm x 13 mm x 2.2 mm Datasheet BTR200 Key Features ƒ A small and cost effective Bluetooth  System ƒ Bluetooth  specification v1.2/v2.0 compliant ƒ Class 2, up to 10-meter range ƒ Complete 2.4GHz Bluetooth  System including: ƒ Hardware: Radio, Baseband and Crystal & Memory ƒ Standard Firmware: HCI or RFCOMM stack ƒ Power management: low power 1.8V operation for Bluetooth  core ƒ Bluetooth  Profile Supported: HSP, HFP, A2DP and AVRCP profiles ƒ Built-in stereo codec ƒ External antenna ƒ On-board flash memory (8Mbits) ƒ Allow dual boots ƒ Audio streaming ƒ Optional echo cancellation software library ƒ Support multiple connections ƒ Surface mount module for embedded applications ƒ Several firmware options ƒ Rewritable flash memory for easy upgrade route ƒ Custom firmware production available Description The Bluetron TM BTR200 module from AvantWave is a complete Bluetooth  solution for fast implementation, cutting your time-to-market. It is a short-range, compact and cost effective radio/baseband module that can be implemented in any kind of electronic devices, such as hands-free car kit, stereo headset and telephone gateway, etc. In standard configuration the module includes a baseband processor with on board 8Mbit Flash memory, a radio front- end, antenna interface, supporting circuitry, together with some higher-level software protocols and applications such as L2CAP, SDP, SPP, GAP, HSP, HFP, A2DP and AVRCP are resided in the Flash. The Bluetron TM BTR200 module is a power class 2 Bluetooth  devices, and is in compliance with version 1.2/2.0 of the Bluetooth  specification. It is supplied with Bluetooth  protocol stack firmware which runs on the internal microprocessor. Bluetron TM BTR200 module is built on CSR BC03 Multimedia External core with an 8Mbit Flash memory for firmware and application software storage. Applications ƒ Stereo Bluetooth  headset ƒ Automotive car kit applications ƒ PDAs and other portable terminals ƒ MP3 headset AvantWave Limited, July 2005 Datasheet BTR200 v1.7 Page 1 Bluetron TM 400 Series Software The upper layers of the Bluetooth stack (above HCI) runs on-package. No external microcontroller is required. www.avantwave.com Mechanical Specification 16-bit Stereo Codec DSP Radio Microcontroller Flash Baseband LC LM L2CAP SPP SDP Application Profiles On board memory containing protocol stack and profile application User Interface Mic & S peaker 20.0 mm (+/- 0.1) J1 J43 J17 J26 J2 J42 Bluetron TM BTR200B J18 J27 0.80 mm 0.57 mm 1.724 mm d 0.50 mm Top view 1.15 mm 1.194 mm 13.0 mm (+/- 0.1) Side view 2.20 mm (+/- 0.05) 1.00 mm (+/- 0.05) Tel: (852) 2648 9887 Fax: (852) 2646 3713 [email protected]  AvantWave Limited, July 2005 Datasheet BTR200 v1.7 Page 2 www.avantwave.com Tel: (852) 2648 9887 Fax: (852) 2646 3713 [email protected]  AvantWave Limited, July 2005 Datasheet BTR200 v1.7 Page 3 Bluetron TM 400 Series Pin Assignment Terminal Name Description 1 GND Ground Connection 2 ANT 50 Ohm antenna port 3 AIO[1] Programmable input/output line 4 AIO[0] Programmable input/output line 5 AUDIO_OUT_P_LEFT Analog speaker output positive (left side) 6 AUDIO_IN_N_LEFT Analog microphone input negative (left side) 7 AUDIO_IN_P_LEFT Analog microphone input positive (left side) 8 AUDIO_IN_N_RIGHT Analog microphone input negative (right side) 9 AUDIO_IN_P_RIGHT Analog microphone input positive (right side) 10 AUDIO_OUT_N_LEFT Analog speaker output negative (left side) 11 AIO[3] Programmable input/output line 12 SPI_CLK Serial Peripheral Interface clock 13 +1.8V Positive supply for analog, core (can be generated by internal linear voltage regulator) 14 GND Ground connection 15 +3.3V Positive supply for external flash and PIO and internal LDO regulator 16 USB_D+ USB data plus 17 PCM_CLK PCM synchronous data clock 18 UART_RX UART data input 19 SPI_CSB Chip select for synchronous serial peripheral interface 20 UART_RTS UART request to send active low 21 PIO[6] Programmable input/output line 22 PIO[5] Programmable input/output line 23 UART_CTS UART clear to send active low 24 UART_TX UART data output 25 PCM_IN PCM Synchronous data input 26 PCM_OUT PCM Synchronous data output www.avantwave.com Tel: (852) 2648 9887 Fax: (852) 2646 3713 [email protected]  AvantWave Limited, July 2005 Datasheet BTR200 v1.7 Page 4 Bluetron TM 400 Series 27 RESET Reset if high for >5ms 28 PCM_SYNC PCM Synchronous data sync 29 USB_D- USB data minus 30 PIO[1] Programmable input/output line 31 SPI_MISO Serial Peripheral Interface data output 32 SPI_MOSI Serial Peripheral Interface data input 33 PIO[7] Programmable input/output line 34 AUDIO_OUT_P_RIGHT Audio Speaker Output Pos…

Text truncated - open the document above for the full version.

CUS311B`CTI211`CU:6`w4/1/tdi.2!.!Uvf!Kbo!34!26;68;55!3118

- The evaluation data of the report will be kept for 3 years from the date of issuance. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Antonio Precise Products Manufactory Ltd. Application For Certification Bluetooth Stereo Headset (FCC ID: QLM0160609) 06149191 KL/ ac June 20, 2007 INTERTEK TESTING SERVICES FCC ID: QLM0160609 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual INTERTEK TESTING SERVICES FCC ID: QLM0160609 ii MEASUREMENT/TECHNICAL REPORT Antonio Precise Products Manufactory Ltd. - Model: BT95 FCC ID: QLM0160609 This report concerns (check one:) Original Grant X Class II Change Equipment Type : DXT - Pt 15 Low Power Transceiver, Rx Verified Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until : date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37 ? Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [04-05-05 Edition] Provision. Report prepared by: Lam Chun Cheong, Kenneth Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Phone : 852-2173-8474 Fax: 852-2741-1693 INTERTEK TESTING SERVICES FCC ID: QLM0160609 iii Table of Contents 1.0 General Description................................................................................................. 2 1.1 Product Description ................................................................................................. 2 1.2 Related Submittal(s) Grants .................................................................................... 3 1.3 Test Methodology.................................................................................................... 3 1.4 Test Facility............................................................................................................. 3 2.0 System Test Configuration...................................................................................... 5 2.1 Justification ............................................................................................................. 5 2.2 EUT Exercising Software......................................................................................... 5 2.3 Support Equipment List and Description .................................................................. 6 2.4 Measurement Uncertainty ....................................................................................... 7 2.5 Equipment Modification ........................................................................................... 7 3.0 Emission Results..................................................................................................... 9 3.1 Field Strength Calculation...................................................................................... 10 3.2 Radiated Emission Configuration Photograph - Headset........................................ 11 3.3 Radiated Emission Data - Headset ........................................................................ 12 3.4 Radiated Emission on the Bandedge..................................................................... 16 3.5 Line Conducted Configuration Photograph - Headset ............................................ 17 3.6 Line Conducted Emission Data - Headset.............................................................. 18 3.7 Radiated Emissions from Digital Portion of EUT .................................................... 19 4.0 Equipment Photographs........................................................................................ 22 5.0 Product Labelling................................................................................................... 24 6.0 Technical Specifications........................................................................................ 26 7.0 Instruction Manual................................................................................................. 28 INTERTEK TESTING SERVICES FCC ID: QLM0160609 iv List of attached file Exhibit type File Description filename Test Report Test Report report.pdf Operation Description Technical Description descri.pdf Test Setup Photo Radiated & Conducted Emission for Headset config photos.doc Test Report Emission Plot emission.pdf Test Report Conducted Emission Test Result conduct.pdf External Photo External Photo external photos.doc Internal Photo Internal Photo internal photos.doc Block Diagram Block Diagram block.pdf Schematics Circuit Diagram circuit.pdf ID Label/Location Label Artwork and Location label.pdf User Manual User Manual manual.pdf INTERTEK TESTING SERVICES FCC ID: QLM0160609 1 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTIN…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES Radiated Emission on the Bandedge Plots FCC ID: QLM0160609 emission - 1 of 1 Plot H1A Plot H1B

Report No.: 06149191 Charging & Headset Online Mode Adaptor’s AC Port Ctrl No.: N/A PAGE 1 Tested By:Hong, Report No.:06149191 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement: x QP / + AV Meas Time: 1 s Subranges: 16 Acc Margin: 20dB Transducer No. Start Stop Name 2 1 9k 30M EW0699 12 9k 30M EW0192 0 10 20 30 40 50 60 70 80 90 dBuV 100 0.15 MHz 30 110 F15Q F15A Report No.: 06149191 Charging & Headset Online Mode Adaptor’s AC Port Ctrl No.: N/A Tested By:Hong, Report No.:06149191 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement Results: Frequency QP Level QP Limit MHz dBuV dBuV 0.29000 48.0 60.6 0.30000 49.8 60.2 0.59000 47.7 56.0 0.90000 44.0 56.0 1.21000 39.9 56.0 1.73000 32.1 56.0 2.66000 33.4 56.0 3.03500 30.2 56.0 4.50500 23.5 56.0 Frequency AV Level AV Limit MHz dBuV dBuV 0.29500 35.0 50.3 0.59500 31.0 46.0 * limit Report No.: 06149191 Charging & Headset Online Mode Notebook’s AC Port Ctrl No.: N/A PAGE 1 Tested By:Hong, Report No.:06149191 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement: x QP / + AV Meas Time: 1 s Subranges: 16 Acc Margin: 20dB Transducer No. Start Stop Name 2 1 9k 30M EW0699 12 9k 30M EW0192 0 10 20 30 40 50 60 70 80 90 dBuV 100 0.15 MHz 30 110 F15Q F15A Report No.: 06149191 Charging & Headset Online Mode Notebook’s AC Port Ctrl No.: N/A Tested By:Hong, Report No.:06149191 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement Results: Frequency QP Level QP Limit MHz dBuV dBuV 0.21000 43.8 63.2 Frequency AV Level AV Limit MHz dBuV dBuV 0.60000 26.9 46.0 * limit exceeded

INTERTEK TESTING SERVICES The Worst Case Configuration Photographs FCC ID: QLM0160609 config photos (radiated emission – headset) - 1 of 1 Radiated Emission – Headset Front View Rear View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs FCC ID: QLM0160609 config photos (conducted emission) - 1 of 2 Conducted Emission Front View Right Side View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs FCC ID: QLM0160609 config photos (conducted emission) - 2 of 2 Conducted Emission Left Side View
