QLM0150609Bluetooth Dongle

BD23 Block Diagram ANT Tx & Rx 2402.000MHz ~ 2480.000MHz Module(BTR200A) I/O USB Interface I/O Power Supply Signal Control Power Prepared by: Rex Ho Date: 15JUN, 07 RX TX RF SW MCU Audio Battery LED Pairing / Off SW. Internal X’tal 16MHz

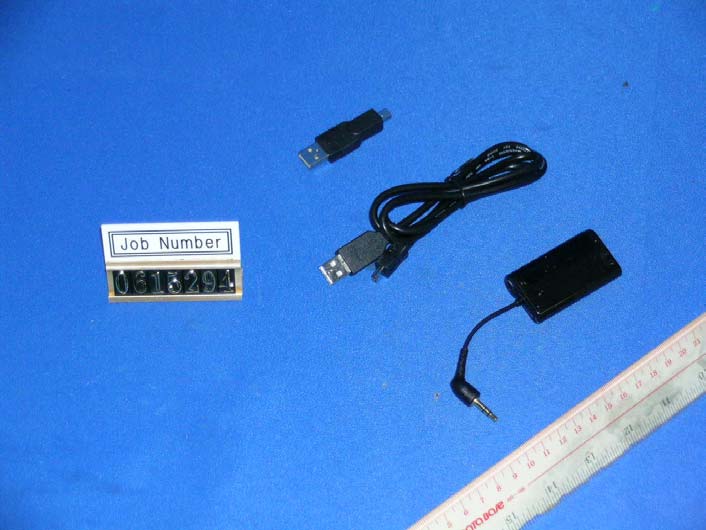

INTERTEK TESTING SERVICES External Photos FCC ID: QLM0150609 external photos - 1 of 1

DO NOT SCALE DRAWING bd23_assy_asm SHEET 1 OF 1 UNLESS OTHERWISE SPECIFIED: SCALE: 1:1 WEIGHT: REV DWG. NO. A SIZE TITLE: NAME DATE COMMENTS: Q.A. MFG APPR. ENG APPR. CHECKED DRAWN FINISH MATERIAL INTERPRET GEOMETRIC TOLERANCING PER: DIMENSIONS ARE IN INCHES TOLERANCES: FRACTIONAL± ANGULAR: MACH± BEND ± TWO PLACE DECIMAL ± THREE PLACE DECIMAL ± APPLICATION USED ON NEXT ASSY PROPRIETARY AND CONFIDENTIAL THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF <INSERT COMPANY NAME HERE>. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF <INSERT COMPANY NAME HERE> IS PROHIBITED. 5 4 3 2 1 Front Back Side Side Remark:The Marking Printing on the clip Carrefour CBT812

INTERTEK TESTING SERVICES Internal photos FCC ID: QLM0150609 internal photos - 1 of 2 Dongle assembly Dongle Main PCB comp side INTERTEK TESTING SERVICES Internal photos FCC ID: QLM0150609 internal photos - 2 of 2 Dongle Main PCB solder side

B D 23 Circuit Description: CATEGORY PART NUMBER PART NAME DESCRIPTION Antenna ANT002-2G450 Chip antenna (U2) Chip antenna Module BTR200A Bluetooth Module (U1) 2.4GHz Bluetooth Module LED KP-1608QBC-C LED (D1) LED BLUE Switch Switch (U6) Tact Switch for On/Off Battery “AAA” 1.5V Battery Alkaline battery IC L6920DA Converter IC (U7) Step Up Converter IC XC6024B332MR Regulator (U4) Voltage Regulator 3.3V IC XCS921A18CMR DC-DC Converter (U5) DC-DC CONVERTER 1.8V IC USB6BX Double transistor (U8) DATA LINES PROTECTION Socket PQC-6GUDU-05S-X01 USB Socket (U3) Mini USB B 5pin Socket TRANSISTOR MMBT3904LT1 Transistor (Q5) NPN general purpose transist or BLUETOOTH SPECIFICATION 1. FREQUENCY BANDS AND CHANNEL ARRANGEMENT The Bluetooth system operates in the 2.4 GHz ISM band. This frequency band is 2400 - 2483.5 MHz. Regulatory Range RF Channels 2.400-2.4835 GHz f=2402+k MHz, k=0,...,78 Table 1.1: Operating frequency bands RF channels are spaced 1 MHz and are ordered in channel number k as shown in Table 1.1. In order to comply with out-of-band regulations in each country, a guard band is used at the lower and upper band edge. Lower Guard Band Upper Guard Band 2 MHz 3.5 MHz Table 1.2: Guard Bands Bluetron TM 400 Series www.avantwave.com Tel: (852) 2648 9887 Fax: (852) 2646 3713 [email protected]  ƒ Compact size: 20 mm x 13 mm x 2.2 mm Datasheet BTR200 Key Features ƒ A small and cost effective Bluetooth  System ƒ Bluetooth  specification v1.2/v2.0 compliant ƒ Class 2, up to 10-meter range ƒ Complete 2.4GHz Bluetooth  System including: ƒ Hardware: Radio, Baseband and Crystal & Memory ƒ Standard Firmware: HCI or RFCOMM stack ƒ Power management: low power 1.8V operation for Bluetooth  core ƒ Bluetooth  Profile Supported: HSP, HFP, A2DP and AVRCP profiles ƒ Built-in stereo codec ƒ External antenna ƒ On-board flash memory (8Mbits) ƒ Allow dual boots ƒ Audio streaming ƒ Optional echo cancellation software library ƒ Support multiple connections ƒ Surface mount module for embedded applications ƒ Several firmware options ƒ Rewritable flash memory for easy upgrade route ƒ Custom firmware production available Description The Bluetron TM BTR200 module from AvantWave is a complete Bluetooth  solution for fast implementation, cutting your time-to-market. It is a short-range, compact and cost effective radio/baseband module that can be implemented in any kind of electronic devices, such as hands-free car kit, stereo headset and telephone gateway, etc. In standard configuration the module includes a baseband processor with on board 8Mbit Flash memory, a radio front- end, antenna interface, supporting circuitry, together with some higher-level software protocols and applications such as L2CAP, SDP, SPP, GAP, HSP, HFP, A2DP and AVRCP are resided in the Flash. The Bluetron TM BTR200 module is a power class 2 Bluetooth  devices, and is in compliance with version 1.2/2.0 of the Bluetooth  specification. It is supplied with Bluetooth  protocol stack firmware which runs on the internal microprocessor. Bluetron TM BTR200 module is built on CSR BC03 Multimedia External core with an 8Mbit Flash memory for firmware and application software storage. Applications ƒ Stereo Bluetooth  headset ƒ Automotive car kit applications ƒ PDAs and other portable terminals ƒ MP3 headset AvantWave Limited, July 2005 Datasheet BTR200 v1.7 Page 1 Bluetron TM 400 Series Software The upper layers of the Bluetooth stack (above HCI) runs on-package. No external microcontroller is required. www.avantwave.com Mechanical Specification 16-bit Stereo Codec DSP Radio Microcontroller Flash Baseband LC LM L2CAP SPP SDP Application Profiles On board memory containing protocol stack and profile application User Interface Mic & S peaker 20.0 mm (+/- 0.1) J1 J43 J17 J26 J2 J42 Bluetron TM BTR200B J18 J27 0.80 mm 0.57 mm 1.724 mm d 0.50 mm Top view 1.15 mm 1.194 mm 13.0 mm (+/- 0.1) Side view 2.20 mm (+/- 0.05) 1.00 mm (+/- 0.05) Tel: (852) 2648 9887 Fax: (852) 2646 3713 [email protected]  AvantWave Limited, July 2005 Datasheet BTR200 v1.7 Page 2 www.avantwave.com Tel: (852) 2648 9887 Fax: (852) 2646 3713 [email protected]  AvantWave Limited, July 2005 Datasheet BTR200 v1.7 Page 3 Bluetron TM 400 Series Pin Assignment Terminal Name Description 1 GND Ground Connection 2 ANT 50 Ohm antenna port 3 AIO[1] Programmable input/output line 4 AIO[0] Programmable input/output line 5 AUDIO_OUT_P_LEFT Analog speaker output positive (left side) 6 AUDIO_IN_N_LEFT Analog microphone input negative (left side) 7 AUDIO_IN_P_LEFT Analog microphone input positive (left side) 8 AUDIO_IN_N_RIGHT Analog microphone input negative (right side) 9 AUDIO_IN_P_RIGHT Analog microphone input positive (right side) 10 AUDIO_OUT_N_LEFT Analog speaker output negative (left side) 11 AIO[3] Programmable input/output line 12 SPI_CLK Serial Peripheral Interface clock 13 +1.8V Positive supply for analog, core (can be generated by internal linear voltage regulator) 14 GND Ground connection 15 +3.3V Positive supply for external flash and PIO and internal LDO regulator 16 USB_D+ USB data plus 17 PCM_CLK PCM synchronous data clock 18 UART_RX UART data input 19 SPI_CSB Chip select for synchronous serial peripheral interface 20 UART_RTS UART request to send active low 21 PIO[6] Programmable input/output line 22 PIO[5] Programmable input/output line 23 UART_CTS UART clear to send active low 24 UART_TX UART data output 25 PCM_IN PCM Synchronous data input 26 PCM_OUT PCM Synchronous data output www.avantwave.com Tel: (852) 2648 9887 Fax: (852) 2646 3713 [email protected]  AvantWave Limited, July 2005 Datasheet BTR200 v1.7 Page 4 Bluetron TM 400 Series 27 RESET Reset if high for >5ms 28 PCM_SYNC PCM Synchronous data sync 29 USB_D- USB data minus 30 PIO[1] Programmable input/output line 31 SPI_MISO Serial Peripheral Interface data output 32 SPI_MOSI Serial Peripheral Interface data input 33 PIO[7] Programmable input/output line 34 AUDIO_OUT_P_RIGHT Audio Speaker Output Positive (right side…

Text truncated - open the document above for the full version.

BTR200A-BHD100-BD23_v1_0.sch-1 - Mon Aug 28 19:17:28 2006 BTR200A-BHD100-BD23_v1_0.sch-2 - Mon Aug 28 19:17:30 2006

- The evaluation data of the report will be kept for 3 years from the date of issuance. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Antonio Precise Products Manufactory Ltd. Application For Certification Bluetooth Dongle (FCC ID: QLM0150609) 06152941 KL/ ac June 20, 2007 INTERTEK TESTING SERVICES FCC ID: QLM0150609 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual INTERTEK TESTING SERVICES FCC ID: QLM0150609 ii MEASUREMENT/TECHNICAL REPORT Antonio Precise Products Manufactory Ltd. - Model: BD23 FCC ID: QLM0150609 This report concerns (check one:) Original Grant X Class II Change Equipment Type : DXT - Pt 15 Low Pwr Transceiver, Rx Verified JBP - Pt 15 Class B Computer Peripheral Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until : date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37 ? Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [04-05-05 Edition] Provision. Report prepared by: Lam Chun Cheong, Kenneth Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Phone : 852-2173-8474 Fax: 852-2741-1693 INTERTEK TESTING SERVICES FCC ID: QLM0150609 iii Table of Contents 1.0 General Description................................................................................................. 2 1.1 Product Description ................................................................................................. 2 1.2 Related Submittal(s) Grants .................................................................................... 3 1.3 Test Methodology.................................................................................................... 3 1.4 Test Facility............................................................................................................. 3 2.0 System Test Configuration...................................................................................... 5 2.1 Justification ............................................................................................................. 5 2.2 EUT Exercising Software......................................................................................... 5 2.3 Support Equipment List and Description .................................................................. 6 2.4 Measurement Uncertainty ....................................................................................... 7 2.5 Equipment Modification ........................................................................................... 7 3.0 Emission Results..................................................................................................... 9 3.1 Field Strength Calculation...................................................................................... 10 3.2 Radiated Emission Configuration Photograph - Dongle.......................................... 11 3.3 Radiated Emission Data - Dongle.......................................................................... 12 3.4 Radiated Emission on the Bandedge..................................................................... 16 3.5 Line Conducted Configuration Photograph - Dongle .............................................. 17 3.6 Line Conducted Emission Data - Dongle ............................................................... 18 3.7 Radiated Emissions from Digital Portion of EUT .................................................... 19 4.0 Equipment Photographs........................................................................................ 22 5.0 Product Labelling................................................................................................... 24 6.0 Technical Specifications........................................................................................ 26 7.0 Instruction Manual................................................................................................. 28 INTERTEK TESTING SERVICES FCC ID: QLM0150609 iv List of attached file Exhibit type File Description filename Test Report Test Report report.pdf Operation Description Technical Description descri.pdf Test Setup Photo Radiated & Conducted Emission for Dongle config photos.doc Test Report Emission Plot emission.pdf Test Report Conducted Emission Test Result conduct.pdf External Photo External Photo external photos.doc Internal Photo Internal Photo internal photos.doc Block Diagram Block Diagram block.pdf Schematics Circuit Diagram circuit.pdf ID Label/Location Label Artwork and Location label.pdf User Manual User Manual manual.pdf INTERTEK TESTING SERVICES FCC ID: QLM0150609 1 EXHIBIT 1 GEN…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES Radiated Emission on the Bandedge Plots FCC ID: QLM0150609 emission - 1 of 1 Plot D1A Plot D1B

Report No.: 06152941 TX Mode (With USB Adaptor) Ctrl No.: N/A PAGE 1 Tested By:Hong, Report No.:06152941 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement: x QP / + AV Meas Time: 1 s Subranges: 16 Acc Margin: 20dB Transducer No. Start Stop Name 2 1 9k 30M EW0699 12 9k 30M EW0192 0 10 20 30 40 50 60 70 80 90 dBuV 100 0.15 MHz 30 110 F15Q F15A Report No.: 06152941 TX Mode (With USB Adaptor) Ctrl No.: N/A Tested By:Hong, Report No.:06152941 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement Results: Frequency QP Level QP Limit MHz dBuV dBuV 0.15000 40.7 66.0 0.22500 44.7 62.7 Frequency AV Level AV Limit MHz dBuV dBuV 0.47500 25.8 46.4 * limit

INTERTEK TESTING SERVICES The Worst Case Configuration Photographs FCC ID: QLM0150609 config photos (radiated emission – dongle) - 1 of 1 Radiated Emission – Dongle Front View Rear View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs FCC ID: QLM0150609 config photos (conducted emission) - 1 of 2 Conducted Emission Front View Right Side View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs FCC ID: QLM0150609 config photos (conducted emission) - 2 of 2 Conducted Emission Left Side View
